## Introduction to Attitude Control Systems

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

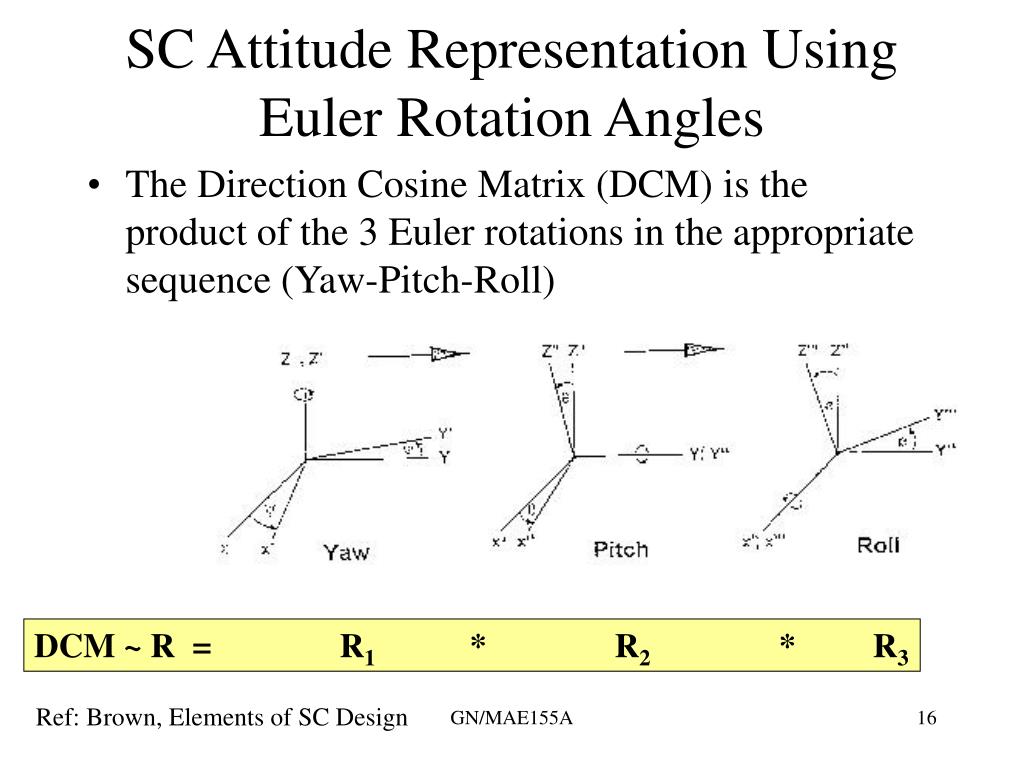

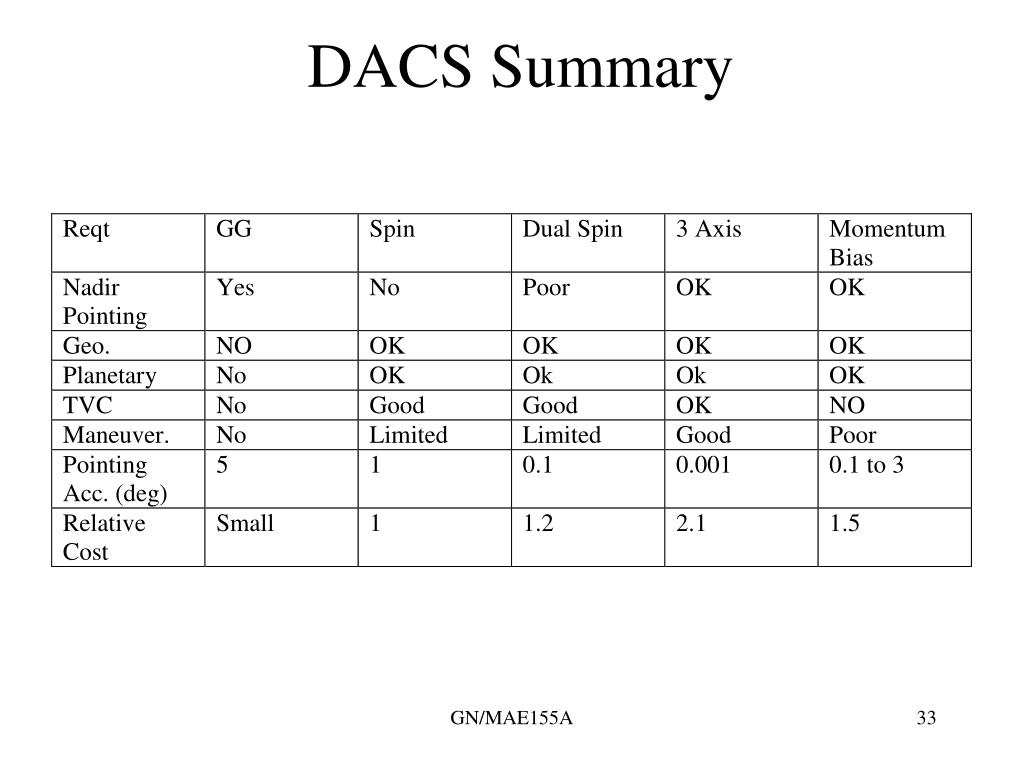

**Introduction to Attitude Control Systems**MAE 155A GN/MAE155A**Determination & Attitude Control Systems (DACS)**• Introduction • DACS Basics • Attitude Determination and Representation • Basic Feedback Systems • Stabilization Approaches GN/MAE155A**Determination & Attitude Control Systems (DACS)**• Control of SC orientation: Yaw, Pitch, Roll • 3 Components to DACS: • Sensor: Measure SC attitude • Control Law: Calculate Response • Actuator: Response (Torque) • Example: Hubble reqts 2x10-6 deg pointing accuracy => equivalent to thickness of human hair about a mile away! GN/MAE155A**Determination & Attitude Control Systems (DACS)**• Introduction • DACS Basics • Attitude Determination and Representation • Basic Feedback Systems • Stabilization Approaches GN/MAE155A**S/C**Correction Attitude Errors Sensors Gyros Horizon Sensors Sun Sensors Torquers Thrusters Reaction Wheels Momentum Wheels CMGs Computer Control Law DACS Basics GN/MAE155A**Determination & Attitude Control Systems (DACS)**• Spinning Spacecraftprovide simple pointingcontrol along single axis(low accuracy) • Three axis stabilityprovides high accuracypointing control in anydirection GN/MAE155A**DACS Design**• Considerations: • Mission Reqts • Disturbance Calcs • DACS System Design GN/MAE155A**DACS Reqts Definition**• Summarize mission pointing reqts • Earth (Nadir), Scanning, Inertial • Mission & PL Pointing accuracy • Note that pointing accuracy is influenced by all 3 DACS components • Pointing accuracy can range from < 0.001 to 5 degrees • Define Rotational and translational reqts for mission: Magnitude, rate and frequency • Calculate expected torque disturbances • Select ACS type; Select HW & SW • Iterate/improve as necessary GN/MAE155A**Torque Disturbances**• External • Gravity gradient: Variable g force on SC • Solar Pressure: Moment arm from cg to solar c.p. • Magnetic: Earth magnetic field effects • Aero. Drag: Moment arm from cg to aero center • Internal • Appendage motion, pointing motors- misalign, slosh • Cyclic and secular • Cyclic: varies in sinusoidal manner during orbit • Secular: Accumulates with time GN/MAE155A**Determination & Attitude Control Systems (DACS)**• Introduction • DACS Basics • Attitude Determination and Representation • Basic Feedback Systems • Stabilization Approaches GN/MAE155A**SC Attitude Determination Fundamentals**• Attitude determination involves estimating the orientation of the SC wrt a reference frame (usually inertial or geocentric), the process involves: • Determining SC body reference frame location from sensor measurements • Calculating instantaneous attitude wrt reference frame • Using attitude measurement to correct SC pointing using actuators (or torquers) GN/MAE155A**Basic SC Attitude Determination**Sensor Data State Estimation Attitude Calculation • Batch Estimators • Least Squares • Kalman Filtering • Gyros • Star/Sun Sensor • Magnetometer • Euler Angles • DCM • Quaternions Control Law Used to Determine Required Correction GN/MAE155A**Attitude Sensors**• Performance requirements based on mission • Weight, power and performance trades performed to select optimal sensor • Multiple sensors may be used GN/MAE155A**State Estimation Approaches**• Estimate SC orientation using data measurements • Estimates typically improve as more data are collected (assuming no ‘jerk motion’) • Estimation theory and statistical methods are used to obtain best values • Least squares and Kalman filtering are most common approaches • Least squares minimizes square of error (assumes Gaussian error distribution) • Kalman filter minimizes variance GN/MAE155A**SC Attitude Representation**• SC frame of reference typically points SC Z axis anti-Nadir, and X axis in direction of velocity vector • Relationship between SC and inertial reference frame can be defined by the 3 Euler angles (Yaw, Pitch and Roll) • Note that both magnitude and sequence of rotation affect transformation between SC and inertial reference frame GN/MAE155A**SC Attitude Representation Using Euler Rotation Angles**• The Direction Cosine Matrix (DCM) is the product of the 3 Euler rotations in the appropriate sequence (Yaw-Pitch-Roll) DCM ~ R = R1 * R2 * R3 Ref: Brown, Elements of SC Design GN/MAE155A**Direction Cosine Rotation Matrix**The DCM is given by: Note that each transformation requires substantial arithmetic and trigonometric operations, rendering it computationally intensive An alternative, and less computationally intensive, approach to using DCM involves the use of Quaternions Ref: Brown, Elements of SC Design GN/MAE155A**Quaternion Definition**• Euler’s theorem states that any series of rotation of a rigid body can be represented as a single rotation about a fixed axis • Orientation of a body axis can be defined by a vector and a rotation about that vector • A quaternion, Q, defines the body axis vector and the scalar rotation => 4 elements • Q = i.q1 + j.q2 + k.q3 + q4 , wherei2 = j2 = k2 = -1 GN/MAE155A**Basic Quaternion Properties**• Given the quaternion Q, where Q = i.q1 + j.q2 + k.q3 + q4 ; we have ij = - ji = k; jk = -kj = i; ki = -ik = j • Two quaternions, Q and P are equal iff all their elements are equal, i.e., q1 =p1 ; q2 =p2 ;q3 =p3 • Quaternion multiplication is order dependent, R=Q*P is given by: R = (i.q1 + j.q2 + k.q3 + q4)*(i.p1 + j.p2 + k.p3 + p4) • The conjugate of Q is given by Q*, whereQ* = -i.q1 - j.q2 - k.q3 + q4 • The inverse of Q, Q-1 = Q* when Q is normalized GN/MAE155A**Basic Quaternion Properties**The DCM can be expressed in terms of quaternion elements as: • The quaternion transforming frame A into frame B is given by: • VB = Qab VA (Qab)* • Quaternions can also be combined as: • Qac = Qbc Qab GN/MAE155A**Comparison of 3-Axis Attitude Representation**Ref: Brown, Elements of SC Design GN/MAE155A**Determination & Attitude Control Systems (DACS)**• Introduction • DACS Basics • Attitude Determination and Representation • Basic Feedback Systems • Stabilization Approaches GN/MAE155A**Feedback Loop Systems**• The control loop can use either an open or closed system. Open loop is used when low accuracy is sufficient, e.g., pointing of solar arrays. • Generic closed-loop system: Disturbance e =r +a Control Law, Actuators Spacecraft Dynamics Output Reference Error r a a Ref: Brown, Elements of SC Design GN/MAE155A**Basic Rotation Equations Review**Angular displacement: = 1/2 t2 = d /dt(note ‘burn’ vs. maneuvering time) Angular speed: = t Angular acceleration: = T/IvAngular Momentum: H = Iv => H = T t Where, ~ rotation angle; ~ angular acceleration T ~ torque; Iv ~ SC moment of Inertia H ~ Angular Momentum; ~angular speed GN/MAE155A**Basic Rotation Equations Review**Torque equations: T = dH/dt = Iv d /dt = Iv d2 / dt2(Iv assumed constant)Note that the above equations are scalar representations of their vector forms (3D) Hx Hy Spin axis precession GN/MAE155A**Determination & Attitude Control Systems (DACS)**• Introduction • DACS Basics • Attitude Determination and Representation • Basic Feedback Systems • Stabilization Approaches GN/MAE155A**Spin Stabilized Systems**• Spinning SC (spinner): resists disturbance toques (gyroscopic effect) • Disturbance along H vector affects spin rate • Disturbance perp. to H => Precession • Adv: Low cost, simple, no propel mgmt • Disadv:- Low pointing accuracy (> 0.3 deg) - I about spinning axis >> other I - Limited maneuvering, pointing • Dual spin systems: major part of SC spins while a platform (instruments) is despun GN/MAE155A**SC Stabilization Systems**F2 - Gravity Gradient (G2) Systems (passive): Takes adv of SC tendency to align its long axis along g vector, g = GM/r; r1<r2 => F1>F2 => Restoring Torque -Momentum Bias: Use momentum wheel to provide inertial stiffness in 2 axes, wheel speed provides control in 3rd axis r2 F1 r1 Stability condition: Ir r > (Ixx-Iyy) y Pitch axis (y) wheel V SC Nadir GN/MAE155A**SC Stabilization Systems**• Reaction Wheels (RW) • Motor spins a small free rotating wheel aligned w. vehicle control axis (~low RPM) • One wheel per axis needed, however, additional wheels are used for redundancy • RW only store, not remove torques • Counteracting external torque is needed to unload the stored torque, e.g., magnetic or rxn jets (momentum dumping) • Speed of wheel is adjusted to counter torque GN/MAE155A**SC Stabilization Systems**• RW at high RPM are termed momentum wheels. • Also provides gyroscopic stability • Magnetic (torque) coils can be used to continuously unload wheel • Wheels provide stability during periods of high torque disturbances • Control Moment Gyro • Gimbaled momentum wheel GN/MAE155A**SC Stabilization Systems (External):**• Thrusters: Used to provide torque (external) on SC • Magnetic torque rods • Can be used to provide a controlled external torque on SC • Need to minimize potential residual disturbance torqueT = M x B where M~dipole w. magnetic moment M B~Local Flux density GN/MAE155A**Reaction Wheels**Magnetometers Magnetic Torquers GN/MAE155A**DACS Summary**GN/MAE155A**Conclusions**• Examples • References • Discussion & Questions GN/MAE155A
