Lander Attitude Control

12 General Kinetics H 2 O 2 thrusters. Lander Side view. Lander Top view. Lander Attitude Control. Based on Rauschenbakh, Ovchinnikov, and McKenna-Lawlor. . . θ. θ. + θ 1. + θ 1. θ. θ. - θ 1. - θ 1. No External Torque. “Large” External Torque. Attitude Prop Mass Estimate.

vivian
Télécharger la présentation

Lander Attitude Control

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

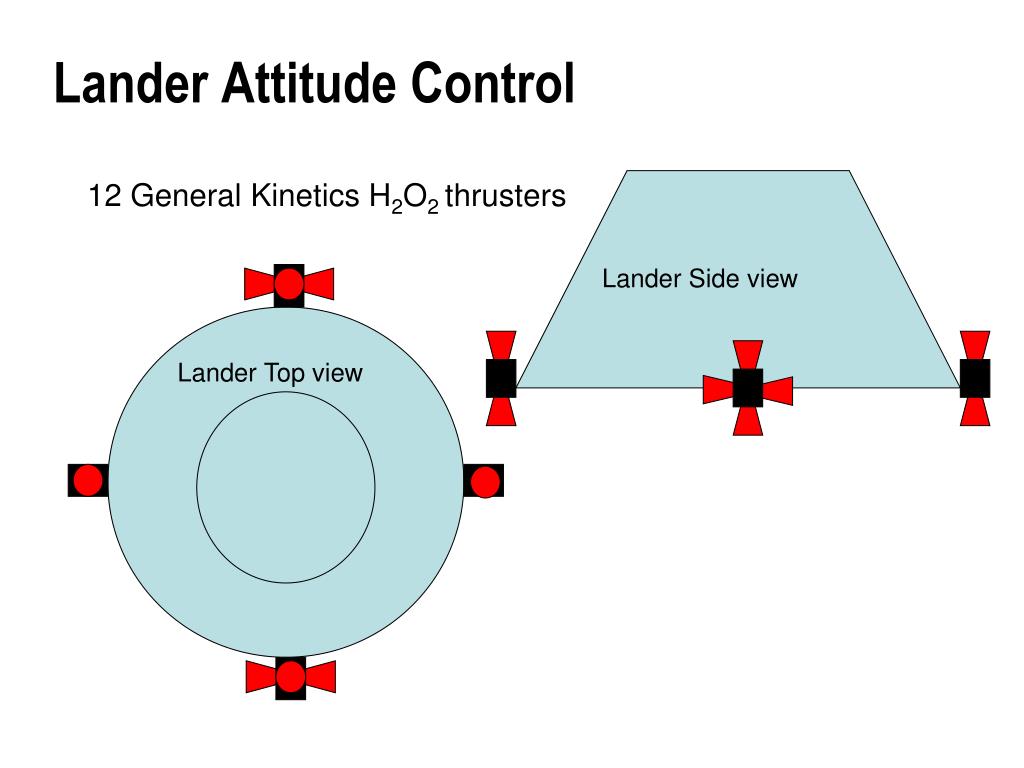

  1. 12 General Kinetics H2O2 thrusters Lander Side view Lander Top view Lander Attitude Control

  2. Based on Rauschenbakh, Ovchinnikov, and McKenna-Lawlor . . θ θ +θ1 +θ1 θ θ -θ1 -θ1 No External Torque “Large” External Torque Attitude Prop Mass Estimate Mb = external moment applied g = gravitational acceleration Isp = specific impulse of thrusters L = distance from thruster to vehicle center of mass

  3. Spinning Lander Attitude Control • Propellant and thrusters still needed for spin up and axis reorientation • Estimate ~2.2 kg propellant savings for 100g/10kg cases • Additional mass: spinning landing gear, propulsion system redesigns, additional attitude sensing devices • Increased complexity: Liquid propellant feed while spinning, landing while spinning, reorientation of axis

  4. Some or all travel could be obtained from bouncing using stored descent energy Compressed gas not recommended – highly temperature sensitive, limited velocity and acceleration inputs Commercial gas springs limited to approx. -23° to 82° Lunar surface temperature -153° to 107° C Compressed Gas Spring Energy Storage
