  1. Outline Notes (not in presentation) • Intro • Overview of PETE (very high level) • What pete does. • Files – say what each file does • Explain Traced Example • Expression • Trace • Functions • Conclude • Handouts – trace file

  2. PETE code Review Xingmin Luo 7/2/2003

  3. Outline • Motivation

  4. Overview of PETE • Program expressions • a = 1; • a = b; • a = b + c; • a = b + c + d; • Future Work and Conclusions

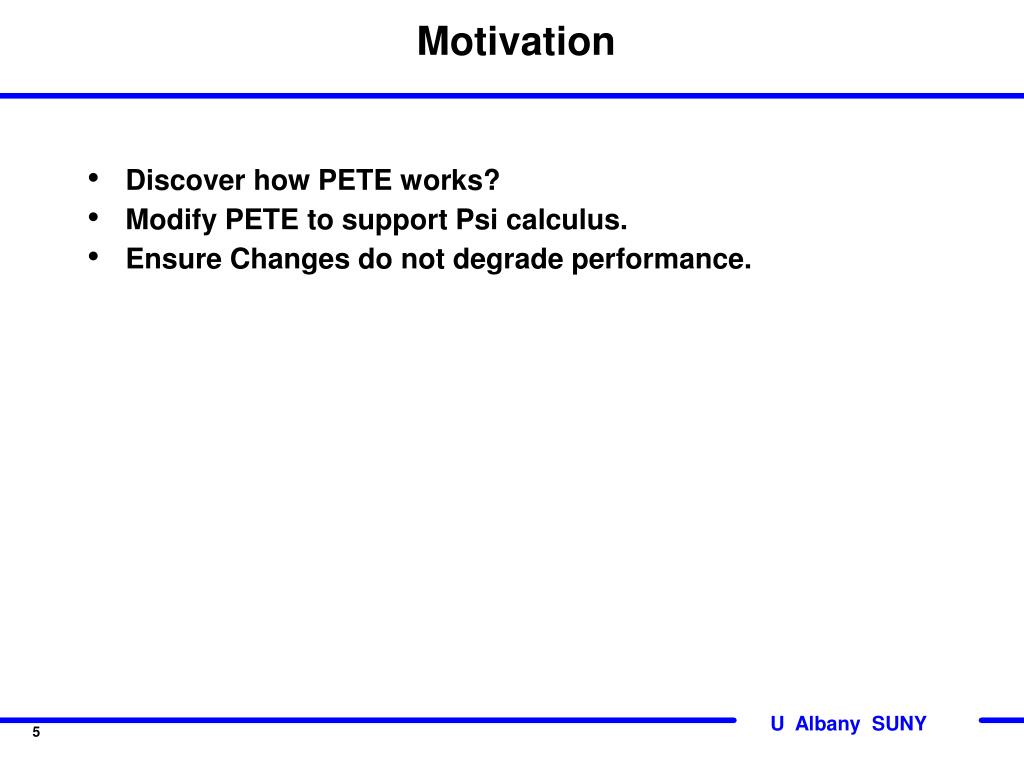

  5. Motivation • Discover how PETE works? • Modify PETE to support Psi calculus. • Ensure Changes do not degrade performance.

  6. What is PETE Portable Expression Template Engine Faster C++ Expression Templates Arithmetic Expressions Efficient Loops

  7. Files • PETE ( pete.h ) includes the following files • #include "PETE/Scalar.h" • #include "PETE/TypeComputations.h" • #include "PETE/TreeNodes.h" • #include "PETE/OperatorTags.h" • #include "PETE/Functors.h" • #include "PETE/Combiners.h" • #include "PETE/ForEach.h" • #include "PETE/CreateLeaf.h“ • Our Files: • Array.cpp • Array.h

  8. Flow of a = b + c + d; Operator=() (Array.h) forEach() (ForEach.h) LeafFunctor() (Array.h) EvalLeaf1() (Functors.h) Opcombine() (Combiners.h) PETE_EMPTY_CONSTRUCTORS() (PETE.h)

  9. Trace result of a = b + c + d; (1) • Array.cpp (our file) a = b + c + d; • Array.h (Our file) template <class T = int> class Array { ……… template<class RHS> Array &operator=(const Expression<RHS> &rhs) { for(long i=0; i<this->size; i++) d[i] = forEach(rhs, EvalLeaf1(i), OpCombine()); return *this; //equal to: a.d[i] = b.d[i]+c.d[i]+d.d[i] } ……. private: T * d; vector <int> shape; long size; }

  10. Trace result of a = b + c + d; (2) • ForEach.h template<class Expr, class FTag, class CTag> inline typename ForEach<Expr,FTag,CTag>::Type_t forEach(const Expr &e, const FTag &f, const CTag &c) { return ForEach<Expr, FTag, CTag>::apply(e, f, c); } template<class Expr, class FTag, class CTag> struct ForEach { typedef typename LeafFunctor<Expr, FTag>::Type_t Type_t; inline static Type_t apply(const Expr &expr, const FTag &f, const CTag &) { return LeafFunctor<Expr, FTag>::apply(expr, f); } };

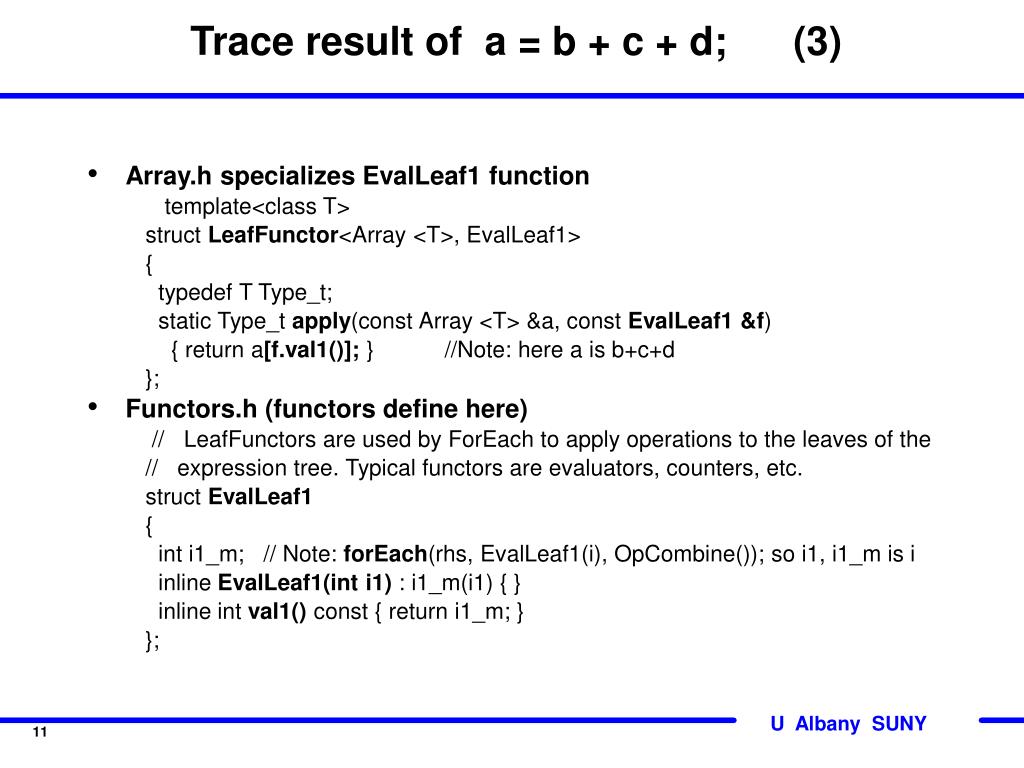

  11. Trace result of a = b + c + d; (3) • Array.h specializes EvalLeaf1 function template<class T> struct LeafFunctor<Array <T>, EvalLeaf1> { typedef T Type_t; static Type_t apply(const Array <T> &a, const EvalLeaf1 &f) { return a[f.val1()]; } //Note: here a is b+c+d }; • Functors.h (functors define here) // LeafFunctors are used by ForEach to apply operations to the leaves of the // expression tree. Typical functors are evaluators, counters, etc. struct EvalLeaf1 { int i1_m; // Note: forEach(rhs, EvalLeaf1(i), OpCombine()); so i1, i1_m is i inline EvalLeaf1(int i1) : i1_m(i1) { } inline int val1() const { return i1_m; } };

  12. Trace result of a = b + c + d; (4) • Combiners.h (defines combiner tag) struct OpCombine //Actually, this Tag did nothing. { PETE_EMPTY_CONSTRUCTORS(OpCombine) }; • PETE.h #define PETE_EMPTY_CONSTRUCTORS(CLASS) \ CLASS() { } \ CLASS(const CLASS &) { } \ CLASS &operator=(const CLASS &) { return *this; } • Equals to: OpCombine() { } OpCombine (const OpCombine &) { } OpCombine &operator=(const OpCombine &) { return *this; }

  13. Future Work • Modify PETE code to support Psi operations. • Extend our current implementation of the Psi calculus • Build high-level Psi calculus tools

  14. Conclusions • PETE’s Expression templates provide the ability to perform compiler preprocessor-style optimizations (expression tree manipulation) • The C++ template mechanism can be applied to a wide variety of problems (e.g. tree traversal ala PETE, graph traversal, list traversal) to gain run-time speedup at the expense of compile time/space

  15. Acknowlegements • Prof. Lenore Mullin • Prof. Dan Rosenkrantz • Prof. Harry Hunt • Lawrence Bush

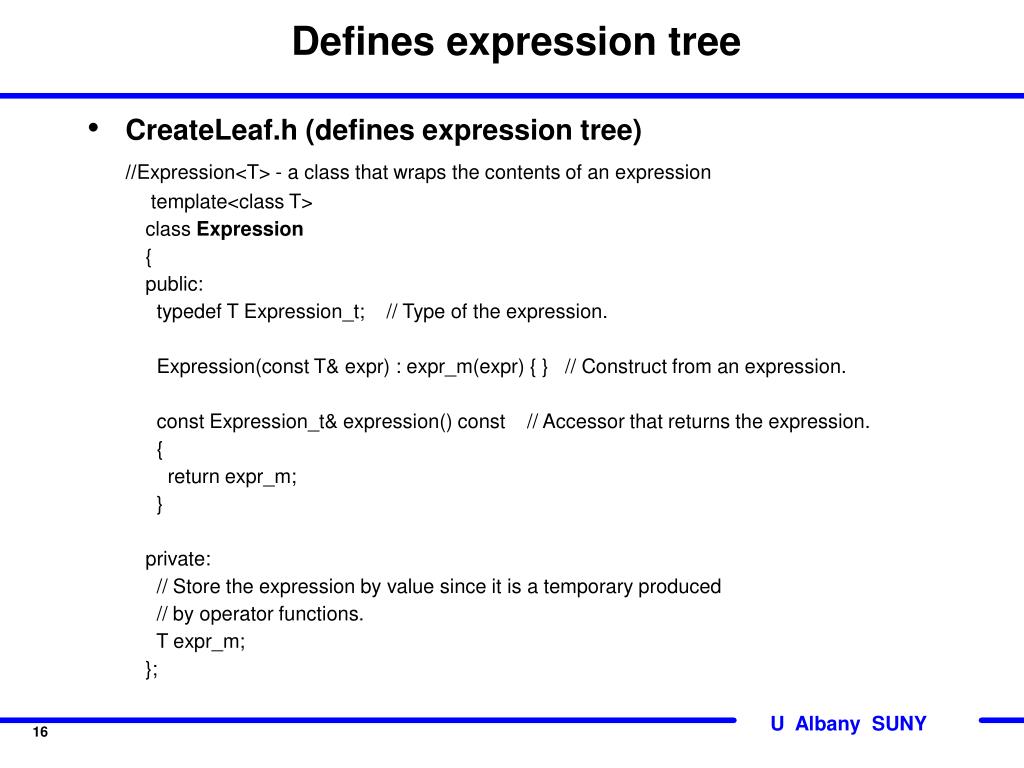

  16. Defines expression tree • CreateLeaf.h (defines expression tree) //Expression<T> - a class that wraps the contents of an expression template<class T> class Expression { public: typedef T Expression_t; // Type of the expression. Expression(const T& expr) : expr_m(expr) { } // Construct from an expression. const Expression_t& expression() const // Accessor that returns the expression. { return expr_m; } private: // Store the expression by value since it is a temporary produced // by operator functions. T expr_m; };
