7-6 6 th grade math

nerys avatar
nerys
11 diapositives · 321 Views · Oct 23, 2014

7-6 6 th grade math. Angle Pairs. Objective. To find the measure of an unknown angle from its relationship to other angles Why? To know how to ‘read’ angle pairs will help you get a good foundation for geometry, later in high school math. California State Standards.

#7-6 6 th grade math #7-6 6 th grade math ppt #powerpoint #presentation
7-6 6 th grade math - slide 1
01 / 117-6 6 th grade math
1 / 17

Télécharger la présentation

7-6 6 th grade math
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

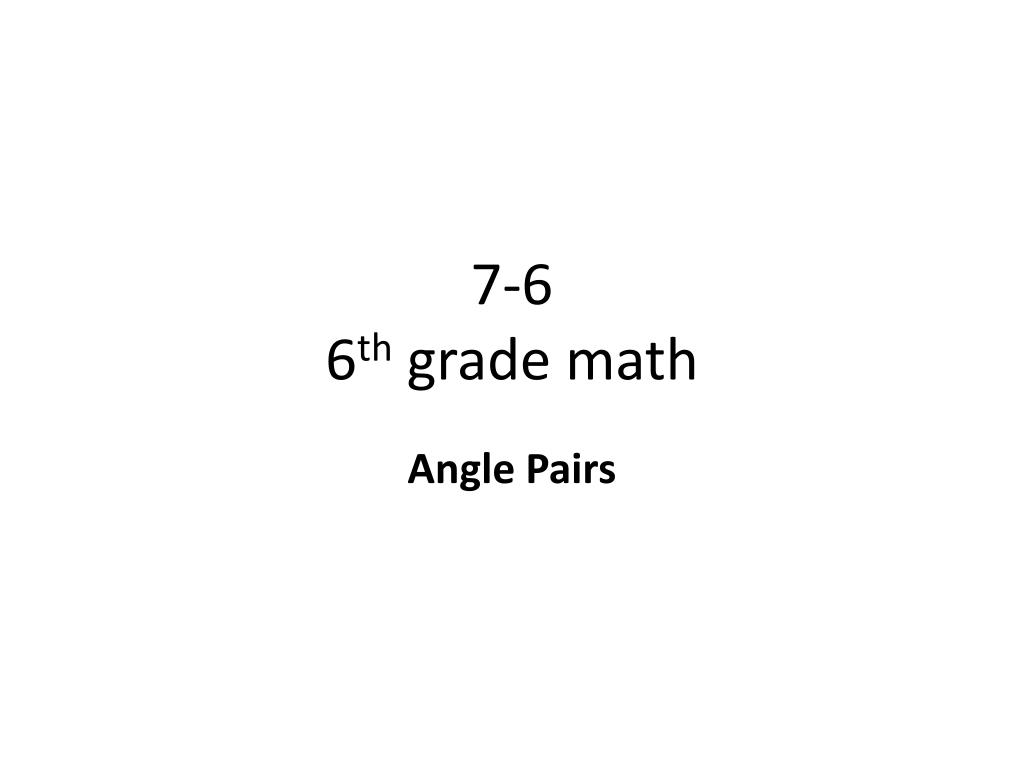

  1. 7-66th grade math Angle Pairs

  2. Objective • To find the measure of an unknown angle from its relationship to other angles • Why? To know how to ‘read’ angle pairs will help you get a good foundation for geometry, later in high school math.

  3. California State Standards MG 2.2 : Use the properties of complementary and supplementary angles … to solve problems involving an unknown angle. MG 2.1: Identify angles as vertical, adjacent, complementary, or supplementary and provide descriptions of these forms. AF 1.1 : Write and solve one-step linear equations in one variable. AF 3.2: Express in symbolic form simple relationships arising from geometry.

  4. Vocabulary • Vertical angles • Two angles formed by intersecting lines and having no sides in common. They have the same angle ∠ m.̮͡ • Supplementary angles • Two angles whose sum of their measures equals 180° • Complementary angles • Two angles whose sum of their measures equals 90° • Adjacent angles • Two angles that have a common vertex and a common side but do not overlap .

  5. Vocabulary • Intersecting angles or lines • Two lines or angles that have exactly one point in common • Perpendicular lines • Two lines that intersect and form a 90° angle ┐ • Parallel lines • Two lines that will never intersect each other

  6. How to Find Measures of Angles w/o a Protractor 1) Observe and/or trace the angles needed to be identified: adjacent?, supplementary?, complementary?, vertical? 2) If vertical, the angles are the same. If adjacent, are angles supplementary or complementary? If supplementary, subtract from 180°. If complementary, subtract from 90 °. 3) Check your work. F 147° H E G J ∠GEJ and ∠FEH are vertical angles ∠GEJ = 147 °, so ∠FEH = 147 ° If ∠GEH = 180°, ∠GEJ = 147 °, so ∠HEJ = 180 - 147 = 33. ∠HEJ = 33° Then ∠HEJ = 33°, so ∠GEF = 33°

  7. How to Find Measures of Angles w/o a Protractor C 50° A O D ∠AOC and ∠COD are adjacent, supplementary angles, and m∠COD = 50°. Find ∠AOC. 180 – 50 = 130 ∠AOC = 130° N M 25° L K ∠KLM and ∠MLN are adjacent, complementary angles and m∠MLN = 25°. Find ∠KLM. 90 – 25 = 65 ∠KLM = 65 °

  8. Try It! Find the ∠m. 1) a 35° 2) 79° b 3) 110° c 4) d 50° 130° • 55, complementary • 79, vertical • 70, supplementary • 80, supplementary

  9. 5) Draw: m∠ of 120° with an adjacent supplementary angle, name this angle. 6) Draw: m∠ of 45° with an adjacent, name this angle. 7) Two angles that are congruent and supplementary. What are their m∠ ? 5) 60° 120° 6) 45° 45° • 90° and 90°

  10. Objective Review • To find the measure of an unknown angle from its relationship to other angles • Why? You now know how to ‘read’ angle pairs will help you get a good foundation for geometry, later in high school math. • Knowing the relationships of certain pairs of angles can help you find the measure of an unknown angle.

  11. Independent Practice • Complete problems 8-19 • Copy original problem first. • Show all work! • If time, complete Mixed Review: 20-22 • If still more time, work on Accelerated Math.
