  1. EZ Positioning with SINAMICS S120Starter Script File

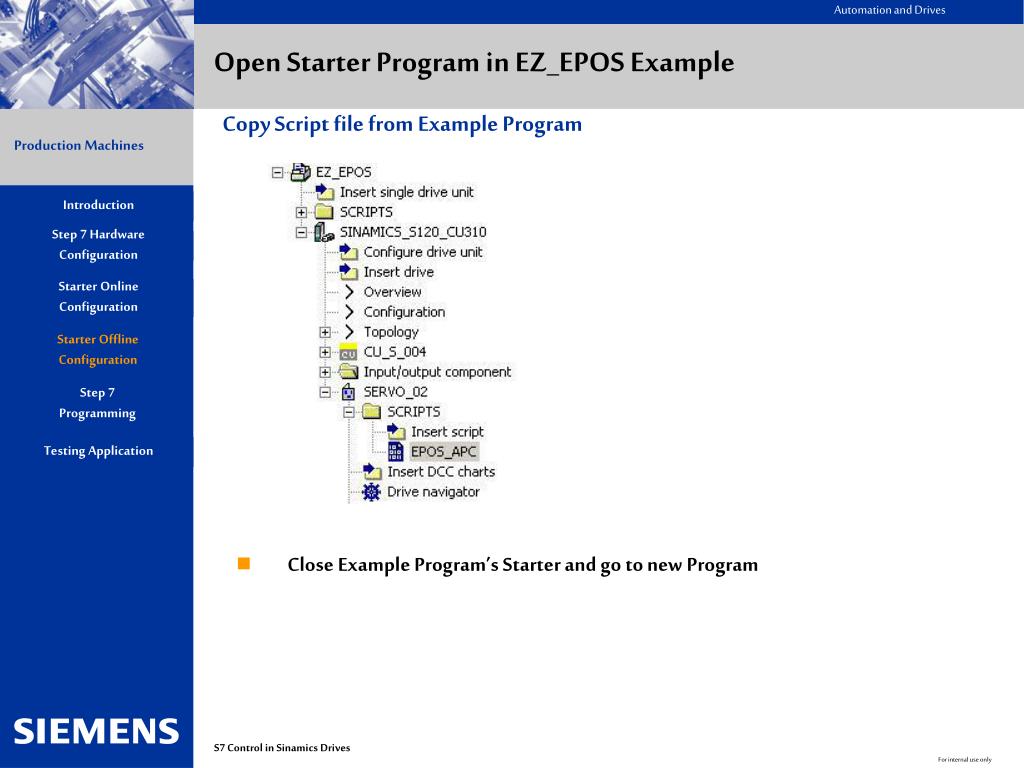

  2. Copy Script file from Example Program Open Starter Program in EZ_EPOS Example • Close Example Program’s Starter and go to new Program

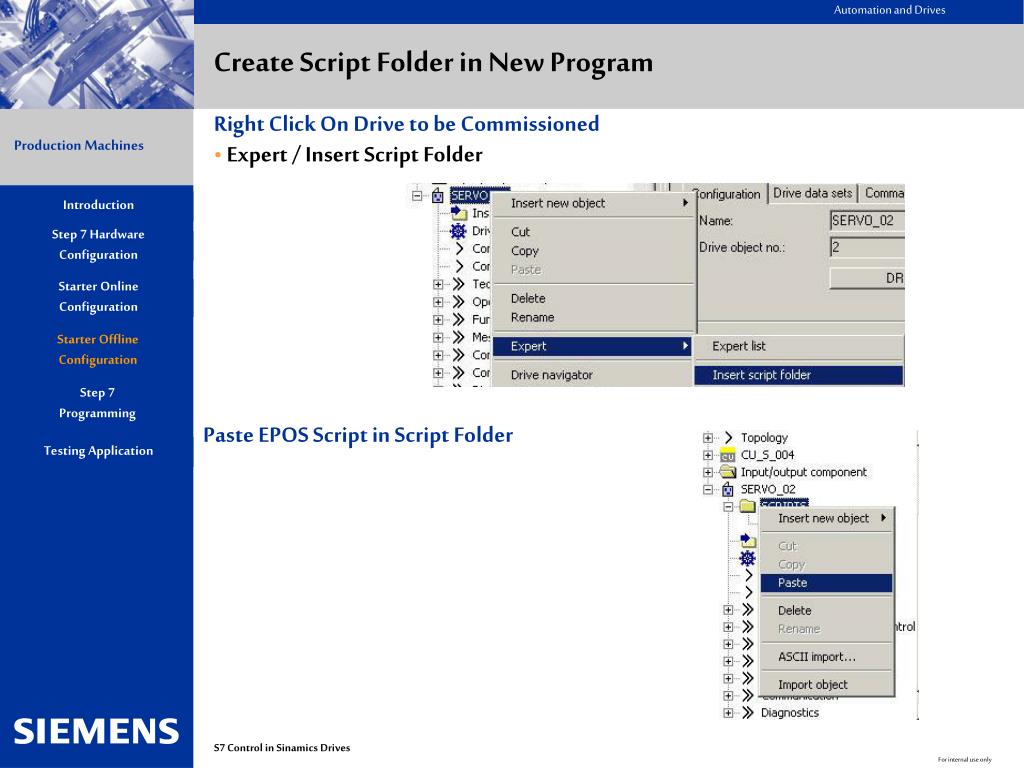

  3. Right Click On Drive to be Commissioned Expert / Insert Script Folder Create Script Folder in New Program Paste EPOS Script in Script Folder

  4. Click On EPOS Script The Script Editor Opens Open EPOS Script in New Project • Click inside the Script Editor area • The Script Editor Buttons appear on the Task Bar

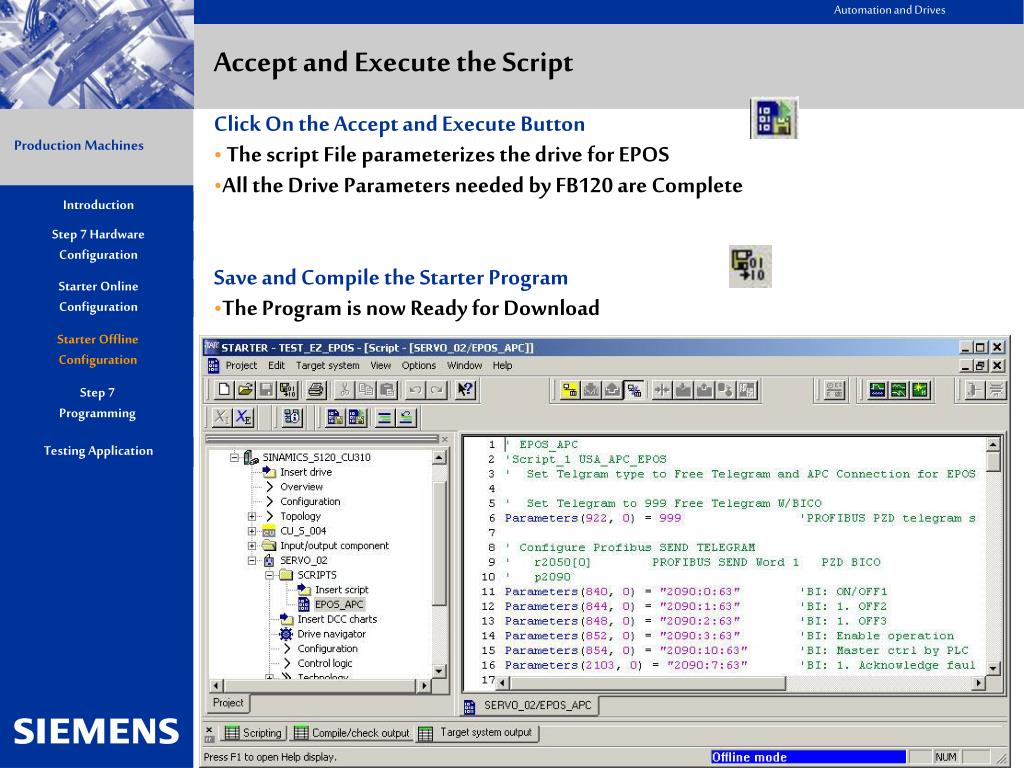

  5. Click On the Accept and Execute Button The script File parameterizes the drive for EPOS All the Drive Parameters needed by FB120 are Complete Save and Compile the Starter Program The Program is now Ready for Download Accept and Execute the Script

  6. Go Online with Starter to the Drive Choose Download to the Drive Choose RAM to ROM Drive is now ready for Operation Download to the Drive
