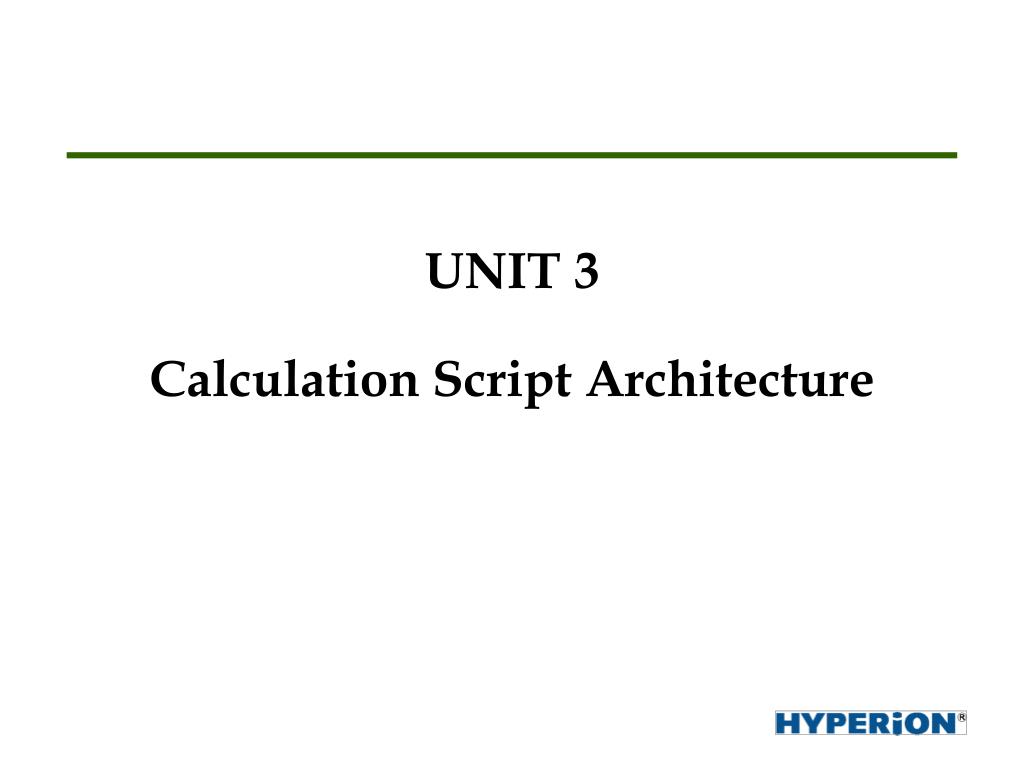

  1. UNIT 3Calculation Script Architecture

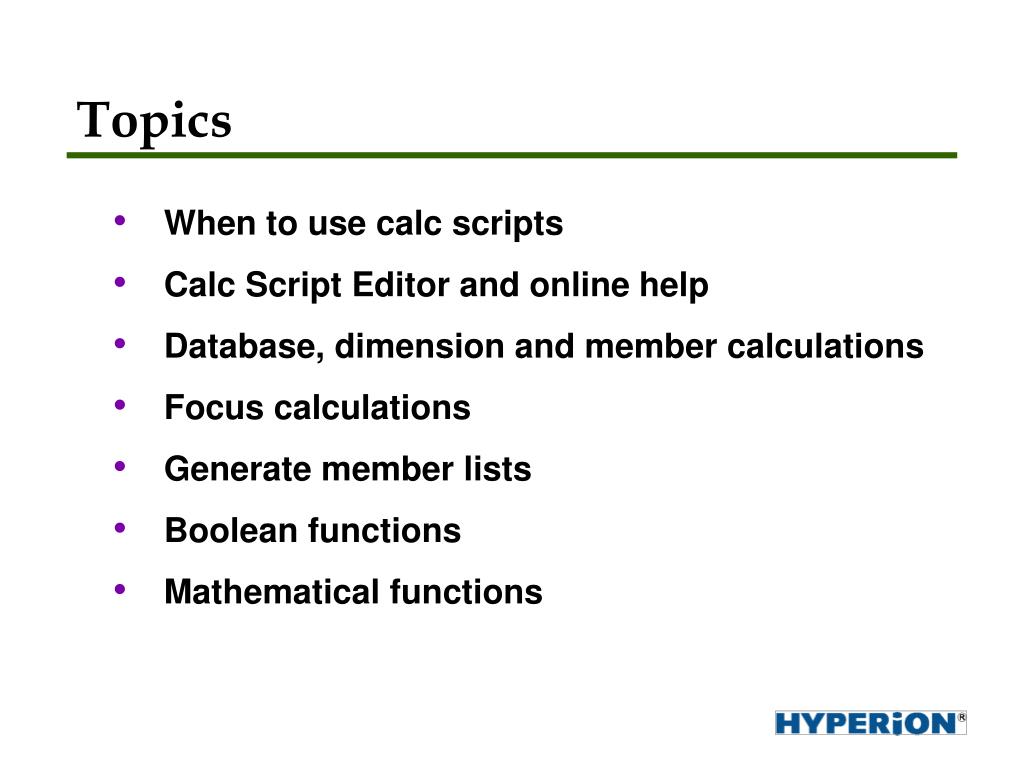

  2. Topics • When to use calc scripts • Calc Script Editor and online help • Database, dimension and member calculations • Focus calculations • Generate member lists • Boolean functions • Mathematical functions

  3. Introducing Calc Scripts • Components of calc scripts • Calc Script Editor and online Help • Commands and functions

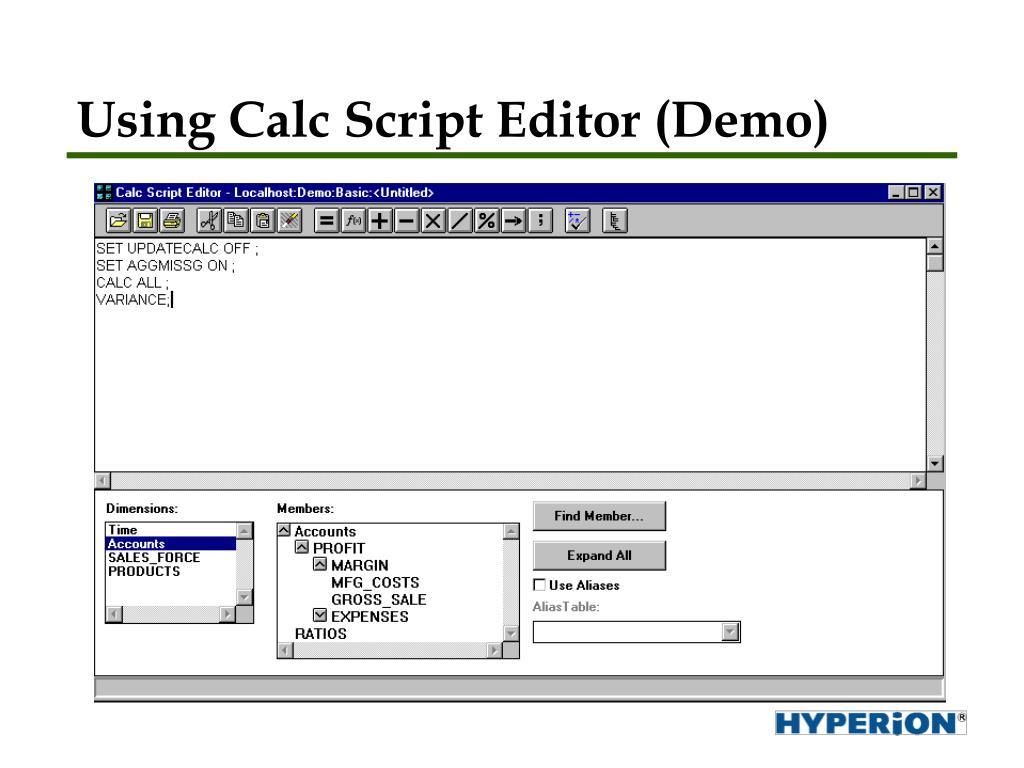

  4. Using Calc Script Editor (Demo)

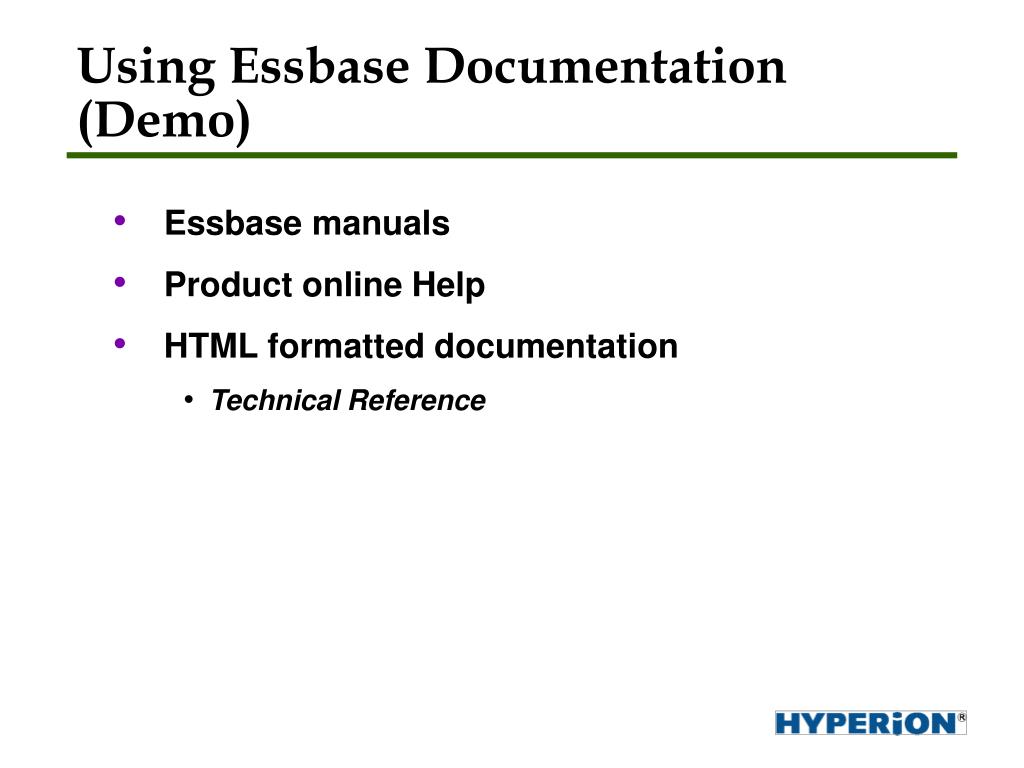

  5. Using Essbase Documentation (Demo) • Essbase manuals • Product online Help • HTML formatted documentation • Technical Reference

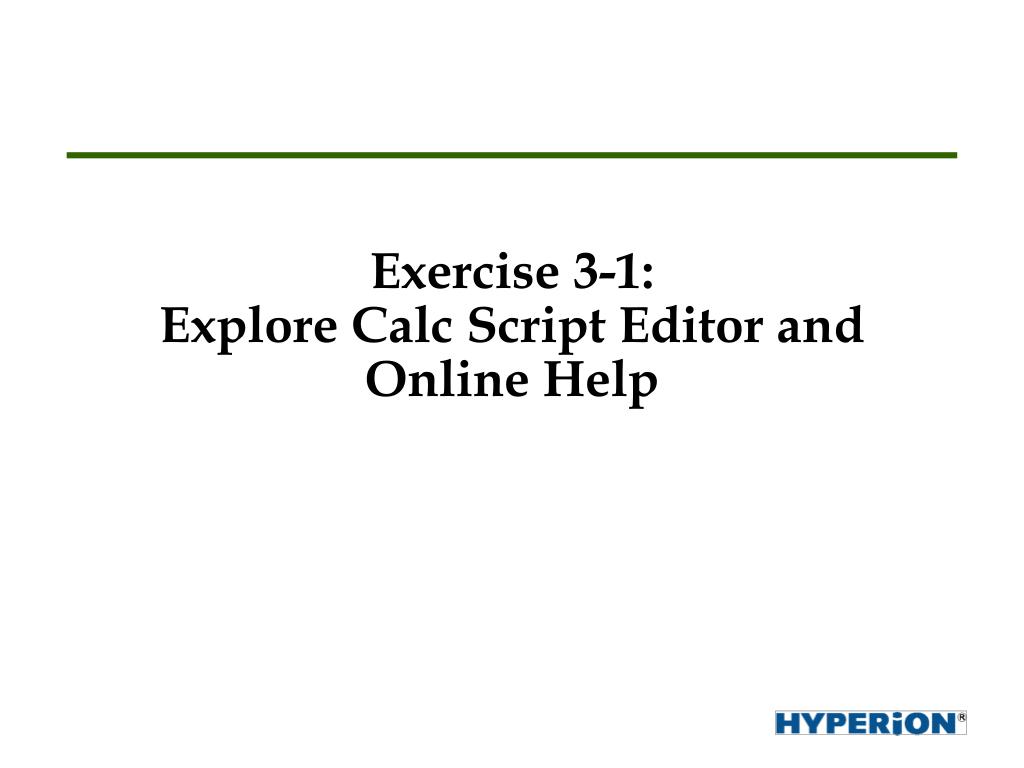

  6. Exercise 3-1: Explore Calc Script Editor and Online Help

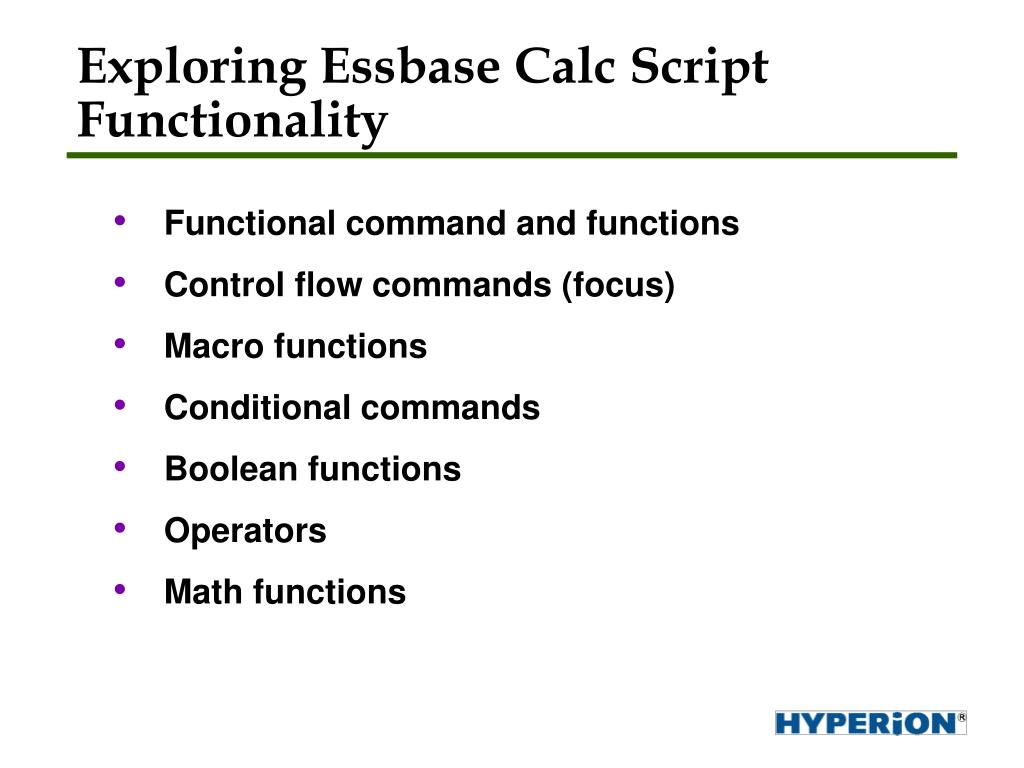

  7. Exploring Essbase Calc Script Functionality • Functional command and functions • Control flow commands (focus) • Macro functions • Conditional commands • Boolean functions • Operators • Math functions

  8. Using Functional Commands • CALC ALL • CALC DIM • MEMBER CALC • Other CALC script commands

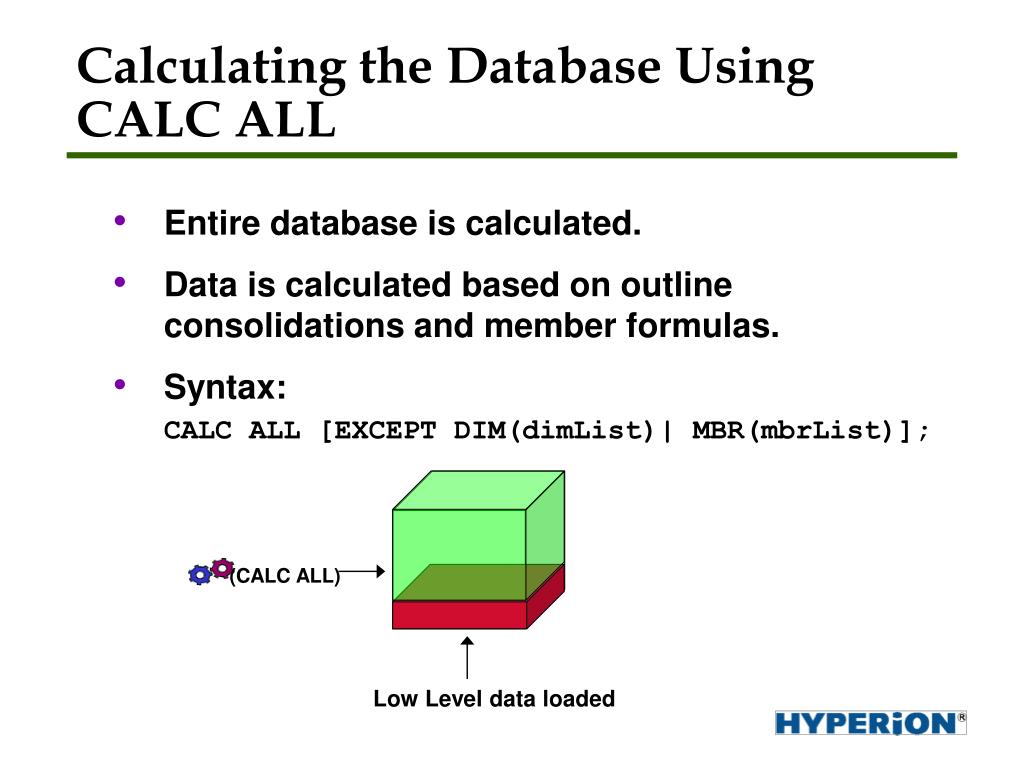

  9. (CALC ALL) Low Level data loaded Calculating the Database Using CALC ALL • Entire database is calculated. • Data is calculated based on outline consolidations and member formulas. • Syntax:CALC ALL [EXCEPT DIM(dimList)| MBR(mbrList)];

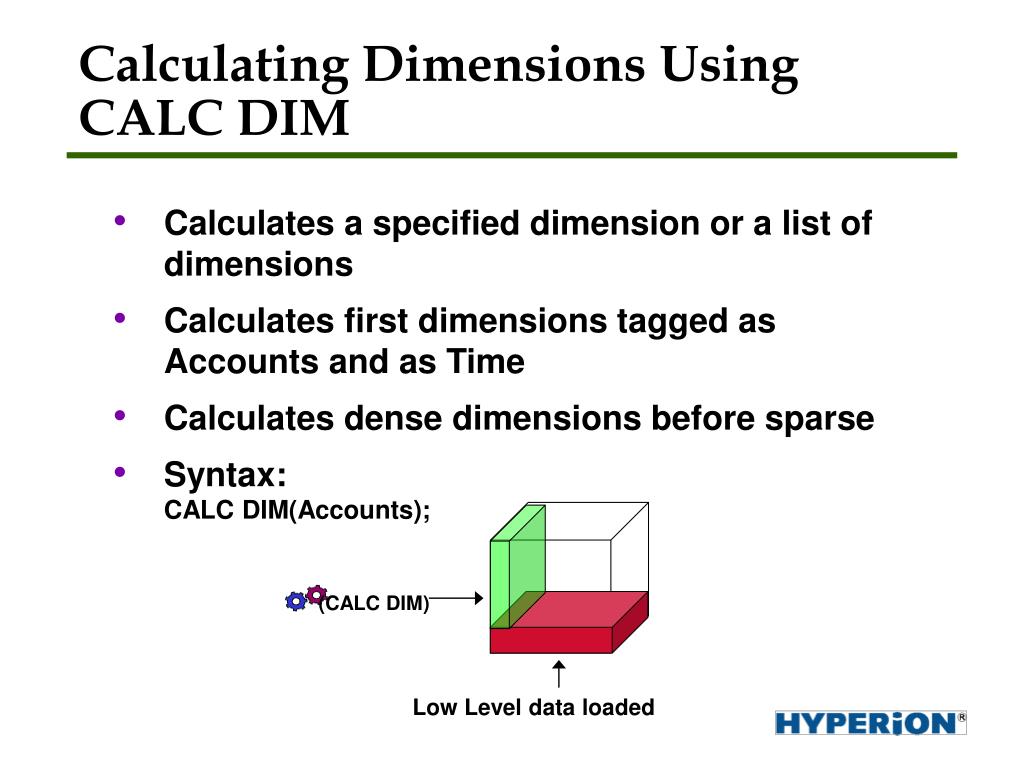

  10. (CALC DIM) Low Level data loaded Calculating Dimensions Using CALC DIM • Calculates a specified dimension or a list of dimensions • Calculates first dimensions tagged as Accounts and as Time • Calculates dense dimensions before sparse • Syntax:CALC DIM(Accounts);

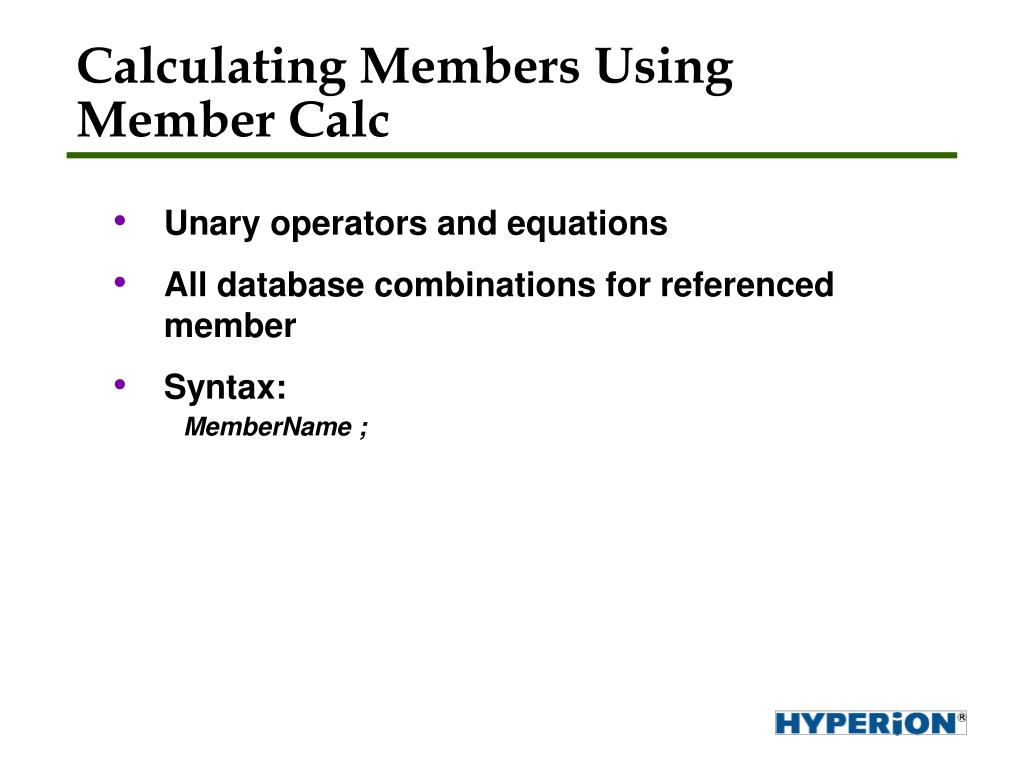

  11. Calculating Members Using Member Calc • Unary operators and equations • All database combinations for referenced member • Syntax: MemberName ;

  12. Exercise 3-2:Use Calc Functions

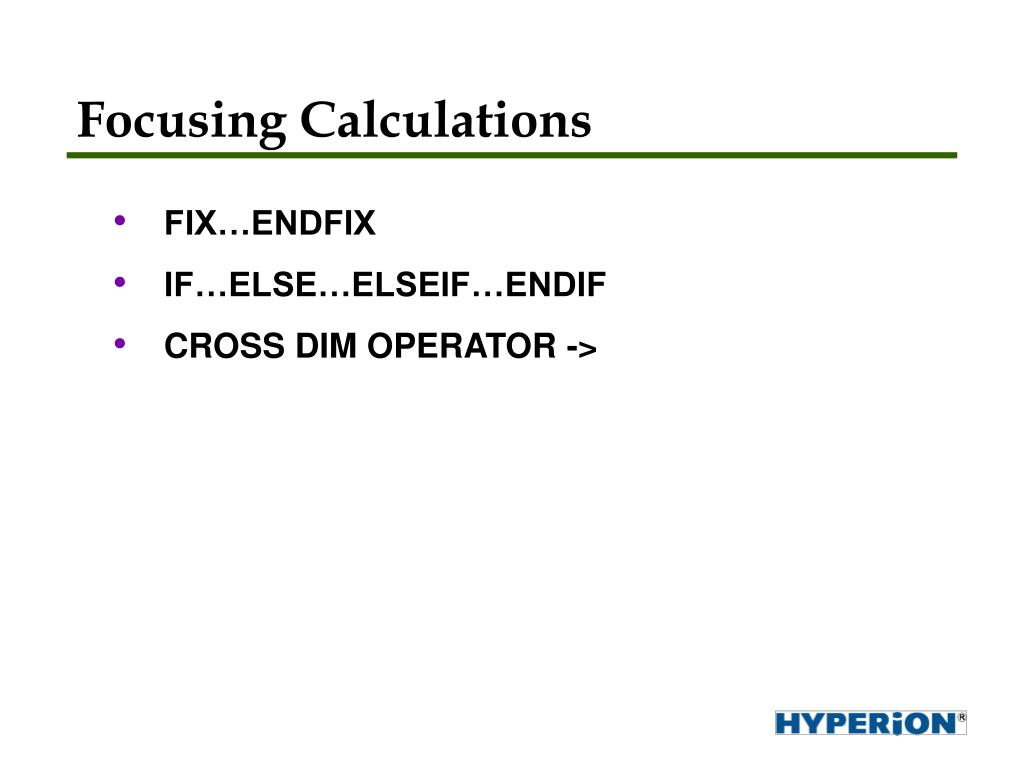

  13. Focusing Calculations • FIX…ENDFIX • IF…ELSE…ELSEIF…ENDIF • CROSS DIM OPERATOR ->

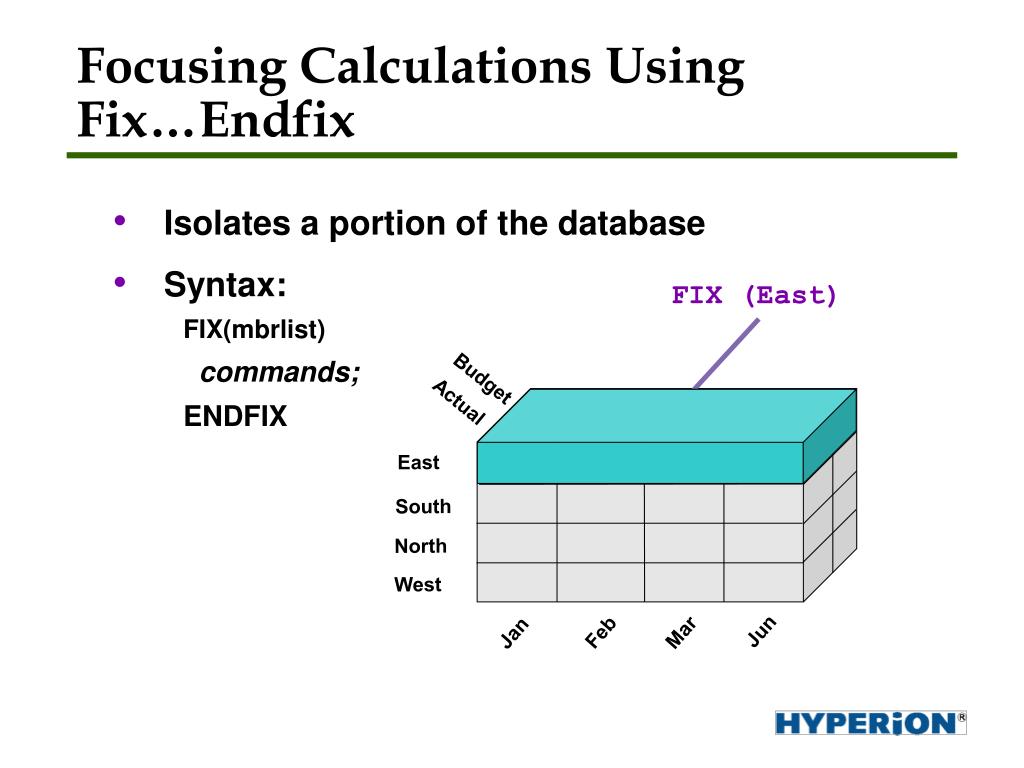

  14. FIX (East) Budget Actual East South North West Jun Feb Mar Jan Focusing Calculations Using Fix…Endfix • Isolates a portion of the database • Syntax: FIX(mbrlist) commands; ENDFIX

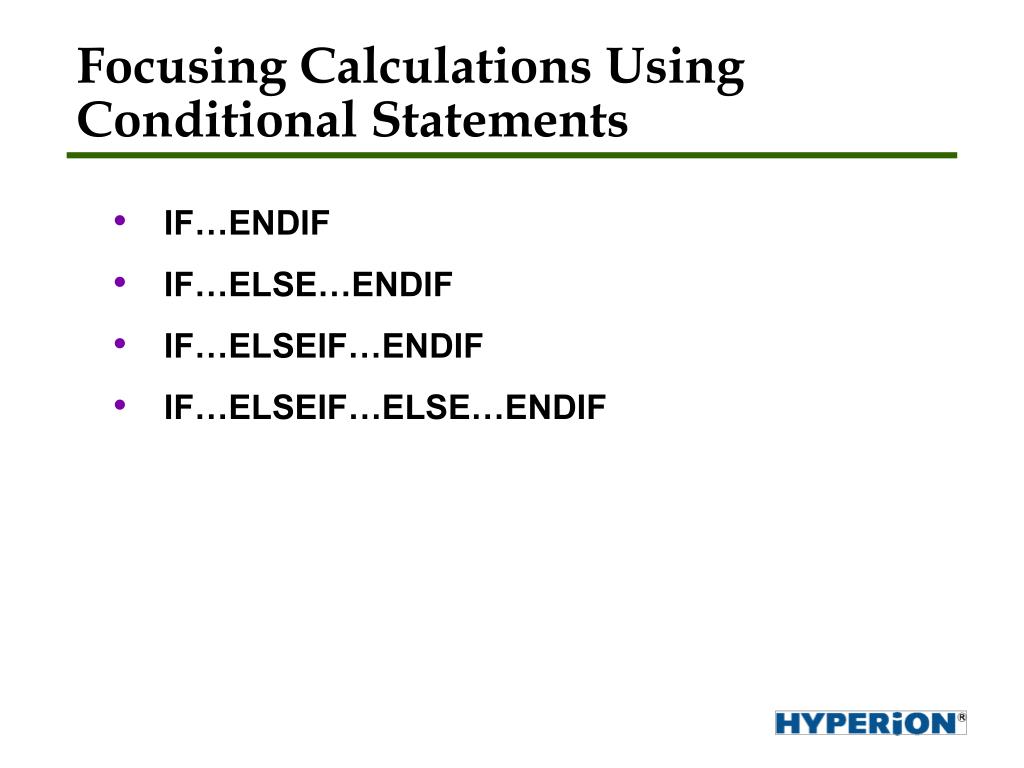

  15. Focusing Calculations Using Conditional Statements • IF…ENDIF • IF…ELSE…ENDIF • IF…ELSEIF…ENDIF • IF…ELSEIF…ELSE…ENDIF

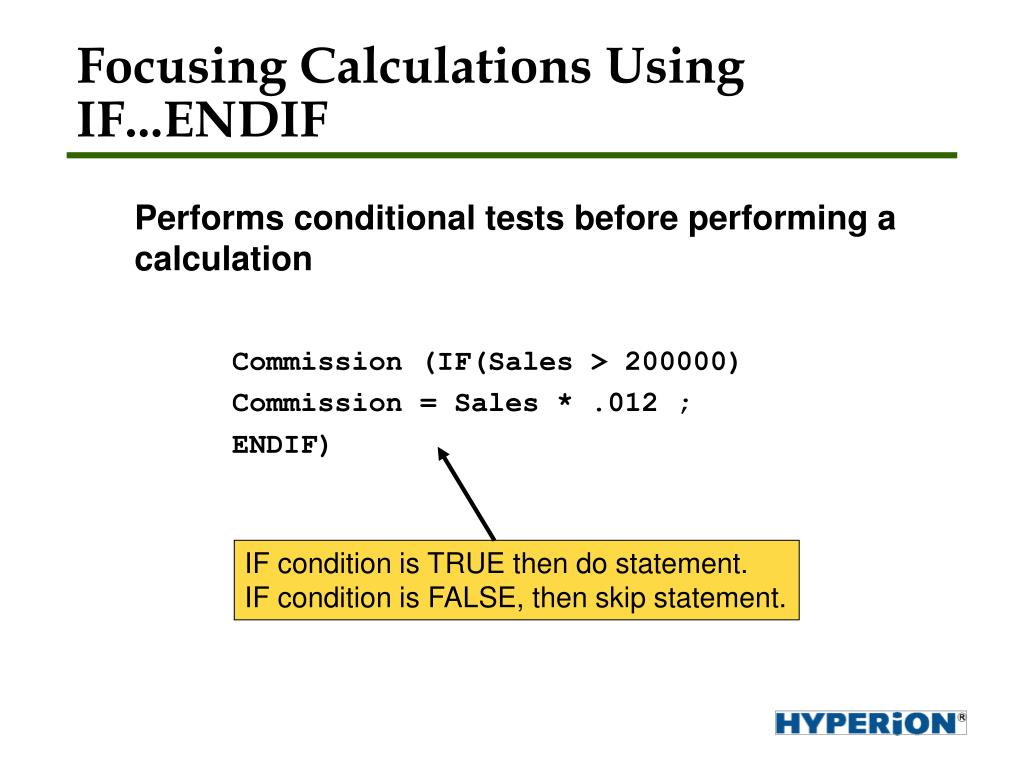

  16. IF condition is TRUE then do statement. IF condition is FALSE, then skip statement. Focusing Calculations Using IF...ENDIF Performs conditional tests before performing a calculation • Commission (IF(Sales > 200000) • Commission = Sales * .012 ; • ENDIF)

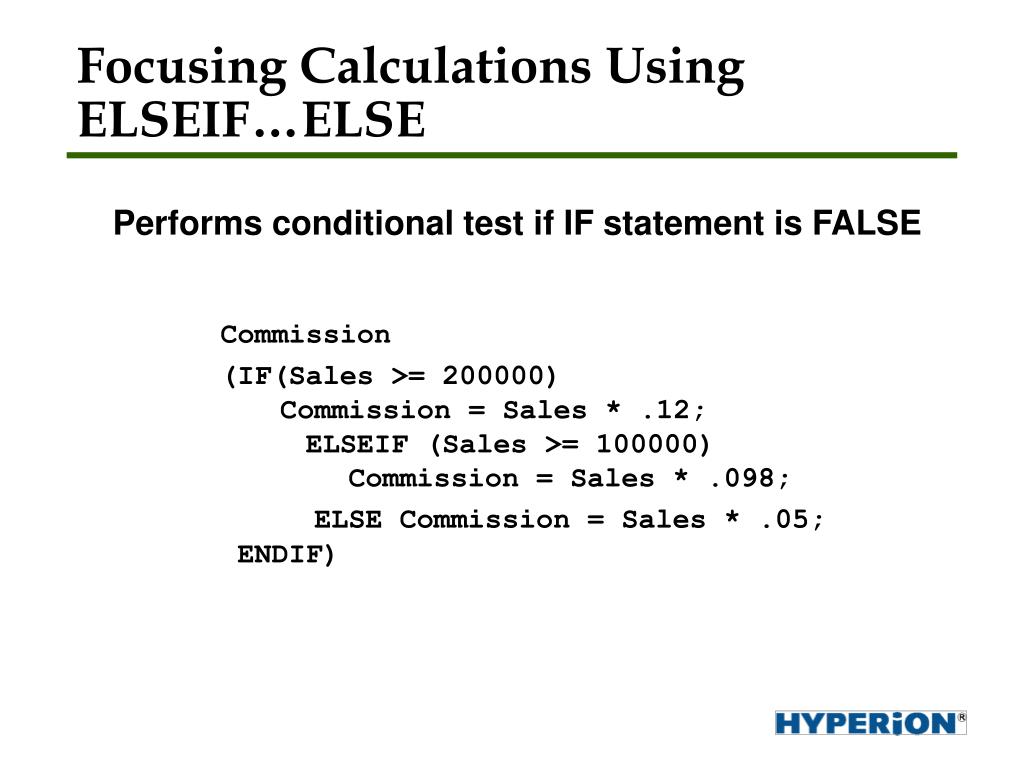

  17. Focusing Calculations Using ELSEIF…ELSE Performs conditional test if IF statement is FALSE • Commission • (IF(Sales >= 200000) Commission = Sales * .12; ELSEIF (Sales >= 100000) Commission = Sales * .098; • ELSE Commission = Sales * .05; ENDIF)

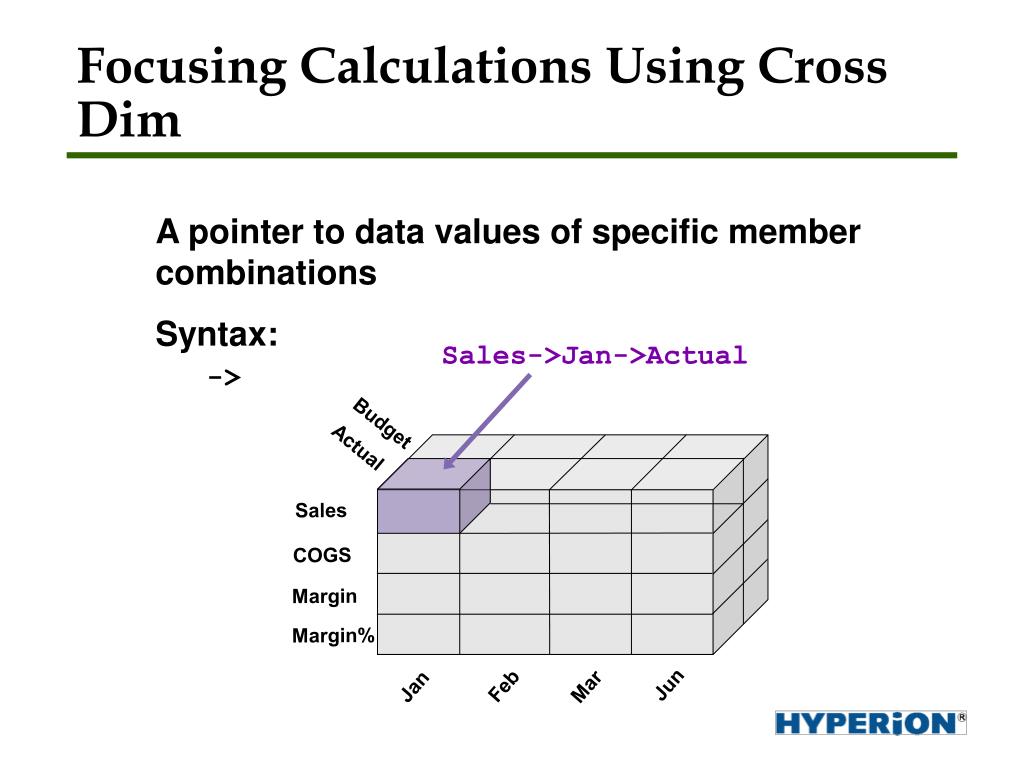

  18. Sales->Jan->Actual Budget Actual Sales COGS Margin Margin% Jun Feb Jan Mar Focusing Calculations Using Cross Dim A pointer to data values of specific member combinations Syntax:->

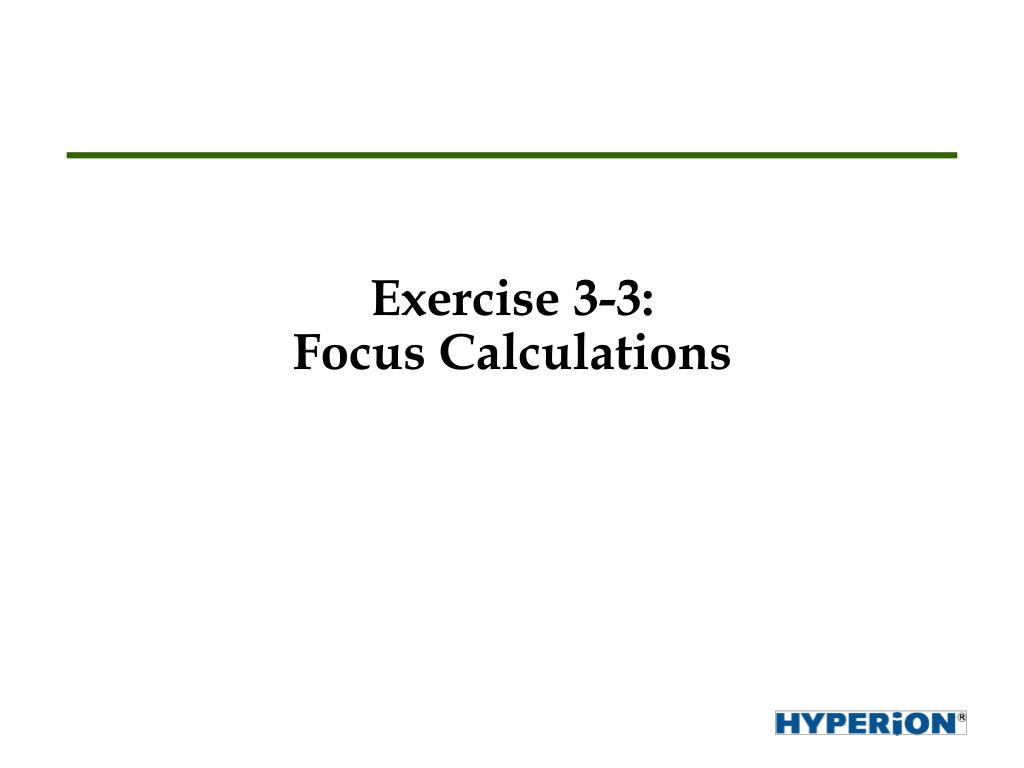

  19. Exercise 3-3:Focus Calculations

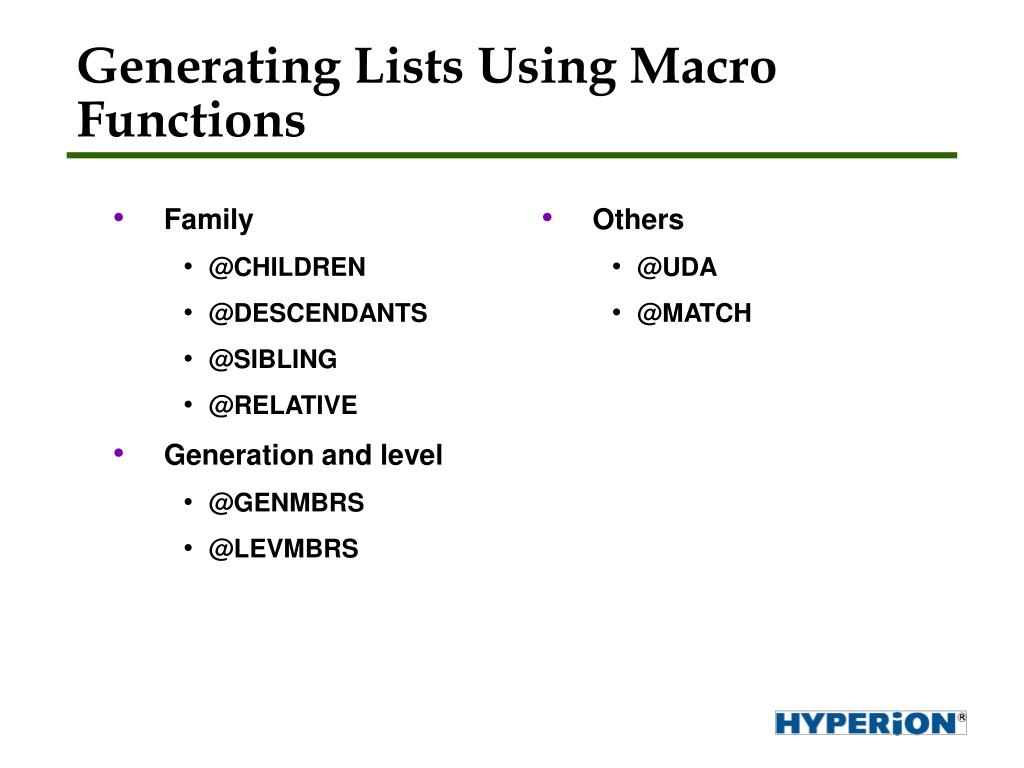

  20. Family @CHILDREN @DESCENDANTS @SIBLING @RELATIVE Generation and level @GENMBRS @LEVMBRS Others @UDA @MATCH Generating Lists Using Macro Functions

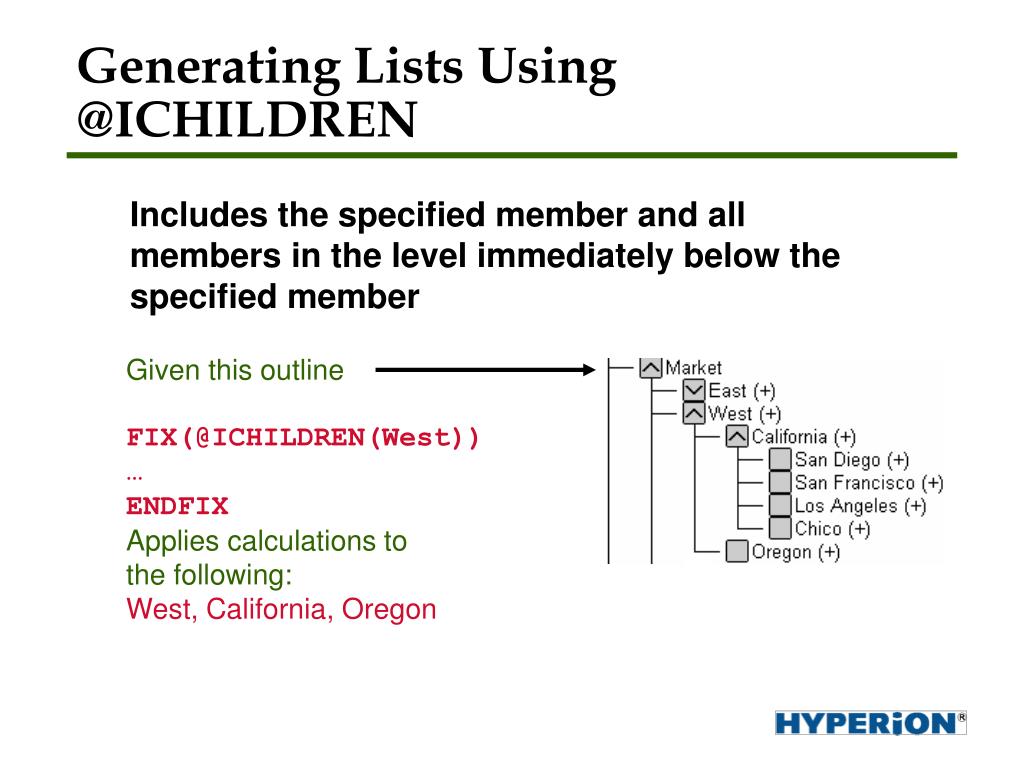

  21. Given this outline FIX(@ICHILDREN(West)) … ENDFIX Applies calculations to the following: West, California, Oregon Generating Lists Using @ICHILDREN Includes the specified member and all members in the level immediately below the specified member

  22. Given the outline FIX(@IDESCENDANTS(WEST)) … ENDFIX returns the following: West,California,San Diego,San Francisco, Los Angeles, Chico, Oregon Generating Lists Using @IDESCENDANTS Includes the specified member and either all descendants or only the descendants down to a specified generation or level.

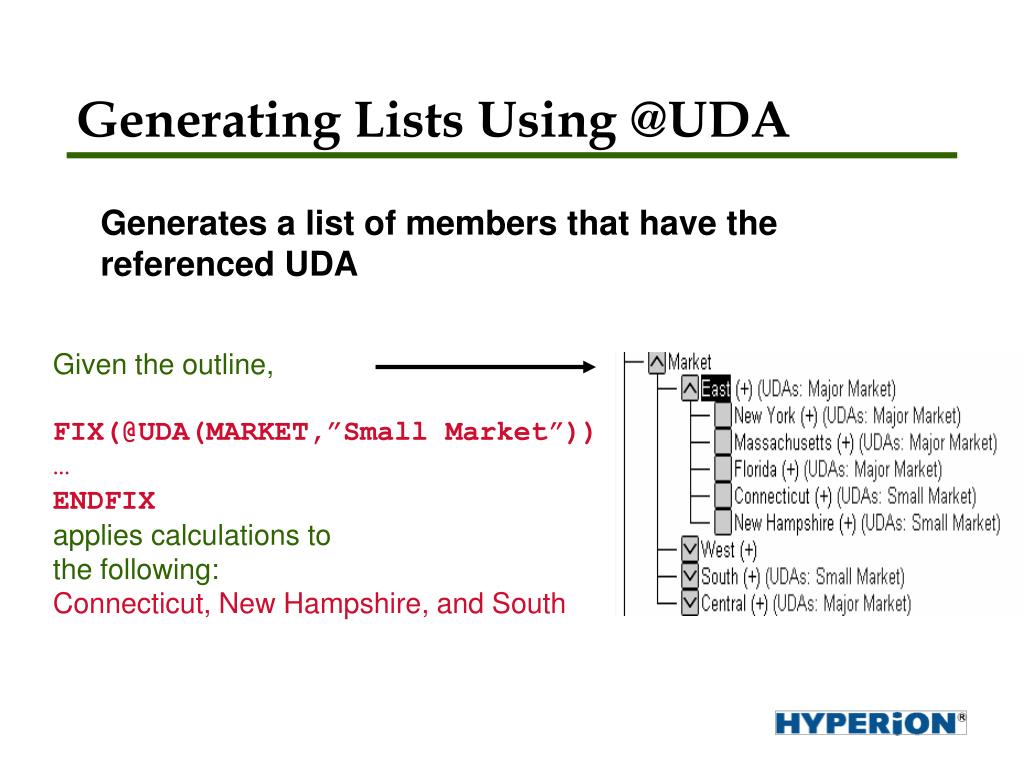

  23. Given the outline, FIX(@UDA(MARKET,”Small Market”)) … ENDFIX applies calculations to the following: Connecticut, New Hampshire, and South Generating Lists Using @UDA Generates a list of members that have the referenced UDA

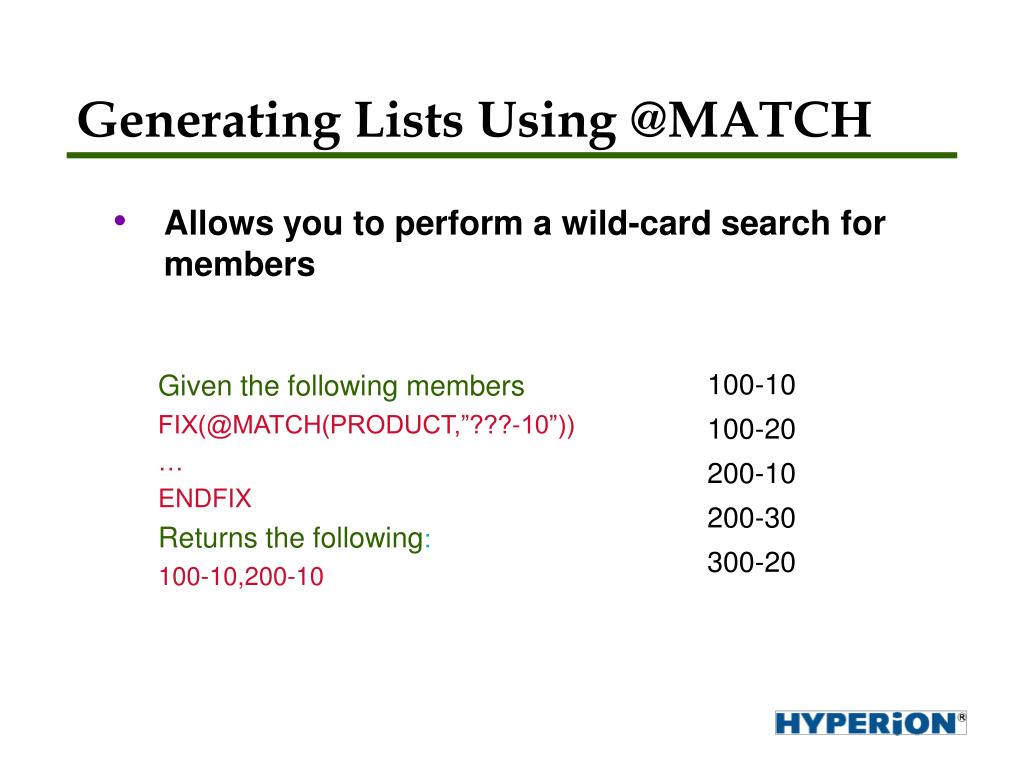

  24. Generating Lists Using @MATCH • Allows you to perform a wild-card search for members Given the following members FIX(@MATCH(PRODUCT,”???-10”)) … ENDFIX Returns the following: 100-10,200-10 100-10 100-20 200-10 200-30 300-20

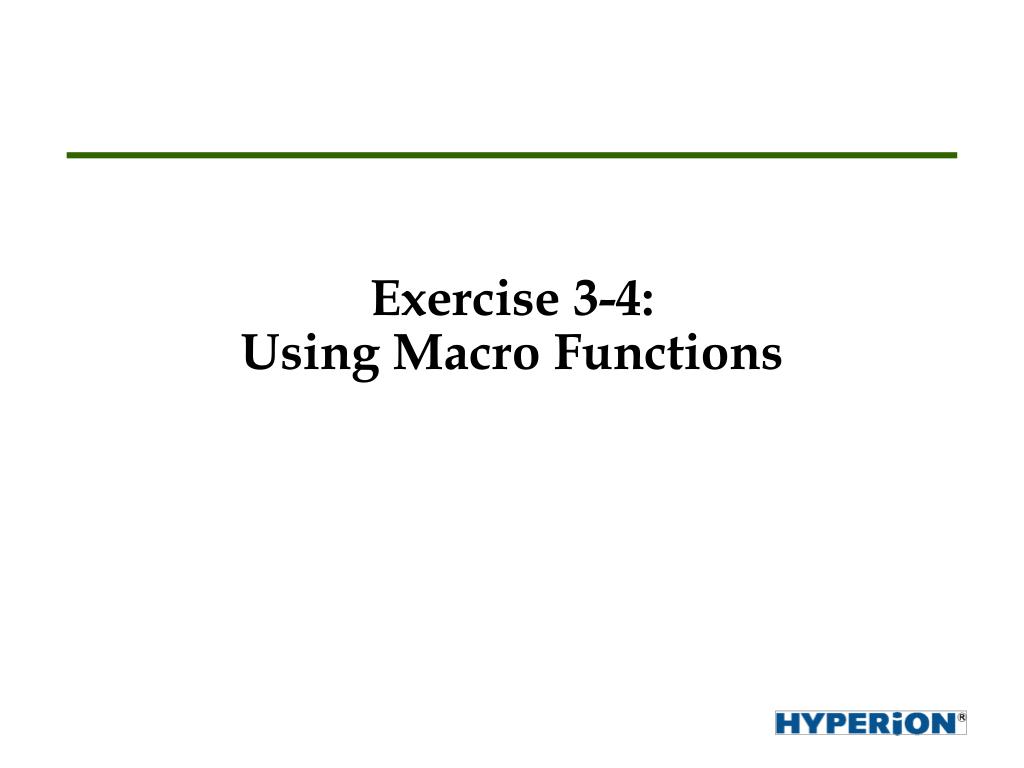

  25. Exercise 3-4:Using Macro Functions

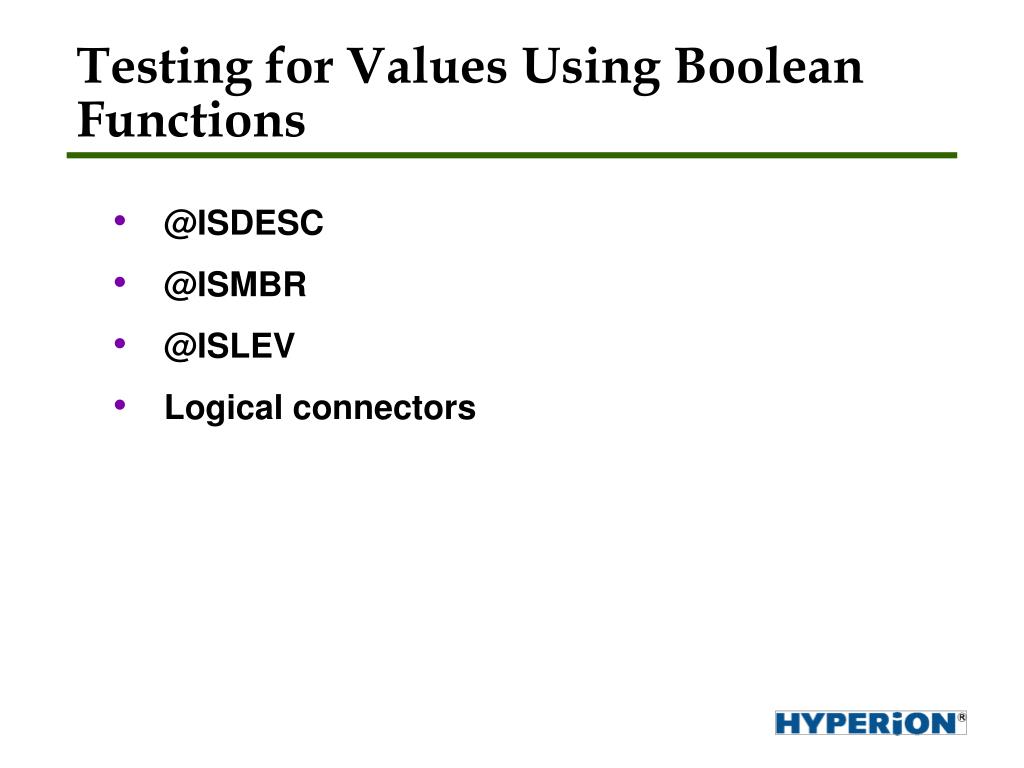

  26. Testing for Values Using Boolean Functions • @ISDESC • @ISMBR • @ISLEV • Logical connectors

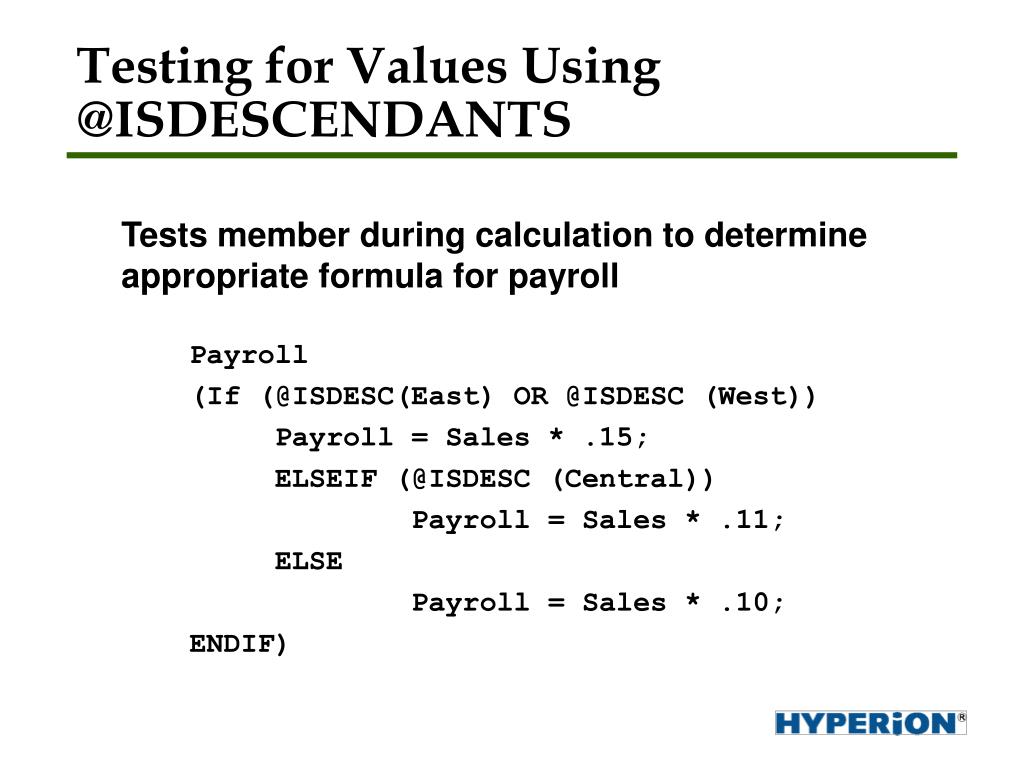

  27. Testing for Values Using @ISDESCENDANTS Tests member during calculation to determine appropriate formula for payroll • Payroll • (If (@ISDESC(East) OR @ISDESC (West)) • Payroll = Sales * .15; • ELSEIF (@ISDESC (Central)) • Payroll = Sales * .11; • ELSE • Payroll = Sales * .10; • ENDIF)

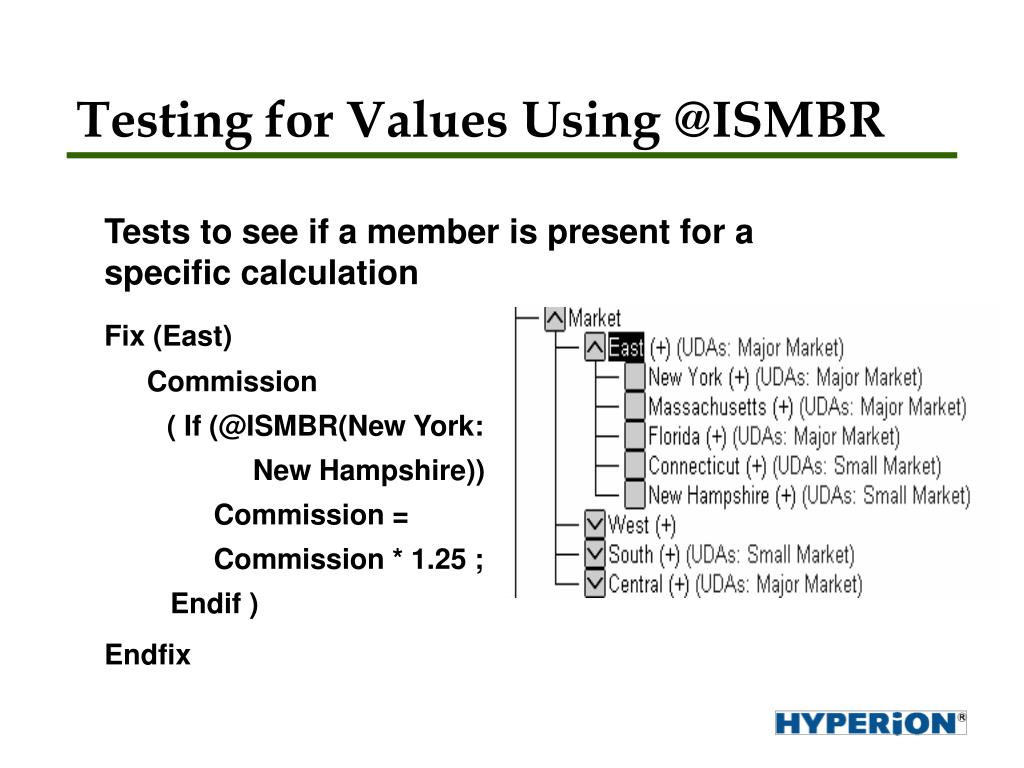

  28. Testing for Values Using @ISMBR Tests to see if a member is present for a specific calculation Fix (East) Commission ( If (@ISMBR(New York: New Hampshire)) Commission = Commission * 1.25 ; Endif ) Endfix

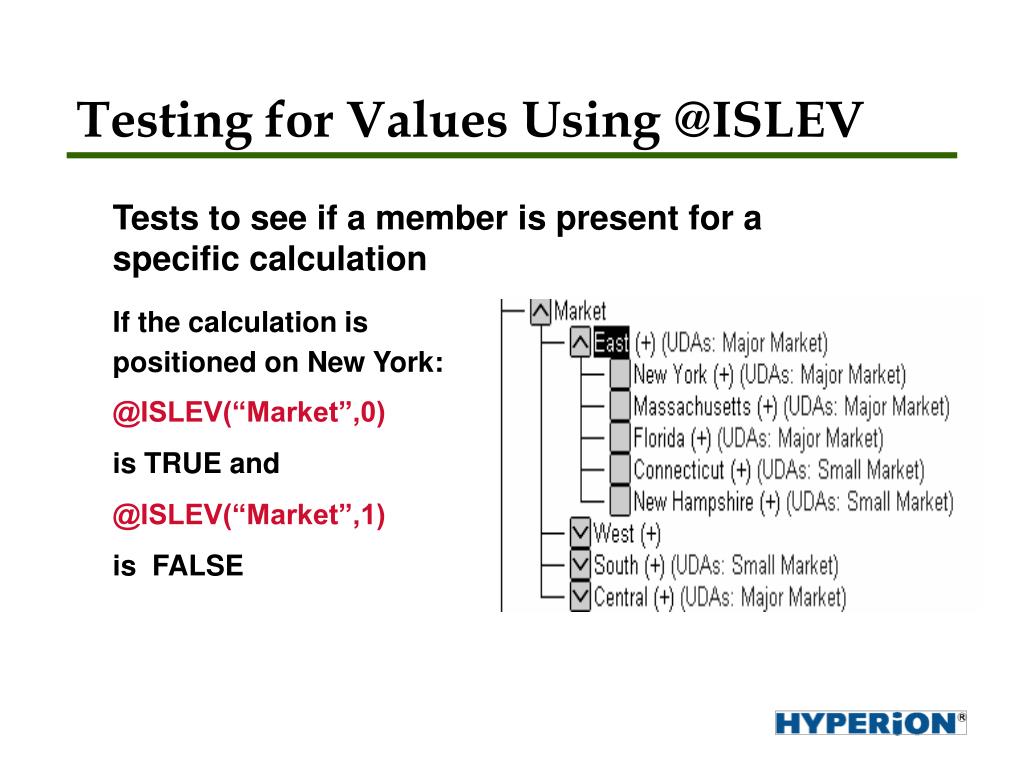

  29. Testing for Values Using @ISLEV Tests to see if a member is present for a specific calculation If the calculation is positioned on New York: @ISLEV(“Market”,0) is TRUE and @ISLEV(“Market”,1) is FALSE

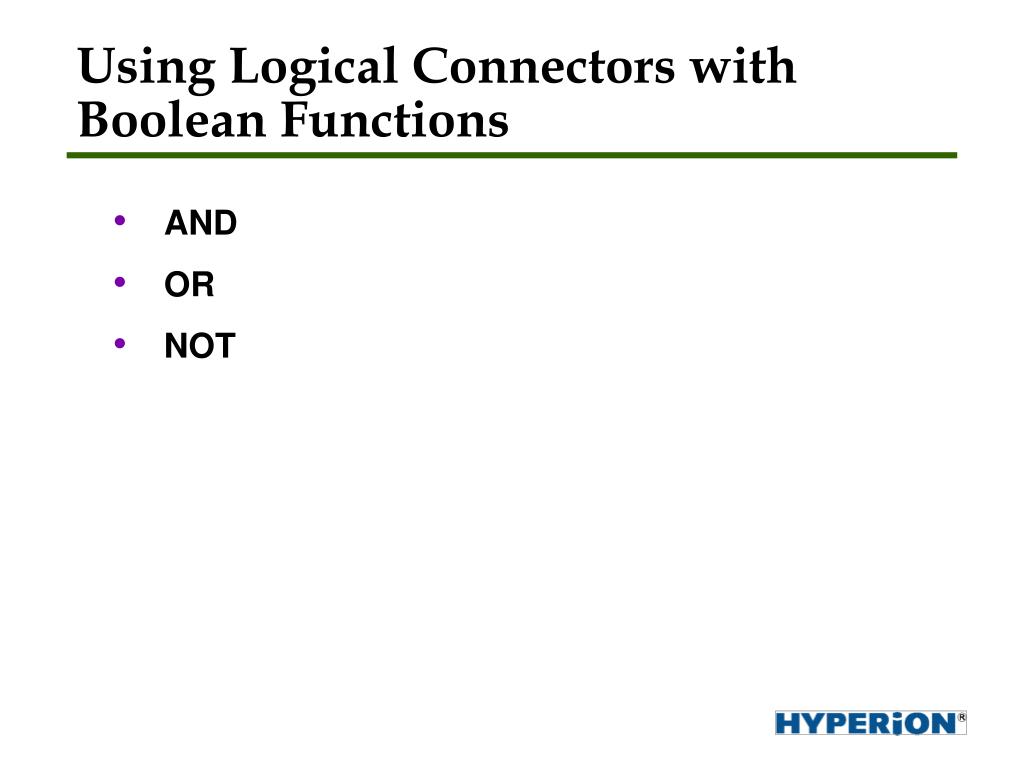

  30. Using Logical Connectors with Boolean Functions • AND • OR • NOT

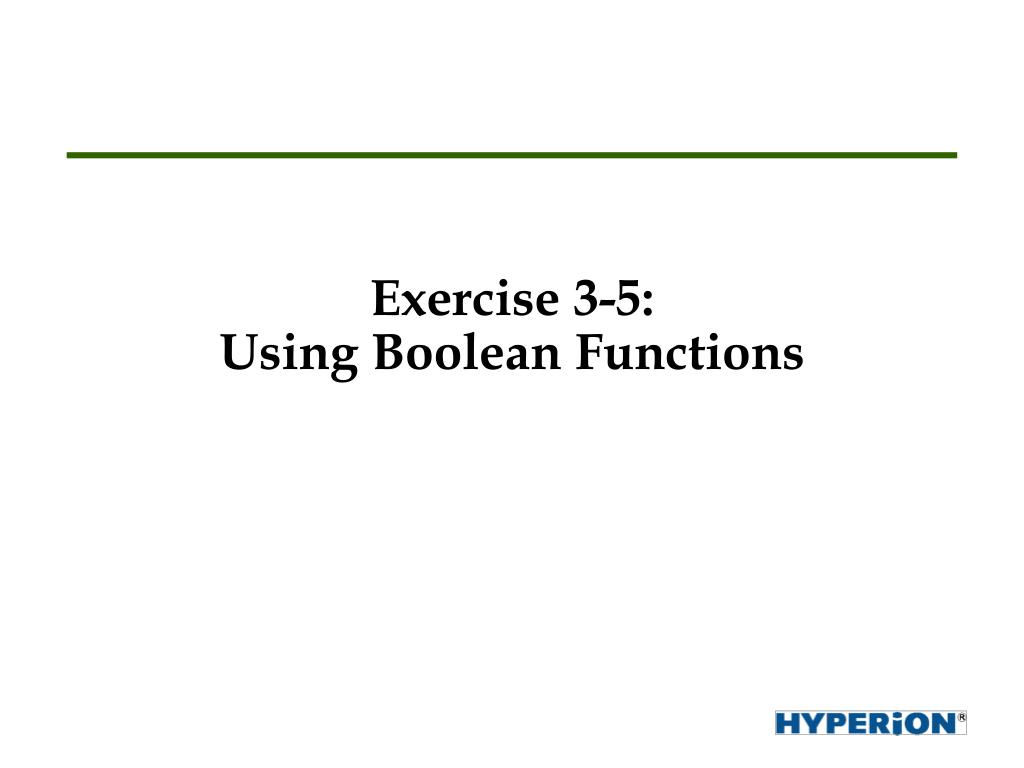

  31. Exercise 3-5:Using Boolean Functions

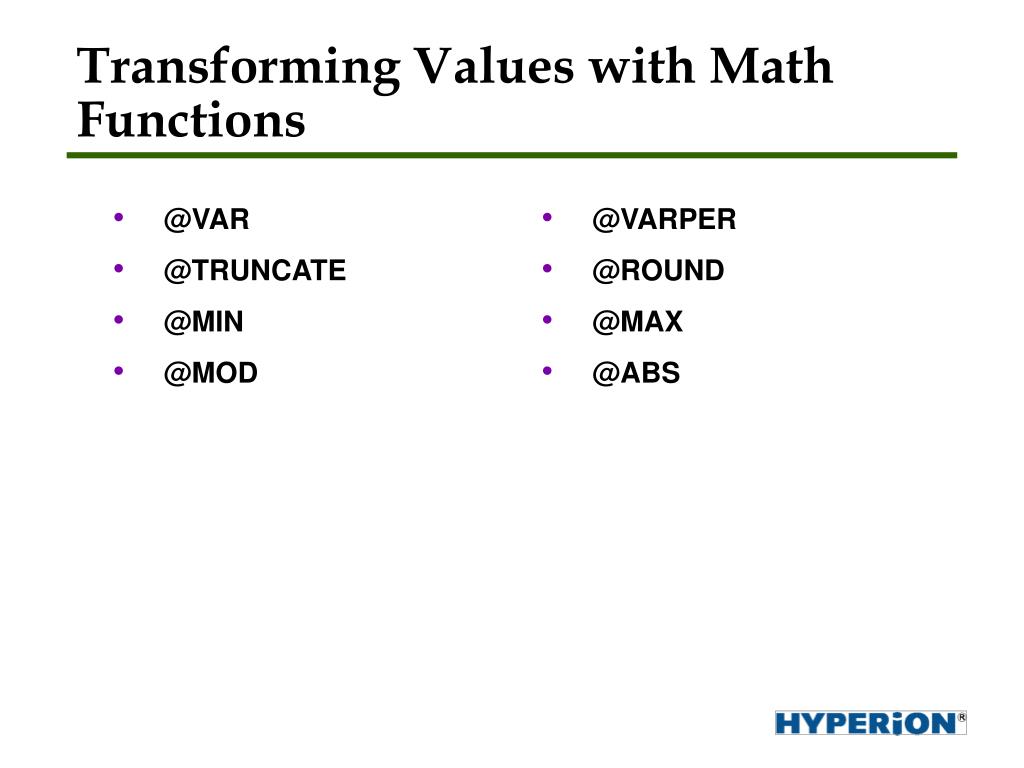

  32. @VAR @TRUNCATE @MIN @MOD @VARPER @ROUND @MAX @ABS Transforming Values with Math Functions

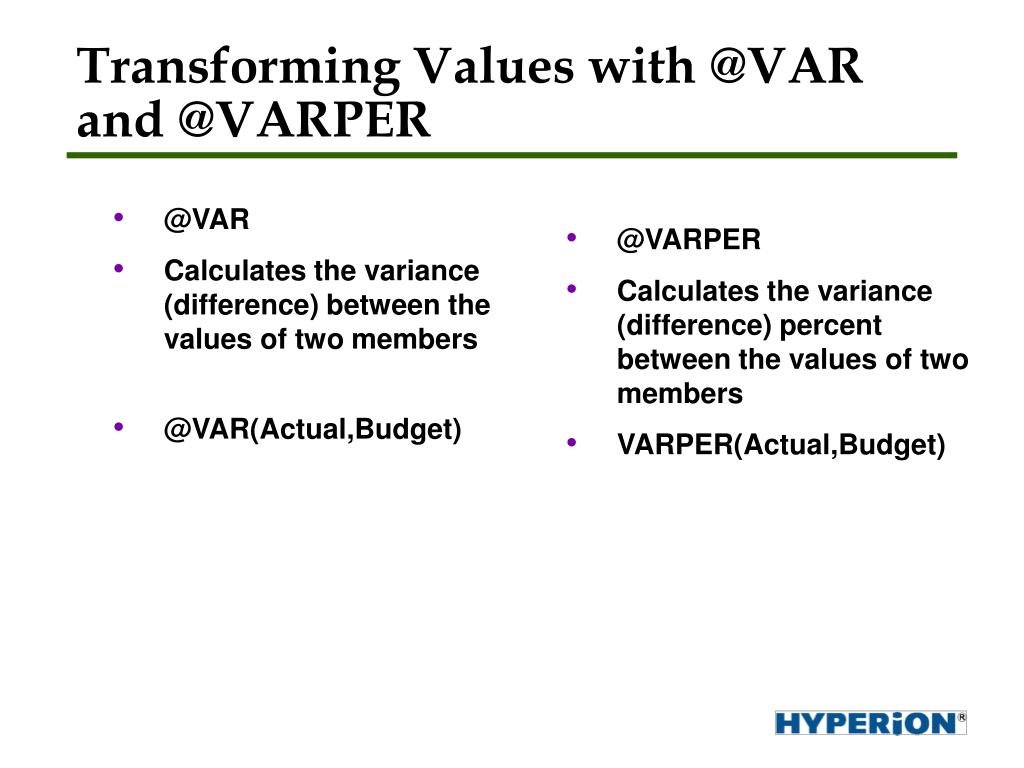

  33. @VAR Calculates the variance (difference) between the values of two members @VAR(Actual,Budget) @VARPER Calculates the variance (difference) percent between the values of two members VARPER(Actual,Budget) Transforming Values with @VAR and @VARPER

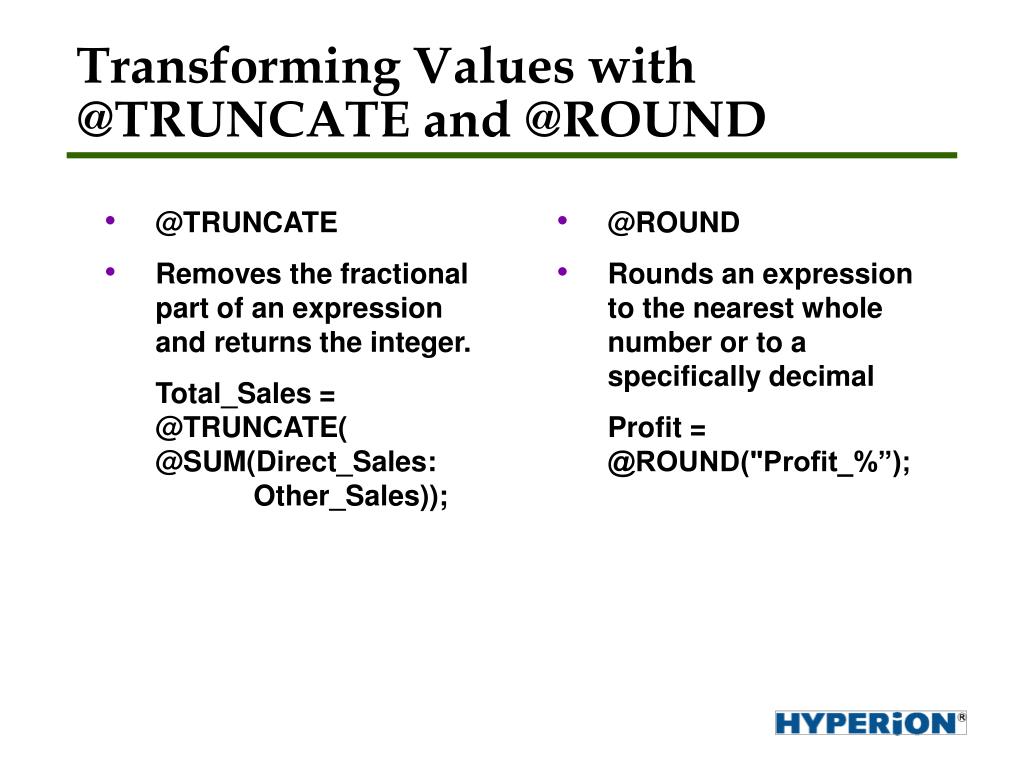

  34. @TRUNCATE Removes the fractional part of an expression and returns the integer. Total_Sales = @TRUNCATE( @SUM(Direct_Sales: Other_Sales)); @ROUND Rounds an expression to the nearest whole number or to a specifically decimal Profit = @ROUND("Profit_%”); Transforming Values with @TRUNCATE and @ROUND

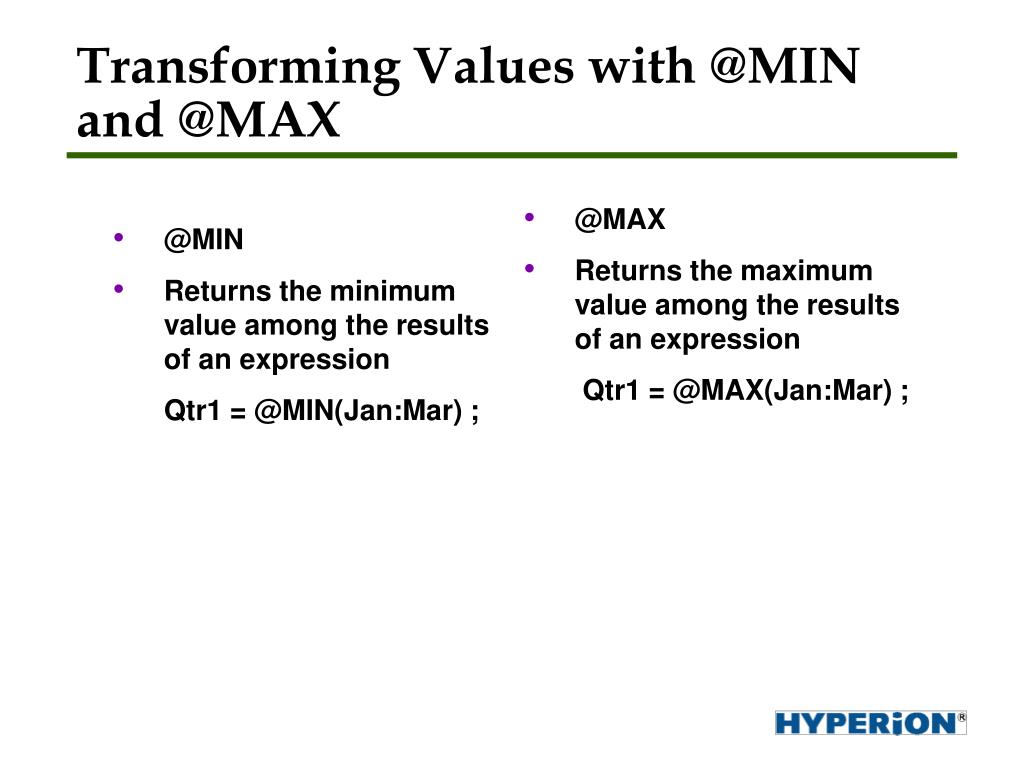

  35. @MIN Returns the minimum value among the results of an expression Qtr1 = @MIN(Jan:Mar) ; @MAX Returns the maximum value among the results of an expression Qtr1 = @MAX(Jan:Mar) ; Transforming Values with @MIN and @MAX

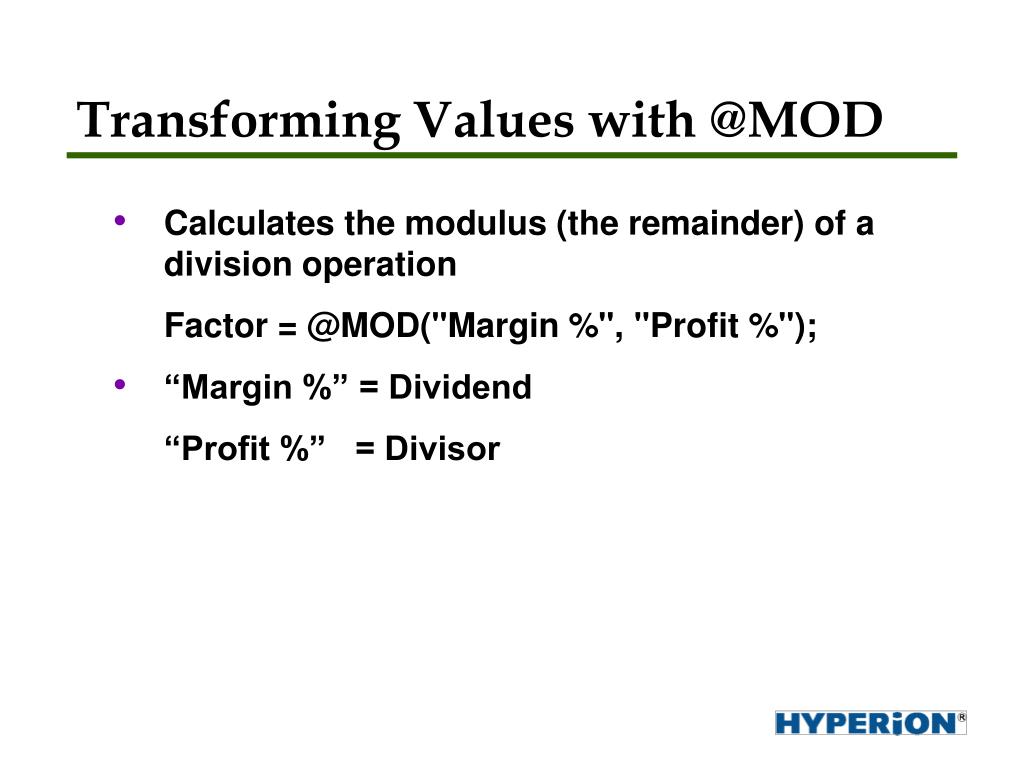

  36. Transforming Values with @MOD • Calculates the modulus (the remainder) of a division operation Factor = @MOD("Margin %", "Profit %"); • “Margin %” = Dividend “Profit %” = Divisor

  37. Transforming Values with @ABS • @ABS returns the absolute value of an expression. Variance = @ABS(Actual-Budget) ; • The absolute value turns negative numbers into positive numbers: @ABS(-5) = 5 @ABS(+5) = 5

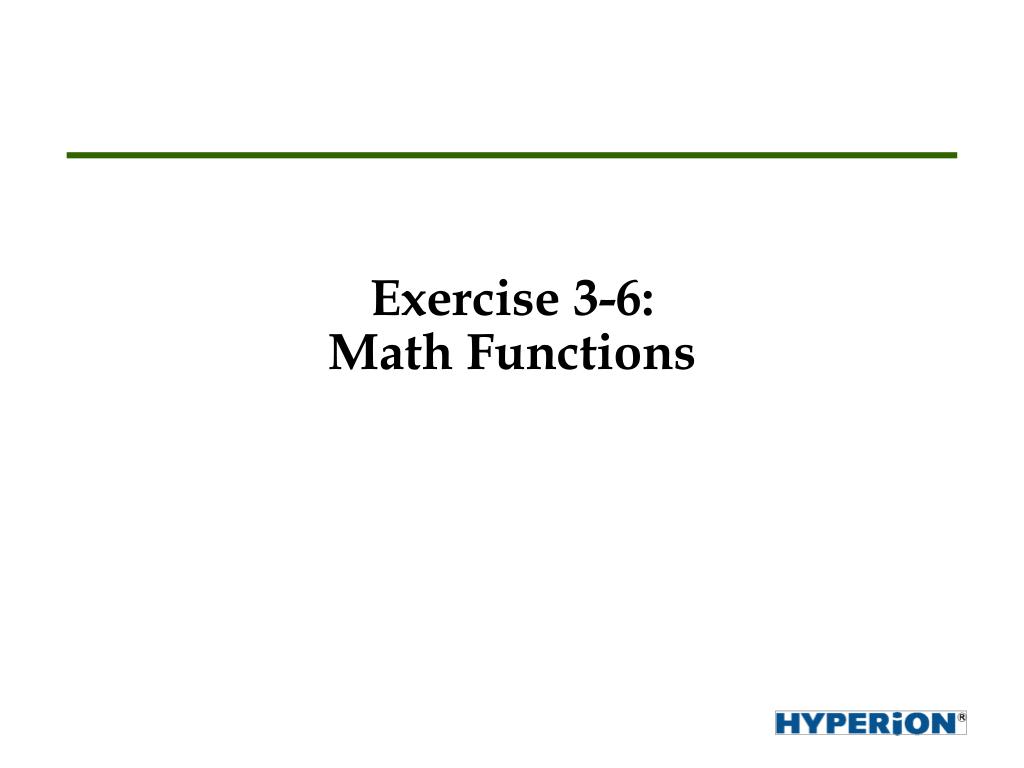

  38. Exercise 3-6:Math Functions

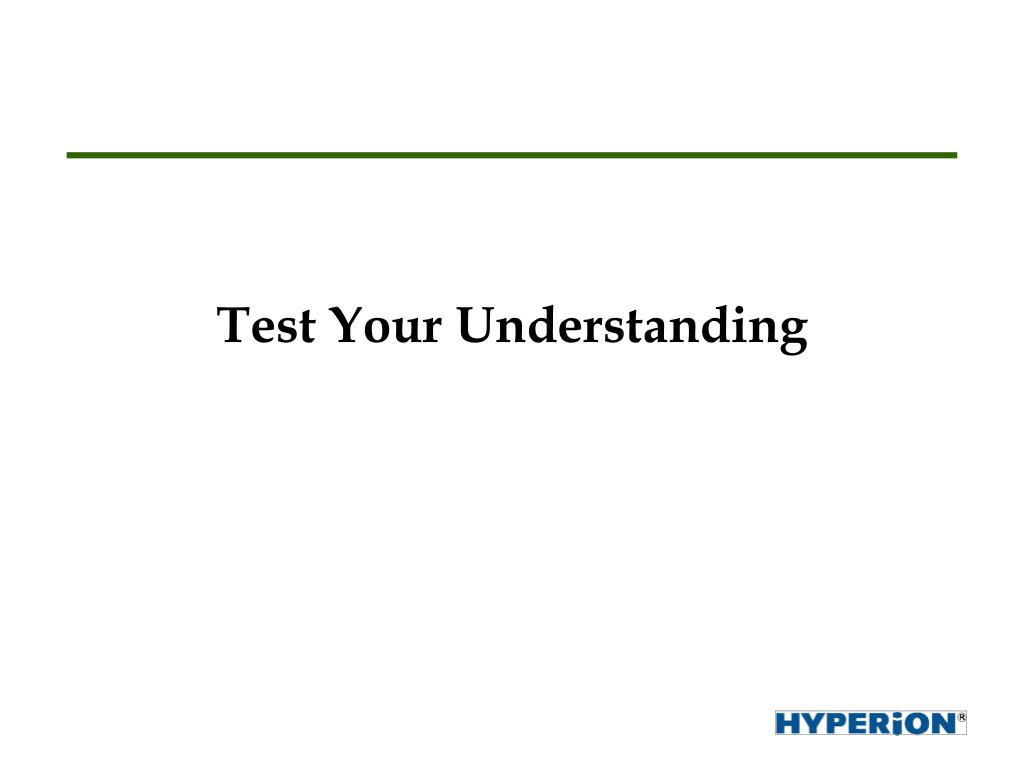

  39. Test Your Understanding
