Presentation Transcript

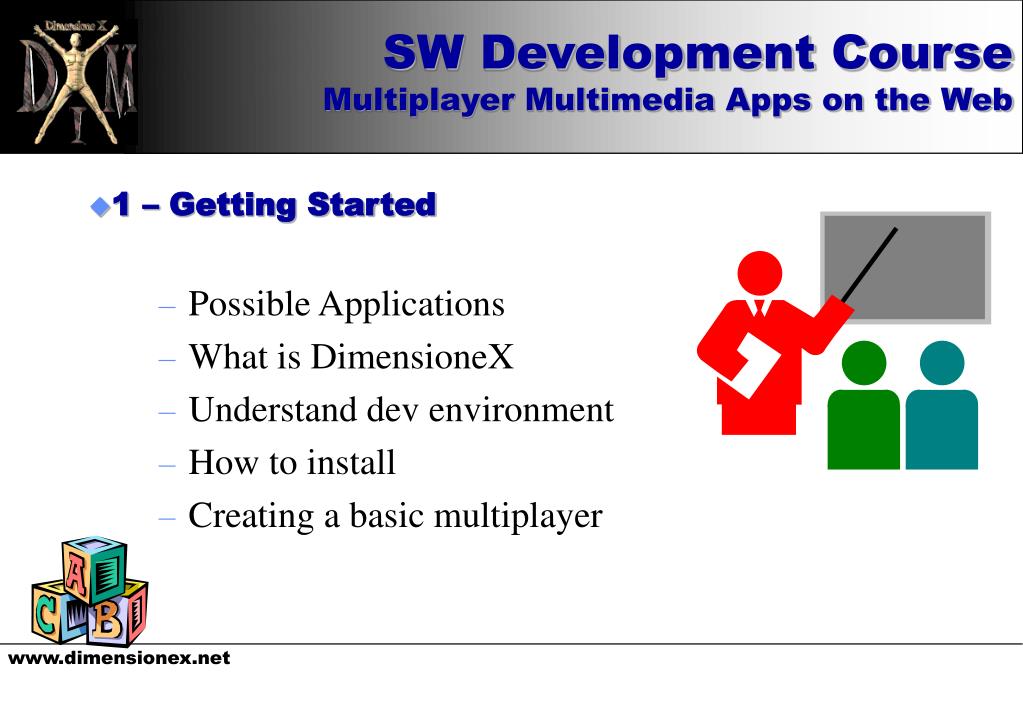

  1. SW Development CourseMultiplayer Multimedia Apps on the Web 1 – Getting Started Possible Applications What is DimensioneX Understand dev environment How to install Creating a basic multiplayer

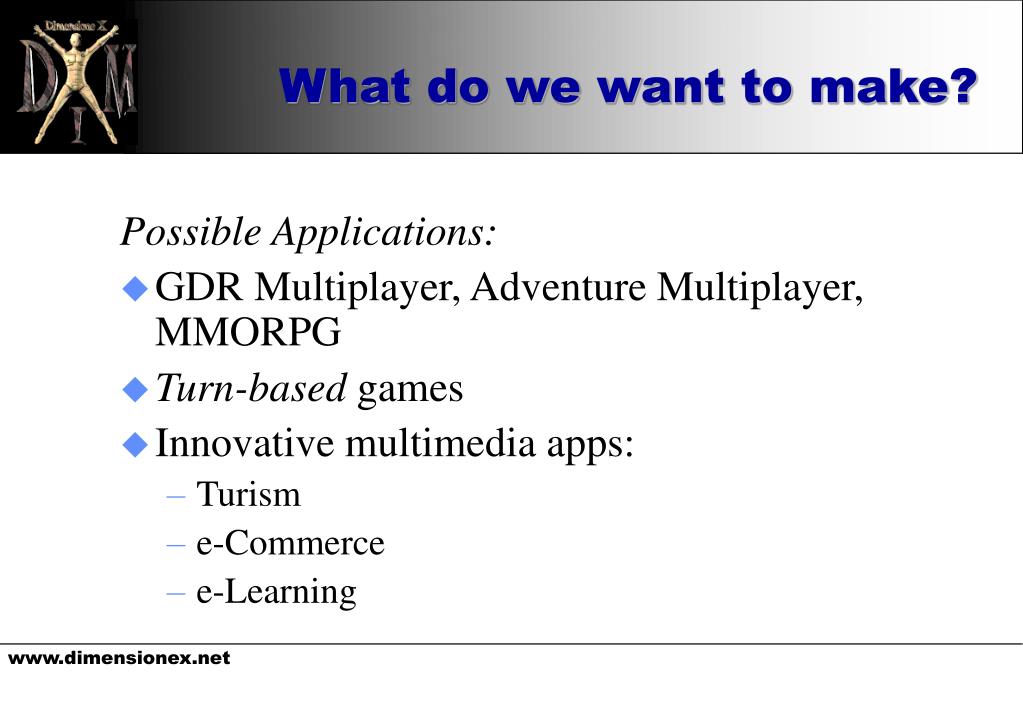

  2. What do we want to make? Possible Applications: • GDR Multiplayer, Adventure Multiplayer, MMORPG • Turn-based games • Innovative multimedia apps: • Turism • e-Commerce • e-Learning

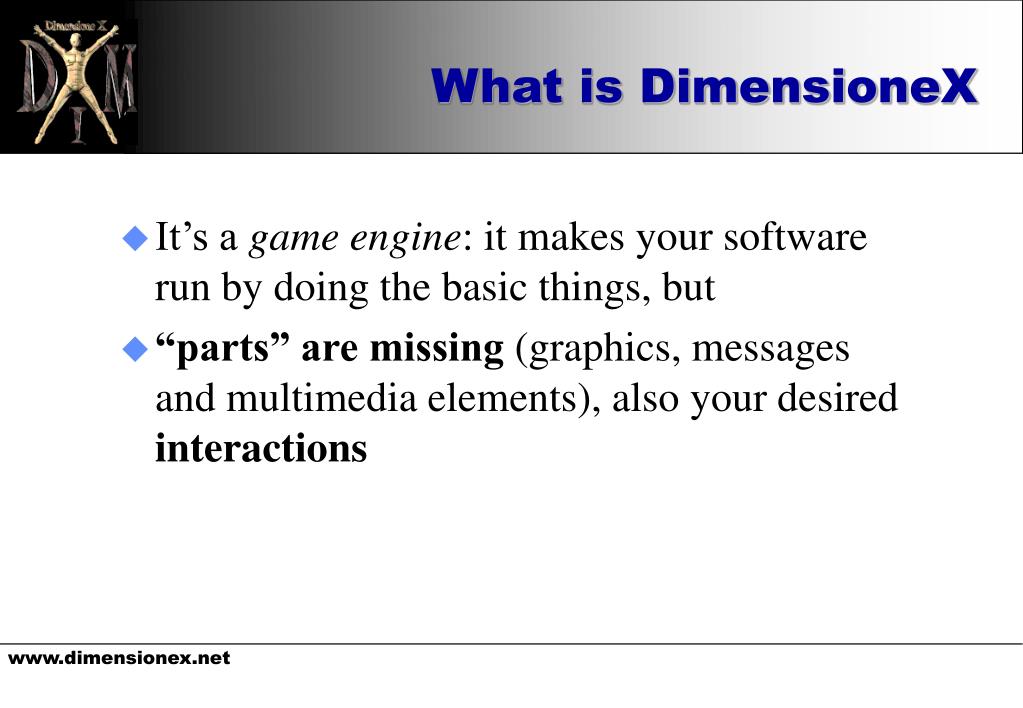

  3. What is DimensioneX • It’s a game engine: it makes your software run by doing the basic things, but • “parts” are missing (graphics, messages and multimedia elements), also your desired interactions

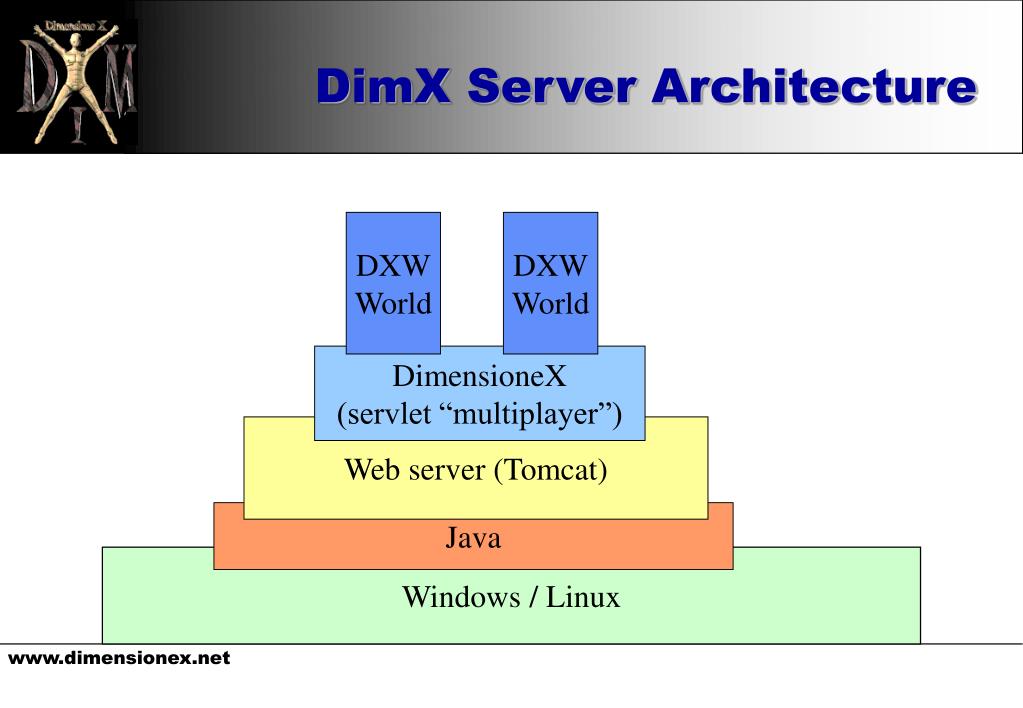

  4. DimX Server Architecture DXWWorld DXWWorld DimensioneX(servlet “multiplayer”) Web server (Tomcat) Java Windows / Linux

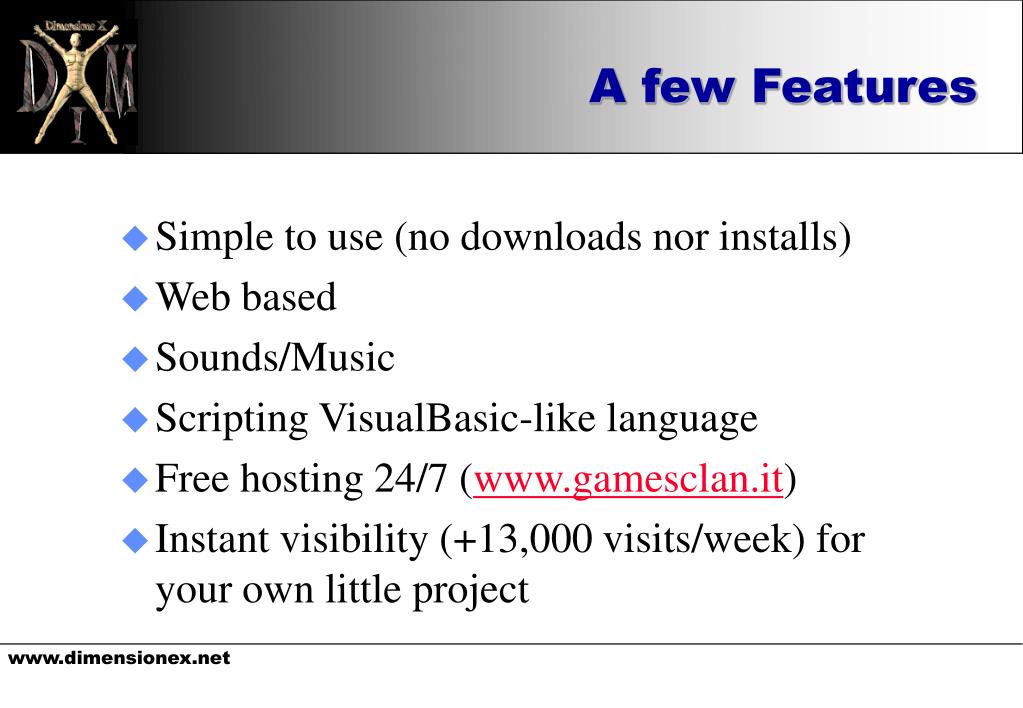

  5. A few Features • Simple to use (no downloads nor installs) • Web based • Sounds/Music • Scripting VisualBasic-like language • Free hosting 24/7 (www.gamesclan.it) • Instant visibility (+13,000 visits/week) for your own little project

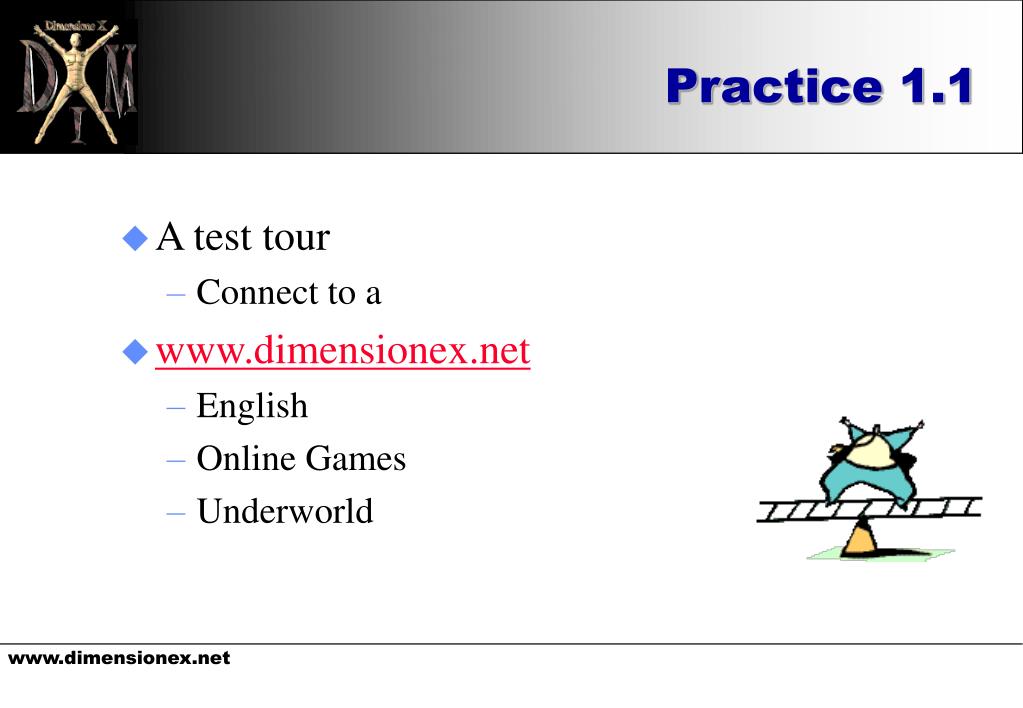

  6. Practice 1.1 • A test tour • Connect to a • www.dimensionex.net • English • Online Games • Underworld

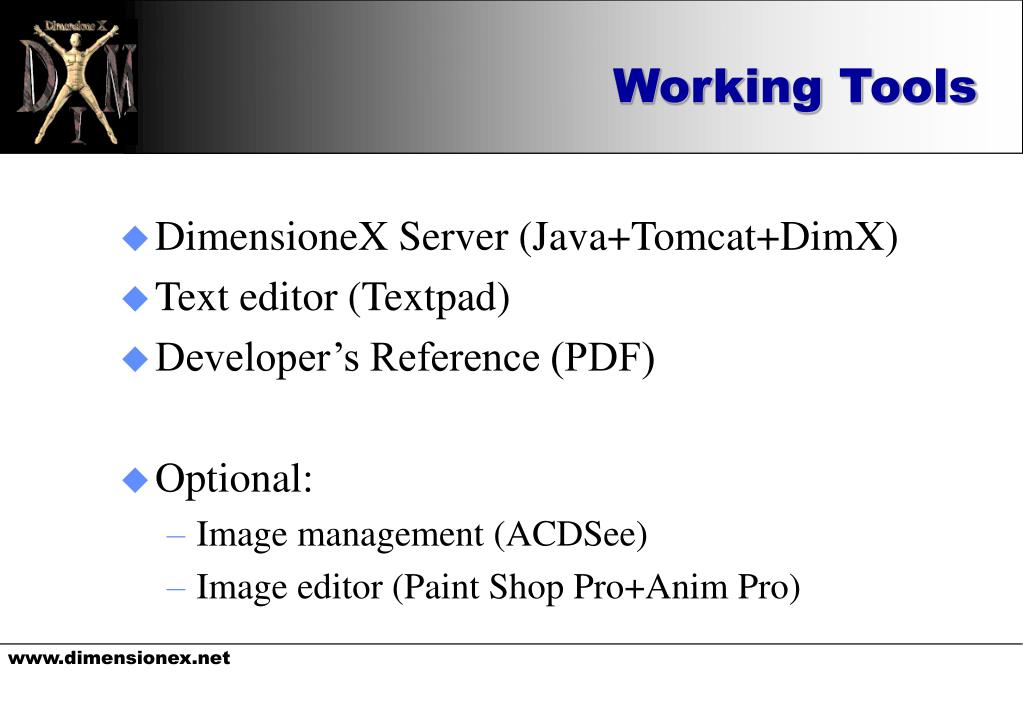

  7. Working Tools • DimensioneX Server (Java+Tomcat+DimX) • Text editor (Textpad) • Developer’s Reference (PDF) • Optional: • Image management (ACDSee) • Image editor (Paint Shop Pro+Anim Pro)

  8. How to install • Download from: www.dimensionex.net • Follow instructions: • Readme.PDF • Installation Manual (online, WIKI)

  9. Development environment

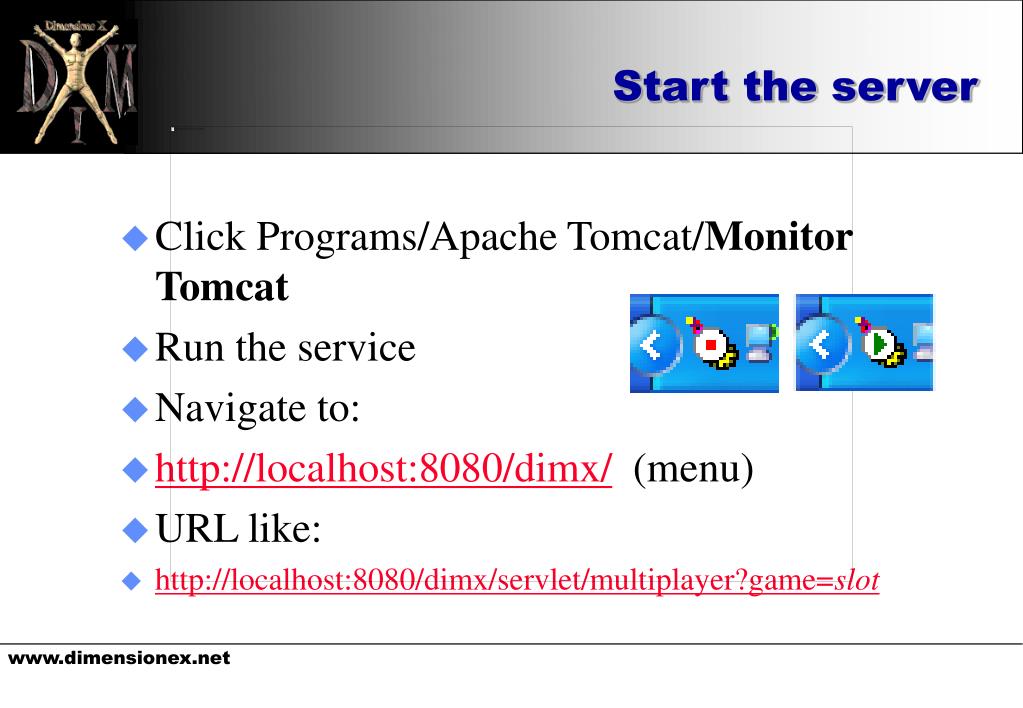

  10. Start the server • Click Programs/Apache Tomcat/Monitor Tomcat • Run the service • Navigate to: • http://localhost:8080/dimx/ (menu) • URL like: • http://localhost:8080/dimx/servlet/multiplayer?game=slot

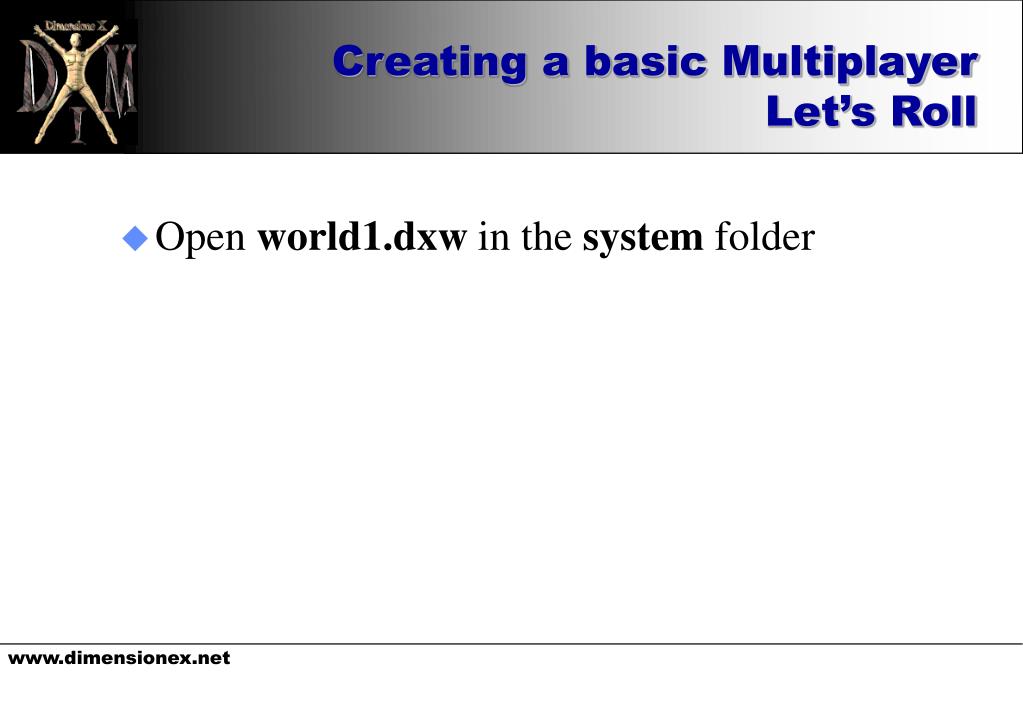

  11. Creating a basic MultiplayerLet’s Roll • Open world1.dxw in the system folder

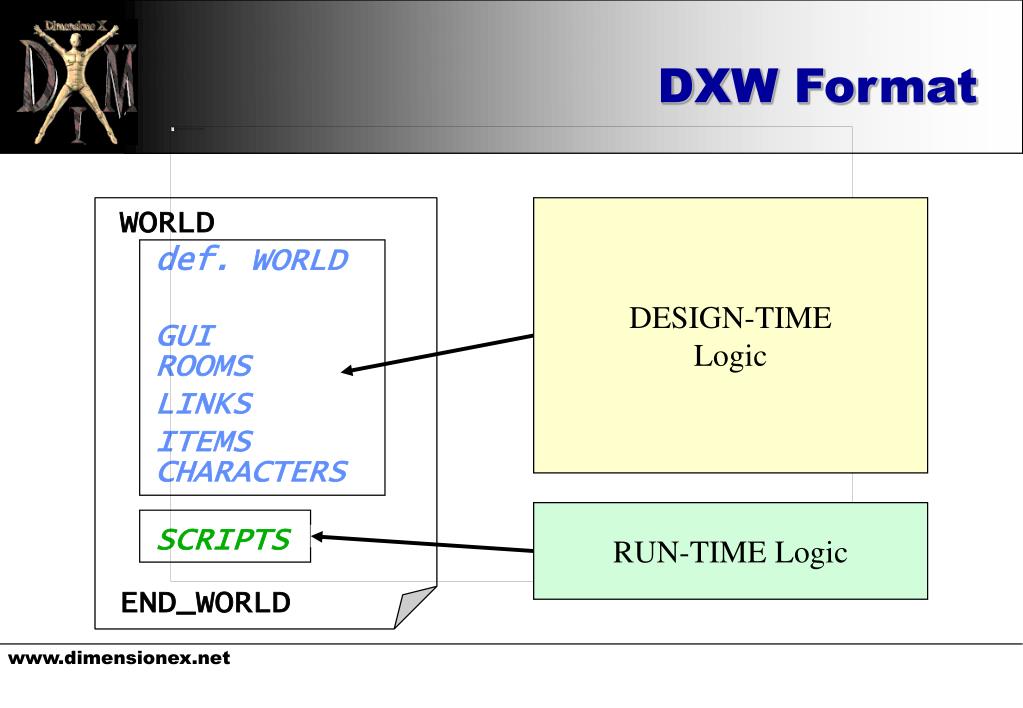

  12. DESIGN-TIME Logic RUN-TIME Logic DXW Format WORLD def. WORLD GUIROOMS LINKS ITEMSCHARACTERS SCRIPTS END_WORLD

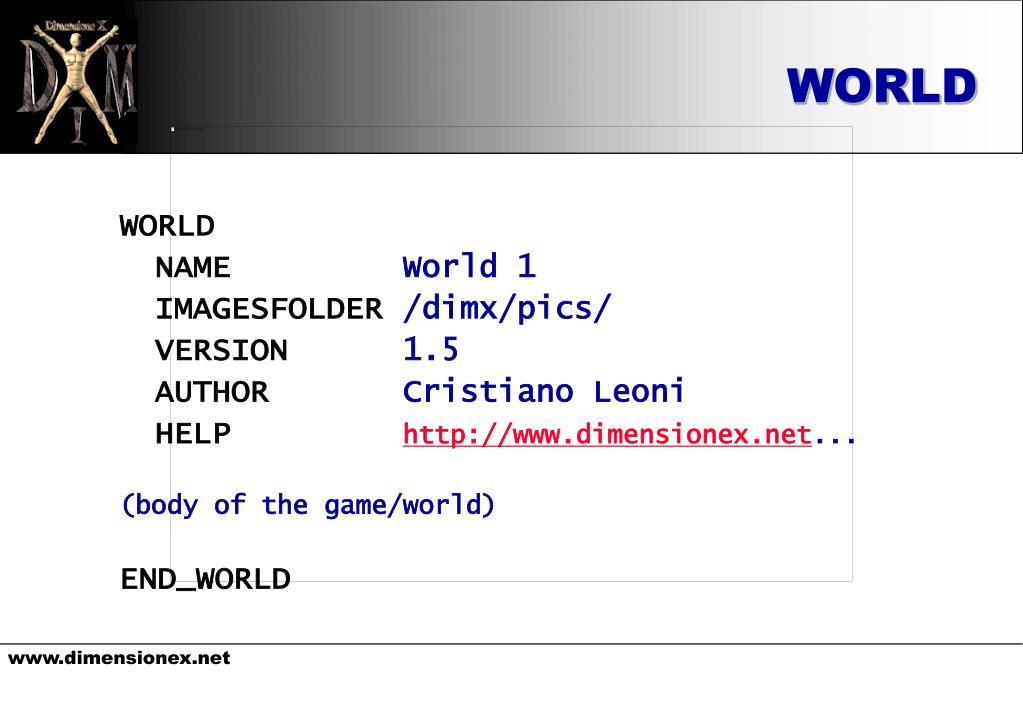

  13. WORLD WORLD NAME World 1 IMAGESFOLDER /dimx/pics/ VERSION 1.5 AUTHOR Cristiano Leoni HELP http://www.dimensionex.net... (body of the game/world) END_WORLD

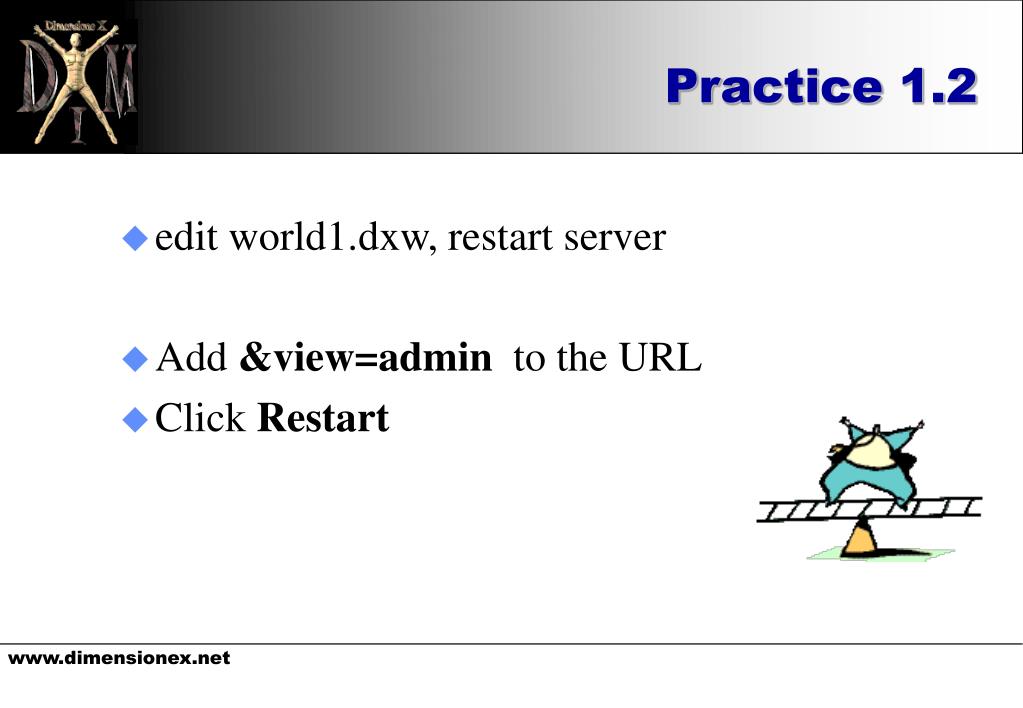

  14. Practice 1.2 • edit world1.dxw, restart server • Add &view=admin to the URL • Click Restart

  15. ROOM ROOMS ROOM beach NAME The beach DESCRIPTION It is a sunny beach IMAGE spiaggia1.jpg IMAGE face image.jpg END_ROOMS face=NSEW

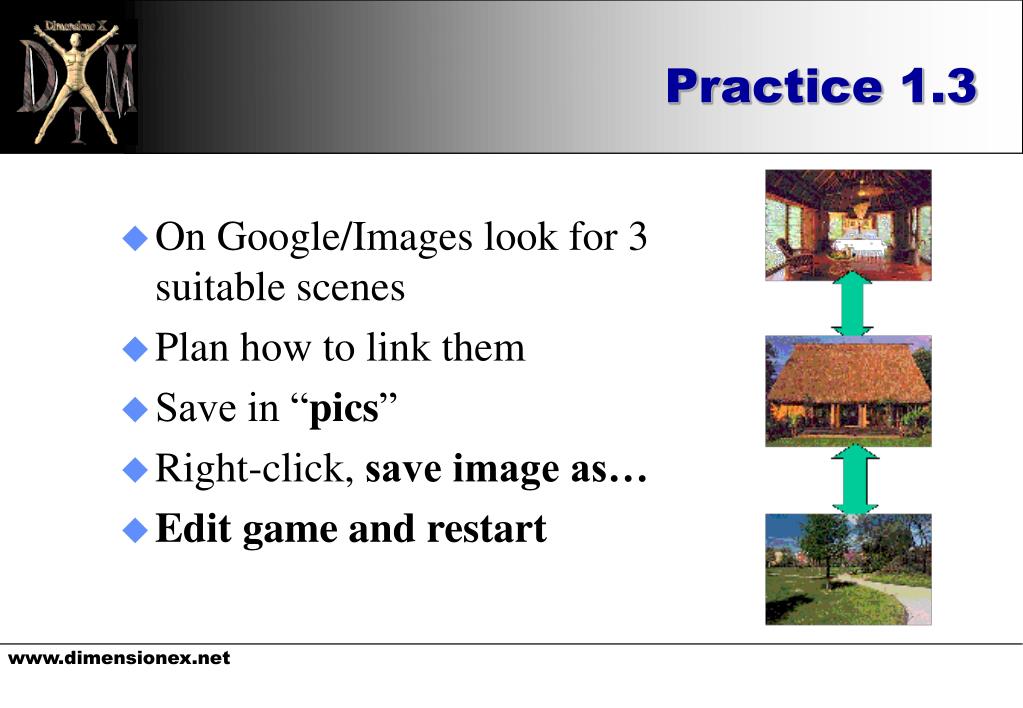

  16. Practice 1.3 • On Google/Images look for 3 suitable scenes • Plan how to link them • Save in “pics” • Right-click, save image as… • Edit game and restart

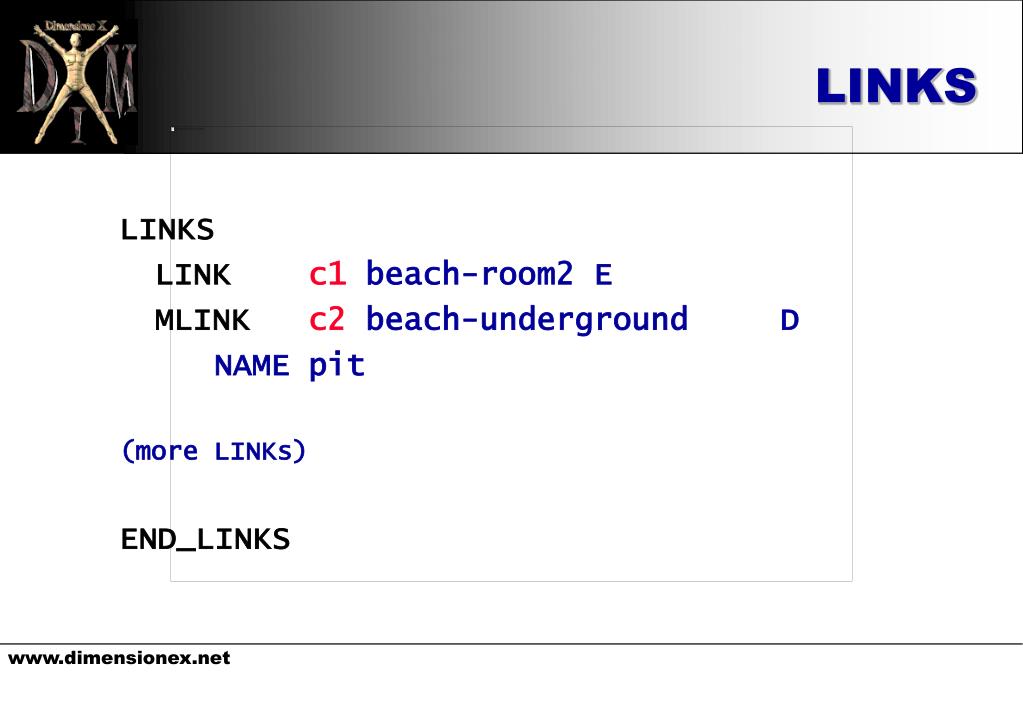

  17. LINKS LINKS LINK c1 beach-room2 E MLINK c2 beach-underground D NAME pit (more LINKs) END_LINKS

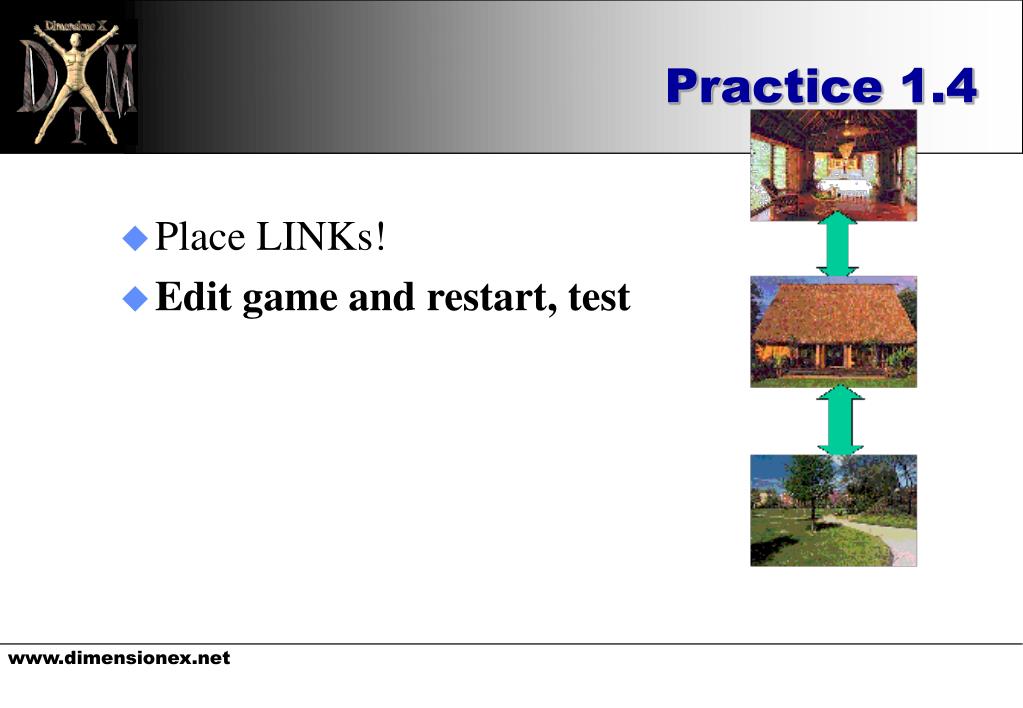

  18. Practice 1.4 • Place LINKs! • Edit game and restart, test

  19. ITEMS ITEMS ITEM box NAME a box DESCRIPTION Just an ordinary box POSITION beach ICON icoBox.gif ATTRLIST open=0,hideable=0 IMAGE 80x64 box.gif SHOW ICON END_ITEMS

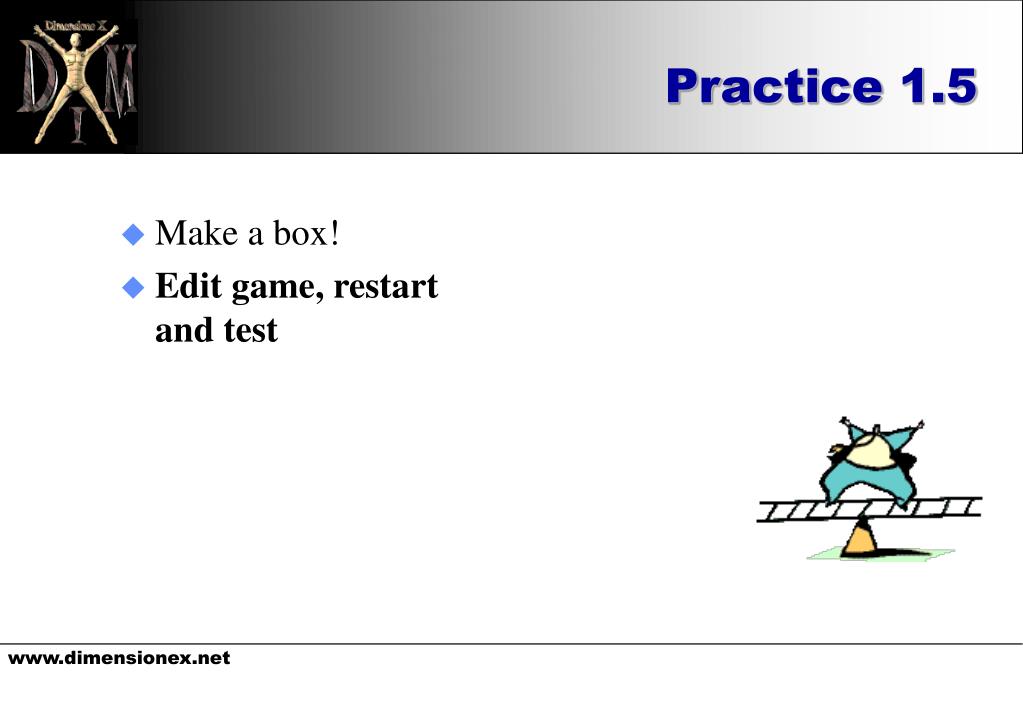

  20. Practice 1.5 • Make a box! • Edit game, restart and test

  21. CHARACTERS CHARACTERS ATTRLIST type=0,Health=10,Strength=1,Experience=1 ' Type da 10 onwards=monsters ' from 1 to 9 humans ' 0 means non-combating robot CHARACTER guy NAME A Guy DESCRIPTION A walking guy. POSITION beach ATTRLIST type=1,Strength=3 IMAGE 120x120 chrSurfer.gif END_CHARACTERS

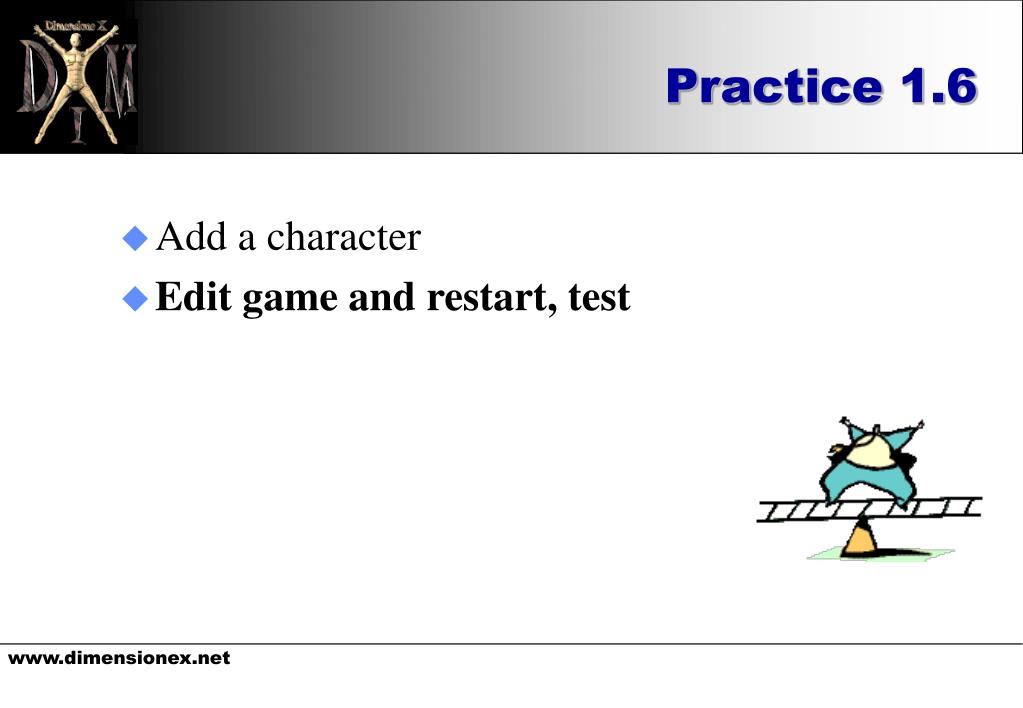

  22. Practice 1.6 • Add a character • Edit game and restart, test

  23. SCRIPTS SCRIPTS EVENT guy.onLook Speak“Hey, what’s up?", “Leave me alone!“ END_SCRIPTS

  24. Esercitazione 0.7 • Add interactivity • Edit game, restart, test

  25. Summary • Possible Applications • What is DimensioneX • Understand dev environment • How to install • Creating a basic multiplayer
