1. Chapter 7 Genetic Algorithms to Constraint Satisfaction Problems

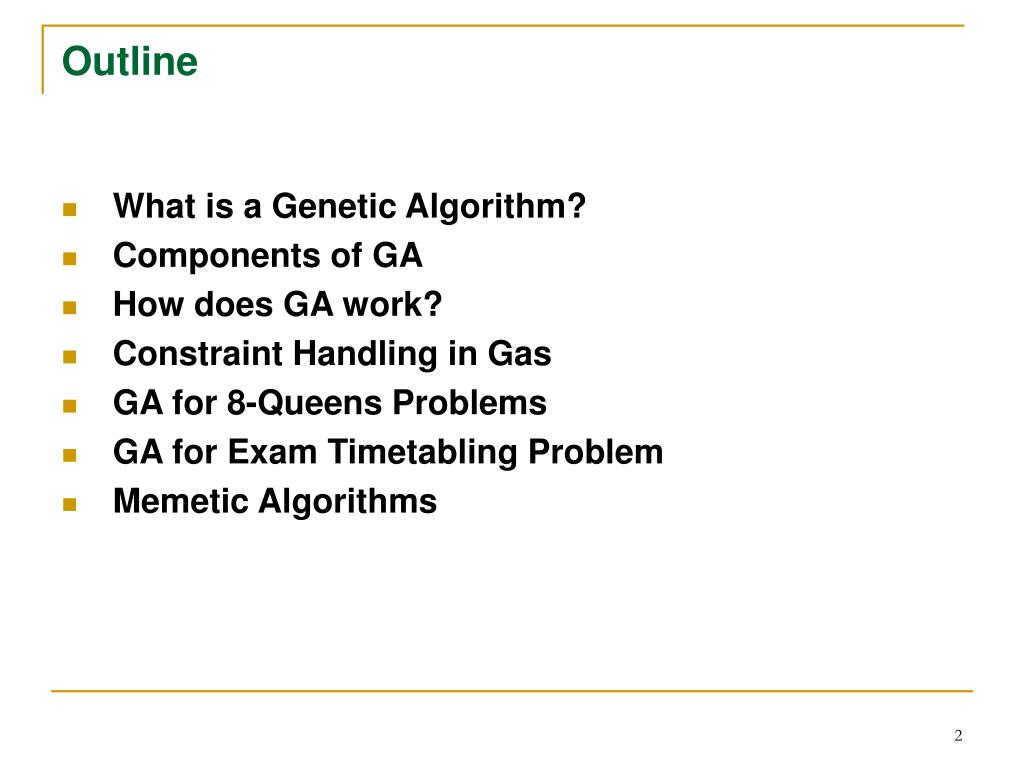

2. Outline • What is a Genetic Algorithm? • Components of GA • How does GA work? • Constraint Handling in Gas • GA for 8-Queens Problems • GA for Exam Timetabling Problem • Memetic Algorithms

3. Genetic algorithm is a population-based search method. Genetic algorithms are acknowledged as good solvers for tough problems. • However, no standard GA takes constraints into account. • This chapter describes how genetic algorithms can be used for solving constraint satisfaction problems.

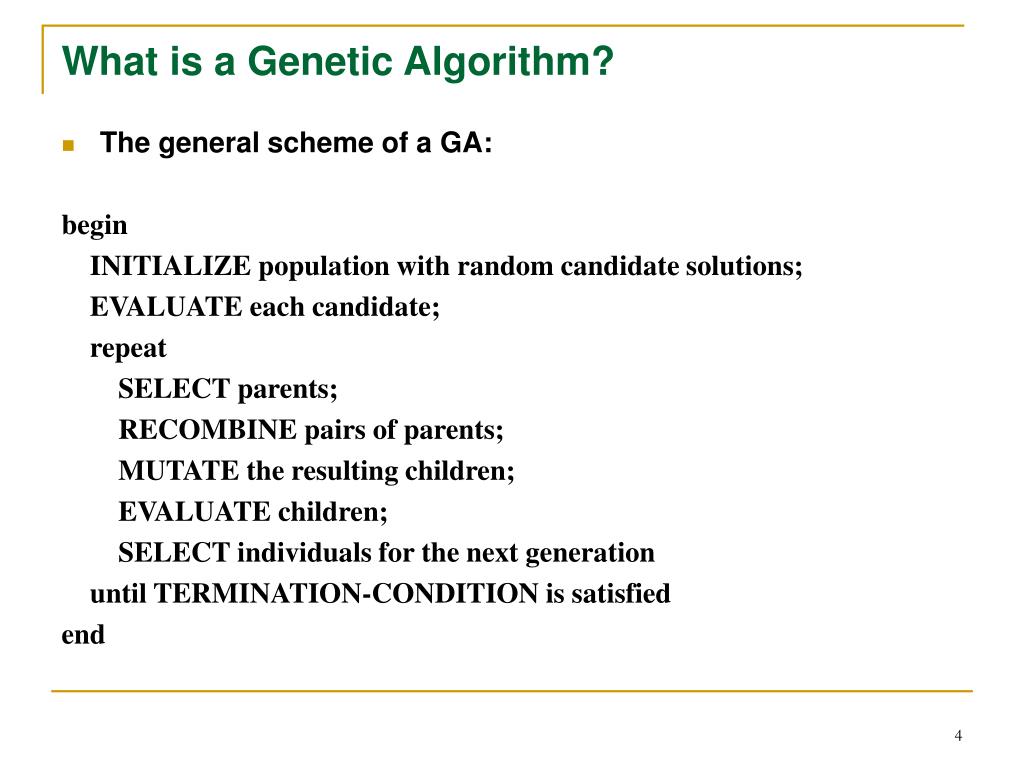

4. What is a Genetic Algorithm? • The general scheme of a GA: begin INITIALIZE population with random candidate solutions; EVALUATE each candidate; repeat SELECT parents; RECOMBINE pairs of parents; MUTATE the resulting children; EVALUATE children; SELECT individuals for the next generation until TERMINATION-CONDITION is satisfied end

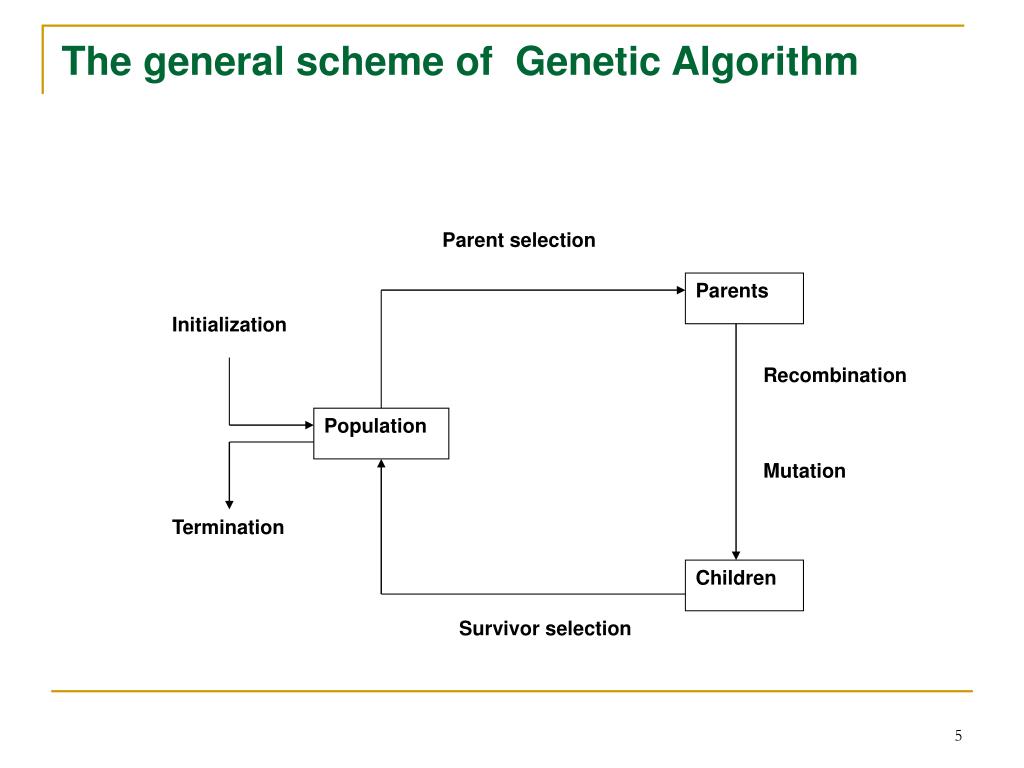

5. Parent selection Parents Initialization Recombination Mutation Population Termination Children Survivor selection The general scheme of Genetic Algorithm

6. The general scheme of Genetic Algorithm (cont.) • It’s clear that this scheme falls in the category of generate-and-test algorithms. • The evaluation function represents a heuristic estimation of solution quality and the search process is driven by the variation and the selection operator. • GA has a number of features: • GA is population-based • GA uses recombination to mix information of candidate solutions into a new one. • GA is stochastic.

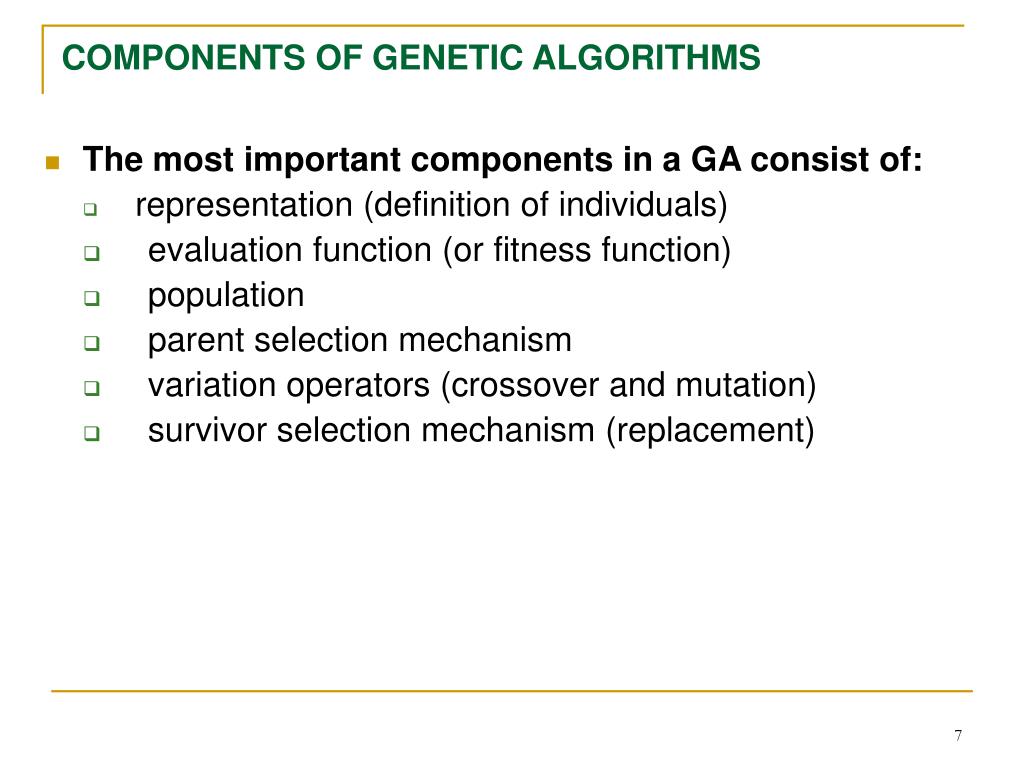

7. COMPONENTS OF GENETIC ALGORITHMS • The most important components in a GA consist of: • representation (definition of individuals) • evaluation function (or fitness function) • population • parent selection mechanism • variation operators (crossover and mutation) • survivor selection mechanism (replacement)

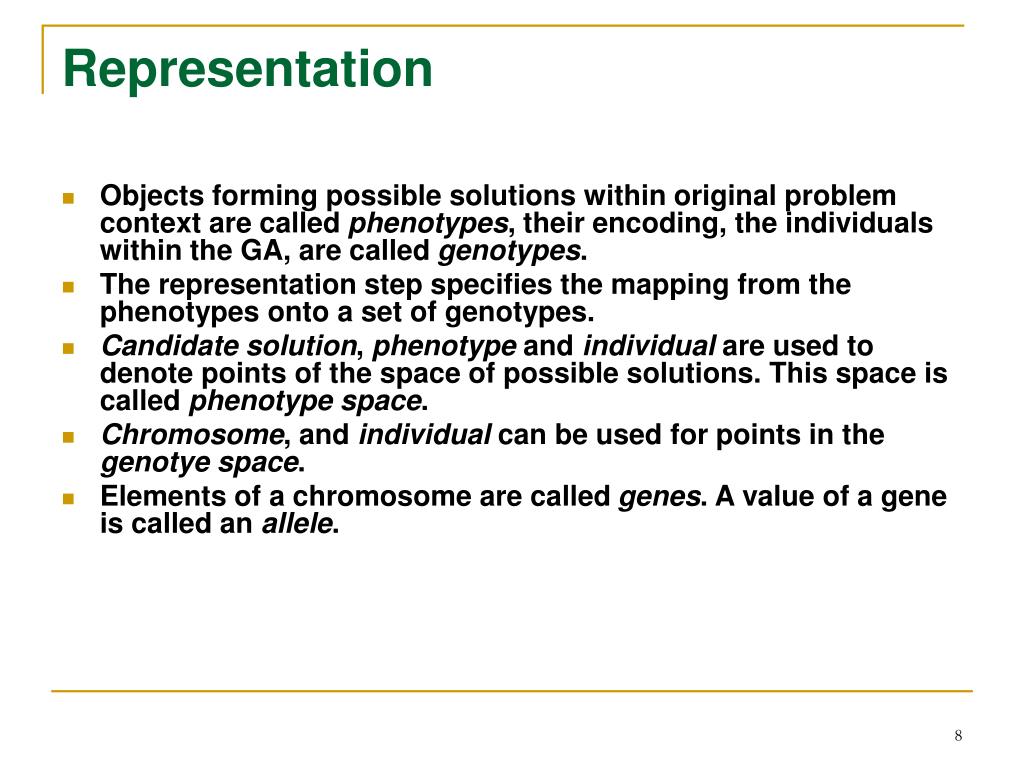

8. Representation • Objects forming possible solutions within original problem context are called phenotypes, their encoding, the individuals within the GA, are called genotypes. • The representation step specifies the mapping from the phenotypes onto a set of genotypes. • Candidate solution, phenotype and individual are used to denote points of the space of possible solutions. This space is called phenotype space. • Chromosome, and individual can be used for points in the genotye space. • Elements of a chromosome are called genes. A value of a gene is called an allele.

9. Variation Operators • The role of variation operators is to create new individuals from old ones. Variation operators form the implementation of the elementary steps with the search space. Mutation Operator • A unary variation operator is called mutation. It is applied to one genotype and delivers a modified mutant, the child or offspring of it. • In general, mutation is supposed to cause a random unbiased change. Mutation has a theoretical role: it can guarantee that the space is connected.

10. Crossover Operator • A binary variation operator is called recombination or crossover. This operator merges information from two parent genotypes into one or two offspring genotypes. • Similarly to mutation, crossover is a stochastic operator: the choice of what parts of each parent are combined, and the way these parts are combined, depend on random drawings. • The principle behind crossover is simple: by mating two individuals with different but desirable features, we can produce an offspring which combines both of those features.

11. Parent Selection Mechanism • The role of parent selection (mating selection) is to distinguish among individuals based on their quality to allow the better individuals to become parents of the next generation. • Parent selection is probabilistic. • High quality individuals get a higher chance to become parents than those with low quality. • Low quality individuals are often given a small, but positive chance, otherwise the whole search could become too greedy and get stuck in a local optimum.

12. Survivor Selection Mechanism • The role of survivor selection is to distinguish among individuals based on their quality. • In GA, the population size is constant, thus a choice has to be made on which individuals will be allowed in the next generation. • This decision is based on their fitness values, favoring those with higher quality. • As opposed to parent selection which is stochastic, survivor selection is often deterministic. • For instance, ranking the unified multiset of parents and offspring and selecting the top segment (fitness biased), or selection only from the offspring (age-biased).

13. Initialization and Termination Condition Initialization • Initialization is kept simple in most GA applications. Whether this step is worth the extra computational effort or not is very much depending on the application. Termination Condition • GA is stochastic and mostly there are no guarantees to reach an optimum. • Commonly-used conditions for terminations are the following: • the maximally allowed CPU times elapses • The total number of fitness evaluations reaches a given limit • for a given period of time, the fitness improvement remains under a threshold value • the population diversity drops under a given threshold.

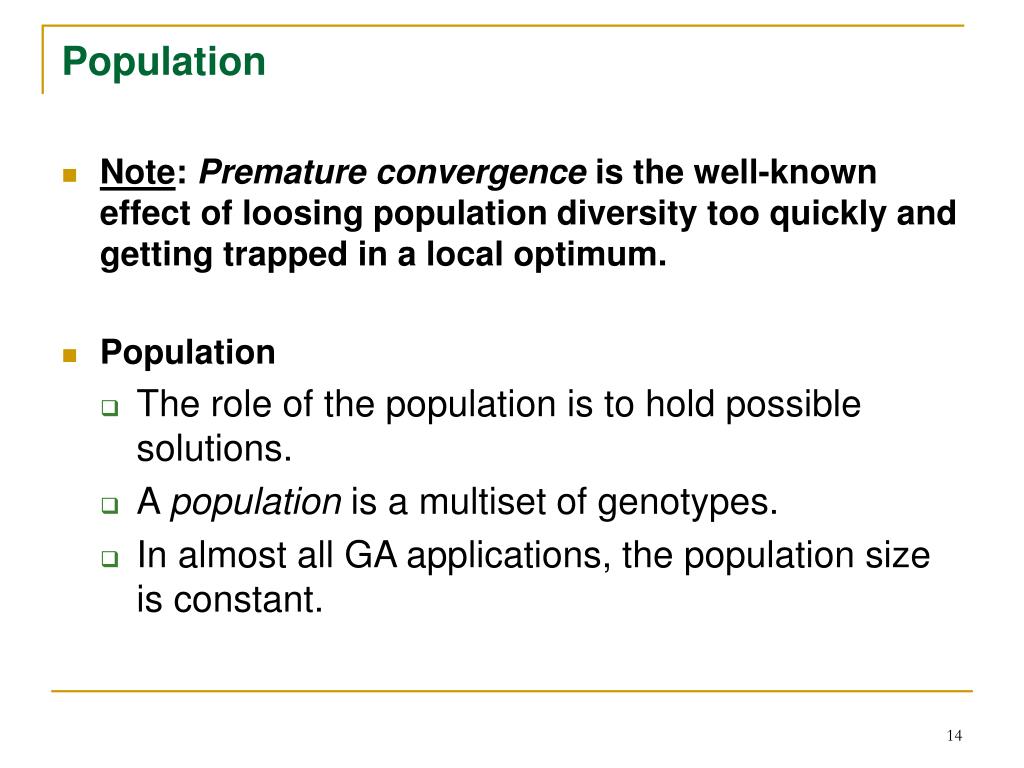

14. Population • Note: Premature convergence is the well-known effect of loosing population diversity too quickly and getting trapped in a local optimum. • Population • The role of the population is to hold possible solutions. • A population is a multiset of genotypes. • In almost all GA applications, the population size is constant.

15. HOW DO GENETIC ALGORITHMS WORK? Initialization • In GA, an initial population that is generated randomly. • Some GAs use special techniques to produce a higher quality initial population. Such an approach is designed to give the GA a good start and speed up the evolutionary process. • Example: A GA for exam timetabling problem in which the GA works only with feasible solutions.  The initial population must also be made up of feasible solutions. Then GA is run to improve the fitness of the initial population.

16. Example 3.1 • In a simple exam timetabling problem, we can use a non-binary bit string representation to represent the chromosome because it is easy to understand and represent. • Six positions represent six exams with each position’s value as the time slot assigned to the exam. • We can generate the population randomly to assign each exam a timeslot. Day AM PM time1 time2 time3 time4 Day1 e1 e3 Day2 e5 e6 e2,e4 • If we randomly generate six numbers 3, 8, 4, 8, 6, 7 as six timeslots for e1-e6, then the chromosome is 3 8 4 8 6 7.

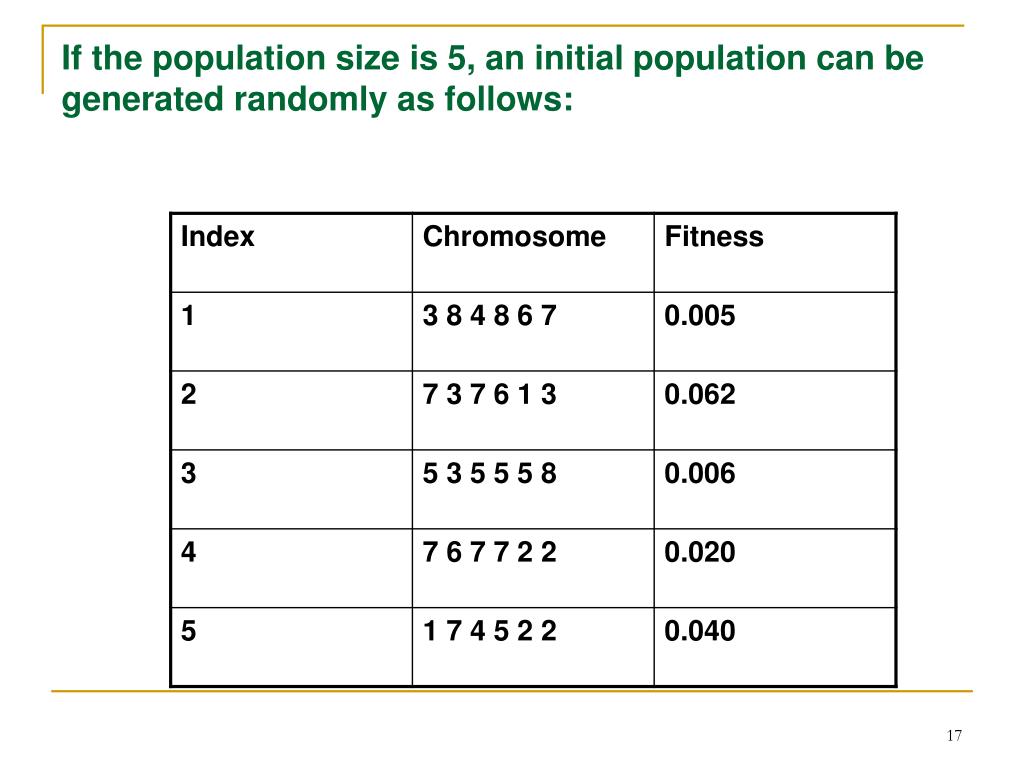

17. If the population size is 5, an initial population can be generated randomly as follows:

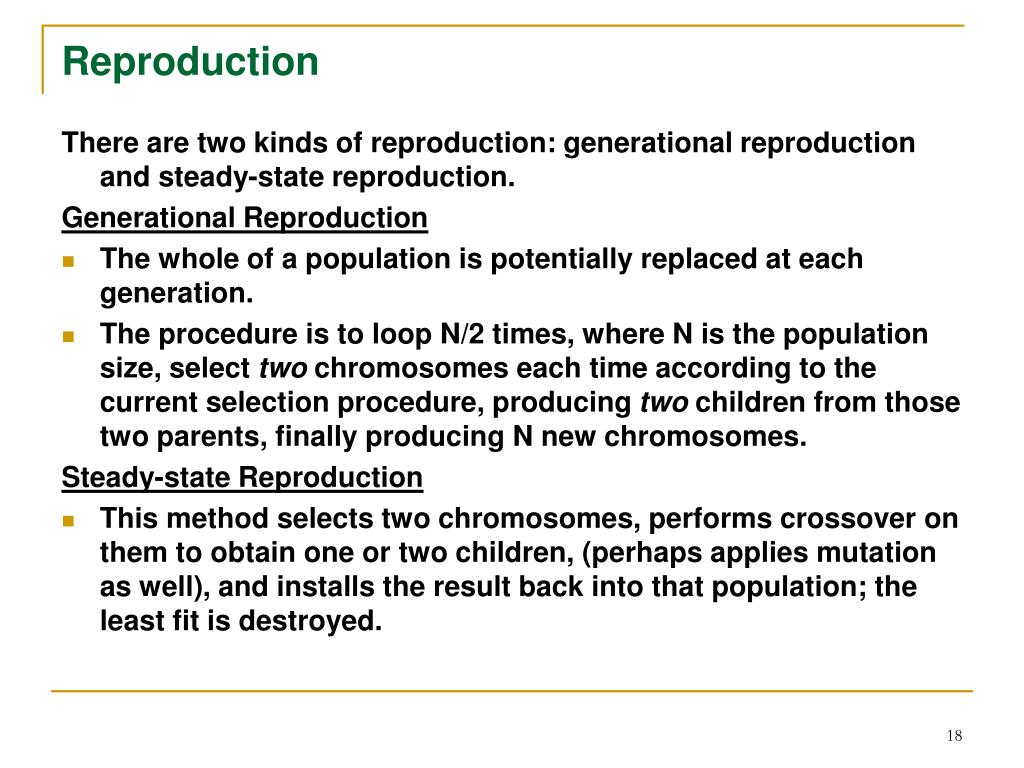

18. Reproduction There are two kinds of reproduction: generational reproduction and steady-state reproduction. Generational Reproduction • The whole of a population is potentially replaced at each generation. • The procedure is to loop N/2 times, where N is the population size, select two chromosomes each time according to the current selection procedure, producing two children from those two parents, finally producing N new chromosomes. Steady-state Reproduction • This method selects two chromosomes, performs crossover on them to obtain one or two children, (perhaps applies mutation as well), and installs the result back into that population; the least fit is destroyed.

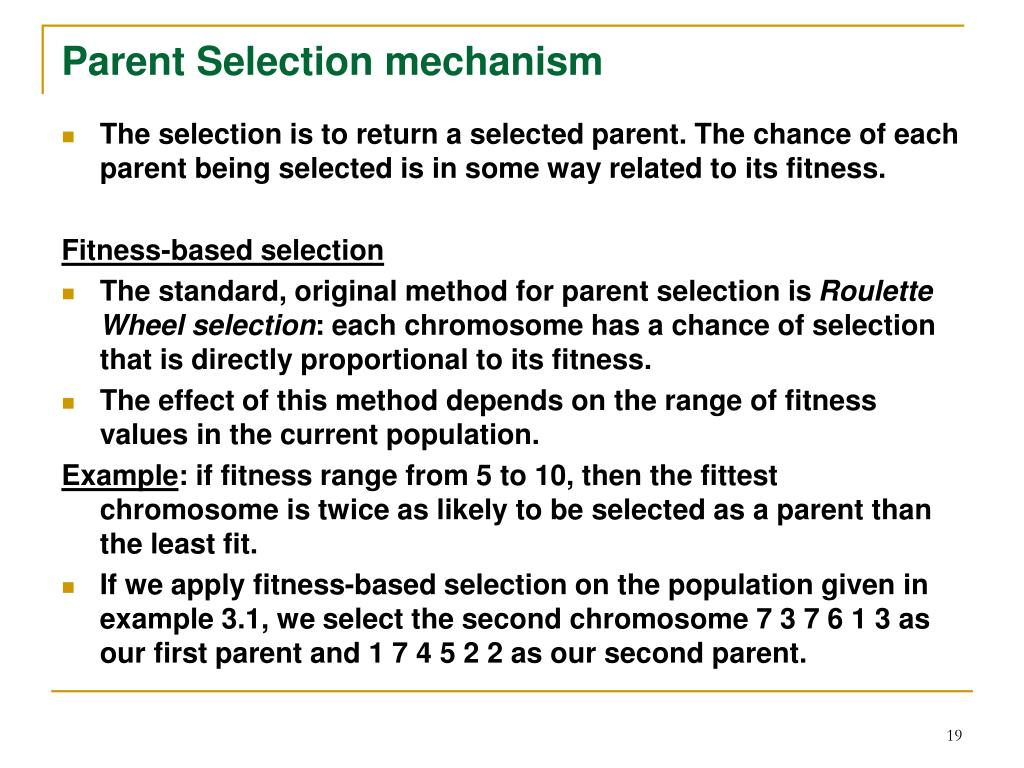

19. Parent Selection mechanism • The selection is to return a selected parent. The chance of each parent being selected is in some way related to its fitness. Fitness-based selection • The standard, original method for parent selection is Roulette Wheel selection: each chromosome has a chance of selection that is directly proportional to its fitness. • The effect of this method depends on the range of fitness values in the current population. Example: if fitness range from 5 to 10, then the fittest chromosome is twice as likely to be selected as a parent than the least fit. • If we apply fitness-based selection on the population given in example 3.1, we select the second chromosome 7 3 7 6 1 3 as our first parent and 1 7 4 5 2 2 as our second parent.

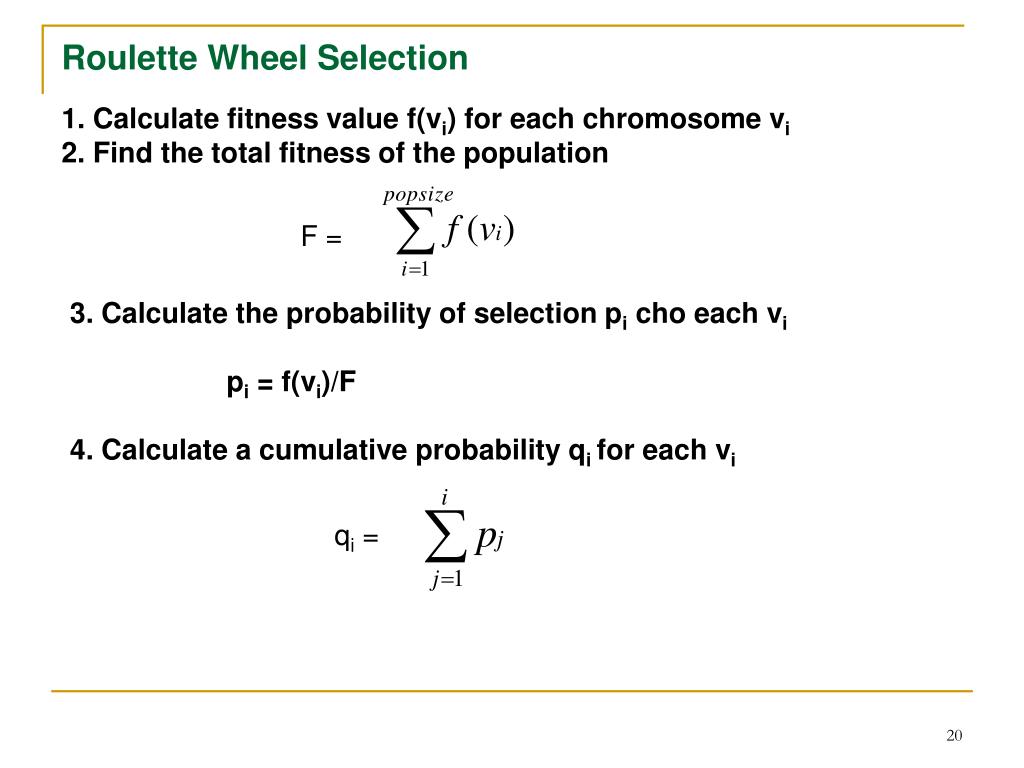

20. Roulette Wheel Selection 1. Calculate fitness value f(vi) for each chromosome vi 2. Find the total fitness of the population F = 3. Calculate the probability of selection pi cho each vi pi = f(vi)/F 4. Calculate a cumulative probability qi for each vi qi =

21. 5. The selection process is based on spinning the roulette wheel pop-size times, each time we select a single chromosome for being a parent in the following way: • Generate a random number r from [0..1]. • If r < q1 the select v1; otherwise select the i-th chromosome vi ( 2 ≤ i ≤ pop-size) such that qi-1 < r ≤ qi

22. Parent Selection mechanism Rank-based selection • Selection probabilities are based on a chromosome’s relative rank or position in the population, rather than absolute fitness. Tournament-based selection • The tournament selection is to choose K parents at random and returns the fittest one of these.

23. Crossover Operator • The crossover operator is the most important in GA. Crossover is a process yielding recombination of bit strings via an exchange of segments between pairs of chromosomes. • There are many kinds of crossover. • One-point crossover • Two-point crossover • Uniform crossover

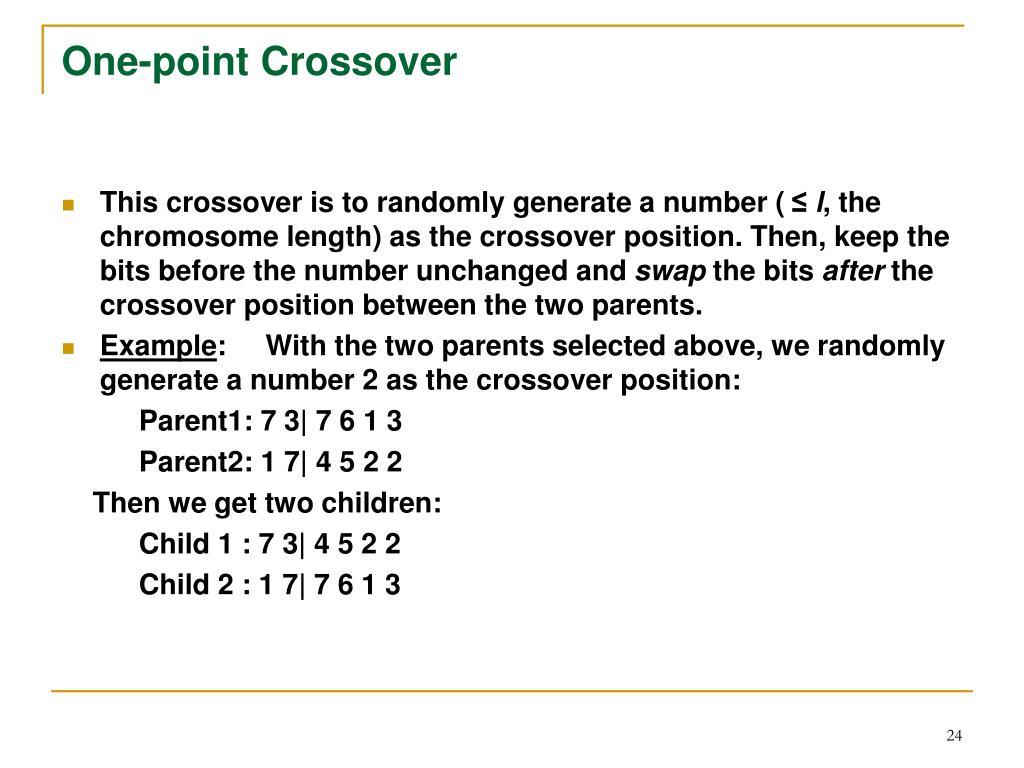

24. One-point Crossover • This crossover is to randomly generate a number ( ≤l, the chromosome length) as the crossover position. Then, keep the bits before the number unchanged and swap the bits after the crossover position between the two parents. • Example: With the two parents selected above, we randomly generate a number 2 as the crossover position: Parent1: 7 3| 7 6 1 3 Parent2: 1 7| 4 5 2 2 Then we get two children: Child 1 : 7 3| 4 5 2 2 Child 2 : 1 7| 7 6 1 3

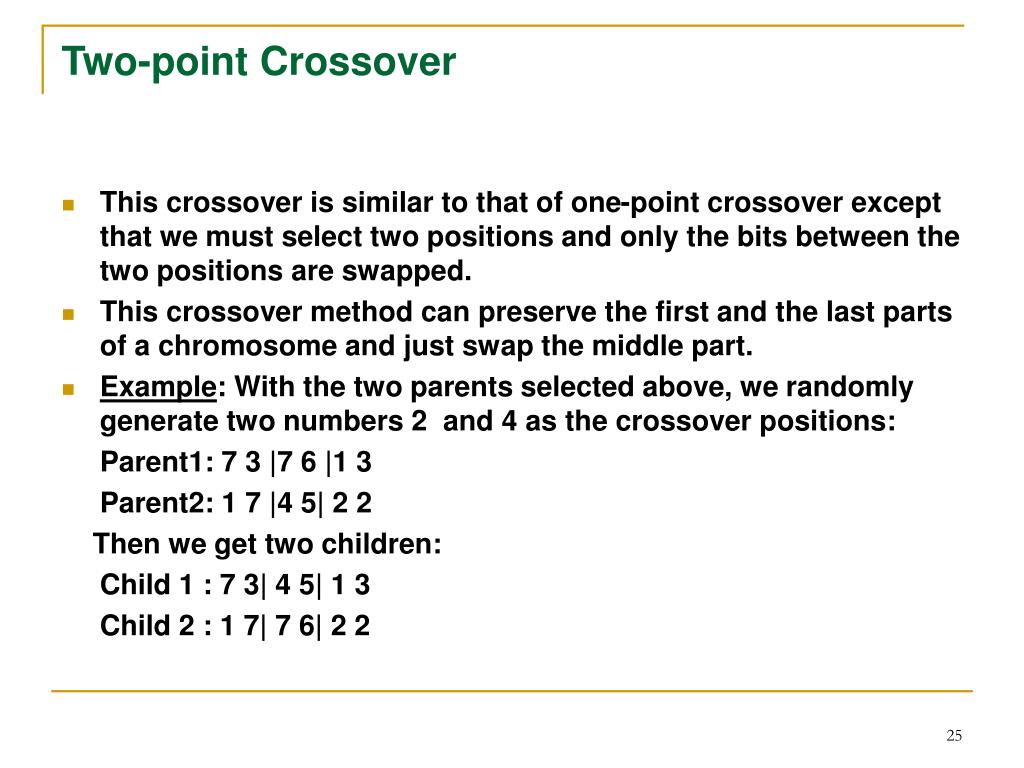

25. Two-point Crossover • This crossover is similar to that of one-point crossover except that we must select two positions and only the bits between the two positions are swapped. • This crossover method can preserve the first and the last parts of a chromosome and just swap the middle part. • Example: With the two parents selected above, we randomly generate two numbers 2 and 4 as the crossover positions: Parent1: 7 3 |7 6 |1 3 Parent2: 1 7 |4 5| 2 2 Then we get two children: Child 1 : 7 3| 4 5| 1 3 Child 2 : 1 7| 7 6| 2 2

26. Uniform Crossover • The uniform crossover : each gene of the first parent has a 0.5 probability of swapping with the corresponding gene of the second parent. • Example: For each position, we randomly generate a number between 0 and 1, for example, 0.2, 0.7, 0.9, 0.4, 0.6, 0.1. If the number generated for a given position is less than 0.5, then child1 gets the gene from parent1, and child2 gets the gene from parent2. Otherwise, vice versa. Parent1: 7 *3 *7 6 *1 3 Parent2: 1 *7 *4 5 *2 2 Then we get two children: Child 1 : 7 7* 4* 6 2* 3 Child 2 : 1 3* 7* 5 1* 2

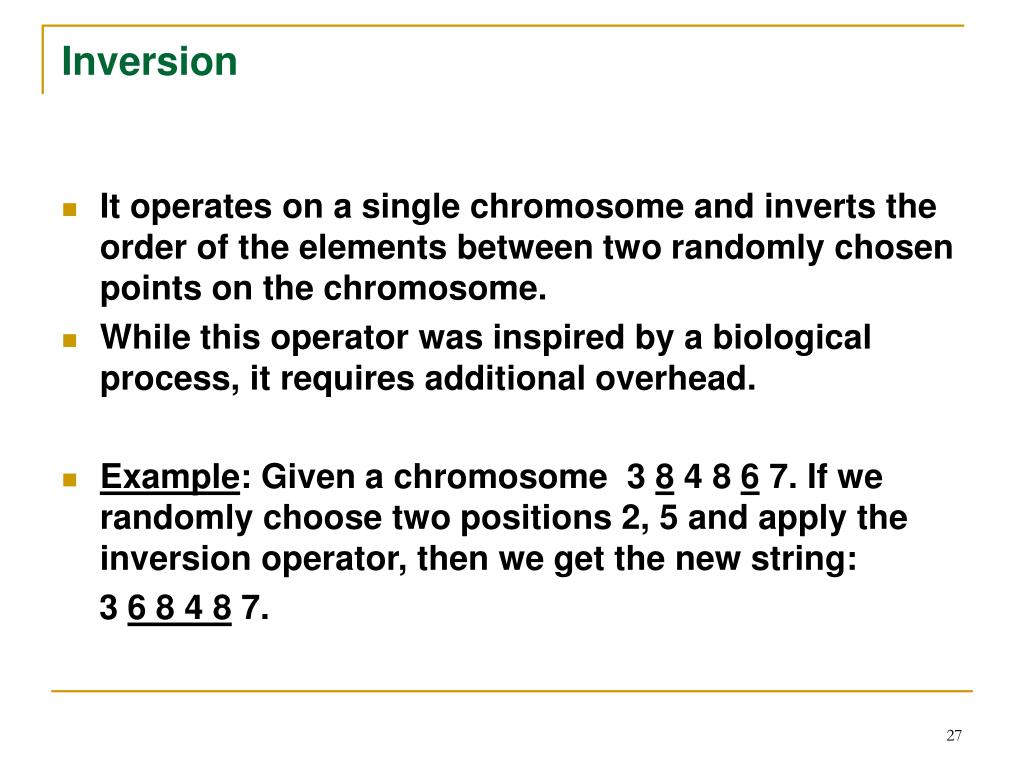

27. Inversion • It operates on a single chromosome and inverts the order of the elements between two randomly chosen points on the chromosome. • While this operator was inspired by a biological process, it requires additional overhead. • Example: Given a chromosome 3 8 4 8 6 7. If we randomly choose two positions 2, 5 and apply the inversion operator, then we get the new string: 3 6 8 4 8 7.

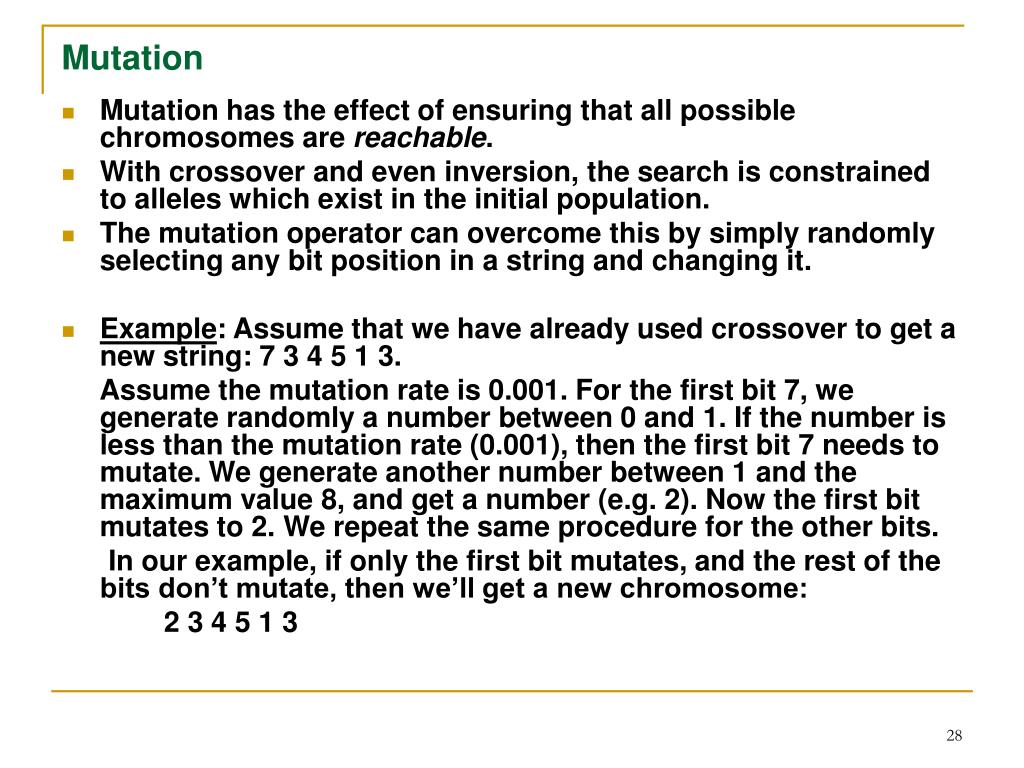

28. Mutation • Mutation has the effect of ensuring that all possible chromosomes are reachable. • With crossover and even inversion, the search is constrained to alleles which exist in the initial population. • The mutation operator can overcome this by simply randomly selecting any bit position in a string and changing it. • Example: Assume that we have already used crossover to get a new string: 7 3 4 5 1 3. Assume the mutation rate is 0.001. For the first bit 7, we generate randomly a number between 0 and 1. If the number is less than the mutation rate (0.001), then the first bit 7 needs to mutate. We generate another number between 1 and the maximum value 8, and get a number (e.g. 2). Now the first bit mutates to 2. We repeat the same procedure for the other bits. In our example, if only the first bit mutates, and the rest of the bits don’t mutate, then we’ll get a new chromosome: 2 3 4 5 1 3

29. CONSTRAINT HANDLING IN GENETIC ALGORITHMS • There are many ways to handle constraints in a GA. At the high conceptual level we can distinguish two cases: • indirect constraint handling • direct constraint handling. • Indirect constraint handling: we deal with the problem of satisfying constraints by incorporating them in the fitness function f such that f optimal implies that the constraints are satisfied, and use the power of GA to find a solution. • Direct constraint handling means that we leave the constraints as they are and ‘adapt’ the GA to enforce them. • Direct and indirect constraint handling can be applied in combination, i.e., in one application we can handle some constraints directly and others indirectly.

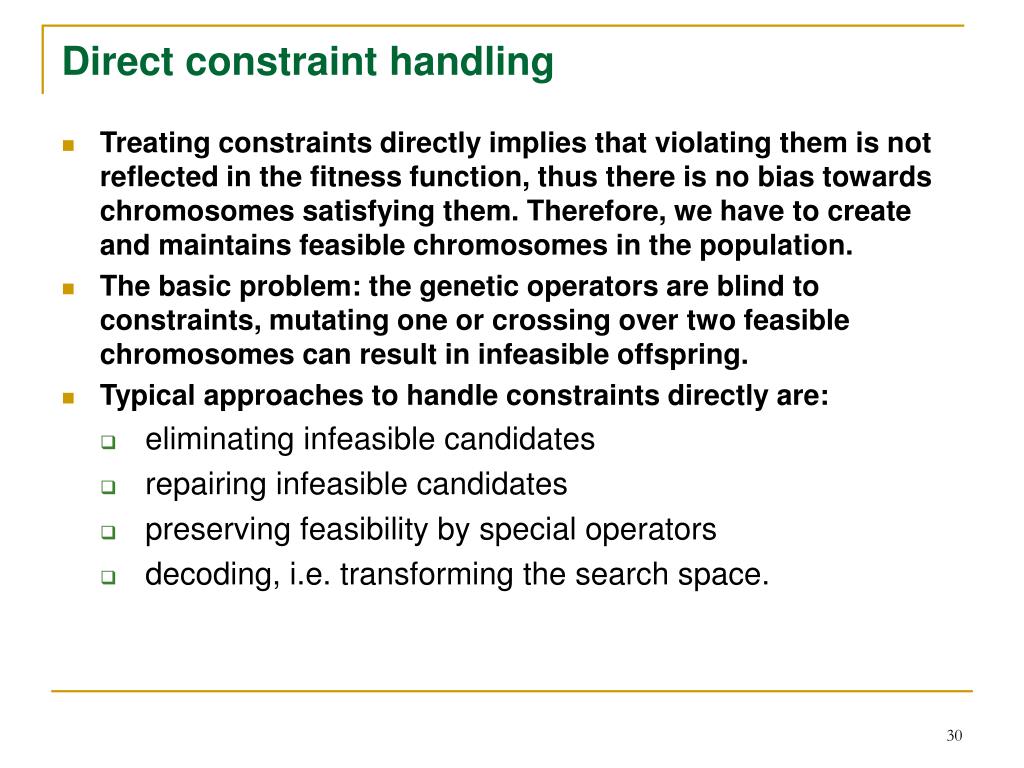

30. Direct constraint handling • Treating constraints directly implies that violating them is not reflected in the fitness function, thus there is no bias towards chromosomes satisfying them. Therefore, we have to create and maintains feasible chromosomes in the population. • The basic problem: the genetic operators are blind to constraints, mutating one or crossing over two feasible chromosomes can result in infeasible offspring. • Typical approaches to handle constraints directly are: • eliminating infeasible candidates • repairing infeasible candidates • preserving feasibility by special operators • decoding, i.e. transforming the search space.

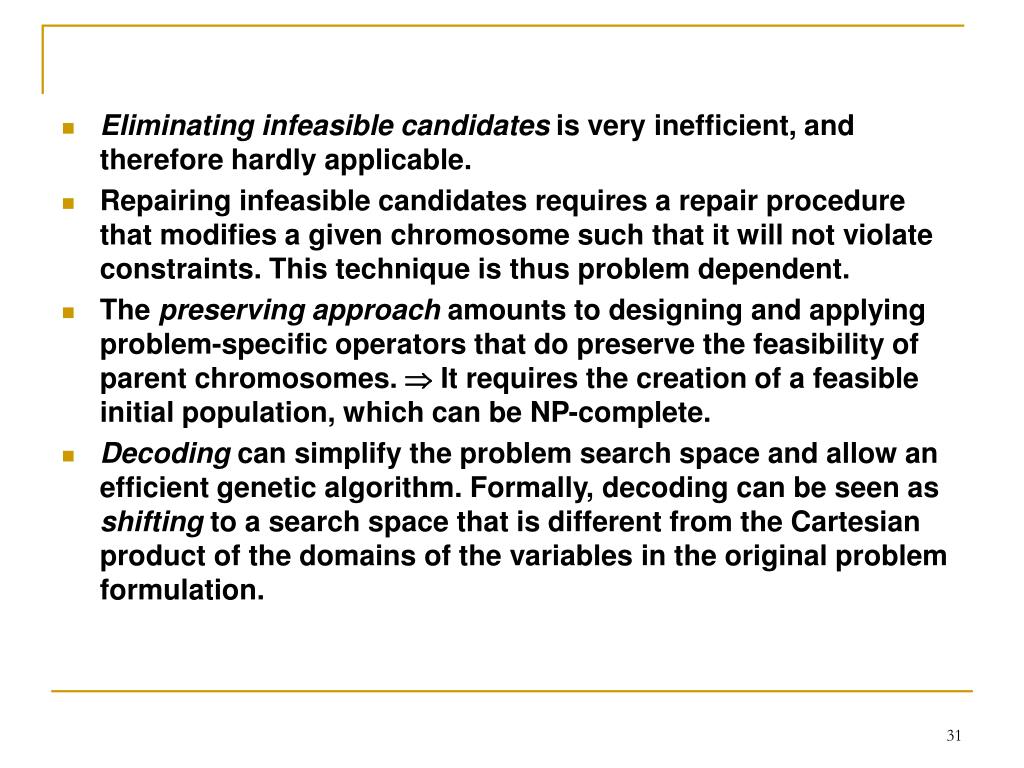

31. Eliminating infeasible candidates is very inefficient, and therefore hardly applicable. • Repairing infeasible candidates requires a repair procedure that modifies a given chromosome such that it will not violate constraints. This technique is thus problem dependent. • The preserving approach amounts to designing and applying problem-specific operators that do preserve the feasibility of parent chromosomes.  It requires the creation of a feasible initial population, which can be NP-complete. • Decoding can simplify the problem search space and allow an efficient genetic algorithm. Formally, decoding can be seen as shifting to a search space that is different from the Cartesian product of the domains of the variables in the original problem formulation.

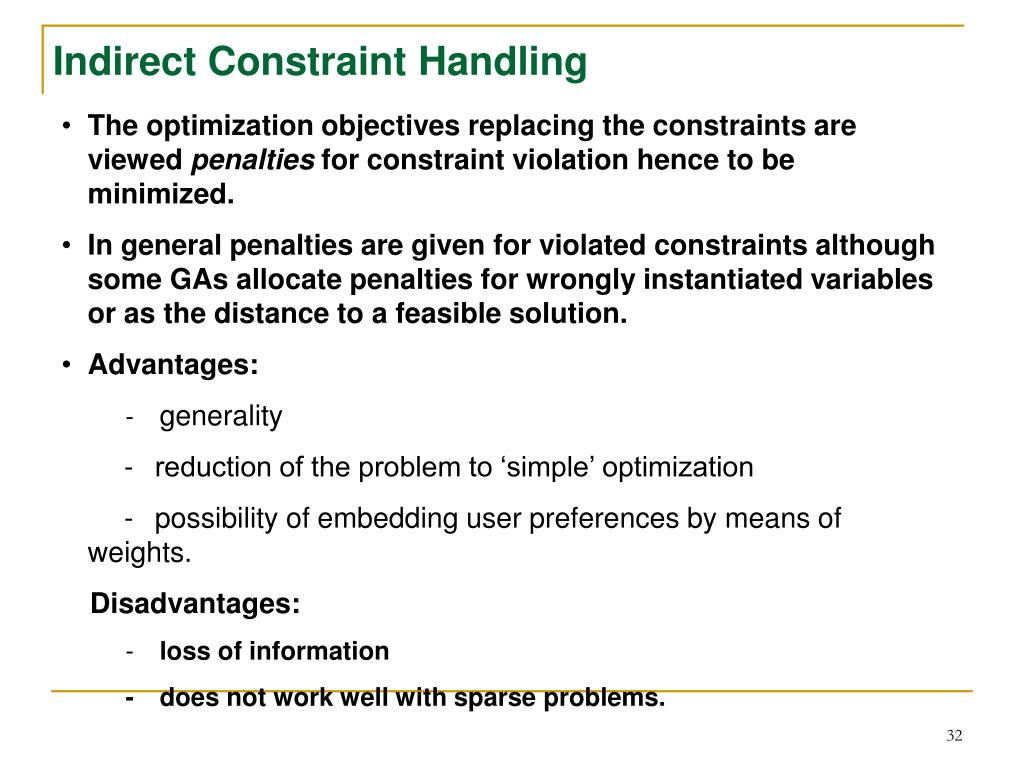

32. Indirect Constraint Handling • The optimization objectives replacing the constraints are viewed penalties for constraint violation hence to be minimized. • In general penalties are given for violated constraints although some GAs allocate penalties for wrongly instantiated variables or as the distance to a feasible solution. • Advantages: • -generality • -reduction of the problem to ‘simple’ optimization • -possibility of embedding user preferences by means of weights. • Disadvantages: • -loss of information • -does not work well with sparse problems.

33. GA FOR 8-QUEENS PROBLEM • Solution Representation A chromosome is a permutation of the number 1,…,8 and a given g = < i1,…, i8> denotes the board configuration where the k-th column contains exactly one queen placed on the ik th row. Example: The permutation g = < 1,2,3,4,5,6,7,8> represents a board where the queens are placed along the main diagonal. The solution space is now the set of all permutations of 1,…,8.

34. Solution Representation (cont.) • By using such chromosome, we restrict the search to board configurations where horizontal constraint violation (two queens on the same column) and vertical constraint violation (two queens on the same row) do not occur. • The representation guarantees “half” number of the constraints and what remains to be minimized is the number of diagonal constraint violations.

35. Crossover Operator (cut and crossfill) • Given two parents, which are two permutations, the following mechanism will create two child permutations. • select a random position, crossover point, i  {1, …, 7} • cut both parents in two segments after this position • copy the first segment of parent1 into child1 and the first segment of parent2 into child2 • scan parent2 from left to right and fill the second segment of child1 with values from parent2 skipping those that already contained in it. • do the same for parent1 and child2.

36. Example of crossover Parent1 1 3 5| 7 6 2 4 8 Parent2 2 1 8| 6 4 3 5 7 Child1: 1 3 5| 2 8 6 4 7 Child2: 2 1 8| 3 5 7 6 4 • Mutation Operator • We select two positions in a given chromosome and swaps the values standing on those positions. • Mutation will cause a small undirected change and crossover creates children that inherit genetic material from both parents.

37. Parent selection and survivor selection • Parent selection (best 2 out of random 5) choosing 5 individuals randomly from the population and taking the best two as parents that undergone crossover. This ensures a bias towards using parents with relatively high fitness. • Survivor selection: (replace worst) after merging the population and offsprings, then ranks them according to fitness and deletes the worst two.

38. Other issues Some other parameters for the GA are as follows: • Recombination probability 100% • Mutation probability 80% • Population size 100 • Initialization random • Termination Solution or 10000 evaluations

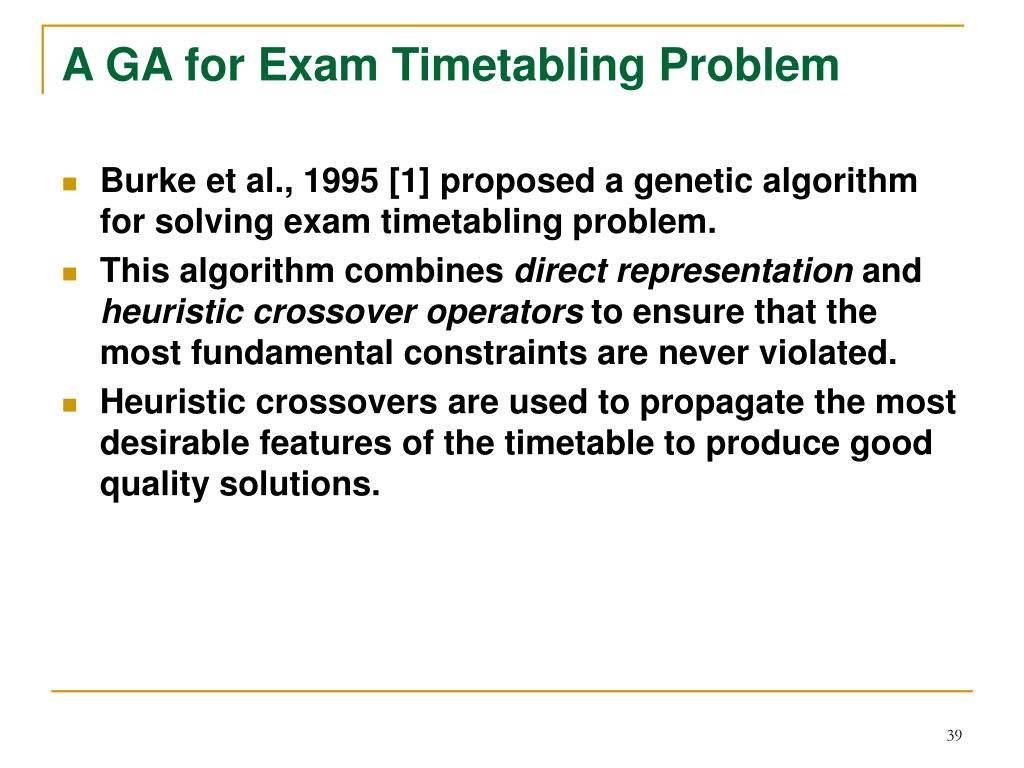

39. A GA for Exam Timetabling Problem • Burke et al., 1995 [1] proposed a genetic algorithm for solving exam timetabling problem. • This algorithm combines direct representation and heuristic crossover operators to ensure that the most fundamental constraints are never violated. • Heuristic crossovers are used to propagate the most desirable features of the timetable to produce good quality solutions.

40. Solution Representation • The most logical approach is to directly encode solutions with events matched to periods. • Figure 5.1 shows such an encoding for n events where each gene in the chromosome represents which period in which a particular event is to be scheduled.

41. The Creation of an Initial Population • The random sequential graph coloring algorithm is used to generate the starting population. It can create conflict-free graph colorings. For each population member: Generate a random ordering of exams Take each exam in turn according to that ordering: Find the first period in which the exam may be placed without conflict and so that the number of students does not go above a predefined maximum. Place the exam in that period. • This algorithm can quickly produce large populations of random feasible exam timetables.

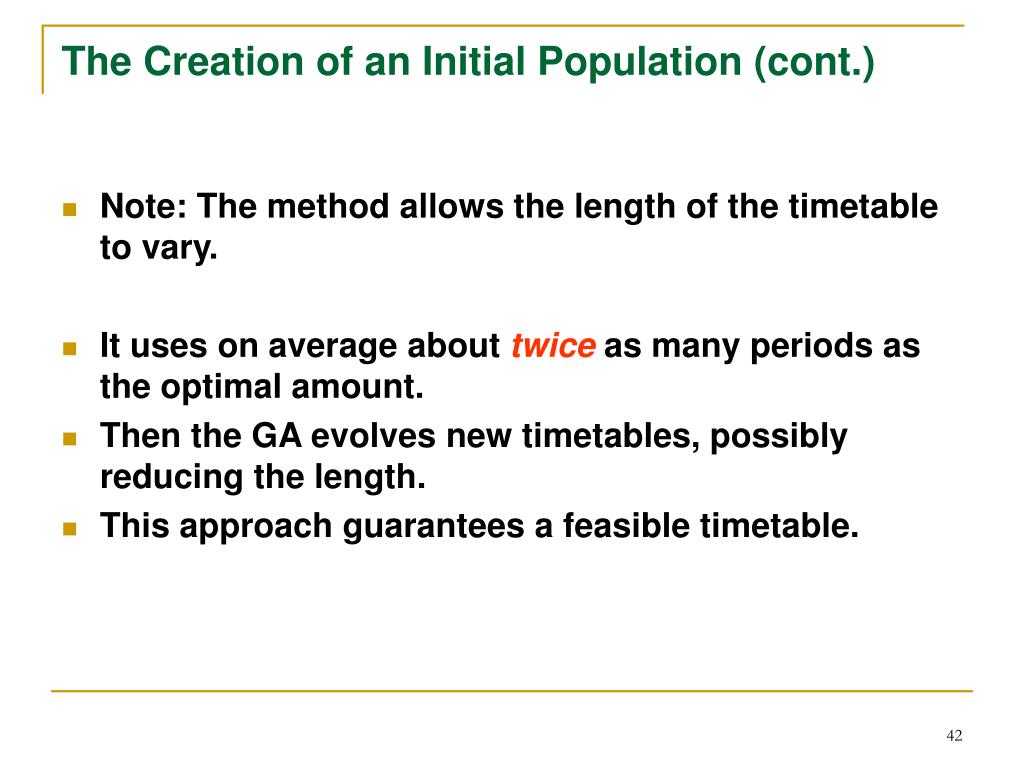

42. The Creation of an Initial Population (cont.) • Note: The method allows the length of the timetable to vary. • It uses on average about twice as many periods as the optimal amount. • Then the GA evolves new timetables, possibly reducing the length. • This approach guarantees a feasible timetable.

43. Crossover Operators • The crossover operator should satisfy the properties of respect and assortment given by Radcliffe. • Respect is the property that if an exam is timetabled to the same period in both parents then it will be scheduled to that period in the child. • Assortment is the property that the operator can generate a child such that if Exam1 is scheduled to Period 1 in the first parent and Exam2 is scheduled to Period 2 in the second parent then the child may have Exam 1 in Period 1 and Exam 2 in Period 2 providing that these are compatible.

44. Crossover Operators (cont.) The crossover operator works for the period i as follows: • The operator starts by looking at the first period. It takes exams scheduled in that period (in both parents) and then uses an algorithm to select other exams so that none clash with those already scheduled and the limit on the number of spaces is not violated. Once this is completed, the crossover looks at period two and so on until all exams are placed.

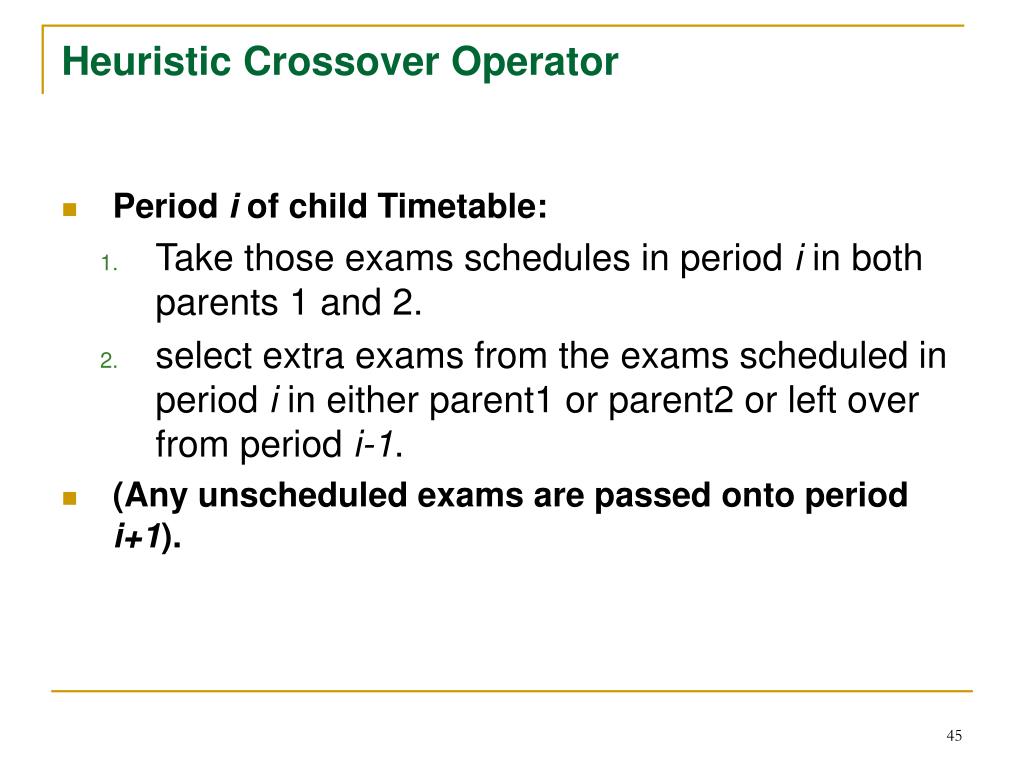

45. Heuristic Crossover Operator • Period i of child Timetable: • Take those exams schedules in period i in both parents 1 and 2. • select extra exams from the exams scheduled in period i in either parent1 or parent2 or left over from period i-1. • (Any unscheduled exams are passed onto period i+1).

46. Heuristic Crossover Operator

47. Once an exam is selected, all other exams that clash with it are labeled as unscheduled for that period. • The authors construct a number of different crossover operators based on the same framework but using alternative selection algorithms. Some of such operators are as follows. Random Exams are selected at random. This is closest to the standard uniform crossover. Largest Degree Exams are selected according to the number of other exams they conflict with.

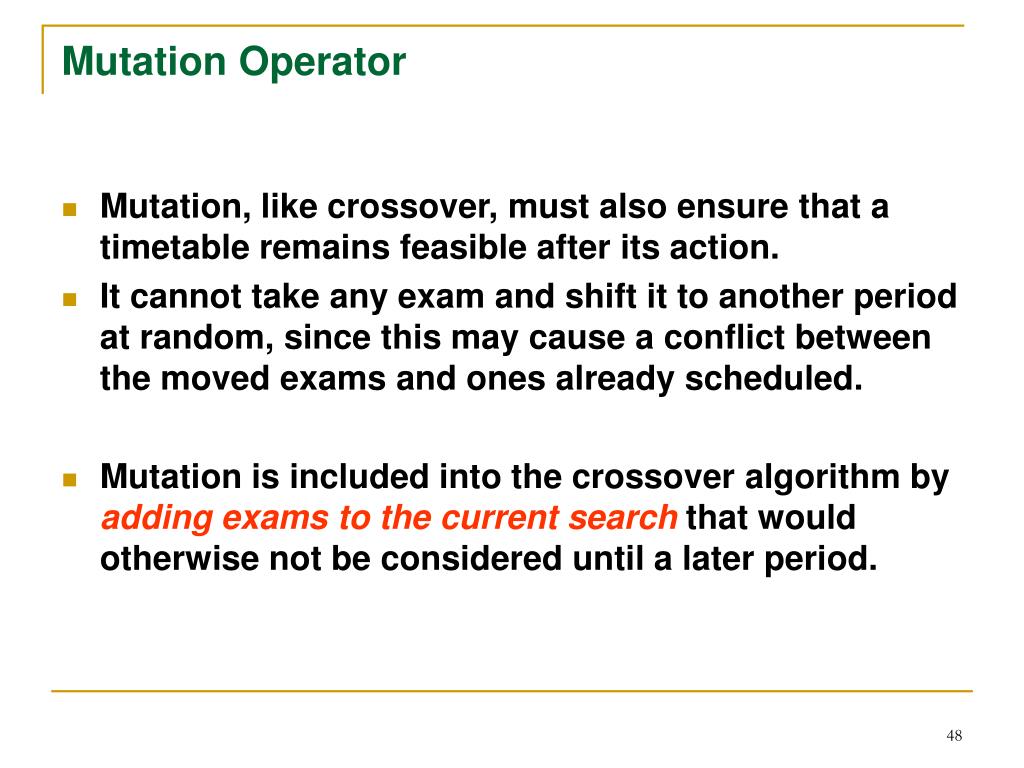

48. Mutation Operator • Mutation, like crossover, must also ensure that a timetable remains feasible after its action. • It cannot take any exam and shift it to another period at random, since this may cause a conflict between the moved exams and ones already scheduled. • Mutation is included into the crossover algorithm by adding exams to the current search that would otherwise not be considered until a later period.

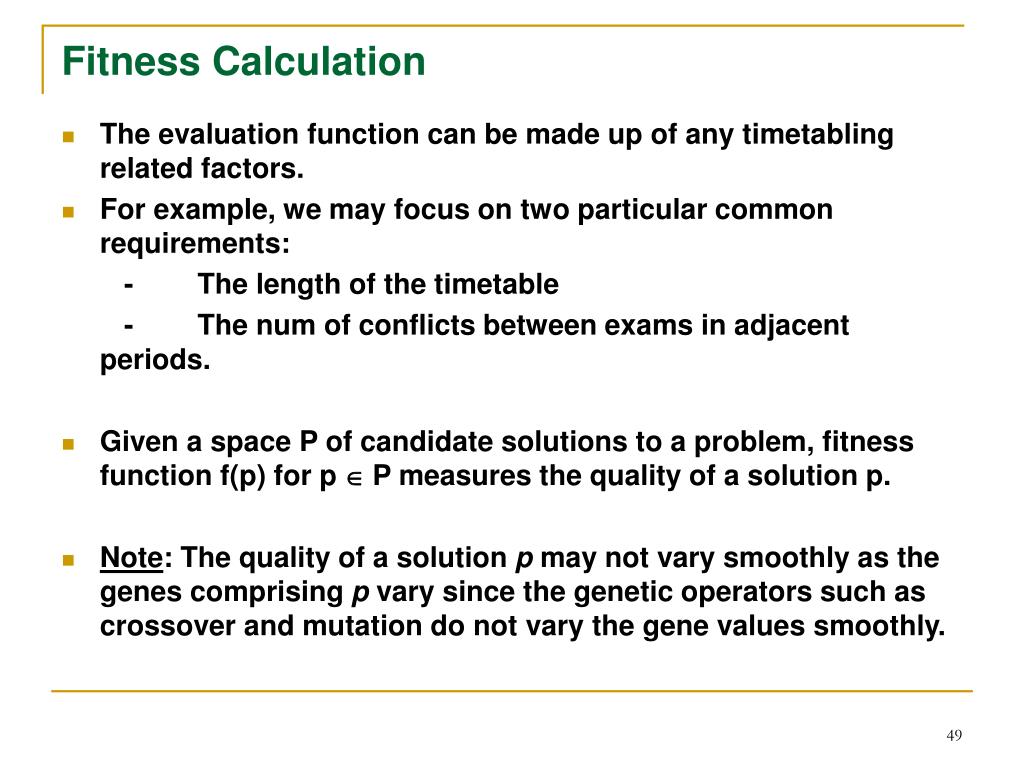

49. Fitness Calculation • The evaluation function can be made up of any timetabling related factors. • For example, we may focus on two particular common requirements: -The length of the timetable -The num of conflicts between exams in adjacent periods. • Given a space P of candidate solutions to a problem, fitness function f(p) for p  P measures the quality of a solution p. • Note: The quality of a solution p may not vary smoothly as the genes comprising p vary since the genetic operators such as crossover and mutation do not vary the gene values smoothly.

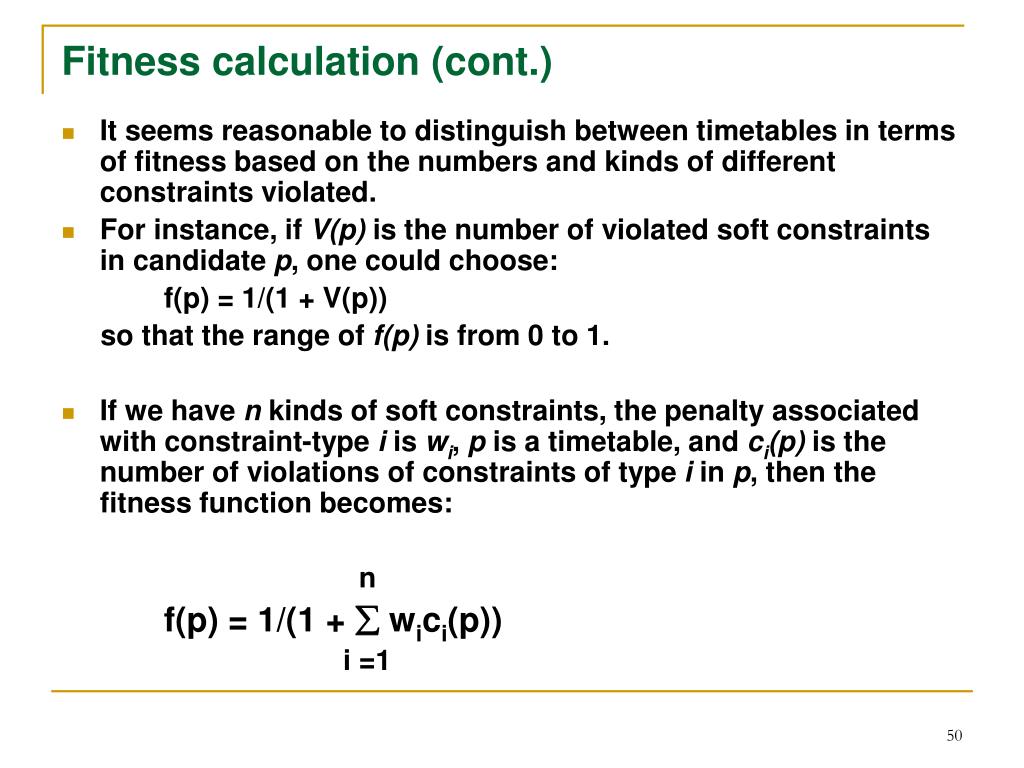

50. Fitness calculation (cont.) • It seems reasonable to distinguish between timetables in terms of fitness based on the numbers and kinds of different constraints violated. • For instance, if V(p) is the number of violated soft constraints in candidate p, one could choose: f(p) = 1/(1 + V(p)) so that the range of f(p) is from 0 to 1. • If we have n kinds of soft constraints, the penalty associated with constraint-type i is wi, p is a timetable, and ci(p) is the number of violations of constraints of type i in p, then the fitness function becomes: n f(p) = 1/(1 +  wici(p)) i =1
