  1. Introduction to Graphics Hardware and GPUs Yannick Francken Tom Mertens

  2. Overview • Definition • Motivation • History of Graphics Hardware • Graphics Pipeline • Vertex and Fragment Shaders • Modern Graphics Hardware • Stream Programming • GPU Stream Programming • Languages • Exercise • More Information

  3. Definition Logical Representation of Visual Information Output Signal

  4. Motivation • Real Time: 15 – 60 fps • High Resolution

  5. Motivation • High CPU load • Physics, AI, sound, network, … • Graphics demand: • Fast memory access • Many lookups [ vertices, normal, textures, … ] • High bandwidth usage • A few GB/s needed in regular cases! • Large number of flops • Flops = Floating Point Operations [ ADD, MUL, SUB, … ] • Illustration: matrix-vector products (16 MUL + 12 ADD) x (#vertices + #normals) x fps = (28 Flops) x (6.000.000) x 30 ≈ 5GFlops • Conclusion: Real time graphics needs supporting hardware!

  6. History of Graphics Hardware • … - mid ’90s • SGI mainframes and workstations • PC: only 2D graphics hardware • mid ’90s • Consumer 3D graphics hardware (PC) • 3dfx, nVidia, Matrox, ATI, … • Triangle rasterization (only) • Cheap: pushed by game industry • 1999 • PC-card with TnL [ Transform and Lighting ] • nVIDIA GeForce: Graphics Processing Unit (GPU) • PC-card more powerful than specialized workstations • Modern graphics hardware • Graphics pipeline partly programmable • Leaders: ATI and nVidia • “ATI Radeon X1950” and “nVidia GeForce 8800” • Game consoles similar to GPUs (Xbox)

  7. Graphics Pipeline LOD selection Frustum Culling Portal Culling … Application Modelview/Projection tr. Clipping Lighting Division by w Primitive Assembly Viewport transform Backface culling Geometry Processing Scan Conversion Fragment Shading [Color and Texture interpol.] Frame Buffer Ops [Z-buffer, Alpha Blending,…] Rasterization Output to Device Output

  8. Graphics Pipeline LOD selection Frustum Culling Portal Culling … Application Programmable Clipping Division by w Primitive Assembly Viewport transform Backface culling VERTEX SHADER Geometry Processing Scan Conversion Rasterization FRAGMENT SHADER Output to Device Output

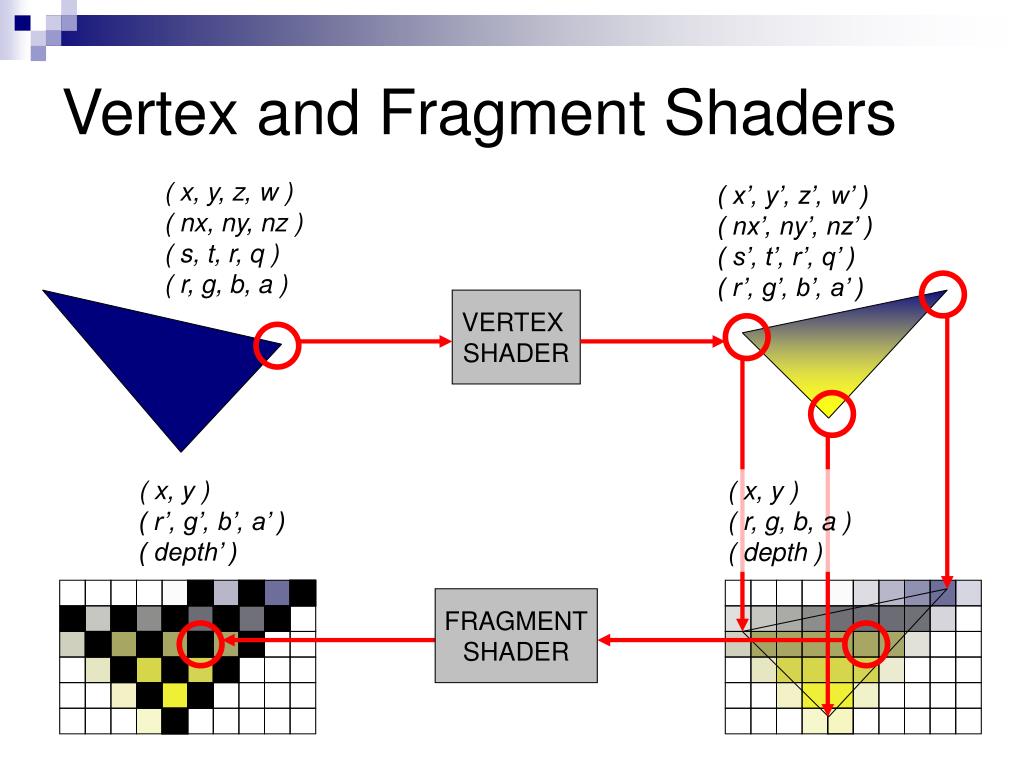

  9. ( x, y, z, w ) ( nx, ny, nz ) ( s, t, r, q ) ( r, g, b, a ) ( x’, y’, z’, w’ ) ( nx’, ny’, nz’ ) ( s’, t’, r’, q’ ) ( r’, g’, b’, a’ ) VERTEX SHADER ( x, y ) ( r’, g’, b’, a’ ) ( depth’ ) ( x, y ) ( r, g, b, a ) ( depth ) FRAGMENT SHADER Vertex and Fragment Shaders

  10. Modern Graphics Hardware • GPU = Graphics Processing Unit • Vector processor • Operates on 4 tuples • Position ( x, y, z, w ) • Color ( red, green, blue, alpha ) • Texture Coordinates ( s, t, r, q ) • 4 tuple ops, 1 clock cycle • SIMD [ Single Instruction Multiple Data ] • ADD, MUL, SUB, DIV, MADD, …

  11. Modern Graphics Hardware • Pipelining • Number of stages • Parallelism • Number of parallel processes • Parallelism + pipelining • Number of parallel pipelines 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3

  12. Modern Graphics Hardware • Parallelism + pipelining: ATI Radeon 9700 4 vertex pipelines 8 pixel pipelines

  13. Modern Graphics Hardware • Features of ATI Radeon X1900 XTX • Core speed 650 Mhz • 48 pixel shader processors • 8 vertex shader processors • 51 GB/s memory bandwidth • 512 MB memory

  14. Modern Graphics Hardware • High Memory Bandwidth Graphics Card High bandwidth 51GB/s GPU 650Mhz Graphics memory ½GB Output AGP bus 2GB/s Parallel Processes Processor Chip Main memory 1GB AGP memory ½GB High bandwidth 77GB/s CPU 3Ghz 3GB/s Cache ½MB

  15. Stream Programming • Input: stream of data records • Output: stream(s) of data records • Kernel: operates sequentially on the data records, accessing one record at a time! • Read-Only Memory: record independent read only memory

  16. GPU Stream Programming • Vertex Shader • Input and output streams • Vertices, normals, colors, texture coordinates • Read only memory • Uniform variables • Uniform = constant per stream • Textures, floats, ints, arrays, … • Fragment Shader • Input and output streams • Pixels • Z-values • Read only memory • See above

  17. Languages • Assembly • Cg [ C for Graphics ] • HLSL [ High Level Shading Language ] • GLSL [ OpenGL Shading Language ] • Sh • BrookGPU

  18. Specialized Instruction Set DP4: 4 tuple dot poduct RSQ: reciprocal square root MAD: multiply and add DPH: homogeneous dot product SCS: sine and cosine LRP: linear interpolate TEX: texture map … Nowadays, “not” used directly anymore Generated by high level language compilers !!ARBvp1.0 ATTRIB pos = vertex.position; PARAM mat[4] = { state.matrix.mvp }; # Transform by concatenation of the # MODELVIEW and PROJECTION # matrices. DP4 result.position.x, mat[0], pos; DP4 result.position.y, mat[1], pos; DP4 result.position.z, mat[2], pos; DP4 result.position.w, mat[3], pos; # Pass the primary color through w/o # lighting. MOV result.color, vertex.color; END Assembly

  19. High level programming language Static conditional jumps if, while, for, … Data dependent conditional jumps SIMD Fragment shader: only efficient in case of coherent program flow! No pointers! struct appdata { float4 position : POSITION; float3 normal : NORMAL; float3 color : DIFFUSE; float3 VertexColor : SPECULAR; }; struct vfconn { float4 HPOS : POSITION; float4 COL0 : COLOR0; }; vfconn main( appdata IN, uniformfloat4 Kd, uniform float4x4 mvp ) { vfconn OUT; OUT.HPOS = mul( mvp, IN.position); OUT.COL0.xyz = Kd.xyz * IN.VertexColor.xyz; OUT.COL0.w = 1.0; return OUT; } Cg / HLSL / GLSL

  20. Shader code embedded in C++ // C++ Code … vsh = SH_BEGIN_VERTEX_PROGRAM { ShInputNormal3f normal; ShInputPosition4f p; ShOutputPoint4f ov; ShOutputNormal3f on; ShOutputVector3f lvv; ShOutputPosition4f opd; opd = Globals::mvp | p; on = normalize( Globals::mv | normal ); ov = -normalize( Globals::mv | p ); lvv = normalize( Globals::lightPos – ( Globals::mv | p) ( 0,1,2 ) ); } SH_END_PROGRAM; fsh = SH_BEGIN_FRAGMENT_PROGRAM { ShInputVector4f v; ShInputNormal3f n; ShInputVector3f lvv; ShInputPosition4f p; ShOutputColor3f out; out( 0,1,2 ) = Globals::color * dot( normalize( n ), normalize( lvv ) ); } SH_END_PROGRAM; Sh

  21. GPGPU Language General Purpose GPU Language Brook: Streaming extension of C BrookGPU: GPU port of Brook No computer graphics knowledge required! kernel void k( float s<>, float3 f, float a[10][10], out float o<> ); float a<100>; float b<100>; float c<10,10>; streamRead( a, data1 ); streamRead( b, data2 ); streamRead( c, data3 ); // Call kernel "k" k( a, 3.2f, c, b ); streamWrite( b, result ) BrookGPU

  22. Screenshots • nVidia Toolkit [ Reflection-Bump Mapping ]

  23. Screenshots • Far Cry [ UBISOFT ]

  24. Screenshots • NPR [ ATI Research Group ]

  25. Exercise • Vertex Shader in Cg • Free Form Deformation • Framework available on website Vertex Shader

  26. More Information • nVidia • http://developer.nvidia.com/ • ATI • http://www.ati.com/developer/ • General Purpose GPU Programming • http://www.gpgpu.org • GPU Programming and Architecture • http://www.cis.upenn.edu/~suvenkat/700/ • Hardware • http://www.beyond3d.com • http://www.tomshardware.com

  27. Questions?
