Algebra For Capability Based Attack Correlation WISTP 2008

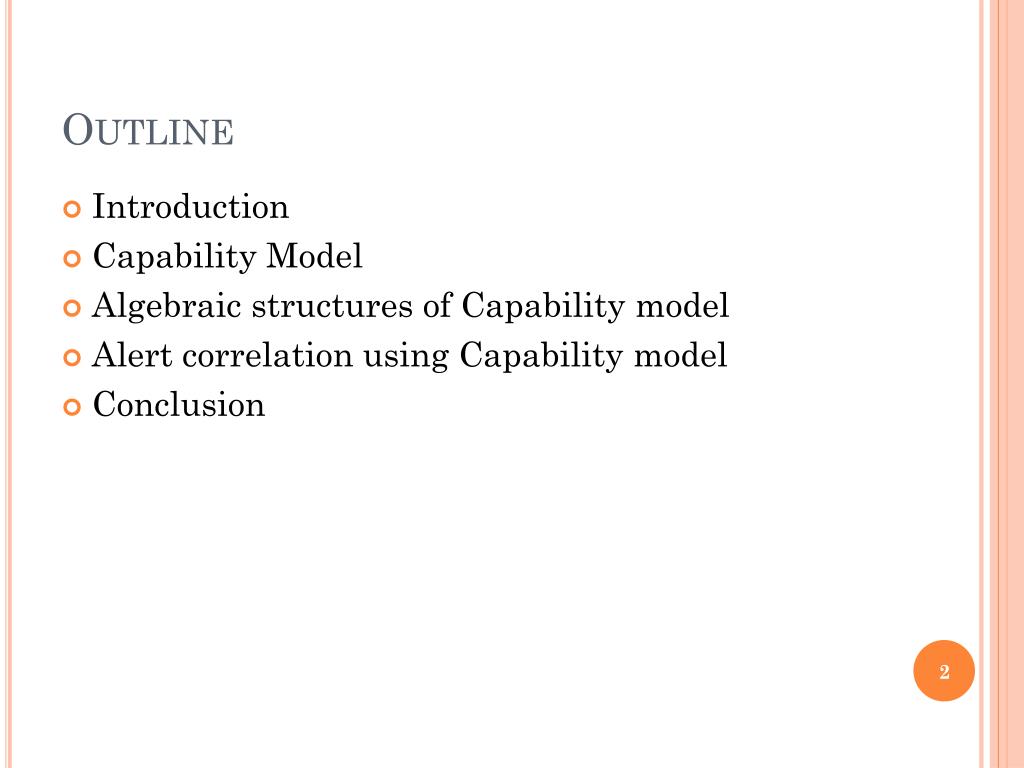

Outline • Introduction • Capability Model • Algebraic structures of Capability model • Alert correlation using Capability model • Conclusion
Introduction • Increasing security concern • More sensitive data is stored than before • Increasing use of sophisticated attack tools & their automation • (CERT’s overview of attack trends (04-18-02)) • IDS • Mostly used security and surveillance monitoring toolfor the network infrastructure

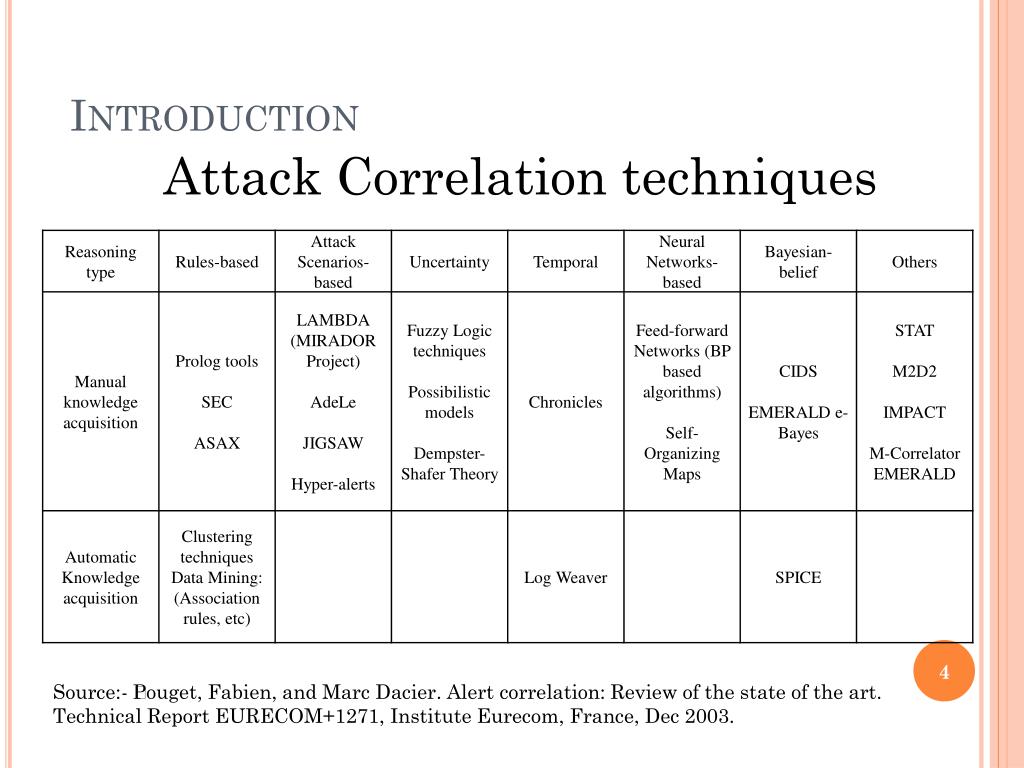

Introduction Attack Correlation techniques Source:- Pouget, Fabien, and Marc Dacier. Alert correlation: Review of the state of the art. Technical Report EURECOM+1271, Institute Eurecom, France, Dec 2003.
Drawbacks State based approach can not handle missing alerts Intermediate redundant step Attack Variants

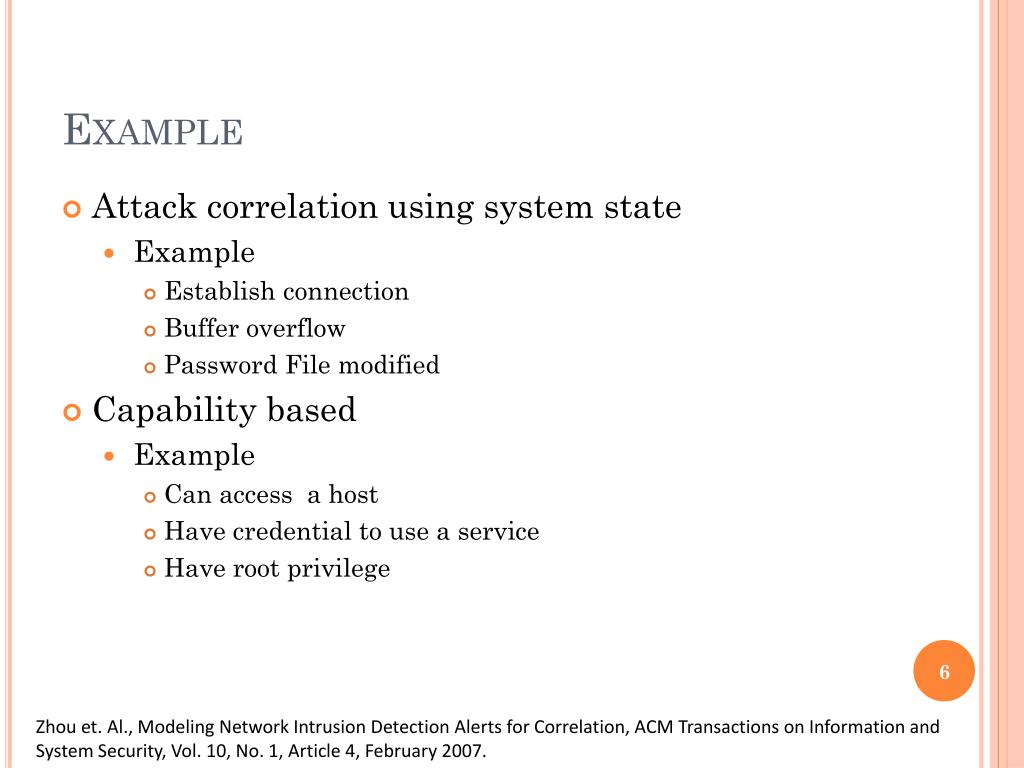

Example • Attack correlation using system state • Example • Establish connection • Buffer overflow • Password File modified • Capability based • Example • Can access a host • Have credential to use a service • Have root privilege Zhou et. Al., Modeling Network Intrusion Detection Alerts for Correlation, ACM Transactions on Information and System Security, Vol. 10, No. 1, Article 4, February 2007.
Related Work • Logical connections among alerts in an intrusion incident? • Requires/Provides Model (JIGSAW, Templeton and Levitt, 2000) • A systematic model to precisely define the logical relationship? • Capability Model(Jingmin at el. ( Feb, 2007)) • To make a mature capability model • need to know basic characteristic of Capability in context of attack correlation • Need identification of Algebraic properties
Capability model Alerts • Capability of connection • Capability is a 6-tuple • “From the source to destination can perform the action with credential(on the property) of the service within a time interval” • Attacker will have Capability set Service & Property Action Destination Time source
Attributes …..…… …..…… …..…… …..…… …..…… Service Property File Management Interval Credential Action Read From File Management Updaters Path Between Block Permission Database Manage Administrator block, delay, spoof, pause, abort, unblock root, navneet
Action type
Direct & Indirect Capability INTERNET Intruder External User http://www.xyz.com/mydb/passwd Router DMZ Firewall Web Server DNS Sever Mail Server LAN

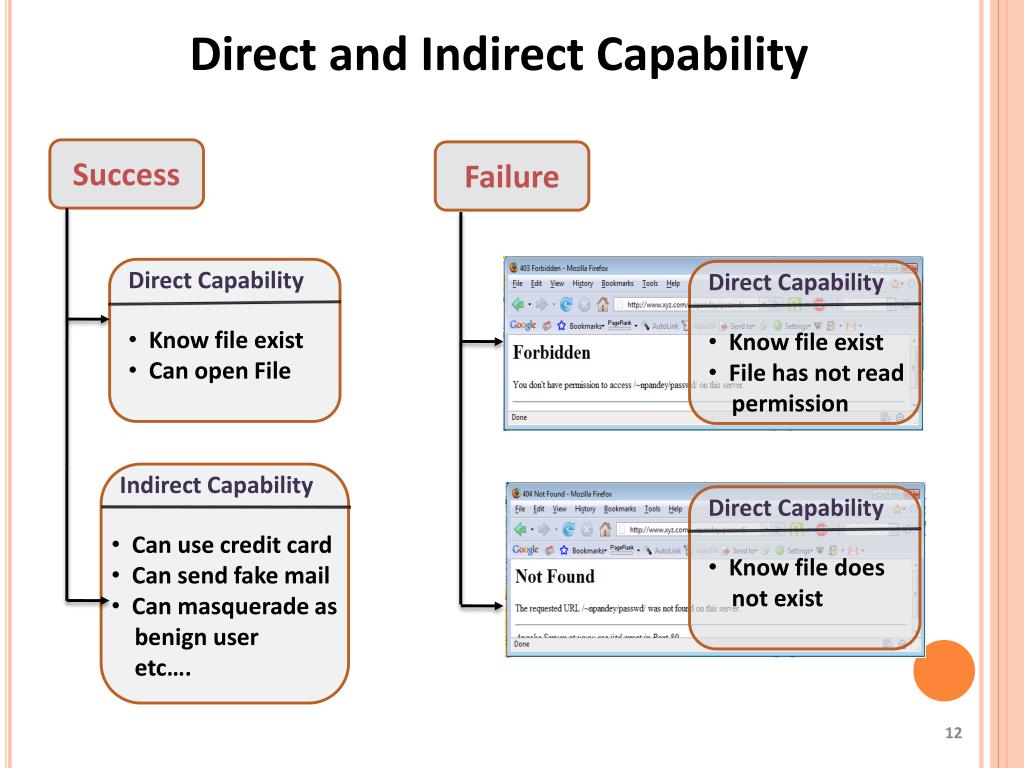

Direct and Indirect Capability Success Failure Direct Capability Direct Capability Direct Capability Indirect Capability • Know file exist • Can open File • Know file does • not exist • Know file exist • File has not read • permission • Can use credit card • Can send fake mail • Can masquerade as • benign user • etc….

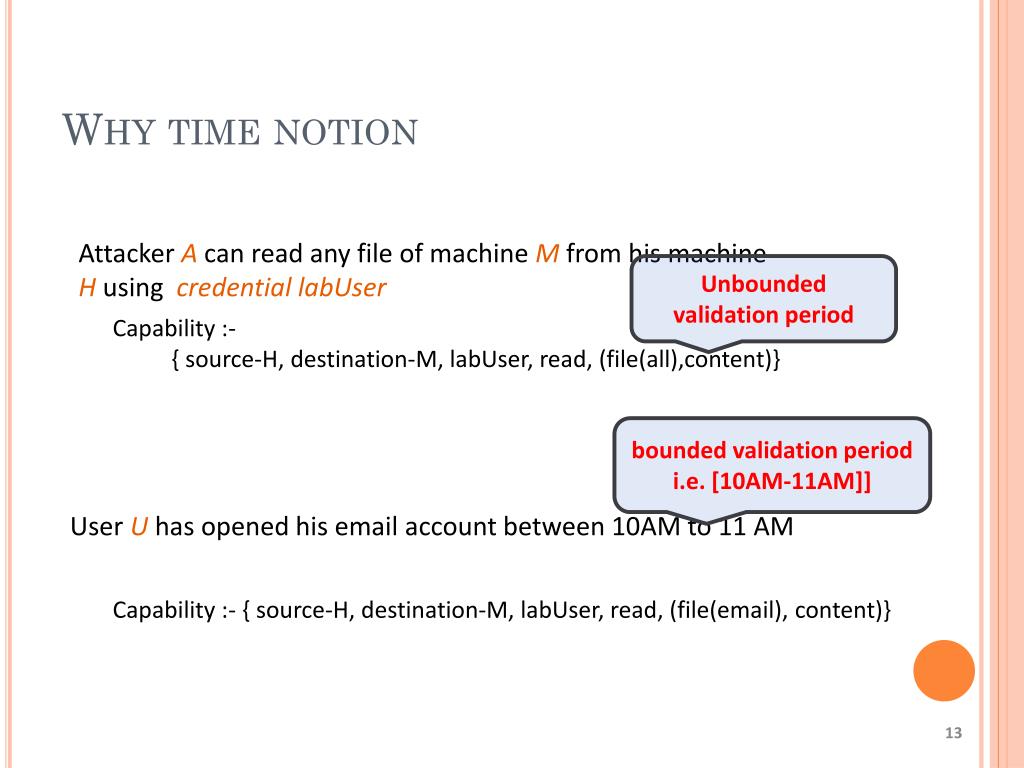

Why time notion Attacker A can read any file of machine M from his machine H using credential labUser Unbounded validation period Capability :- { source-H, destination-M, labUser, read, (file(all),content)} bounded validation period i.e. [10AM-11AM]] User U has opened his email account between 10AM to 11 AM Capability :- { source-H, destination-M, labUser, read, (file(email), content)}

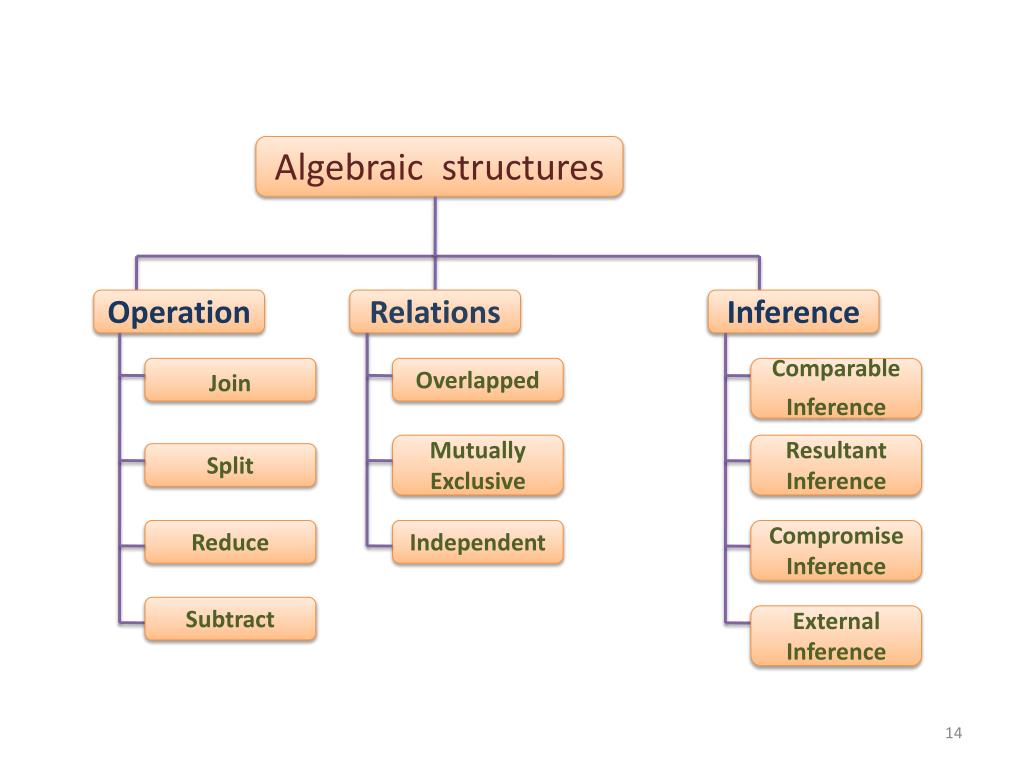

Algebraic structures Operation Inference Relations Join Comparable Inference Overlapped Resultant Inference Mutually Exclusive Split Reduce Compromise Inference Independent Subtract External Inference

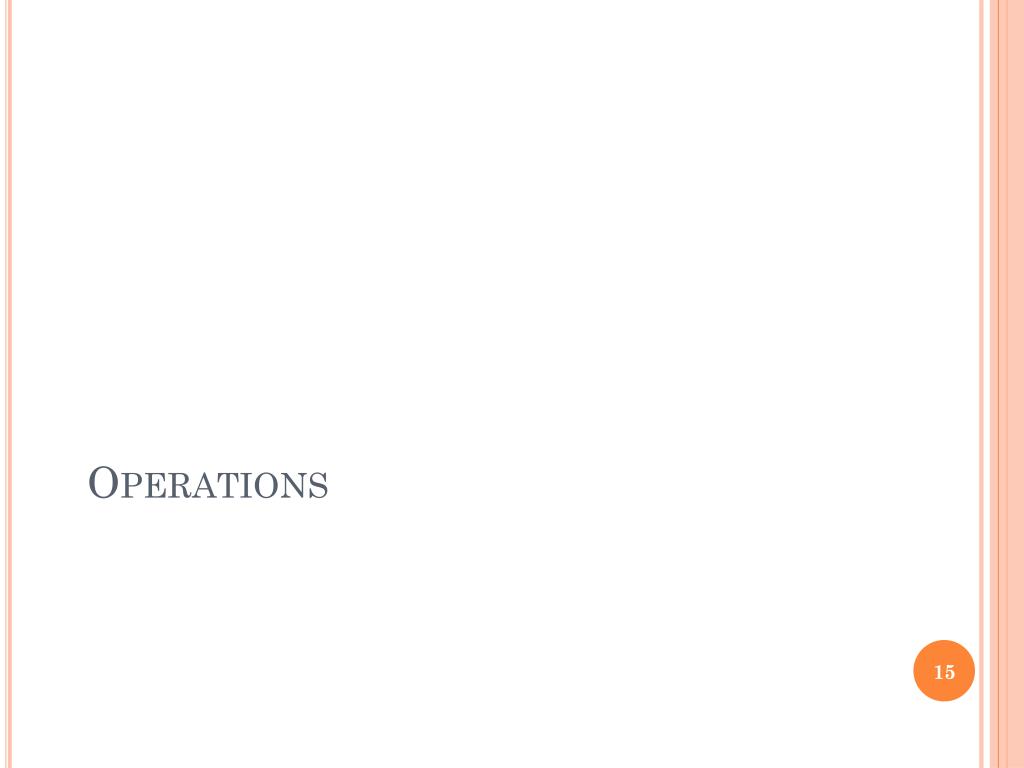

Operations
Join IP:10.20.5.2 IP:10.20.5.2 IP:10.20.5.2 IP:10.20.1.1 IP:10.20.1.1 IP:10.20.1.1 root root root receive send communicate IIS IIS IIS ftp ftp ftp Time Time Time
Join
Split IP:10.20.5.2 IP:10.20.5.2 IP:10.20.5.2 IP:10.20.1.1 IP:10.20.1.1 IP:10.20.1.1 root root root write read read and write /etc/password /etc/password /etc/password content content content Tmp Tmp Tmp

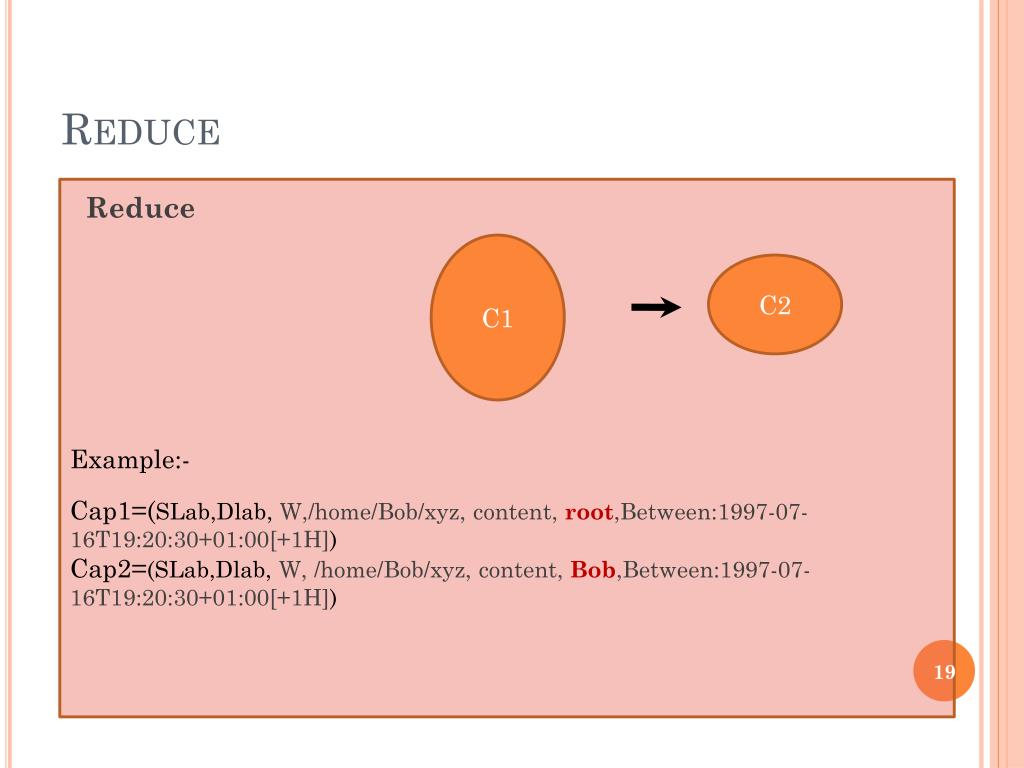

Reduce Reduce C1 C2 Example:- Cap1=(SLab,Dlab, W,/home/Bob/xyz, content, root,Between:1997-07-16T19:20:30+01:00[+1H]) Cap2=(SLab,Dlab, W, /home/Bob/xyz, content, Bob,Between:1997-07-16T19:20:30+01:00[+1H])
Subtract

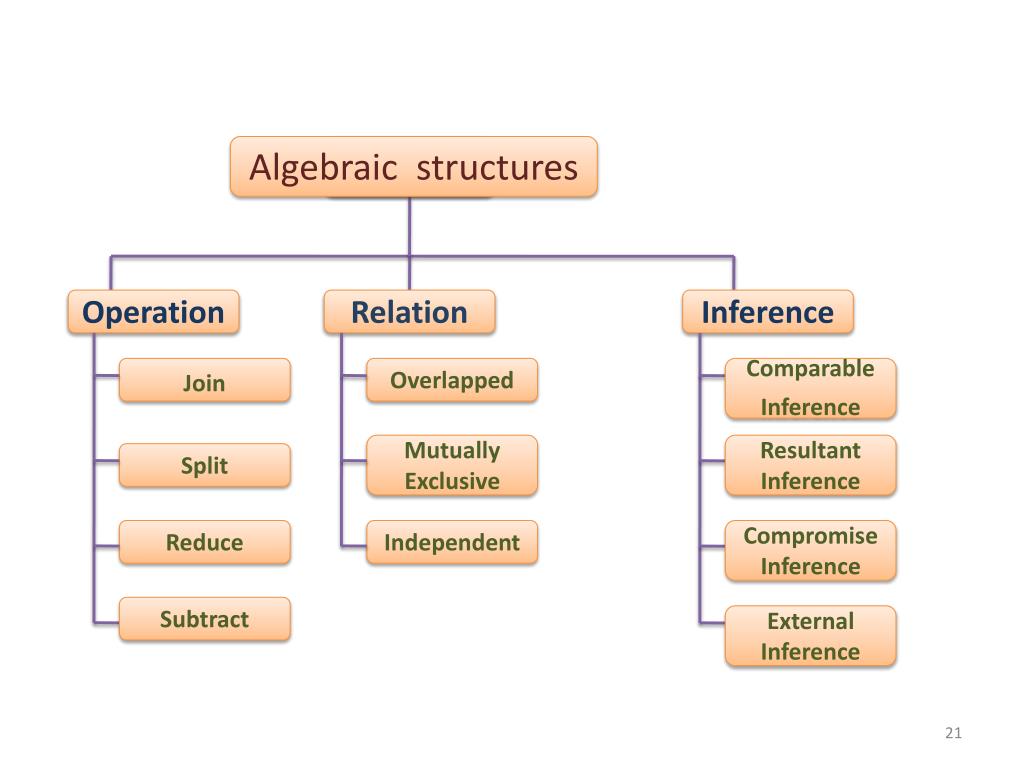

Algebraic structures Algebra Operation Inference Relation Join Comparable Inference Overlapped Resultant Inference Mutually Exclusive Split Reduce Compromise Inference Independent Subtract External Inference

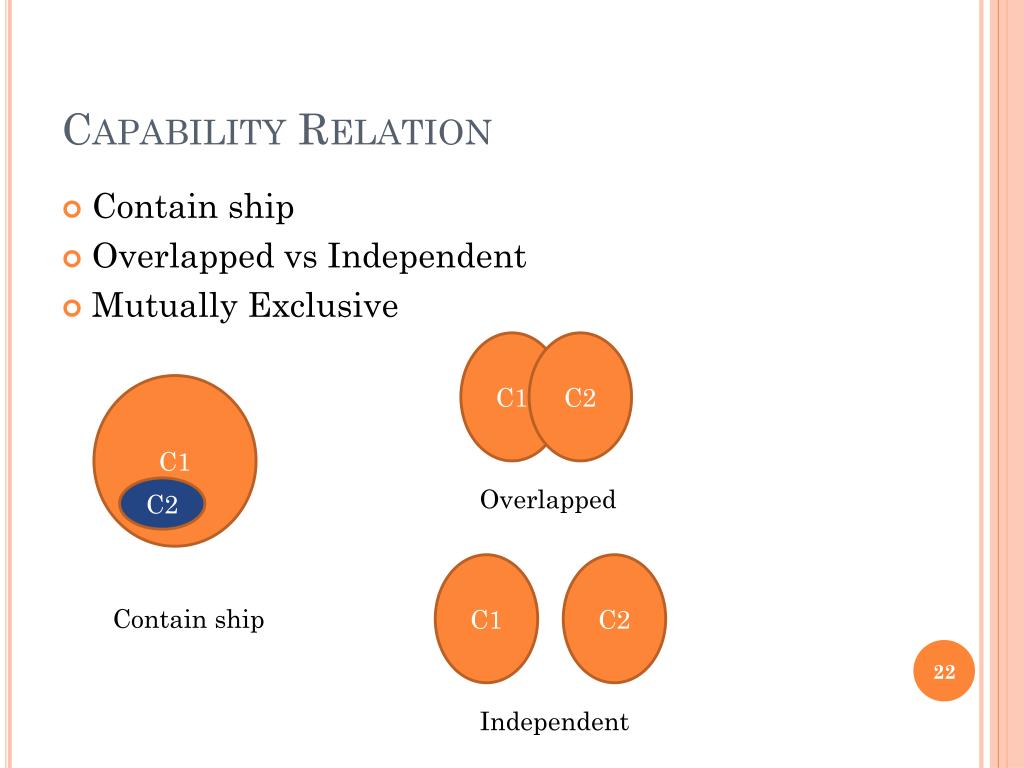

Capability Relation • Contain ship • Overlapped vs Independent • Mutually Exclusive C1 C2 C1 C2 Overlapped C1 C2 Contain ship Independent
Algebraic structures Algebra Operation Inference Relation Join Comparable Inference Overlapped Resultant Inference Mutually Exclusive Split Reduce Compromise Inference Independent Subtract External Inference
Comparable Two capabilities are comparable if they have • Same value of source, destination, action • Same type of service, property • Within same time interval Example • C1 = (pushpa, dblab, read, /etc/passwd, content, user1,at:1997-07-16T19:20:30+01:00) • C2 = (pushpa, dblab, read, All files, content, user1, at:1997-07-16T19:20:30+01:00)

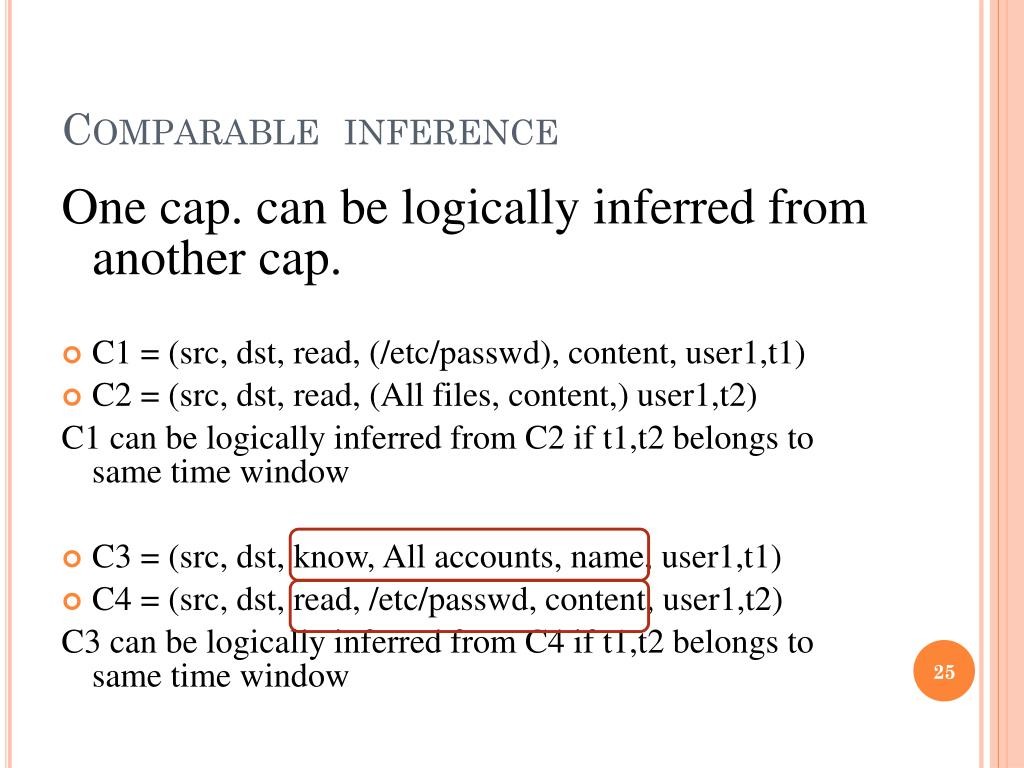

Comparable inference One cap. can be logically inferred from another cap. • C1 = (src, dst, read, (/etc/passwd), content, user1,t1) • C2 = (src, dst, read, (All files, content,) user1,t2) C1 can be logically inferred from C2 if t1,t2 belongs to same time window • C3 = (src, dst, know, All accounts, name, user1,t1) • C4 = (src, dst, read, /etc/passwd, content, user1,t2) C3 can be logically inferred from C4 if t1,t2 belongs to same time window

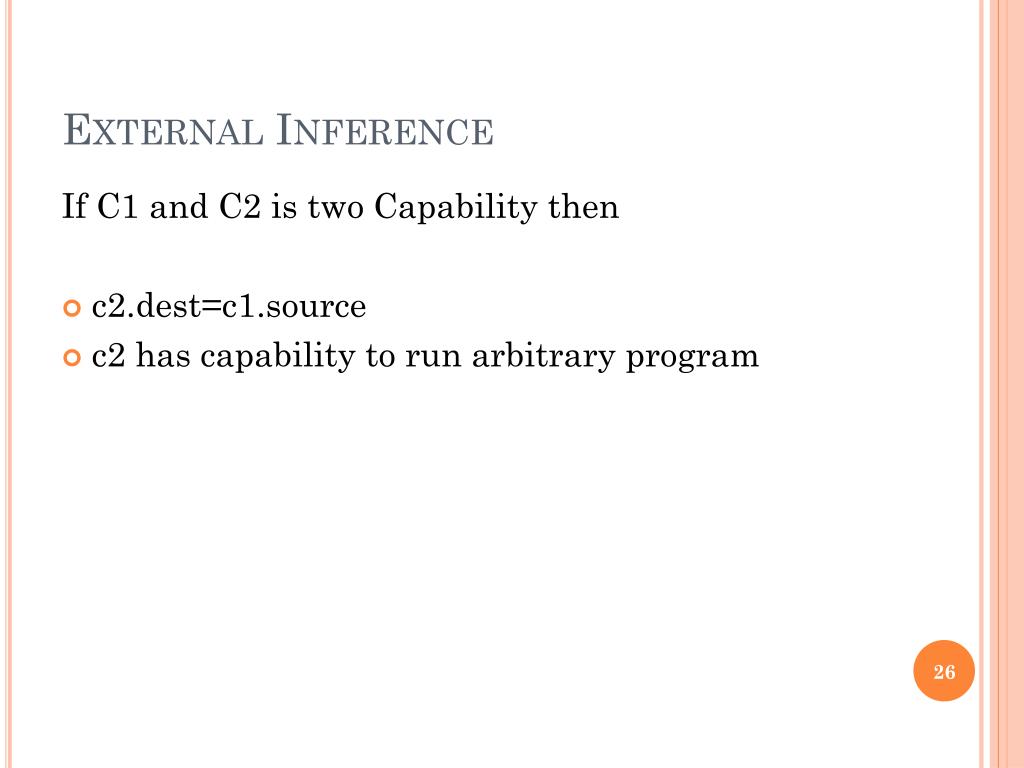

External Inference If C1 and C2 is two Capability then • c2.dest=c1.source • c2 has capability to run arbitrary program

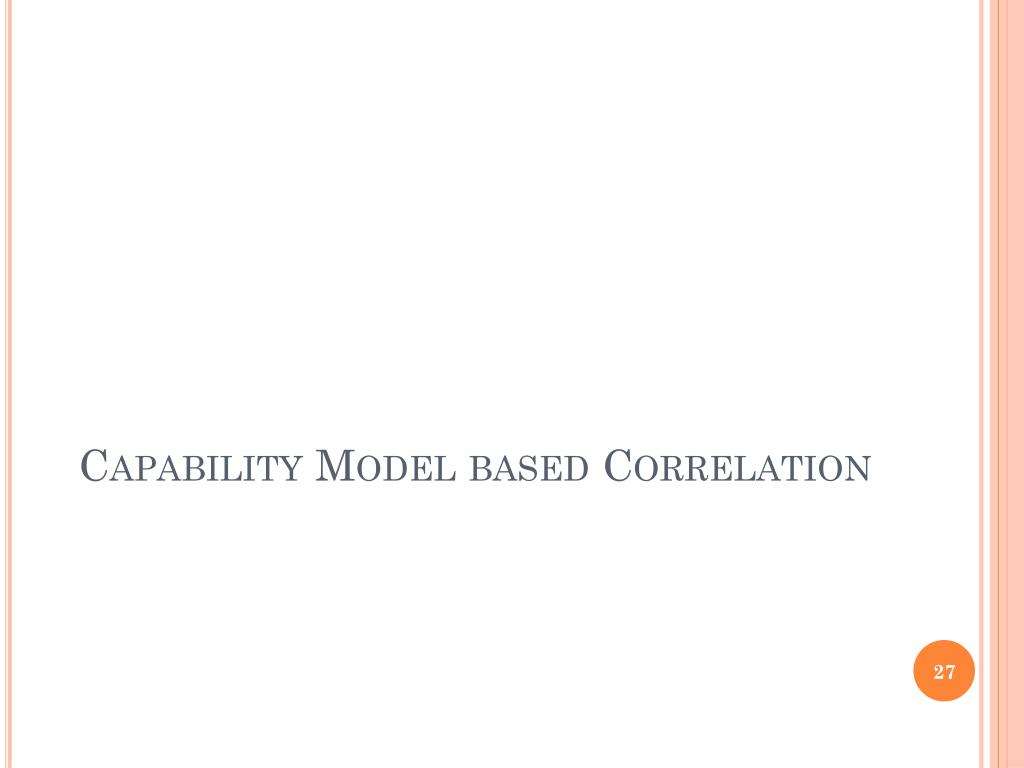

Capability Model based Correlation

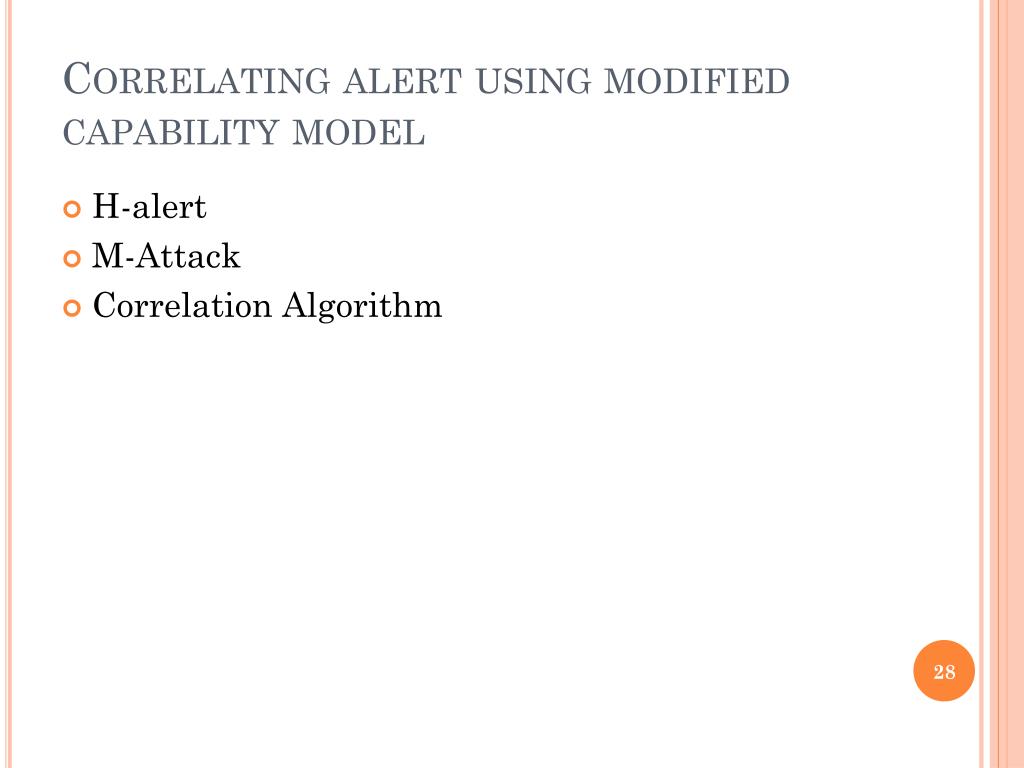

Correlating alert using modified capability model • H-alert • M-Attack • Correlation Algorithm

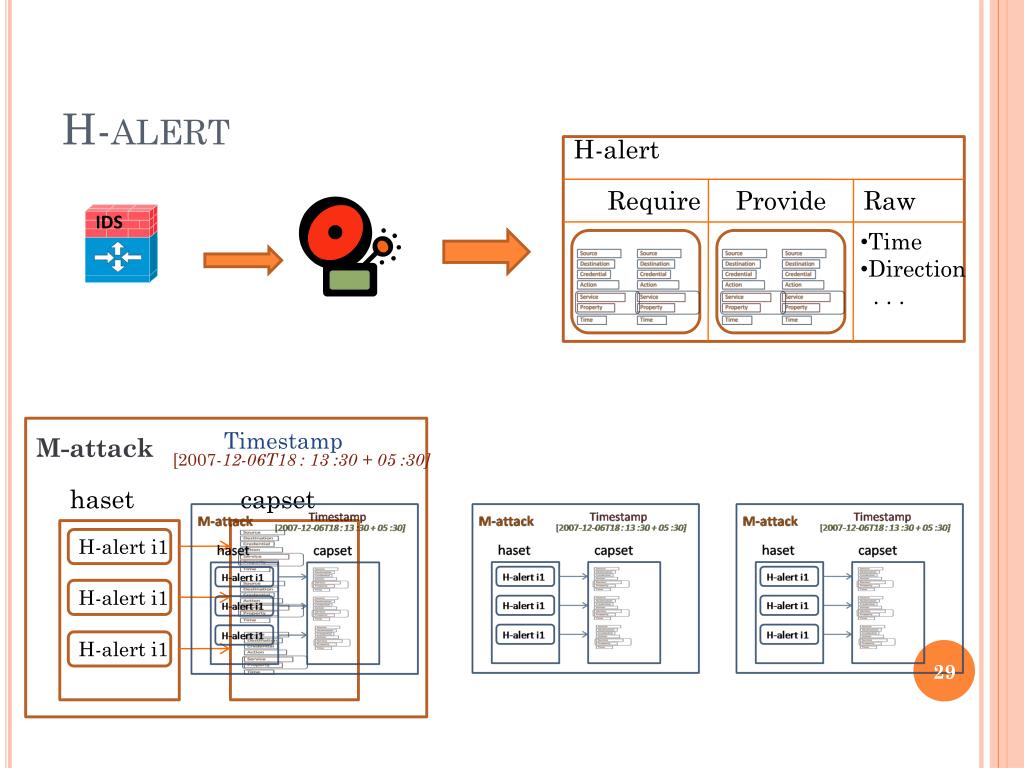

H-alert IDS H-alert H-alert i1 H-alert i1 H-alert i1 Require Provide Raw Timestamp M-attack [2007-12-06T18 : 13 :30 + 05 :30] • Time • Direction • . . . haset capset

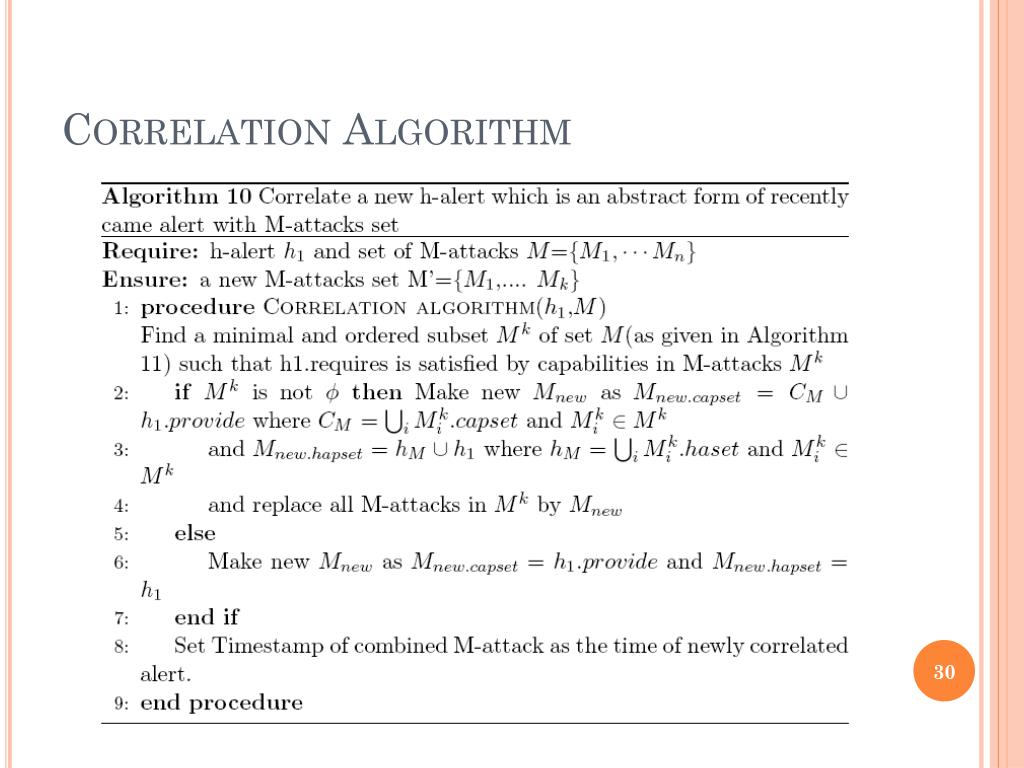

Correlation Algorithm
pros • Join • Benefit • minimize the number of comparison • Pitfall • Costly due to recursive • Split • Benefit • Only need direct inference while corr. • Pitfall • Redundancy • Unnecessary split increase no. of comparison
Alternate ways • Way1 :- Only join • Way2:- Only split • Way 3:- Join and split both
Conclusion • Defined modified capability model and logical association between capabilities. • Added semantic notion to avoid false correlation • Identified and defined relations between capabilities and derived Inference rules along with semantic that have been used in correlation
Future Work • Develop language for whole framework Other • Optimize algorithms and to achieve better performance. • Optimize the algorithm of join operation and to use that in given alternate correlation algorithm. This would help in making whole system real time with low false rate. • To model the defence capability of security administrator
Thank You
Question?
