New Methods of Environmental Monitoring Time Lapse Video

1. New MethodsofEnvironmental MonitoringTime Lapse Video Thorne Abbott CoastalZone.com

2. Great Barrier ReefAustralia Whitsunday Islands

3. Hook Island Manta Ray Bay

4. Protected Anchorages Exceptional Water Clarity High Species Diversity Substantial Coral Coverage

5. Concerns over coral damage from anchoring diver fins contact by snorkelers Fish feeding Trash & refuse Water quality Mooring Availability Commercial interests wanted more Residents wanted less Overcrowding during water activities Concerns & Conflicts

6. Challenge . . . Design a monitoring system to balance conflicting uses and enhance decision-making for sustainable use

7. Camera wide angle lens polarizer zoom facility Processor Battery Re-charger Solar Panel Battery's Monitor Housing prospecs lens telescoping stand tripod head camera housing padlocks, security Laptop Computer Software Battery Monitor Equipment

8. Objectives Determine appropriate sampling strategies for video monitoring Analyze the resolution or clarity of the imagery produced Calibrate the validity of the data generated Determine if the results obtained can enhance decision making

9. Vessel Samples Vessels 172 samples 20 seconds each Number of Visitors "expected" Size Time Type Day Mooring Date

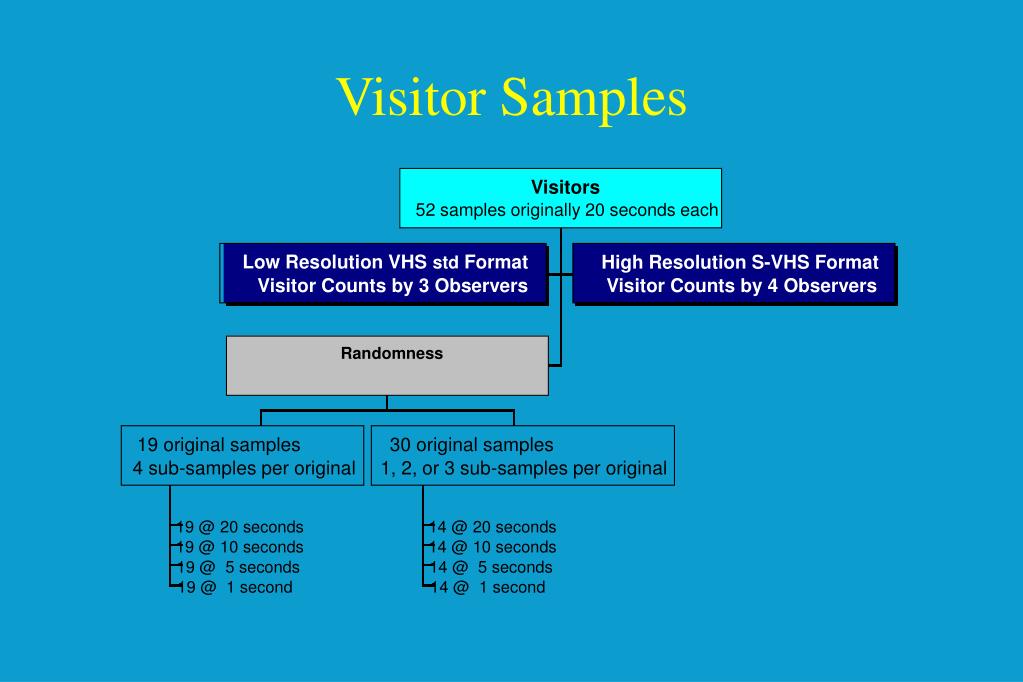

10. Visitor Samples Visitors 52 samples originally 20 seconds each Low Resolution VHS std Format High Resolution S-VHS Format Visitor Counts by 3 Observers Visitor Counts by 4 Observers Randomness 19 original samples 30 original samples 4 sub-samples per original 1, 2, or 3 sub-samples per original 19 @ 20 seconds 14 @ 20 seconds 19 @ 10 seconds 14 @ 10 seconds 19 @ 5 seconds 14 @ 5 seconds 19 @ 1 second 14 @ 1 second

11. Accuracy of Observers Estimatesof Visitor Activity VHS standard resolution S-VHS high resolution 100 80 60 Percentage Accuracy 40 20 0 1 5 10 20 Length of Recorded Sample (seconds)

12. C o m p a r i s o n o 1 . 0 . 9 . 8 . 7 . 6 . 5 . 4 . 3 . 2 . 1 . Effect of Resolution& Sample Length f V i s i t o r C o u n t s V H S s t d . t o S - V H S T a p e F o r m a t s P e r c e n t a g e O b s e r v e d t o E x p e c t e d d e v r e s b O e T a p e F o r m a t g a t n V H S s t d . e c r e S - V H S P 1 s e c o n d 5 s e c o n d s 1 0 s e c o n d s 2 0 s e c o n d s L e n g t h o f S a m p l e ( T I M E )

13. Methodology The Method of Monitoring can be consistent (Chi^2 : p>.05) accurate (>70%) HIGH resolution tape format samples 10 seconds or longer

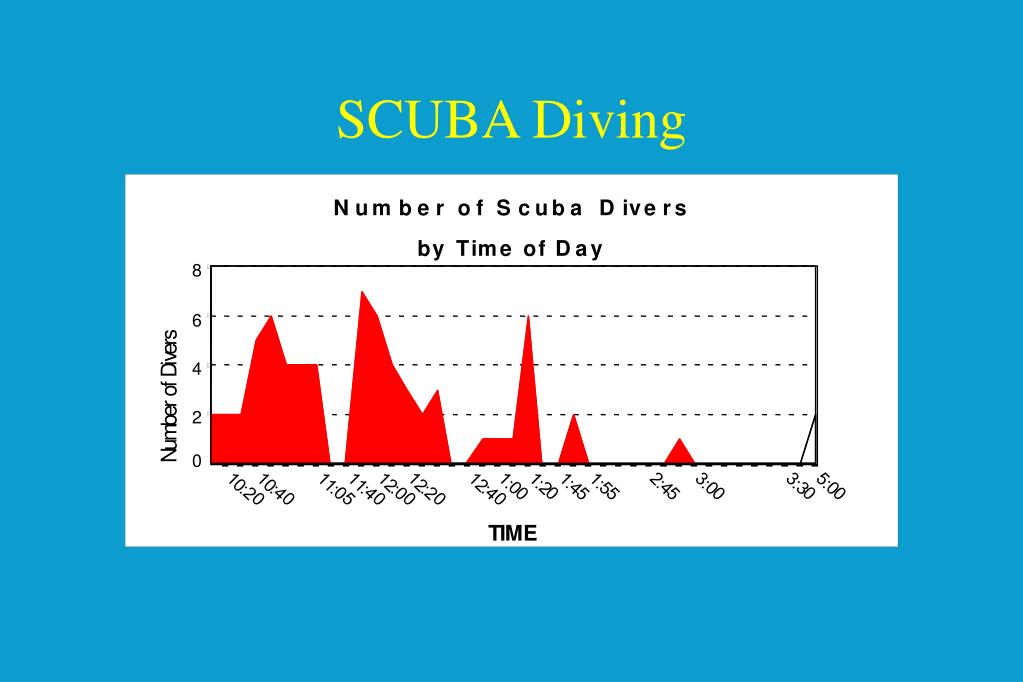

14. SCUBA Diving N u m b e r o f S c u b a D i v e r s b y T i m e o f D a y 8 6 s r e v i D 4 f o r e 2 b m u N 0 1 1 1 1 1 1 1 1 1 1 1 2 3 3 5 : : : : : : : : 0 1 0 1 2 2 2 0 5 2 4 4 0 3 0 : : : : : : : 0 0 0 2 2 4 4 0 4 0 5 5 5 0 0 5 0 0 0 0 0 0 T I M E

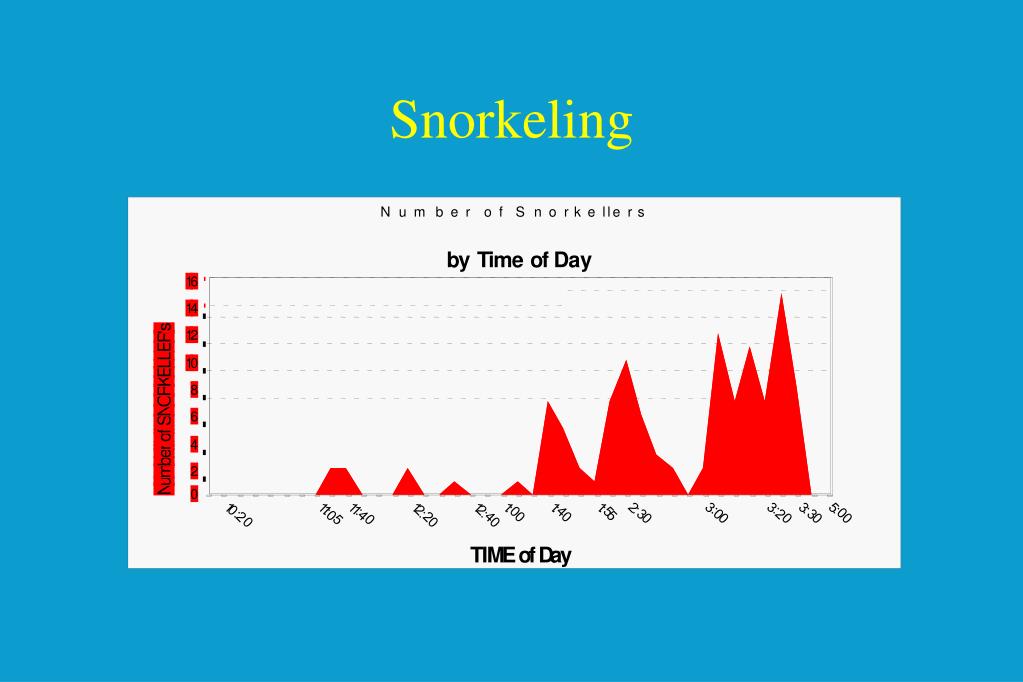

15. Snorkeling N u m b e r o f S n o r k e l l e r s b y T i m e o f D a y 1 6 1 4 s ' R 1 2 E L L 1 0 E K R 8 O N 6 S f o 4 r e b m 2 u N 0 1 1 1 1 1 1 1 1 2 3 3 3 5 : : : : : : : : 0 1 1 2 2 : : 0 4 5 0 : : : 3 0 2 3 0 4 5 2 2 4 0 0 0 0 0 0 0 5 0 0 0 0 T I M E o f D a y

16. Visitor Patterns • Most activity takes place between • 10 AM and 4 PM • Scuba divers visit morning to mid-day • Snorkelers visit in the afternoon • Substantially more snorkelers than divers

17. Vessel Sizes at Moorings10 meter maximum by regulation V e s s e l S i z e s a t M o o r i n g s a l l V e s s e l s 1 6 1 4 1 2 1 0 s r e 8 t e m 6 n 4 i E Z 2 I S 0 N = 1 0 7 7 8 1 A B C N o t M o o r e d Q u e u i n g M O O R I N G

18. Mooring Times through the Day M o o r i n g I n c e p t i o n T i m e o f D a y a l l V e s s e l s 18 y a D . f 1 2 o E M I T 6 N = 1 0 7 7 8 1 A B C N o t M o o r e d Q u e u i n g M O O R I N G 6 = 6 : 0 0 A M 1 8 = 6 : 0 0 P M

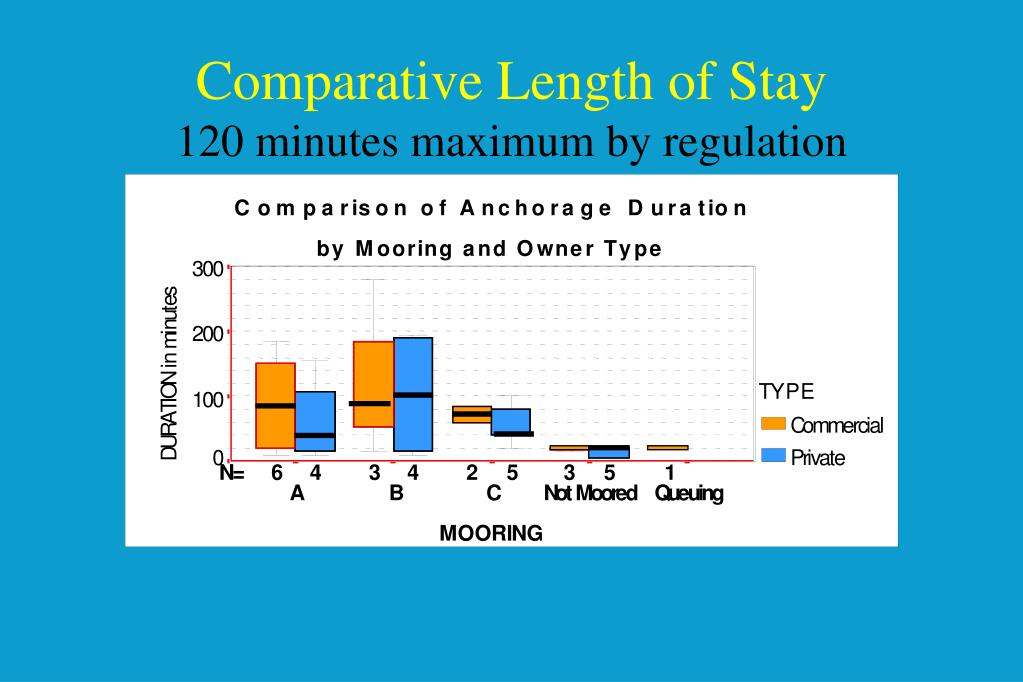

19. Comparative Length of Stay120 minutes maximum by regulation C o m p a r i s o n o f A n c h o r a g e D u r a t i o n b y M o o r i n g a n d O w n e r T y p e 3 0 0 s e t u n i 2 0 0 m n i N O T Y P E 1 0 0 I T A C o m m e r c i a l R U D 0 P r i v a t e N = 6 4 3 4 2 5 3 5 1 A B C N o t M o o r e d Q u e u i n g M O O R I N G

20. Mooring Patterns • Vessels ranged from 3 m to 15 m long • Private vessel visit as often as commercial vessels, but commercial vessels stayed for twice as long • Vessels moored between 10 AM and 4 PM • Vessels arriving from 2–3 PM queued and didn’t moor • Vessels that moored, did so within 20 minutes • One mooring was used last, least, and for less than one hour

21. Recent Successful Applications • Time-lapse video monitoring of boat traffic in Missionary Bay • Establish Dugong movement patterns in the Hinchinbrook Channel, World Heritage Area and interactions with boat traffic. • 2500 samples collected to date

22. New Initiatives…The Managaha Marine Conservation Area Monitoring Vessel Traffic in the MPA and its Transportation Corridor

23. Adaptive Management in ActionWhat is being done… • Boundaries established, but waiting on regulations • Education and Outreach efforts using brochures, posted signs, newspapers, and school programs • Stakeholder helping in the development of rules, regulations, and management plans • Active - Passive Use areas, “use” permits • No anchoring and No Take Zones • Commercially dedicated moorings

24. Questions to be addressed by video monitoring • Are the MPA boundaries being ignored? • Are vessels using the transportation corridor? • What type of activities most often violate restrictions? • How should we change outreach, education, and enforcement activities?

25. Conclusion Time lapse video monitoring provides valuable real time data on patterns of use Managers can better judge if education, outreach, and enforcement activities are having their desired effect These activities can then be adapted to ensure the sustainability of marine resources
