  1. The Keyboard Controller Essential steps for implementing an interrupt service routine for the Keyboard Controller

  2. Our near-term goal • To build a ‘mini’ x86 operating system • It should be able run a Linux application • It needs to support: • basic console input/output (keyboard, screen) • handling of device-interrupts (timer, keyboard) • ‘exit’ gracefully when application is finished • utilize x86 privilege restrictions and 32bit code • Most needed building-blocks already done

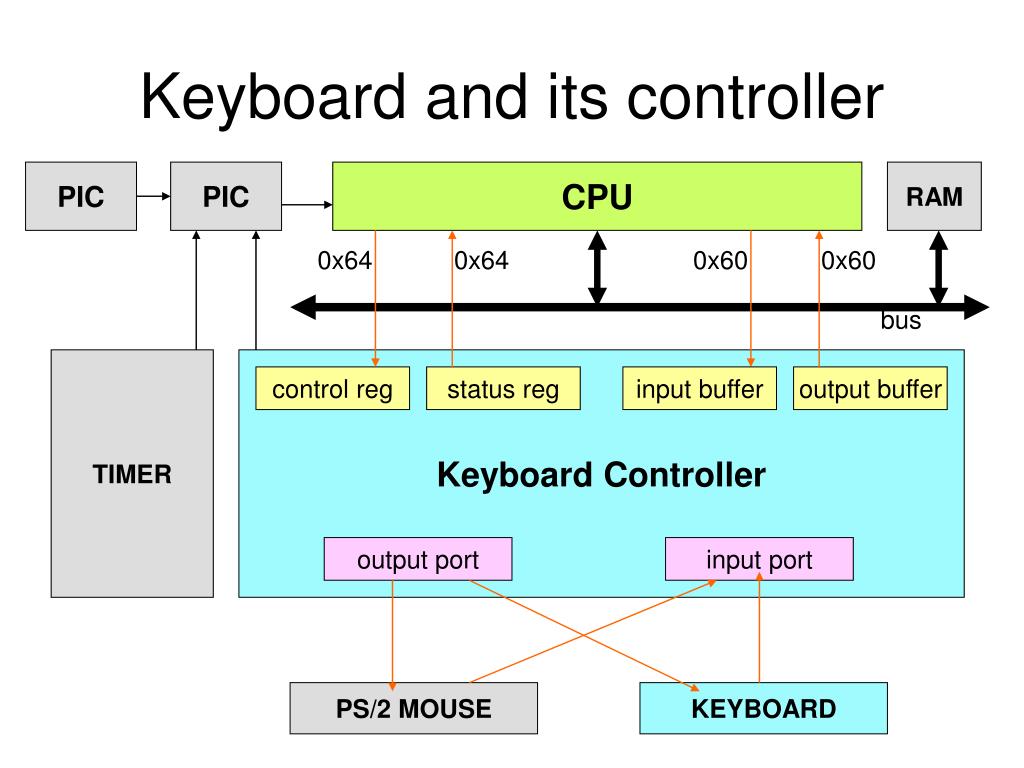

  3. Keyboard and its controller PIC PIC CPU RAM 0x64 0x64 0x60 0x60 bus TIMER Keyboard Controller control reg status reg input buffer output buffer output port input port PS/2 MOUSE KEYBOARD

  4. KB Controller Status 7 6 5 4 3 2 1 0 PARE TIM AUXB KEYL C / D SYSF INPB OUTB LEGEND OUTB: Output-Buffer Full (1=yes, 0=no) INPB: Input-Buffer Full (1=yes, 0=no) SYSF: System-Flag (1=self-test successful, 0=power-on reset) C/D: Command/Data was written to (1=port 0x64, 0=port 0x60) KEYL: Keyboard-Lock status (1=keyboard available, 0=locked) AUXB: Output-Buffer’s data is (1=for mouse, 0=for keyboard) TIM: General Timeout-Error has occurred (1=yes, 0=no) PARE: Parity-Error on last byte from keyboard/mouse (1=yes, 0=no)

  5. A few Controller Commands • 0xAD: Disable Keyboard • 0xAE: Enable Keyboard • 0xA7: Disable PS/2 Mouse • 0xA8: Enable PS/2 Mouse • 0xC0: Read input-port (to output buffer) • 0XD0: Read output-port (to output buffer)

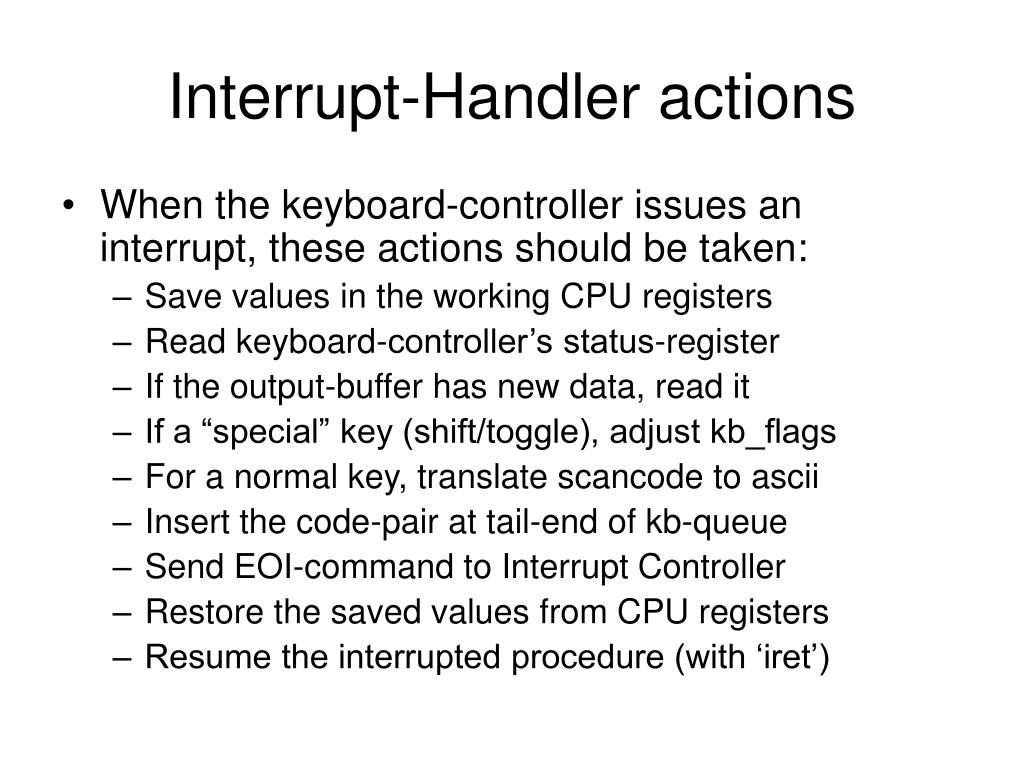

  6. Interrupt-Handler actions • When the keyboard-controller issues an interrupt, these actions should be taken: • Save values in the working CPU registers • Read keyboard-controller’s status-register • If the output-buffer has new data, read it • If a “special” key (shift/toggle), adjust kb_flags • For a normal key, translate scancode to ascii • Insert the code-pair at tail-end of kb-queue • Send EOI-command to Interrupt Controller • Restore the saved values from CPU registers • Resume the interrupted procedure (with ‘iret’)

  7. Keyboard Queue KBHEAD KBTAIL

  8. BIOS DATA AREA • KBFLAGS is word at address 0x40:0x17 • KBHEAD is word at address 0x40:0x1A • KBTAIL is word at address 0x40:0x1C • KBQUEUE is array of 16 words array base-address at 0x40:0x1E • KBBASE is word at 0x40:0x80 • KBTAIL is word at 0x40:0x82

  9. Format of KBFLAGS LSB 7 6 5 4 3 2 1 0 Insert-mode is active (1=yes, 0=no) Caps-Lock is active (1=yes, 0=no) Num-Lock is active (1=yes, 0=no) Scroll-Lock is active (1=yes, 0=no) Alt-Key is pressed (1=yes, 0=no) Ctrl-Key is pressed (1=yes, 0=no) Right-Shift key is pressed (1=yes, 0=no) Left-Shift key is pressed (1=yes, 0=no)

  10. Demo ‘minikybd.s’ • It shows a minimal implementation for the keyboard-controller’s interrupt-handler • It runs in Real-Mode • It ‘echos’ a user’s keystrokes IN-CLASS EXERCISE: modify this demo to run in Protected-Mode
