  1. Audio-Visual Solutions Distributed HDMI Solutions “Finally, HDMI for the Installers!”

  2. Who is Intelix? Founded in 1986 Based in Middleton, WI USA Engineering heritage Historically Pro-Audio Today 90% Video

  3. Who is Intelix? Market Segments Pro AV Residential CI DataCom Security-CCTV

  4. Who is Intelix? Product Categories Audio Matrix Systems Room Combine Systems Paging Systems Twisted Pair Extension Solutions Digital Signage Systems Security Distribution Products HDMI Systems

  5. Who is Intelix? HDMI Specifications DVI: No audio, RGB only, 24 bit color HDMI 1.0: PCM, Dolby, DTS, YCbCr 4:4:4, YCbCr 4:2:2 HDMI 1.1: DVD audio support HDMI 1.2: Super Audio CD HDMI 1.3: Dolby TrueHD, DTS-HD Master Audio, xvYCC, 30 bpp, 36 bpp, 48 bpp HDMI 1.4: Audio return channel, 3D, 4K resolutions, Ethernet and automotive connections

  6. HDautobahn

  7. HDautobahn- Analog Integration

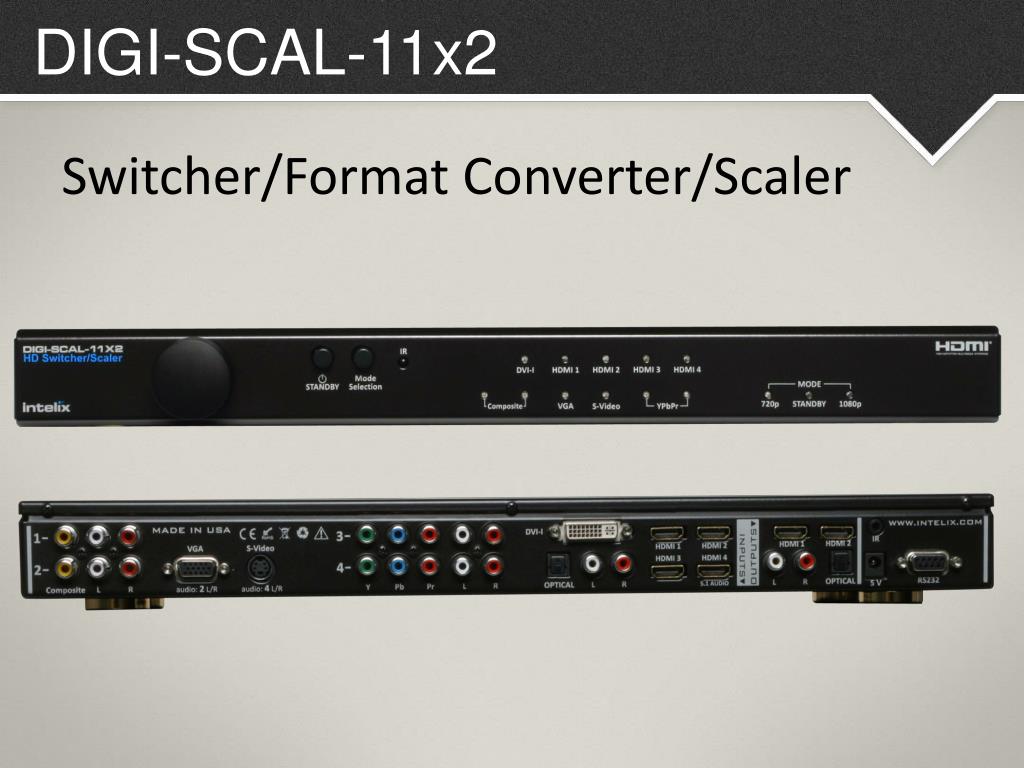

  8. DIGI-SCAL-11x2 Switcher/Format Converter/Scaler

  9. DIGI-SCAL-11x2 Switch Analog Sources

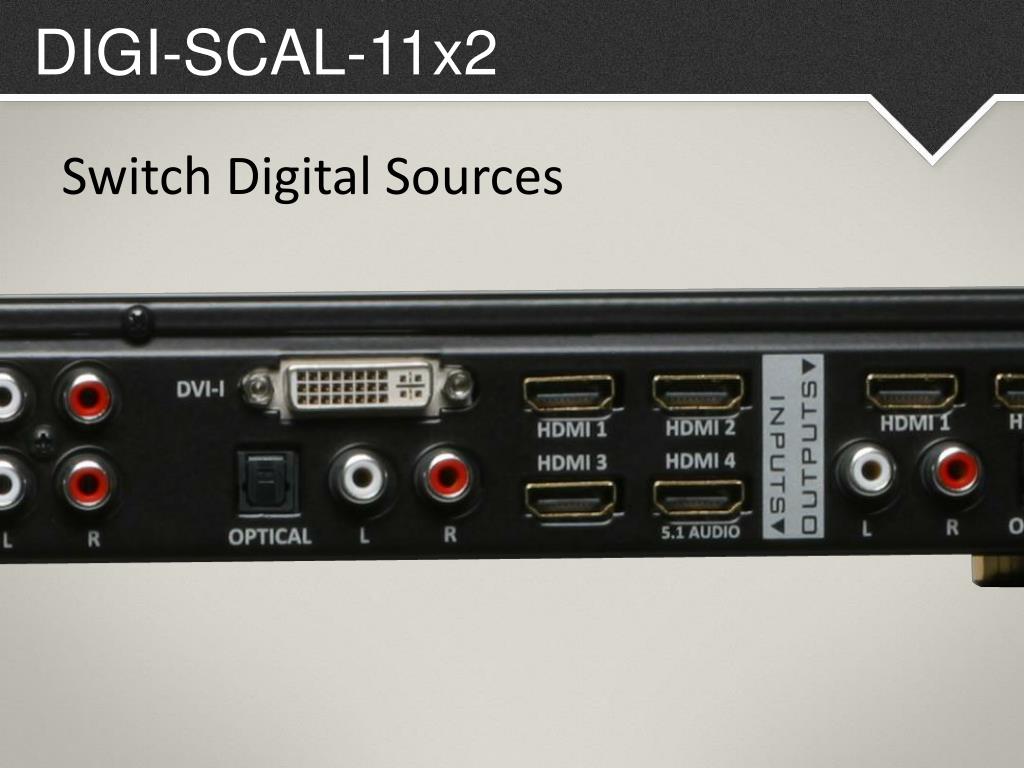

  10. DIGI-SCAL-11x2 Switch Digital Sources

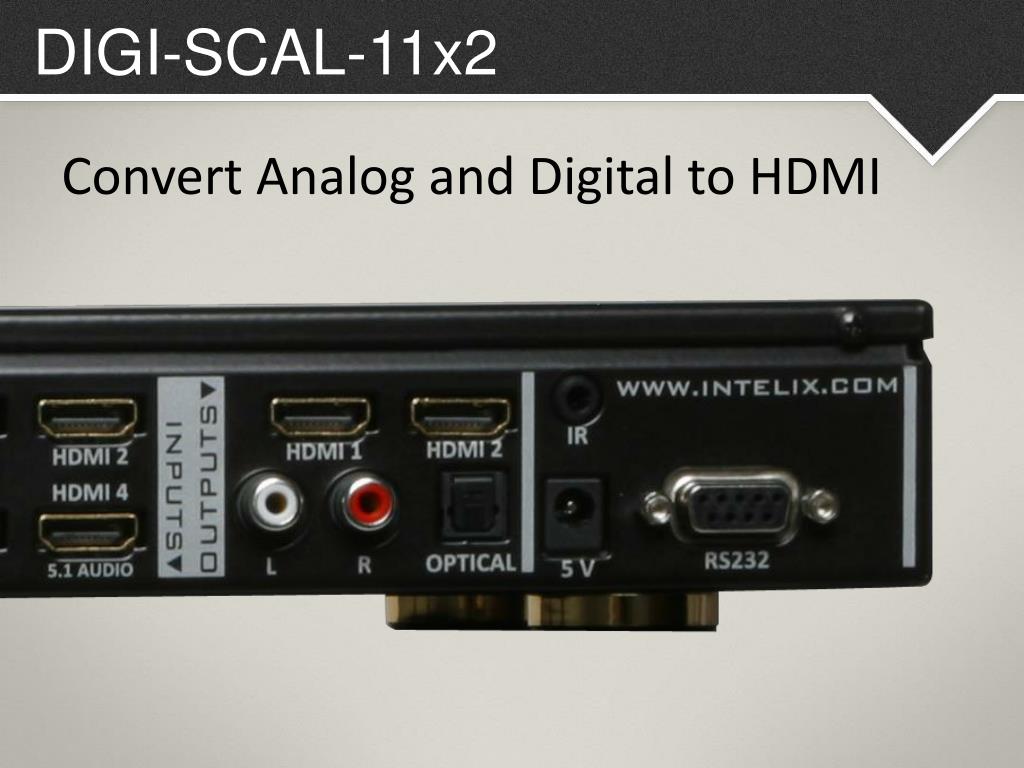

  11. DIGI-SCAL-11x2 Convert Analog and Digital to HDMI

  12. DIGI-SCAL-11x2 Scale output to 720p or 1080p

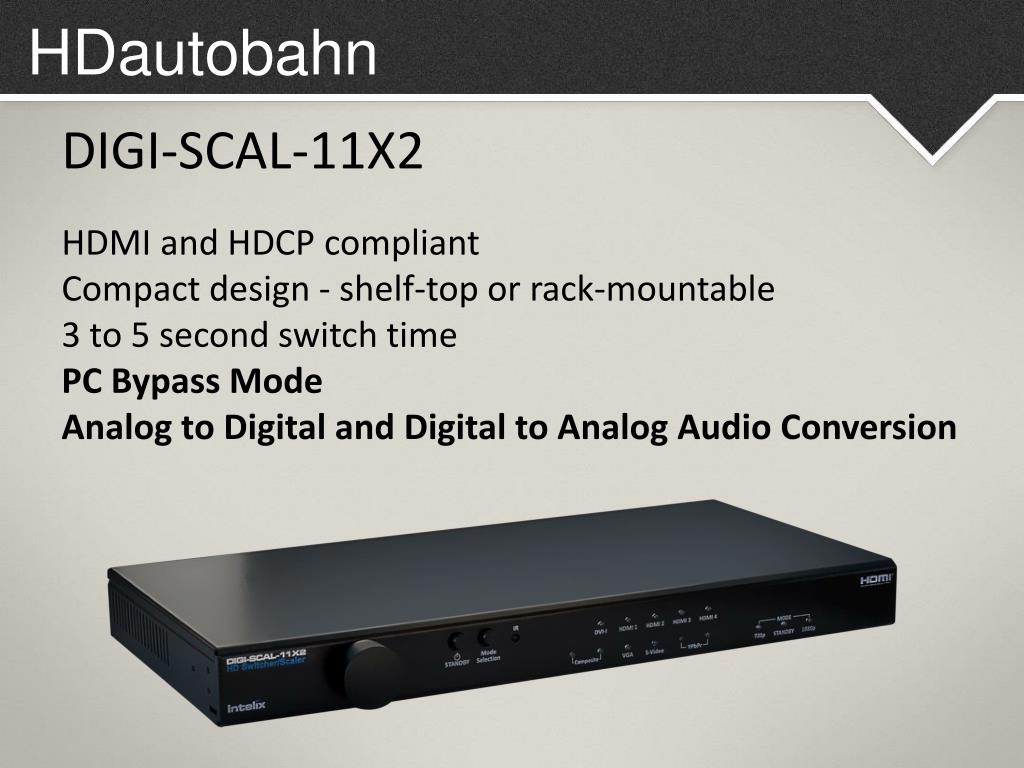

  13. HDautobahn DIGI-SCAL-11X2 HDMI and HDCP compliant Compact design - shelf-top or rack-mountable 3 to 5 second switch time PC Bypass Mode Analog to Digital and Digital to Analog Audio Conversion

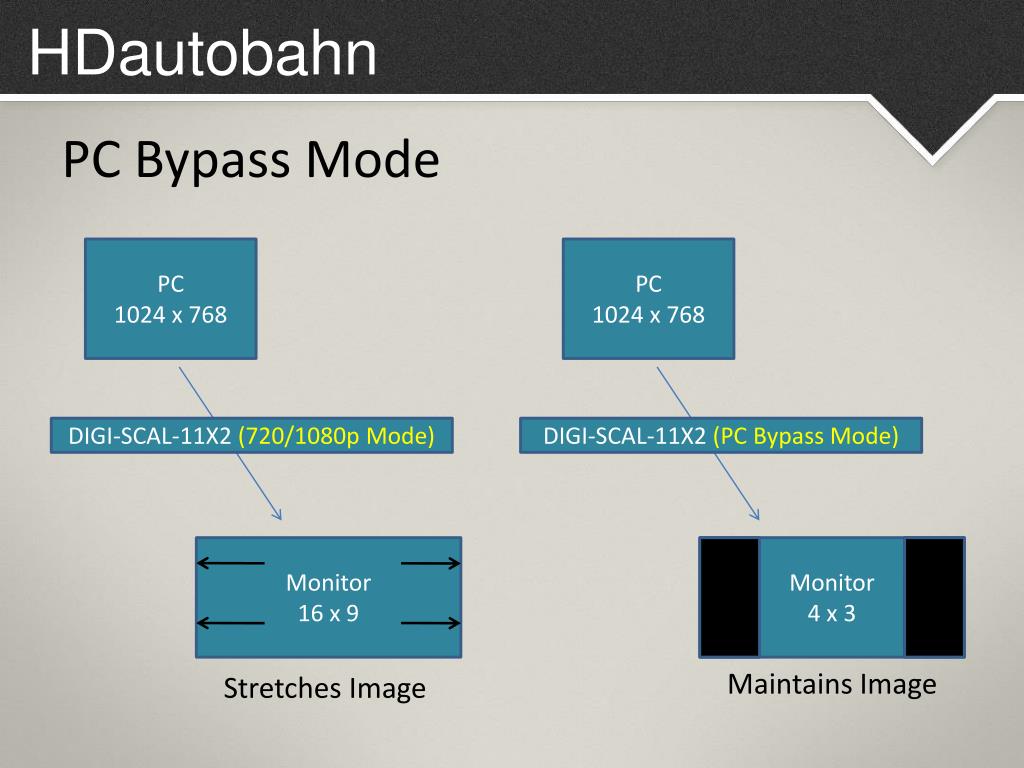

  14. HDautobahn PC Bypass Mode PC 1024 x 768 PC 1024 x 768 DIGI-SCAL-11X2 (720/1080p Mode) DIGI-SCAL-11X2 (PC Bypass Mode) Monitor 16 x 9 Monitor 4 x 3 Stretches Image Maintains Image

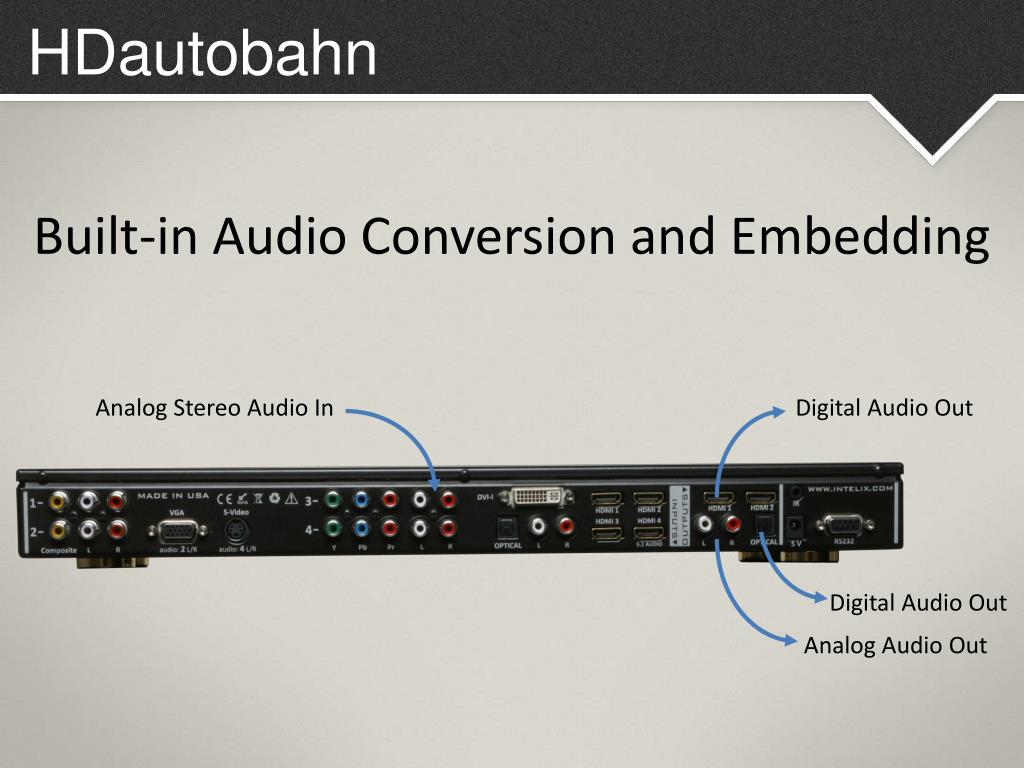

  15. HDautobahn Built-in Audio Conversion and Embedding Analog Stereo Audio In Digital Audio Out Digital Audio Out Analog Audio Out

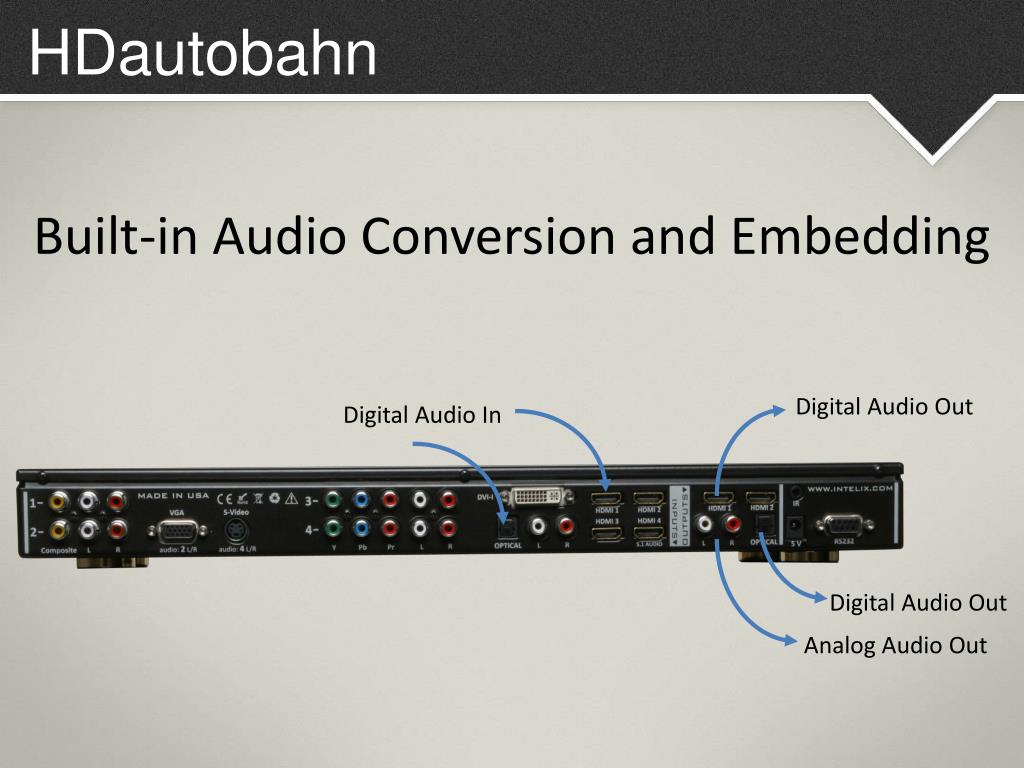

  16. HDautobahn Built-in Audio Conversion and Embedding Digital Audio Out Digital Audio In Digital Audio Out Analog Audio Out

  17. HDautobahn - HDMI Extension

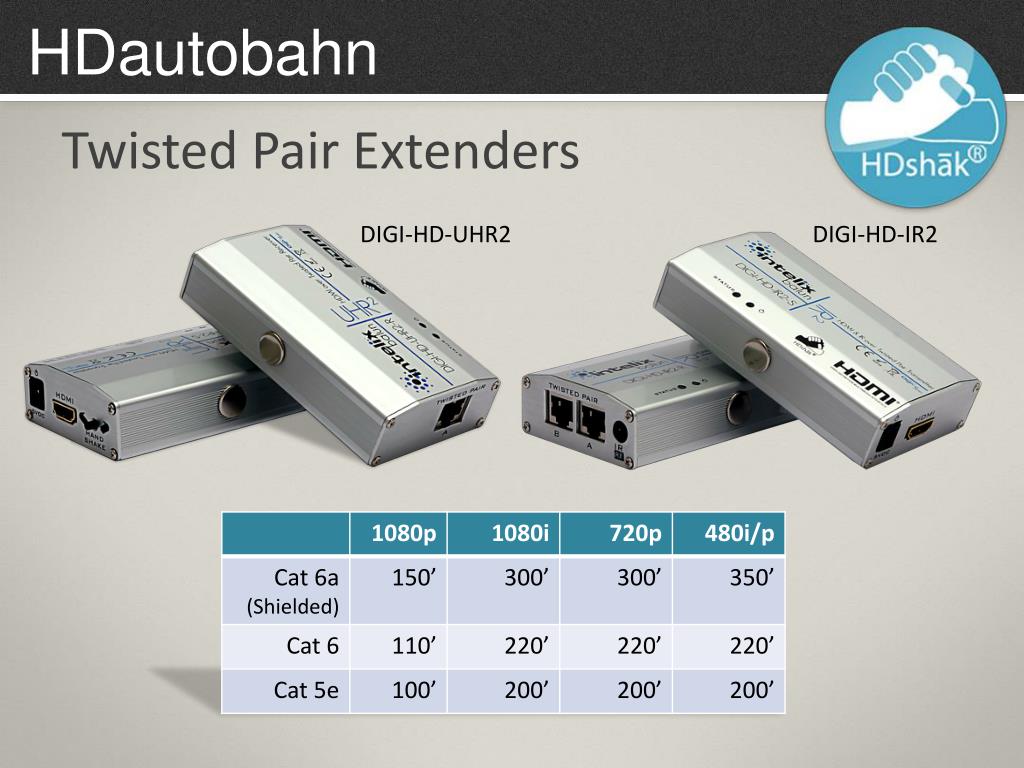

  18. HDautobahn Twisted Pair Extenders DIGI-HD-UHR2 DIGI-HD-IR2

  19. HDautobahn Twisted Pair Extenders The better the cable quality the better distance

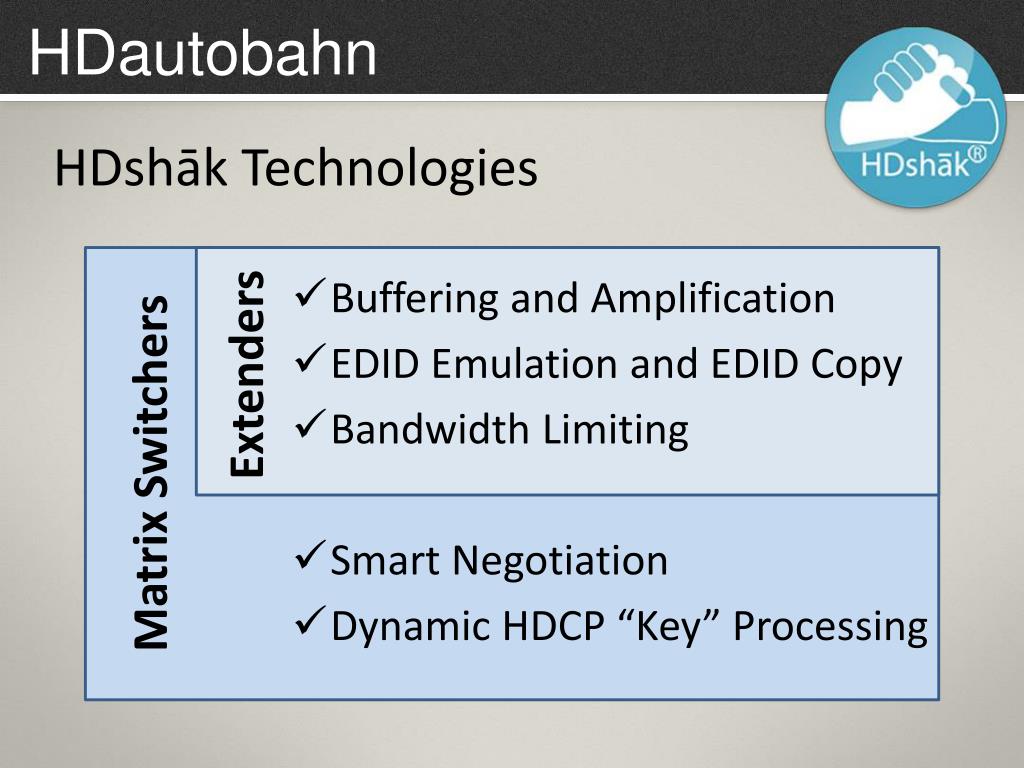

  20. HDautobahn HDshāk Technologies • Buffering and Amplification • EDID Emulation and EDID Copy • Bandwidth Limiting Smart Negotiation Dynamic HDCP “Key” Processing Extenders Matrix Switchers

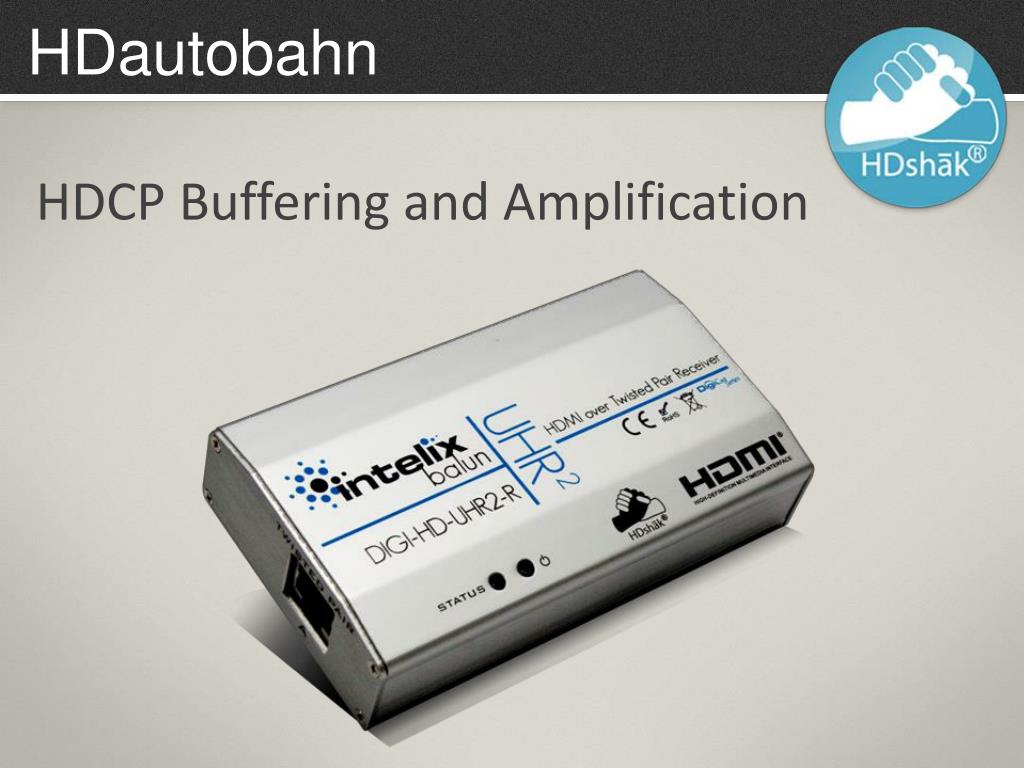

  21. HDautobahn HDCP Buffering and Amplification

  22. HDautobahn EDID Emulation and EDID Copy DIGI-HD-UHR2

  23. HDautobahn EDID Copy

  24. HDautobahn EDID Copy

  25. HDautobahn EDID Copy

  26. HDautobahn Bandwidth Limiting Fully Loaded HDMI Signal (340 MHz) HDCP Twisted Pair (100 MHz) Deep Color HD Audio 3D Deep Color HD Audio Twisted Pair (100 MHz) Necessary HDMI Elements

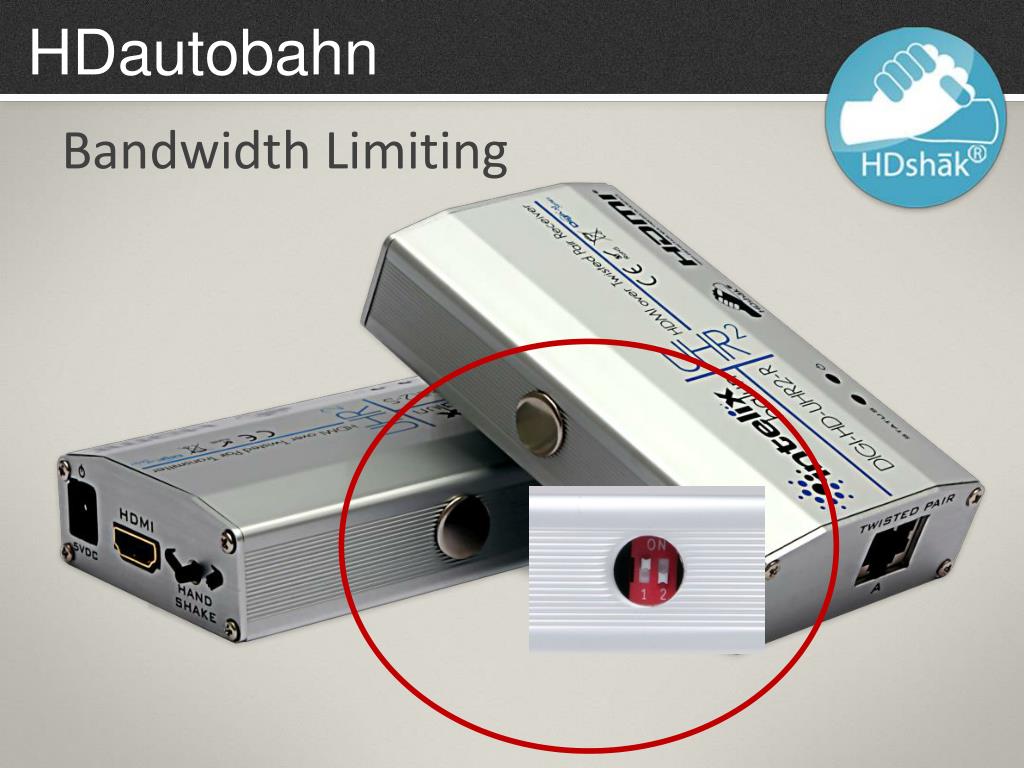

  27. HDautobahn Bandwidth Limiting

  28. HDautobahn DIGI-HD-COAX HDMI over a single coaxial cable! 720p 1080i 1080p

  29. HDautobahn DIGI-HD-COAX Ideal for existing COAX installations

  30. HDautobahn DIGI-HD-COAX Transmitter ProAV - HDMI Digital Signage Solution Receiver

  31. HDautobahn DIGI-HD-COAX for Digital Signage Maximum system distance is 4725’ with 7 displays at 1080i per leg!

  32. HDautobahn - Matrix Switching

  33. HDautobahn Matrices DIGI-HD-4x2 DIGI-HD-4x4 DIGI-HD-8x8

  34. HDautobahn Outputs HDMI & IR Extension over UTP HDMI HDMI Extension over UTP

  35. HDautobahn Enhanced Control IR Touch screen IR Ethernet RS232

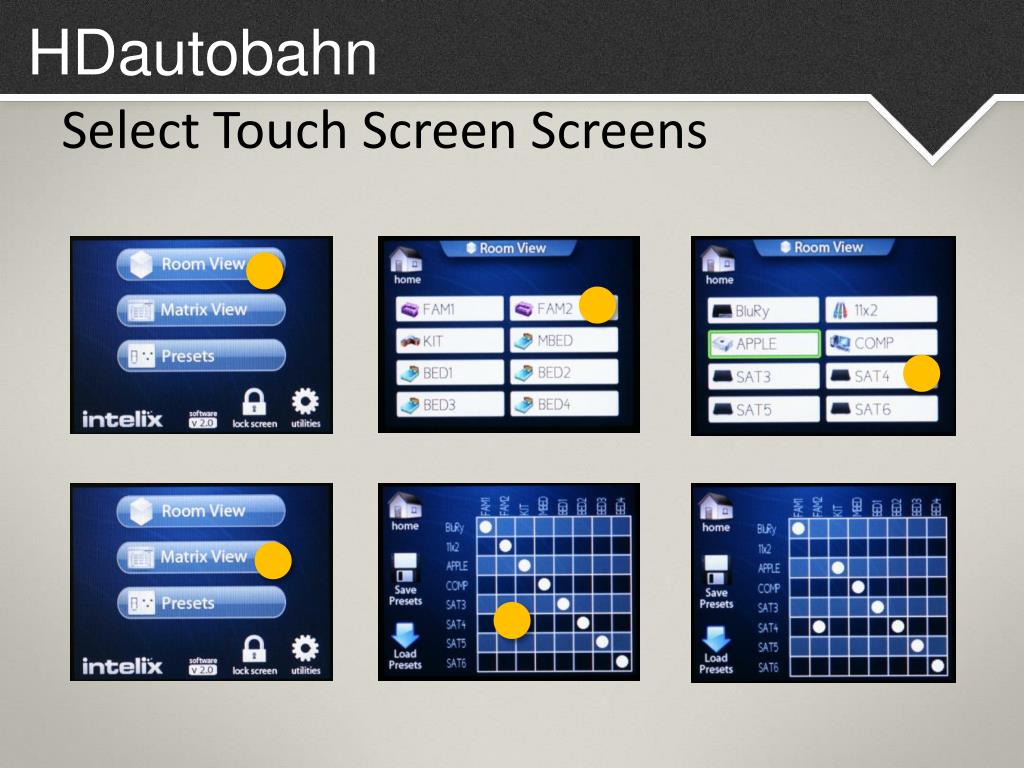

  36. HDautobahn Select Touch Screen Screens

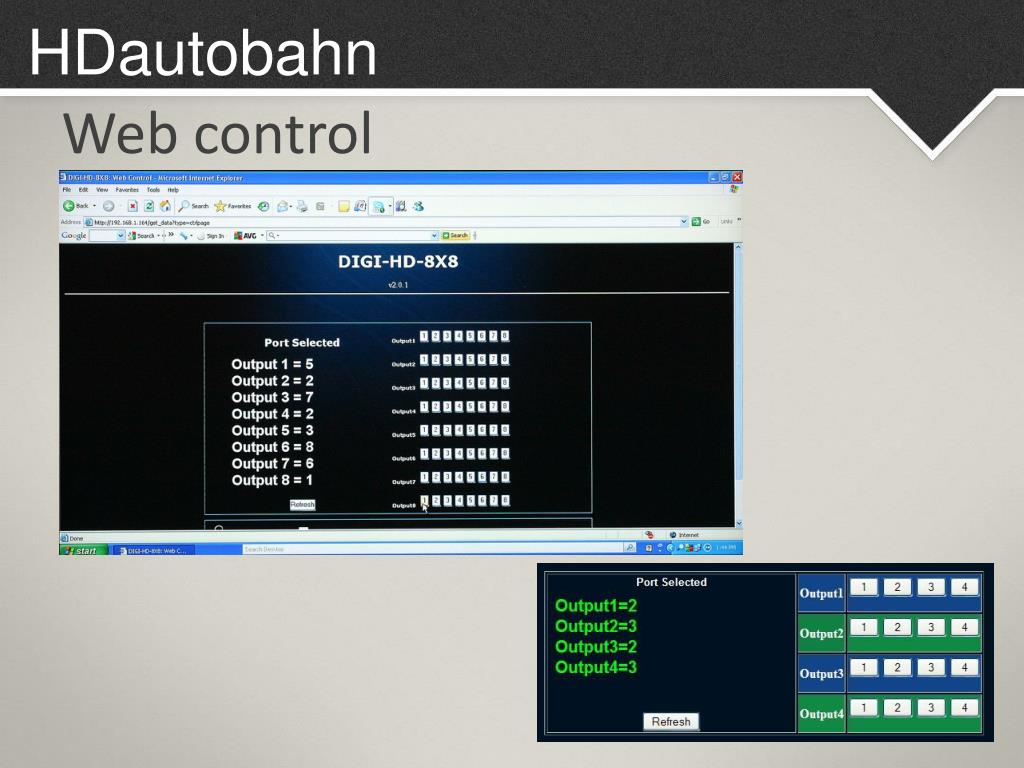

  37. HDautobahn Web control

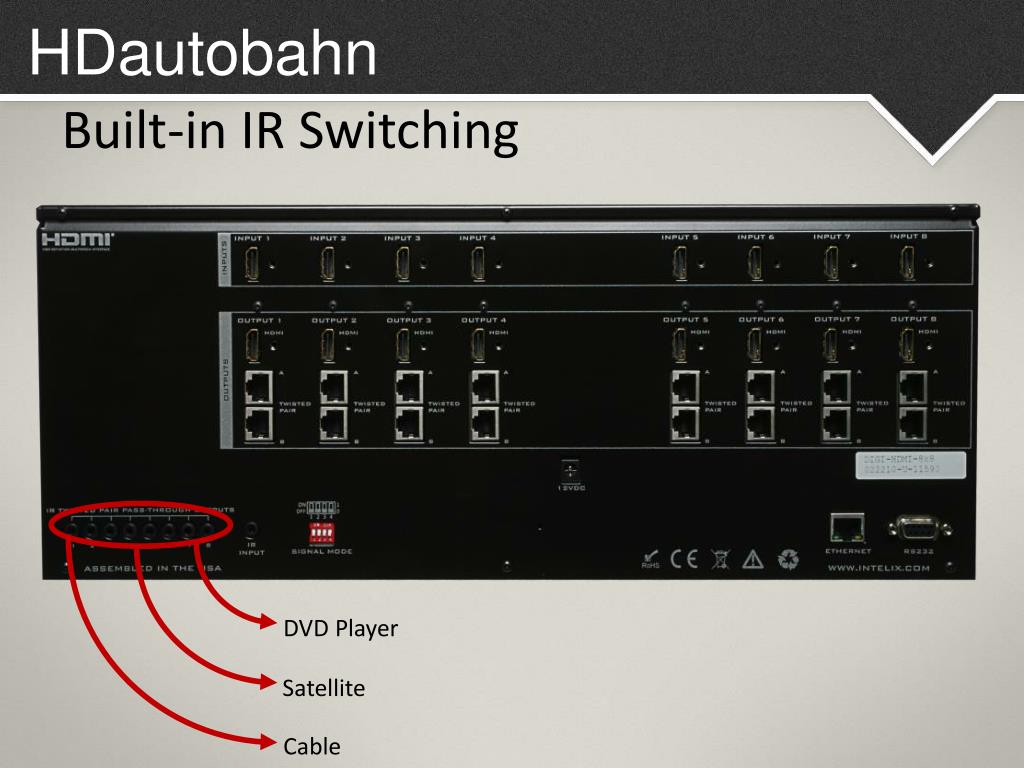

  38. HDautobahn Built-in IR Switching DVD Player Satellite Cable

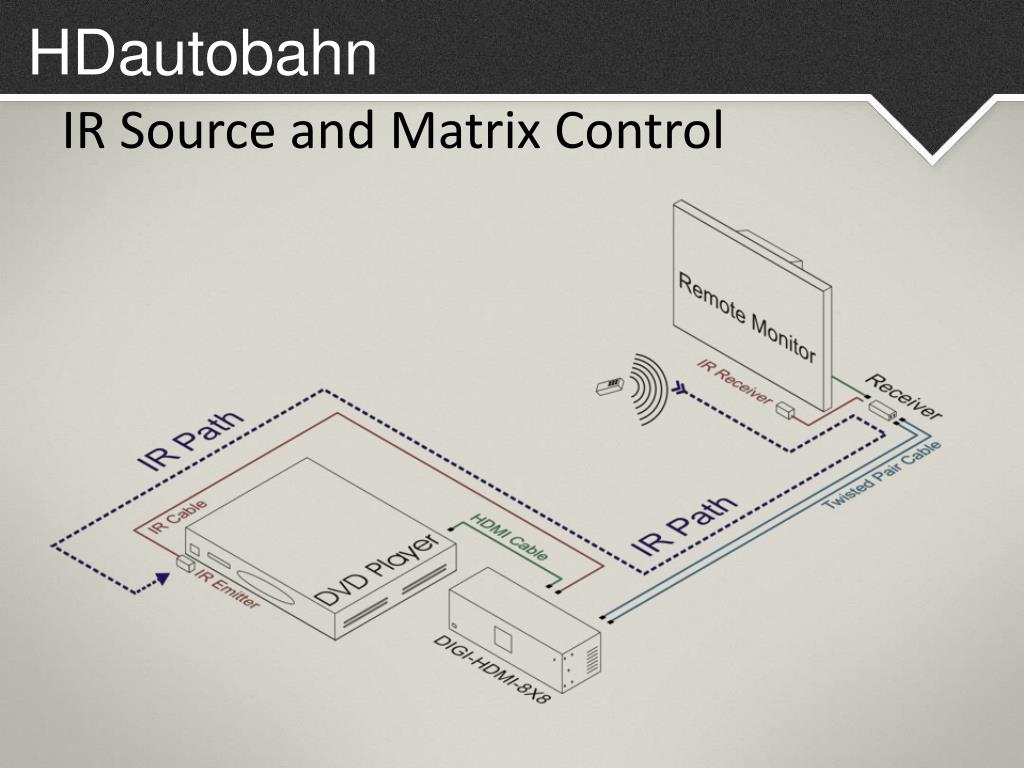

  39. HDautobahn IR Source and Matrix Control

  40. HDautobahn Features of HDMI Matrices 4x2, 4x4 and 8x8 configurations HDMI 1.3 and HDCP compliant 3-5 second switch speeds Built-in twisted pair extenders Built-in IR matrix Shelf-top or rack-mountable HDshāk – Exclusive Technology

  41. HDautobahn HDshāk Technologies • Buffering and Amplification • EDID Emulation and EDID Copy • Bandwidth Limiting • Smart Negotiation • Dynamic HDCP “Key” Processing Extenders Matrix Switchers

  42. HDautobahn System Presets Dual UTP, Limited TMDS CLK COPY EDID (Default Configuration) Dual UTP, Full Copy Single UTP, Full Copy Dual UTP, Fixed HDMI 1.3, 2CH EDID • Single UTP, Fixed HDMI 1.3, 2CH EDID

  43. HDautobahn EDID Emulation and EDID Copying DVD Satellite DIGI-HD-8X8 Display EDID Display EDID Display EDID Display EDID Display EDID Display EDID Display EDID Panasonic 1080p Sony 1080p Sanyo 1080p LG 720p Viewsonic 1920 x 1200 60 Hz

  44. HDautobahn EDID Storing • How do we do it? or

  45. HDautobahn Smart Negotiation BluRay 1080p Satellite 720p DIGI-HD-8X8 1080p 720p 1080p OFF 1080p 720p OFF 720p 720p

  46. HDautobahn Smart Negotiation BluRay 720p Satellite 720p DIGI-HD-8X8 720p 720p 720p 720p 720p 720p OFF 720p

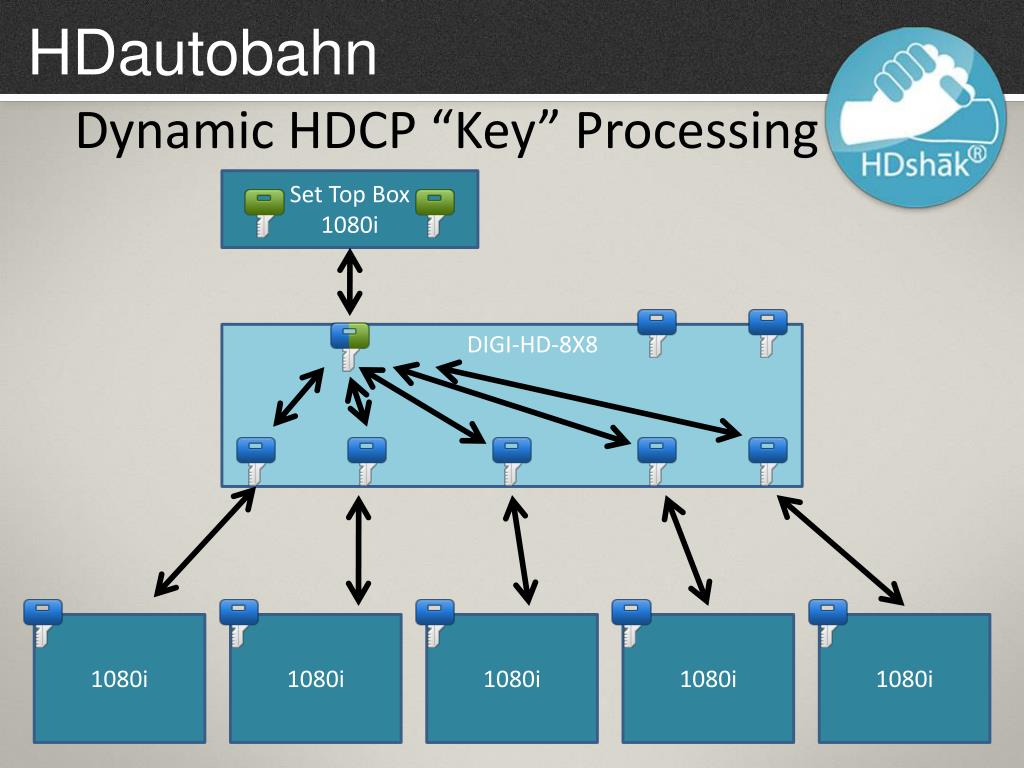

  47. HDautobahn Dynamic HDCP “Key” Processing Set Top Box 1080i DIGI-HD-8X8 1080i 1080i 1080i 1080i 1080i

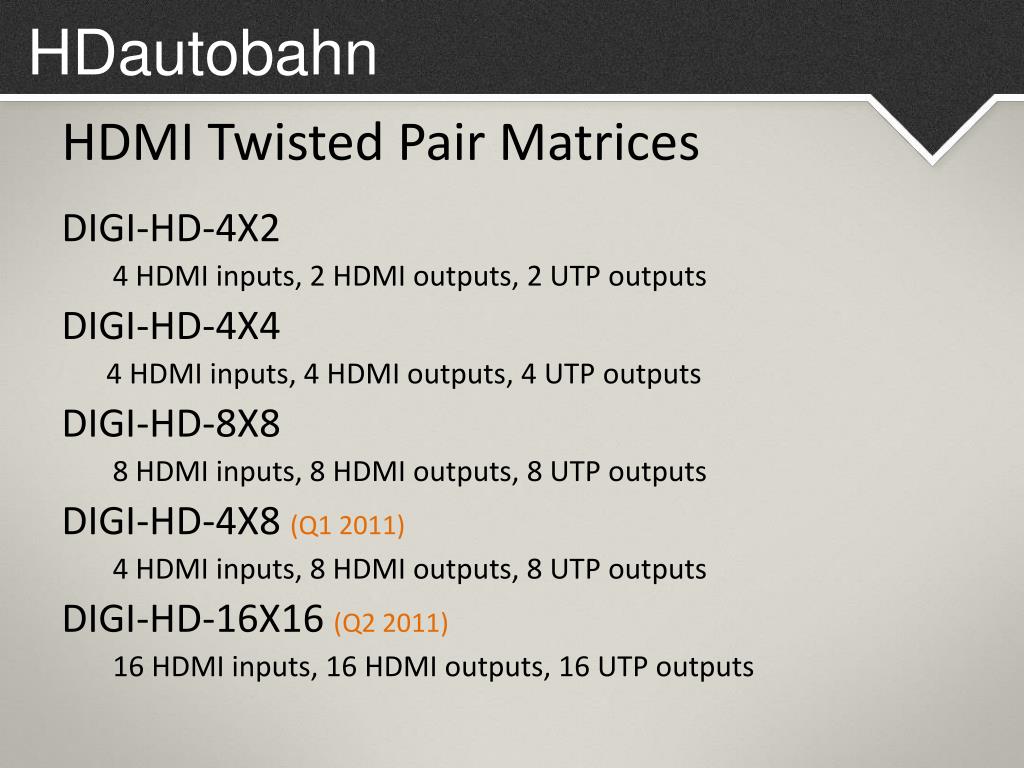

  48. HDautobahn HDMI Twisted Pair Matrices DIGI-HD-4X2 4 HDMI inputs, 2 HDMI outputs, 2 UTP outputs DIGI-HD-4X4 4 HDMI inputs, 4 HDMI outputs, 4 UTP outputs DIGI-HD-8X8 8 HDMI inputs, 8 HDMI outputs, 8 UTP outputs DIGI-HD-4X8 (Q1 2011) 4 HDMI inputs, 8 HDMI outputs, 8 UTP outputs DIGI-HD-16X16 (Q2 2011) 16 HDMI inputs, 16 HDMI outputs, 16 UTP outputs

  49. HDautobahn

  50. HDMI Why Intelix? Maximize Performance: Complete integrated solution approach
