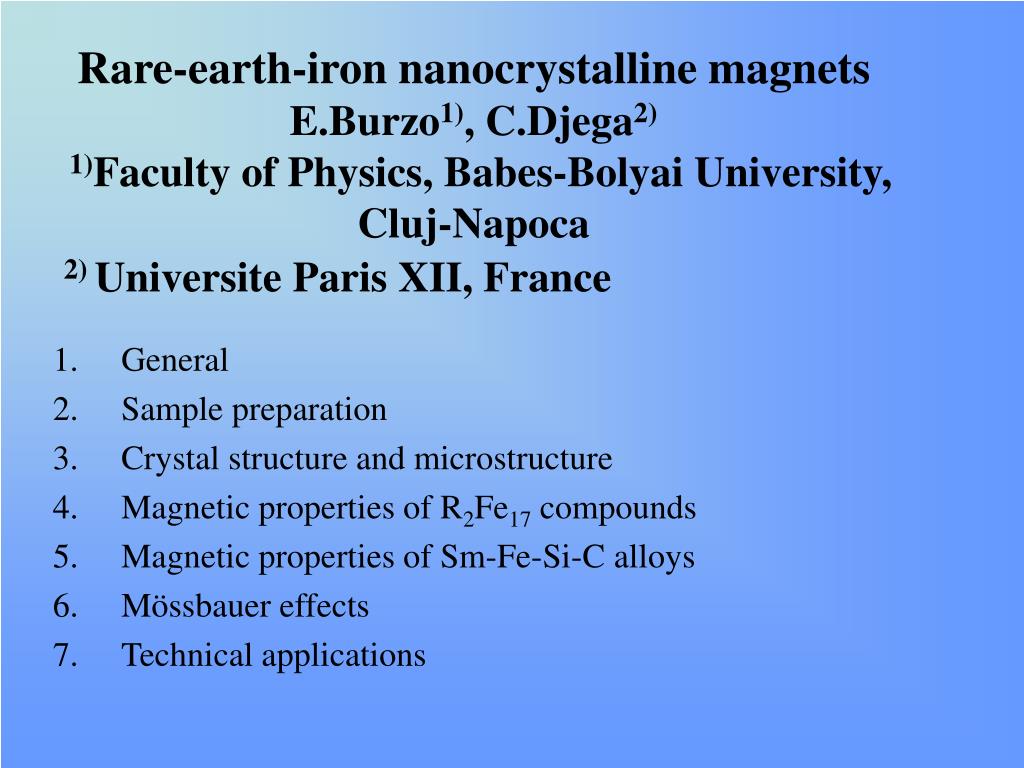

Rare-earth-iron nanocrystalline magnets E.Burzo 1) , C.Djega 2) 1) Faculty of Physics, Babes-Bolyai University, Cluj-Napoca 2) Universite Paris XII, France. General Sample preparation Crystal structure and microstructure Magnetic properties of R 2 Fe 17 compounds

odell
Télécharger la présentation

General Sample preparation Crystal structure and microstructure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Rare-earth-iron nanocrystalline magnetsE.Burzo1), C.Djega2)1)Faculty of Physics, Babes-Bolyai University, Cluj-Napoca2) Universite Paris XII, France General Sample preparation Crystal structure and microstructure Magnetic properties of R2Fe17 compounds Magnetic properties of Sm-Fe-Si-C alloys Mössbauer effects Technical applications

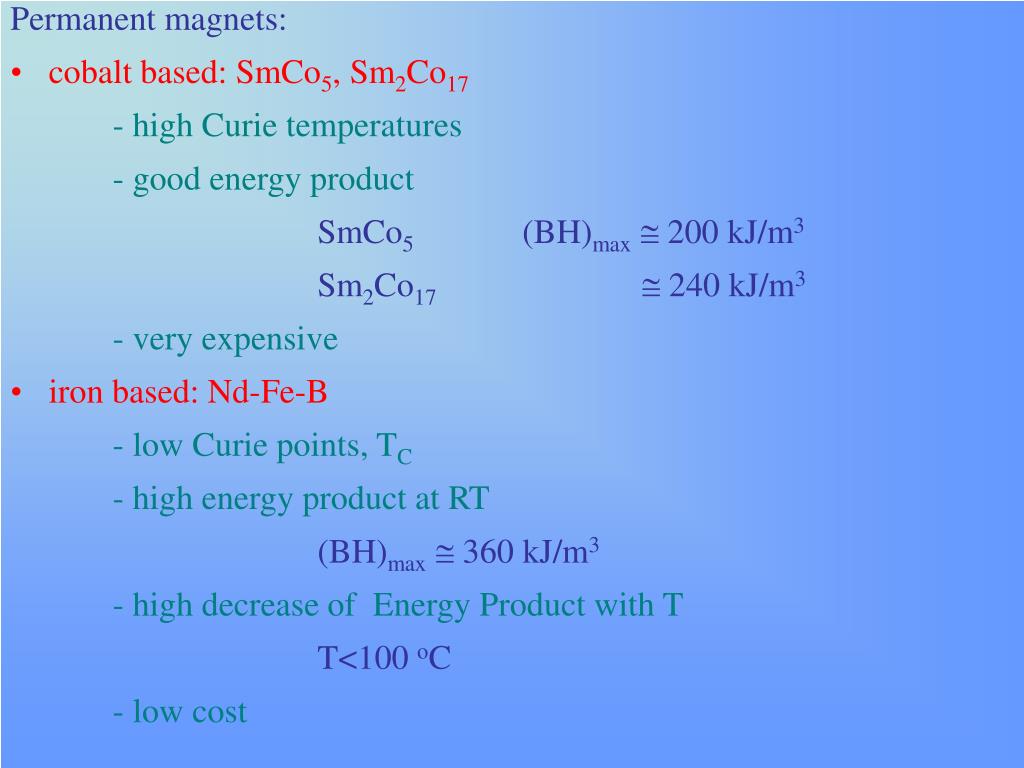

  2. Permanent magnets: • cobalt based: SmCo5, Sm2Co17 • - high Curie temperatures • - good energy product • SmCo5 (BH)max 200 kJ/m3 • Sm2Co17  240 kJ/m3 • - very expensive • iron based: Nd-Fe-B • - low Curie points, TC • - high energy product at RT • (BH)max  360 kJ/m3 • - high decrease of Energy Product with T • T<100 oC • - low cost

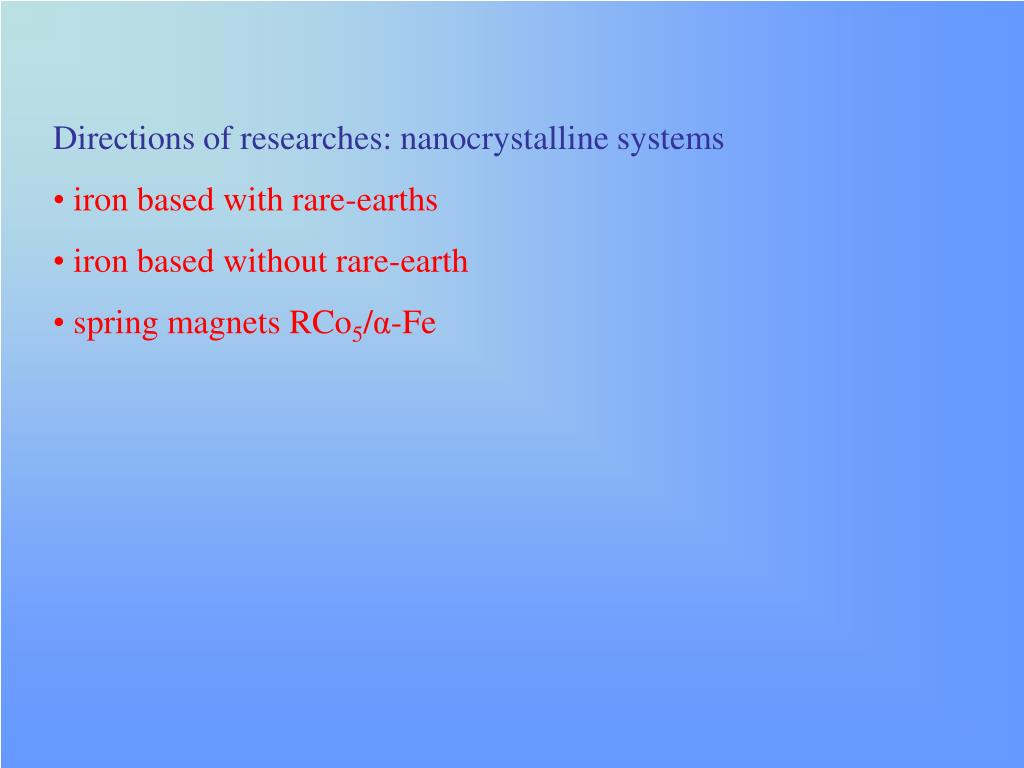

  3. Directions of researches: nanocrystalline systems • iron based with rare-earths • iron based without rare-earth • spring magnets RCo5/α-Fe

  4. Iron based magnets with rare-earth • R-Fe system • RFe2, RFe3, R6Fe23, R2Fe17 • no RFe5 phases are formed • R2Fe17 • Low Curie temperatures, Tc < 477 K for Gd2F17 • High magnetization MFe2.1-2.2 B/atom • Planar anisotropy • Rombohedral structure: space group • Sm:6c, Fe:6c, 9d, 18f, 18h • different local environments • Increase Tcvalues by: • replacement of iron involved in negative exchange inteactions • increase volume: interstitial atoms (C,N) • Uniaxial anisotropy

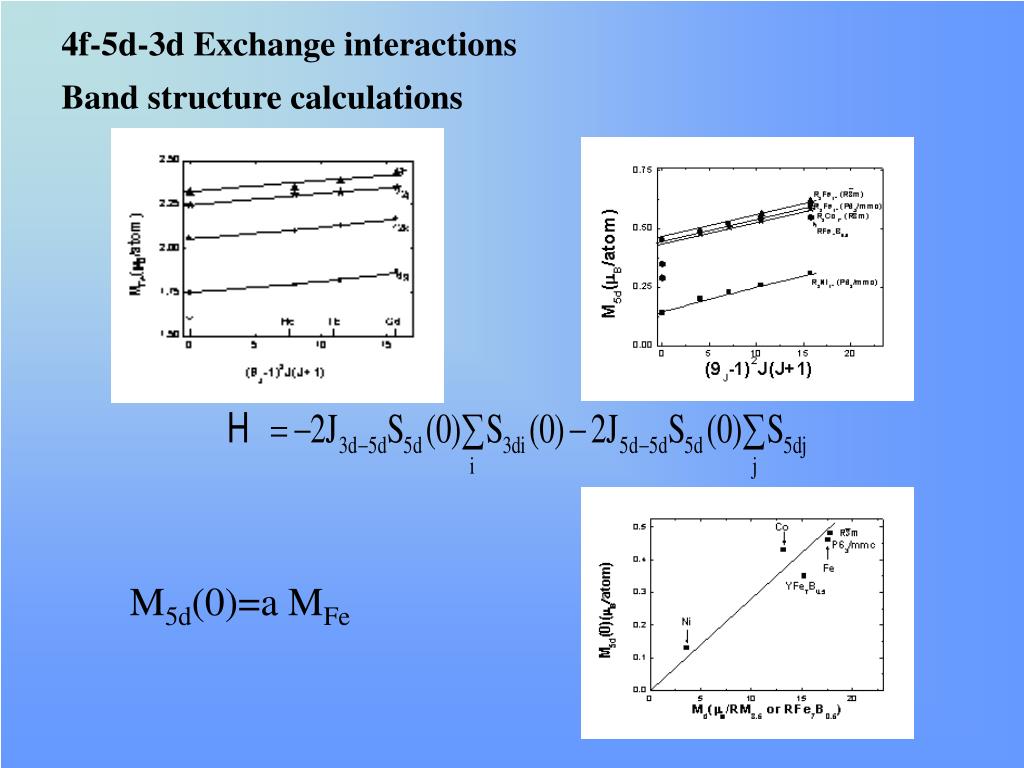

  5. 4f-5d-3d Exchange interactions Band structure calculations M5d(0)=a MFe

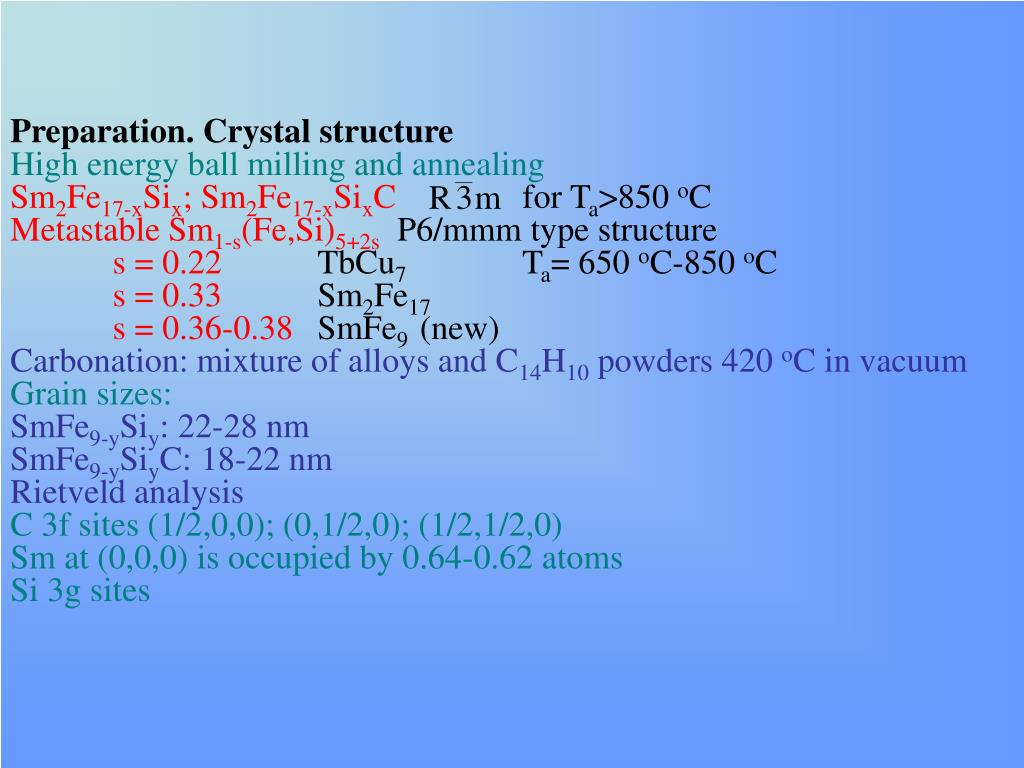

  6. Preparation. Crystal structure High energy ball milling and annealing Sm2Fe17-xSix; Sm2Fe17-xSixC for Ta>850 oC Metastable Sm1-s(Fe,Si)5+2s P6/mmm type structure s = 0.22 TbCu7 Ta= 650 oC-850 oC s = 0.33 Sm2Fe17 s = 0.36-0.38 SmFe9 (new) Carbonation: mixture of alloys and C14H10 powders 420 oC in vacuum Grain sizes: SmFe9-ySiy: 22-28 nm SmFe9-ySiyC: 18-22 nm Rietveld analysis C 3f sites (1/2,0,0); (0,1/2,0); (1/2,1/2,0) Sm at (0,0,0) is occupied by 0.64-0.62 atoms Si 3g sites

  7. R1-sM5+2s P6/mmm

  8. Electron microscopy: distribution of elements particle dimensions SmFe8.75Si0.25

  9. y=2 y=0 y=2 y=0 z=1 z=0 z=1 z=0

  10. Curie temperature: effect of Si • Tc increases by Si substitution in noncarbonated samples • Tc decreases in carbonated sample • Volume effects: Localized moment of iron moments 16.4 1:9 22.9 2:17 Molecular field approximation 25 1:9 30 2:17 Fe mainly localized magnetic behaviour

  11. Intrinsic magnetic properties • Magnetic measurements: H ≤ 9T T≥4.2 K • initial magnetization curves • - inflection typical for pinning effects coherent precipitates with matrix • impede the motion of domain walls • Band structure calculations: LMTO-LDA method • MSm=-0.66 B/atom • MFe(6c) > MFe(18h)  MFe(18f) > MFe(9d) • Mean magnetic moment of Fe in field of 9T • increases with Si content • Noncarbonated:1.50 B (y=0.25); 1.75 (y=1.0) • Carbonated:1.88B (y=0.25); 1.97 (y=1.0) • Asymmetric filling of Fe 3d band by Si3p electrons

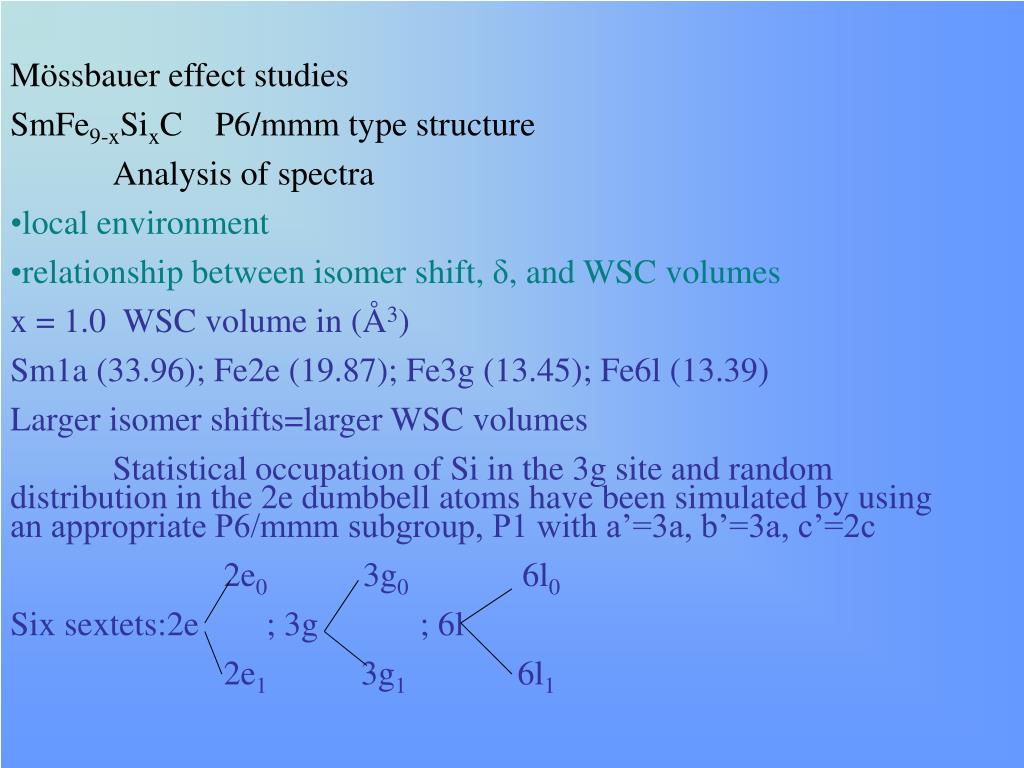

  12. Mössbauer effect studies • SmFe9-xSixC P6/mmm type structure • Analysis of spectra • local environment • relationship between isomer shift, δ, and WSC volumes • x = 1.0 WSC volume in (Å3) • Sm1a (33.96); Fe2e (19.87); Fe3g (13.45); Fe6l (13.39) • Larger isomer shifts=larger WSC volumes • Statistical occupation of Si in the 3g site and random distribution in the 2e dumbbell atoms have been simulated by using an appropriate P6/mmm subgroup, P1 with a’=3a, b’=3a, c’=2c • 2e0 3g0 6l0 • Six sextets:2e ; 3g ; 6l • 2e1 3g1 6l1

  13. Mean 57Fe hyperfine fields decrease with Si content Hhf2e > Hef6l > Hhf3g correlate with number of NN Fe atoms Mean isomer shifts:δ2e>δ3g>δ6l δ2e, δ6l increase with Si substitution δ3g remains nearly constant preferred occupation of Si sites (3g)

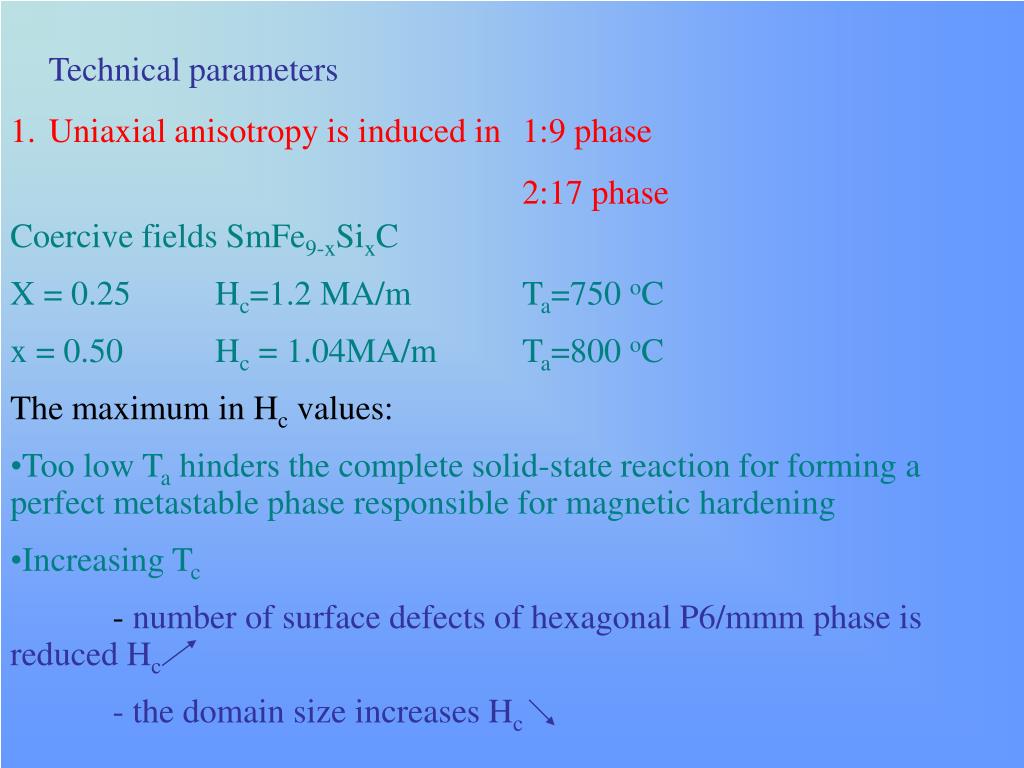

  14. Technical parameters • Uniaxial anisotropy is induced in 1:9 phase • 2:17 phase • Coercive fields SmFe9-xSixC • X = 0.25 Hc=1.2 MA/m Ta=750 oC • x = 0.50 Hc = 1.04MA/m Ta=800 oC • The maximum in Hc values: • Too low Ta hinders the complete solid-state reaction for forming a perfect metastable phase responsible for magnetic hardening • Increasing Tc • - number of surface defects of hexagonal P6/mmm phase is reduced Hc • - the domain size increases Hc

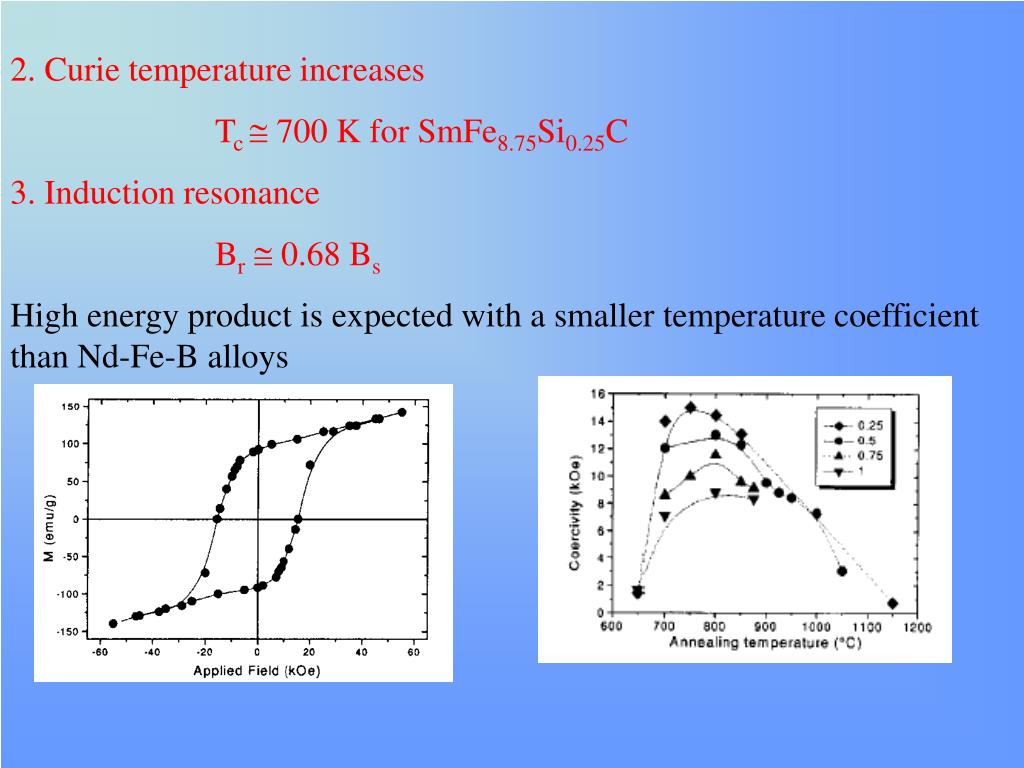

  15. 2. Curie temperature increases Tc  700 K for SmFe8.75Si0.25C 3. Induction resonance Br  0.68 Bs High energy product is expected with a smaller temperature coefficient than Nd-Fe-B alloys

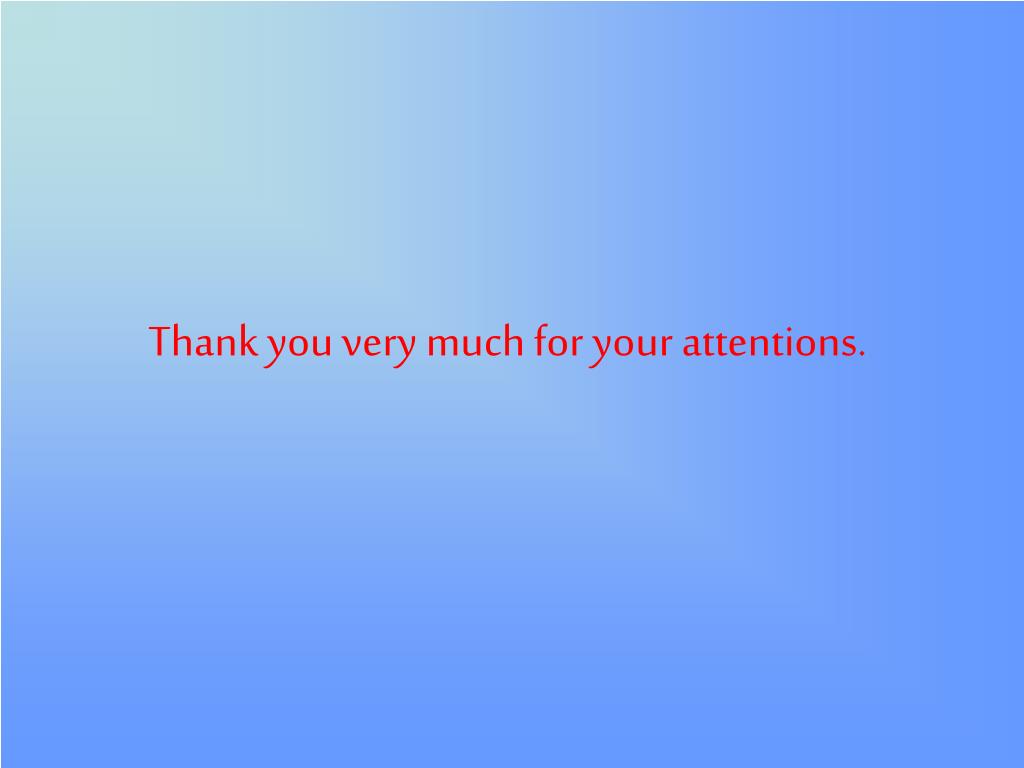

  16. Thank you very much for your attentions.
