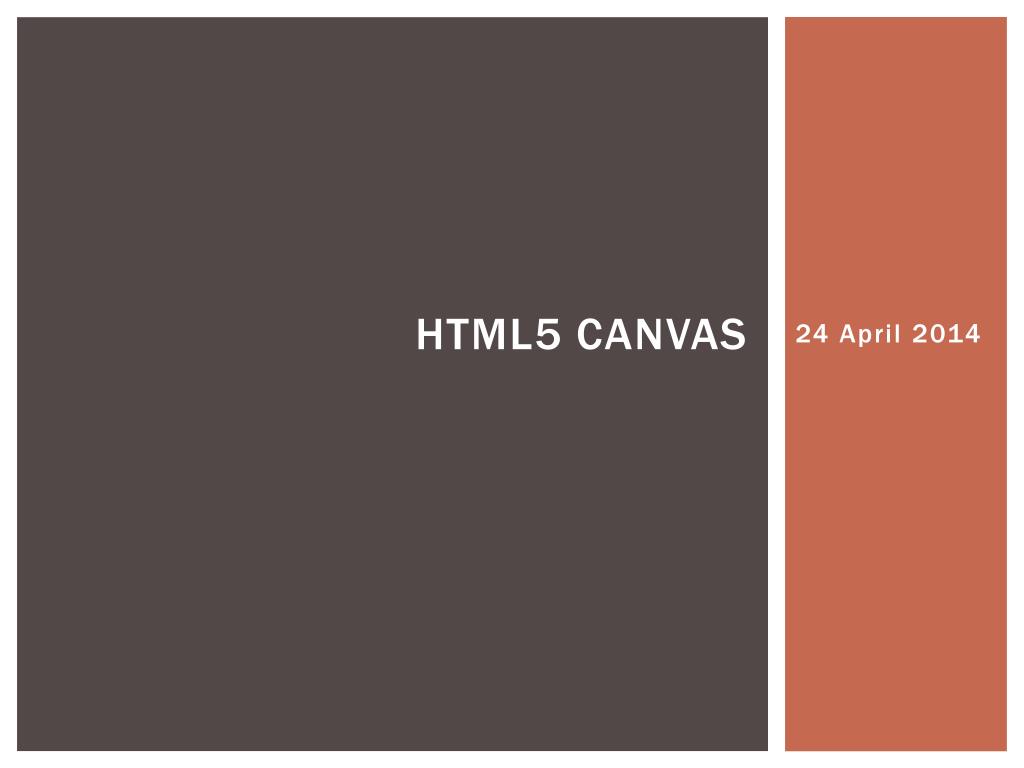

1. HTML5 Canvas 24 April 2014

2. Drawing pictures in HTML(and Javascript) • Rectangles • Arcs • Lines • Features we won’t look at • Images • Drag and drop • Animation • Widely supported

3. How to do it • Canvas tag in HTML • Id required • Resizing must be done in tag, NOT CSS • If you go outside canvas, no error, just doesn’t show • JavaScript to DRAW: step by step

4. Set up • Need to identify the canvas • Create a javaScript object that represents the canvas (context) • Methods associated with object var canvas = document.getElementById("rectangles"); var context = canvas.getContext("2d"); • Code needs to wait until loading completes document.addEventListener('DOMContentLoaded',domloaded,false); function domloaded() { } • Drawn in order of execution

5. rectangles • Most straightforward • Define by location of upper left corner and size • Grid is defined with (0,0) as upper left corner context.fillRect(x, y, width, height); • Set color and then define the rectangle context.fillStyle= "#EF5B84"; context.fillRect(100, 100, 100, 200); • Color • Always a string • Same formats as in CSS • Opacity: applies to what follows context.globalAlpha= 0.5;

6. gradients • Need to create a gradient object var gradient = context.createLinearGradient(x0, y0, x1, y1); • If x’s or y’s are 0, no change in that direction • If non-zero, must match the rectangle locations • Stops gradient.addColorStop(0, “blue"); gradient.addColorStop(1, “#FFFFFF"); • Can have as many transitions as you want • Define at relative points from 0 to 1 • Define color at that point • Use gradient rather than color in fillStyle context.fillStyle= gradient;

7. arcs • Circles and arcs context.arc(x, y, radius, start-angle, end-angle, dir); • Outline (“pencil”) and then draw (“ink”) • Pencil context.beginPath(); context.arc(x, y, radius, 0, Math.PI * 2, false); context.closePath(); /* closes the shape */ • Fill context.fillStyle = "#000"; context.fill(); • Ink context.strokeStyle= "#000"; context.stroke();

8. lines • Pencil up, pencil down • Start (same as arcs) context.beginPath(); • Position context.moveTo(x,y); • Draw (pencil) context.lineTo(x,y); • If you want to close the shape (same as arcs) context.closePath(); • Ink (same as arc) context.strokeStyle = "#000"; context.stroke();

9. resources • Mark Pilgrim, Dive into HTML5 • Chapter 4: Let’s Call it a Draw(ing Surface) • HTML5 Canvas Basic Tutorials
