  1. Status ofBES-III Detector Control System Xiaonan Li IHEP Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

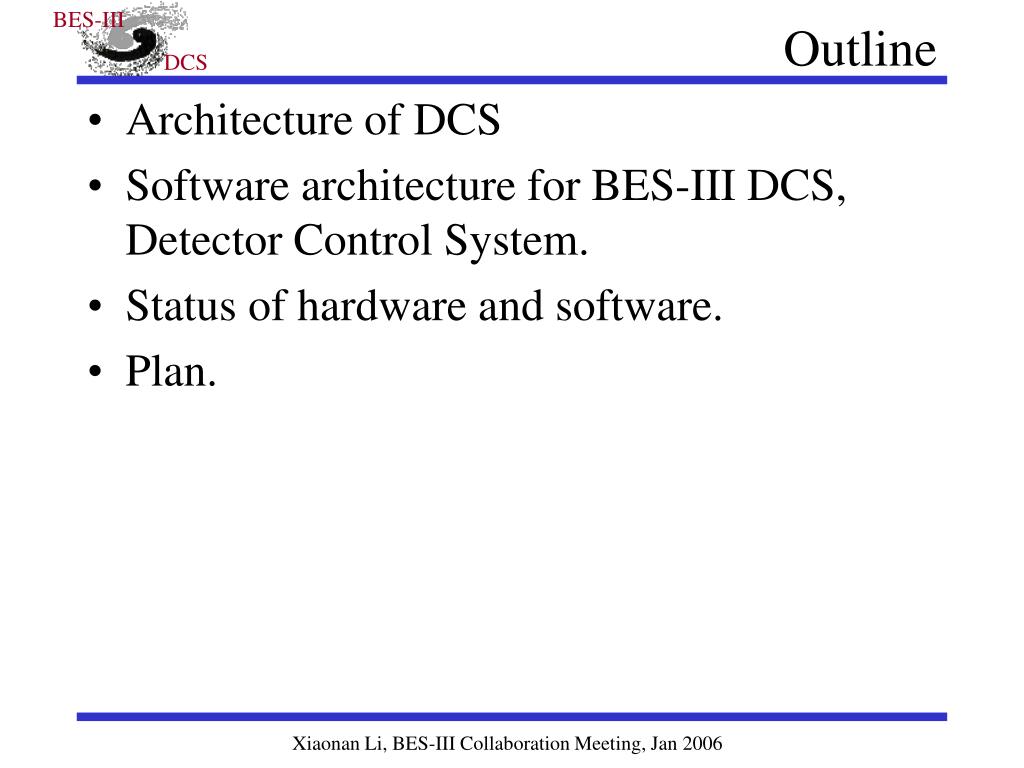

  2. Outline • Architecture of DCS • Software architecture for BES-III DCS, Detector Control System. • Status of hardware and software. • Plan. Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  3. System Architecture Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  4. BES-III DCS Front End System LAN Local Control Machines RS485/232 USB CANbus Ethernet USB1.1/485 PLC 485 LTM8660 SCT8002 SHT8301 Safety/Inter-Locked Magnet Beam pipe CAEN HV VME Crate GAS System 1 wire Low Voltage T/H Sensors Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  5. OPC Server OPC Server OPC Server IO Driver IO Driver IO Driver DCS Client-Server Model OPI Client OPI Client LAN Ethernet Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

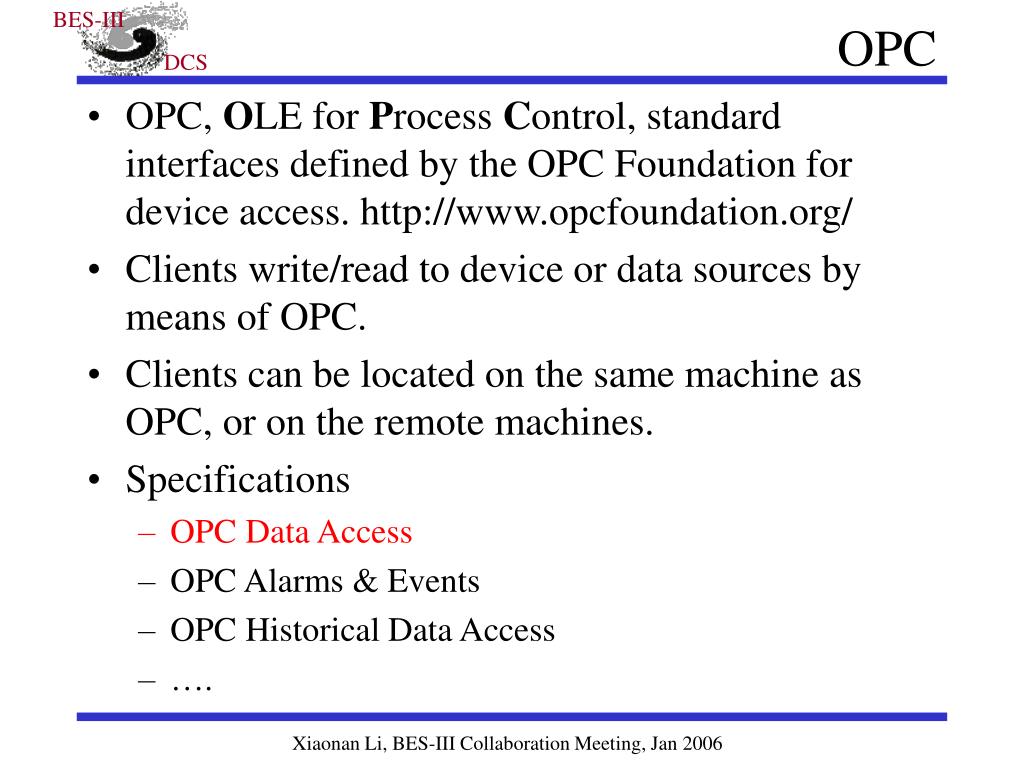

  6. OPC • OPC, OLE for Process Control, standard interfaces defined by the OPC Foundation for device access. http://www.opcfoundation.org/ • Clients write/read to device or data sources by means of OPC. • Clients can be located on the same machine as OPC, or on the remote machines. • Specifications • OPC Data Access • OPC Alarms & Events • OPC Historical Data Access • …. Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  7. FEE VME Crate Remote Control • Hardware • Wiener VME Crates. Can bus Interface. • Kvaser PCIcan-D cards, Can/PCI interface card, 2 Can channels, D-sub 9 pins connectors. • Software • Windows OS. • PCIcan driver and Wiener OPC server are all available from vendor. LAN TCP/IP PCICan-D OPI Client OPC Server Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  8. High Voltage System • Hardware • CAEN HV, SY1527? • TCP/IP, CAENet… • Software • Windows OS • OPC server is available from vendor. • We already setup a system as a OPC testbed to get experience on OPC. Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  9. Gas system, Safety/Inter-locked, Magnet • Hardware. PLC based. • Siemens, S7-200 series. • RS485/232 connection, PPI protocol. • Software • PC Access with OPC server • Step 7 micro/win. PLC programming; OPC server configuration. LAN TCP/IP OPC Server RS485/232 OPI Client Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  10. Environment Monitoring. • Temperature, Humidity, pressure, et al. • Hardware, custom design, custom made. RS485/USB, RS485/1 Wire, SHT T/H sensor connecting modules, Low Voltage modules. • Software. • Server, vi-based or OPC server development. • OPC server SDK. Softing OPC Toolbox C++. Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  11. Custom Made Modules USB/RS485 SHT Module RS485/1 Wire Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  12. SCADA (Supervisory Control And Data Acquisition) • DCS based on LabVIEW plus DSC module (Data Supervisory and Control). • Functions • OPI, Operator Interface. • Data access. • Historical Trending. • Data logging and archiving. • Alarm handling. • Reports generation. Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  13. Subsystem Parameters Ch No. Details MDC 4 167 温度6、温湿度36、高压插件温度5 高压控制并监测60、高压电源漏电流60、 EMC 2 880 温度600（桶部480、端盖120） 湿温度280（桶部240、端盖40） TOF 4 990 失超关TOF高压1、磁体电源卸载降高压1、温度40、 TOF电压8、 高压控制并监测450、高压工作电流450、高压插件温度40 MC 7 860 温度128（桶部）、 温湿度160（端盖128、桶部32）、 高压控制并监测144、高压漏电流144 、高压插件温度12、 FEE电压40、 FEE电流40、 NIM电压192 超导 6 16 超导失超1、加电正常1、电源卸载1、允许加电1 磁场1、真空1、 电源电流1、电压1、 温度5 、监视器3 气体 6 71 MDC室体压力1、 气瓶称切换2、压力25、氧气4、2二次仪表 单元气质量流比份5、2个本地PLC控制ON/OFF、 恒温箱温湿度8、气控间温湿度2、缓冲罐间温湿度2 、 氦气检漏4、可燃气12、安联2 放射性 3 114 探测器105、谱仪环境8 、安全联锁1 束流管 4 43 束流监测12、 管口温度12、束流管进出口水冷温度2 液位高度2（水箱高度1、油箱高度1）、 束流管（铍管） 进出压降2、 束流管过渡管温度2（左右各一个） 束流管外延铜管伸出管温度8（左右各4）、中央联锁3 The complete DCS channels List (1) Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  14. 电缆槽温度 1 100 温度100 机箱温度 1 667 291（41台VME） 70（Online PC farm） 294（49台NIM） 6（6台Trigger）、6（6台高压机箱） 探测器环境温度 1 100 温度100 环境温湿度 1 24 8（BES大厅）、4（Online room） 8（Control room）、4（Trigger room） 电子学环境 1 20 温湿度20 VME机箱电压 5 205 5种电源的电压+3.3V；+5V；+12V；-12V；-5.2V 共计204（200/40台9U、4/1台6U）、安联1 VME机箱电流 5 205 5种电源电压+3.3V；+5V；+12V；-12V；-5.2V的电流204（ 200/40台9U、4/1台6U ）、安联1 220V、380V、安全联锁1 安全联锁 16 88 允许注入、失超禁束、气体高压状态、允许停机 对撞区剂量率、气体压力比份、束流管状态 加速器注入状态、运行状态、准备状态、正常停机、紧急停机、对撞状态、环水、环气、门禁 待定 3 亮度1、亮度高压1、亮度安联1等 交流电压 1 11 远程开、关机 1 41 41（41台VME）ON/OFF 其 它 Total 4605 The complete DCS channels List (2) Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  15. Progress:Hardware • The DCS needs more than 100 custom made modules. • The low voltage monitoring module has finished R&D. Going into production. Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  16. Progress: Software • Setup HV and VME crate monitoring and control machines. OPC servers installed and tested. • OPC server for low voltage monitoring is in progress. • OPC server for T/Humidity monitoring will start soon. • PLC programming for Gas system monitoring and control is in progress. • LabView Programming. HV Operator Interface Demo. Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  17. HV Operator Interface Demo Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  18. HV Operator Interface Demo Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  19. Plan • Most of hardware work are going into stage of installation. We will follow the detector installation schedule. • Continuing the OPC server development for low voltage system and environment monitoring. • Develop basic LabVIEW VIs (subfunctions) and Demo for every subsystem. • Setup small scale system one by one. Xiaonan Li, BES-III Collaboration Meeting, Jan 2006

  20. MC端盖 2005.9（安装完成） MC桶部 2005.10 （安装完成） EMC桶部 2006.10（温度完成待安装、1/2温湿度完成待安装） B P 2006.3 （方案完成） 2006.4（研制完成、等待探测器确定后批量复制） EMC端盖 VME 2006.4（等待PCI接口板到货后研制） NIM 2006.4 （方案完成、研制中） MDC （部分完成、待安装） 2006.6 TOF 2006.6 （部分研制完成、等待批量生产） 2006.6 （研制完成、批量生产中） MC EFF 超导 2006.7 （方案完成） 气体 2006.7（方案完成、研制中） 安全联锁 2006.10（方案完成、已启动） CPM Sensors installation completed Sensors installation completed Xiaonan Li, BES-III Collaboration Meeting, Jan 2006
