Coagulation and Anti-coagulation

Coagulation and Anti-coagulation. Physical Process of Clotting Chemical Process of Clotting Fibrin formation, Extrinsic and Intrinsic pathways, Amplification, Activation of Enzymes, Clot Localization Inhibitors of Clotting Anti-platelets, anti-coagulants Antithrombin

oswald
Télécharger la présentation

Coagulation and Anti-coagulation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Coagulation and Anti-coagulation • Physical Process of Clotting • Chemical Process of Clotting Fibrin formation, Extrinsic and Intrinsic pathways, Amplification, Activation of Enzymes, Clot Localization • Inhibitors of Clotting Anti-platelets, anti-coagulants • Antithrombin • Heparin, Low molecular weight heparins, Heparin Pentasaccharide Structure, properties, biochemical mechanism • Heparin mimics MEDC 604 Anti-coagulants

  2. Scanning Electron Micrograph of a Clot MEDC 604 Anti-coagulants

  3. Physical Process of Clotting MEDC 604 Anti-coagulants

  4. The Chemical Process of Clotting HMWK XI XII XIIa IX • Note: • IXa and VIIIa work together to convert X into Xa. • Xa and Va work together to convert II into IIa. • IIa works on a number of steps. • HMWK and TF are initiation points • CLOT is the end point XIa X IXa VIII VIIIa IIa II Xa V Va XIII IIa Fibrinogen Xa IIa IIa VIIa TF XIIIa X Fibrin CLOT monomers VII Desai, U. R., VCU (2005) MEDC 604 Anti-coagulants

  5. Important Characteristics of Clotting Cascade • Activation of Enzymes • Amplification • Clot Localization MEDC 604 Anti-coagulants

  6. Important Characteristics of Clotting Cascade • Activation of Enzymes fXa (Arg323-Ile324) Ser562 fXa, Va PL, Ca2+ 1 fXa (Arg274-Thr275) Prothrombin Thrombin MEDC 604 Anti-coagulants

  7. C C E1 E1 A B E2 A E2 F F X E3 E4 D Y D E4 E3 G G Important Characteristics of Clotting Cascade • Amplification MEDC 604 Anti-coagulants

  8. Regulation of Clotting • Natural Anticoagulants Antithrombin, Tissue Factor Pathway Inhibitor, Protein C • Natural Products as Anticoagulant Drugs Heparin-based anticoagulants Coumarin-based anticoagulants Tick anticoagulant peptide MEDC 604 Anti-coagulants

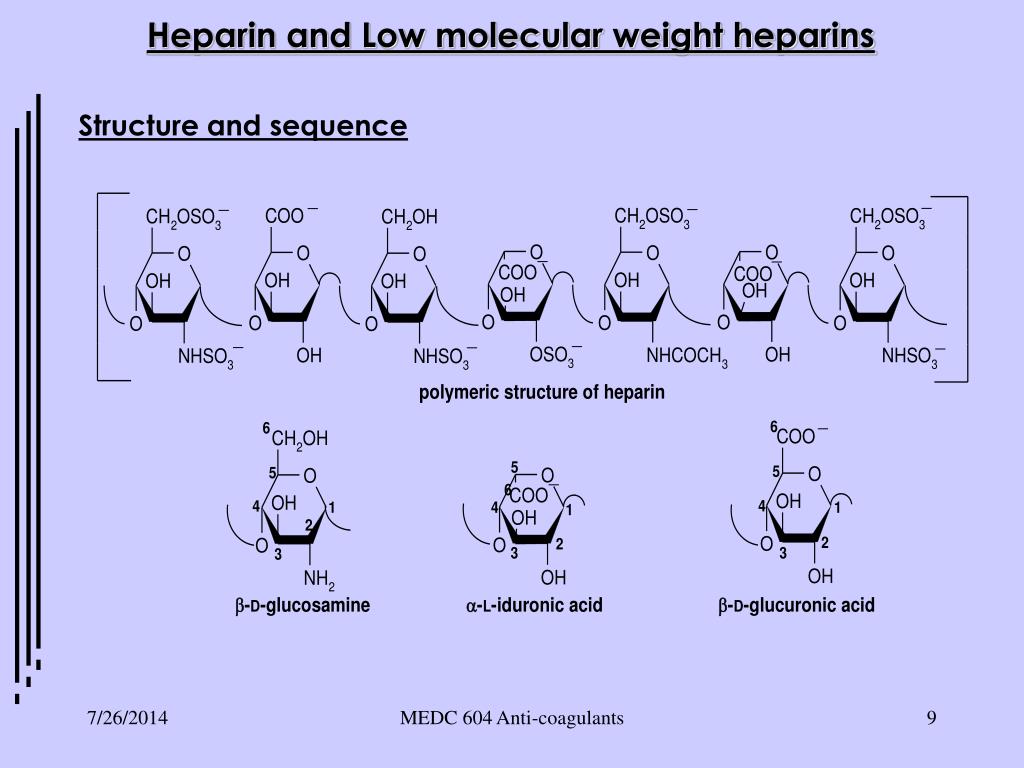

  9. Heparin and Low molecular weight heparins Structure and sequence MEDC 604 Anti-coagulants

  10. Pentasaccharide MEDC 604 Anti-coagulants

  11. EHBS Lys136 RCL Arg133 Lys132 Arg129 helix D D helix A Lys125 E PBS F Arg47 G Arg46 H helix P Lys114 A) B) Structure of Antithrombin – Pentasaccharide Complex MEDC 604 Anti-coagulants

  12. AT + H AT:H AT-E + H E Biochemical Mechanism of Heparin Action MEDC 604 Anti-coagulants

  13. Designing Heparin Mimics • Binding in the Pentasaccharide Binding Site • Binding in the Extended Heparin Binding Site MEDC 604 Anti-coagulants
