  1. System Software Design Vinh Le

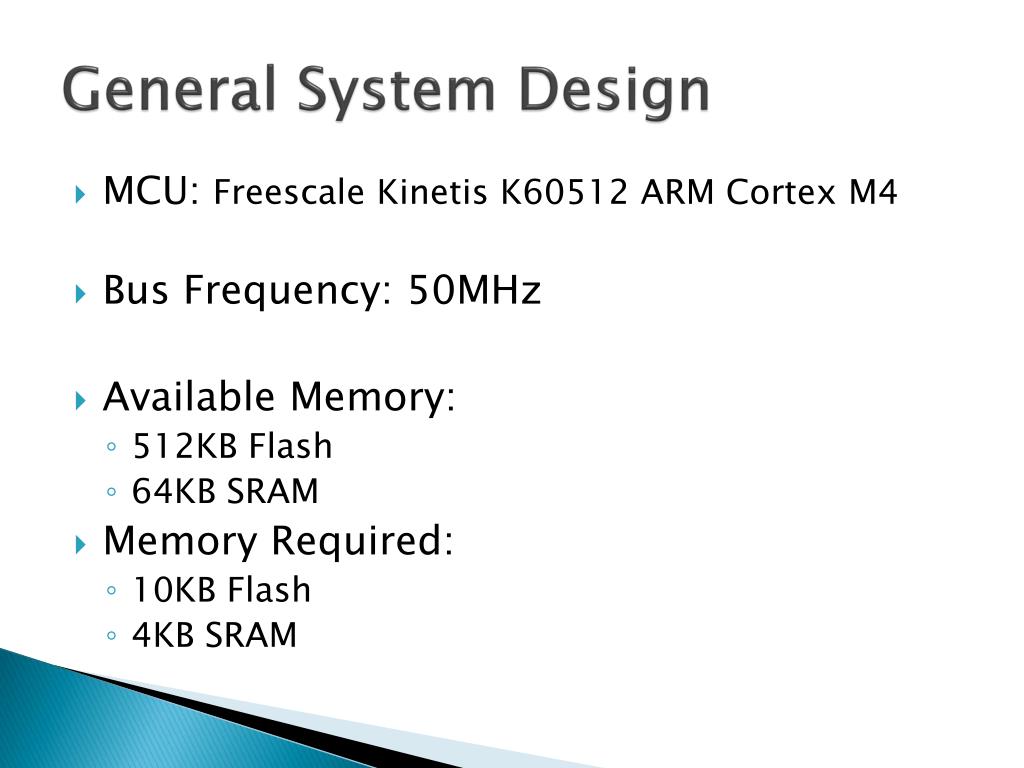

  2. General System Design • MCU: FreescaleKinetis K60512 ARM Cortex M4 • Bus Frequency: 50MHz • Available Memory: • 512KB Flash • 64KB SRAM • Memory Required: • 10KB Flash • 4KB SRAM

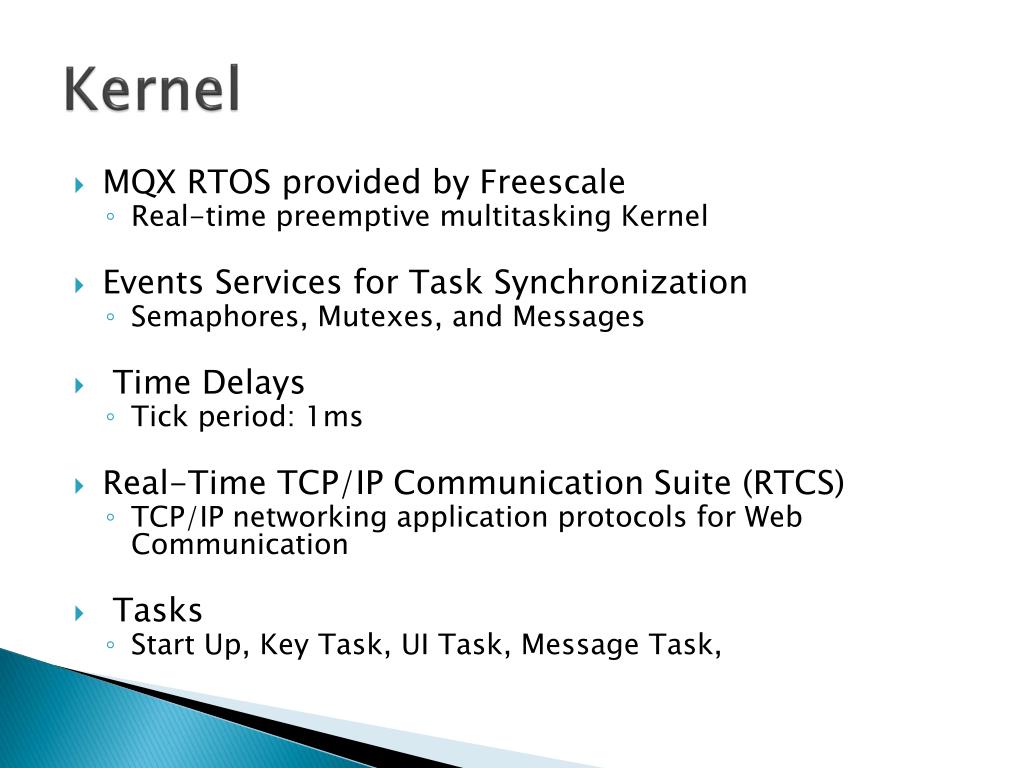

  3. Kernel • MQX RTOS provided by Freescale • Real-time preemptive multitasking Kernel • Events Services for Task Synchronization • Semaphores, Mutexes, and Messages • Time Delays • Tick period: 1ms • Real-Time TCP/IP Communication Suite (RTCS) • TCP/IP networking application protocols for Web Communication • Tasks • Start Up, KeyTask, UI Task, MessageTask,

  4. Start Task Description: • Enables all of MCU and Kernel resources and initializes system. • Creates other tasks • Priority #4 • Period: Once (at start-up) • Execution time ~ 1s

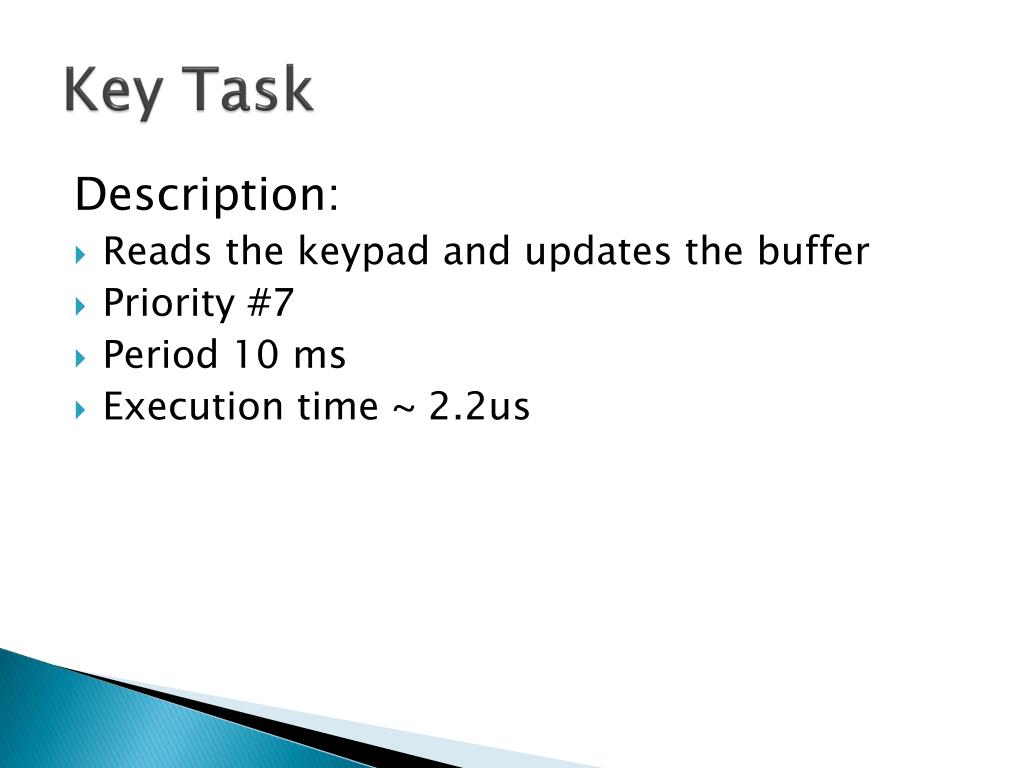

  5. Key Task Description: • Reads the keypad and updates the buffer • Priority #7 • Period 10 ms • Execution time ~ 2.2us

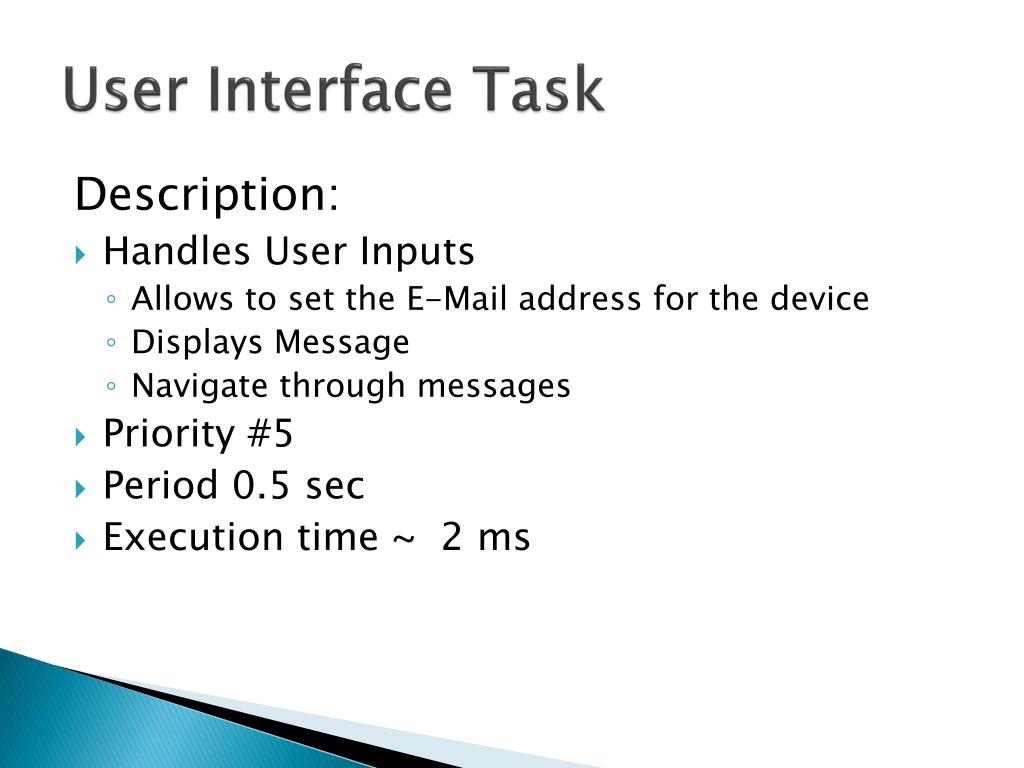

  6. User Interface Task Description: • Handles User Inputs • Allows to set the E-Mail address for the device • Displays Message • Navigate through messages • Priority #5 • Period 0.5 sec • Execution time ~ 2 ms

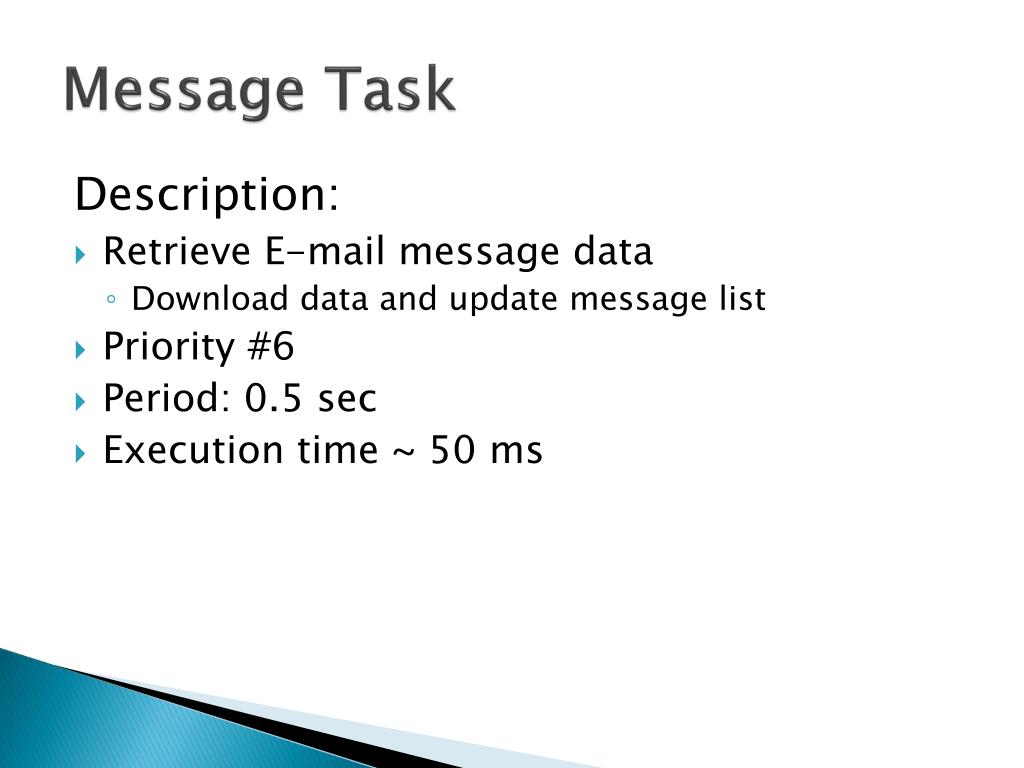

  7. Message Task Description: • Retrieve E-mail message data • Download data and update message list • Priority #6 • Period: 0.5 sec • Execution time ~ 50 ms

  8. CPU Load Lmax= 10.4% Laverage = 3.5%

  9. Modules

  10. Keypad Data Flow

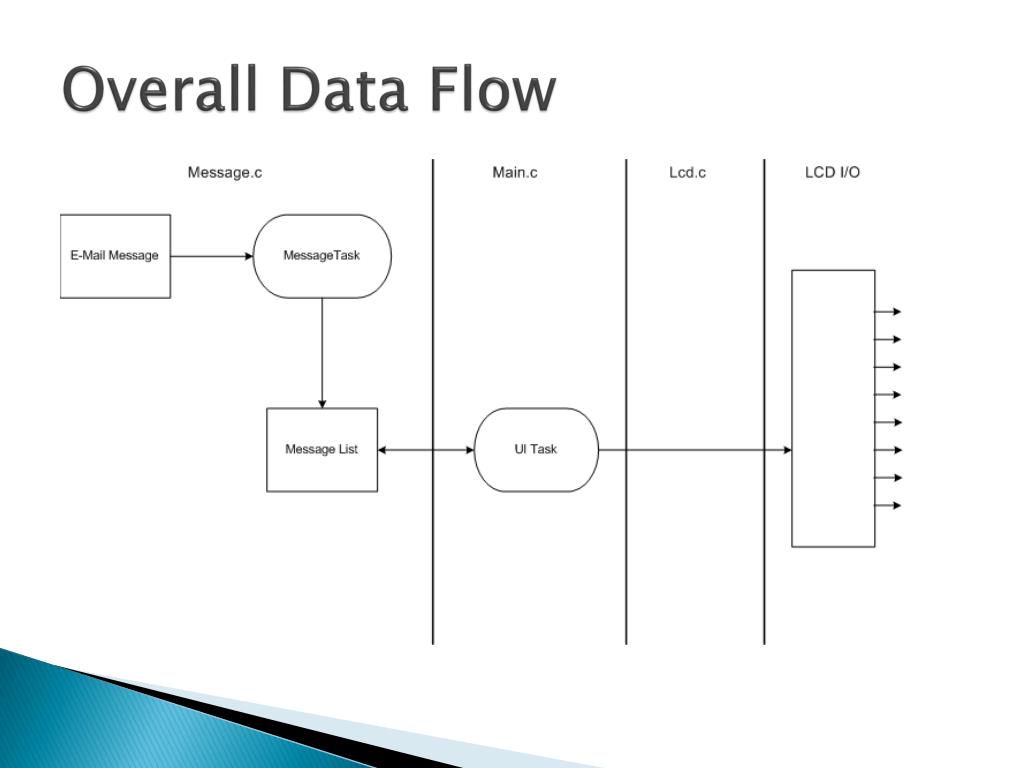

  11. Overall Data Flow
