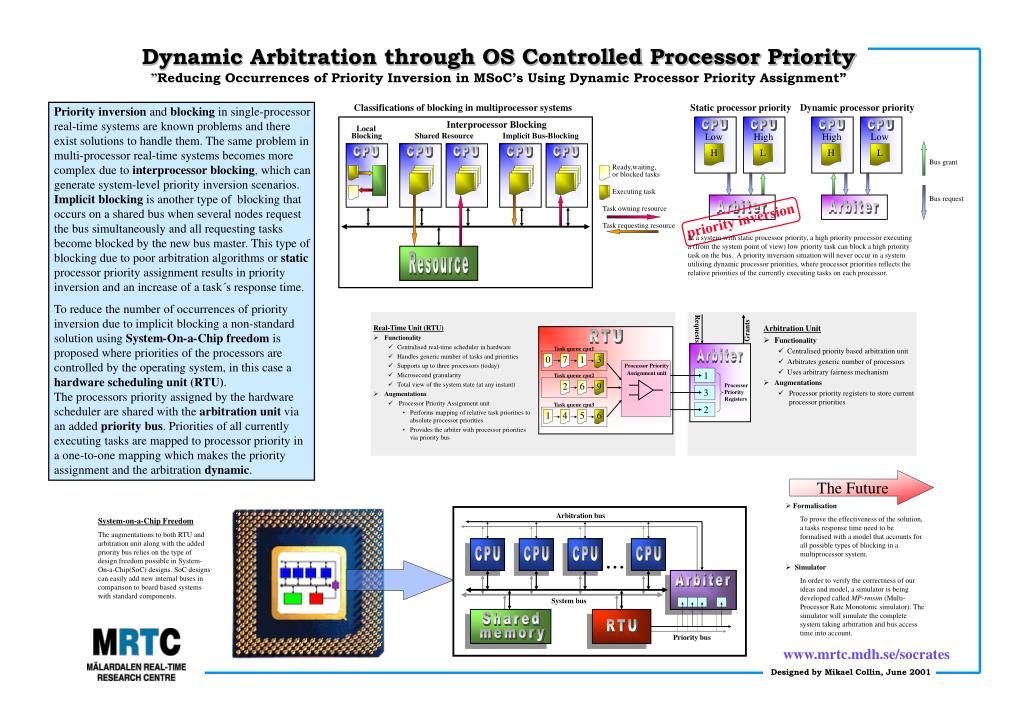

1. Real-Time Unit (RTU) Functionality Centralised real-time scheduler in hardware Handles generic number of tasks and priorities Supports up to three processors (today) Microsecond granularity Total view of the system state (at any instant) Augmentations Processor Priority Assignment unit Performs mapping of relative task priorities to absolute processor priorities Provides the arbiter with processor priorities via priority bus Classifications of blocking in multiprocessor systems Static processor priority Dynamic processor priority Priority inversion and blocking in single-processor real-time systems are known problems and there exist solutions to handle them. The same problem in multi-processor real-time systems becomes more complex due to interprocessor blocking, which can generate system-level priority inversion scenarios. Implicit blocking is another type of blocking that occurs on a shared bus when several nodes request the bus simultaneously and all requesting tasks become blocked by the new bus master. This type of blocking due to poor arbitration algorithms or static processor priority assignment results in priority inversion and an increase of a task´s response time. To reduce the number of occurrences of priority inversion due to implicit blocking a non-standard solution using System-On-a-Chipfreedom is proposed where priorities of the processors are controlled by the operating system, in this case a hardwareschedulingunit (RTU). The processors priority assigned by the hardware scheduler are shared with the arbitrationunit via an added priority bus. Priorities of all currently executing tasks are mapped to processor priority in a one-to-one mapping which makes the priority assignment and the arbitration dynamic. Interprocessor Blocking CPU CPU CPU CPU Local Blocking Shared Resource Implicit Bus-Blocking Low High High Low H L H L CPU CPU CPU CPU CPU Bus grant Ready,waiting, or blocked tasks Executing task Bus request Arbiter Arbiter Task owning resource priority inversion Task requesting resource In a system with static processor priority, a high priority processor executing a (from the system point of view) low priority task can block a high priority task on the bus. A priority inversion situation will never occur in a system utilising dynamic processor priorities, where processor priorities reflects the relative priorities of the currently executing tasks on each processor. Resource Arbitration Unit • Functionality • Centralised priority based arbitration unit • Arbitrates generic number of processors • Uses arbitrary fairness mechanism • Augmentations • Processor priority registers to store current processor priorities Requests Grants RTU Task queue cpu1 Arbiter 0 7 1 3 Processor Priority Assignment unit 1 Task queue cpu2 2 6 9 Processor Priority Registers 3 Task queue cpu3 2 1 4 5 6 The Future • Formalisation • To prove the effectiveness of the solution, a tasks response time need to be formalised with a model that accounts for all possible types of blocking in a multiprocessor system. • Simulator • In order to verify the correctness of our ideas and model, a simulator is being developed called MP-rmsim (Multi-Processor Rate Monotonic simulator). The simulator will simulate the complete system taking arbitration and bus access time into account. Arbitration bus System-on-a-Chip Freedom The augmentations to both RTU and arbitration unit along with the added priority bus relies on the type of design freedom possible in System-On-a-Chip(SoC) designs. SoC designs can easily add new internal buses in comparison to board based systems with standard components. ... CPU CPU CPU CPU Arbiter System bus Shared RTU memory Priority bus www.mrtc.mdh.se/socrates
