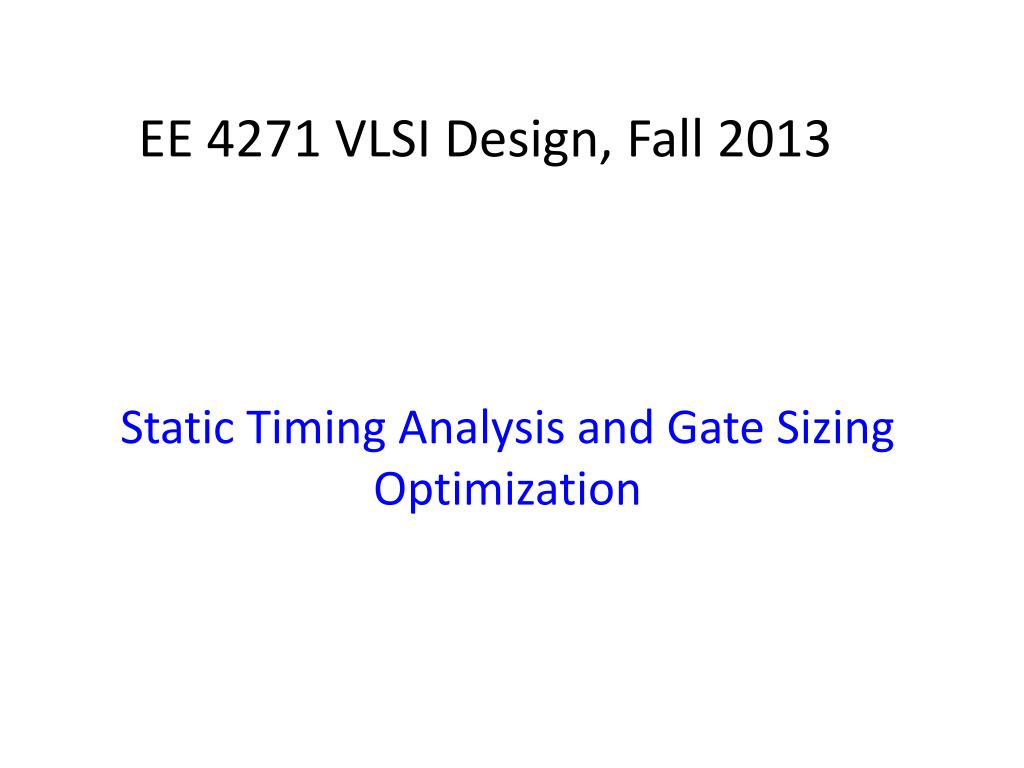

  1. EE 4271 VLSI Design, Fall 2013 Static Timing Analysis and Gate Sizing Optimization

  2. Delay Evaluation • 1. Gate delay • 2. Interconnect delay Circuit Delay

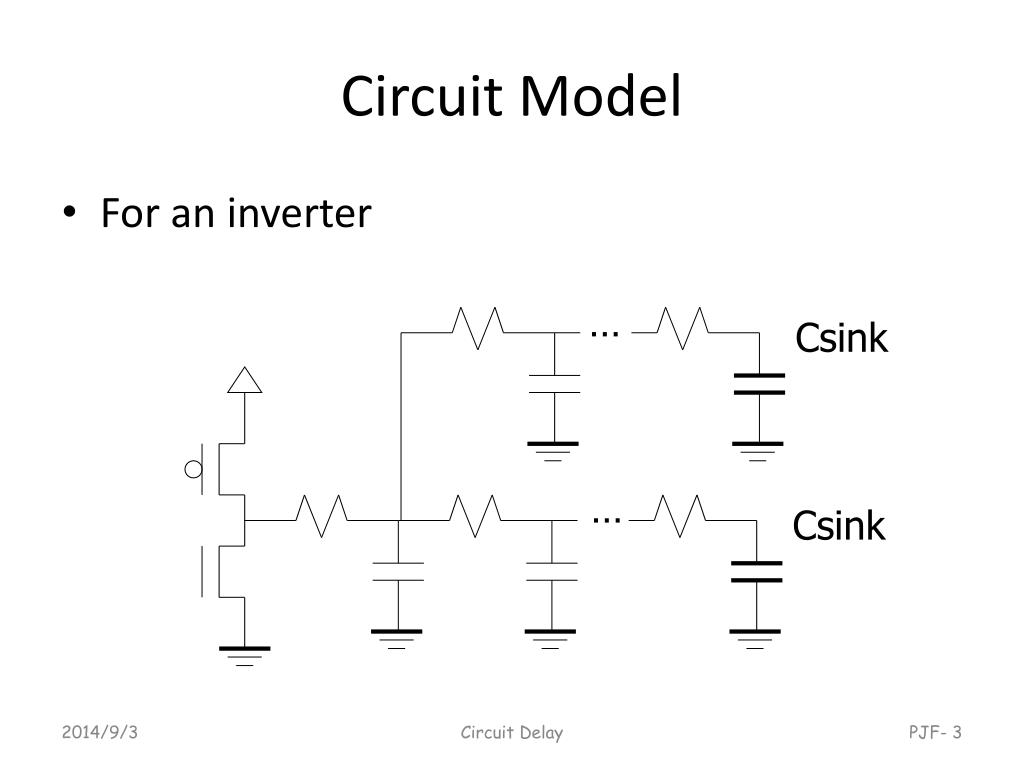

  3. Circuit Model • For an inverter … Csink … Csink Circuit Delay

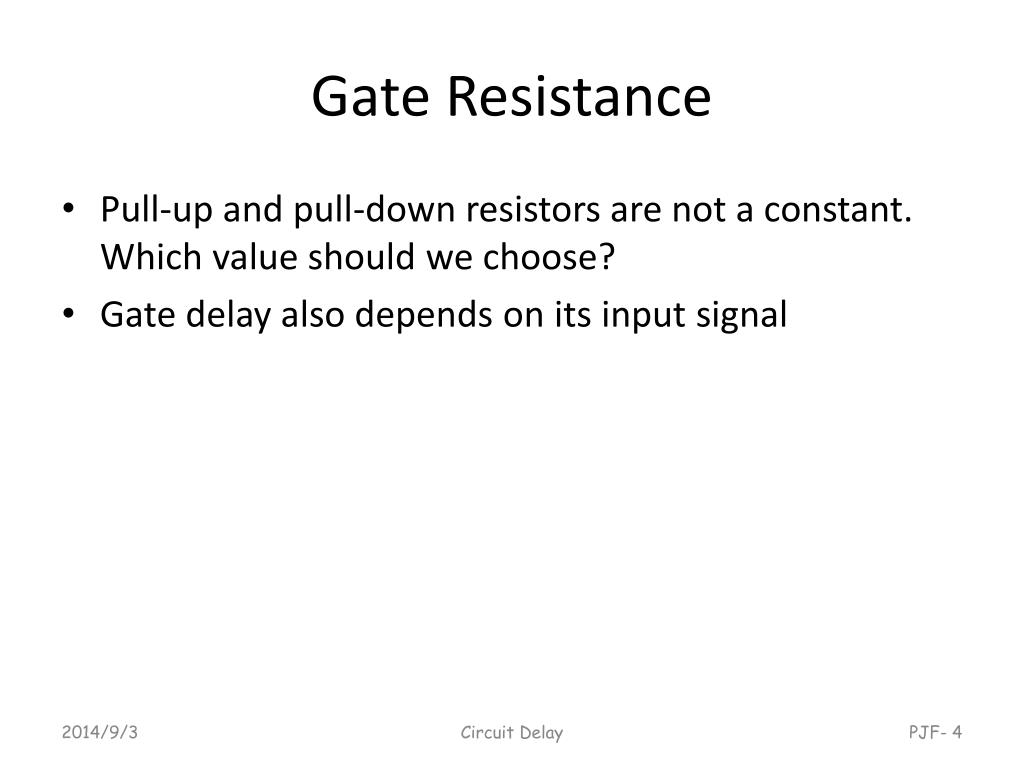

  4. Gate Resistance • Pull-up and pull-down resistors are not a constant. Which value should we choose? • Gate delay also depends on its input signal Circuit Delay

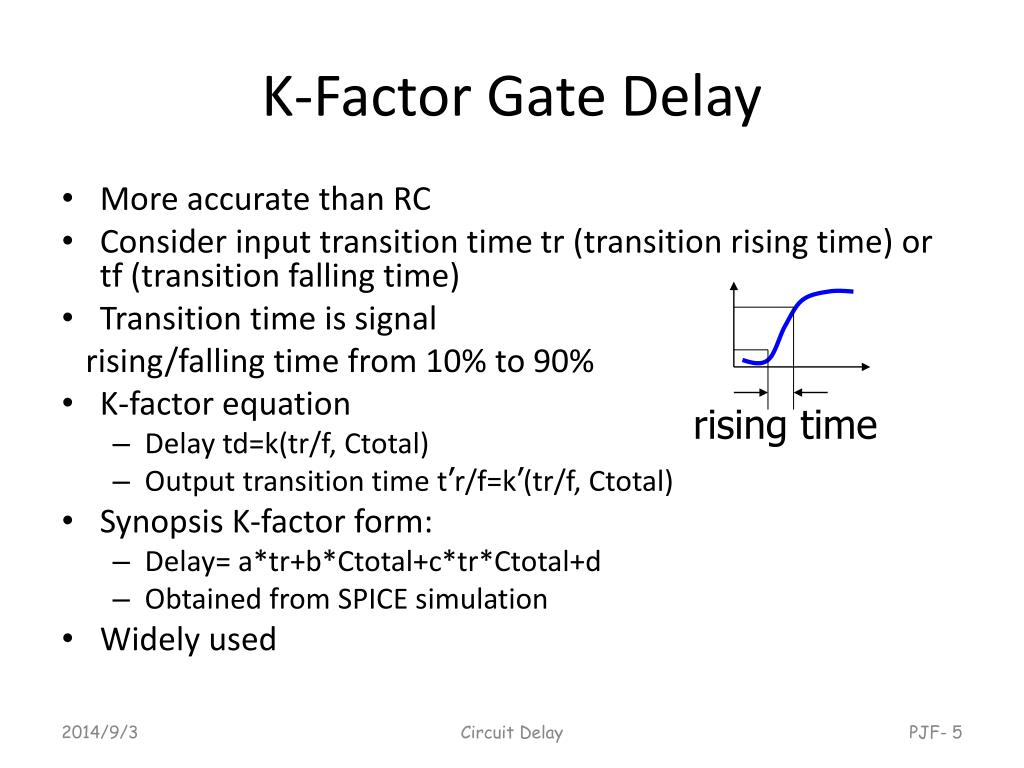

  5. K-Factor Gate Delay • More accurate than RC • Consider input transition time tr (transition rising time) or tf (transition falling time) • Transition time is signal rising/falling time from 10% to 90% • K-factor equation • Delay td=k(tr/f, Ctotal) • Output transition time t’r/f=k’(tr/f, Ctotal) • Synopsis K-factor form: • Delay= a*tr+b*Ctotal+c*tr*Ctotal+d • Obtained from SPICE simulation • Widely used rising time Circuit Delay

  6. Circuit Delay Evaluation - Two Components • Cell delay + interconnect delay • Cell delay is computed using RC • Interconnect delay is computed using Elmore delay Interconnect Cell Cell Circuit Delay

  7. Wire and Gate Models

  8. Step by Step • Model combinational circuit using the previous slide • Starting from primary input gates, compute the arrival time (AT) at each gate, i.e., compute gate delay and interconnect delay • In order to compute the AT at a gate, the ATs of all its input gates need to be computed • Repeat the above process until the ATs at all primary output gates are computed Circuit Delay

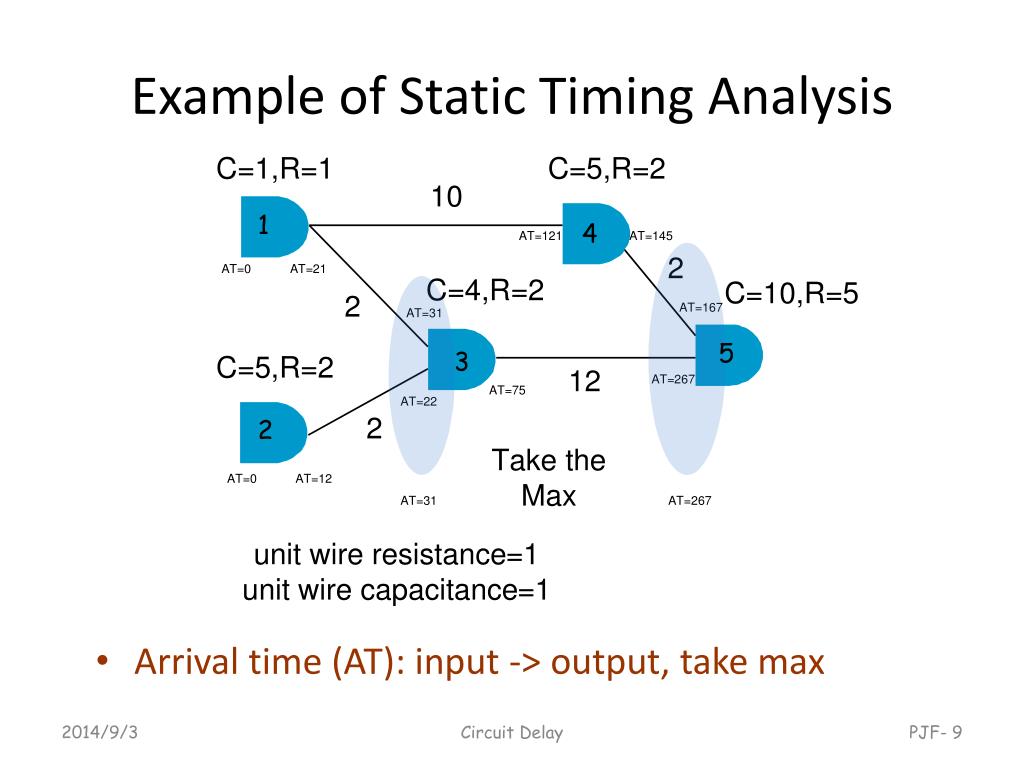

  9. Example of Static Timing Analysis • Arrival time (AT): input -> output, take max 1 4 5 3 2 Circuit Delay

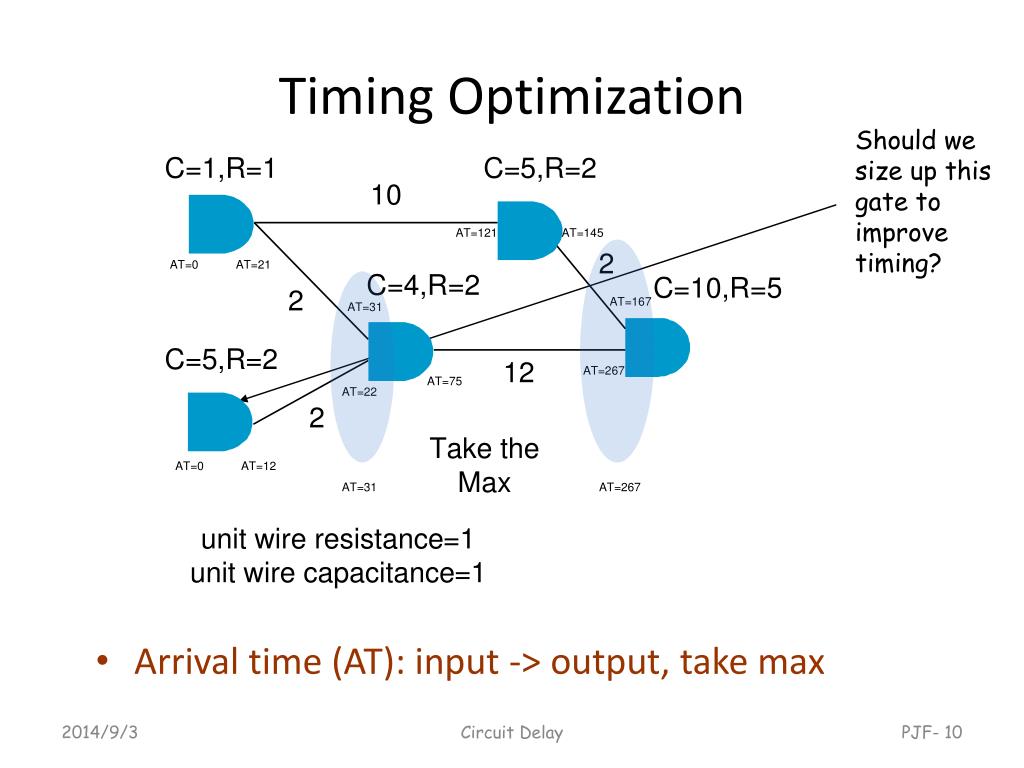

  10. Timing Optimization Should we size up this gate to improve timing? • Arrival time (AT): input -> output, take max Circuit Delay

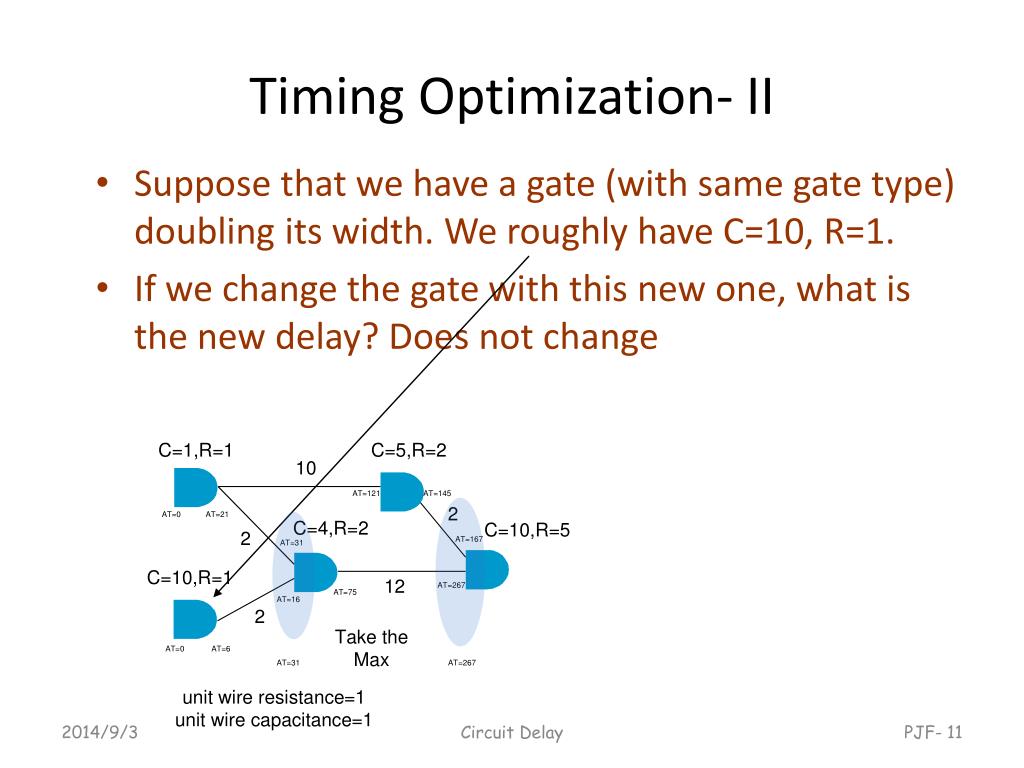

  11. Timing Optimization- II • Suppose that we have a gate (with same gate type) doubling its width. We roughly have C=10, R=1. • If we change the gate with this new one, what is the new delay? Does not change Circuit Delay

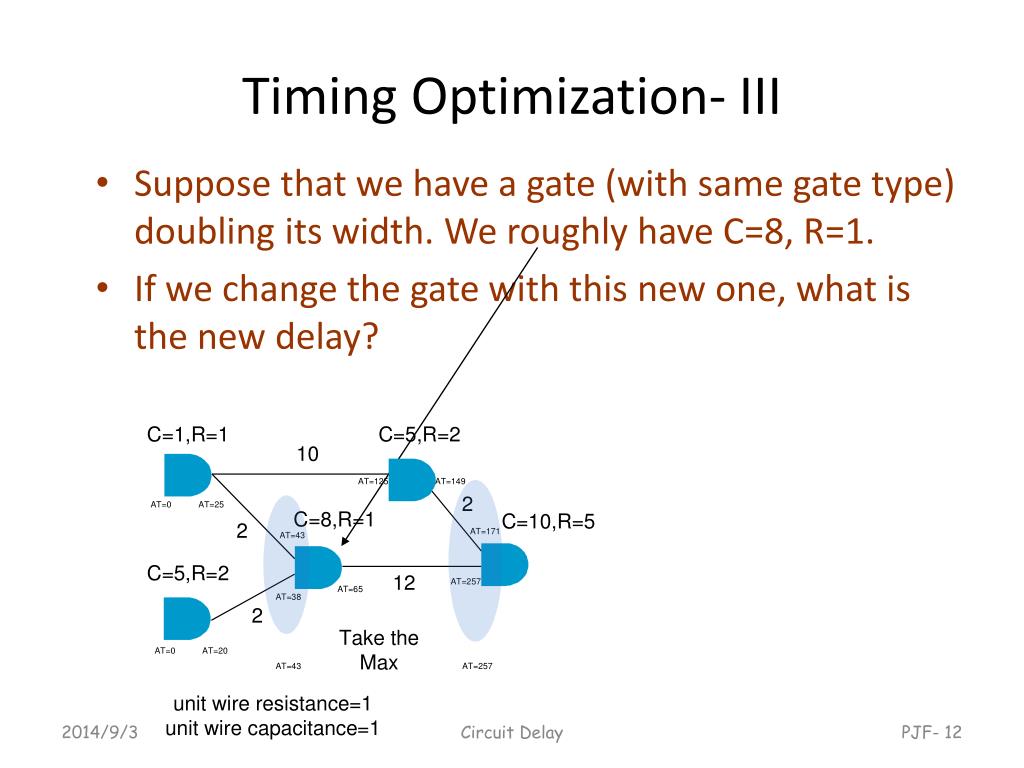

  12. Timing Optimization- III • Suppose that we have a gate (with same gate type) doubling its width. We roughly have C=8, R=1. • If we change the gate with this new one, what is the new delay? Circuit Delay

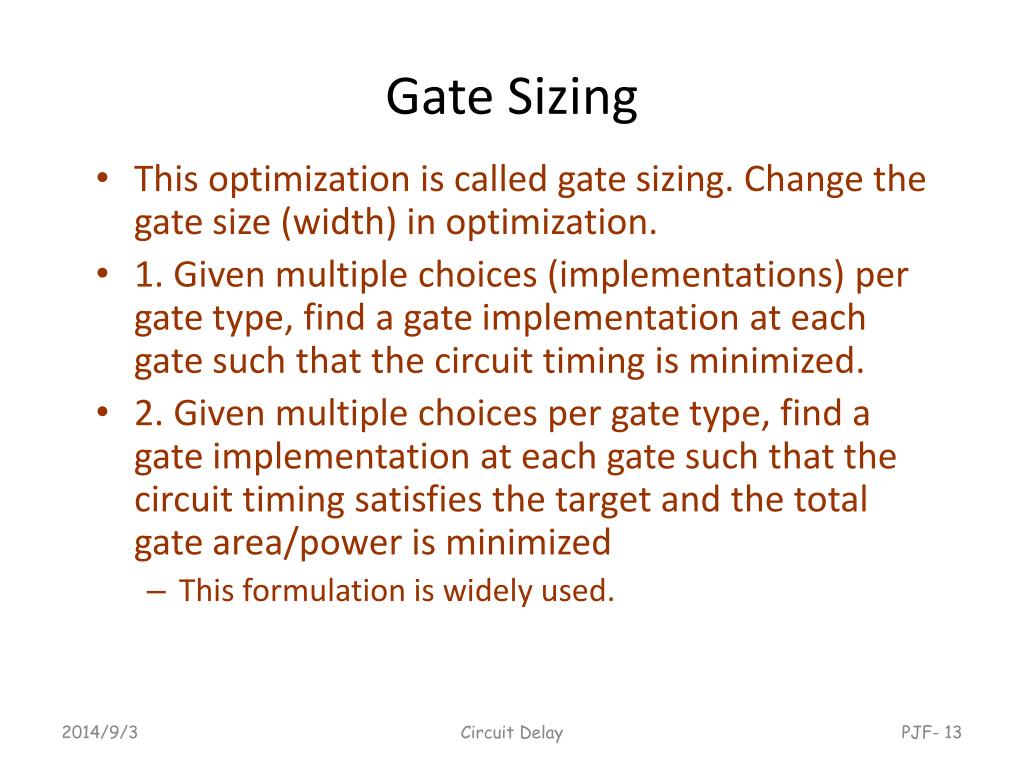

  13. Gate Sizing • This optimization is called gate sizing. Change the gate size (width) in optimization. • 1. Given multiple choices (implementations) per gate type, find a gate implementation at each gate such that the circuit timing is minimized. • 2. Given multiple choices per gate type, find a gate implementation at each gate such that the circuit timing satisfies the target and the total gate area/power is minimized • This formulation is widely used. Circuit Delay

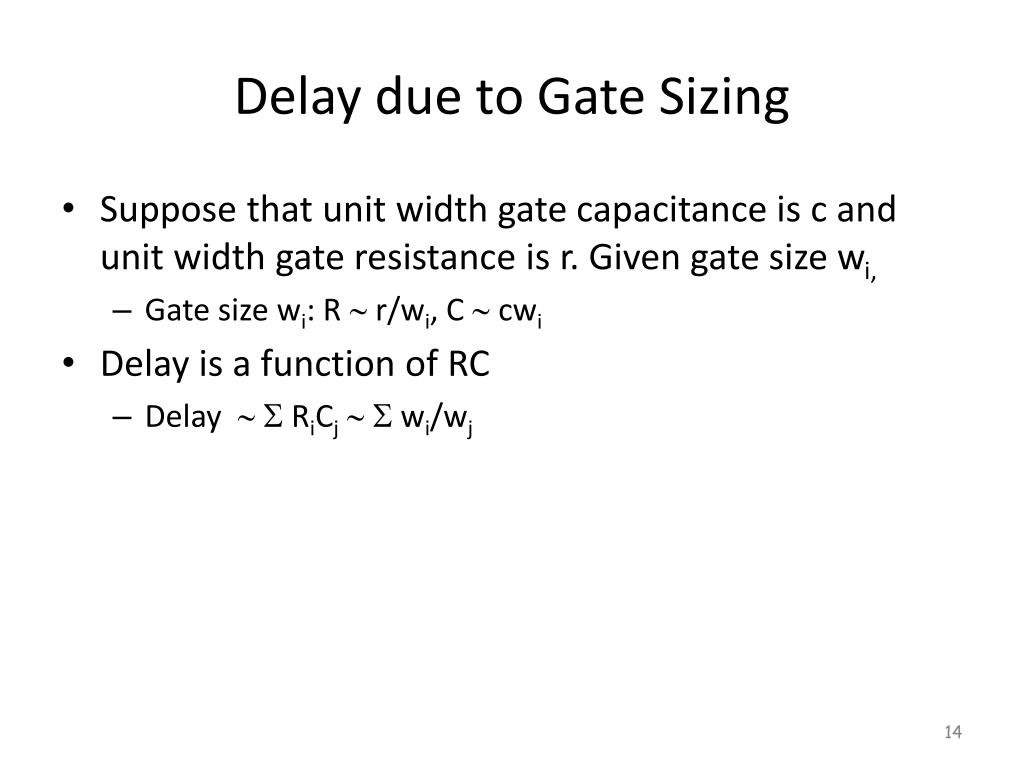

  14. Delay due to Gate Sizing • Suppose that unit width gate capacitance is c and unit width gate resistance is r. Given gate size wi, • Gate size wi: R  r/wi, C  cwi • Delay is a function of RC • Delay   RiCj   wi/wj

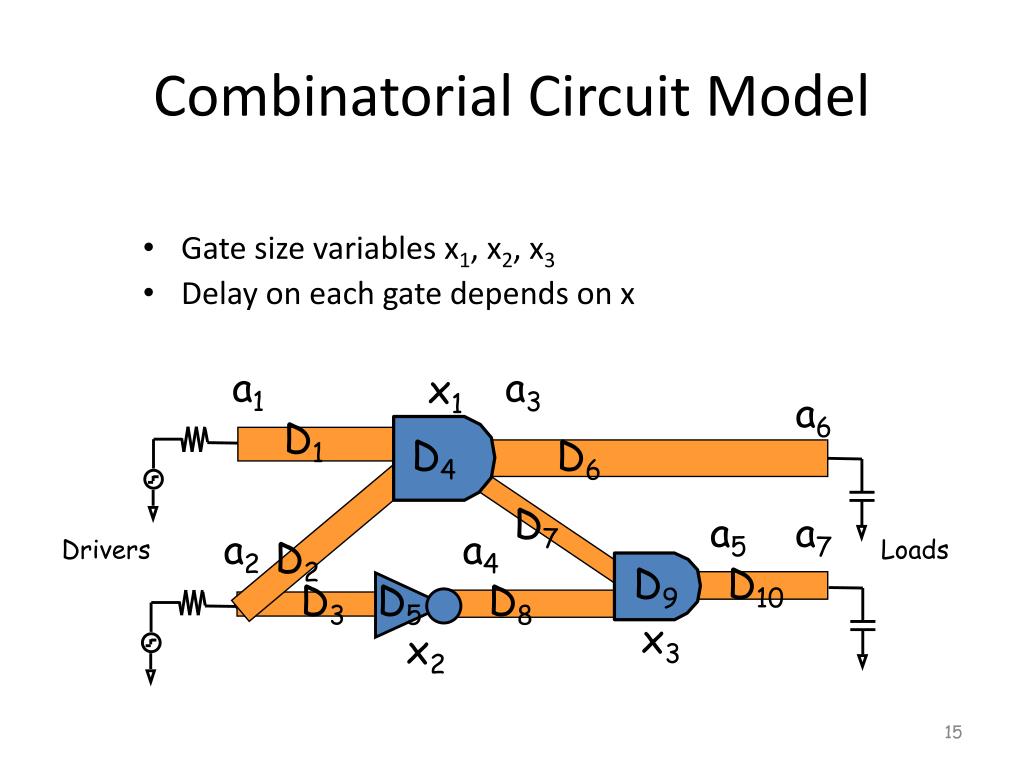

  15. Combinatorial Circuit Model • Gate size variables x1, x2, x3 • Delay on each gate depends on x a1 a3 x1 a6 D1 D4 D6 D7 a5 a7 a2 a4 Drivers D2 Loads D9 D10 D3 D5 D8 x3 x2

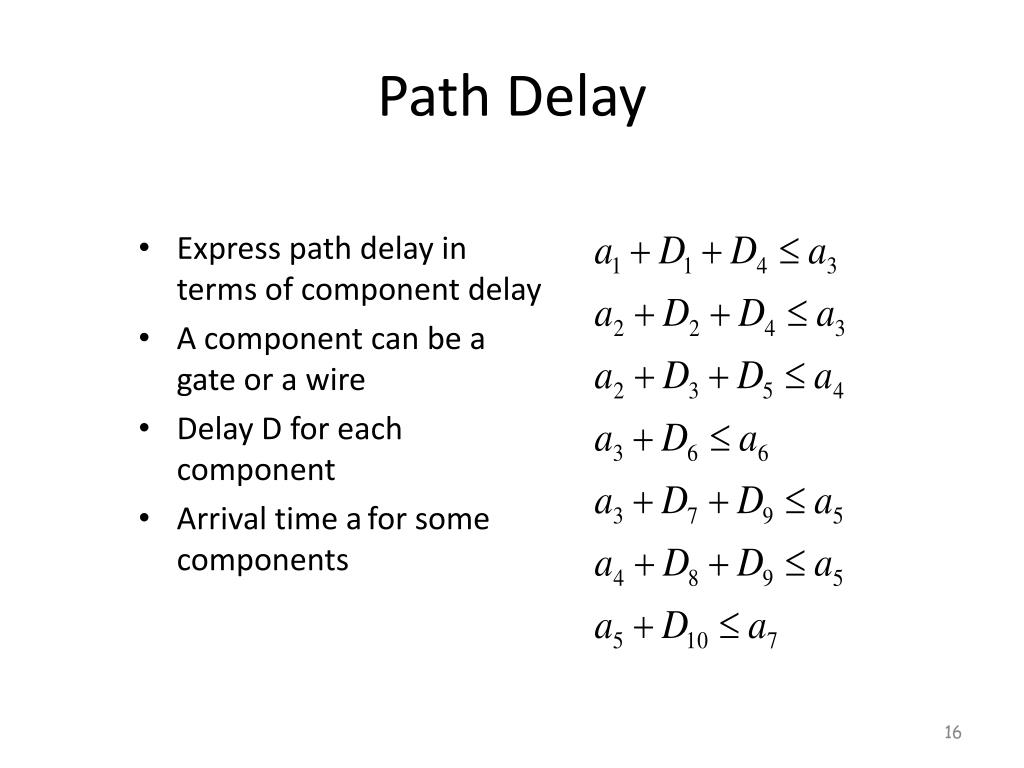

  16. Path Delay • Express path delay in terms of component delay • A component can be a gate or a wire • Delay D for each component • Arrival time afor some components

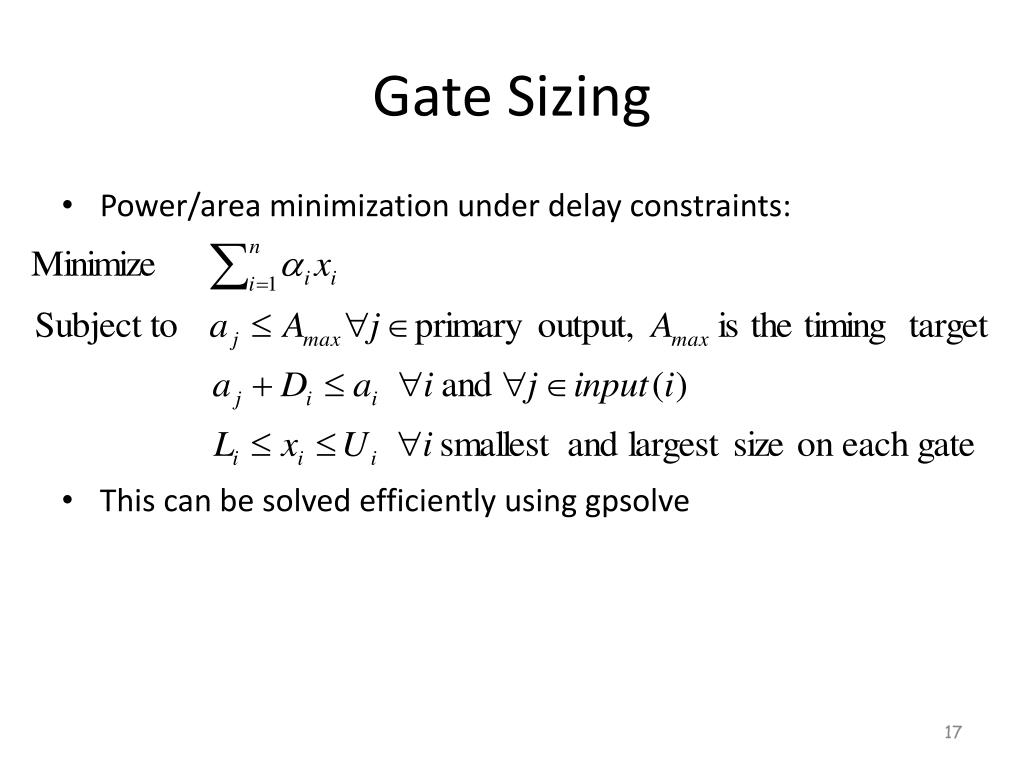

  17. Gate Sizing • Power/area minimization under delay constraints: • This can be solved efficiently using gpsolve

  18. Gate Sizing using GPSOLVE • Follow the steps in gatesizing.m for the example in the slides of timing analysis and optimization
