Prokaryotic Cell Structure and Function

Prokaryotic Cell Structure and Function. Size of Bacteria. Average bacteria 0.5 - 2.0 um in diam. RBC is 7.5 um in diam. Pulopiscium fishelsoni , bacillus (80µm in diameter and 200-600 µm long) Thiomargarita namibiensis , sperical (100-750 µm in diameter.). Shapes of Bacteria. Coccus

patch
Télécharger la présentation

Prokaryotic Cell Structure and Function

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Prokaryotic Cell Structure and Function

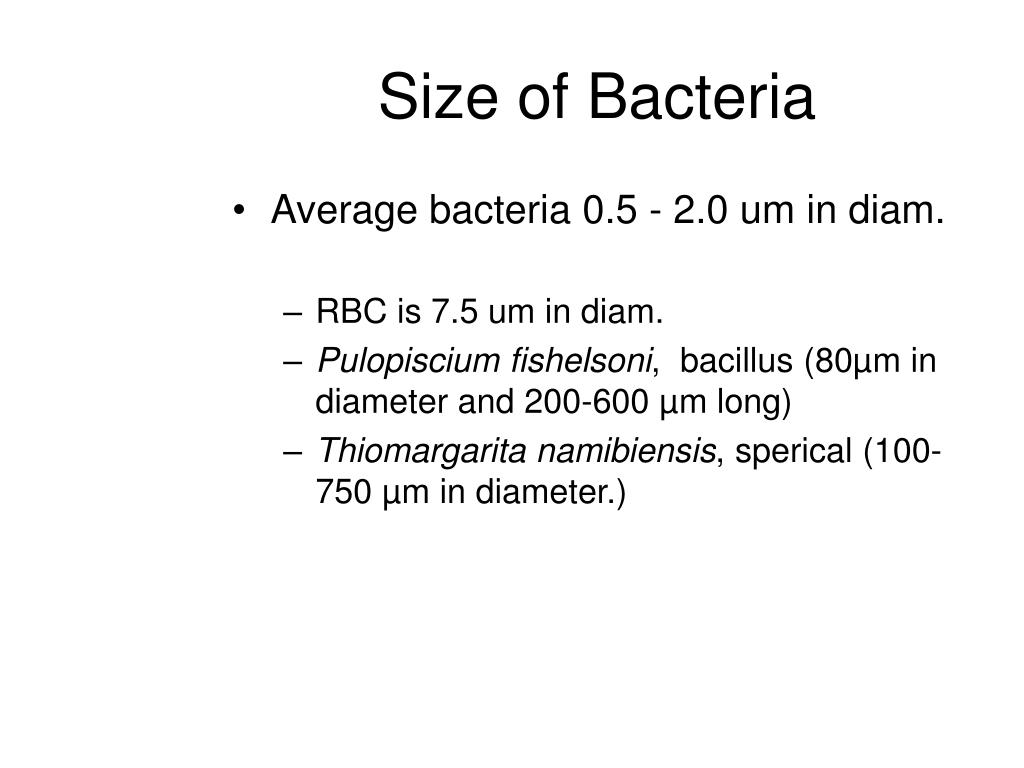

  2. Size of Bacteria • Average bacteria 0.5 - 2.0 um in diam. • RBC is 7.5 um in diam. • Pulopiscium fishelsoni, bacillus (80µm in diameter and 200-600 µm long) • Thiomargarita namibiensis, sperical (100-750 µm in diameter.)

  3. Shapes of Bacteria • Coccus • Bacillus • Coccobacillus • Vibrio • Spirillum • Spirochete

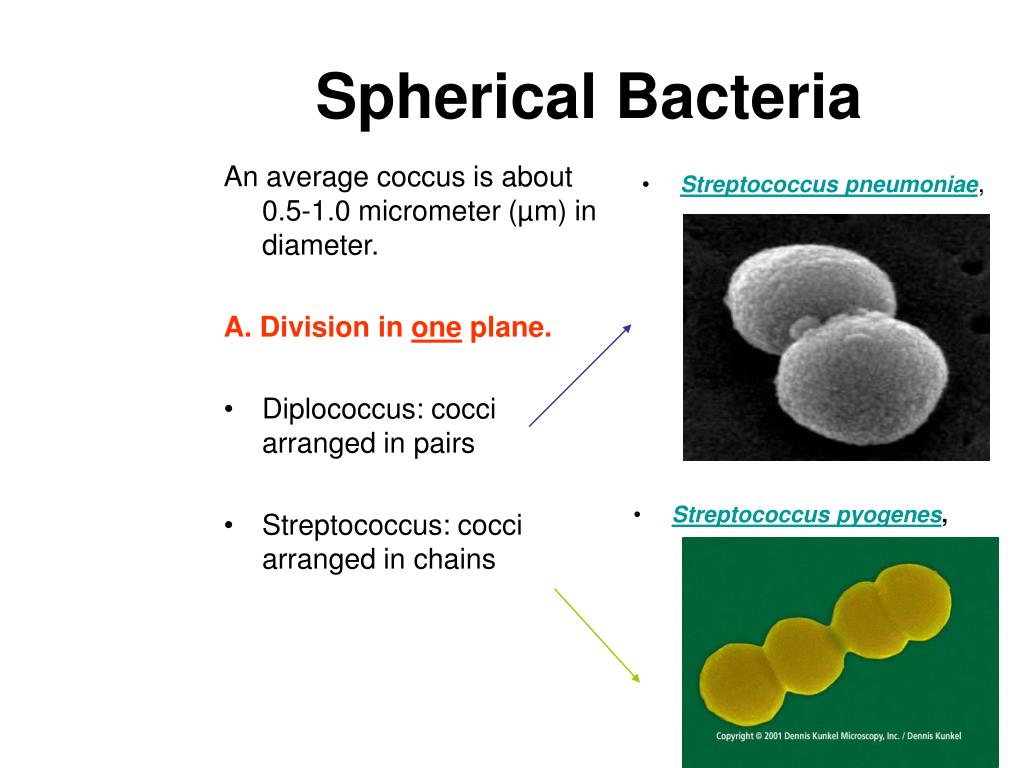

  4. Spherical Bacteria An average coccus is about 0.5-1.0 micrometer (µm) in diameter. A. Division in one plane. • Diplococcus: cocci arranged in pairs • Streptococcus: cocci arranged in chains • Streptococcus pneumoniae, • Streptococcus pyogenes,

  5. Spherical Bacteria B. Division in two planes. • tetrad: cocci arranged in squares of 4 C. Division in three planes • Sarcina: cocci in arranged cubes of 8 sarcina

  6. Spherical Bacteria D. Division in random planes • Staphylococcus: cocci arranged in irregular, often grape-like clusters

  7. Rod-Shaped Bacteria • Diplobacillus • Coccobacillus • Streptobacillus

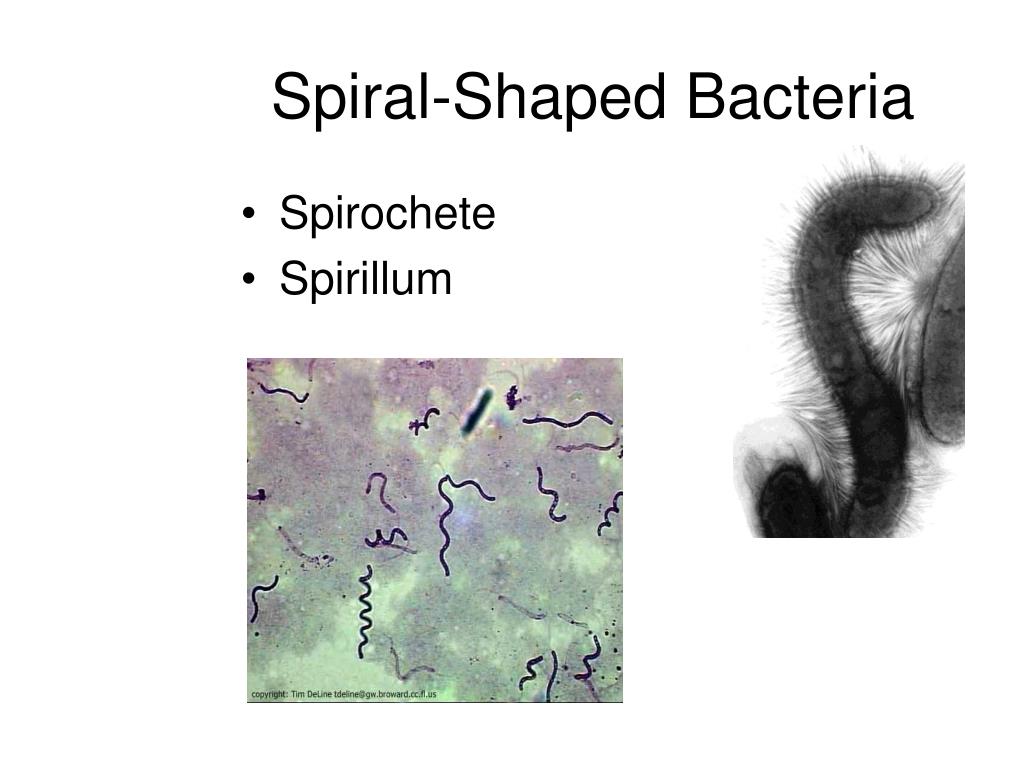

  8. Spiral-Shaped Bacteria • Spirochete • Spirillum

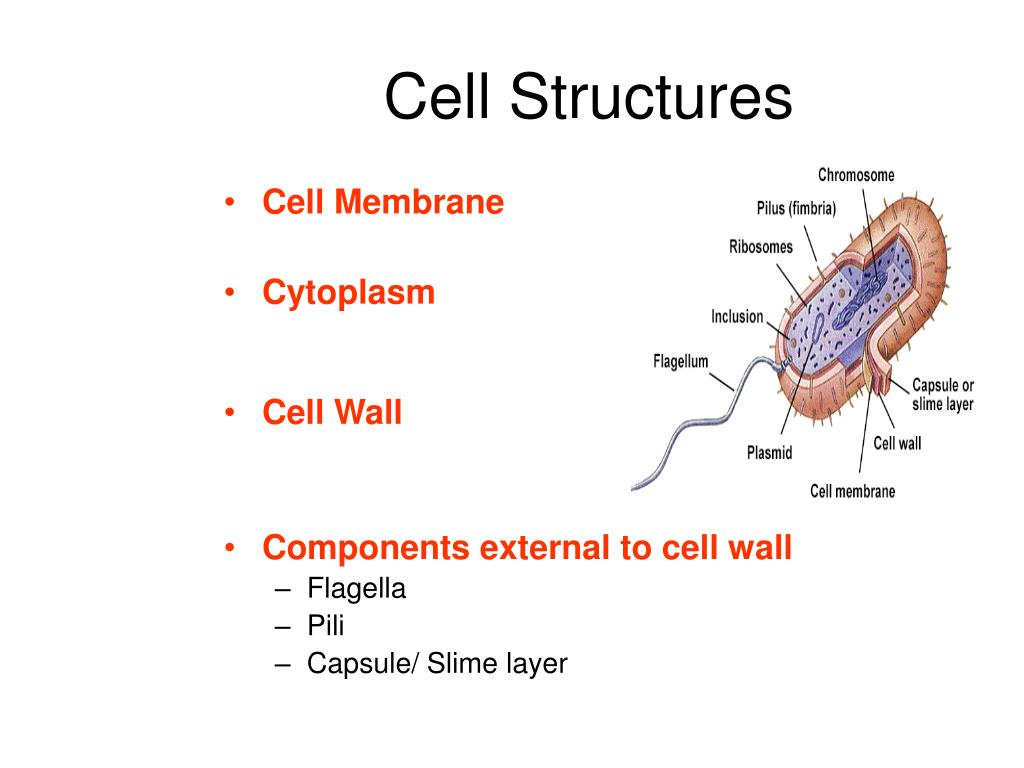

  9. Cell Structures • Cell Membrane • Cytoplasm • Cell Wall • Components external to cell wall • Flagella • Pili • Capsule/ Slime layer

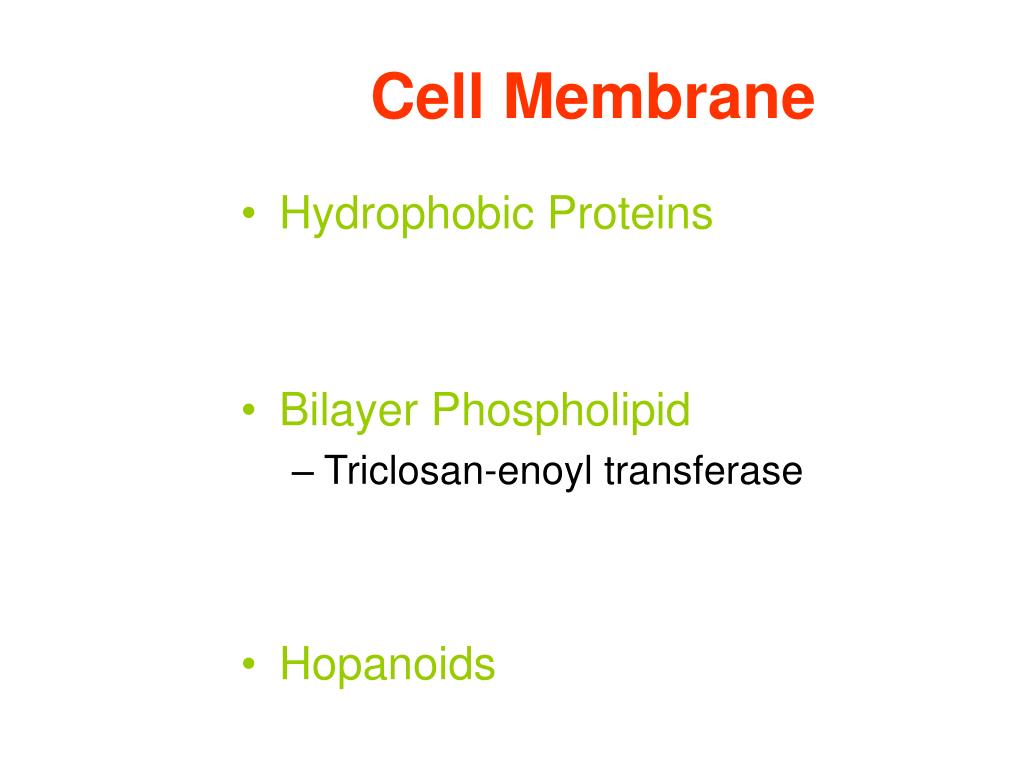

  10. Cell Membrane • Hydrophobic Proteins • Bilayer Phospholipid • Triclosan-enoyl transferase • Hopanoids

  11. Membrane proteins • Structural support • Detection of environmental signals • ToxR- Vibrio cholera • Secretion of virulence factor and communication signals • NodI and NodJ-Rhizobia

  12. Membrane lipids • Phosphoryl heads • Negative-phosphatidate • Phosphatidylglycerol • Cardiolipin • Positive-Phosphatidylethanolamine • DNA interaction • transporter protein • Fatty acids • Saturated straight chain (6-22) • Unsaturated • Oleic acid (cis) • Cyclopropane
