  1. Atmosphere • 78% nitrogen, 21% oxygen

  2. Water Vapor • up to 4% by volume • leaves atmosphere as dew, rain or snow

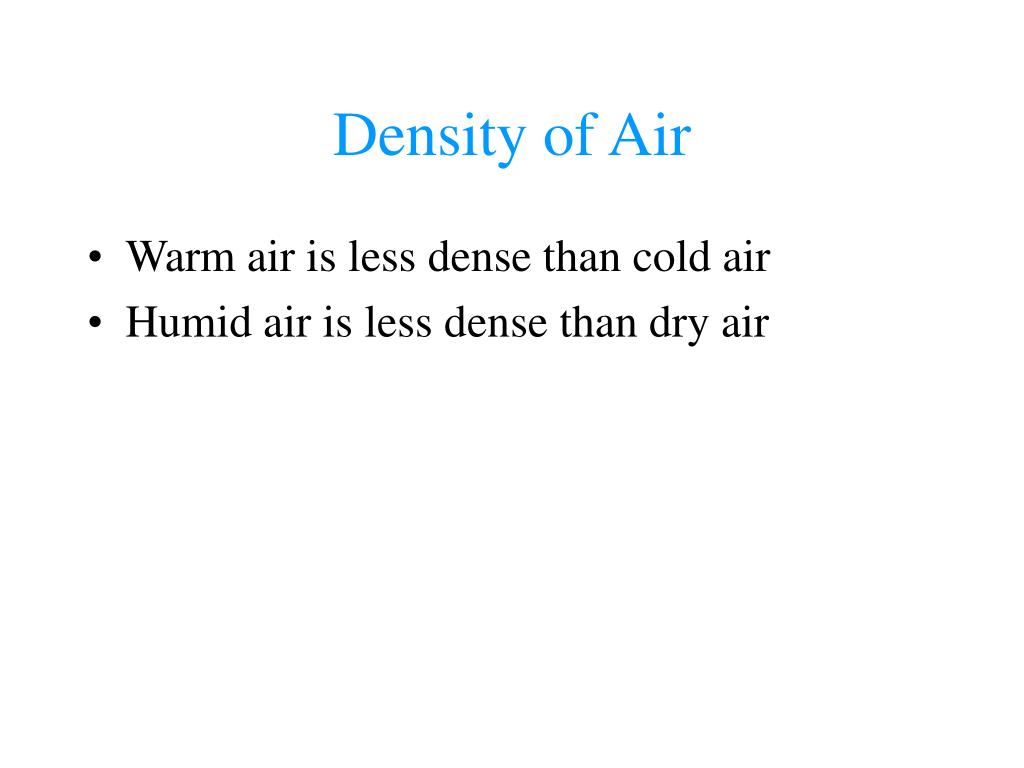

  3. Density of Air • Warm air is less dense than cold air • Humid air is less dense than dry air

  4. Air Movement • Air near sea level is packed by pressure • As air rises - expands and cools • As air descends- compresses and warms

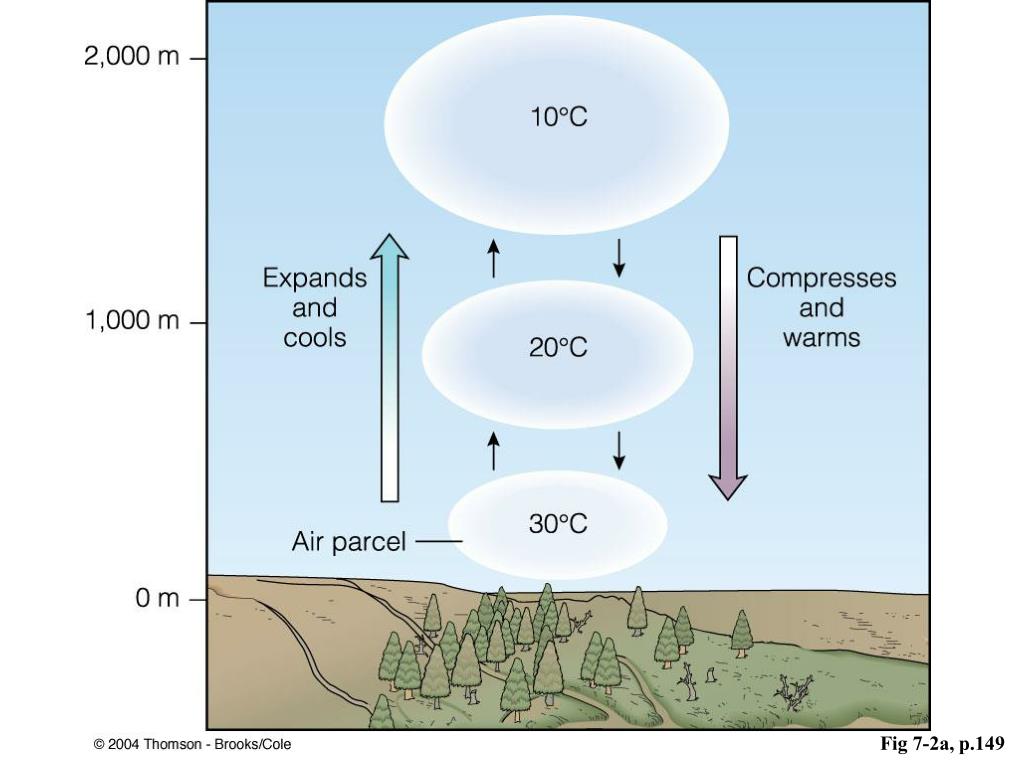

  5. Fig 7-2a, p.149

  6. Fig 7-6, p.151

  7. Fig. 7-3, p. 149

  8. Fig 7-4b, p.150

  9. Precipitation • Warm air can hold more water vapor than cool air • As air rises, it cools and water vapor may condense into clouds and eventually precipitation

  10. Atmospheric Circulation • Wind = mass movement of air • wind patterns caused by variations in solar heating and earth’s rotation

  11. Uneven Solar Heating & Atmospheric Circulation • Air is warmed in the tropics and rises • Air is cooled near the poles and falls

  12. Earths air Circulation if Uneven Solar heating Fig. 7-7, p. 151

  13. Fnft

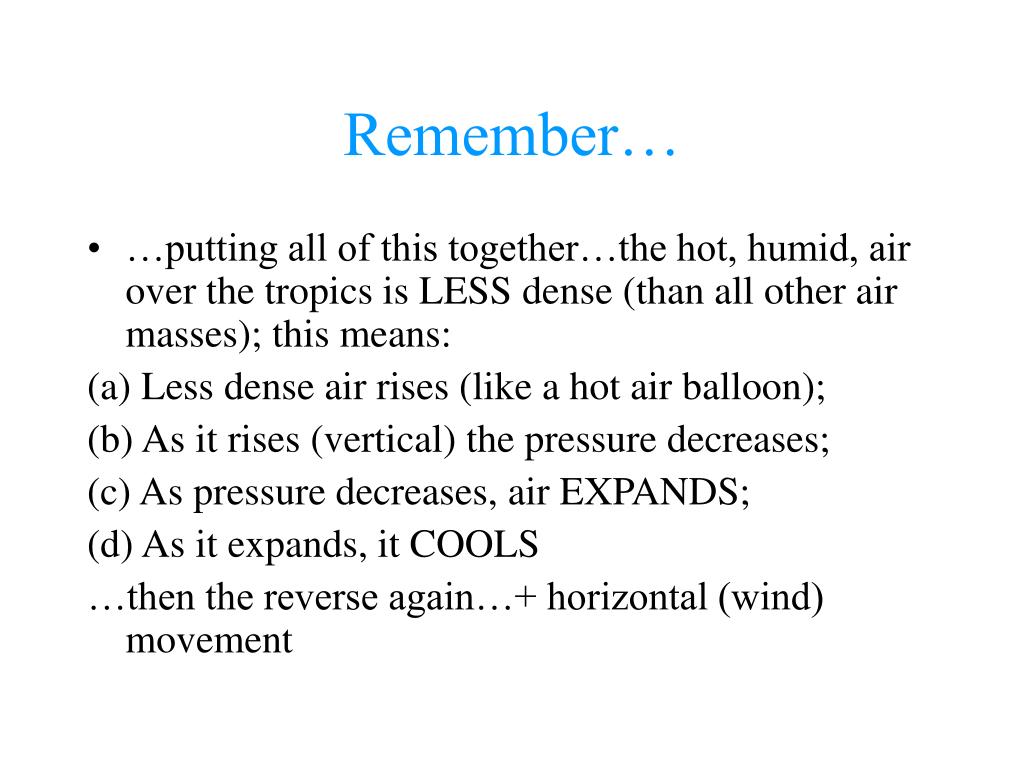

  14. Remember… • …putting all of this together…the hot, humid, air over the tropics is LESS dense (than all other air masses); this means: (a) Less dense air rises (like a hot air balloon); (b) As it rises (vertical) the pressure decreases; (c) As pressure decreases, air EXPANDS; (d) As it expands, it COOLS …then the reverse again…+ horizontal (wind) movement

  15. Fig 7-2, p.149

  16. Cont… …When you add the horizontal (wind) movement it pushes this (originating hot, dry, tropical air) BOTH up and out (North/South) for distribution throughout the entire atmosphere. How?

  17. Cont… …How? Tropical air rises, meets density around it (more dense than that above it but less dense than that below it) so it can’t “move” vertically …but it must go somewhere! SIDEWAYS! (joins Atmospheric Circ. pattern, moving horizontally, toward POLES) & as it rises poleward it COOLS, gets more dense, and falls back (toward equator) again…and again…

  18. Influence of the rotation of the earth…

  19. Coriolis Effect • The eastward rotation of the earth deflects any moving object away from its initial course • the deflection is clockwise in the Northern hemisphere • the deflection is counterclockwise in the Southern hemisphere

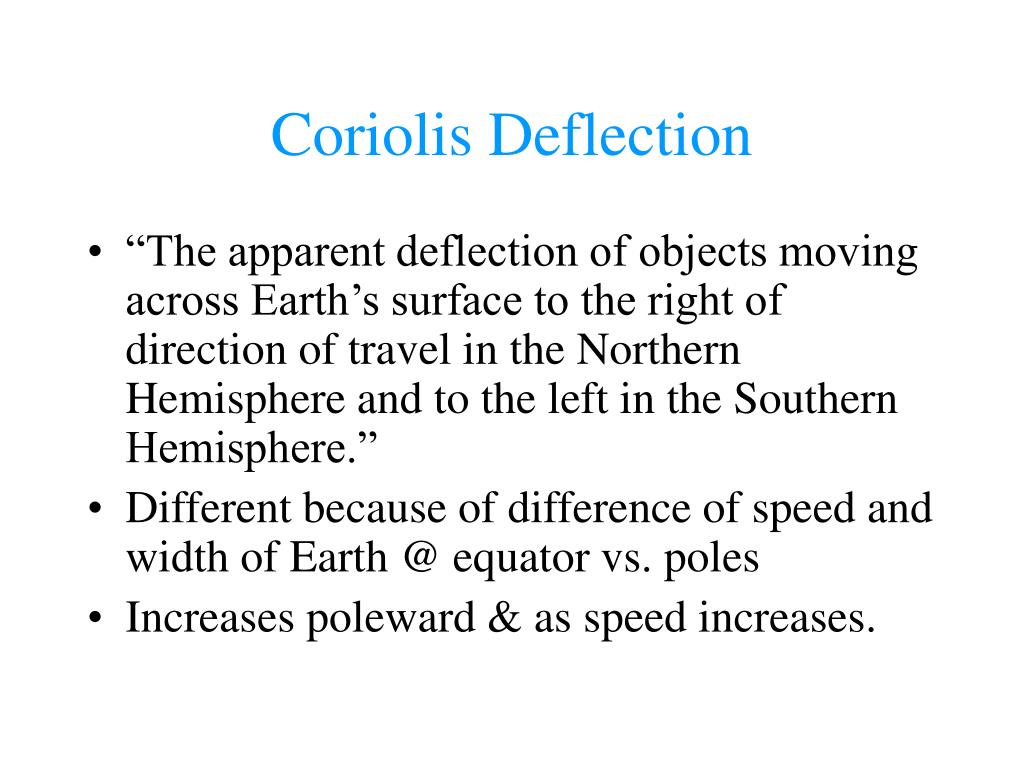

  20. Coriolis Deflection • “The apparent deflection of objects moving across Earth’s surface to the right of direction of travel in the Northern Hemisphere and to the left in the Southern Hemisphere.” • Different because of difference of speed and width of Earth @ equator vs. poles • Increases poleward & as speed increases.

  21. Fig 7-12, p.154

  22. Wind Patterns • At bands between cells air is moving vertically • winds are weak and erratic • doldrums or intertropical convergence zone (ITCZ) at equator • ascending air • Subtropical high pressure belt at 30o • descending air, very dry

  23. Wind Patterns • Within cells air moves horizontally from high to low pressure areas • produces strong dependable winds • Trade winds or easterlies • westerlies • polar easterlies

  24. Fnft

  25. Global Wind Circulation

  26. Global Wind Circulation

  27. REMEMBER: • Movement of air across a pressure gradient parallel to Earth’s surface is called a wind. • Winds are designated according to the direction from which they come. • In contrast, ocean currents are designated according to the direction towards which they travel.

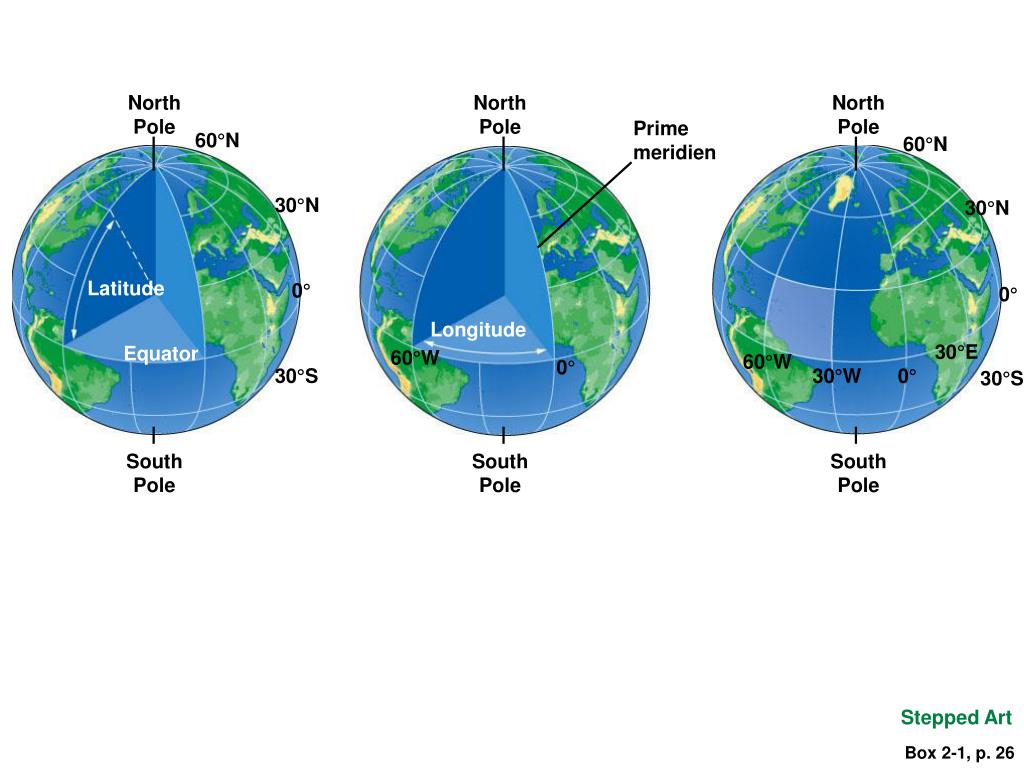

  28. North Pole North Pole North Pole Prime meridien 60°N 60°N 30°N 30°N 0° 0° 30°E 60°W 60°W 0° 30°S 30°W 0° 30°S South Pole South Pole South Pole Latitude Longitude Equator Stepped Art Box 2-1, p. 26
