1 / 14

Linear Model

Linear Model. - residual or error. Formal Definition. , - observed values of predictor variables (i.e. temperature, precipitation) - observed value of the response variable (i.e. tree height) - y intercept:. General Linear Model. General Linear Model.

payton
Télécharger la présentation

Linear Model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

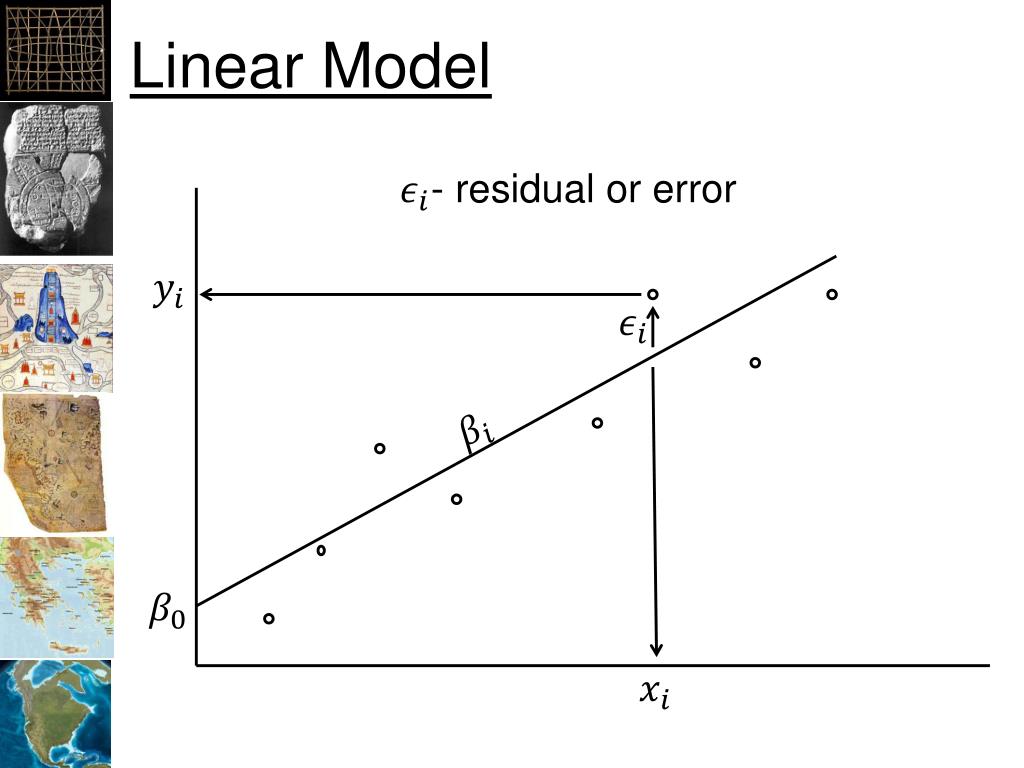

  1. Linear Model - residual or error

  2. Formal Definition • ,- observed values of predictor variables (i.e. temperature, precipitation) • - observed value of the response variable (i.e. tree height) • - y intercept:

  3. General Linear Model

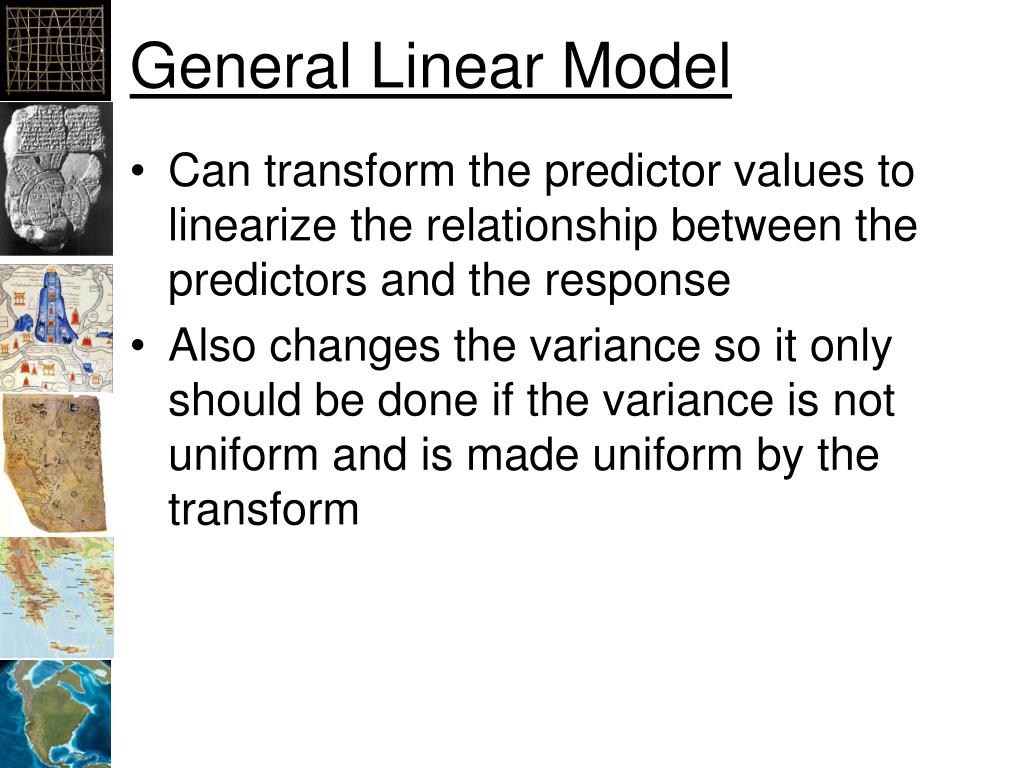

  4. General Linear Model • Can transform the predictor values to linearize the relationship between the predictors and the response • Also changes the variance so it only should be done if the variance is not uniform and is made uniform by the transform

  5. Polynomial Regression

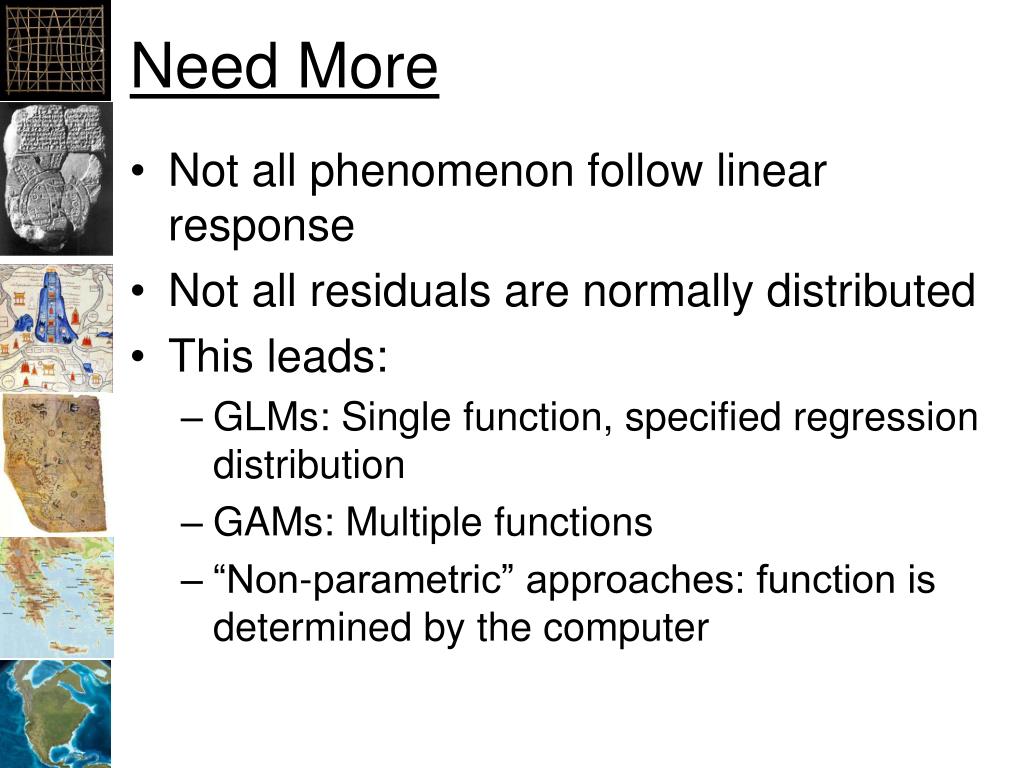

  6. Need More • Not all phenomenon follow linear response • Not all residuals are normally distributed • This leads: • GLMs: Single function, specified regression distribution • GAMs: Multiple functions • “Non-parametric” approaches: function is determined by the computer

  7. GLM • Generalized Linear Model • Not to be confused with a general linear model • Allows a linear model to be related to the response variable via a “Link” function. • Also requires to be from a defined probability distribution

  8. Generalized Linear Models • - a random variable with some probability distribution • Related to the response values • - error • Residuals • Linear model without the intercept • - Expected value of • Predicted value (no error)

  9. Generalized Linear Models • Linear model without the error • is a “link” function • = ) • is from a known probability distribution

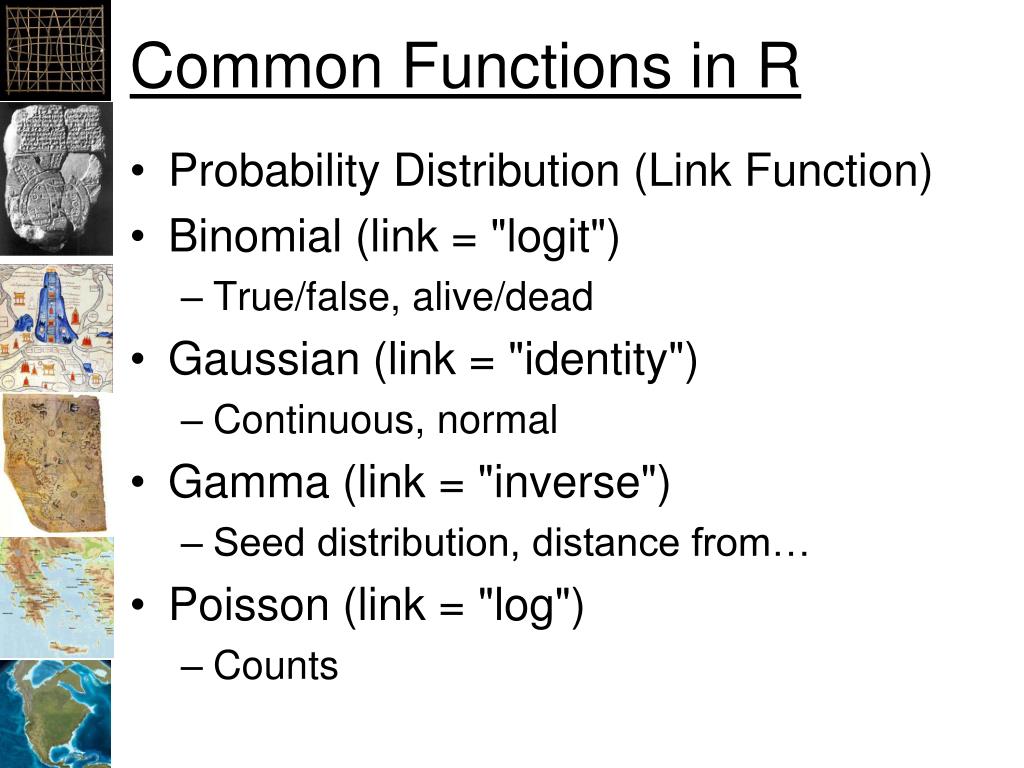

  10. Common Functions in R • Probability Distribution (Link Function) • Binomial (link = "logit") • True/false, alive/dead • Gaussian (link = "identity") • Continuous, normal • Gamma (link = "inverse") • Seed distribution, distance from… • Poisson (link = "log") • Counts

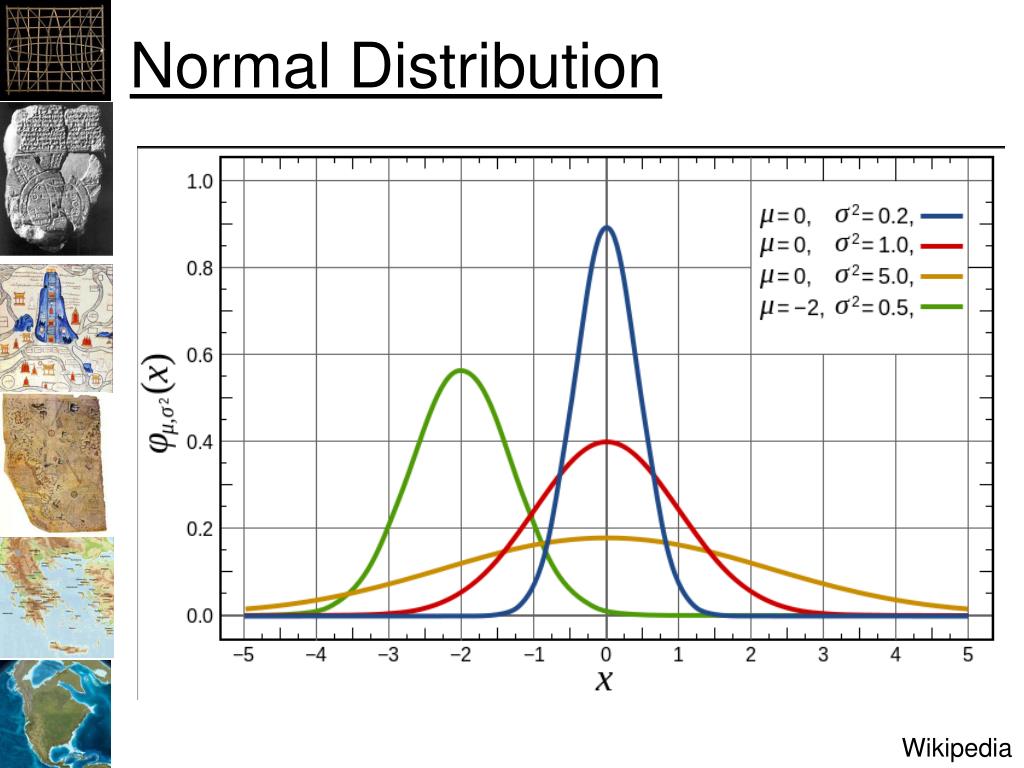

  11. Normal Distribution Wikipedia

  12. Binomial Number of successes of yes/no experiments

  13. Poisson Number of events in time T, k=number of occurrences

  14. Gamma Distribution Wait times, seed distribution, etc.
