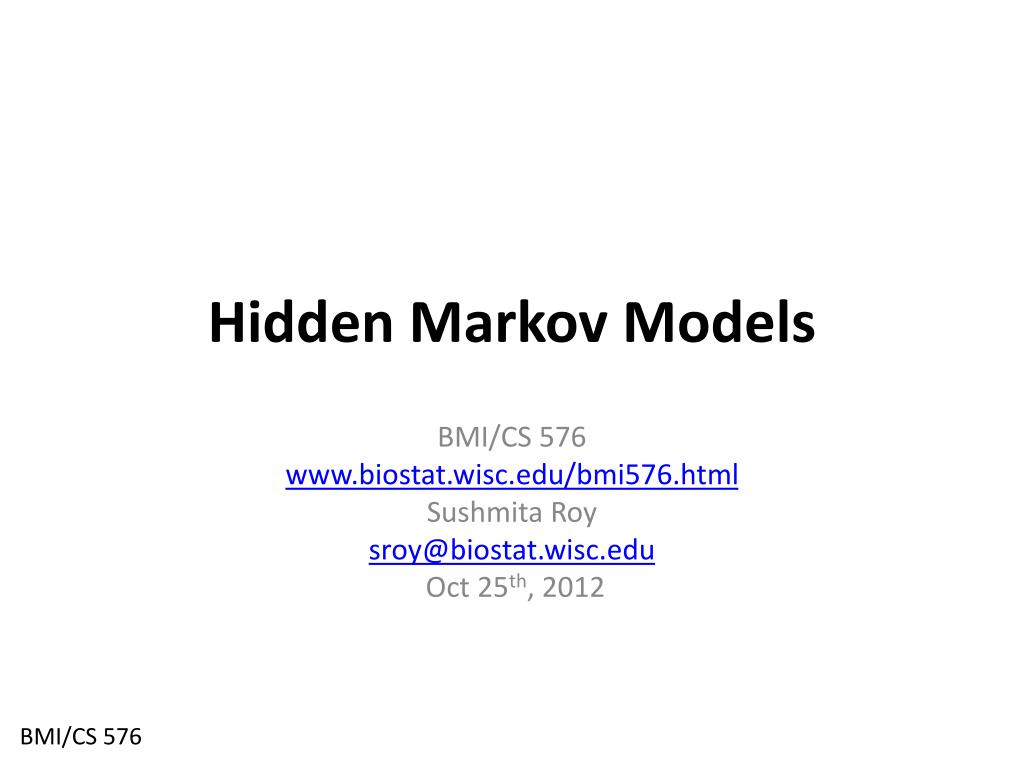

1. Hidden Markov Models BMI/CS 576 www.biostat.wisc.edu/bmi576.html Sushmita Roy sroy@biostat.wisc.edu Oct 25th, 2012 BMI/CS 576

2. Revisiting the CpG question • How to classify a new region into CpG or not CpG? • Could divide the genome into kbasepair bins • Ask using log likelihood ratio per bin, we can ask if the bin has a higher likelihood of being generated by one Markov chain versus another. • Alternatively, we can connect two Markov chains which in essence gives us a hidden Markov model.

3. A+ A- G+ G- C+ C- T+ T- A simple HMM • given say aTin our input sequence, which state emitted it? Background CpG Island

4. The hidden part of the problem • we’ll distinguish between the observed parts of a problem and the hiddenparts • in the Markov models we’ve considered previously, it is clear which state accounts for each part of the observed sequence • in the model above, there are multiple states that could account for each part of the observed sequence – this is the hidden part of the problem

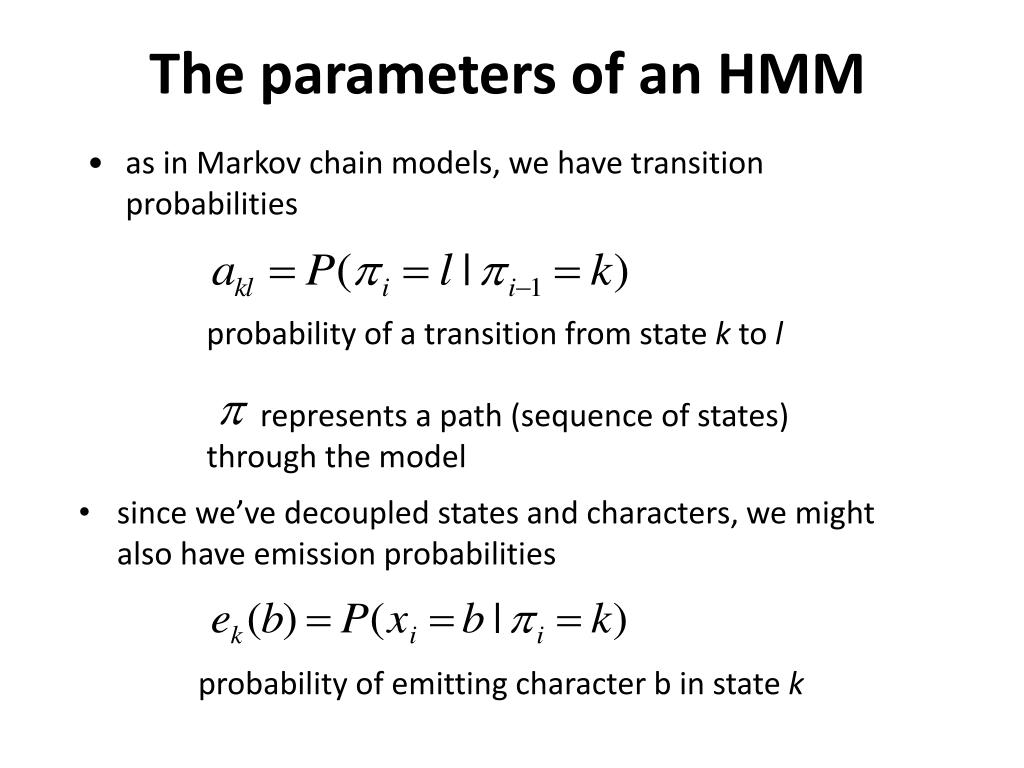

5. The parameters of an HMM • as in Markov chain models, we have transition probabilities • since we’ve decoupled states and characters, we might also have emission probabilities probability of a transition from state k to l represents a path (sequence of states) through the model probability of emitting character b in state k

6. 0.4 0.2 A 0.4 C 0.1 G 0.2 T 0.3 A 0.2 C 0.3 G 0.3 T 0.2 0.8 begin end 0.6 0.5 1 3 0 5 A 0.4 C 0.1 G 0.1 T 0.4 A 0.1 C 0.4 G 0.4 T 0.1 0.5 0.9 0.2 2 4 0.1 A simple HMM with emission parameters probability of a transition from state 1 to state 3 probability of emitting character A in state 2 0.8

7. Three important questions • How likely is a given sequence of observations? the Forward algorithm • What is the most probable “path” for generating a given sequence? the Viterbi algorithm • How can we learn the HMM parameters given a set of sequences? the Forward-Backward (Baum-Welch) algorithm

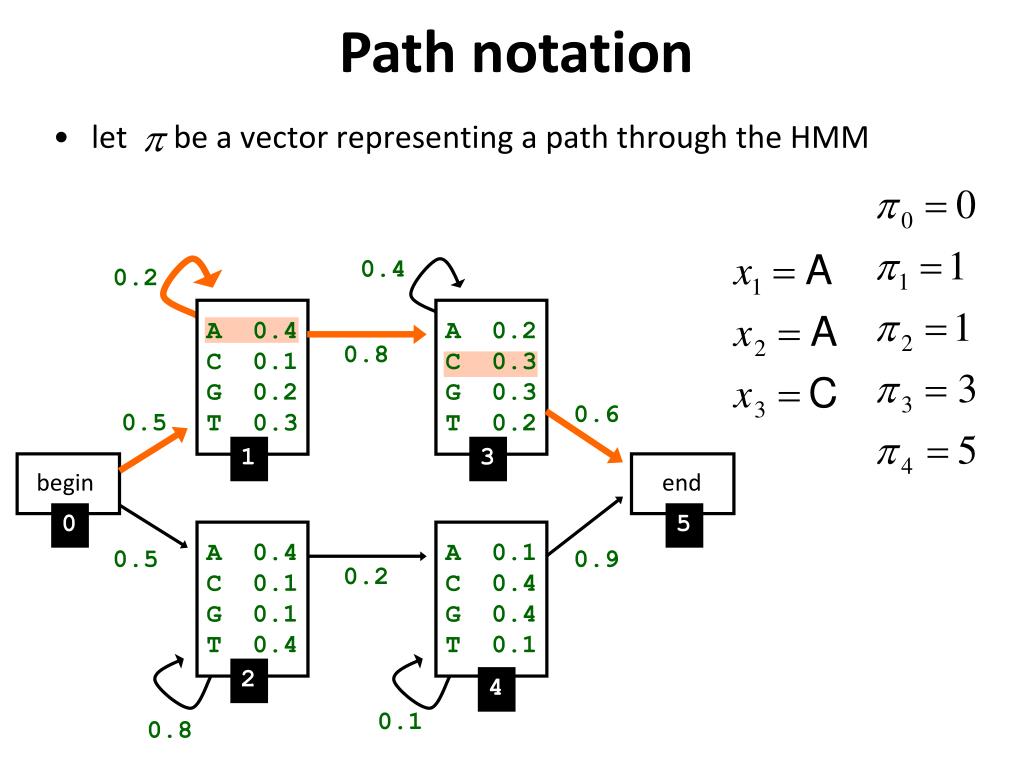

8. begin end Path notation • let be a vector representing a path through the HMM 0.4 0.2 A 0.4 C 0.1 G 0.2 T 0.3 A 0.2 C 0.3 G 0.3 T 0.2 0.8 0.6 0.5 1 3 0 5 A 0.4 C 0.1 G 0.1 T 0.4 A 0.1 C 0.4 G 0.4 T 0.1 0.5 0.9 0.2 2 4 0.1 0.8

9. How likely is a given sequence of observations and states? • the probability that the path is taken and the sequence is generated: (assuming begin/end are the only silent states on path)

10. begin end How likely is agiven sequence? 0.4 0.2 A 0.4 C 0.1 G 0.2 T 0.3 A 0.2 C 0.3 G 0.3 T 0.2 0.8 0.6 0.5 1 3 0 5 A 0.4 C 0.1 G 0.1 T 0.4 A 0.1 C 0.4 G 0.4 T 0.1 0.5 0.9 0.2 2 4 0.1 0.8

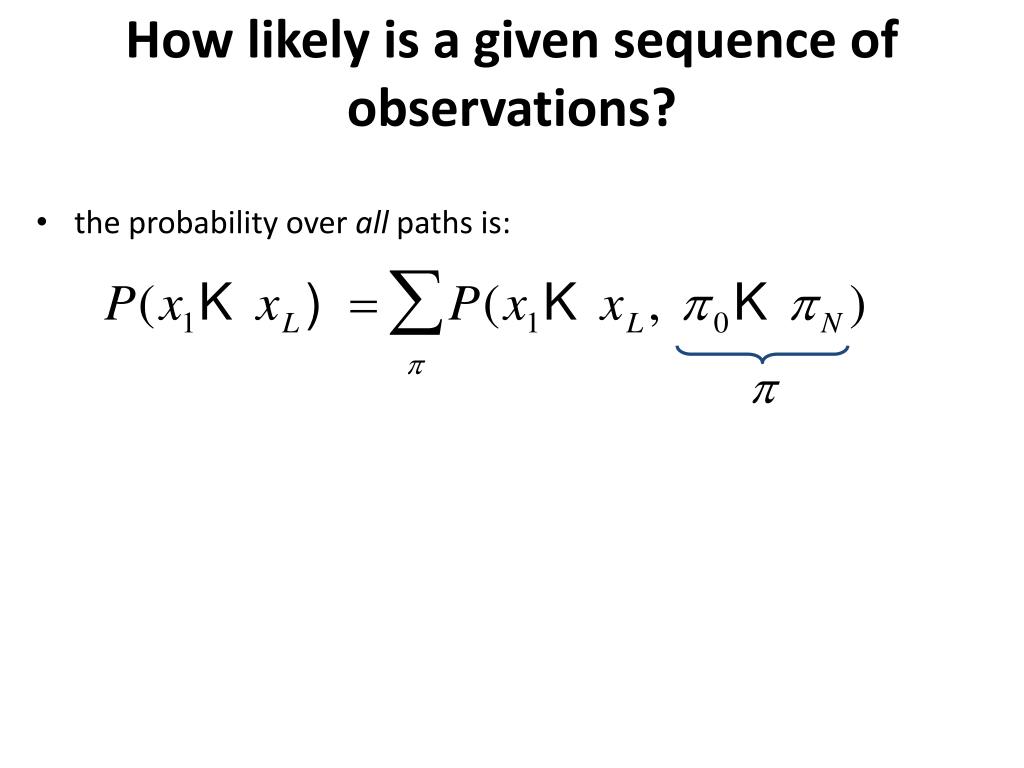

11. How likely is a given sequence of observations? • the probability over all paths is:

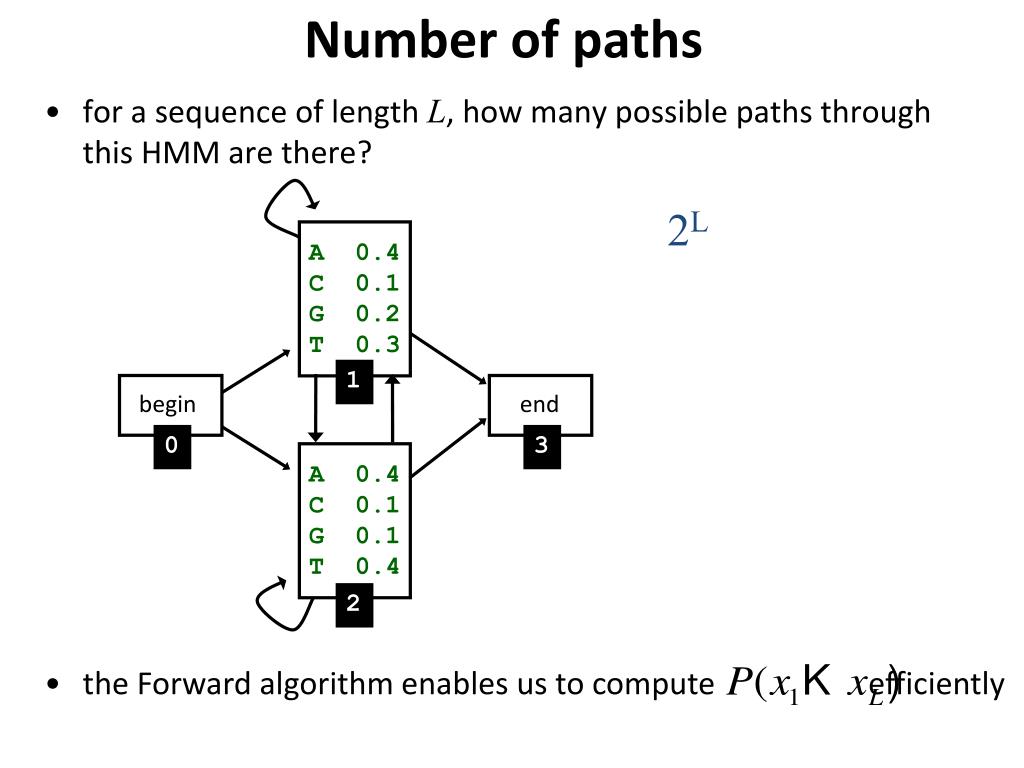

12. begin end Number of paths • for a sequence of length L, how many possible paths through this HMM are there? 2L A 0.4 C 0.1 G 0.2 T 0.3 1 0 3 A 0.4 C 0.1 G 0.1 T 0.4 2 • the Forward algorithm enables us to compute efficiently

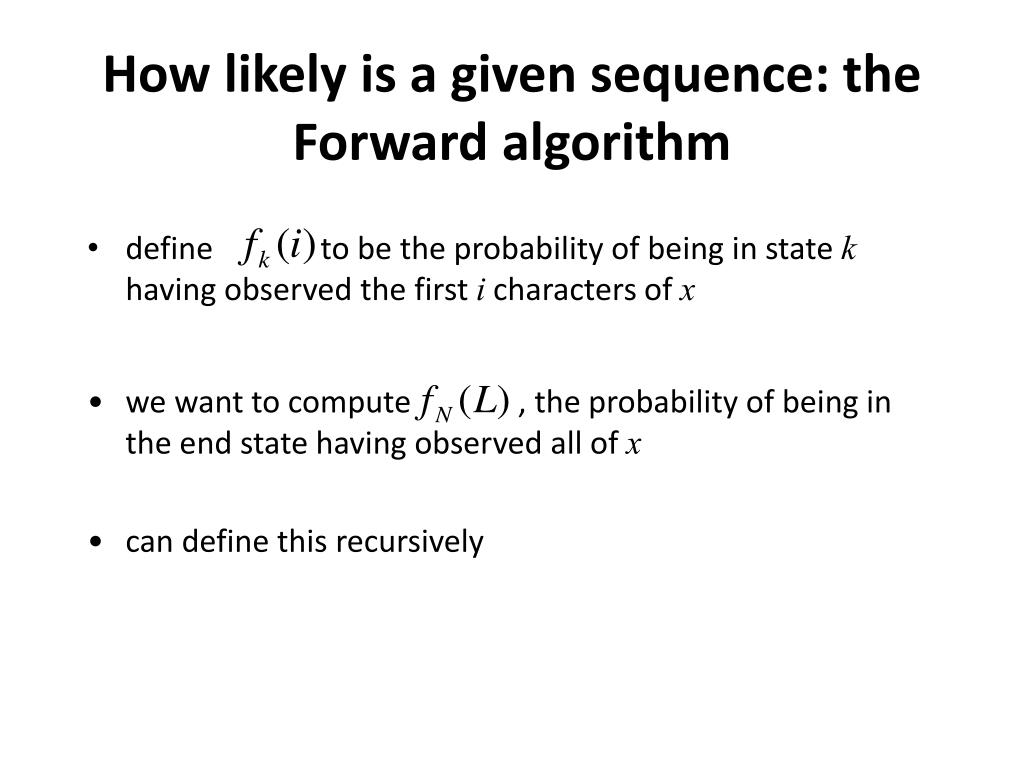

13. How likely is a given sequence: the Forward algorithm • define to be the probability of being in state k having observed the first i characters of x • we want to compute , the probability of being in the end state having observed all of x • can define this recursively

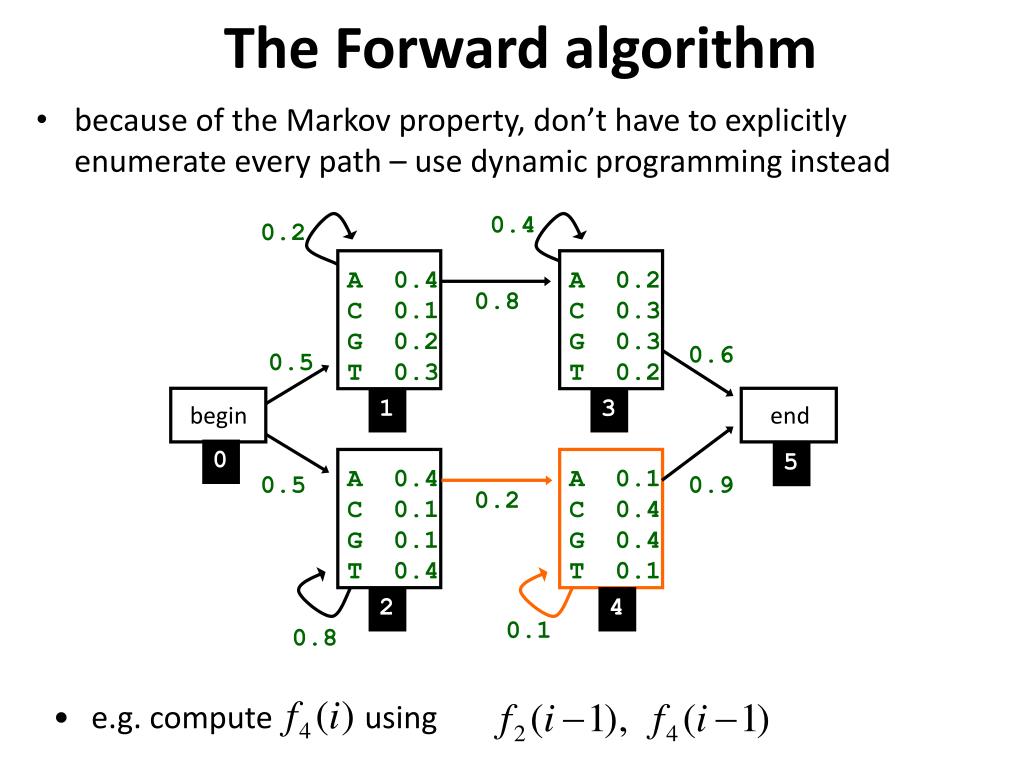

14. 0.4 0.2 A 0.4 C 0.1 G 0.2 T 0.3 A 0.2 C 0.3 G 0.3 T 0.2 0.8 0.6 begin end 0.5 1 3 0 5 A 0.4 C 0.1 G 0.1 T 0.4 A 0.1 C 0.4 G 0.4 T 0.1 0.5 0.9 0.2 2 4 0.1 0.8 The Forward algorithm • because of the Markov property, don’t have to explicitly enumerate every path – use dynamic programming instead • e.g. compute using

15. The Forward algorithm initialization: probability that we’re in start state and have observed 0 characters from the sequence

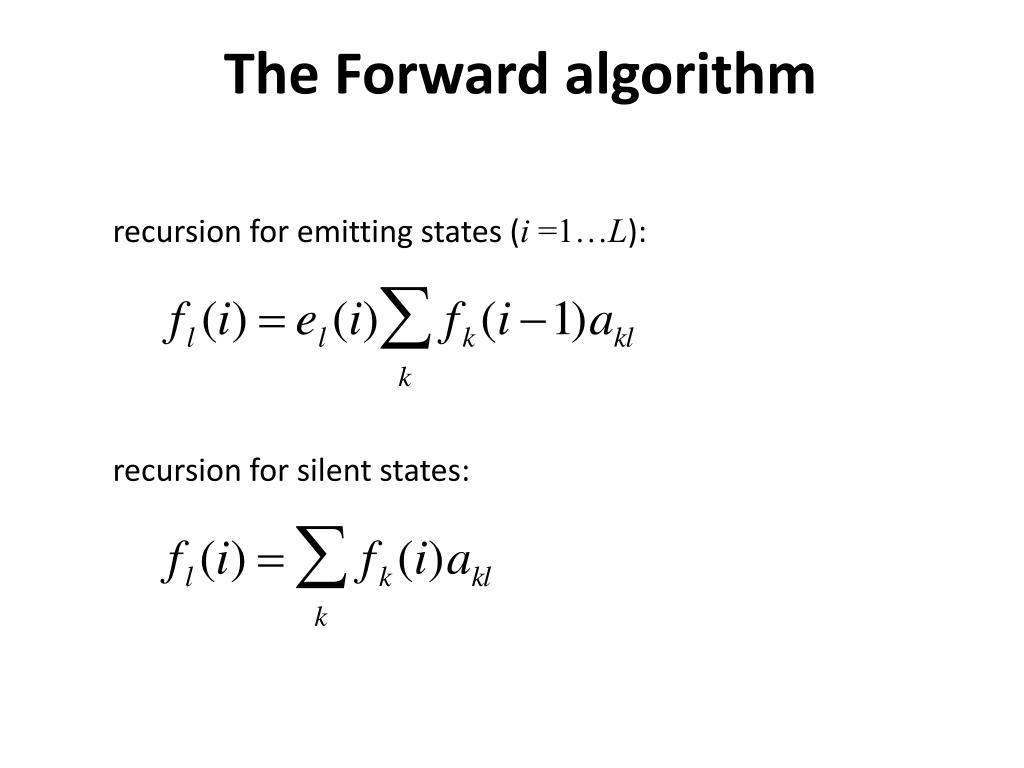

16. The Forward algorithm recursion for emitting states (i=1…L): recursion for silent states:

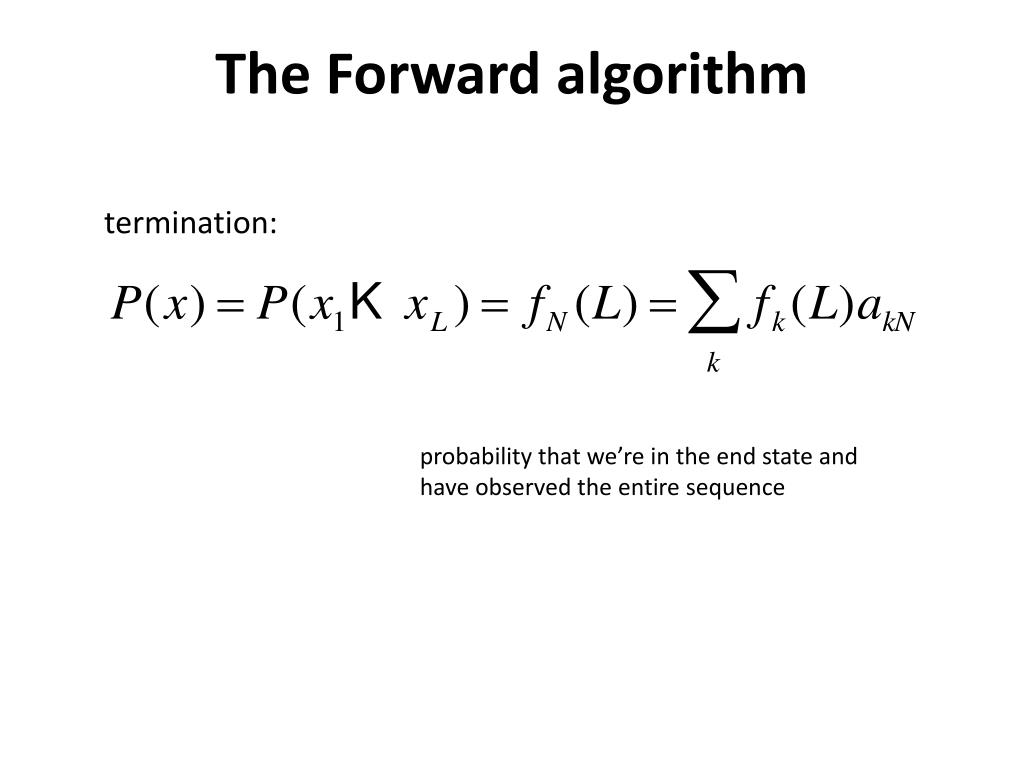

17. The Forward algorithm termination: probability that we’re in the end state and have observed the entire sequence

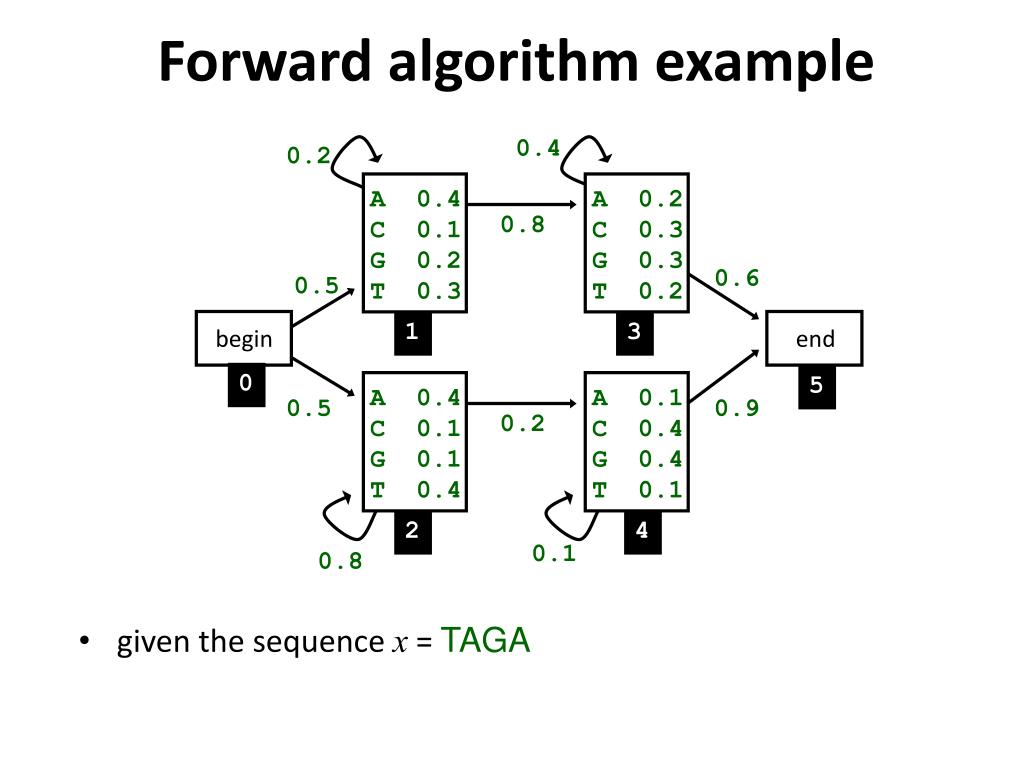

18. 0.4 0.2 A 0.4 C 0.1 G 0.2 T 0.3 A 0.2 C 0.3 G 0.3 T 0.2 0.8 0.6 0.5 1 3 begin end 0 5 A 0.4 C 0.1 G 0.1 T 0.4 A 0.1 C 0.4 G 0.4 T 0.1 0.5 0.9 0.2 2 4 0.1 0.8 Forwardalgorithm example • given the sequence x = TAGA

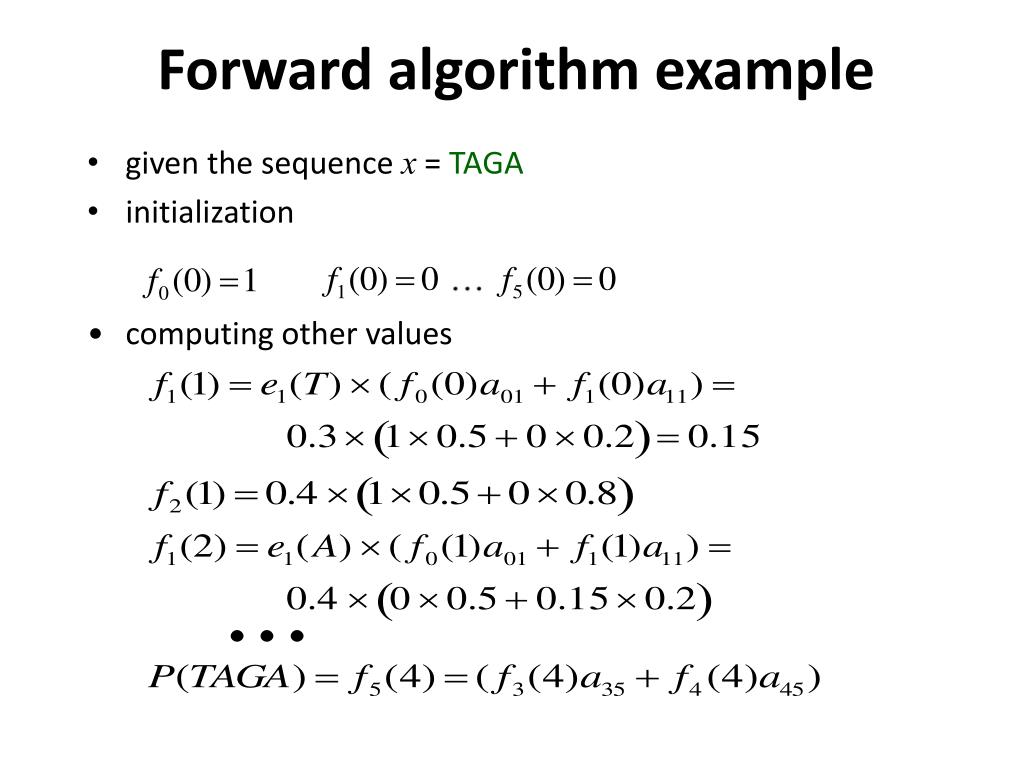

19. Forward algorithm example • given the sequence x = TAGA • initialization • computing other values

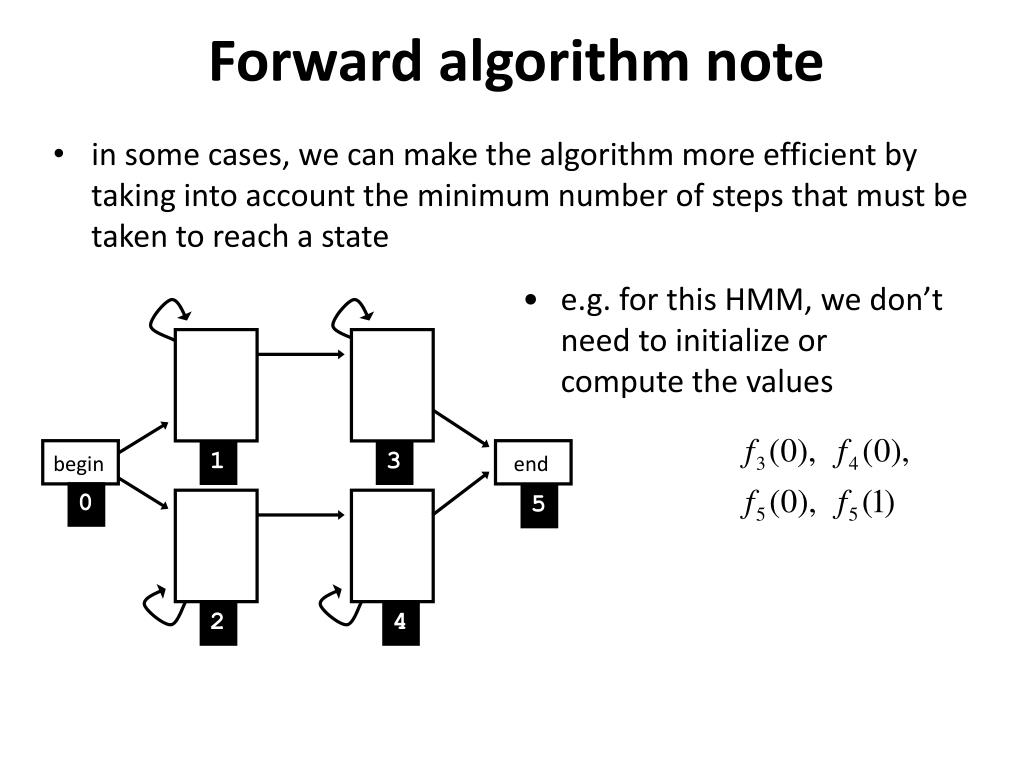

20. 1 3 begin end 0 5 2 4 Forward algorithm note • in some cases, we can make the algorithm more efficient by taking into account the minimum number of steps that must be taken to reach a state • e.g. for this HMM, we don’t need to initialize or compute the values

21. Three important questions • How likely is a given sequence? • What is the most probable “path” for generating a given sequence? • How can we learn the HMM parameters given a set of sequences?

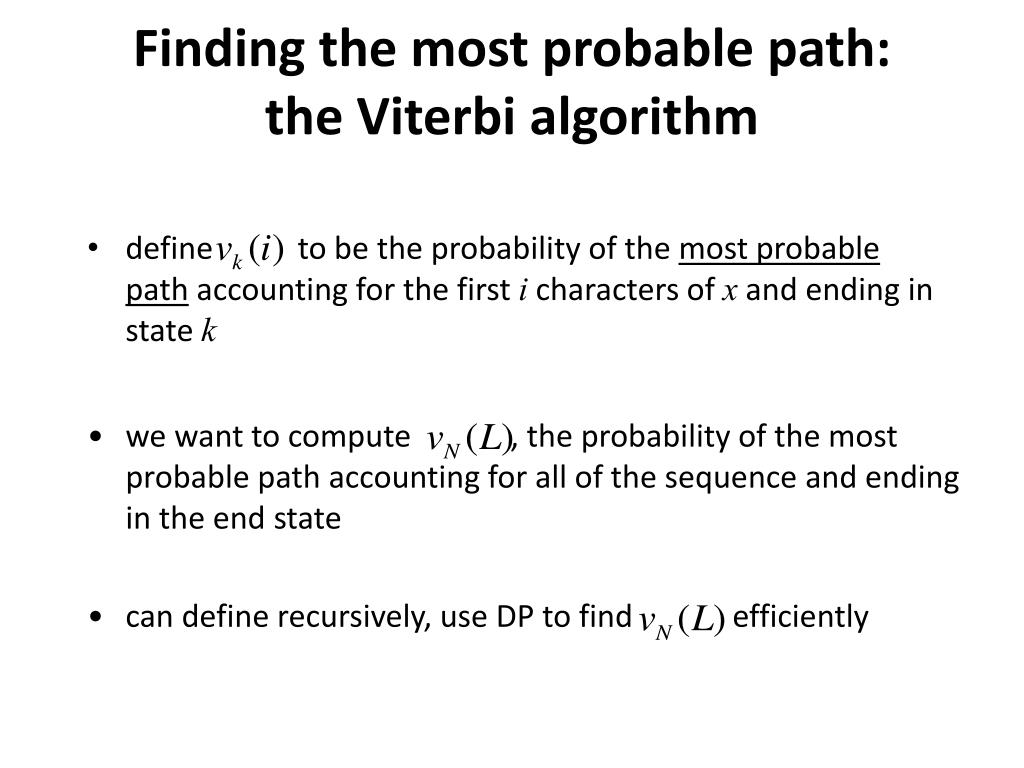

22. Finding the most probable path: the Viterbi algorithm • define to be the probability of the most probable path accounting for the first i characters of x and ending in state k • we want to compute , the probability of the most probable path accounting for all of the sequence and ending in the end state • can define recursively, use DP to find efficiently

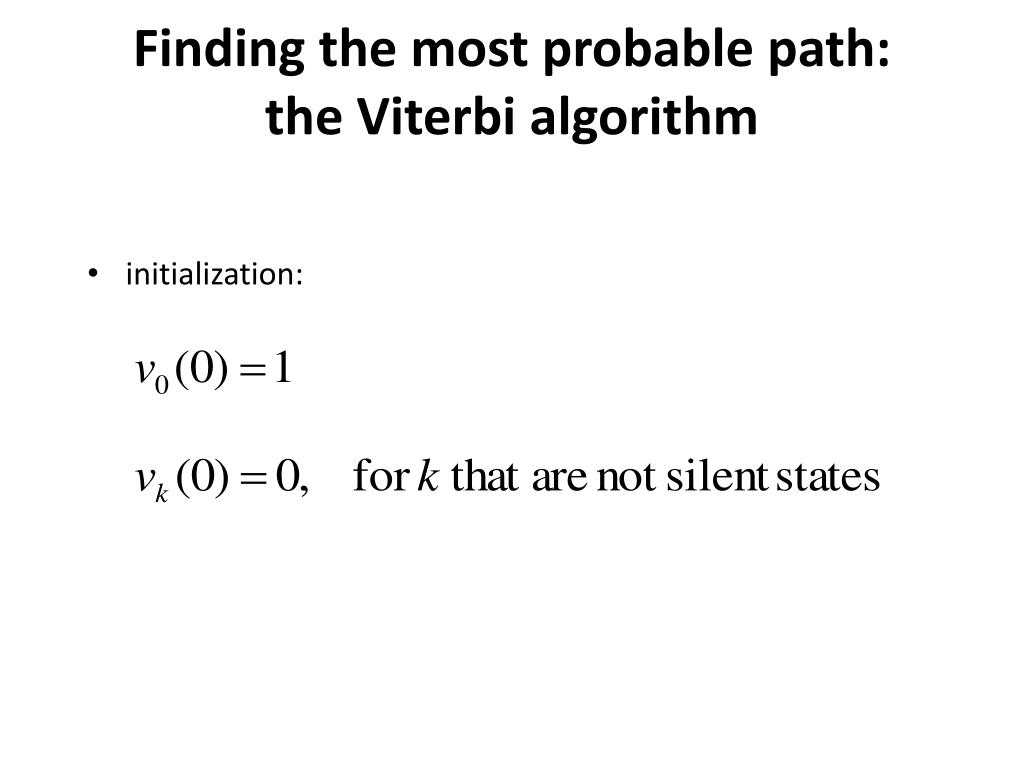

23. Finding the most probable path: the Viterbi algorithm • initialization:

24. The Viterbi algorithm • recursion for emitting states (i=1…L): keep track of most probable path • recursion for silent states:

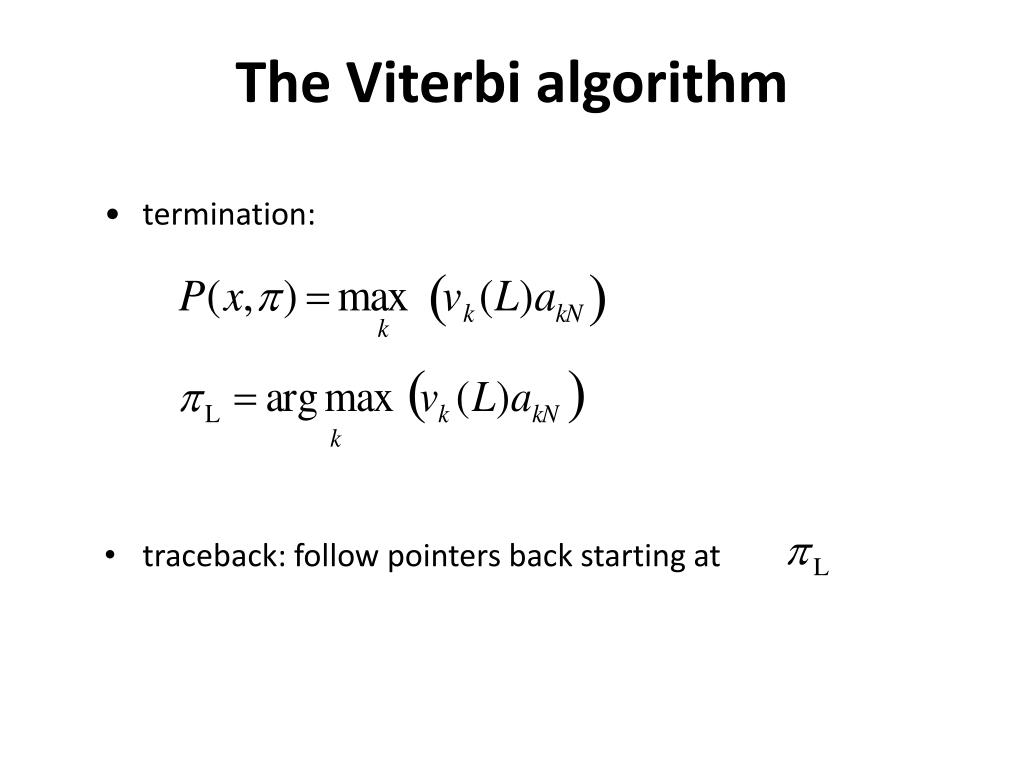

25. The Viterbi algorithm • traceback: follow pointers back starting at • termination:

26. Three important questions • How likely is a given sequence? • What is the most probable “path” for generating a given sequence? • How can we learn the HMM parameters given a set of sequences?

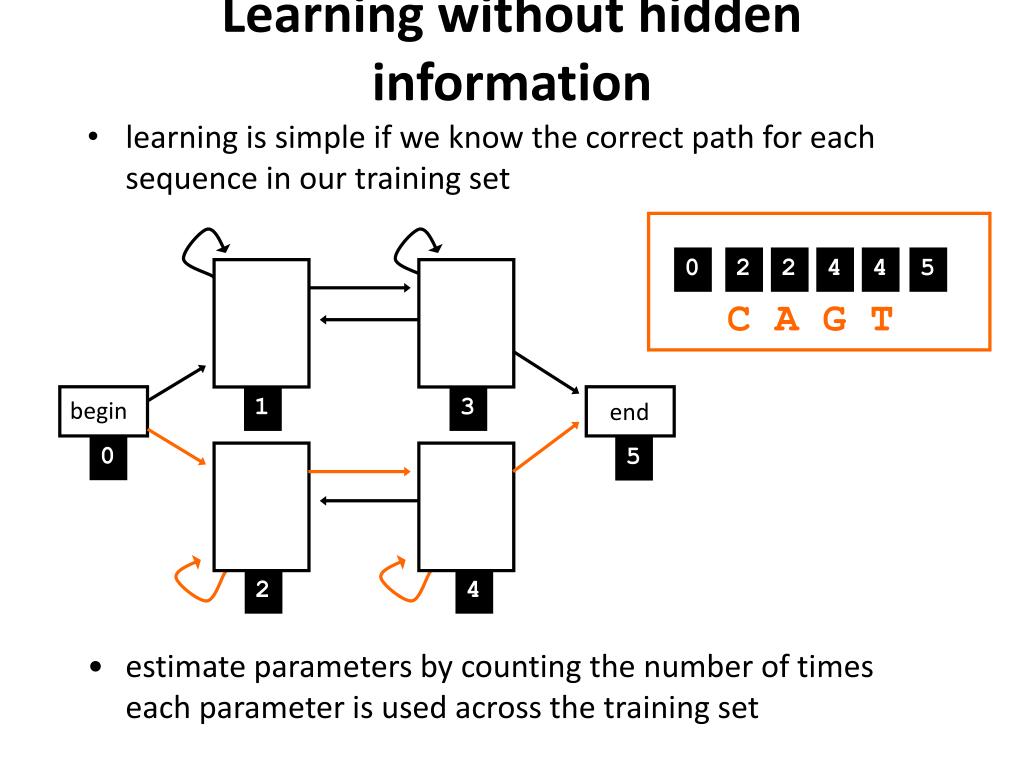

27. begin end Learning without hidden information • learning is simple if we know the correct path for each sequence in our training set 0 2 2 4 4 5 C A G T 1 3 0 5 2 4 • estimate parameters by counting the number of times each parameter is used across the training set

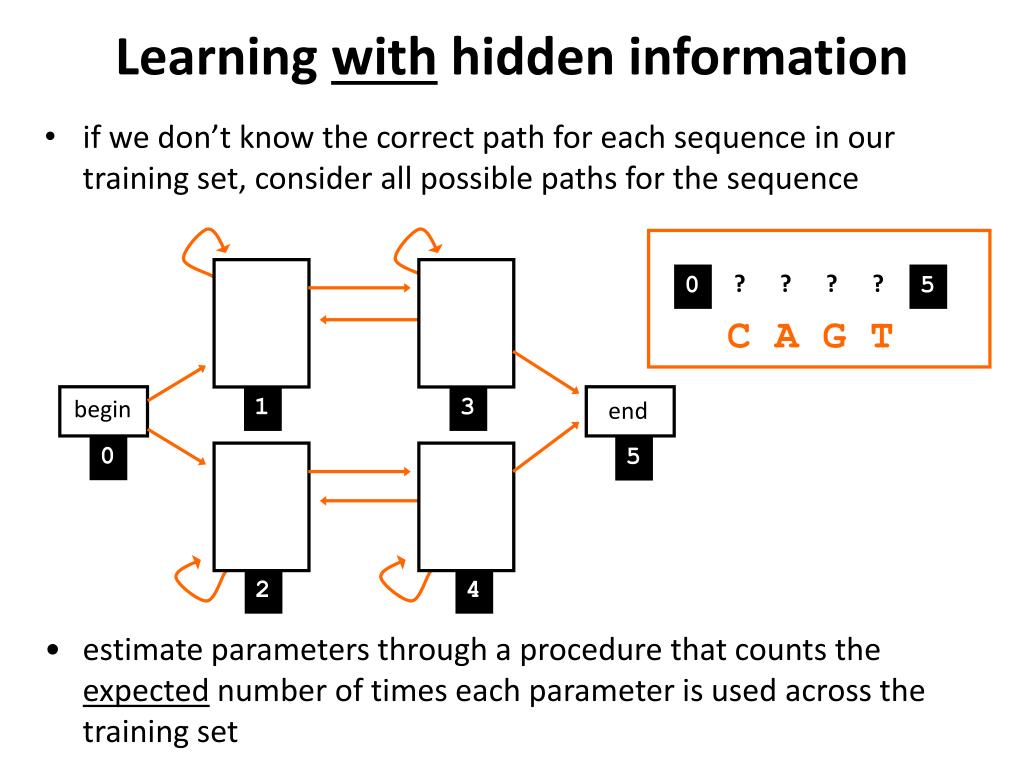

28. begin end Learning with hidden information • if we don’t know the correct path for each sequence in our training set, consider all possible paths for the sequence ? ? ? ? 0 5 C A G T 1 3 0 5 2 4 • estimate parameters through a procedure that counts the expected number of times each parameter is used across the training set

29. Learning parameters • if we know the state path for each training sequence, learning the model parameters is simple • no hidden information during training • count how often each parameter is used • normalize/smooth to get probabilities • process is just like it was for Markov chain models • if we don’t know the path for each training sequence, how can we determine the counts? • key insight: estimate the counts by considering every path weighted by its probability

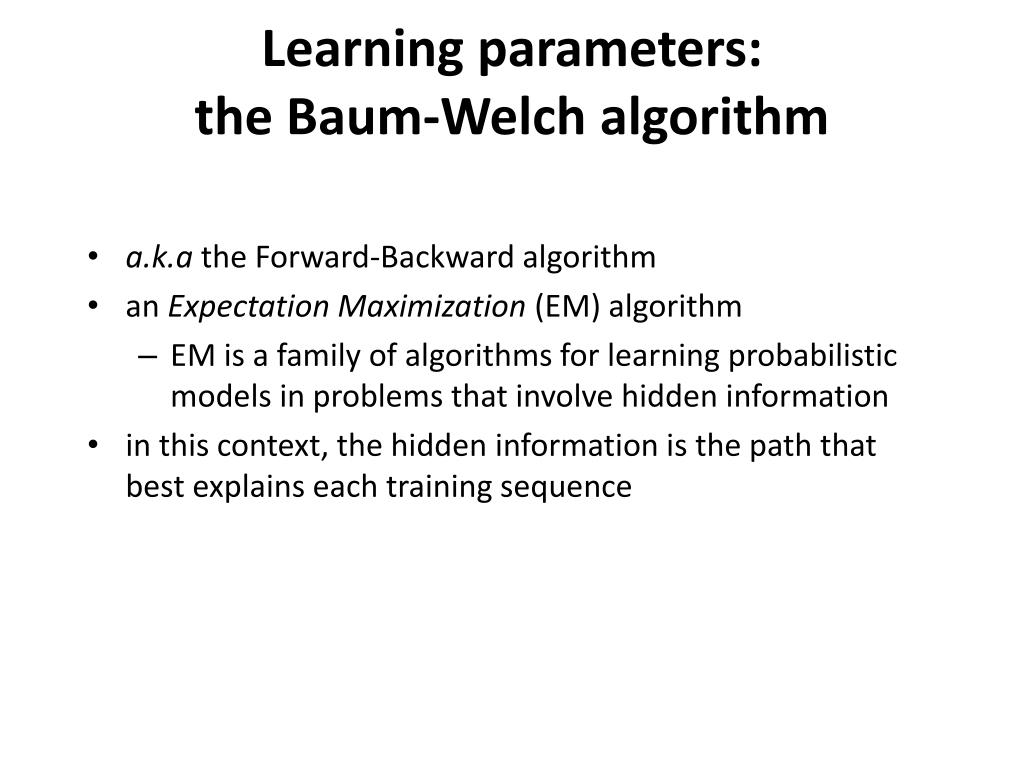

30. Learning parameters: the Baum-Welch algorithm • a.k.a the Forward-Backward algorithm • an Expectation Maximization (EM) algorithm • EM is a family of algorithms for learning probabilistic models in problems that involve hidden information • in this context, the hidden information is the path that best explains each training sequence

31. Learning parameters: the Baum-Welch algorithm • algorithm sketch: • initialize parameters of model • iterate until convergence • calculate the expected number of times each transition or emission is used • adjust the parameters to maximize the likelihood of these expected values

32. The expectation step • We need to know the probability of the ith symbol being produced by state k, given sequencex(posterior probability of state k at time t) • We also need to know the probability of ith and (i+1)th symbol being produced by state k, and lgiven sequencex • given these we can compute our expected counts for state transitions, character emissions

33. The expectation step • the probability of producing x with the ithsymbol being emitted by state kis • the first term is , computed by the forward algorithm • the second term is , computed by the backward algorithm

34. begin end The expectation step • we want to know the probability of generating sequence x with the ithsymbol being produced by state k(for all x, i and k) 0.4 0.2 A 0.4 C 0.1 G 0.2 T 0.3 A 0.2 C 0.3 G 0.3 T 0.2 0.8 0.6 0.5 1 3 0 5 A 0.4 C 0.1 G 0.1 T 0.4 A 0.1 C 0.4 G 0.4 T 0.1 0.5 0.9 0.2 2 4 0.1 0.8 C A G T

35. end The expectation step • the forward algorithm gives us , the probability of being in state k and having observed the first i characters of x 0.4 0.2 A 0.4 C 0.1 G 0.2 T 0.3 A 0.2 C 0.3 G 0.3 T 0.2 0.8 0.6 0.5 1 3 begin 0 5 A 0.1 C 0.4 G 0.4 T 0.1 A 0.4 C 0.1 G 0.1 T 0.4 0.5 0.9 0.2 2 4 0.1 0.8 C AG T

36. The expectation step • the backward algorithm gives us , the probability of observing the rest of x, given that we’re in state kafter icharacters 0.4 0.2 A 0.4 C 0.1 G 0.2 T 0.3 A 0.2 C 0.3 G 0.3 T 0.2 0.8 0.6 0.5 1 3 begin end 0 5 A 0.4 C 0.1 G 0.1 T 0.4 A 0.1 C 0.4 G 0.4 T 0.1 0.5 0.9 0.2 2 4 0.1 0.8 C A G T

37. The expectation step • putting forward and backward together, we can compute the probability of producing sequence x with the ith symbol being produced by state q 0.4 0.2 A 0.4 C 0.1 G 0.2 T 0.3 A 0.2 C 0.3 G 0.3 T 0.2 0.8 0.6 0.5 1 3 begin end 0 5 A 0.4 C 0.1 G 0.1 T 0.4 A 0.1 C 0.4 G 0.4 T 0.1 0.5 0.9 0.2 2 4 0.1 0.8 C A G T

38. The expectation step 0.4 0.2 A 0.4 C 0.1 G 0.2 T 0.3 A 0.2 C 0.3 G 0.3 T 0.2 0.8 0.6 0.5 1 3 begin end 0 5 A 0.4 C 0.1 G 0.1 T 0.4 A 0.1 C 0.4 G 0.4 T 0.1 0.5 0.9 0.2 2 4 0.1 0.8 C A G T

39. The backward algorithm • initialization: • for states with a transition to end state

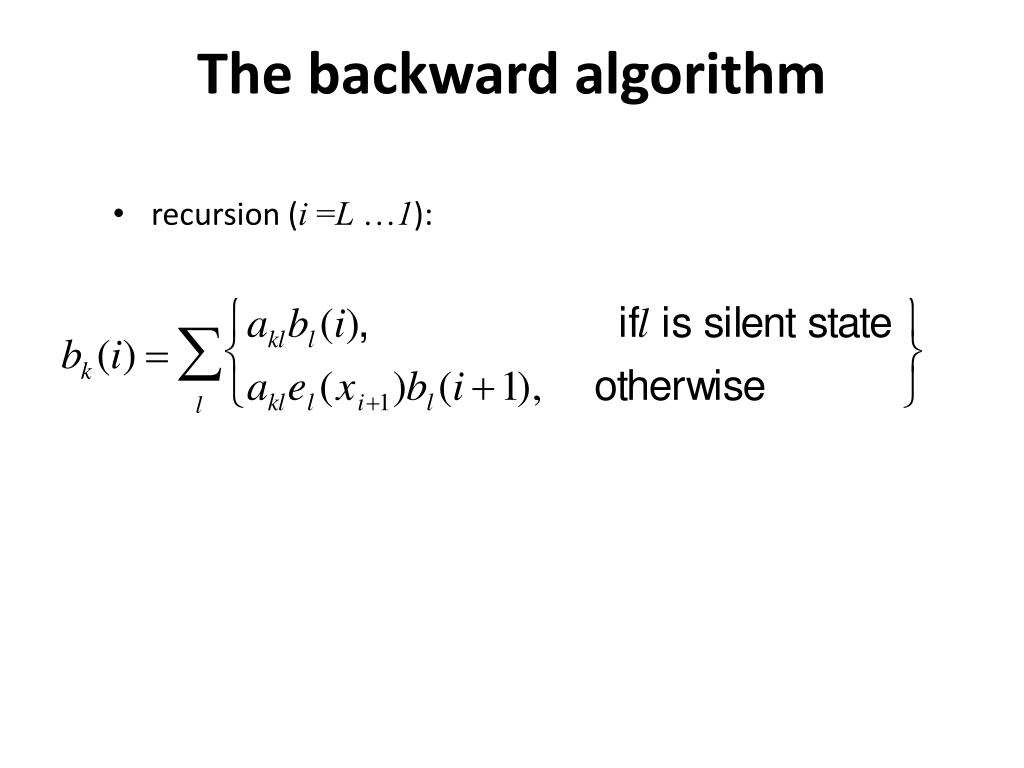

40. The backward algorithm • recursion (i=L …1):

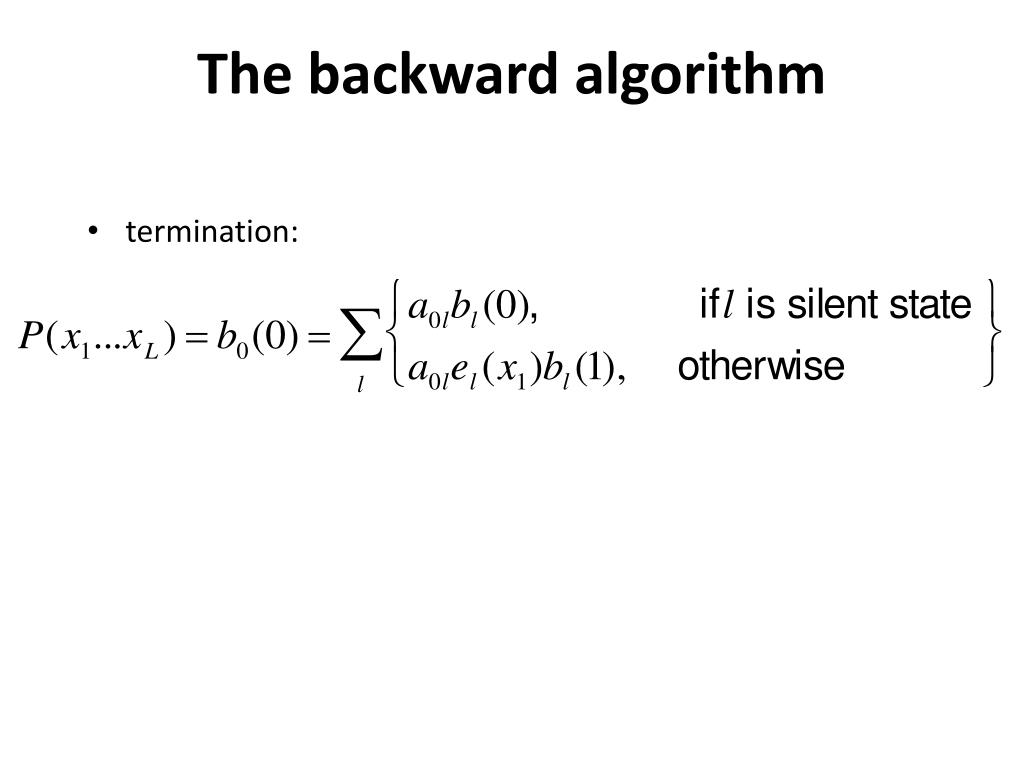

41. The backward algorithm • termination:

42. The expectation step • now we can calculate the probability of the ith symbol being produced by state k, givenx

43. The expectation step • now we can calculate the expected number of times letter c is emitted by state k • here we’ve added the superscript j to refer to a specific sequence in the training set sum over positions where c occurs in x sum over sequences

44. The expectation step • and we can calculate the expected number of times that the transition from k to l is used • or if l is a silent state

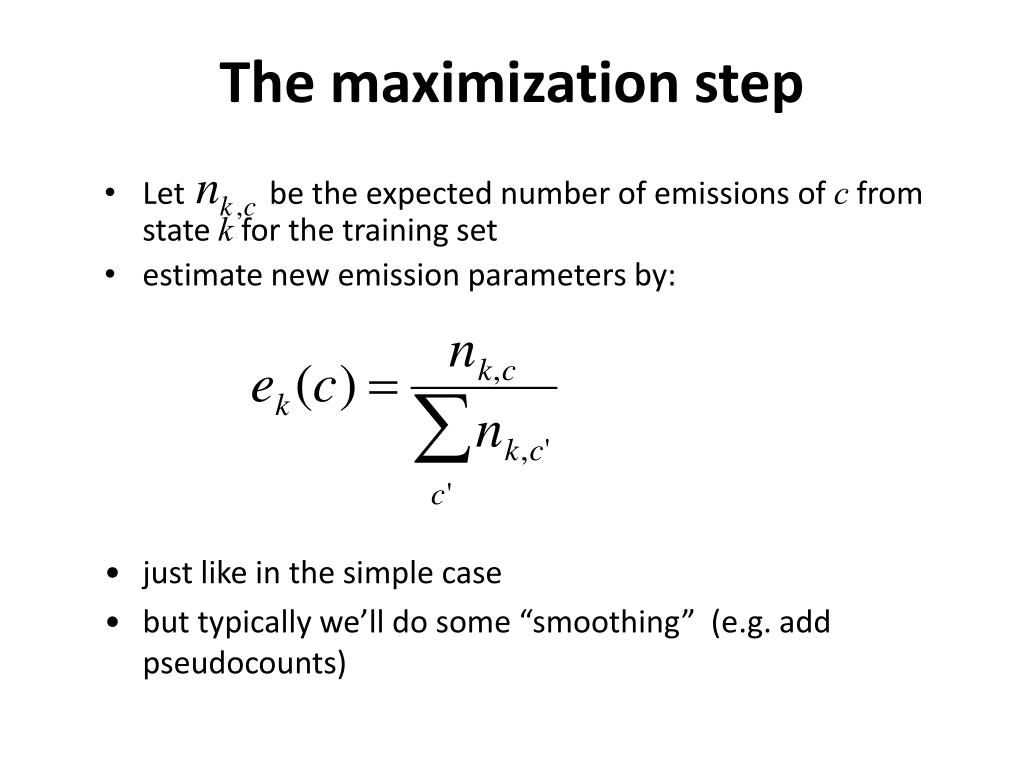

45. The maximization step • Let be the expected number of emissions of c from state k for the training set • estimate new emission parameters by: • just like in the simple case • but typically we’ll do some “smoothing” (e.g. add pseudocounts)

46. The maximization step • let be the expected number of transitions from state k to state l for the training set • estimate new transition parameters by:

47. The Baum-Welch algorithm • initialize the parameters of the HMM • iterate until convergence • initialize , with pseudocounts • E-step: for each training set sequence j= 1…n • calculate values for sequence j • calculate values for sequence j • add the contribution of sequence j to , • M-step: update the HMM parameters using ,

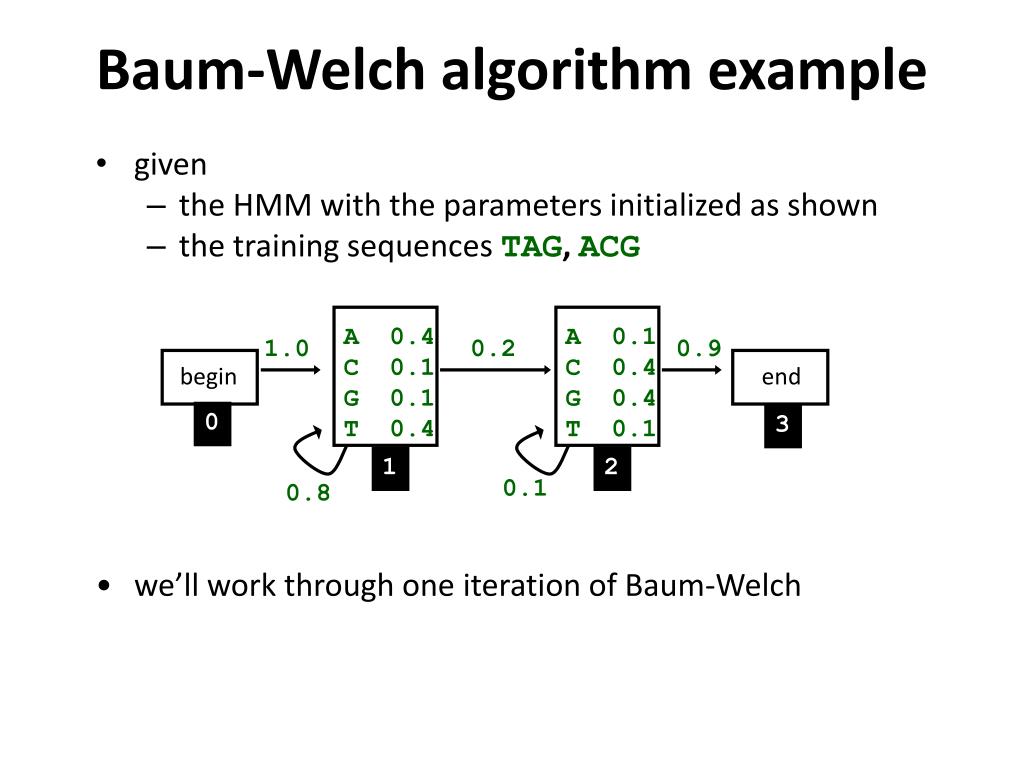

48. begin end A 0.4 C 0.1 G 0.1 T 0.4 A 0.1 C 0.4 G 0.4 T 0.1 1.0 0.2 0.9 0 3 1 2 0.1 0.8 Baum-Welch algorithm example • given • the HMM with the parameters initialized as shown • the training sequences TAG, ACG • we’ll work through one iteration of Baum-Welch

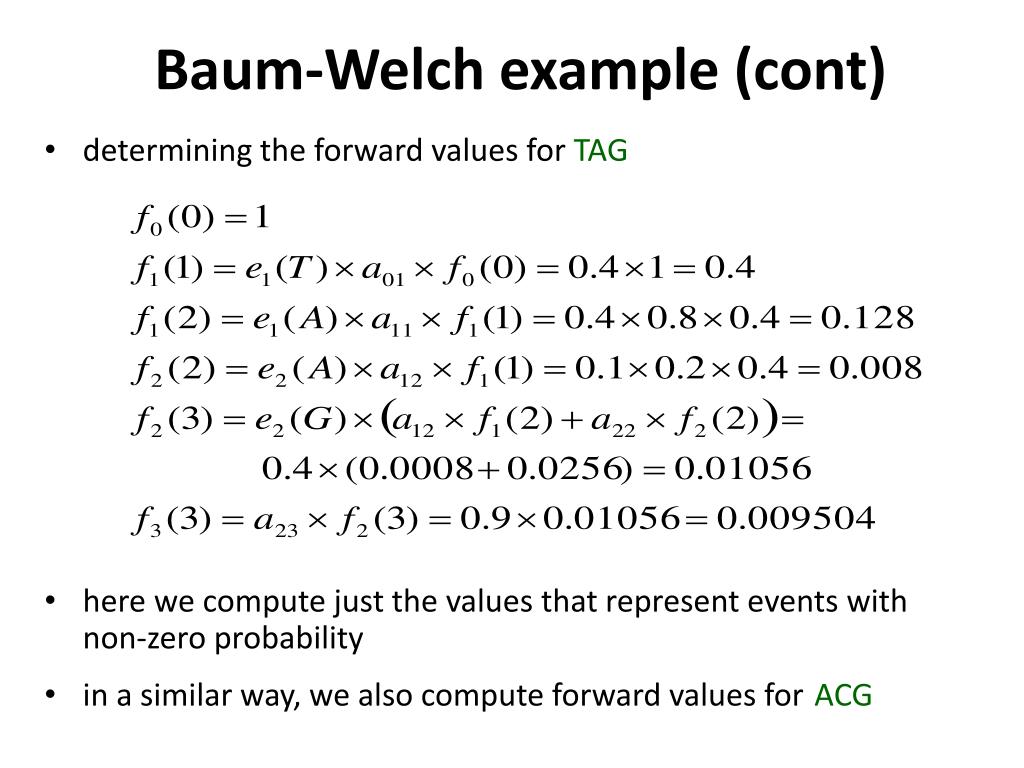

49. Baum-Welch example (cont) • determining the forward values for TAG • here we compute just the values that represent events with non-zero probability • in a similar way, we also compute forward values forACG

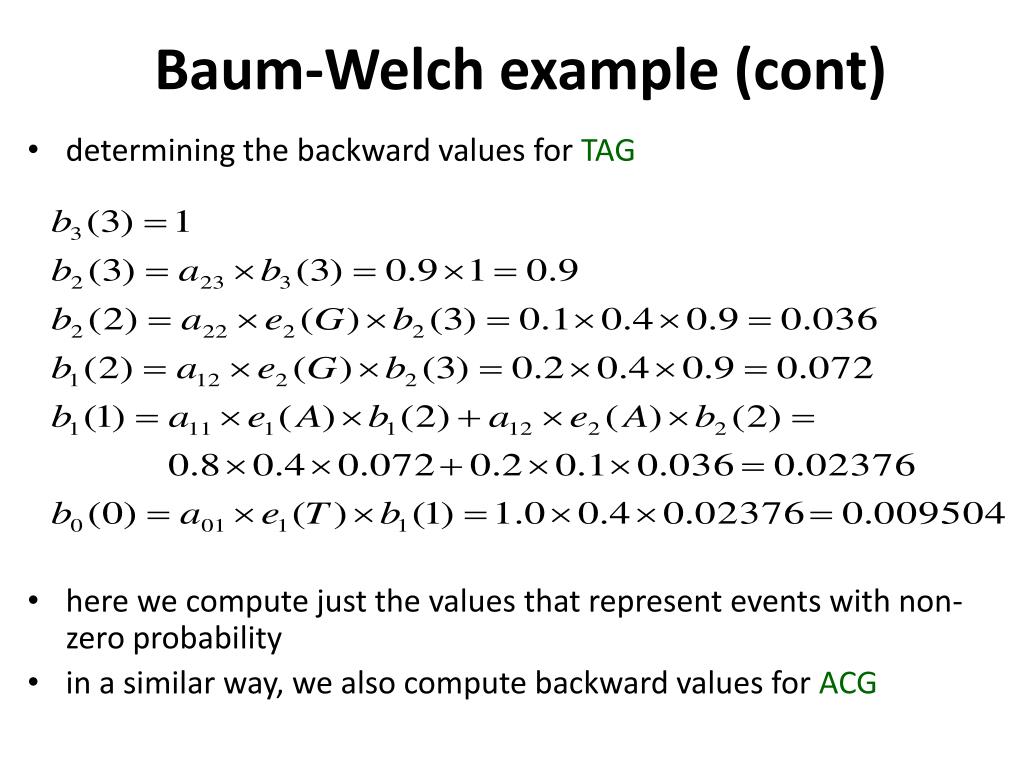

50. Baum-Welch example (cont) • determining the backward values for TAG • here we compute just the values that represent events with non-zero probability • in a similar way, we also compute backward values for ACG
