  1. The Bar Graph or Bar Chart What is it? How to Draw it

  2. What is a Bar Graph? A bar graph is a graph that displays the frequency or numerical distribution of a categorical variable, showing values for each bar next to each other for easy comparison. Alternate Name: Bar Chart

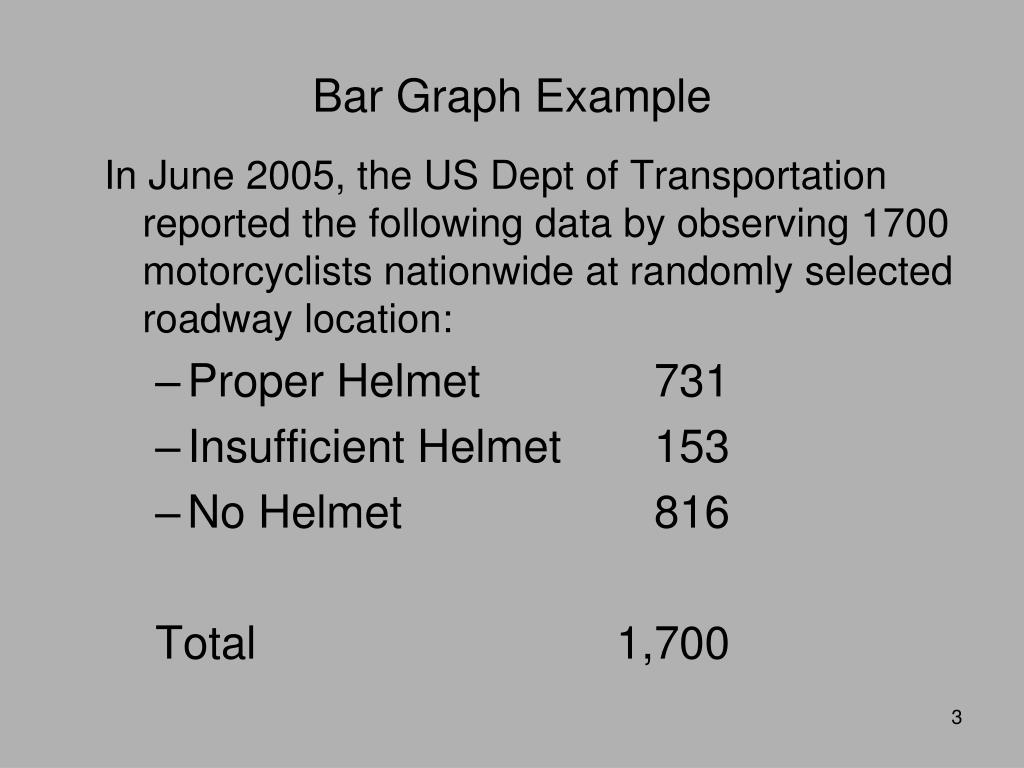

  3. Bar Graph Example In June 2005, the US Dept of Transportation reported the following data by observing 1700 motorcyclists nationwide at randomly selected roadway location: • Proper Helmet 731 • Insufficient Helmet 153 • No Helmet 816 Total 1,700

  4. Vertical Bar Graph Example

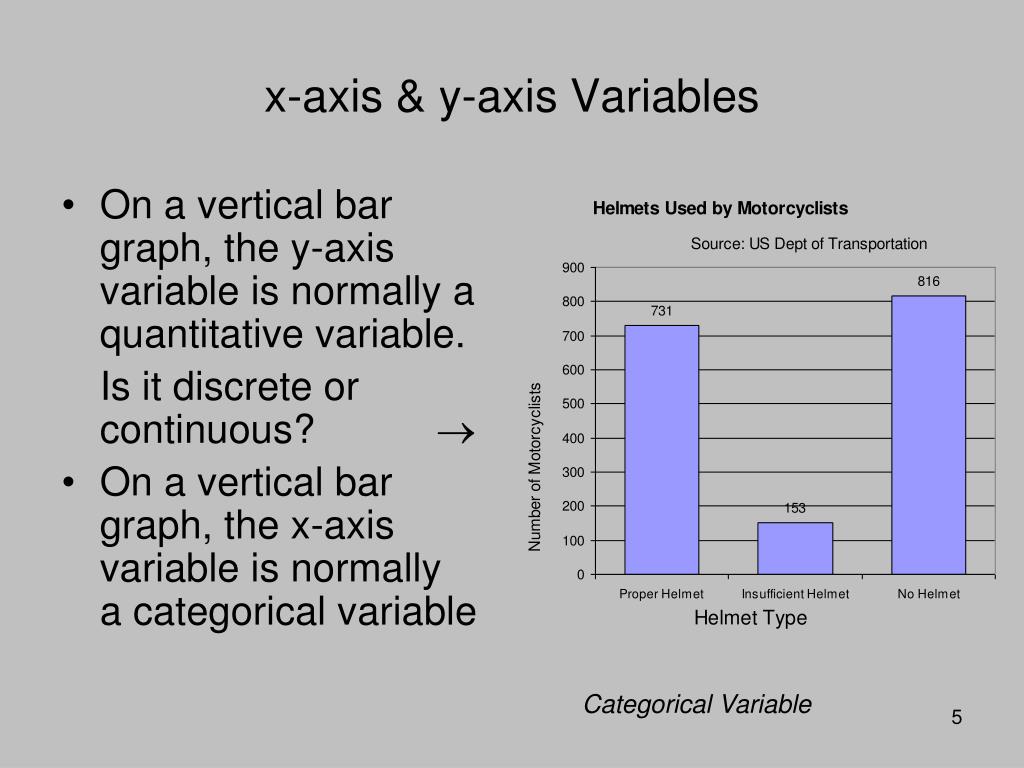

  5. x-axis & y-axis Variables • On a vertical bar graph, the y-axis variable is normally a quantitative variable. Is it discrete or continuous? ® • On a vertical bar graph, the x-axis variable is normally a categorical variable Categorical Variable ­

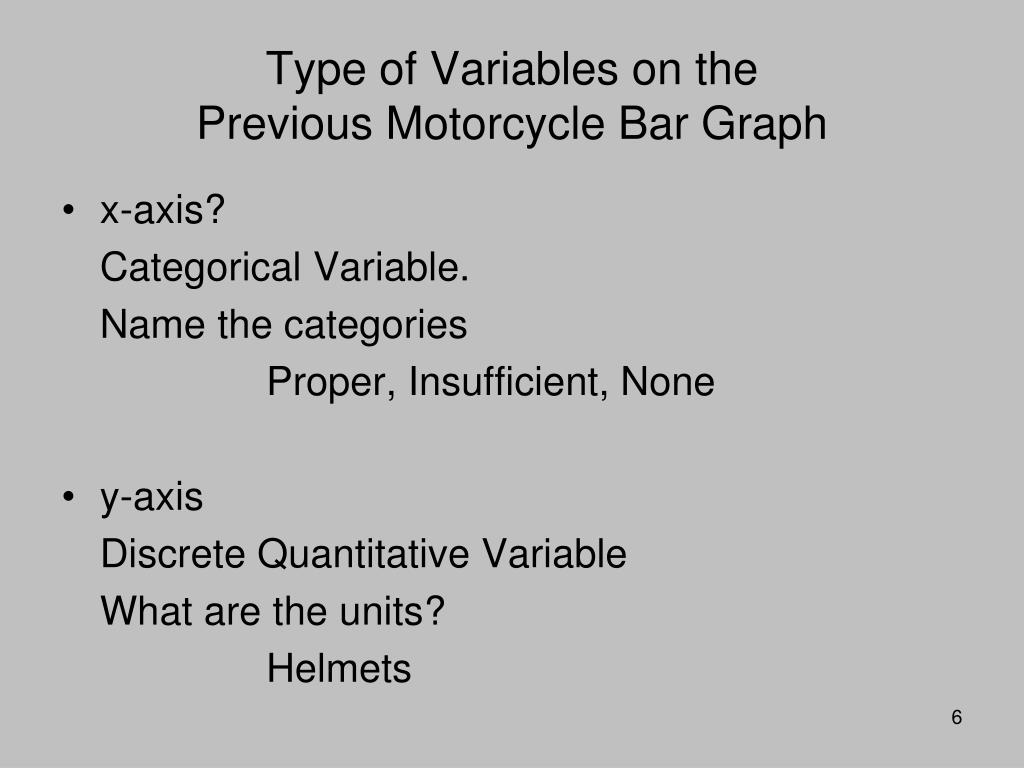

  6. Type of Variables on the Previous Motorcycle Bar Graph • x-axis? Categorical Variable. Name the categories Proper, Insufficient, None • y-axis Discrete Quantitative Variable What are the units? Helmets

  7. Making a Bar Graph Look Better • What would make this bar graph look better? If we ranked the numbers by either increasing or decreasing value, the appearance would be less jagged, making a Pareto Chart. • What is a Pareto Chart? A bar graph in which the bars are ordered according to value, in either increasing or decreasing order. • Why Pareto Charts? Graph is named for Vilfredo Pareto, an Italian mathematician & economist. 1848-1923.

  8. Vertical Bar Graph as Pareto Chart

  9. Education & Annual Income Survey

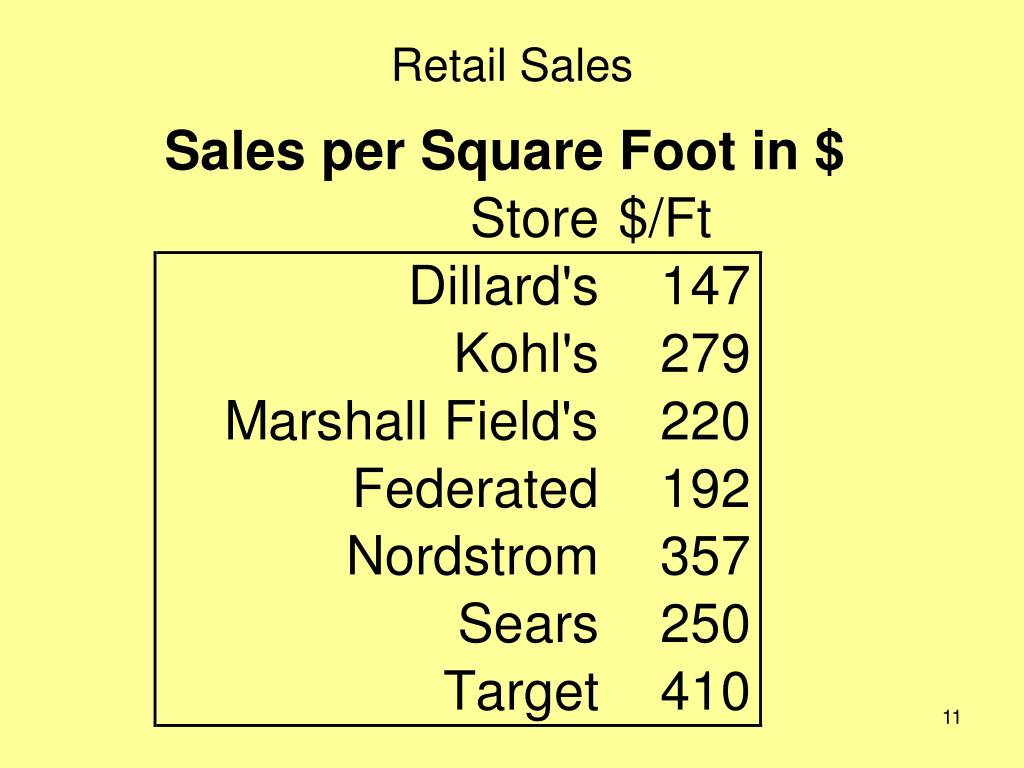

  10. Retail Sales

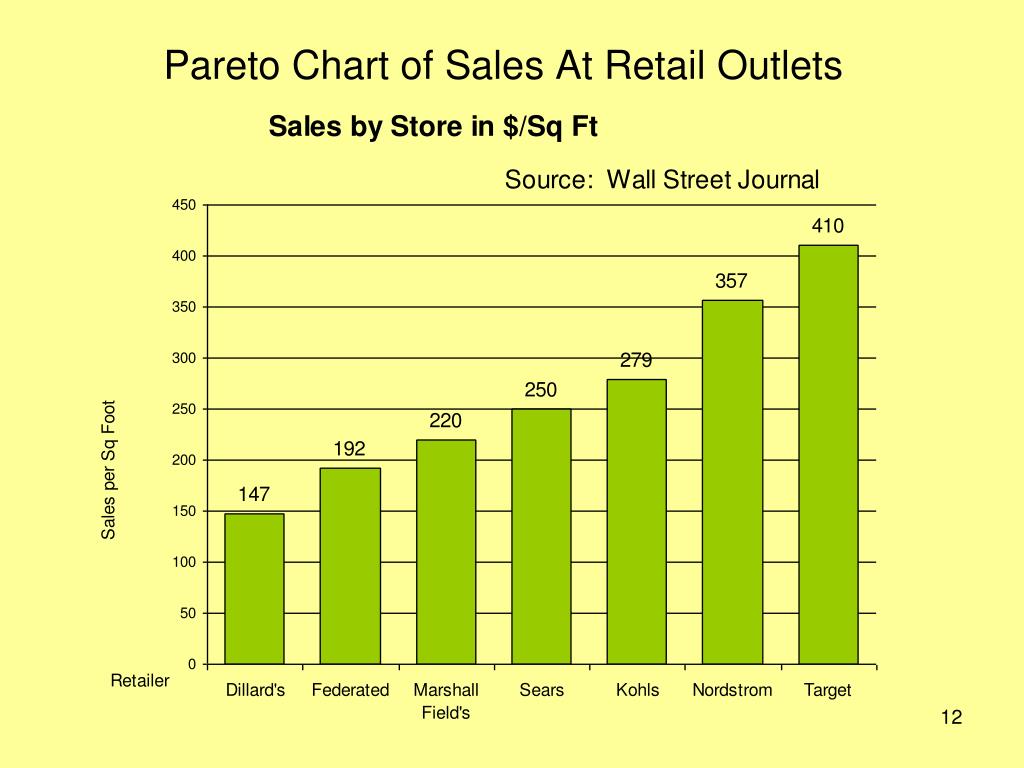

  11. Pareto Chart of Sales At Retail Outlets

  12. Non Pareto Version of Sales

  13. Bar Graphs: VERY FLEXIBLE FORMAT Advantage over Pie Charts Bar Graphs are easier to make & to read than pie charts. How are they similar to Pie Charts? Both pie charts & bar graphs can display the distribution of a categorical variable How are they different from Pie Charts? A bar graph can also compare any set of quantities measured in the same units.

  14. Psychic Phenomena

  15. Pareto Chart of Psychic Phenomena

  16. In Class Survey:Do you believe in Supernatural Phenomena?

  17. In Class Survey:Do you believe in Supernatural Phenomena?

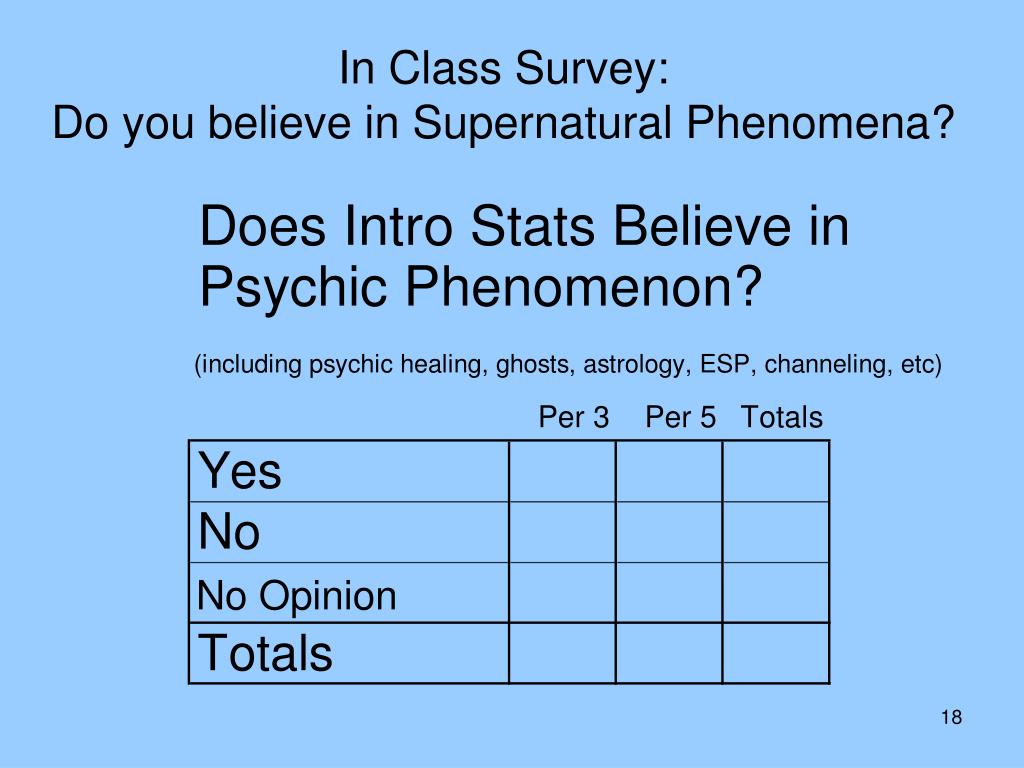

  18. In Class Survey Results from 2009:Do you believe in Supernatural Phenomena?

  19. In Class Survey Results from 20093-Level Comparative Bar Graph

  20. In Class Survey Results from 2009: Simple Bar Graph

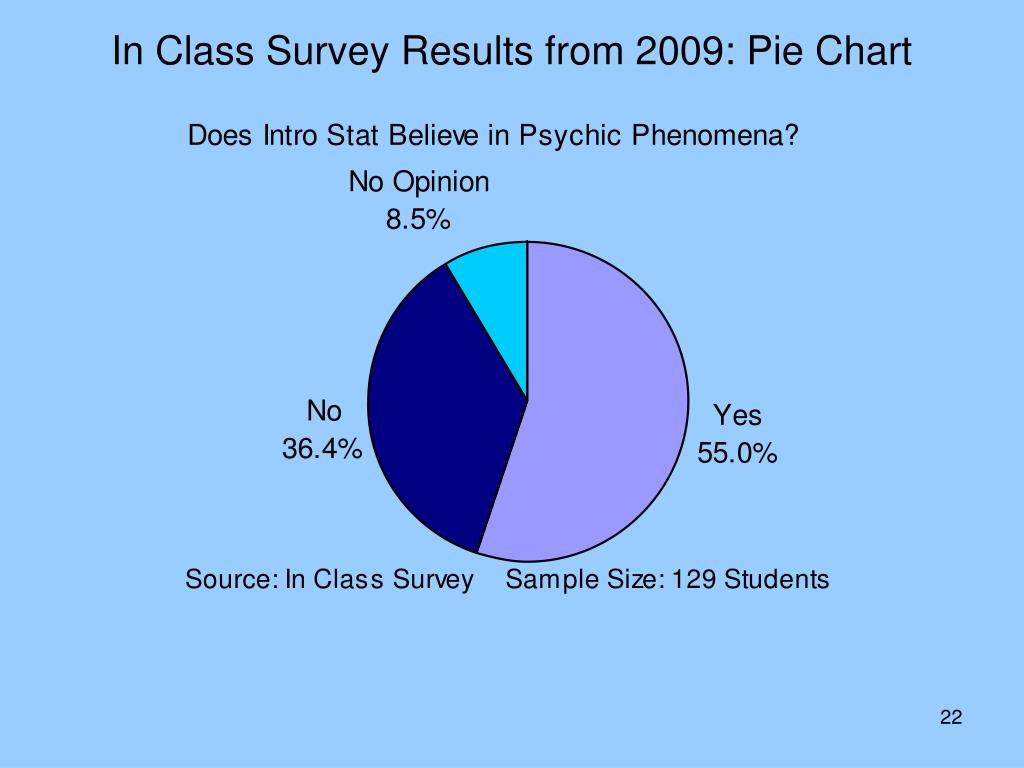

  21. In Class Survey Results from 2009: Pie Chart

  22. Rainfall In Hawaii

  23. Bar Graph Characteristics • Data can be quantitative or categorical • Bars can be vertical or horizontal • The x-axis represents the category displayed • The y-axis represents the quantitative values of the variable being displayed • Bars are of uniform width and uniformly spaced

  24. Bar Graph Characteristics • A consistent measurement scale is used for each vertical bar • Height of bars represent the values of the variable displayed, the frequency of occurrence or percentage of occurrence • The graph is well-annotated with title, labels for each bar, vertical scale, horizontal categories, source

  25. Changing Scale – The Squiggle What is a squiggle? At least a 2-angle line on a bar graph axis that abbreviates a scale. When do you use a squiggle? Use a squiggle on the changed axis whenever you change scale in a bar graph. Horizontal Squiggle Vertical Squiggle

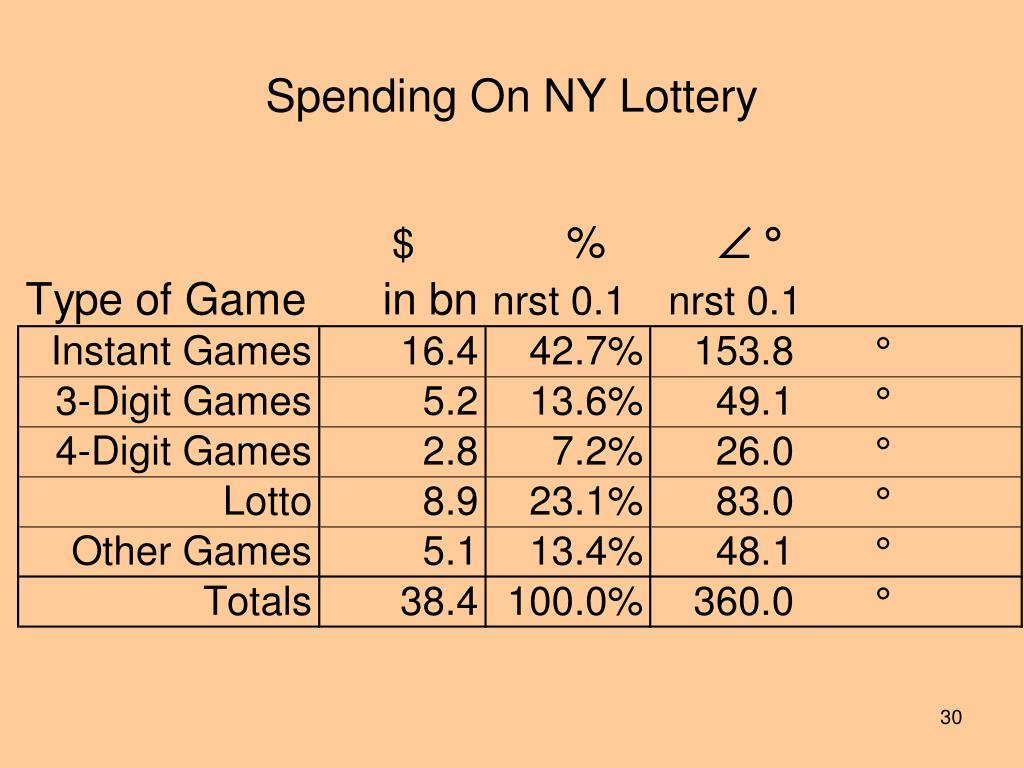

  26. Pie to Bar: Spending On NY Lottery

  27. Spending On NY Lottery

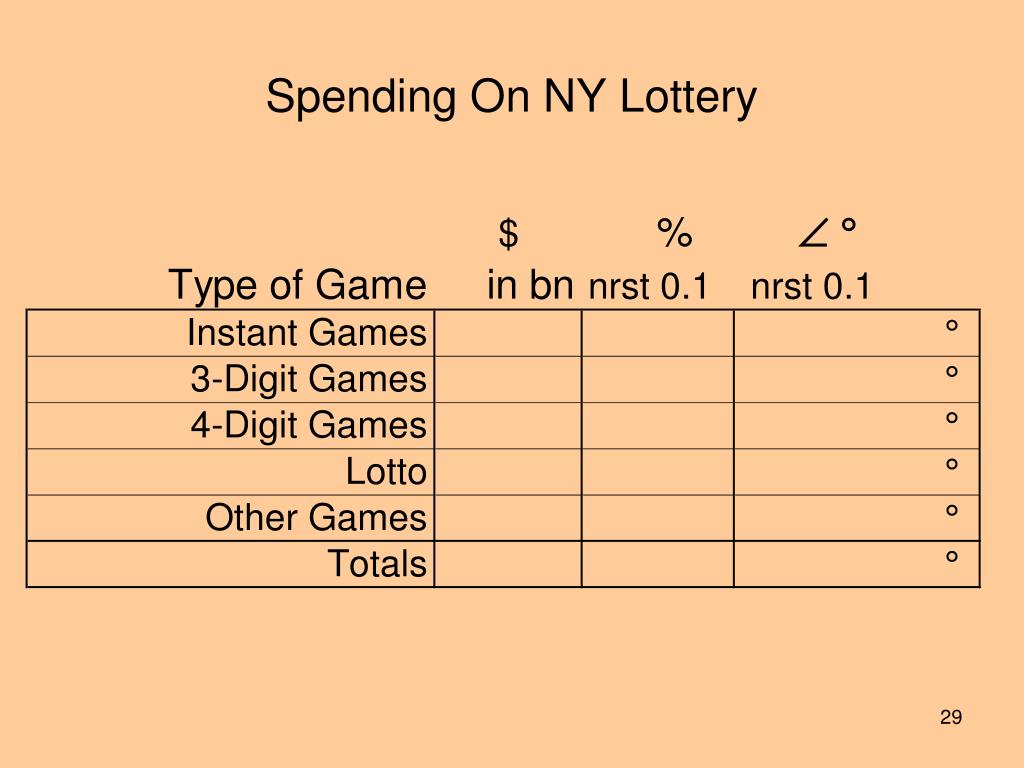

  28. Spending On NY Lottery

  29. Turning a Pie Chart into a Bar Graph

  30. Turning a Pie Chart into a Bar Graph

  31. Turning a Pie Chart into a Bar Graph

  32. Turning a Pie Chart into a Bar Graph

  33. “Would The Bar Graph Make a Good Pie Chart?” • Only when Bar Graphs represent parts of a whole, can it be made into a Pie Chart. • If the answer is NO, you could write: • No, because these values are comparative data only. • No, because these values DO NOT represent parts of the whole. • If the answer is YES, you could write: • Yes, because these values represent parts of the whole.

  34. Bar Graph & Pie Chart Relationship Summary • Every Pie Chart COULD be made into a Bar Graph BUT • NOT all Bar Graphs CAN be made into Pie Charts Pie Chart Þ Bar Graph Bar Graph Þ Pie Chart

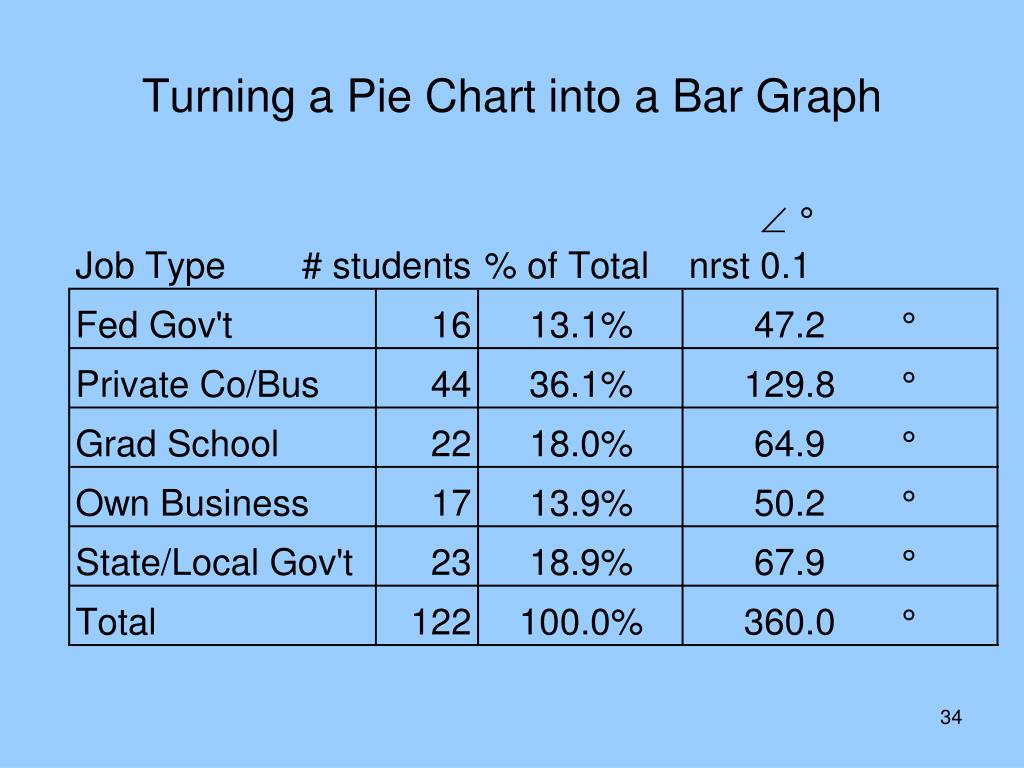

  35. Turning a Pie Chart into a Bar Graph

  36. Turning a Pie Chart into a Bar Graph

  37. Turning a Pie Chart into a Bar Graph

  38. Turning a Pie Chart into a Bar Graph

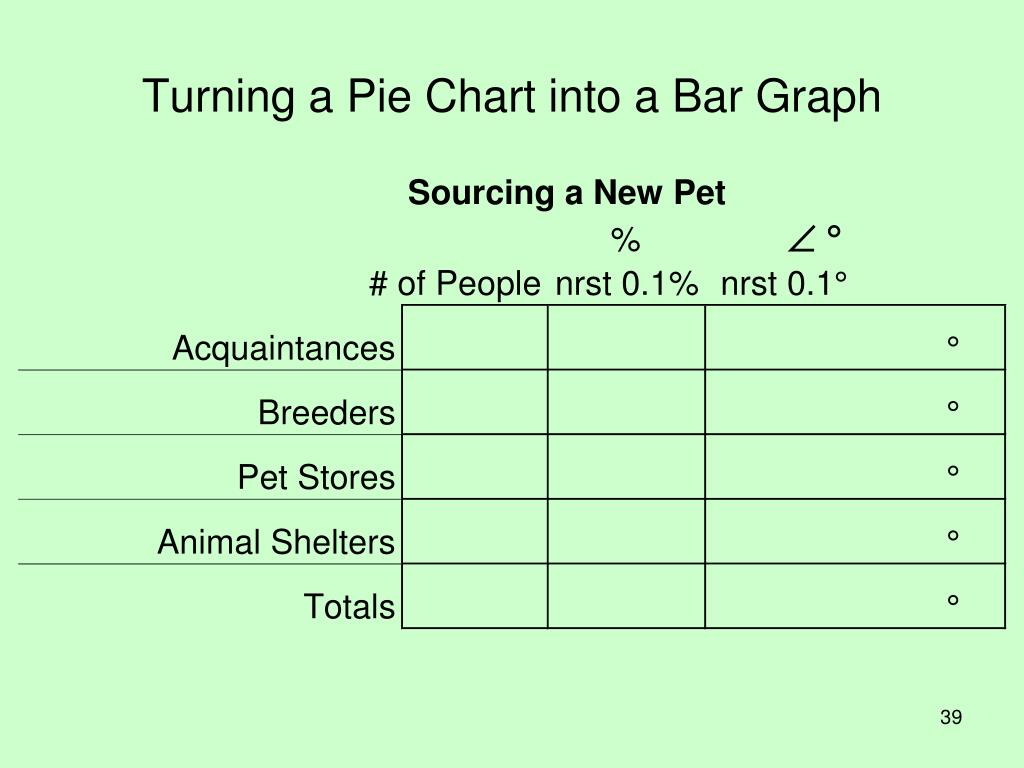

  39. Turning a Pie Chart into a Bar Graph

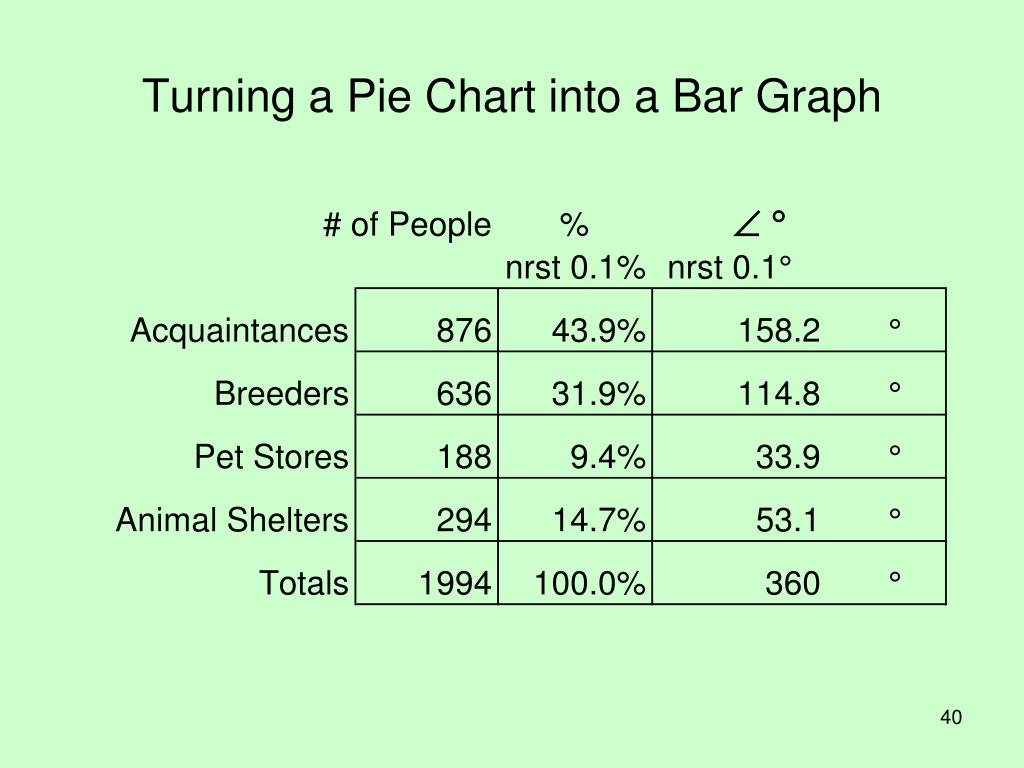

  40. Turning a Pie Chart into a Bar Graph

  41. Turning a Pie Chart into a Bar Graph

  42. Turning a Pie Chart into a Bar Graph

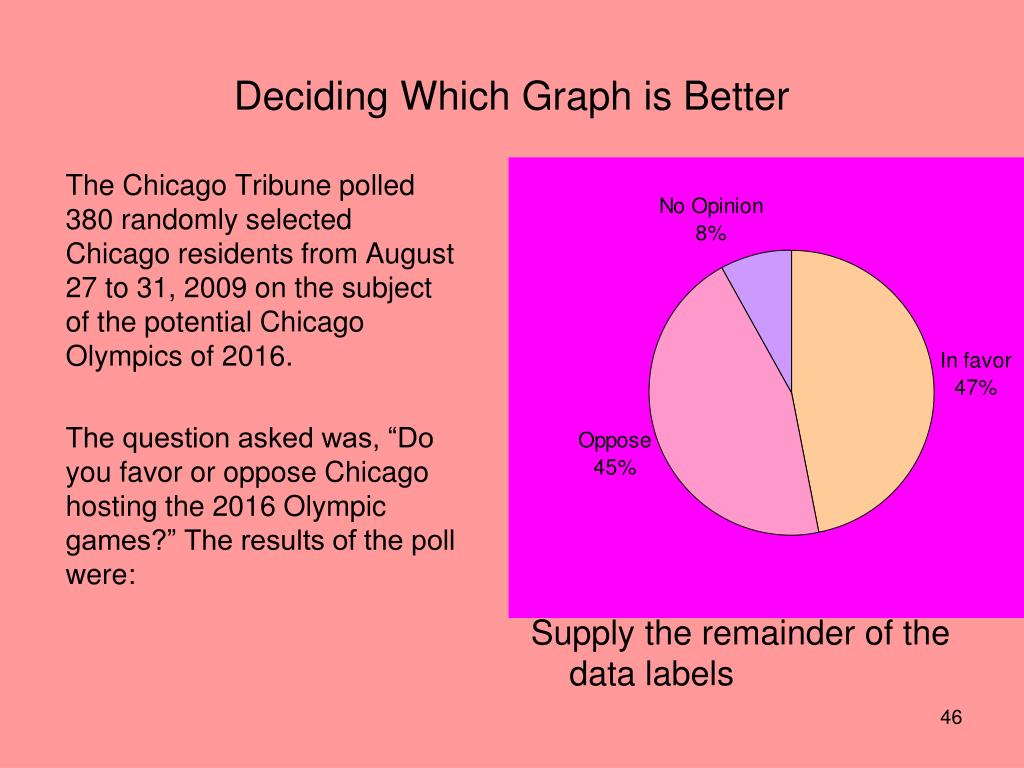

  43. The Chicago Tribune polled 380 randomly selected Chicago residents from August 27 to 31, 2009 on the subject of the potential Chicago Olympics of 2016. The question asked was, “Do you favor or oppose Chicago hosting the 2016 Olympic games?” The results of the poll were: Deciding Which Graph is Better Supply the remainder of the data labels

  44. The answer is obviously yes, But the question remains, Which Graph looks better? Which Graph is better for display purposes? This is a matter of opinion Could the Pie Chart Become a Bar Graph? Supply the remainder of the data labels

  45. What’s the question? What’s the title? What’s the population? What’s the sample? How many variables? What are they? What’s the conclusion? Good pie chart? Is this a Pareto chart? Examining a Bar Chart for Meaning

  46. Turning a Pie Chart into a Bar Graph

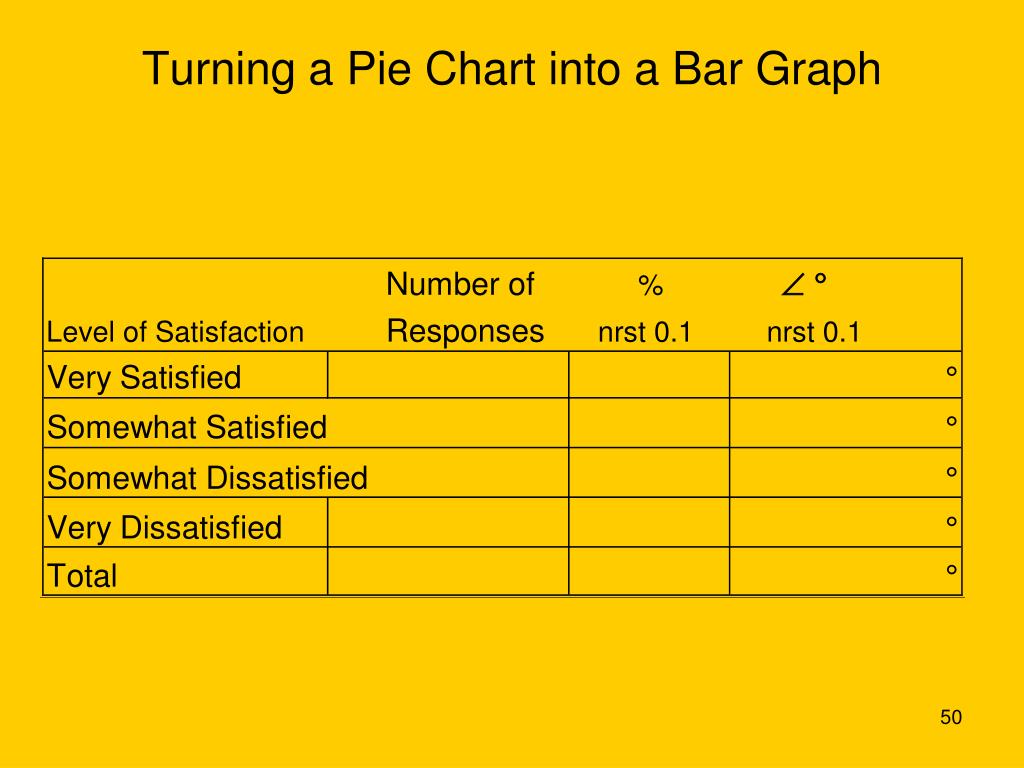

  47. Turning a Pie Chart into a Bar Graph
