Presentation Transcript

  1. Temperature • Measure of hotness / coldness • Degrees Celcius ( 0 C ) Thermometer • All thermometers have a property that changes with temperature • Body Temp : 370C • Good Indicator of Health

  2. Sound • Range of hearing 20 - 20000 Hz • 80dB danger level : food mixer • Stethoscope acts as hearing aid • Ultrasound : > 20000 Hz • Used to ‘see’ inside body e.g scan womb of pregnant woman

  3. Light / Eye • Refraction : Light changes speed when it travels from one medium to another • Slows down : bends towards the normal • Speeds up : bends away from the normal Air Glass Angle of Incidence Angle of Refraction

  4. Refraction

  5. Focal Length Focal length, f

  6. Convex Lenses The thicker the lens the more powerful the lens and the shorter the focal length

  7. Concave Lenses The thicker the lens the more powerful the lens and the shorter the focal length

  8. The Eye Image is Inverted, Diminished and Laterally Inverted The cornea and lens act together to focus the light.

  9. The Eye Distant objects;parallel rays of light; low power lens Close up objects;rays of light spread out;high power lens

  10. Long Sight • Distant objects are in focus • Close up objects are blurred • They are brought to a focus behind retina • Convex lens is placed in front of eye

  11. Short Sight • Close up objects are in focus • Distant objects are blurred • Brought to a focus in front of retina • Concave lens is placed in front of eye

  12. Power of Lens Dioptres, D metres , m

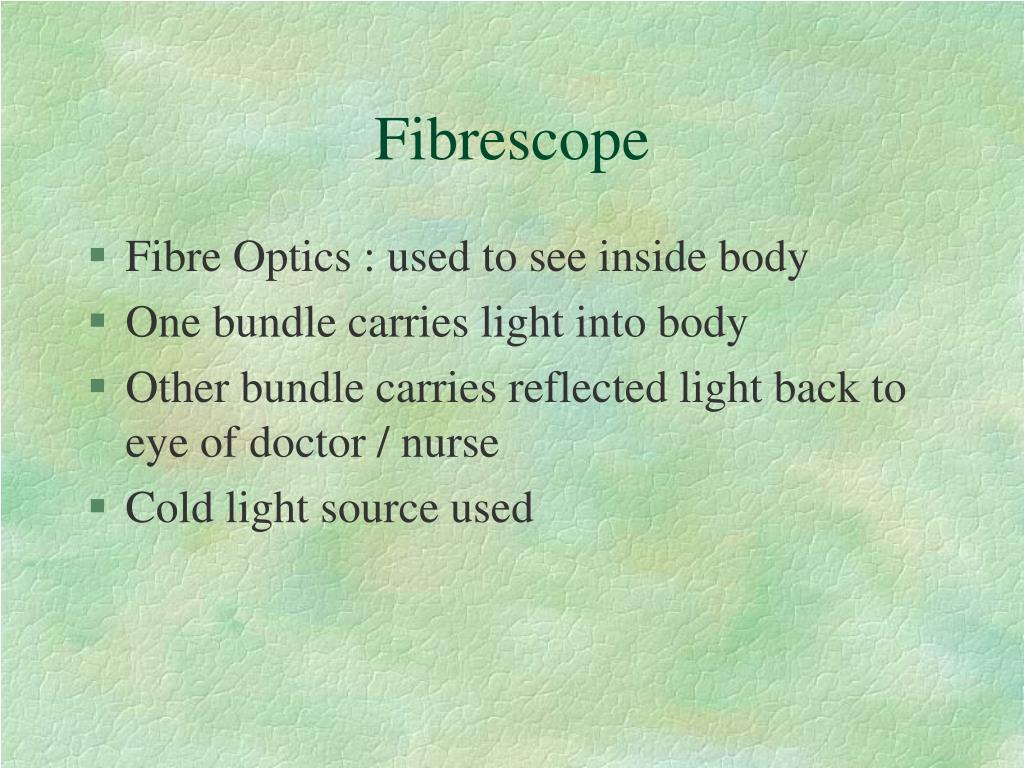

  13. Fibrescope • Fibre Optics : used to see inside body • One bundle carries light into body • Other bundle carries reflected light back to eye of doctor / nurse • Cold light source used

  14. Infra - Red Radiation • I.R. used to treat muscle strains • Hot objects give out I.R. • Cancerous cells are warmer than surrounding healthy ones :show up on thermogram

  15. Ultra Violet Radiation • Needed to produce essential vitamins in body • Exposure can lead to skin cancer • Used to treat acne / skin disorders

  16. X Rays • Blacken photographic plate • Bones absorb x rays but they pass through skin / muscle • CT scan 3D picture built up / allows precise location of problems

  17. Ionising Radiation • Model of Atom Protons and neutrons in nucleus Electrons are around the nucleus somewhere Number of protons equals number of electrons

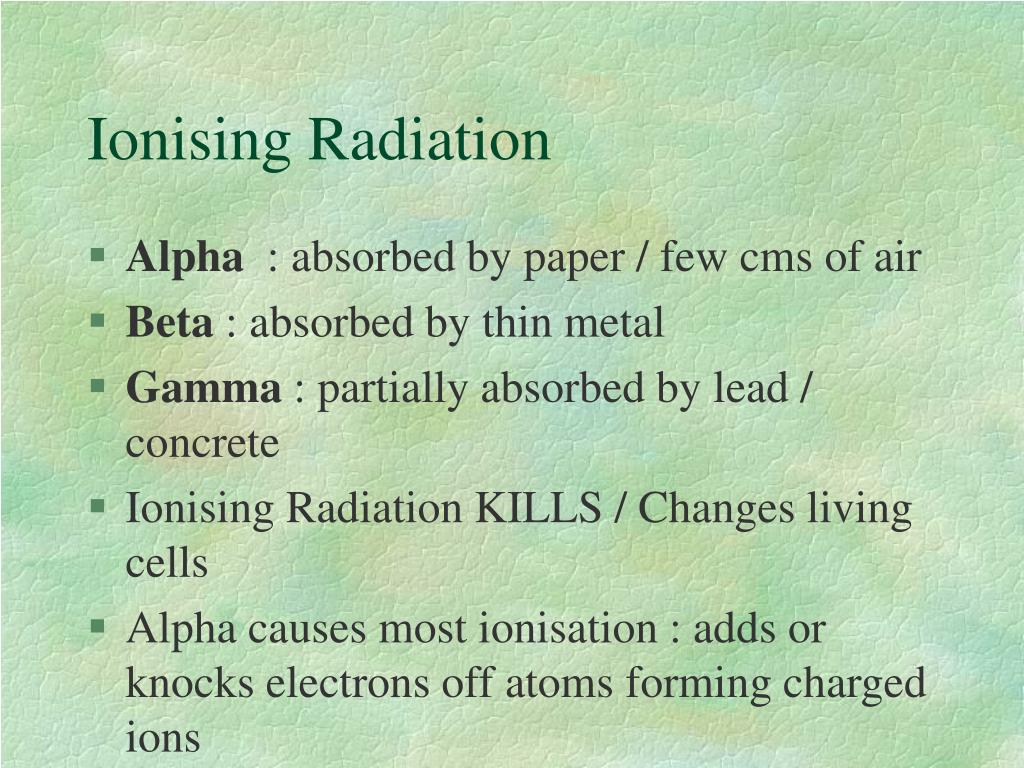

  18. Ionising Radiation • Alpha : absorbed by paper / few cms of air • Beta : absorbed by thin metal • Gamma : partially absorbed by lead / concrete • Ionising Radiation KILLS / Changes living cells • Alpha causes most ionisation : adds or knocks electrons off atoms forming charged ions

  19. Ionising Radiation • Used to • kill bacteria on medical instruments • kill cancerous cells • trace blood flow around body

  20. Ionising Radiation • Nucleus decays( breaks up ) giving out ionising radiation • Activity equals the number of nuclei that break up per second. • Units are Becquerels ( Bq)

  21. Ionising Radiation • Half Life : time for Activity to drop to half its original value • Original activity is 100 Bq then after one half life the activity will drop to 50Bq. After another half life it will drop to 25 Bq and so on.

  22. Half Life Graph Half life is time for activity to fall to half its original value i.e. from 1000 to 500 Bq

  23. Biological effect This depends on • Tissue exposed • Ionising Radiation exposed to • Time exposed for • Energy of ionising radiation Called Absorbed Dose : units Sieverts (Sv) Alpha has greater effect than beta or gamma.
