  1. Chapter 4 • Anesthetic Equipment The purpose, function, use, and maintenance of machines and equipment used to administer inhalation anesthetics

  2. Endotracheal Tubes (ET Tubes) • Flexible tube placed in the trachea • Delivers anesthetic gases directly from the anesthetic machine to the lungs • Advantages Open airway Less anatomical dead space Precision administration of anesthetic agent Prevents pulmonary aspiration Responds to respiratory emergencies Monitors respirations

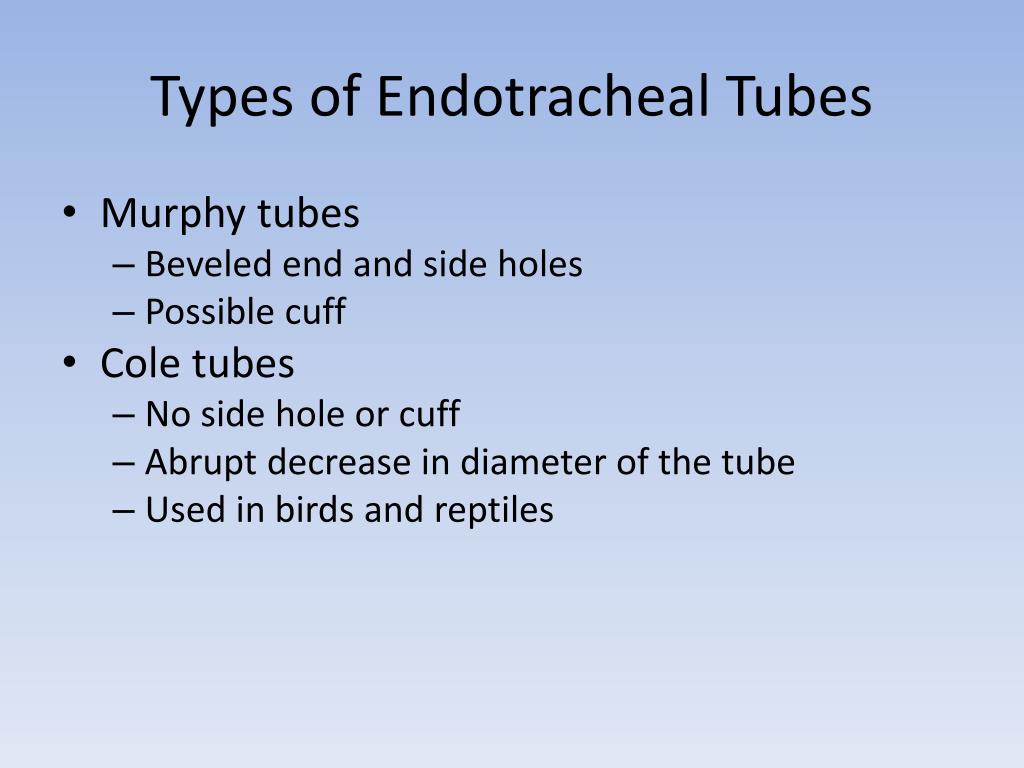

  3. Types of Endotracheal Tubes • Murphy tubes • Beveled end and side holes • Possible cuff • Cole tubes • No side hole or cuff • Abrupt decrease in diameter of the tube • Used in birds and reptiles

  4. Types of Endotracheal Tubes (Cont’d)

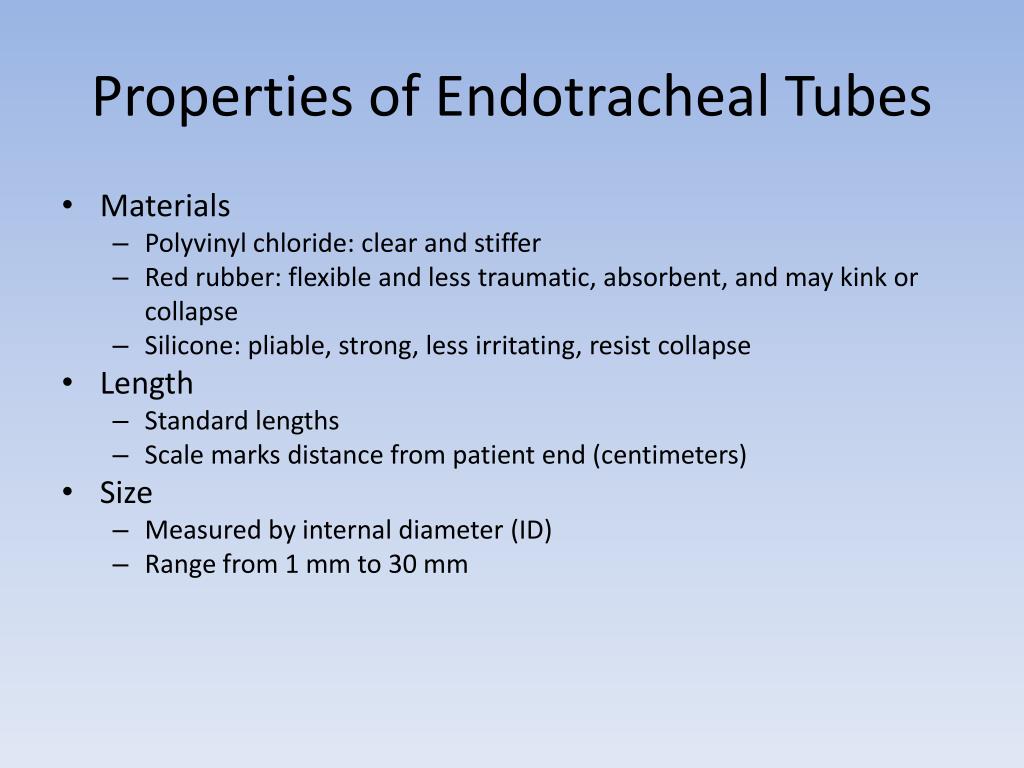

  5. Properties of Endotracheal Tubes • Materials • Polyvinyl chloride: clear and stiffer • Red rubber: flexible and less traumatic, absorbent, and may kink or collapse • Silicone: pliable, strong, less irritating, resist collapse • Length • Standard lengths • Scale marks distance from patient end (centimeters) • Size • Measured by internal diameter (ID) • Range from 1 mm to 30 mm

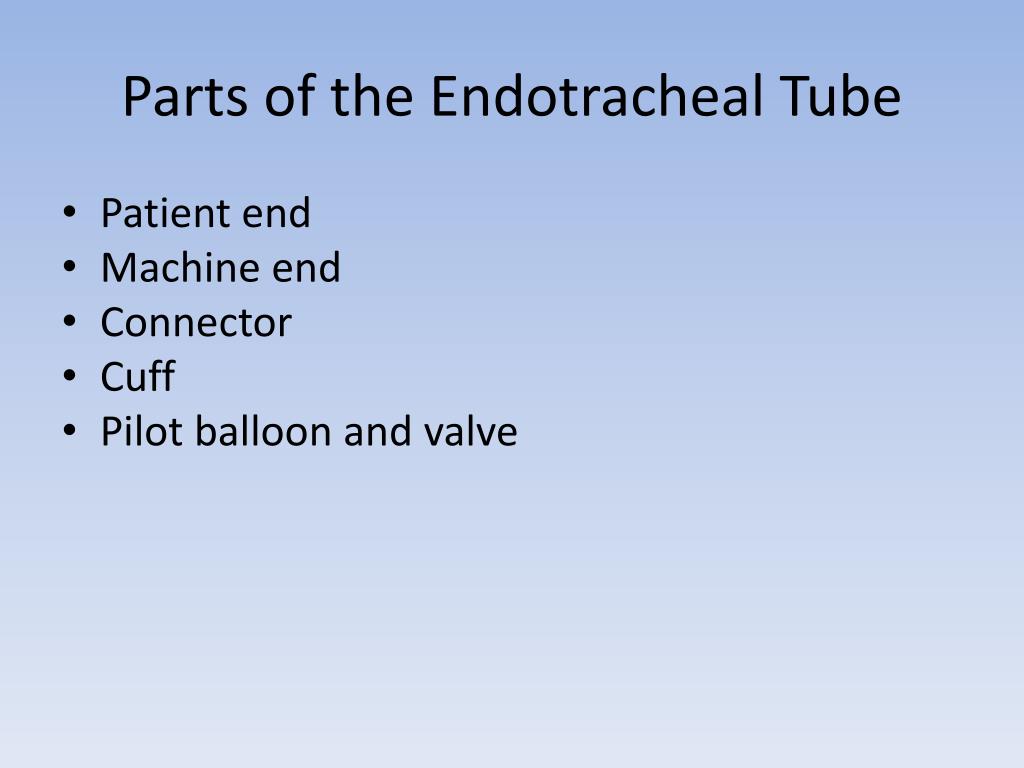

  6. Parts of the Endotracheal Tube • Patient end • Machine end • Connector • Cuff • Pilot balloon and valve

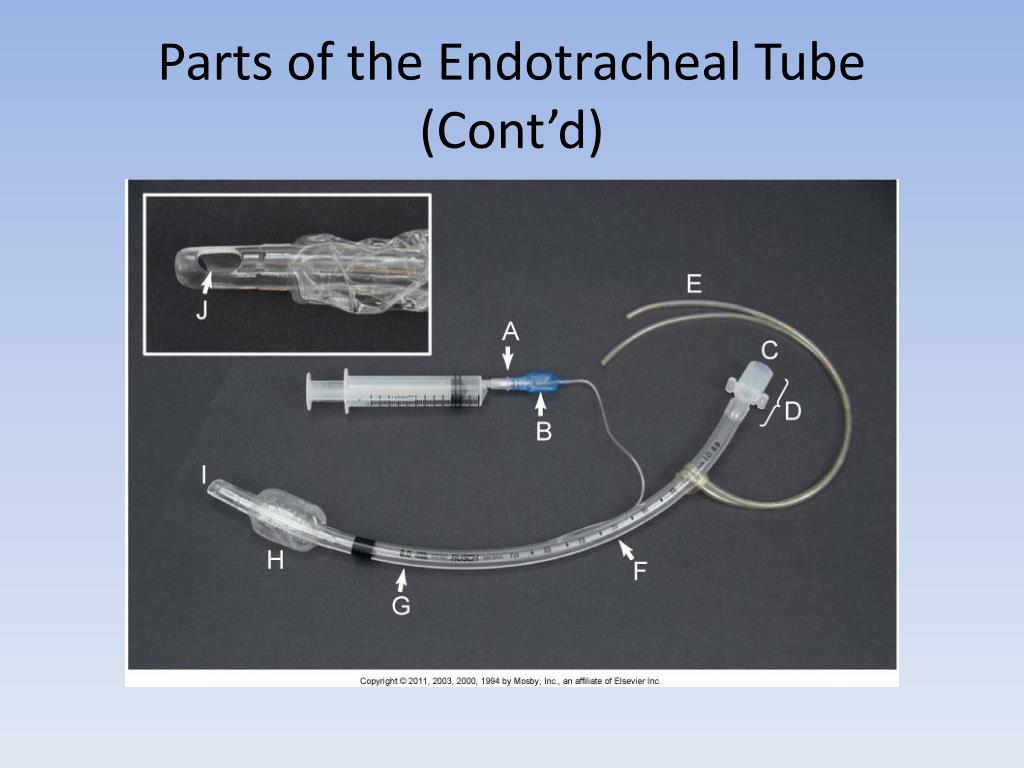

  7. Parts of the Endotracheal Tube (Cont’d)

  8. Laryngoscope • Used to increase the visibility of the larynx while placing an ET tube • Parts • Handle containing batteries • Blade to depress tongue and epiglottis • Light source to illuminate the throat • Sizes • Small animal 0 to 5; large animal up to 18-inch blade • Types • Miller blades • McIntosh blades

  9. Laryngoscopes (Cont’d)

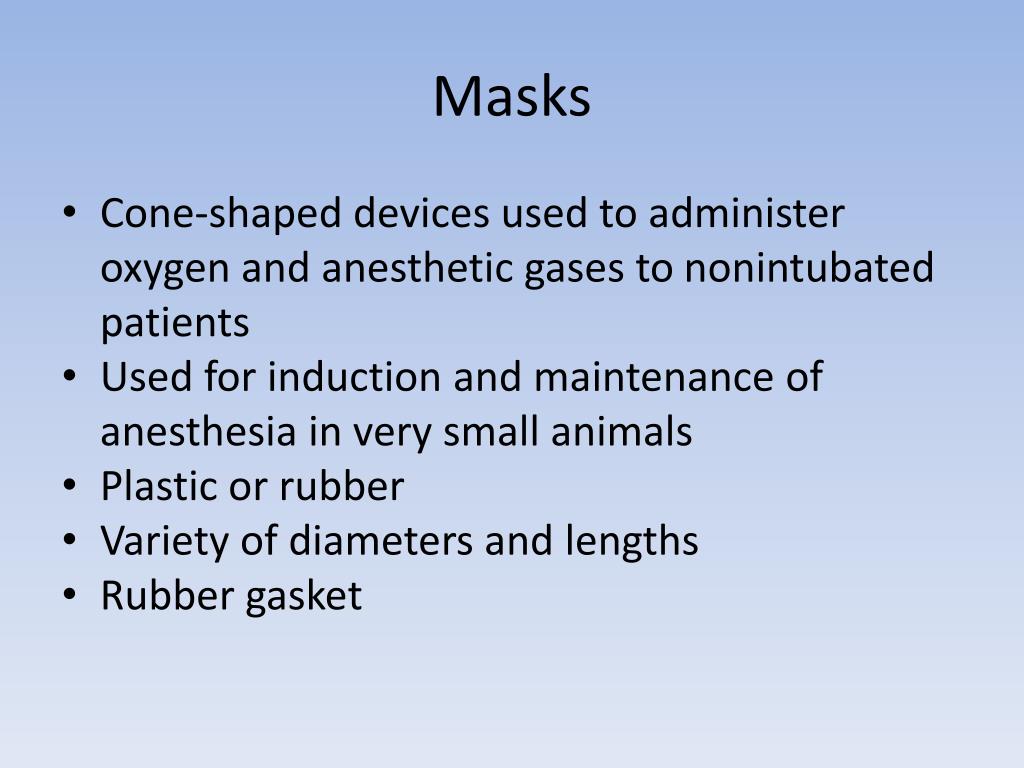

  10. Masks • Cone-shaped devices used to administer oxygen and anesthetic gases to nonintubated patients • Used for induction and maintenance of anesthesia in very small animals • Plastic or rubber • Variety of diameters and lengths • Rubber gasket

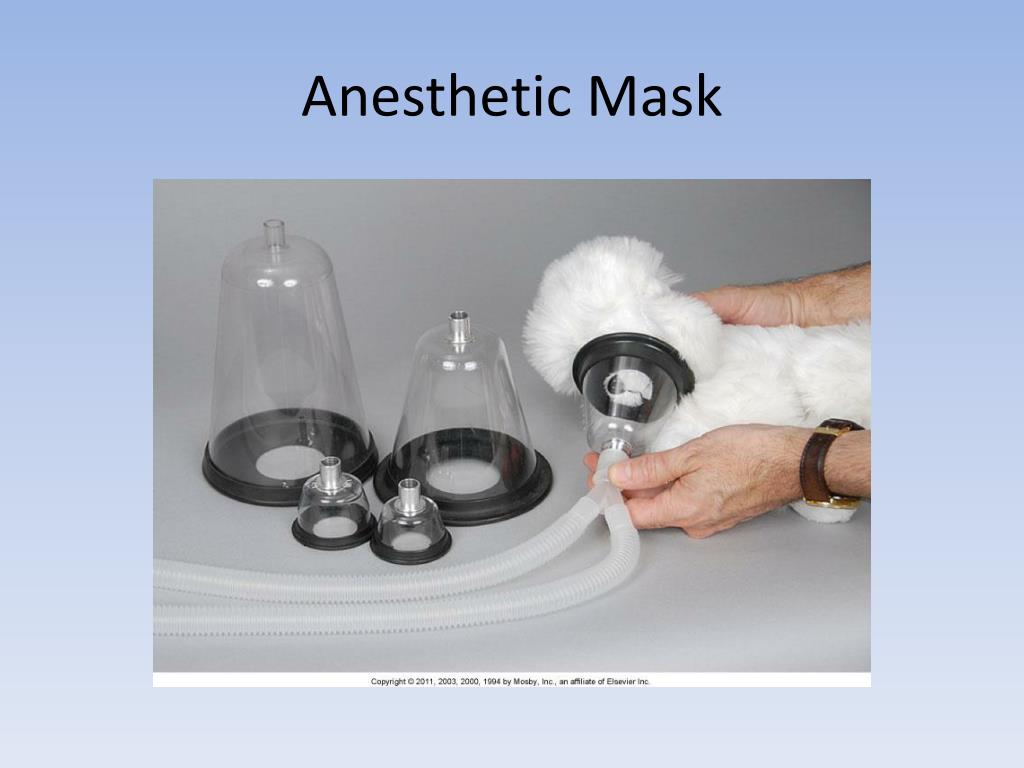

  11. Anesthetic Mask

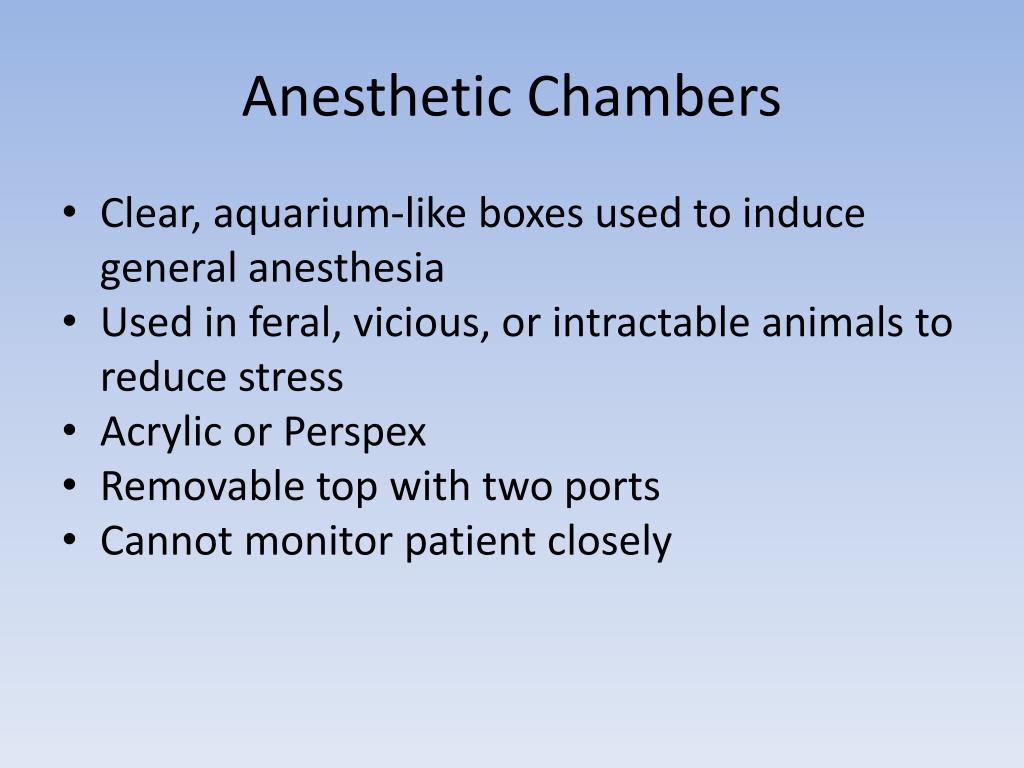

  12. Anesthetic Chambers • Clear, aquarium-like boxes used to induce general anesthesia • Used in feral, vicious, or intractable animals to reduce stress • Acrylic or Perspex • Removable top with two ports • Cannot monitor patient closely

  13. Anesthetic Chamber (Cont’d)

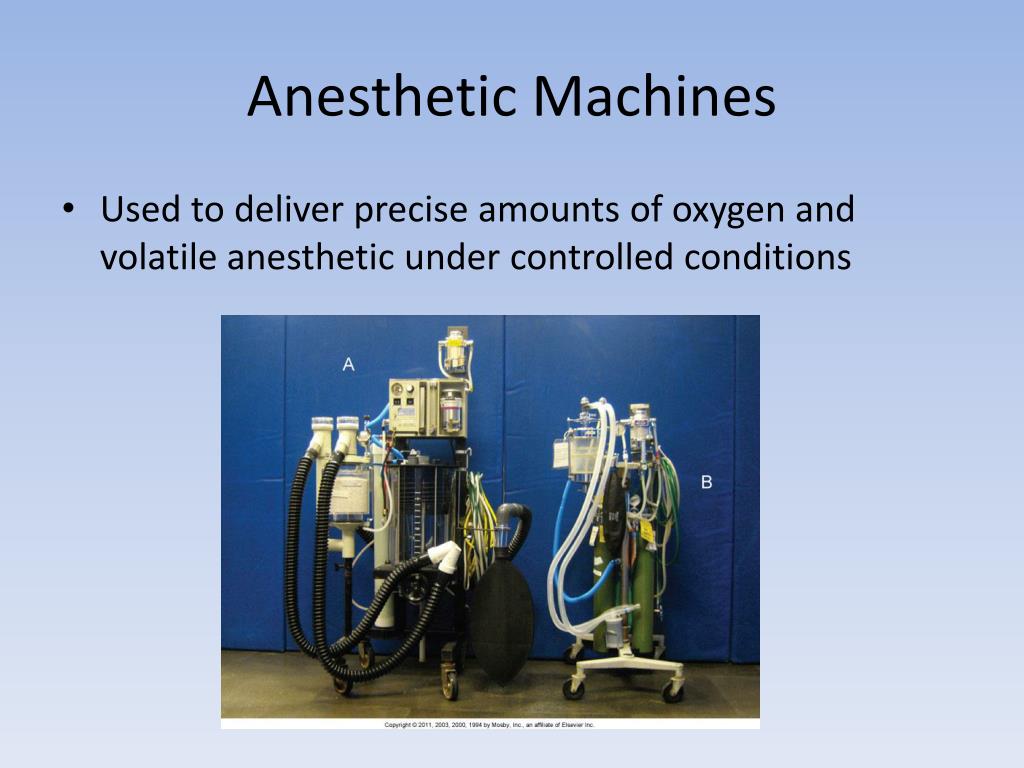

  14. Anesthetic Machines • Used to deliver precise amounts of oxygen and volatile anesthetic under controlled conditions
