  1. Presentation on Product Portfolio By : M&M Ltd. Farm Equipment Sector

  2. Our Vision • To become No. 1 company of the world • To go beyond tractors and offer total farm prosperity to our Customers • To provide Crop wise “Total Agri Solutions” – from land preparation to Harvesting . • Initially 5 crops selceted are – Wheat , Rice , Potato , Sugarcane & Cotton. • Other Crops to get benefited are – Maize , Sunflower , Soybean , Gram & Pulses

  3. Basic Implements Mahindra & Mahindra is the only Tractor Manufacturer in India who provides to its customers specially designed “Matching Implements” so that the tillage operations can be done most scientifically and economically. Some of the Basic Implements being sold by M&M are : • Cultivators • Disc Plough • Mounted Disc Harrow

  4. Advance Implements Besides offering matching Basic Implements , M&M also offers advance Implements . These are : • Hydraulically Reversible MB Plough • Rotavators in J & L type Tynes ( Blades) • Rotary Disc Plough ( under development)

  5. Rotavator (Rotary Tiller)

  6. Rotary Tillers • Regular Rotavator: Gear drive with L-type blades & working width ranging from 1.0m to 1.5m. Digging depth 5-6 inches • Potato Special Rotavator: Chain type with L-type blades & working width ranging from 1.8 m to 2.25m. Digging Depth 8–10 inches • Staggered Blade Rotavator : Specially Designed to handle un-cut paddy straw. Digging depth 6–7 inches. • Rotavator-cum-Seed-cum-fertilizer Drill (under development

  7. Reversible Plough

  8. Reversible Plough High Lights • Fully Hydraulically reversible Ploughs which can be attached to the Tractor hydraulic system either on in-built Auxiliary valve OR through a separate valve • 100% German technology , manufactured under license in India. • Material for Critical parts like Boards , Shears & 2-way cylinder imported from Germany. • Available in 2 sizes – 2 bottom & 3 bottom

  9. Harvesting Machines M&M offers following Harvester Combines to suit various customer segments , which can be equipped with “ Multi Crop Harvesting Kits” to harvest Wheat , Rice , Maize , Sunflower , Soya and Pulses : • Tractor Mounted Harvester • Self Propelled Wheel Type Harvester • Track Type Harvester for wet land Harvesting. • Back-Pack Harvester ( Under Development )

  10. Tractor Mounted Harvester

  11. Tractor Mounted Harvesters • Two Types : 51’ body with 13 ft cutter bar OR 12 ft cutter bar with 48” body , 5 walkers Harvester compatible on Arjun 605 DI with Reverse PTO feature • Multi-crop Harvesting kits providing versatility in harvesting multiple crops (Wheat, Rice, Soy, Gram, sunflower & Maize)

  12. Crawler Type Paddy Harvester

  13. Specifications of Crawler Harvester • Engine : 4 cylinder 72 hp • Transmission : Hydrostatic , German • Track : Make : Bridgestone ; Width : 450 mm • Cutter bar working width : 2.1 meter • Threshing Mechanism : Tangential Axial Flow • Cleaning Mechanism : Multi speed fan & Sieves • Grain Tank Capacity : 1200 kg. • Fuel Tank Capacity : 110 liters

  14. Wheel Type Harvester

  15. Crop wise Specialized Machines 1. Machinery to Handle Rice

  16. Rice Transplanter

  17. Broad Specifications of Transplanter • 4 Rows walk behind type • Row to row 30 cms (Fixed) & plant to plant 13/15/17 cms – Adjustable • Crop Density – 65/75/85 Hills /sq. mts – 2 to 3 plants per hill • Coverage: 3 hours/ acre • Petrol consumption: >1.0 ltr/ hour • Manpower required: Operator- 1 (skilled) Support labour : 2 (unskilled)

  18. Rice Transplanter – Product Specifications

  19. 2. Sugarcane Harvesting Machinery in partnership with

  20. Background • Failure of Big Sugar Cane Harvesters to cut every type of cane under various field conditions , enforced the industry to think of such Machines which were easy to Handle , much Cheaper in cost & cut Cane under all types of conditions with ease. • These Machines should be able to cut as low as possible to the ground so that cane with high percentage of sucrose is available for better recovery. • M&M in partnership with M/S.ESM of Germany , offers 2 unique products to cut Sugarcane . The names are and

  21. ESM are the leaders in sicklebar technology

  22. TECHNICAL DATA • Single Cylinder 5.6kW diesel engine • Consumption = 0.6 litres per hour • 4 forward and 3 reverse gears (1km/hr – 5.5km/hr) • Differential lock • Easy handling • Multi function including grass cutting

  23. TECHNICAL DATA • Connected to 3-point linkage • Adjustable skid heights for cutting on ridges • 170cm double action cutter bar • Belt driven off the PTO • Floating mechanism to follow the soil profile • 2-4 km/hr cutting speed • Multi function including grass mowing.

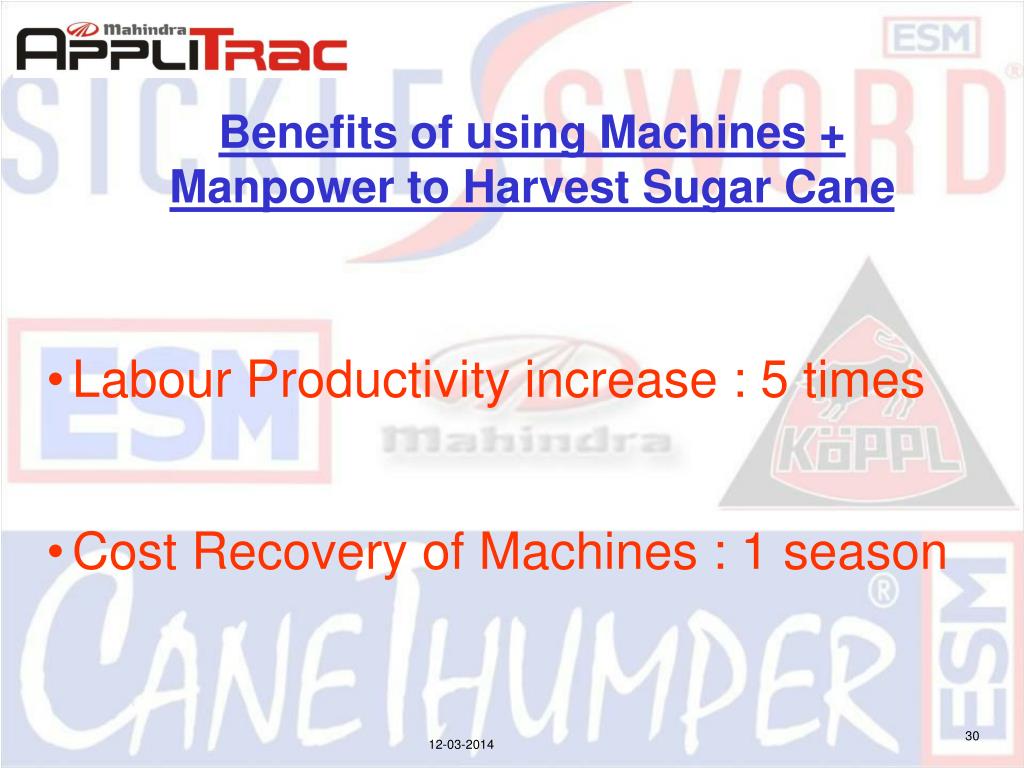

  24. Benefits of using Machines + Manpower to Harvest Sugar Cane • Labour Productivity increase : 5 times • Cost Recovery of Machines : 1 season

  25. Products under development • Potato Potato Planters & Harvesters to suit Indian field conditions & Tractors • Cotton Developing Cotton picker suitable for Indian conditions • Sprayers Sprayers of different types to suit all crops & orchards • Bailers Square & Round Bailers in collaboration with a Japanese Company

  26. For any further inquiry on any of Mahindra Products , please call of write to : Mahindra & Mahindra Limited Farm Equipment Sector, PMMS Department, Gate No:4 , EPU Building Akurli Road , Kandivali (E) MUMBAI – 400 101 Phones: (022) 6648 3868 ; 6648 3893 ; 6648 3875 Contact Person: A.Nabar (9869471323), A.Mishra (9049787871)
