A review of AFTER+ chip Its expected requirements

quynh avatar
quynh
11 diapositives · 234 Views · Sep 18, 2014

The AFTER+ chip is designed with stringent specifications to support various high-performance applications, including ACTAR/GANIL, TPC/GLAD/R3B/FAIR, and more. Key features include 72 analog channels for charge measurement, a charge range of 120fC to 10pC, and configurable peaking time. The architecture supports 511 analog memory cells, multiple readout modes, and a dynamic output range of 2V. This document outlines the detailed requirements including power consumption, timing resolution, and readout frequency, establishing a roadmap for further development of this critical electronic element in global systems.

#a review of after+ chip its expected requirements #a review of after+ chip its expected requirements ppt #powerpoint #presentation
A review of AFTER+ chip Its expected requirements - slide 1
01 / 11A review of AFTER+ chip Its expected requirements
1 / 17

Télécharger la présentation

A review of AFTER+ chip Its expected requirements
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

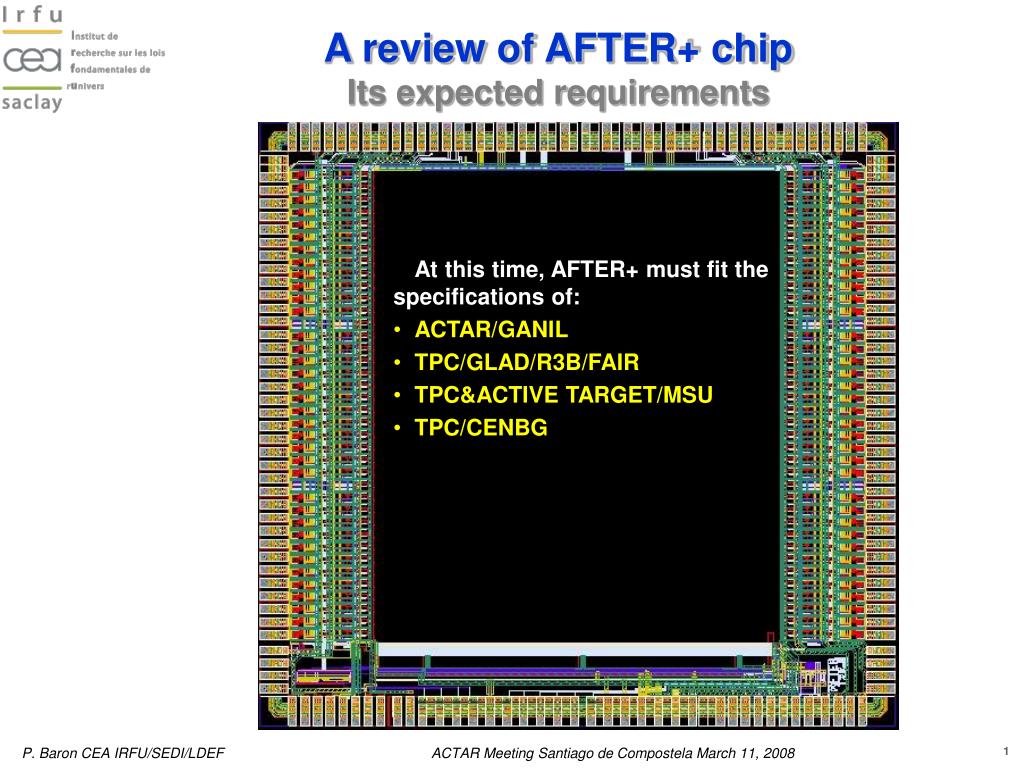

  1. A review of AFTER+ chipIts expected requirements At this time, AFTER+ must fit the specifications of: • ACTAR/GANIL • TPC/GLAD/R3B/FAIR • TPC&ACTIVE TARGET/MSU • TPC/CENBG

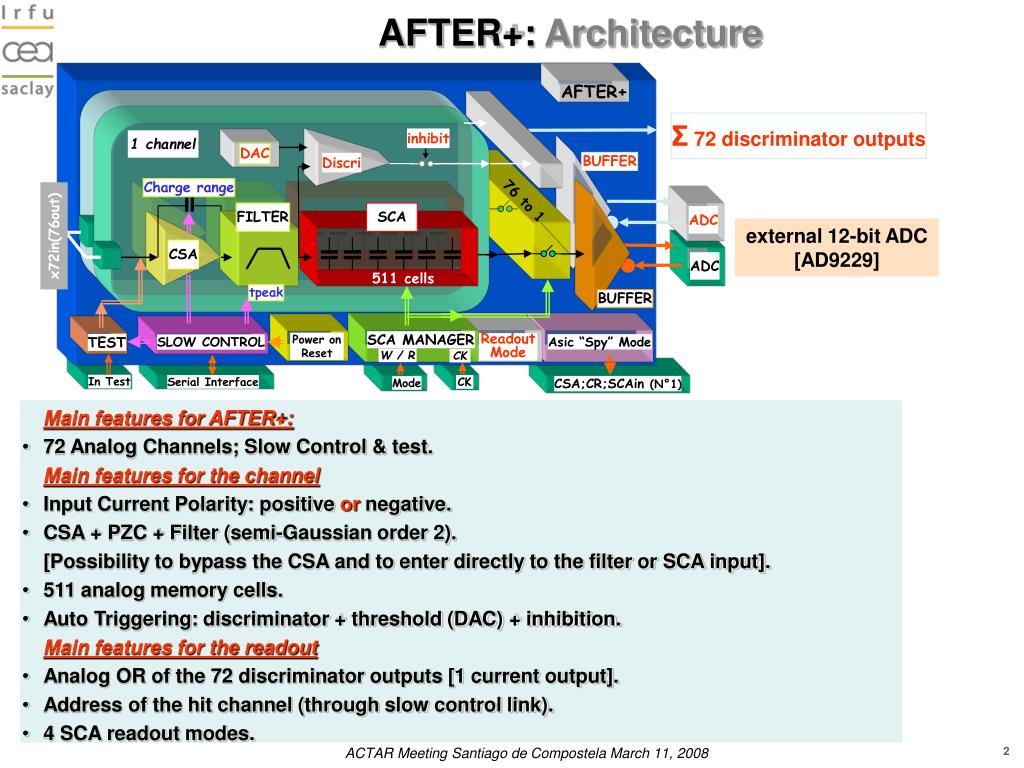

  2. AFTER+ Σ 72 discriminator outputs inhibit 1 channel DAC BUFFER Discri Charge range 76 to 1 FILTER SCA ADC external 12-bit ADC [AD9229] x72in(76out) CSA ADC 511 cells tpeak BUFFER SCA MANAGER Power on Reset Readout Mode TEST Asic “Spy” Mode SLOW CONTROL W / R CK In Test Serial Interface CK CSA;CR;SCAin (N°1) Mode AFTER+: Architecture Main features for AFTER+: • 72 Analog Channels; Slow Control & test. Main features for the channel • Input Current Polarity: positive or negative. • CSA + PZC + Filter (semi-Gaussian order 2). [Possibility to bypass the CSA and to enter directly to the filter or SCA input]. • 511 analog memory cells. • Auto Triggering: discriminator + threshold (DAC) + inhibition. Main features for the readout • Analog OR of the 72 discriminator outputs [1 current output]. • Address of the hit channel (through slow control link). • 4 SCA readout modes.

  3. inhibit DAC Discri ADC DAC AFTER+: Mode of operation Asic management (local or global) Trigger_out AFTER+ Trigger control: multiplicity & detection 1 channel Reset Reset: hit_channel register 76 to 1 x72in(76out) SCA FILTER CSA ADC control BUFFER SCA MANAGER TEST SLOW CONTROL Write Read SCA read: READ & CKread SCA write: Write & CKwrite Slow control: Din, Dout, CK, CS Test: DAC Stop Sampling:on external or local Trigger SCA_in Discri_in Channel i Discri_out Hit_channel Trigger_out Write_SCA Read_Address_hit channel Read_SCA Data_SCA_out Reset SCA write SCA read address read SCA write

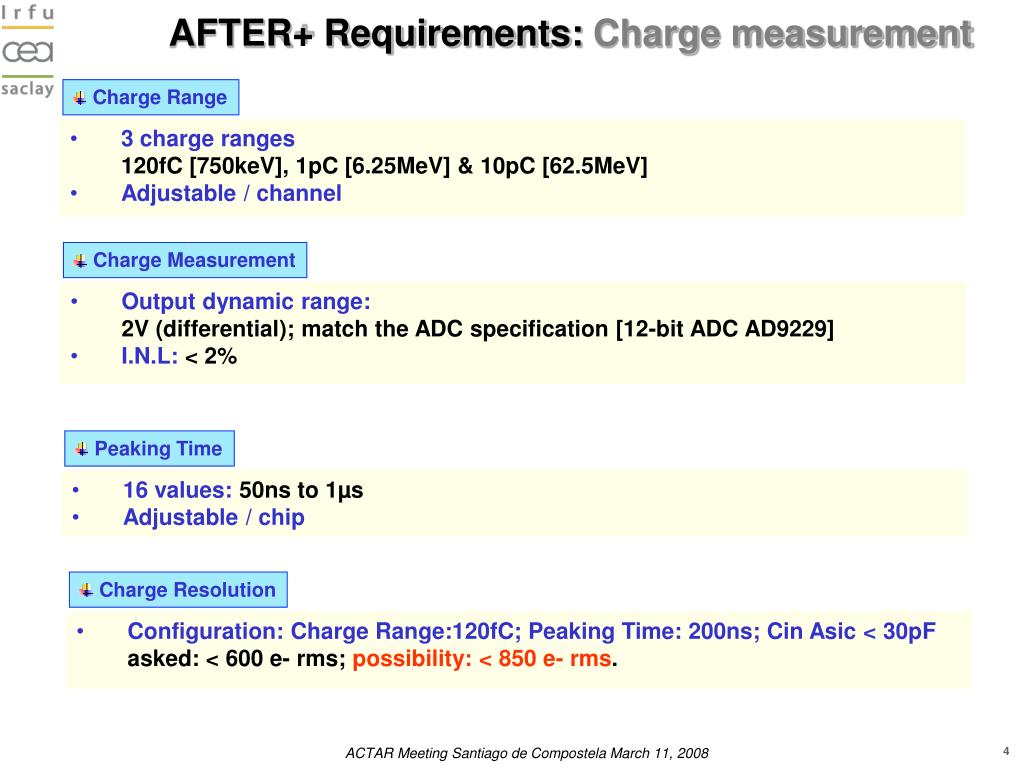

  4. AFTER+ Requirements: Charge measurement • Charge Range • 3 charge ranges • 120fC [750keV], 1pC [6.25MeV] & 10pC [62.5MeV] • Adjustable / channel • Charge Measurement • Output dynamic range: • 2V (differential); match the ADC specification [12-bit ADC AD9229] • I.N.L: < 2% • Peaking Time • 16 values: 50ns to 1µs • Adjustable / chip • Charge Resolution • Configuration: Charge Range:120fC; Peaking Time: 200ns; Cin Asic < 30pF • asked: < 600 e- rms; possibility: < 850 e- rms.

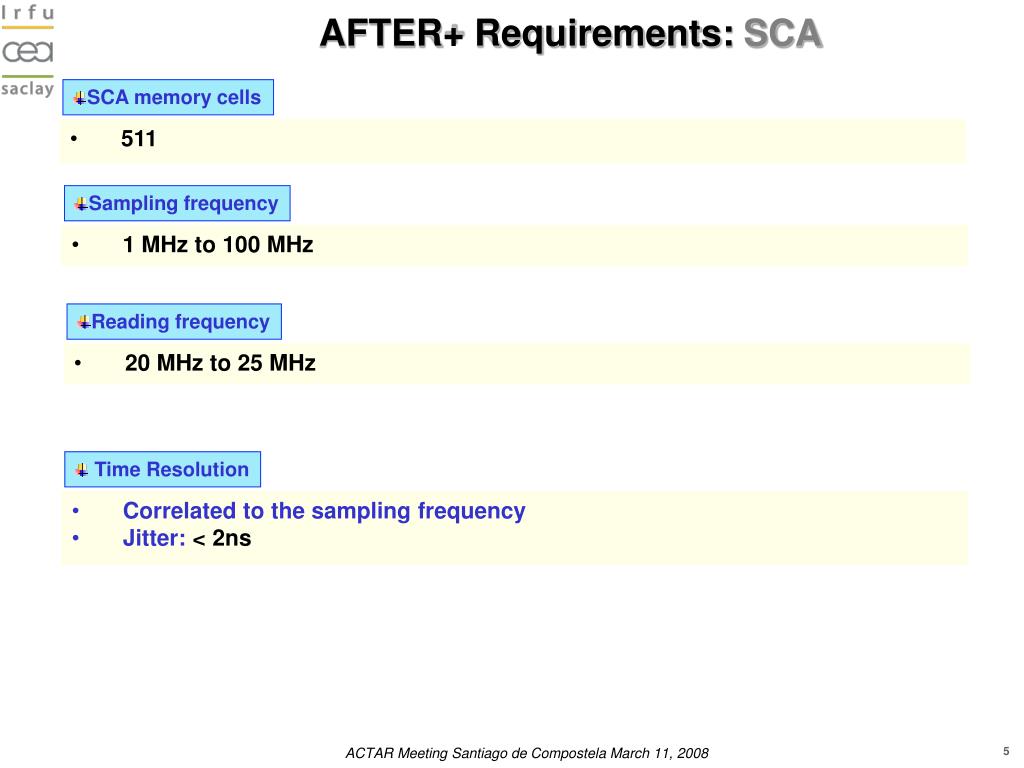

  5. Sampling frequency • Reading frequency • 1 MHz to 100 MHz • 20 MHz to 25 MHz AFTER+ Requirements: SCA • SCA memory cells • 511 • Time Resolution • Correlated to the sampling frequency • Jitter: < 2ns

  6. OR_hit channel Iin Iin Iin Iin I=Iin I=Iin I=Iin I=Iin 72 xIin Hit channel i Hit channel 01 Hit channel 72 Hit channel 02 Iin Slow Control Register (2 bits) AFTER+ Requirements: trigger • Discriminator solution • L.E.D • Inhibition: / channel • Trigger output • Current: Σ 72 discriminators • Trigger time resolution • The trigger time resolution will be dependent on the input charge, threshold & peaking time value => no spec.

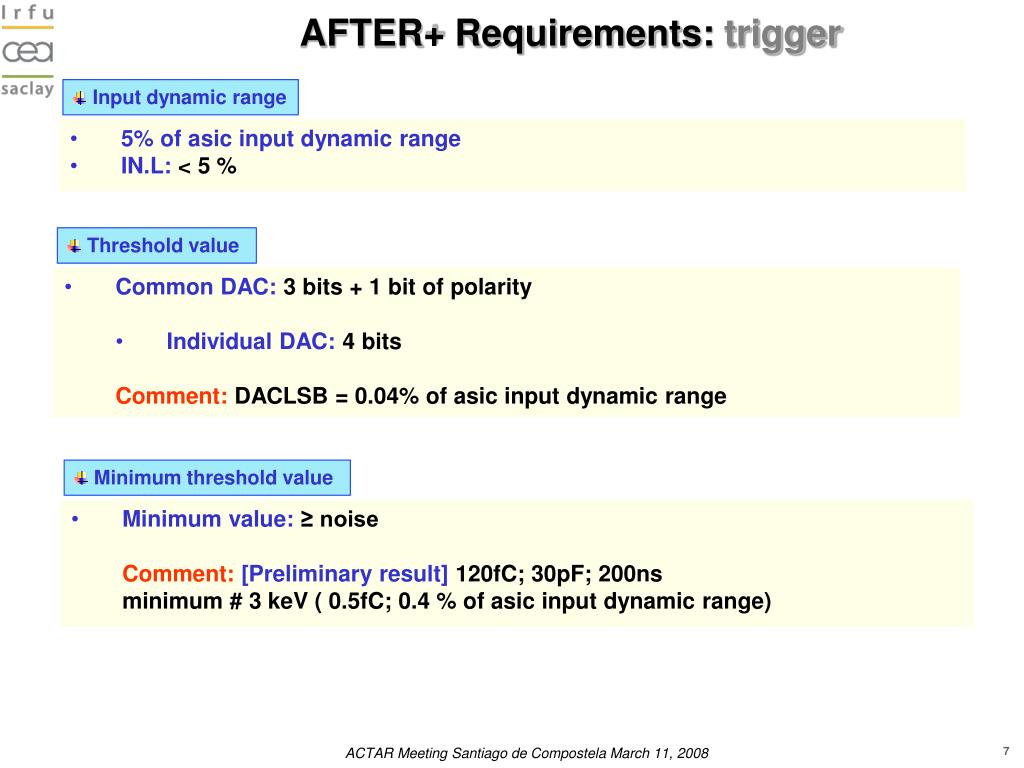

  7. AFTER+ Requirements: trigger • Input dynamic range • 5% of asic input dynamic range • IN.L: < 5 % • Threshold value • Common DAC: 3 bits + 1 bit of polarity • Individual DAC: 4 bits • Comment: DACLSB = 0.04% of asic input dynamic range • Minimum threshold value • Minimum value: ≥ noise • Comment: [Preliminary result] 120fC; 30pF; 200ns • minimum # 3 keV ( 0.5fC; 0.4 % of asic input dynamic range)

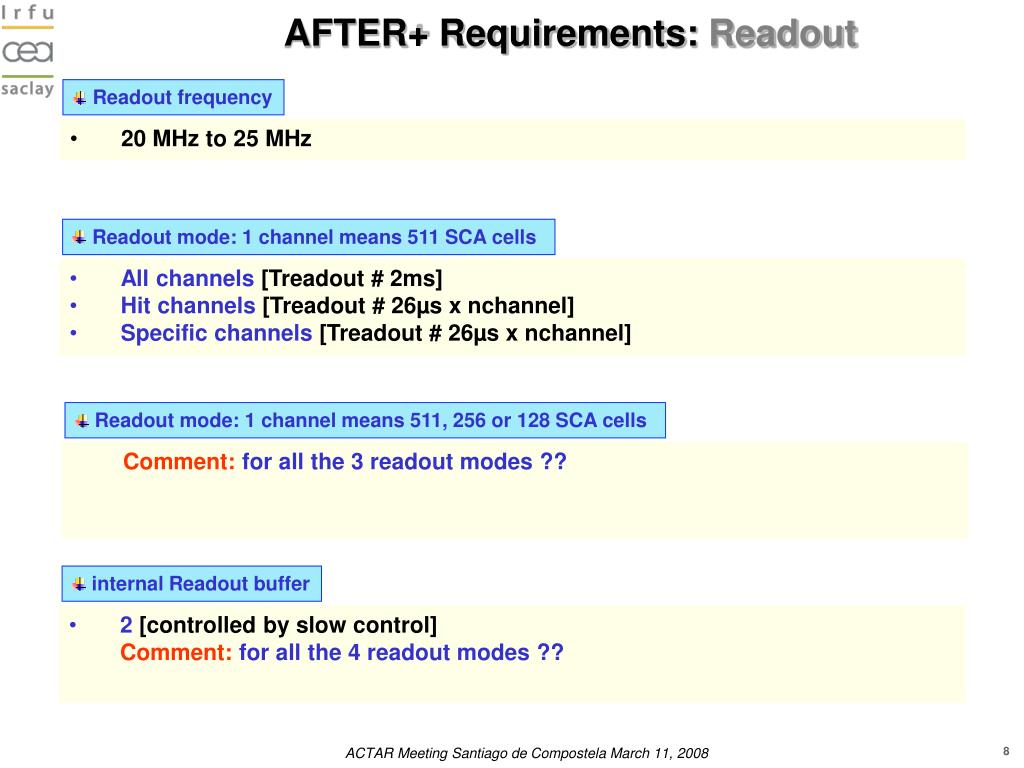

  8. Readout mode: 1 channel means 511 SCA cells • All channels [Treadout # 2ms] • Hit channels [Treadout # 26µs x nchannel] • Specific channels [Treadout # 26µs x nchannel] • internal Readout buffer • 2 [controlled by slow control] • Comment: for all the 4 readout modes ?? AFTER+ Requirements: Readout • Readout frequency • 20 MHz to 25 MHz • Readout mode: 1 channel means 511, 256 or 128 SCA cells • Comment: for all the 3 readout modes ??

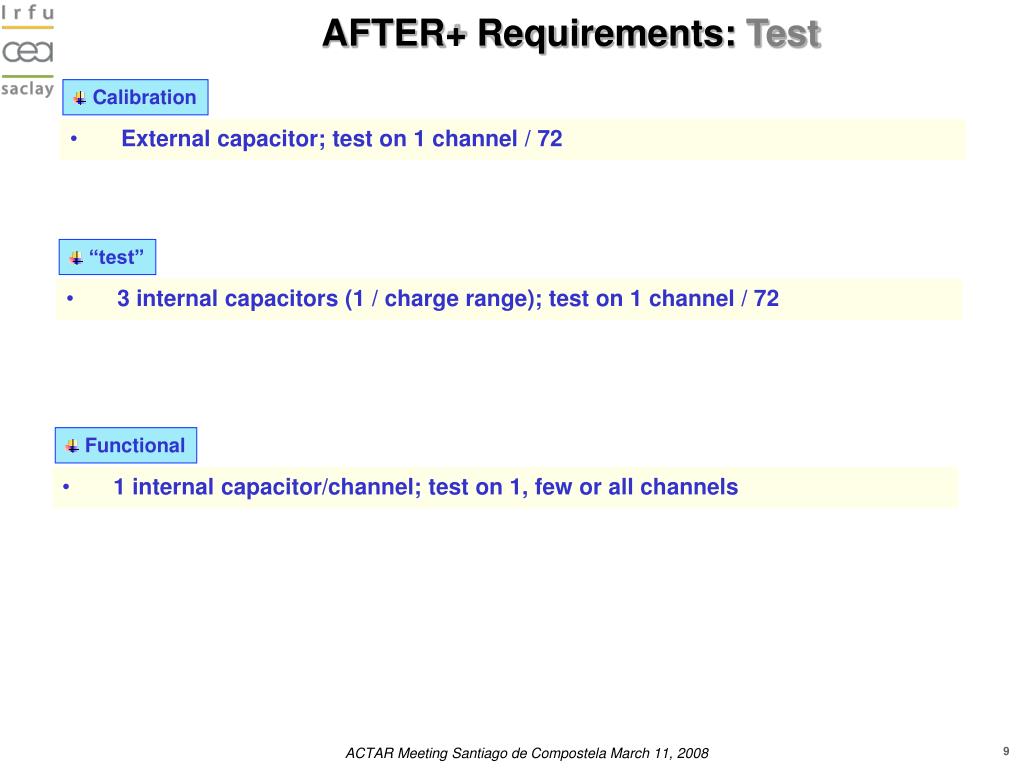

  9. Calibration • External capacitor; test on 1 channel / 72 AFTER+ Requirements: Test • “test” • 3 internal capacitors (1 / charge range); test on 1 channel / 72 • Functional • 1 internal capacitor/channel; test on 1, few or all channels

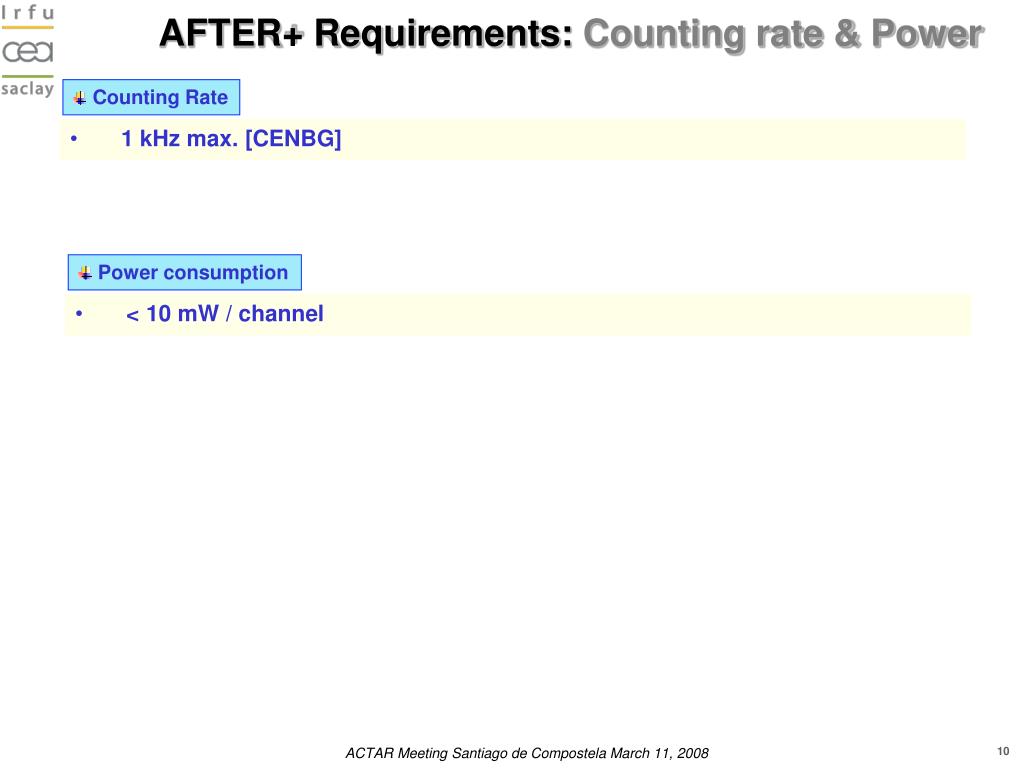

  10. Counting Rate • 1 kHz max. [CENBG] AFTER+ Requirements: Counting rate & Power • Power consumption • < 10 mW / channel

  11. AFTER+ Requirements: Conclusion • The design of the chip could be started if all the requirements are defined, approved and fixed. • Don’t forget that this chip is only one element of the global readout electronic. • Generally, the specifications for the asic and the global electronic architecture are defined in the same time.
