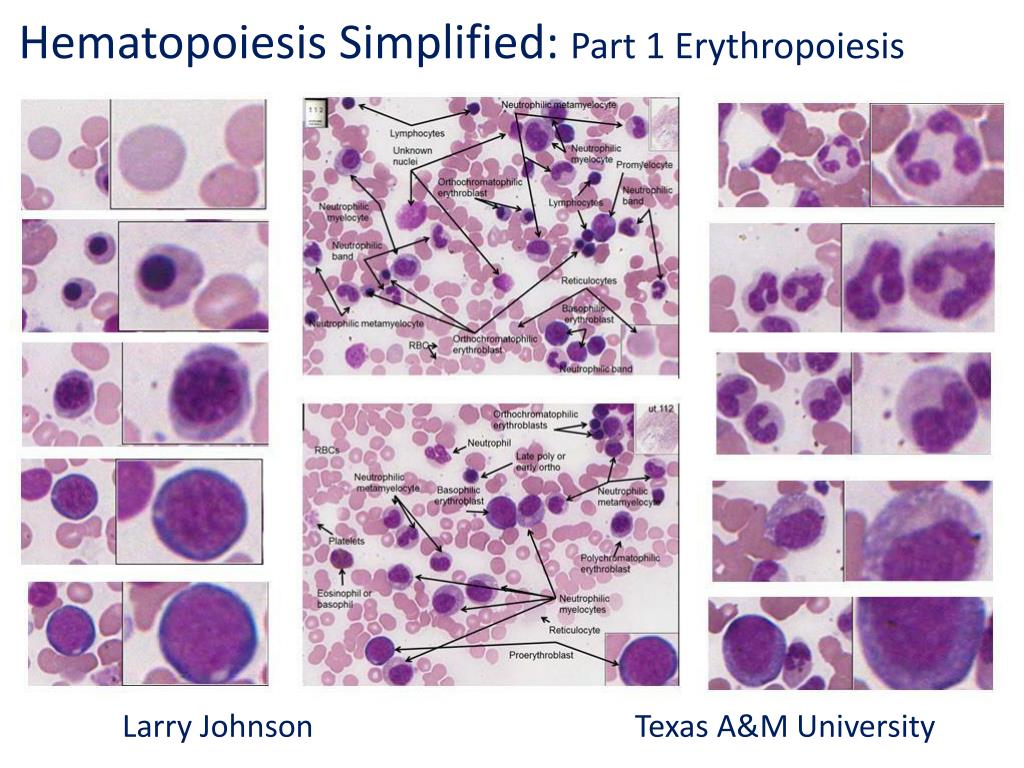

Hematopoiesis Simplified: Part 1 Erythropoiesis. Larry Johnson Texas A&M University. Hematopoiesis Simplified: Part 1 Erythropoiesis. Objectives are to: Identify the developmental cells of erythropoiesis

rance
Télécharger la présentation

Hematopoiesis Simplified: Part 1 Erythropoiesis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Hematopoiesis Simplified: Part 1 Erythropoiesis Larry Johnson Texas A&M University

  2. Hematopoiesis Simplified: Part 1 Erythropoiesis Objectives are to: • Identify the developmental cells of erythropoiesis • Characterize developmental changes in the cytoplasm and nucleus of these cells Bone marrow 32583 Blood vessel

  3. 19761 Bone marrow Blood in vessel

  4. Peripheral blood 21 Erythrocytes Reticulocytes

  5. Erythropoiesis Erythrocytes No nucleus and red cytoplasm Reticulocytes No nucleus and blue - grey cytoplasm Dark, small, spherical nucleus blue – grey cytoplasm Orthochromatophilic erythroblasts Darkening, fractured ,spherical nucleus and mixed pools of grey and blue cytoplasm Polychromatophilic erythroblasts Fractured, spherical nucleus and thin rim of dark blue cytoplasm Basophilic erythroblasts Uniformly light, spherical nucleus with thin rim of medium to dark blue cytoplasm Proerythroblasts

  6. McGraw-Hill Companies

  7. Erythropoiesis Proerythroblasts Erythrocytes Reticulocytes Orthochromatophilic erythroblasts Basophilic erythroblasts Polychromatophilic erythroblasts Erythropoiesis

  8. Orthochromatophilic erythroblasts Erythrocytes

  9. Erythrocyte Proerythroblast Reticulocytes Orthochromatophilic erythroblast Basophilic erythroblast Polychromatophilic erythroblast Erythropoiesis

  10. Polychromatophilic erythroblasts

  11. Erythrocyte Proerythroblast Reticulocytes Orthochromatophilic erythroblast Basophilic erythroblast Polychromatophilic erythroblast Erythropoiesis

  12. Basophilic erythroblast

  13. Erythrocyte Proerythroblast Reticulocytes Orthochromatophilic erythroblast Basophilic erythroblast Polychromatophilic erythroblast Erythropoiesis

  14. Proerythroblasts

  15. Erythropoiesis Orthochromatophilic erythroblasts Erythrocytes Reticulocytes

  16. Earlyorthochromatophilic erythroblasts Latepolychromatophilic erythroblasts

  17. Polychromatophilic erythroblasts Earlypolychromatophilic erythroblasts

  18. Basophilic erythroblasts Proerythroblasts

  19. ut 112 Orthochromatophilic erythroblasts RBCs Latepolychromatophilic erythroblast Basophilic erythroblast platelets Polychromatophilic erythroblast Reticulocyte Erythrocytes Eosinophil or basophil Proerythroblast

  20. Bone marrow Reticulocyte entering blood vessel Blood vessel 32583

  21. The End of Hematopoiesis Simplified: Part 1 Erythropoiesis

  22. Granulopoiesis is next

  23. Hematopoiesis Simplified: Part 2 Granulopoiesis Larry Johnson Texas A&M University

  24. Hematopoiesis Simplified: Part 2 Granulopoiesis Objectives are to: • Identify the developmental cells of granulopoiesis • Characterize developmental changes in the cytoplasm and nucleus of these cells Bone marrow 32583

  25. 19761 Bone marrow Blood Blood

  26. ` 32583 Bone marrow Developing granulocytes

  27. Peripheral blood 21

  28. Granulopoiesis Lobulated, dark nucleus, mature grey cytoplasm with small granules Neutrophils Neutrophilic band or stab cells Horse-shoe shaped, darkening nucleus, grey mature cytoplasm Neutrophilic metamyelocytes Oval to kidney bean-shaped, indented nucleus, grey mature cytoplasm with a weak blue tent Large, oval, non-indented nucleus, large amount of cytoplasm with specific and non-specific granules Neutrophilic myelocytes Large, oval, non-indented nucleus, large amount of sky blue cytoplasm with non-specific granules Promyelocytes

  29. Granulopoiesis Neutrophils Promyelocytes Neutrophilic band cells Neutrophilic myelocytes Neutrophilicmetamyelocytes

  30. ut 112 Neutrophil Neutrophilic metamyelocytes Neutrophilic metamyelocyte Platelets Eosinophil or basophil Neutrophilic myelocytes

  31. Neutrophils Promyelocytes Neutrophilic band cells Neutrophilic myelocytes Neutrophilicmetamyelocytes Granulopoiesis

  32. Neutrophilicmetamyelocytes Lymphocytes Neutrophilicmyelocytes Unknown nuclei Promyelocyte Neutrophilic band cells Lymphocytes Neutrophilic myelocytes Neutrophilic band cells Neutrophilic metamyelocytes Neutrophilic band cell

  33. Neutrophilicband cells Neutrophils Granulopoiesis

  34. Neutrophilic metamyelocytes Earlyneutrophilic metamyelocytes

  35. Neutrophilicmyelocytes

  36. Latepromyelocytes Promyelocyte

  37. Neutrophilic metamyelocytes Unknown nuclei Neutrophilic myelocytes Neutrophilic band cells Neutrophilic metamyelocytes Proerythroblast Orthochromatophilic erythroblasts Orthochromatophilic erythroblasts Eosinophils or basophils

  38. Bone marrow 32583 White blood cell entering a blood vessel Blood vessel Blood vessel

  39. The End of Hematopoiesis Simplified: Part 2 Granulopoiesis
