  1. Digital to Analog (D/A) Converter Discussion D2.2

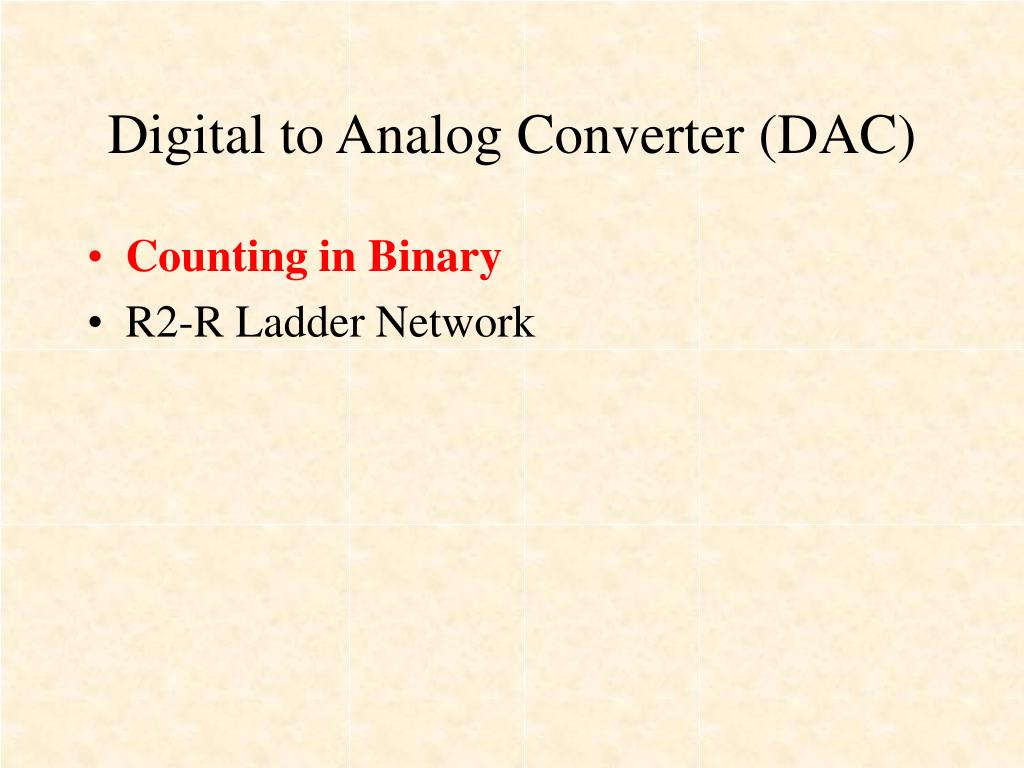

  2. Digital to Analog Converter (DAC) • Counting in Binary • R2-R Ladder Network

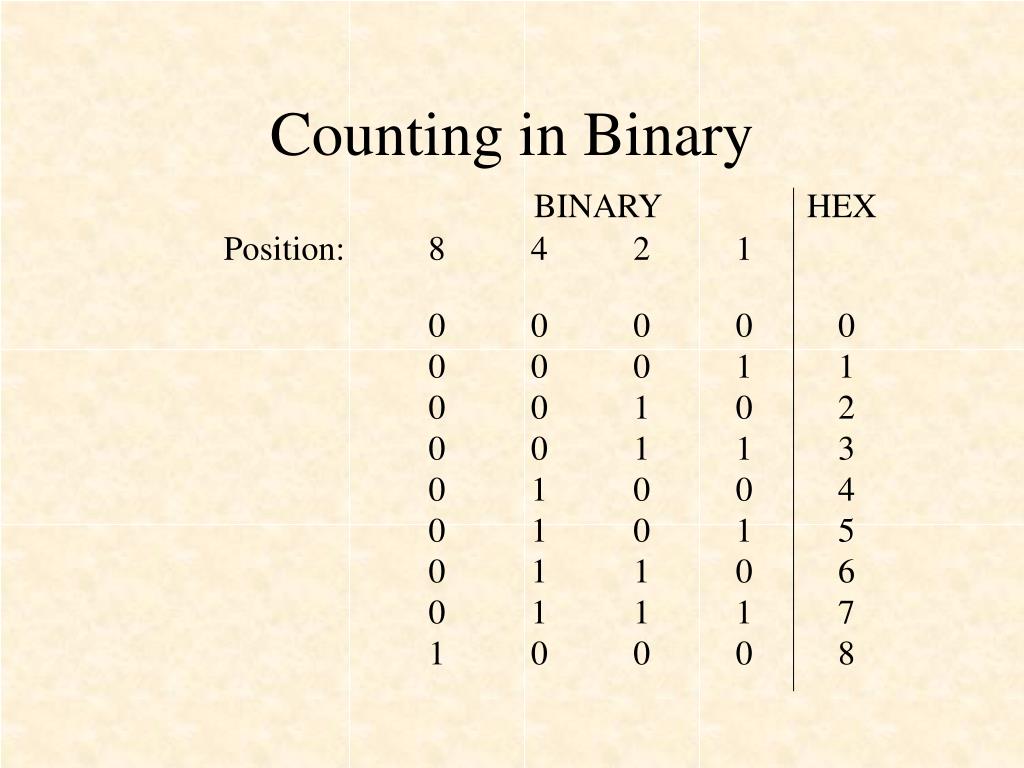

  3. Counting in Binary BINARY HEX Position: 8 4 2 1 0 0 0 0 0 0 0 0 1 1 0 0 1 0 2 0 0 1 1 3 0 1 0 0 4 0 1 0 1 5 0 1 1 0 6 0 1 1 1 7 1 0 0 0 8

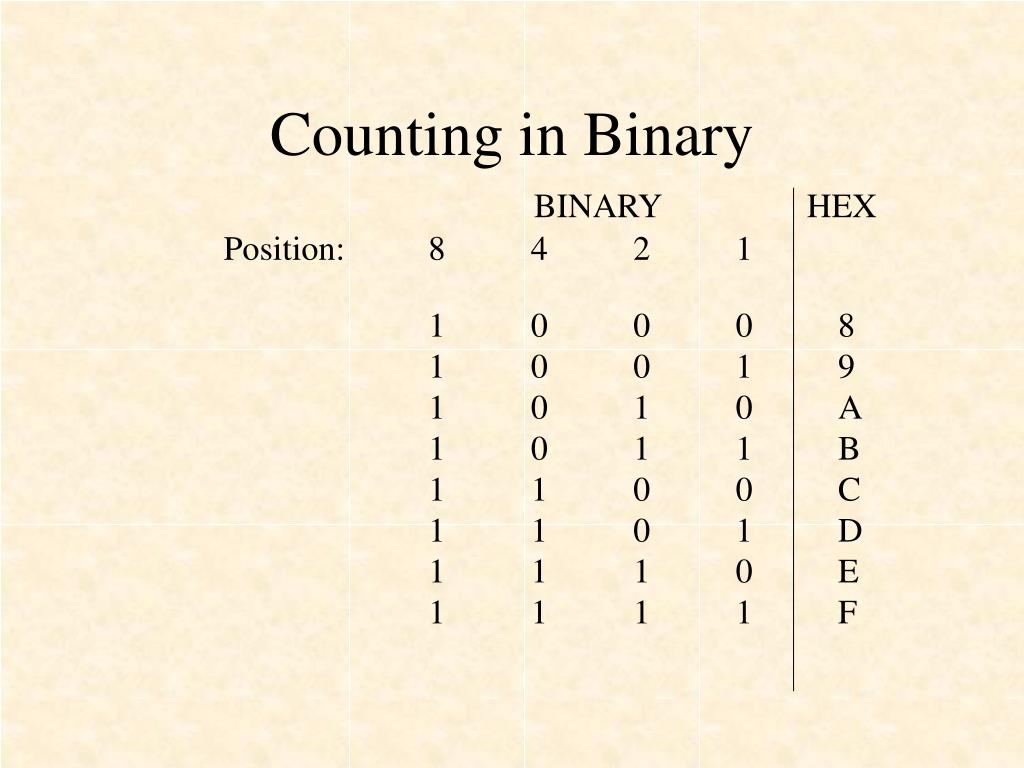

  4. Counting in Binary BINARY HEX Position: 8 4 2 1 1 0 0 0 8 1 0 0 1 9 1 0 1 0 A 1 0 1 1 B 1 1 0 0 C 1 1 0 1 D 1 1 1 0 E 1 1 1 1 F

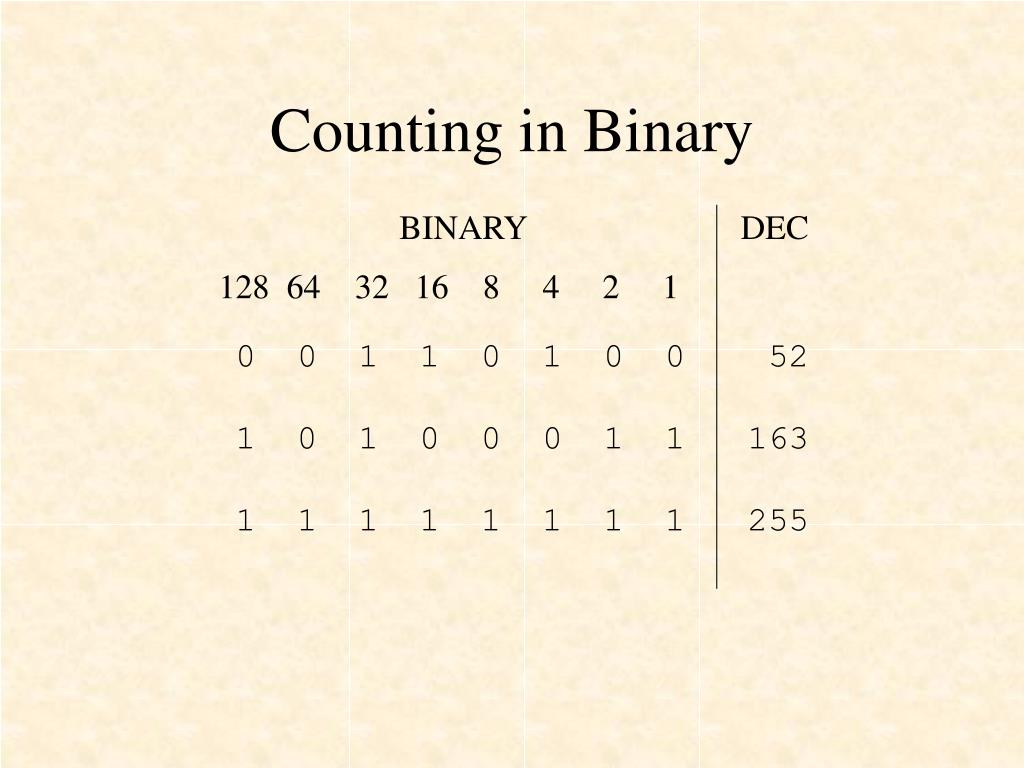

  5. Counting in Binary BINARY DEC 128 64 32 16 8 4 2 1 0 0 1 1 0 1 0 0 52 1 0 1 0 0 0 1 1 163 1 1 1 1 1 1 1 1 255

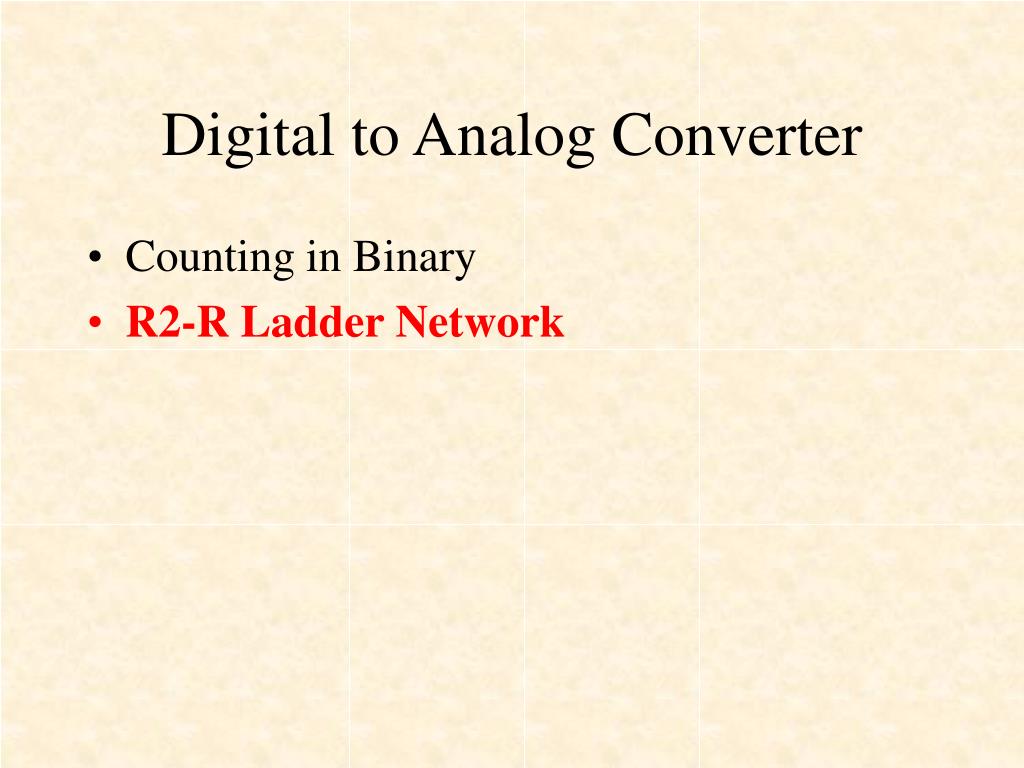

  6. Digital to Analog Converter • Counting in Binary • R2-R Ladder Network

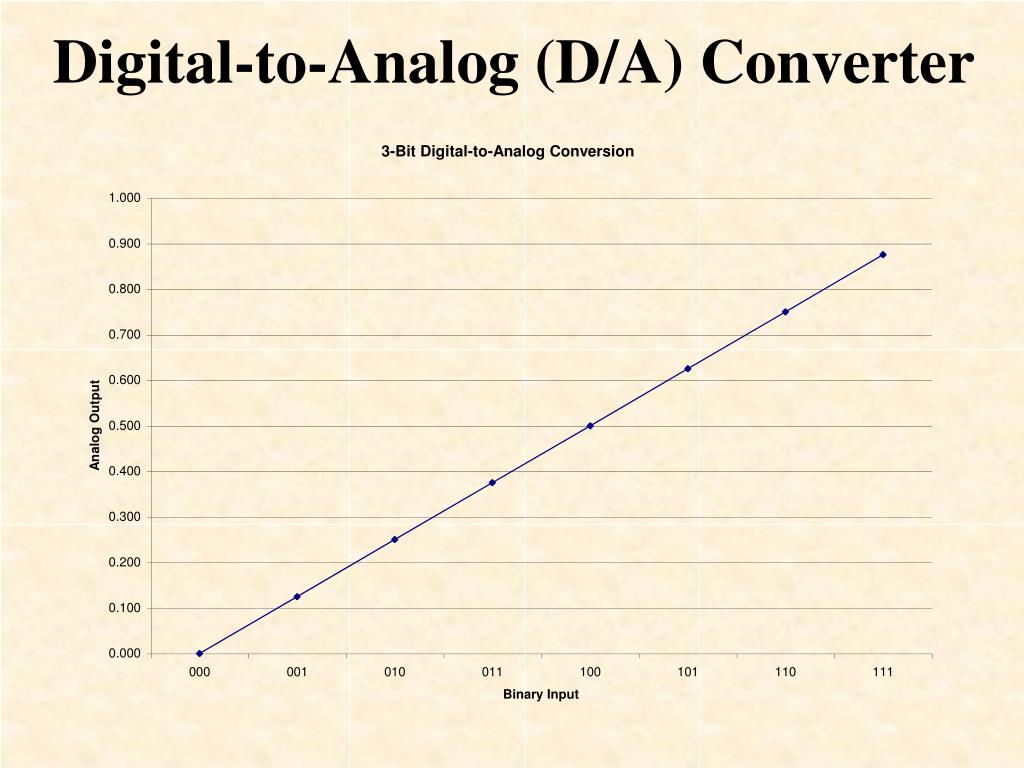

  7. Digital-to-Analog (D/A) Converter

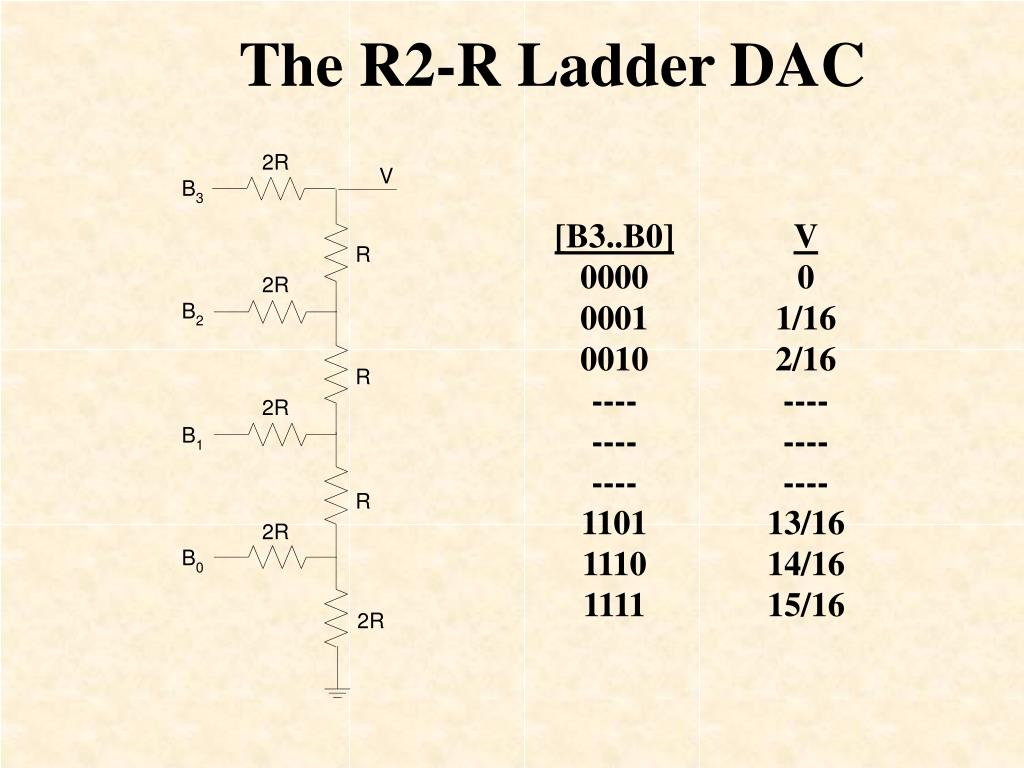

  8. The R2-R Ladder DAC [B3..B0] 0000 0001 0010 ---- ---- ---- 1101 1110 1111 V 0 1/16 2/16 ---- ---- ---- 13/16 14/16 15/16

  9. 3-bit R2-R Ladder Network KCL

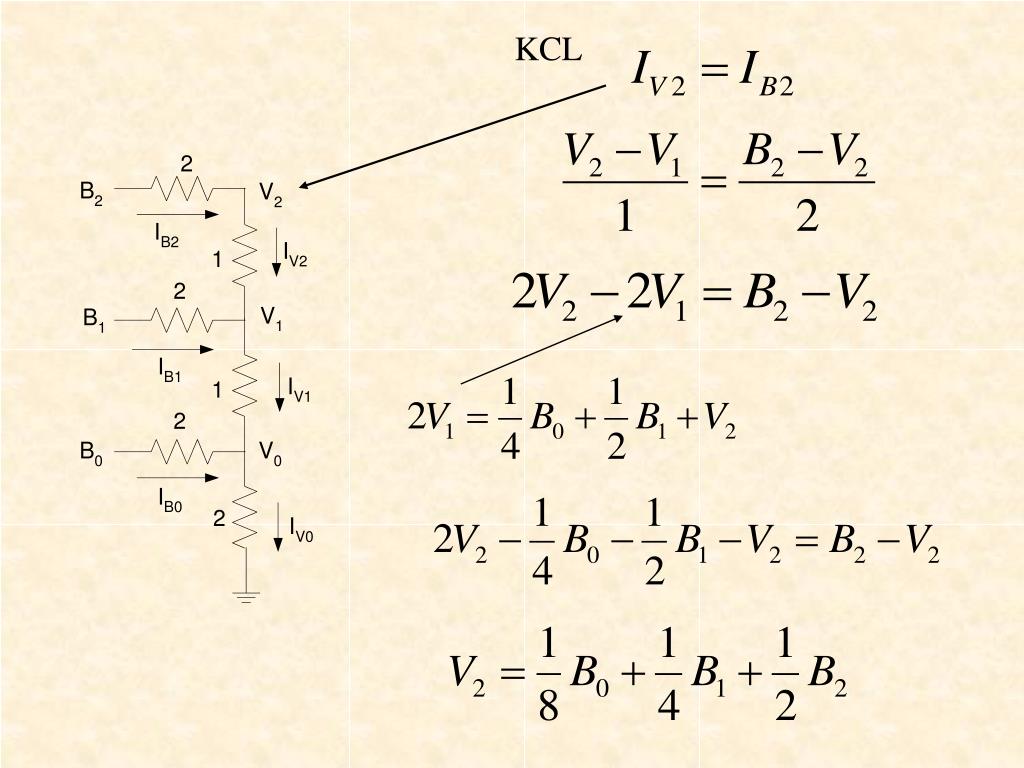

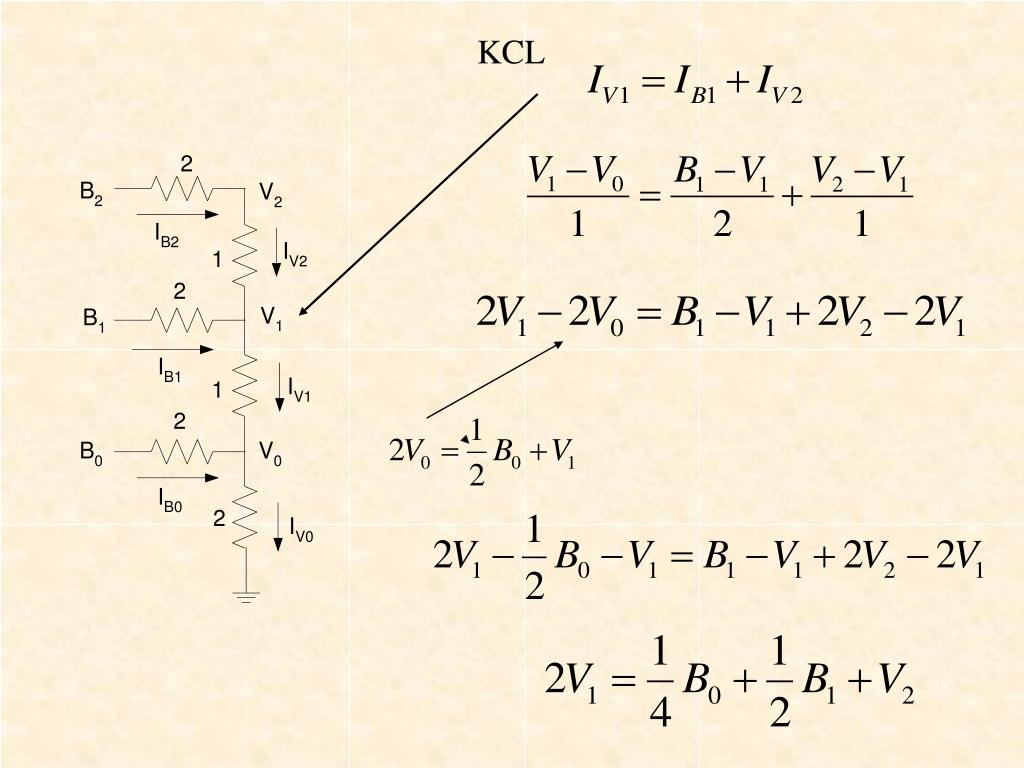

  10. KCL

  11. KCL

  12. Digital-to-Analog (D/A) Converter

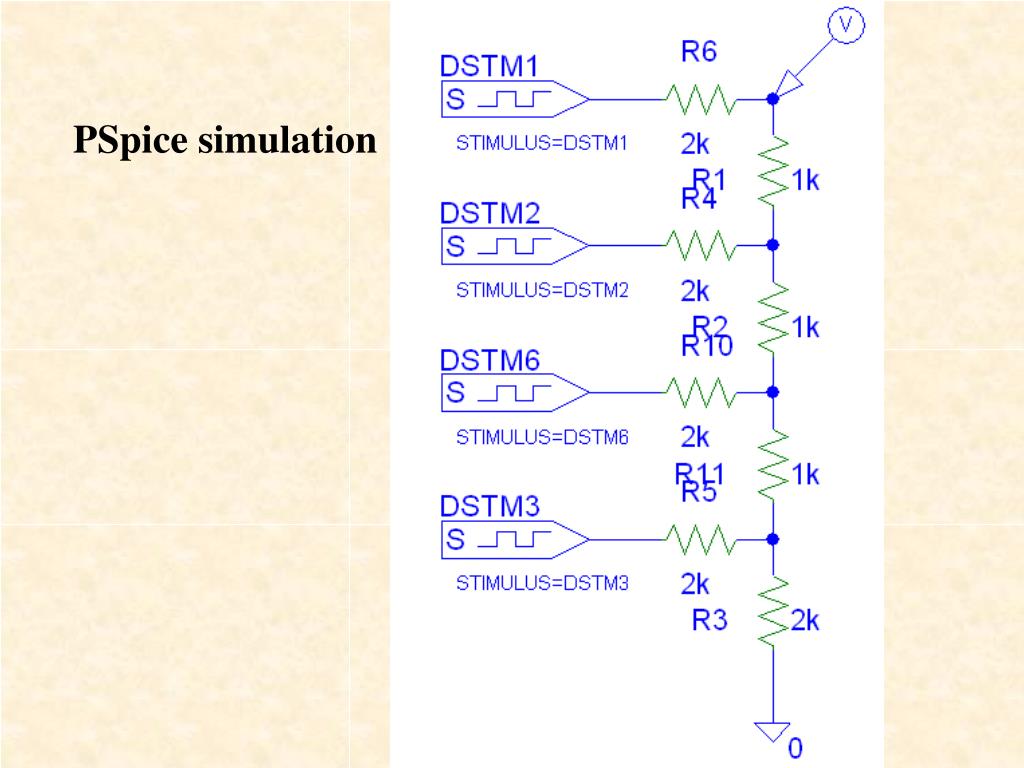

  13. PSpice simulation

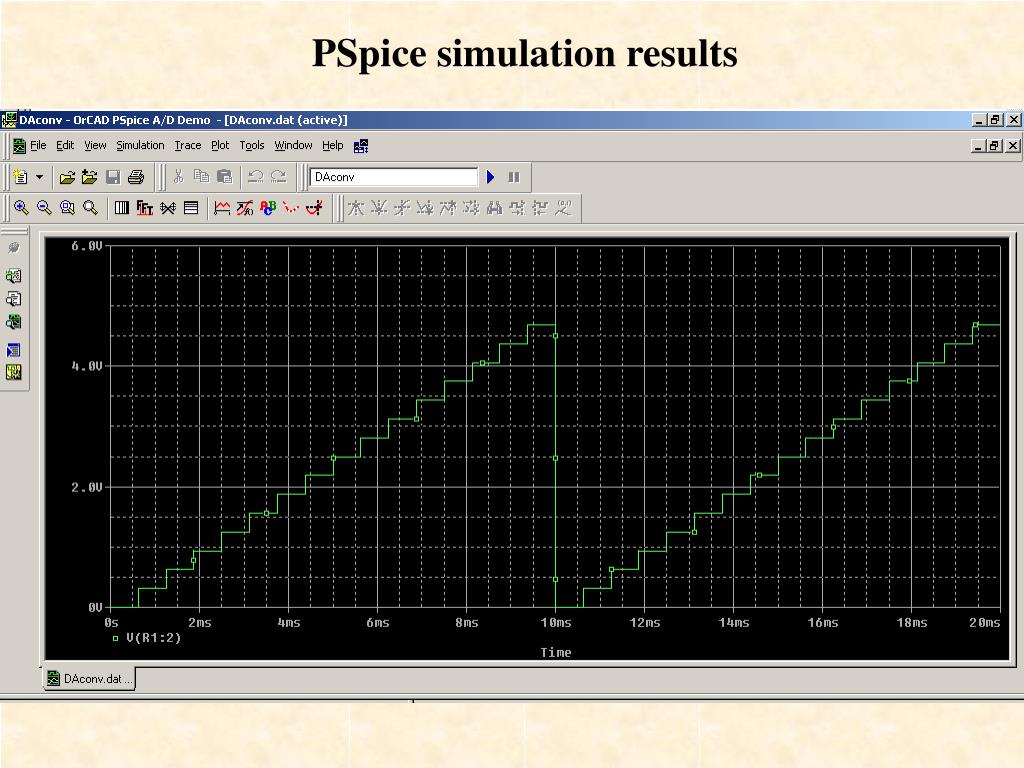

  14. PSpice simulation results
