  1. Skeletal Organization 7.5 p. 205 – p. 259

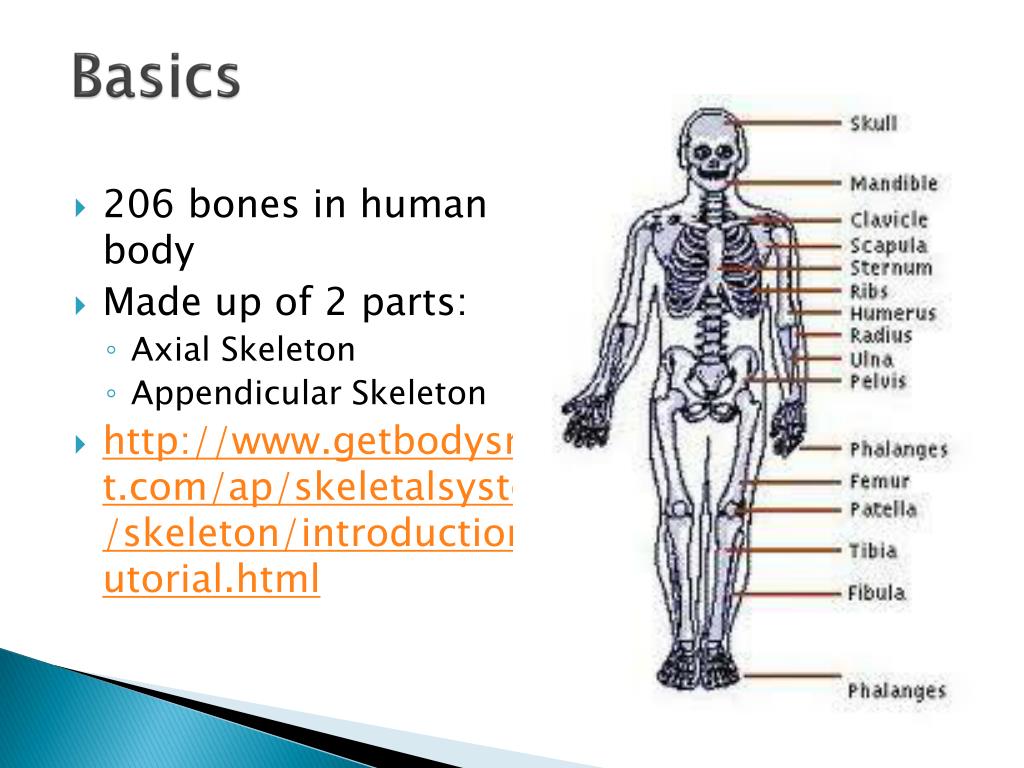

  2. Basics • 206 bones in human body • Made up of 2 parts: • Axial Skeleton • Appendicular Skeleton • http://www.getbodysmart.com/ap/skeletalsystem/skeleton/introduction/tutorial.html

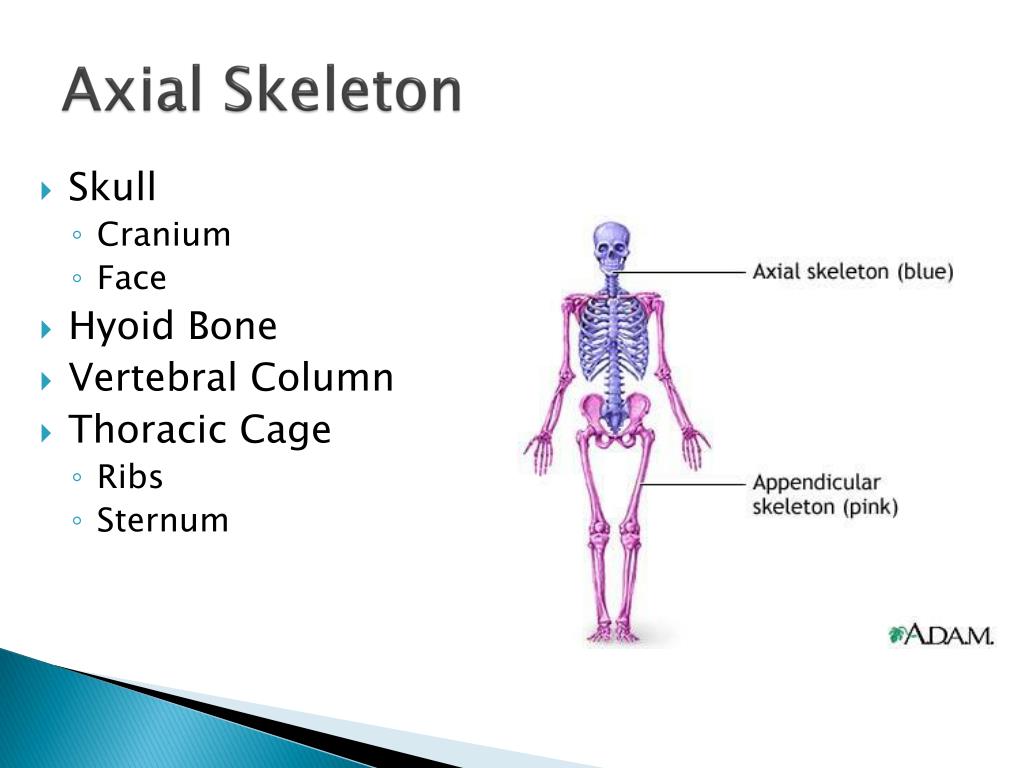

  3. Axial Skeleton • Skull • Cranium • Face • Hyoid Bone • Vertebral Column • Thoracic Cage • Ribs • Sternum

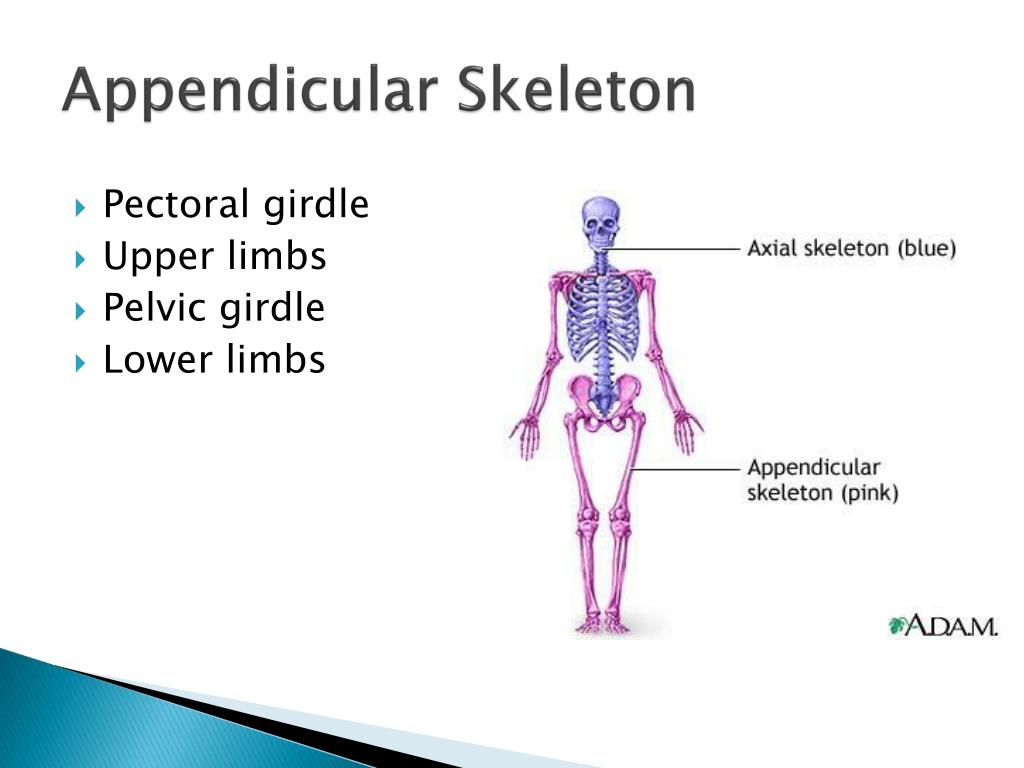

  4. Appendicular Skeleton • Pectoral girdle • Upper limbs • Pelvic girdle • Lower limbs

  5. Terms Used to Describe Skeletal Structures (Table 7.4 p. 208) • Meatus • Process • Ramus • Sinus • Spine • Suture • Trochanter • Tubercle • Tuberosity • Condyle • Crest • Epicondyle • Facet • Fissure • Fontanel • Foramen • Fossa • Head • Linea

  6. Skull • Cranial bones • Facial bones

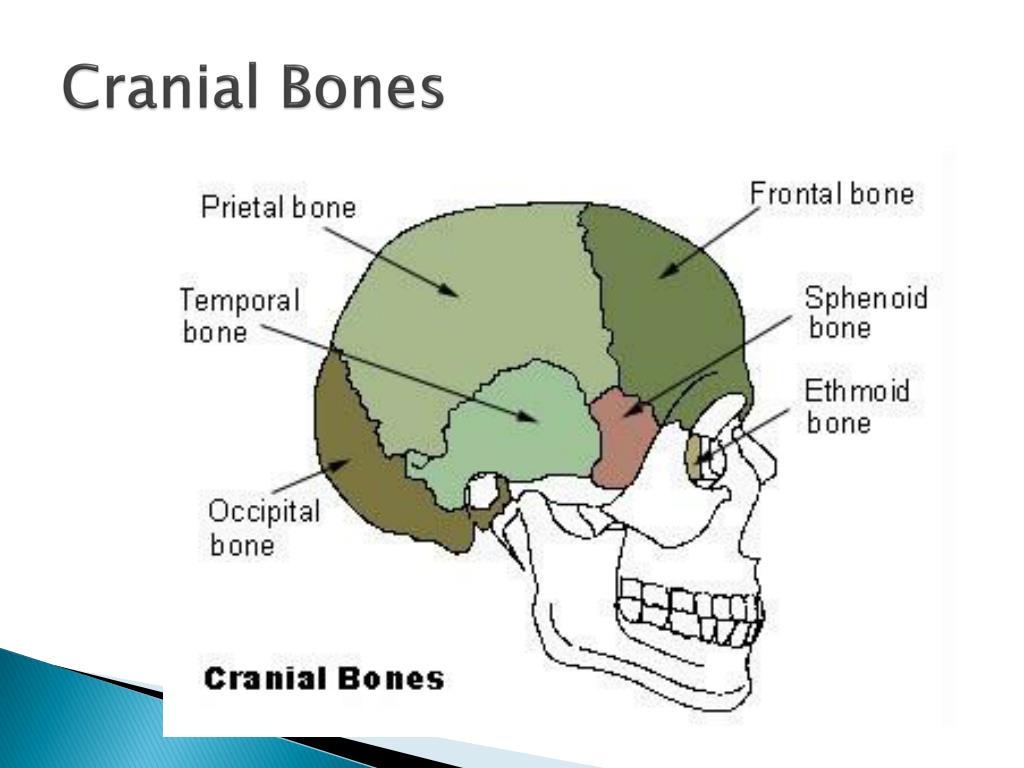

  7. Cranial Bones

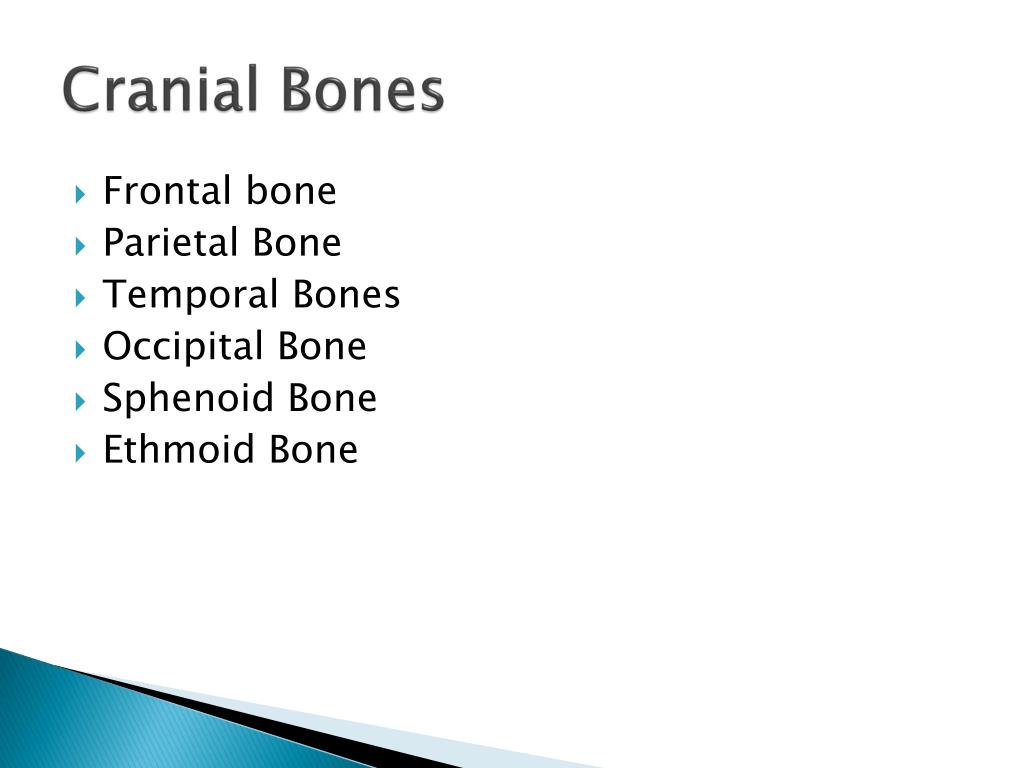

  8. Cranial Bones • Frontal bone • Parietal Bone • Temporal Bones • Occipital Bone • Sphenoid Bone • Ethmoid Bone

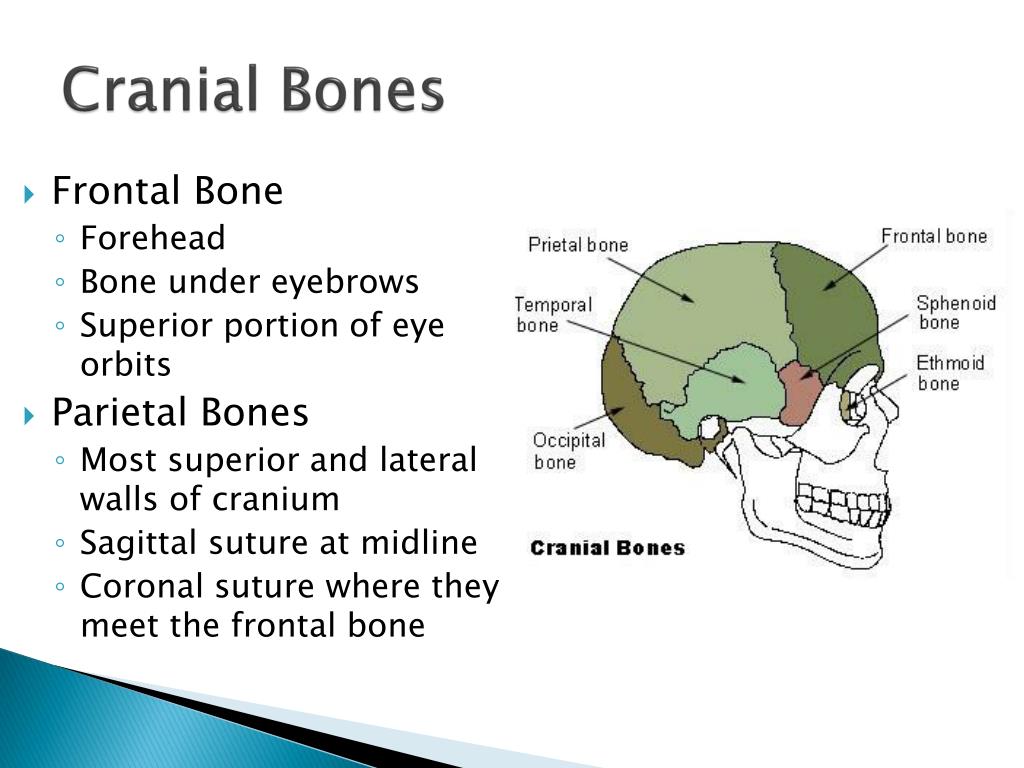

  9. Cranial Bones • Frontal Bone • Forehead • Bone under eyebrows • Superior portion of eye orbits • Parietal Bones • Most superior and lateral walls of cranium • Sagittal suture at midline • Coronal suture where they meet the frontal bone

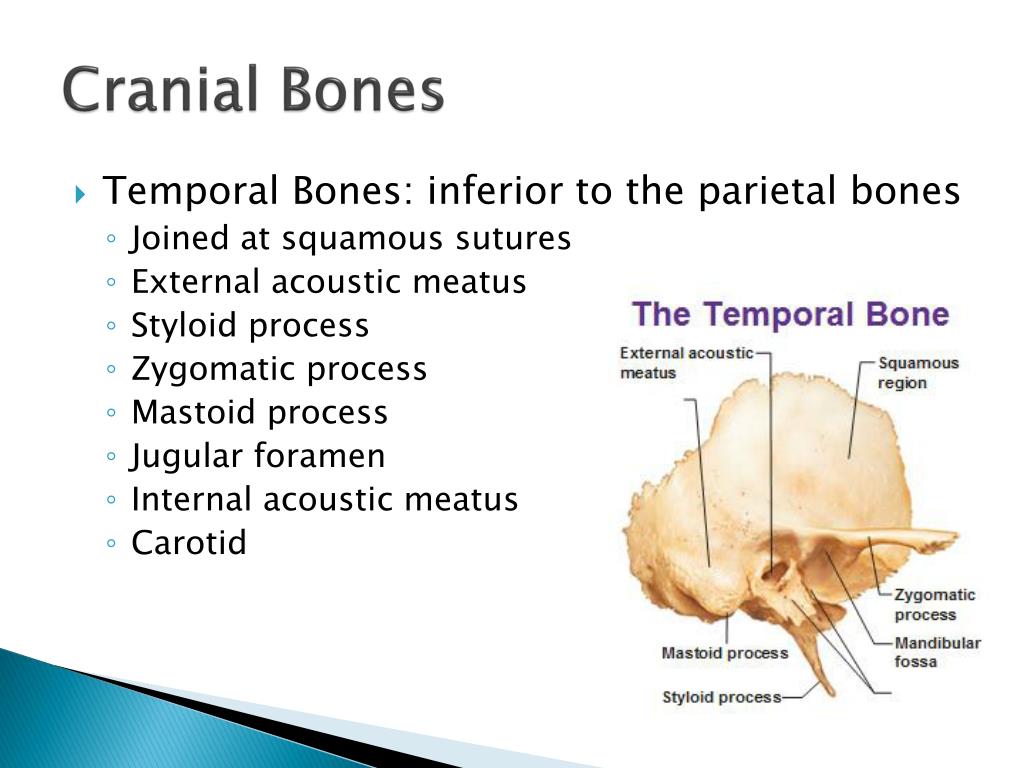

  10. Cranial Bones • Temporal Bones: inferior to the parietal bones • Joined at squamous sutures • External acoustic meatus • Styloid process • Zygomatic process • Mastoid process • Jugular foramen • Internal acoustic meatus • Carotid

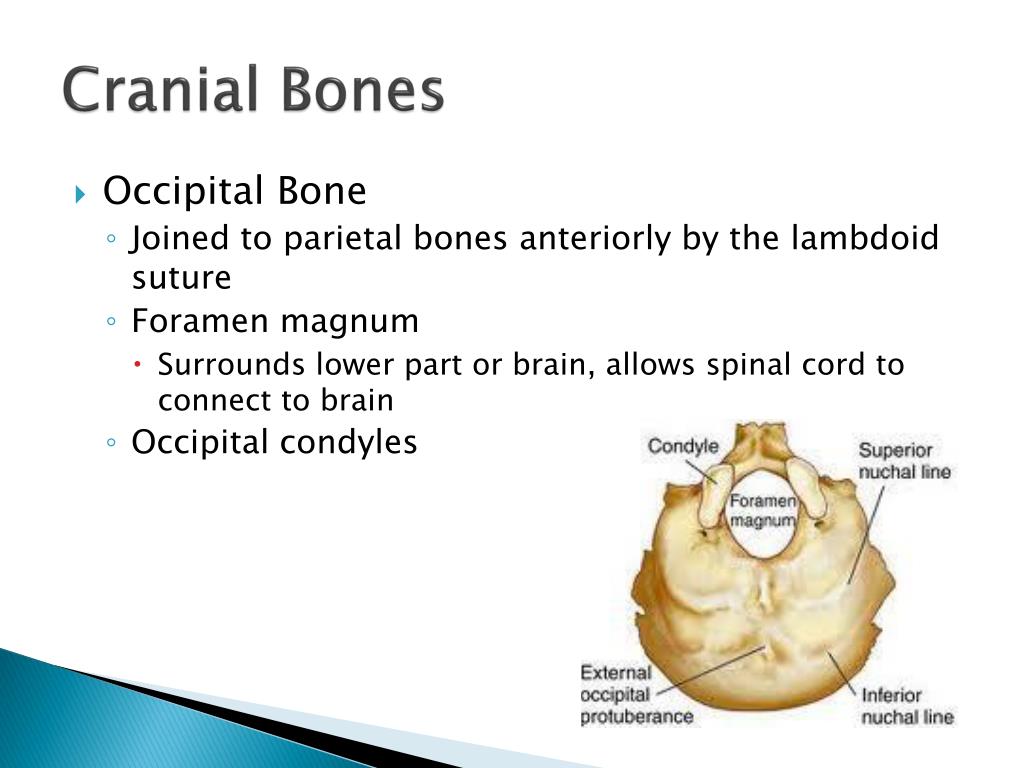

  11. Cranial Bones • Occipital Bone • Joined to parietal bones anteriorly by the lambdoid suture • Foramen magnum • Surrounds lower part or brain, allows spinal cord to connect to brain • Occipital condyles

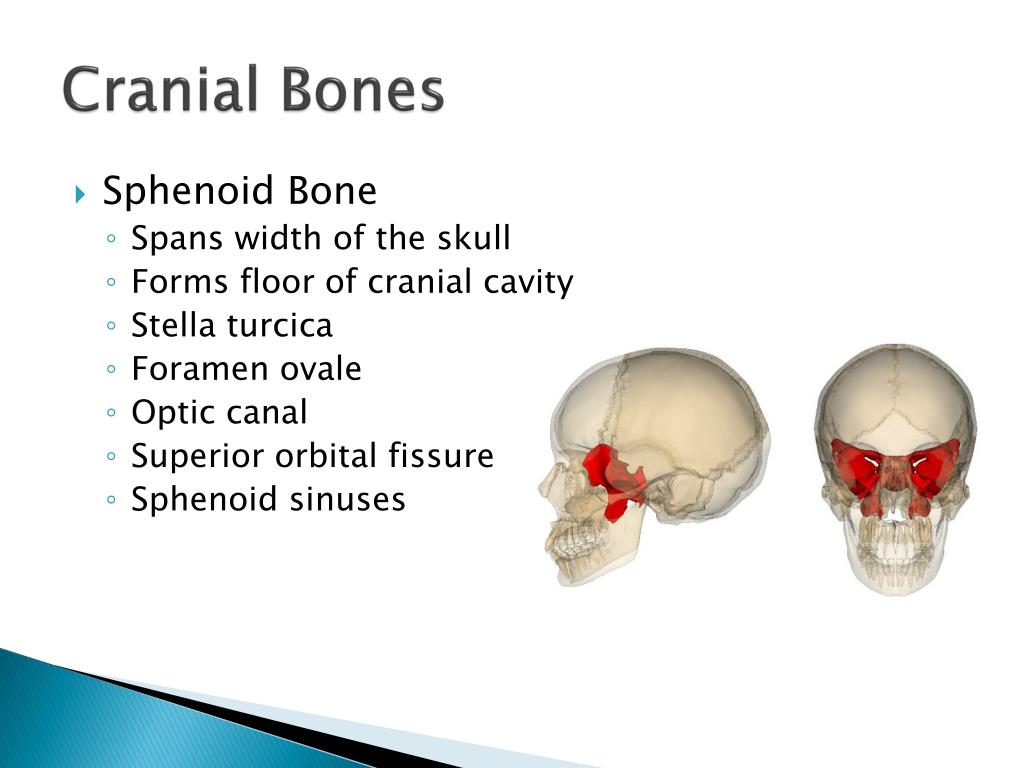

  12. Cranial Bones • Sphenoid Bone • Spans width of the skull • Forms floor of cranial cavity • Stella turcica • Foramen ovale • Optic canal • Superior orbital fissure • Sphenoid sinuses

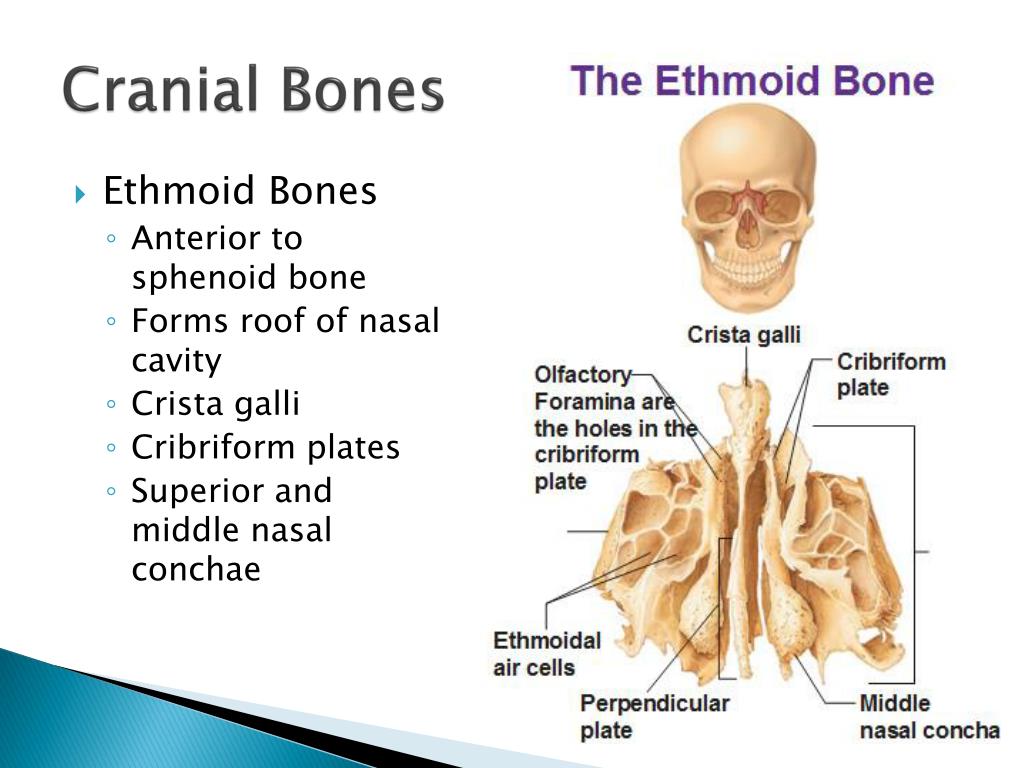

  13. Cranial Bones • Ethmoid Bones • Anterior to sphenoid bone • Forms roof of nasal cavity • Cristagalli • Cribriform plates • Superior and middle nasal conchae

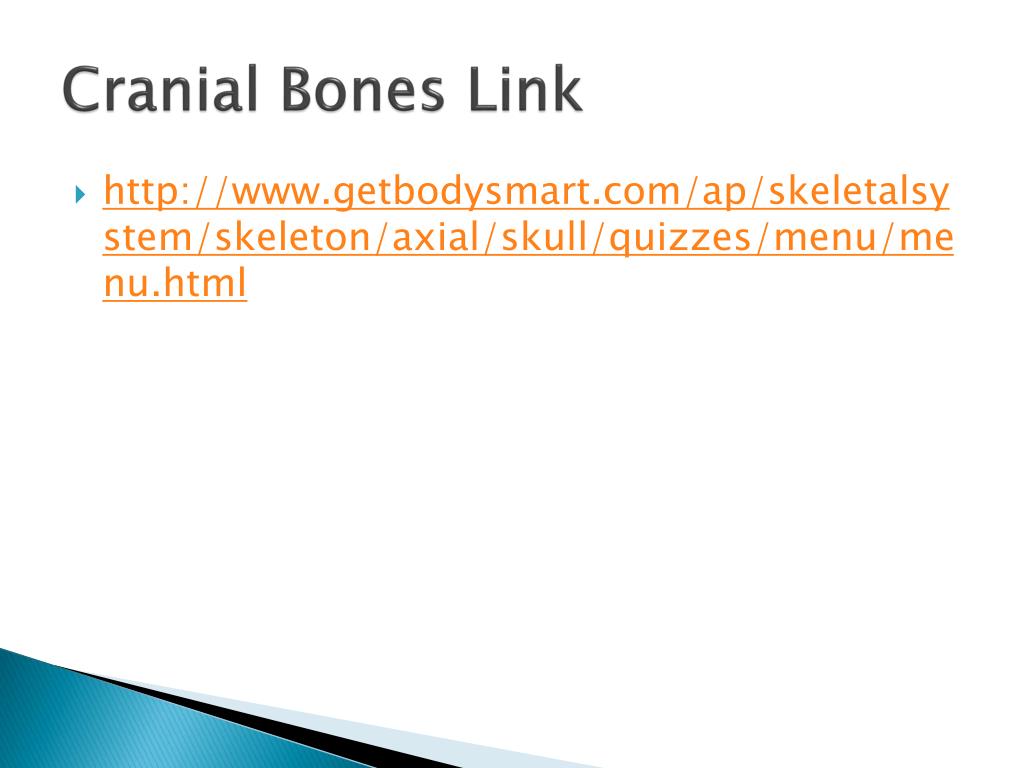

  14. Cranial Bones Link • http://www.getbodysmart.com/ap/skeletalsystem/skeleton/axial/skull/quizzes/menu/menu.html

  15. Facial Bones

  16. Facial Bones • Maxillae • Palantine Bones • Zygomatic Bones • Lacrimal Bones • Nasal Bones • Vomer Bone • Inferior Nasal Conchae • Mandible

  17. Facial Bones • Maxillae (maxillary bones) • Upper jaw • Keystone bones – all other bones join with the maxillae bones • Upper teeth in alveolar margin • Palantine processes – anterior portion of hard palate • Paranasal sinuses • Palantine Bones: form posterior portion of hard palate • Failure to develop forms a cleft palate

  18. Facial Bones • Zygomatic Bones • Cheek bones • Eye sockets • Lacrimal Bones • Medial portion of each eye socket • Groove to serve as passage way for tears • Nasal bones • Small bones forming bridge of the nose

  19. Facial Bones • Vomer Bone • Nasal septum • Inferior Nasal Conchae • Thin, curved bones from the lateral walls of the nasal cavity • Mandible • Lower jaw • Body • Rami • Lower teeth in alveoli (alveolar margin)

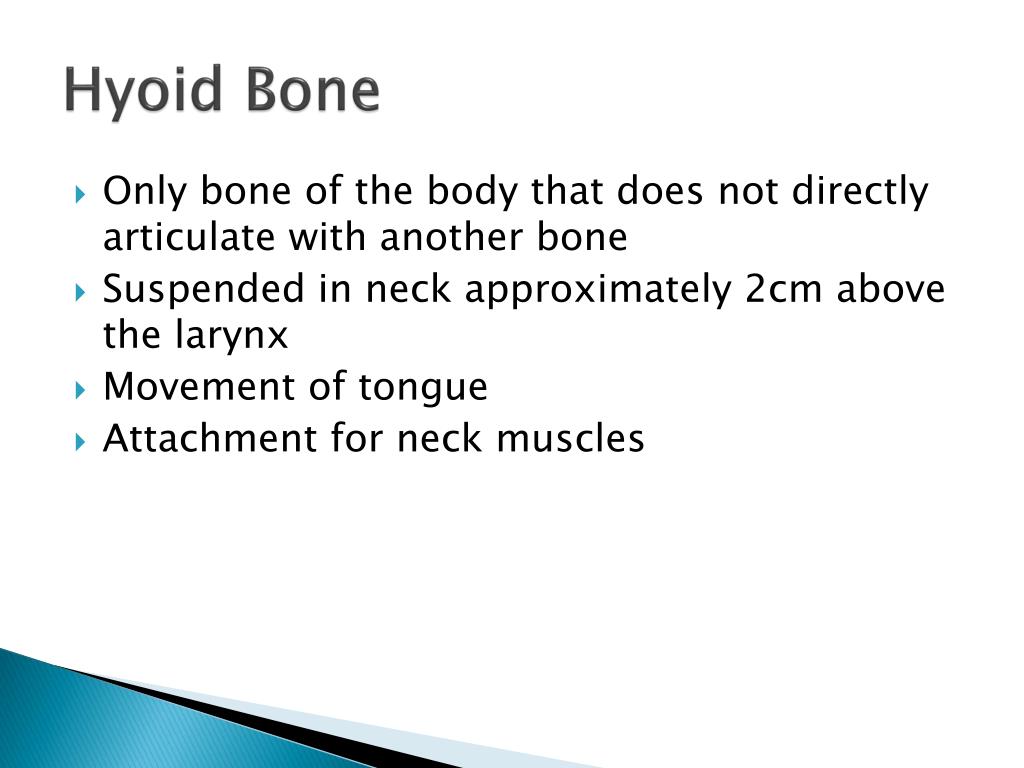

  20. Hyoid Bone • Only bone of the body that does not directly articulate with another bone • Suspended in neck approximately 2cm above the larynx • Movement of tongue • Attachment for neck muscles

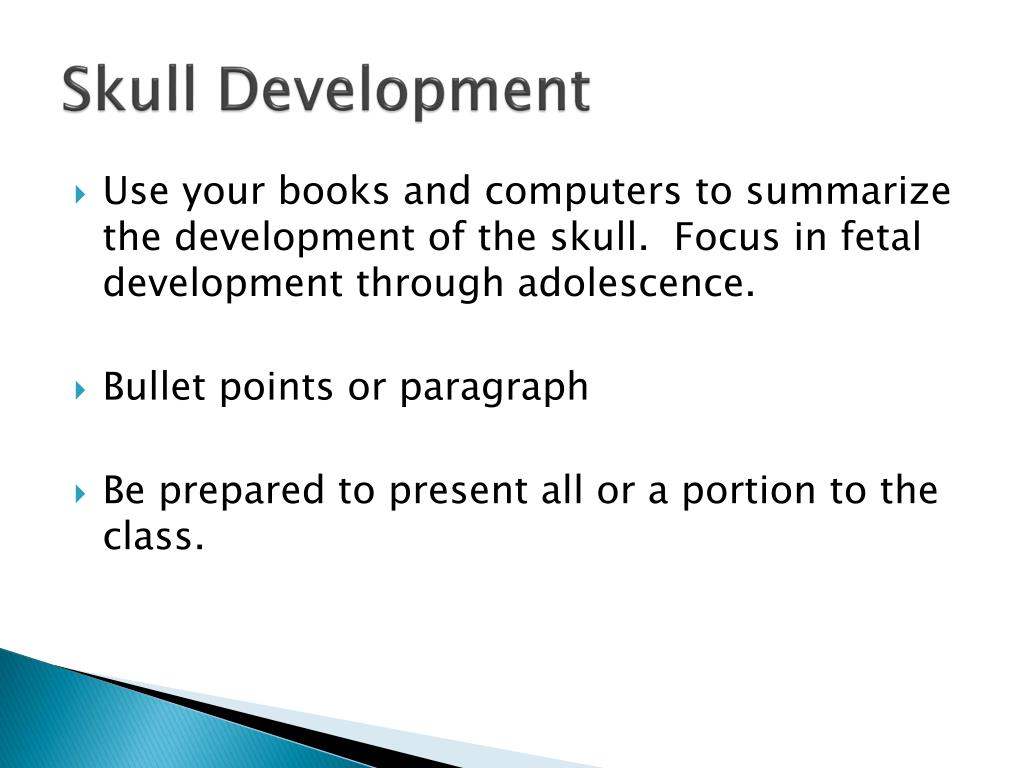

  21. Skull Development • Use your books and computers to summarize the development of the skull. Focus in fetal development through adolescence. • Bullet points or paragraph • Be prepared to present all or a portion to the class.

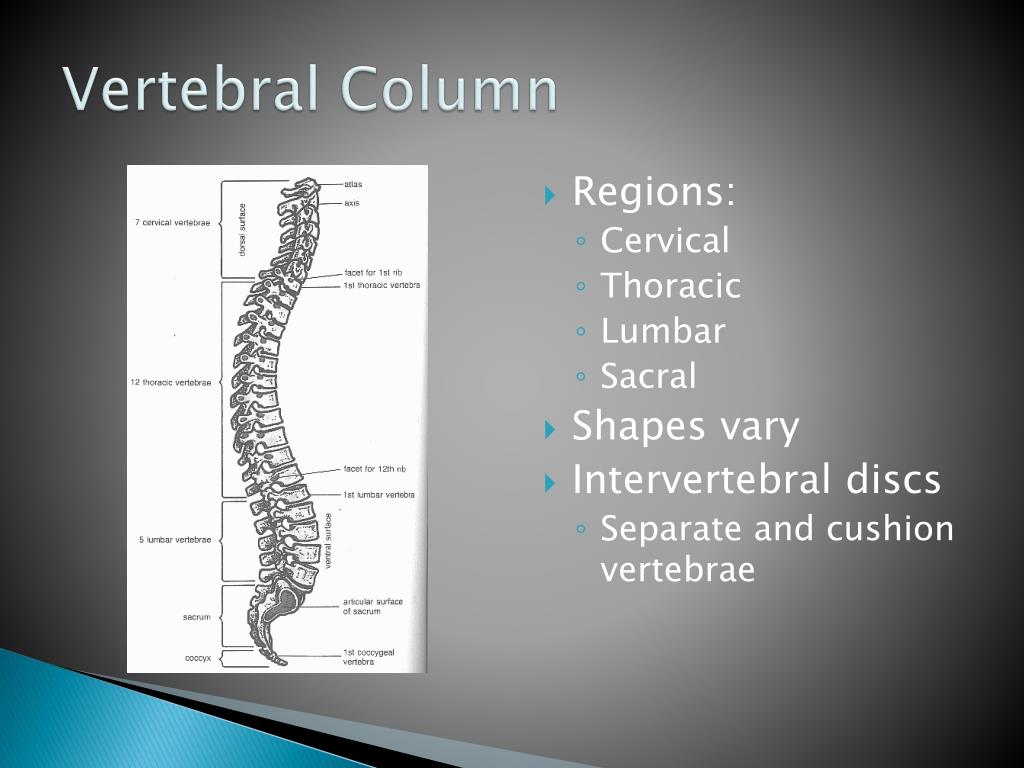

  22. Vertebral Column • Regions: • Cervical • Thoracic • Lumbar • Sacral • Shapes vary • Intervertebral discs • Separate and cushion vertebrae

  23. Vertebral Column Terminology • Transverse processes • Spinous processes • Superior and inferior articular processes • Body / centrum • Vertebral arch • Vertebral foramen

  24. Cervical Vertebrae • C1 – C7 • Neck region of spine • First two vertebrae: atlas and axis

  25. Cervical Vertebrae • Smallest vertebrae • Transverse process contains foramina for the vertebral arteries to pass through

  26. Thoracic Vertebrae • T1 – T12 • Larger than cervical vertebrae • Connect with ribs

  27. Lumbar Vertebrae • L1 – L5 • Sturdiest vertebrae • Massive bodies, short spinous processes

  28. Sacrum • Fusion of 5 vertebrae • Superiorly connects with L5 • inferiorly connects with coccyx • Alae: articulate with hips • Median sacral crest • Posterior sacral foramina • Sacral canal • Sacral haitus

  29. Coccyx • Fusion of three irregularly shaped vertebrae • “tailbone”

  30. Parts of Vertebrae • http://www.purposegames.com/game/fb1ba7f9d8

  31. Identify the pictures using your notes. • Cervical, thoracic, lumbar, axis, atlas

  32. Thoracic Cage • Ribs (12) • True ribs, false ribs, floating ribs • Sternum • Manubrium • Body • Xyphoid process • Cartilage

  33. Pectoral Girdle • 2 clavicles • 2 scapulae (scapula)

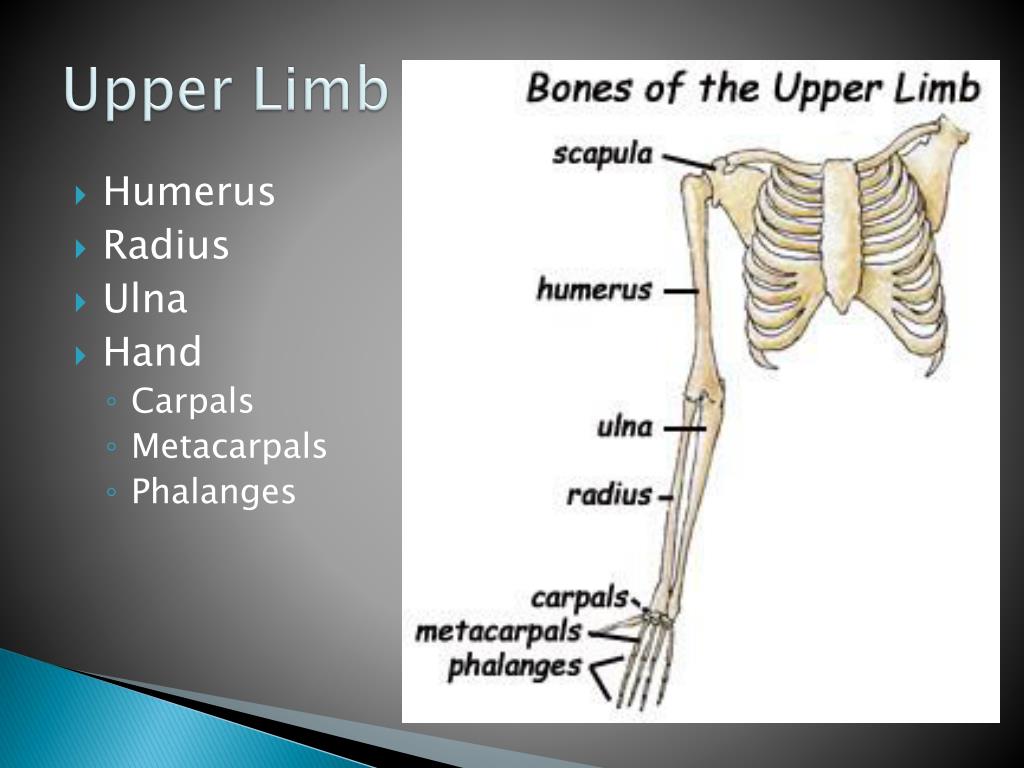

  34. Upper Limb • Humerus • Radius • Ulna • Hand • Carpals • Metacarpals • Phalanges

  35. Pelvic Girdle • Hip bones • Ilium • Ischium • Pubis • Male pelvis is more slender than the female pelvis • Female ilium is wider

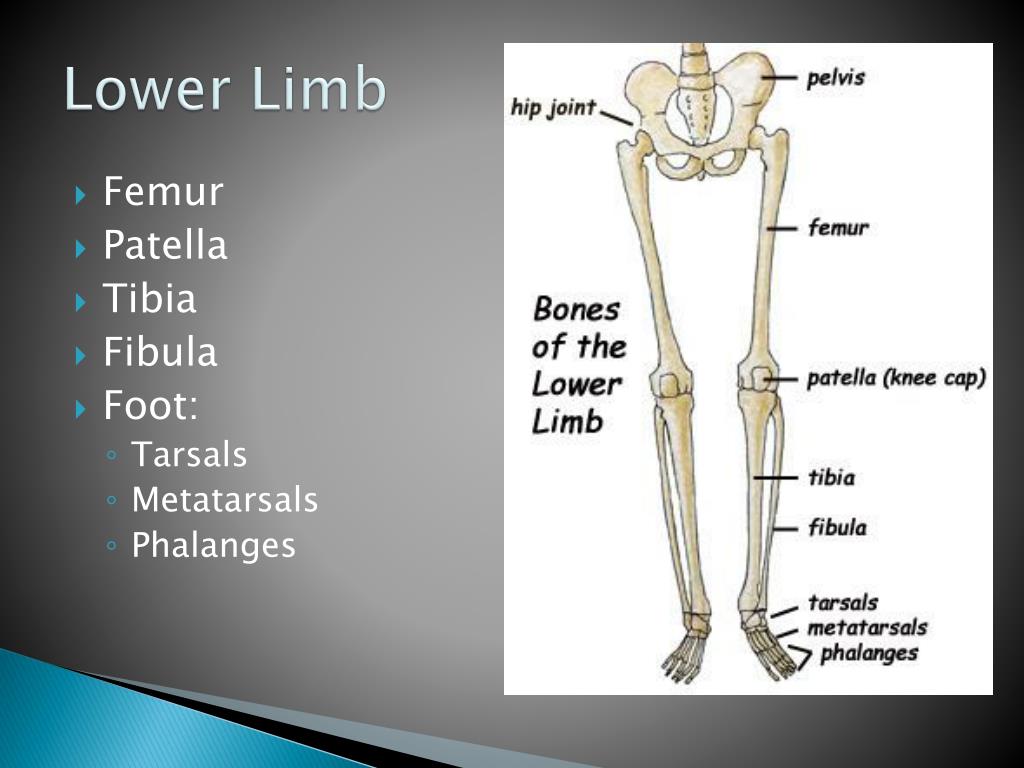

  36. Lower Limb • Femur • Patella • Tibia • Fibula • Foot: • Tarsals • Metatarsals • Phalanges
