Power Electronics

reeves avatar
reeves
9 diapositives · 360 Views · Aug 23, 2014

Power Electronics. Battery Charging System Supplying Power to Ink. Choosing the Battery. Battery Type has to first be chosen. “Batteries and Charge Control for Stand-Alone Photovoltaic Systems : Fundamentals and Applications” , James P. Dunlop. Battery Capacity.

Power Electronics - slide 1
01 / 9Power Electronics
1 / 17

Télécharger la présentation

Power Electronics
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Power Electronics • Battery • Charging System • Supplying Power to Ink

  2. Choosing the Battery • Battery Type has to first be chosen “Batteries and Charge Control for Stand-Alone Photovoltaic Systems : Fundamentals and Applications” , James P. Dunlop

  3. Battery Capacity • How much energy is stored in the battery measured in ampere hours • Ah will provide ‘X’ amps of current for ‘Y’ hrs • Ah = Device Wattage (W) * Time to run (hrs)/ Battery Voltage (V) • From previous calculation we assume the total amount of power that we can use is 29,000 Wh/m2 , are prototype is 3’x5’ (0.92m x 1.525m) • Therefore the total power used in a year can be about 40,600Wh • Assuming snowfall for 240hrs a year (59 days for 4hrs) the average amount of power of the device will be 170W (40,600Wh/240h) • Therefore Ah = (170W*4h)/ 12V = 56Ah • To increase battery performance and life the battery should not be consistently discharged below 60% capacity so to be safe the battery capacity should be about 90aH

  4. Battery Options • Trojan Deep-Cycle AGM Battery can be used • 31-AGM could all be options with 5hr rate-capacity of 82Ah • Can be purchased from civicsolar for $270

  5. Battery Chargers • Controls incoming charge of the battery • AGM batteries are INTOLERANT to overcharge • Standard Solar Chargers or MPPT (Maximum power point tracking) charger • MPPT chargers are much more efficient • Standard chargers can lose between 20-60% of the rated solar panel wattage

  6. Choosing a Battery Charger • Charger needs to be able to handle rated watt, voltage, and current rating of PV panel (charging source) • Charging source is still being determined (Full Panel or select number of cells) • For now we can base the charger chose off a SBM solar 150W panel with the following specs:

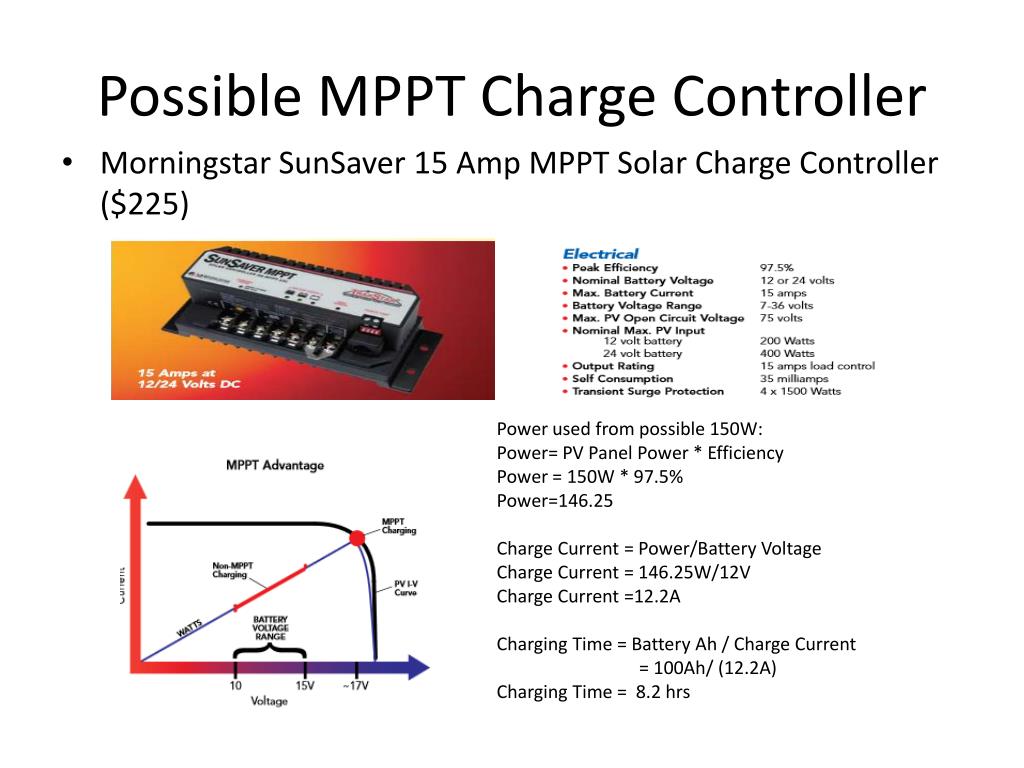

  7. Possible MPPT Charge Controller • Morningstar SunSaver 15 Amp MPPT Solar Charge Controller ($225) Power used from possible 150W: Power= PV Panel Power * Efficiency Power = 150W * 97.5% Power=146.25 Charge Current = Power/Battery Voltage Charge Current = 146.25W/12V Charge Current =12.2A Charging Time = Battery Ah / Charge Current = 100Ah/ (12.2A) Charging Time = 8.2 hrs

  8. Possible Standard Charge Controller • Morningstar SS-20L 20 Amp PWM Solar Charge Controllers w/LVD ($78) Power used from possible 150W: Power = Voltage *Charge Current Power = 12V *8A Power = 96W about 66% efficient Charging Time = Battery Ah / Charge Current = 100Ah/ (8A) Charging Time = 12.5 hrs

  9. Ink Power Supply Rtrace1 RTotal Rtrace2 Regulating Circuit Battery Rtrace3 I out Rtrace4
