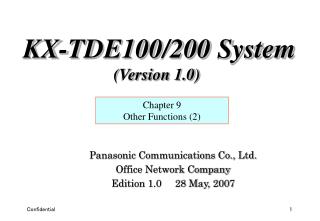

  1. KX-TDE100/200 System(Version 1.0) Panasonic Communications Co., Ltd. Office Network Company Edition 1.0 28 May, 2007 Chapter 9Other Functions (2)

  2. Chapter 9Other Functions (2) 1. Enhanced Walking Extension 2. CTI Information 3. Multi-Site PC Programming Tool 4. TDA -> TDE Conversion

  3. 1. Enhanced Walking Extension (1/2) In addition to swapping the settings between extensions (Walking Extension), you can change the status of your extension to "Service-in" or "Service-out" (Enhanced Walking Extension). Service-in : An extension is in use (normal status). Service-out : Extension Dial Lock and Do Not Disturb (DND) are activated on an extension, and the extension user cannot make unauthorized outside calls nor receive calls. Click Here-1 Click Here-2

  4. Ext 301 Ext 302 Ext 303 Ext 331 Ext 334 Ext 332 Ext 333 Ext 321 Ext 322 Ext 321 Ext 322 1. Enhanced Walking Extension (2/2) Distributed Support Desk Employee ‘Hot-Desks’ Remote Worker/Office Worker

  5. 2. CTI Information (1/2) NO USB port for 3rd party CTI server 3rd Party CTI server USB CTI Information with TDE100/200 1. The TDE100/200 does not have USB port for connection to a 3rd Party CTI server. 2. PC Phone and PC Console are supported on TDE100/200. 3. SIP extension can only be monitored by through CTI (It is not possible to control)

  6. TDE programming tool Menu Item 1-1-Physical Slot-IPCMPR-Card Property-Port Number 2. CTI Information (2/2) (Programming) The CTI connection uses the IP address of the IPCMPR card to accept incoming connections. Both the maintenance port number and the CTI port number are configurable

  7. 3. Multi-Site PC Programming Tool (1/2) • You can make Multi-site programming shortcuts • Up to 4 PBX may be programmed at the same time • Download system data, edit it and then paste it to the other sites easily • Final version program will be compatible with TDE and TDA MPR V3.0 or later

  8. IP Network 3. Multi-Site PC Programming Tool (2/2) TDE V1.0 Multi-site Programming is temporary feature. Formal Multi-site programming will be supported in the TDE future version. So we don’t explain the detail in Manuals. But we will explain the TDE V1.0 Multi-site programming feature in PCMC shortly. LAN LAN RS232C, Modem, and T76USB are not available for this feature. LAN LAN LAN TDE V1.0 PCMC supports this as a default feature. It is free when you use PCMC. This feature is available up to 4 TDEs which are connected by IP Network.

  9. TDA System Data File Install PC Programming Tool For TDE100/200 4. TDA -> TDE Conversion (1/3) Step.1 Save TDA100/200 System Data Condition To use an existing TDA configuration you must first convert the DSys file to MPR V3.0xx,V3.2xx All hotel recorded data should also be printed out before conversion (All recorded hotel data will be erased during conversion). System Data KX-TDA100/200 MPR-V3.0xx,V3.2xx PC Programming For TDA100/200 Step.2 Install TDE100/200 PC Programming Tool

  10. TDA System Data File TDE System Data File 4. TDA -> TDE Conversion (2/3) Step.3 Converting the TDA data file to a TDE100/200 data file using TDE100/200 PC Programming Tool Open the MPR V3.xx TDA data file directly, the TDE PC Programming Tool will guide you through the conversion process. PC Programming For TDE100/200 Step.4 Remove the TDA100/200 MPR card and Install the TDE100/200 IPCMPR card TDA MPR Card Remove • Power Off PBX • Remove TDA MPR card • Insert TDE SD card and fit DSP16/64 card onto TDE100/200 IPCMPR card • Install IPCMPR into TDA MPR slot • Power On • Initialize the PBX DSP Install TDE MPR Card

  11. TDE System Data File 4. TDA -> TDE Conversion (3/3) Step.5 Connect PC Programming Quick Setup System Data KX-TDE100/200 IPCMPR Card PC Programming For TDE100/200 • Connect to PBX on default IP address (192.168.0.1) using TDE Programming Tool • Quick Setup starts • Load initial data for the required country • Skip ‘Quick Wizard’ prompts • Upload converted TDE data file • System Reset • Program in same way as TDA100/200

  12. Chapter 9 Other Functions (2) Thank you very much !
