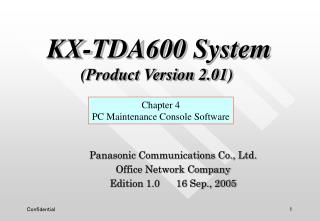

  1. KX-TDA600 System(Product Version 2.01) Panasonic Communications Co., Ltd. Office Network Company Edition 1.0 16 Sep., 2005 Chapter 4PC Maintenance Console Software

  2. Chapter 4 PC Maintenance Console Software 1. Basic interface 2. Improved operation

  3. 1. Basic Interface

  4. !!!! Important Information !!!!! ============================================== << Default Programmer Code >> Default programmer code is as follows. Installer level : INSTALLER Administrator level : ADMIN User level : USER ================================================== << Programming Folder Change from KX-TDA200 >> Master CS Information => [1. Configuration - 4. Option] CTI Option => [2. System - 9. System Options] Timed Reminder Message => [5. Optional Device - 3. DISA - 1. System Settings] Emergency Dial => [7. TRS - 4. Emergency Dial] Network PBX ID => [8. Private Network - 2. Network BLF Data Transfer] ============================================== << Software Version Information >> ============================================== << Software Version Information >> It is required to upgrade following software for KX-TDA600. OPB3 : KX-TDA0190 : V3.001 or higher DECT-CS : KX-TDA0142CE : V2.011 or higher DECT-CS : KX-TDA0141CE : V1.003 or higher 2.4G-CS : KX-TDA0142 : V1.007 or higher 2.4G-CS : KX-TDA0141 : V1.003 or higher PC-Console : KX-TDA0300 : V2.00 or higher PC-Phone : KX-TDA0350 : V2.00 or higher PC-Phone Light : KX-T7601 : V2.00 or higher ============================================== Note !

  5. Programmer Code Short-cut to the connection Previous information is shown again

  6. (1) Batch(off-line) programming Fixed (2) interactive(on-line) programming • RS-232C (COM1, 19200bps, 8bit, Stop1, None ) • (b) Analog Modem (COM1, 38400bps, H/W flow control) • (c) USB (USB1.1) • (d) LAN (KX-TDA600 default = port:35300) • (e) ISDN-remote (CAPI2.0 or later, V-CAPI is not supported)

  7. 2. Improved operation (1) Outlook bar style menu (2) Graphical slot assigning (Drag & Drop operation) (3) Simplified card and port configuration (4) Multi-user connection profile management (5) Change the language w/o re-installation (6) Multi-window control (7) Improved Copy & Past operation (8) Graphical ARS Routing Plan Time table (9) Import & Export of Extension Number/Name (10) Copy of the group member list (ICDG, VM-DTMF Group, PS Ring Group, Broadcasting Group)

  8. (1) Outlook bar style menu. Icon

  9. (2) Graphical slot assigning. (Drag & Drop operation) Drag Drop Select Card Select Shelf

  10. Card Property Port Property Delete Card (3) Simplified card and port configuration (Slot View) Pop-up menu Move Cursor

  11. (3) Simplified card and port configuration (Slot Summary) You can find the ROM version

  12. (4) Multi-user connection profile management Connect by Profile Select Profile Making the Profile Select connection method Using the Profile

  13. (5) Changing the language w/o re-installation Select Language Note : This can be set before connecting to TDA600

  14. (6) Multi-window control Window Tag

  15. (7) Improved Copy & Past operation Volume copy&paste is available Right Click menu

  16. (8) Graphical ARS Routing Plan Time table Numerical input is also okay Visual Drag & Move operation for the time range

  17. (9) Import & Export of Extension Number/Name. Tool – Import / Export ARS- Leading Digits ARS- Leading Number Exception ARS- Routing Plan Time/Priority CO & Incoming Call- DDI/DID table Feature-System Speed Dialing

  18. (10) Copy of the group member list. Copy from other Group member Copy from extension list

  19. Chapter 4 PC Maintenance Console Software Thank you very much !
