  1. Tackling Lack of Determination Douglas M. Hawkins Jessica Kraker School of Statistics University of Minnesota NISS Metabolomics, Jul 15, 2005

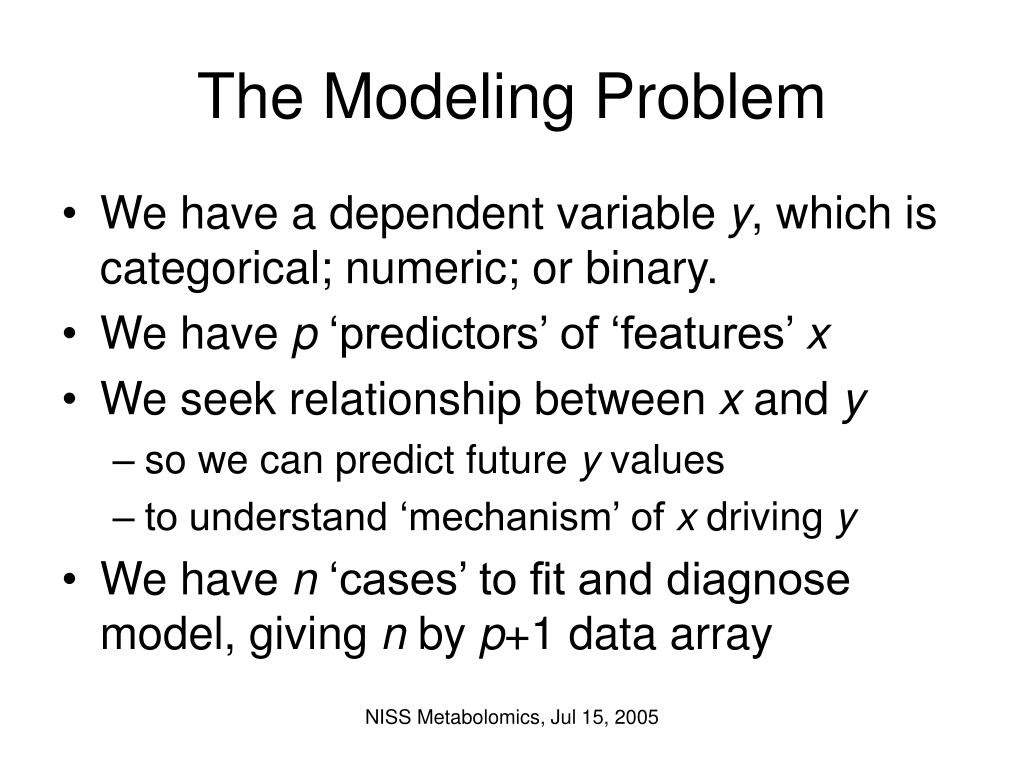

  2. The Modeling Problem • We have a dependent variable y, which is categorical; numeric; or binary. • We have p ‘predictors’ of ‘features’ x • We seek relationship between x and y • so we can predict future y values • to understand ‘mechanism’ of x driving y • We have n ‘cases’ to fit and diagnose model, giving n by p+1 data array NISS Metabolomics, Jul 15, 2005

  3. Classic Approaches • Linear regression model. Apart from error y = Sjbj xj Generalized additive model / Neural Net y = Sjgj(xj) Generalized linear model y = g(Sjbj xj) Nonlinear models, Recursive partitioning NISS Metabolomics, Jul 15, 2005

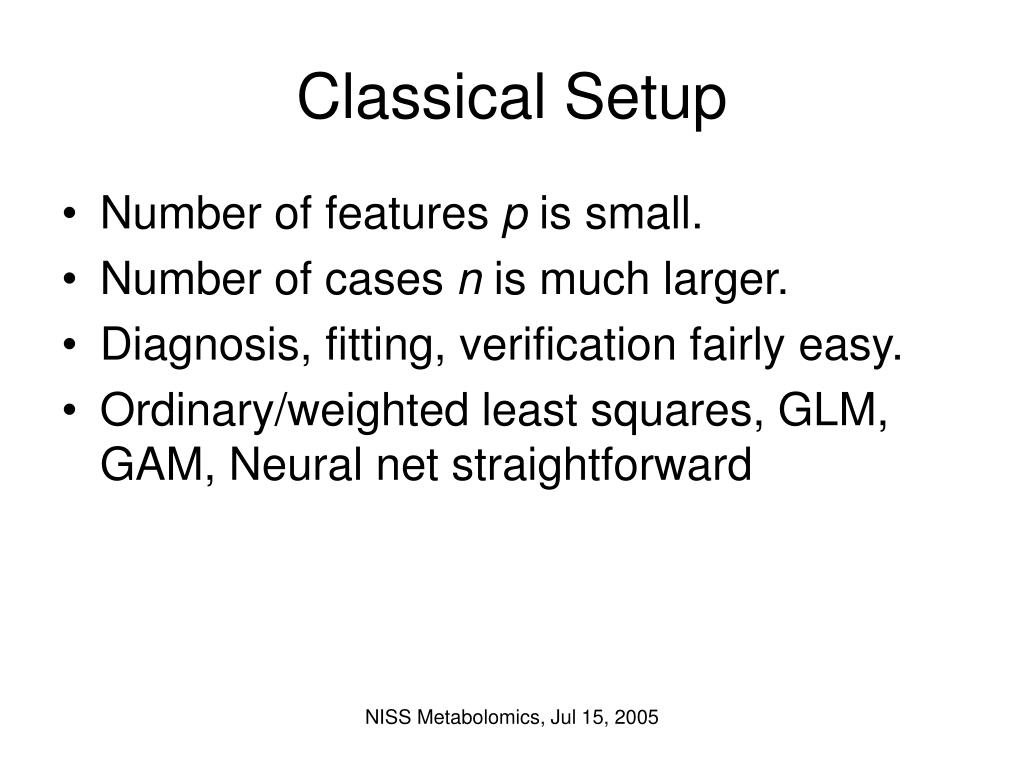

  4. Classical Setup • Number of features p is small. • Number of cases n is much larger. • Diagnosis, fitting, verification fairly easy. • Ordinary/weighted least squares, GLM, GAM, Neural net straightforward NISS Metabolomics, Jul 15, 2005

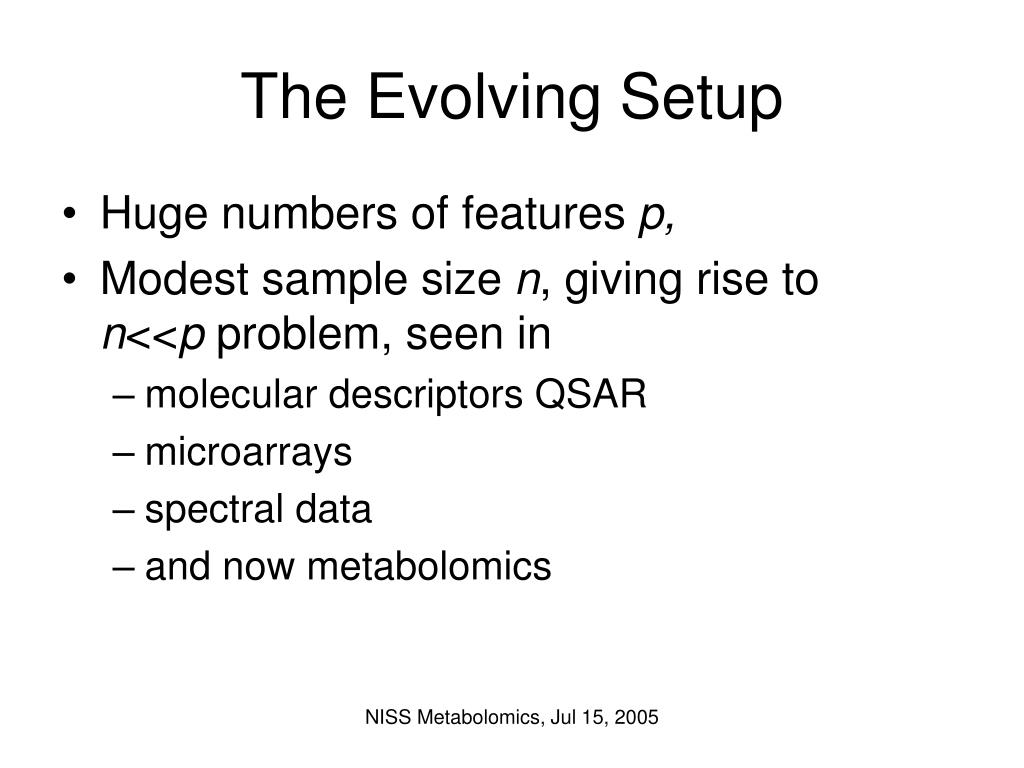

  5. The Evolving Setup • Huge numbers of features p, • Modest sample size n, giving rise to n<<p problem, seen in • molecular descriptors QSAR • microarrays • spectral data • and now metabolomics NISS Metabolomics, Jul 15, 2005

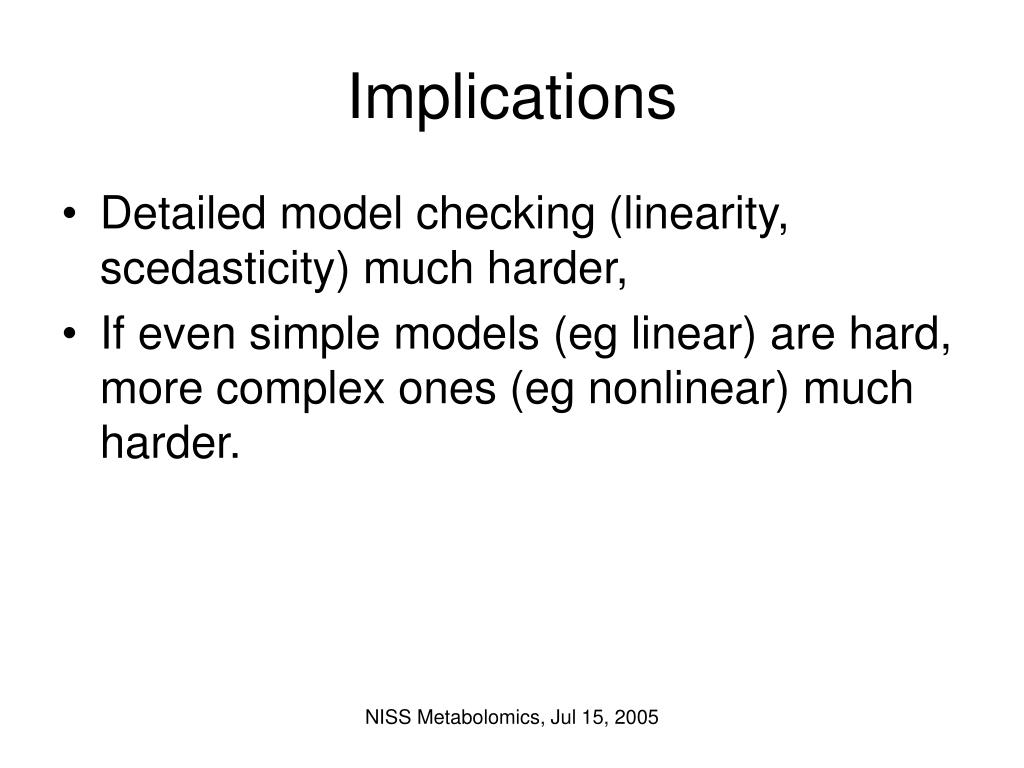

  6. Implications • Detailed model checking (linearity, scedasticity) much harder, • If even simple models (eg linear) are hard, more complex ones (eg nonlinear) much harder. NISS Metabolomics, Jul 15, 2005

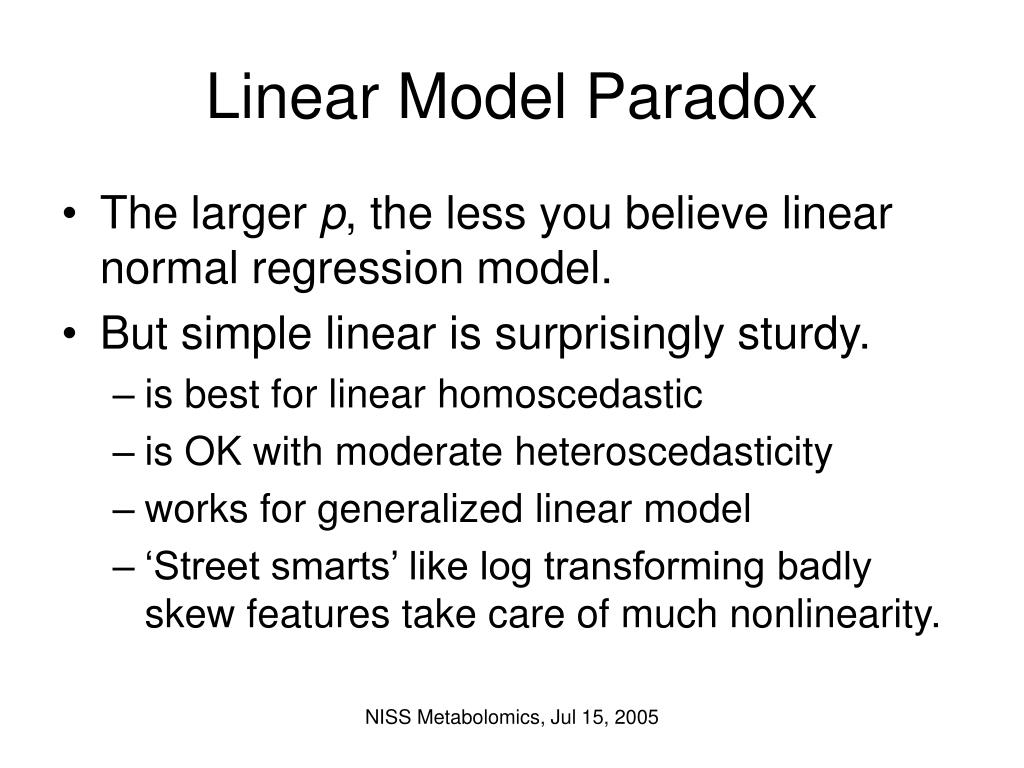

  7. Linear Model Paradox • The larger p, the less you believe linear normal regression model. • But simple linear is surprisingly sturdy. • is best for linear homoscedastic • is OK with moderate heteroscedasticity • works for generalized linear model • ‘Street smarts’ like log transforming badly skew features take care of much nonlinearity. NISS Metabolomics, Jul 15, 2005

  8. Leading You to Idea • Using linear models is smart, even if for no more than benchmark of other methods. So we concentrate on fitting the linear model y = Sjbj xj = bTx in vector/matrix form • Standard criterion is ordinary least squares (OLS), minimizing • S = Si(yi – bTxi)2 NISS Metabolomics, Jul 15, 2005

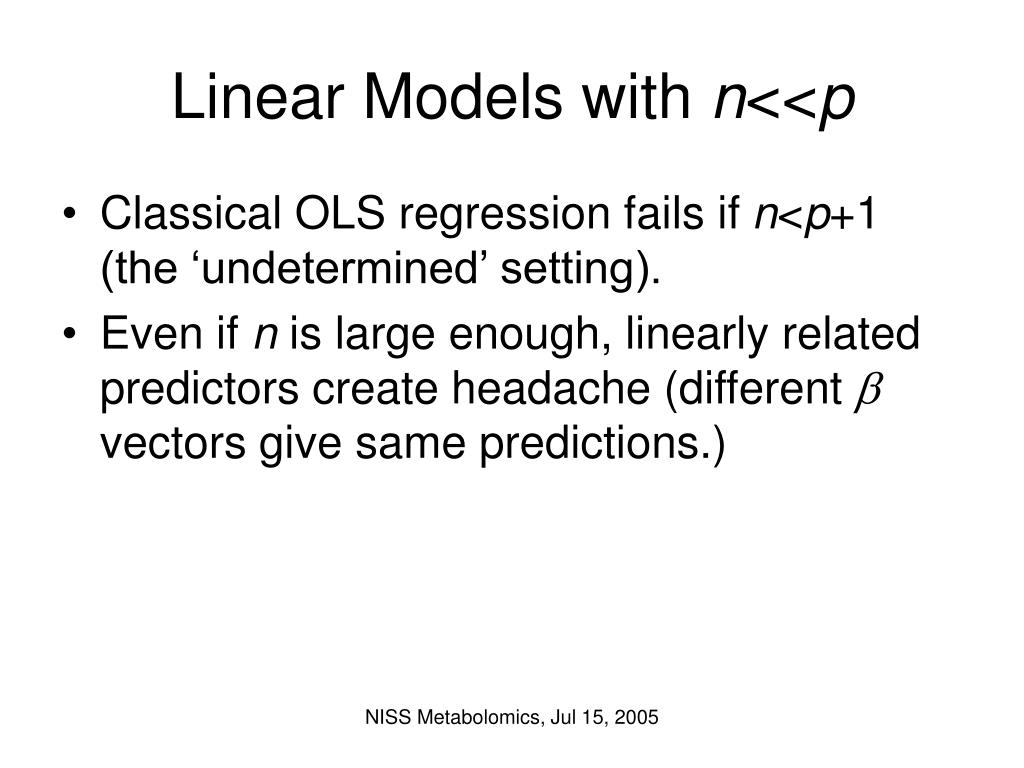

  9. Linear Models with n<<p • Classical OLS regression fails if n<p+1 (the ‘undetermined’ setting). • Even if n is large enough, linearly related predictors create headache (different bvectors give same predictions.) NISS Metabolomics, Jul 15, 2005

  10. Housekeeping Preliminary • Many methods are scale-dependent. You want to treat all features alike. • To do this, ‘autoscale’ each feature. Subtract its average over all cases, and divide by the standard deviation over all cases. • Some folks also autoscale y; some do not. Either way works. NISS Metabolomics, Jul 15, 2005

  11. Solutions Proposed • Dimension reduction approaches: • Principal Component Regression (PCR) replaces p features by k<<p linear combinations that it hopes capture all relevant information in the features. • Partial Least Squares / Projection to Latent Spaces (PLS) uses k<<p linear combinations of features. Unlike PCR, these are found looking at y as well as x. NISS Metabolomics, Jul 15, 2005

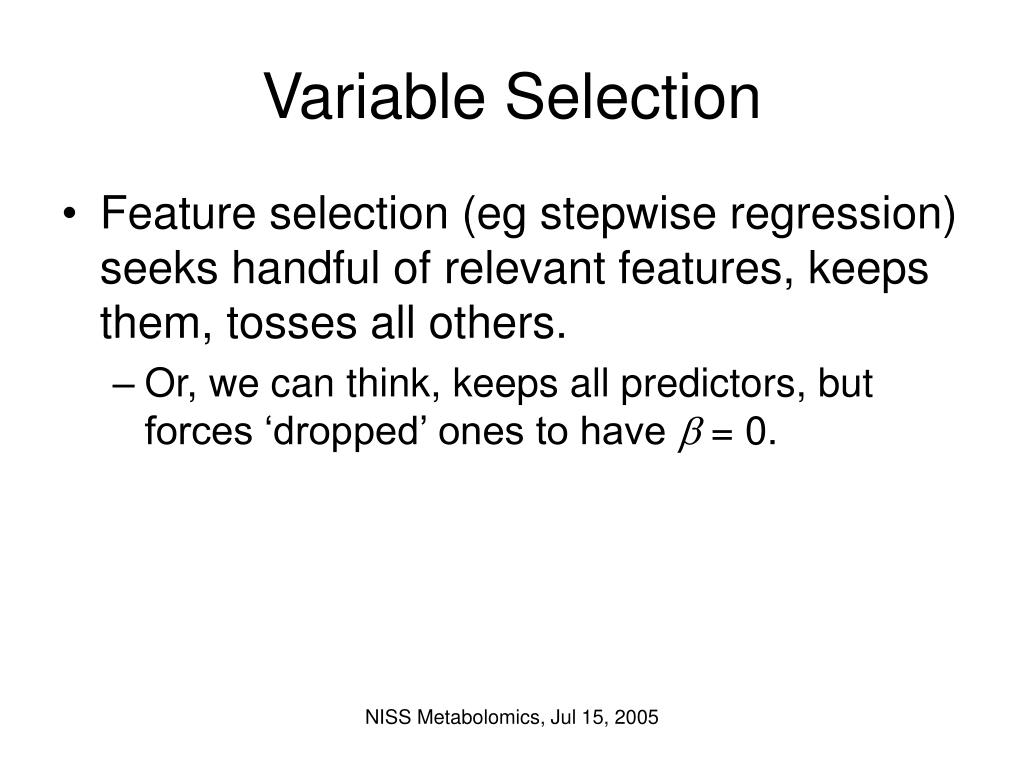

  12. Variable Selection • Feature selection (eg stepwise regression) seeks handful of relevant features, keeps them, tosses all others. • Or, we can think, keeps all predictors, but forces ‘dropped’ ones to have b = 0. NISS Metabolomics, Jul 15, 2005

  13. Evaluation • Variable subset selection is largely discredited. Overstates value of retained predictors; eliminates potentially useful ones. • PCR is questionable. No law of nature says its first few variables capture the dimensions relevant to predicting y • PLS is effective; computationally fast. NISS Metabolomics, Jul 15, 2005

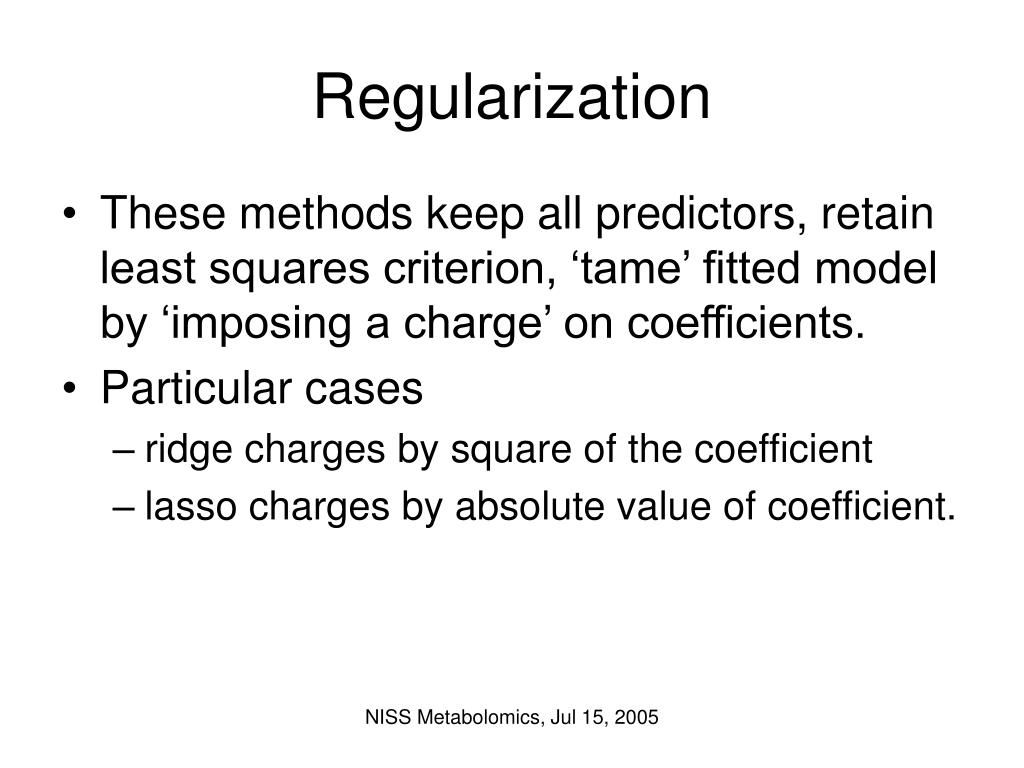

  14. Regularization • These methods keep all predictors, retain least squares criterion, ‘tame’ fitted model by ‘imposing a charge’ on coefficients. • Particular cases • ridge charges by square of the coefficient • lasso charges by absolute value of coefficient. NISS Metabolomics, Jul 15, 2005

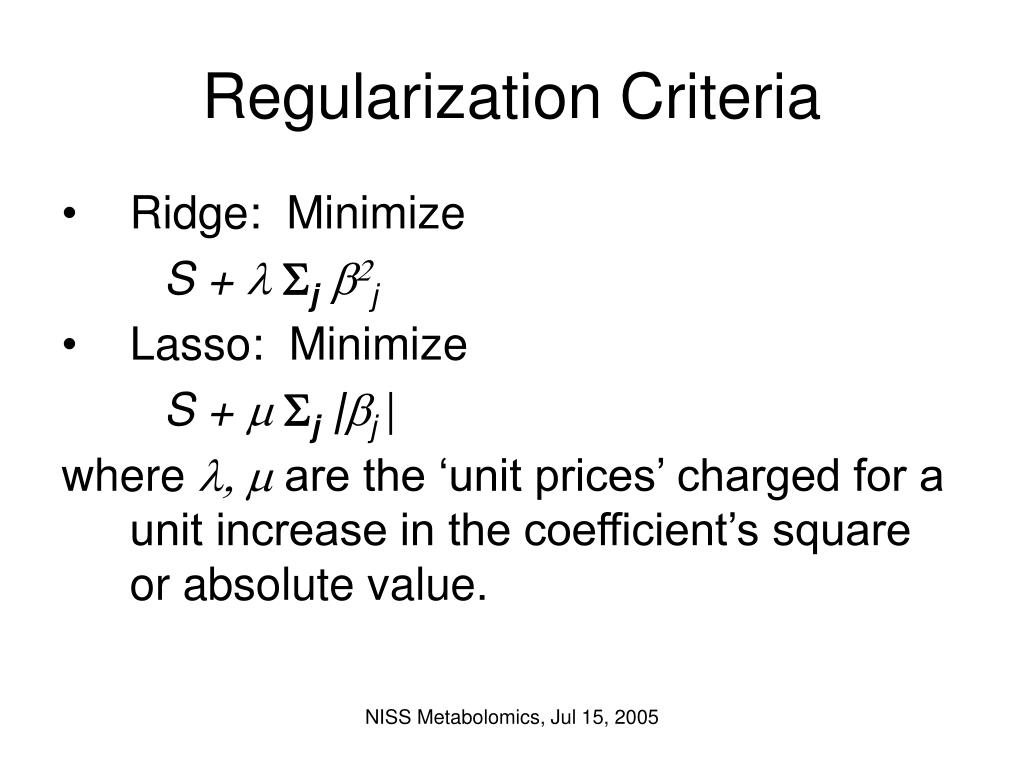

  15. Regularization Criteria • Ridge: Minimize S + l Sjb2j • Lasso: Minimize S + m Sj |bj | where l, mare the ‘unit prices’ charged for a unit increase in the coefficient’s square or absolute value. NISS Metabolomics, Jul 15, 2005

  16. Qualitative Behavior - Ridge • Ridge, lasso both ‘shrinkage estimators’. The larger the unit price of coefficient, the smaller the coefficient vector overall. • Ridge shrinks smoothly toward zero. Usually coefficients stay non-zero. NISS Metabolomics, Jul 15, 2005

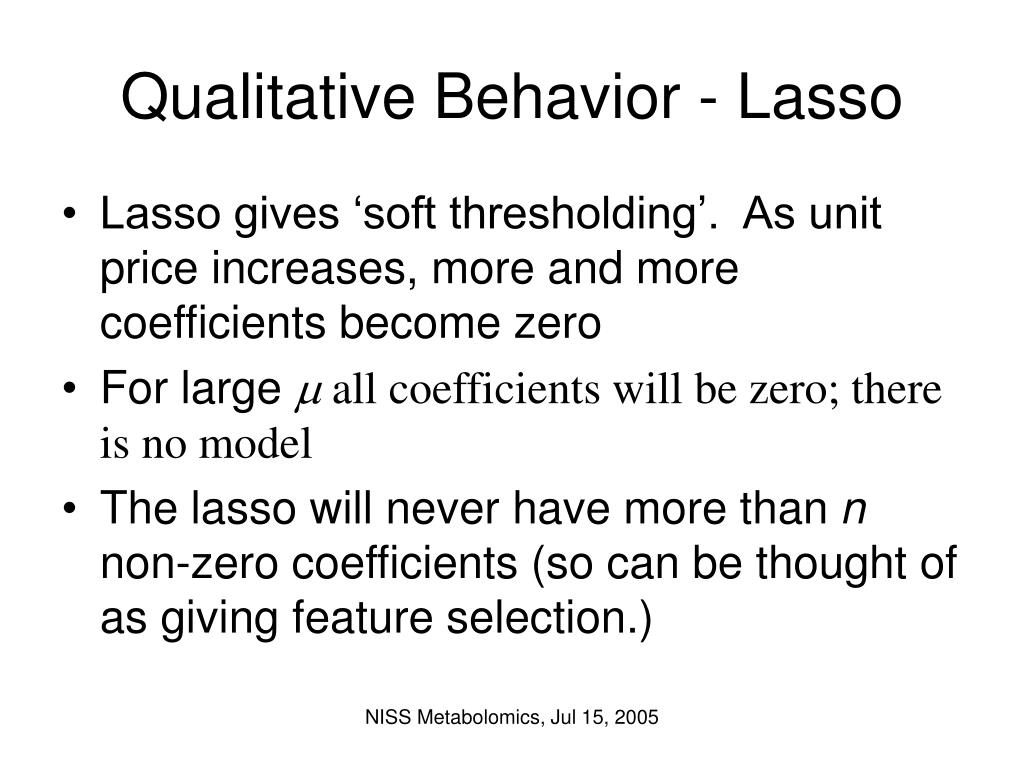

  17. Qualitative Behavior - Lasso • Lasso gives ‘soft thresholding’. As unit price increases, more and more coefficients become zero • For large mall coefficients will be zero; there is no model • The lasso will never have more than n non-zero coefficients (so can be thought of as giving feature selection.) NISS Metabolomics, Jul 15, 2005

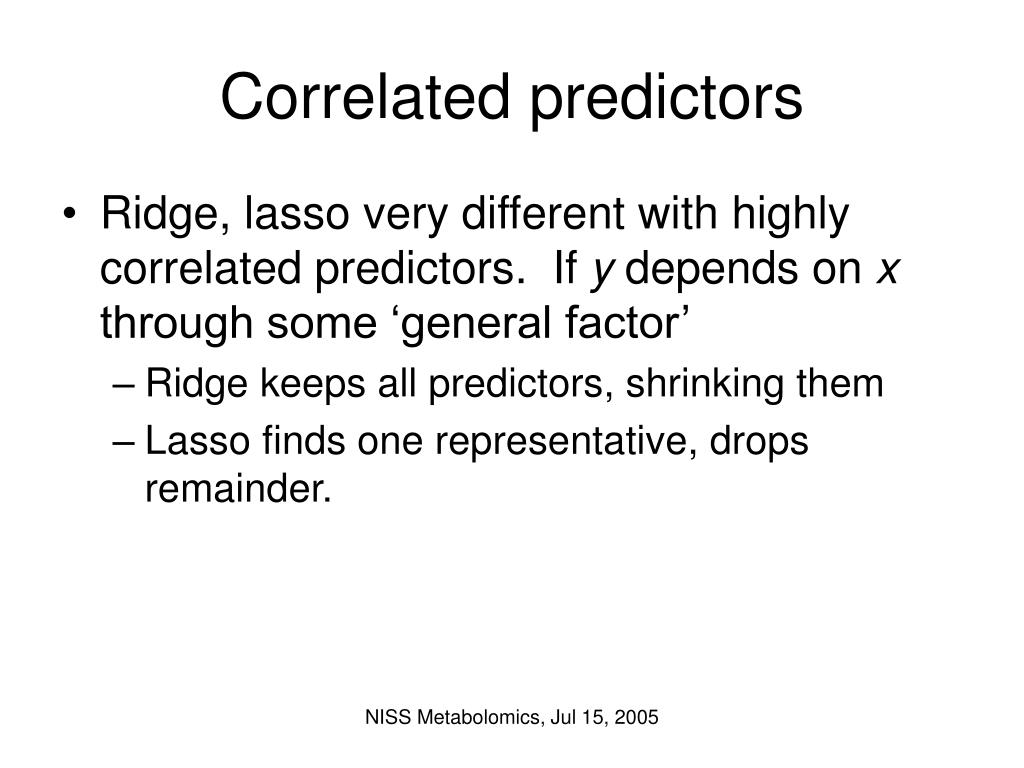

  18. Correlated predictors • Ridge, lasso very different with highly correlated predictors. If y depends on x through some ‘general factor’ • Ridge keeps all predictors, shrinking them • Lasso finds one representative, drops remainder. NISS Metabolomics, Jul 15, 2005

  19. Example • Little data set. A general factor involves features x1, x2 x3, x5 while x4 is uncorrelated. The dependent y involves the general factor and x4. Here are the traces of the 5 fitted coefficients as functions of l(ridge) and m (lasso) NISS Metabolomics, Jul 15, 2005

  20. NISS Metabolomics, Jul 15, 2005

  21. NISS Metabolomics, Jul 15, 2005

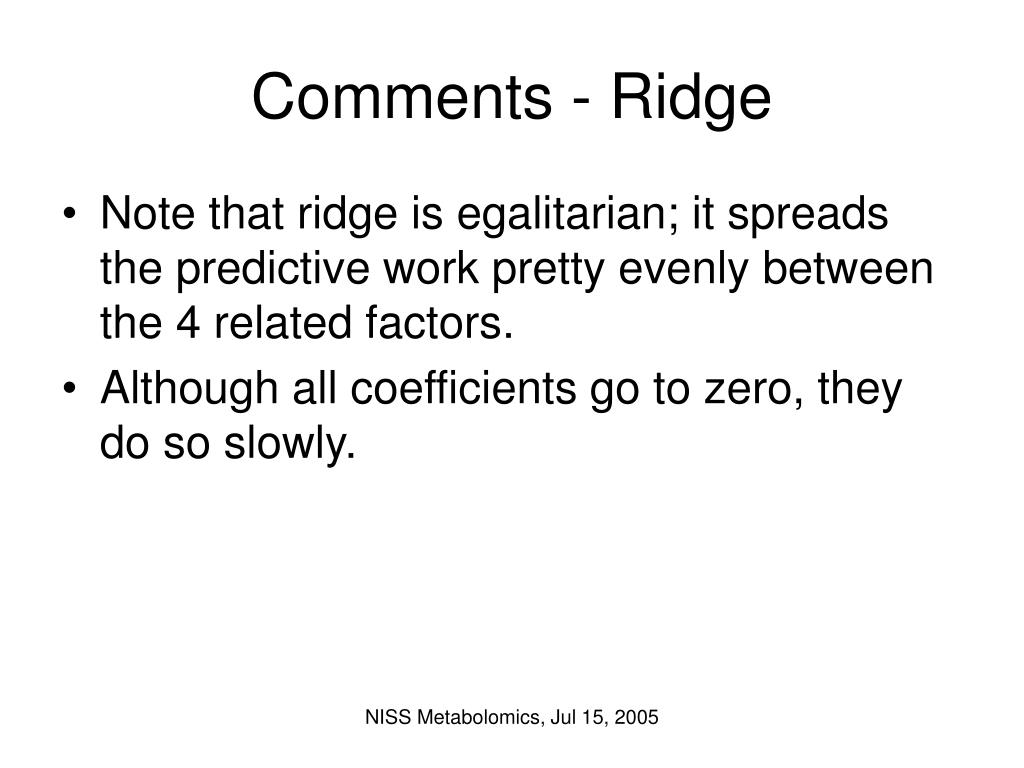

  22. Comments - Ridge • Note that ridge is egalitarian; it spreads the predictive work pretty evenly between the 4 related factors. • Although all coefficients go to zero, they do so slowly. NISS Metabolomics, Jul 15, 2005

  23. Comments - Lasso • Lasso coefficients piecewise constant, so look only at m where coefficients change. • Coefficients decrease overall as m goes up; individual coefficients can increase. • General factor term coeffs do not coalesce; x6 carries can for them all. • Note occasions where coeff increases when mincreases. NISS Metabolomics, Jul 15, 2005

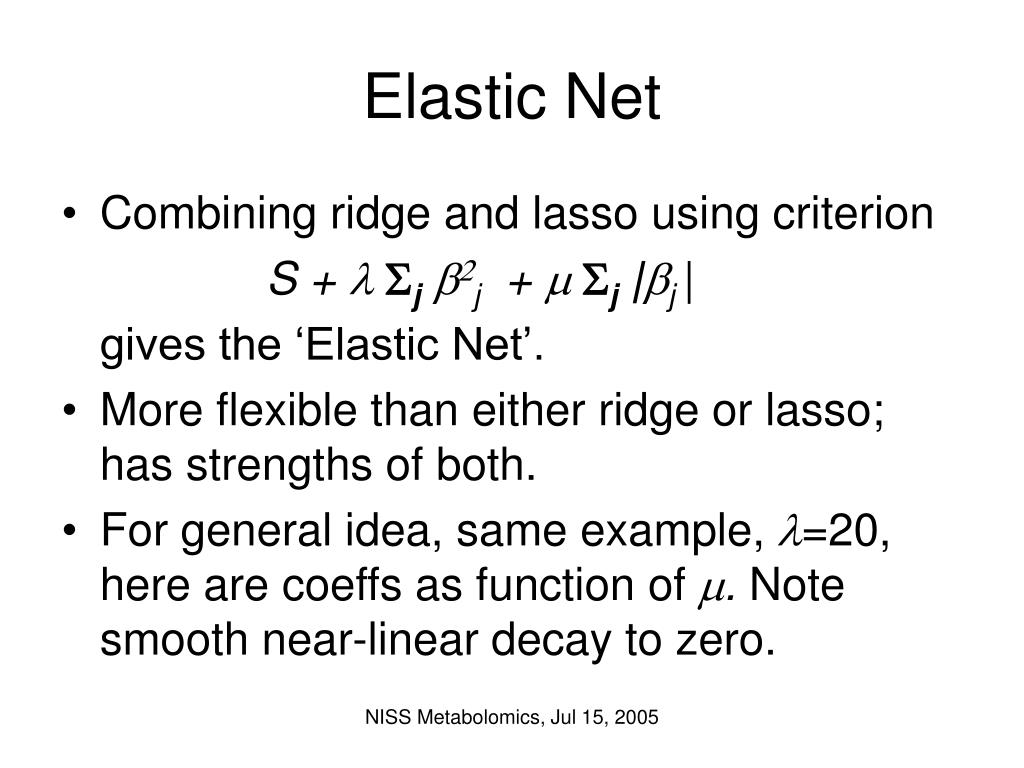

  24. Elastic Net • Combining ridge and lasso using criterion S + l Sjb2j + m Sj |bj | gives the ‘Elastic Net’. • More flexible than either ridge or lasso; has strengths of both. • For general idea, same example, l=20, here are coeffs as function of m. Note smooth near-linear decay to zero. NISS Metabolomics, Jul 15, 2005

  25. NISS Metabolomics, Jul 15, 2005

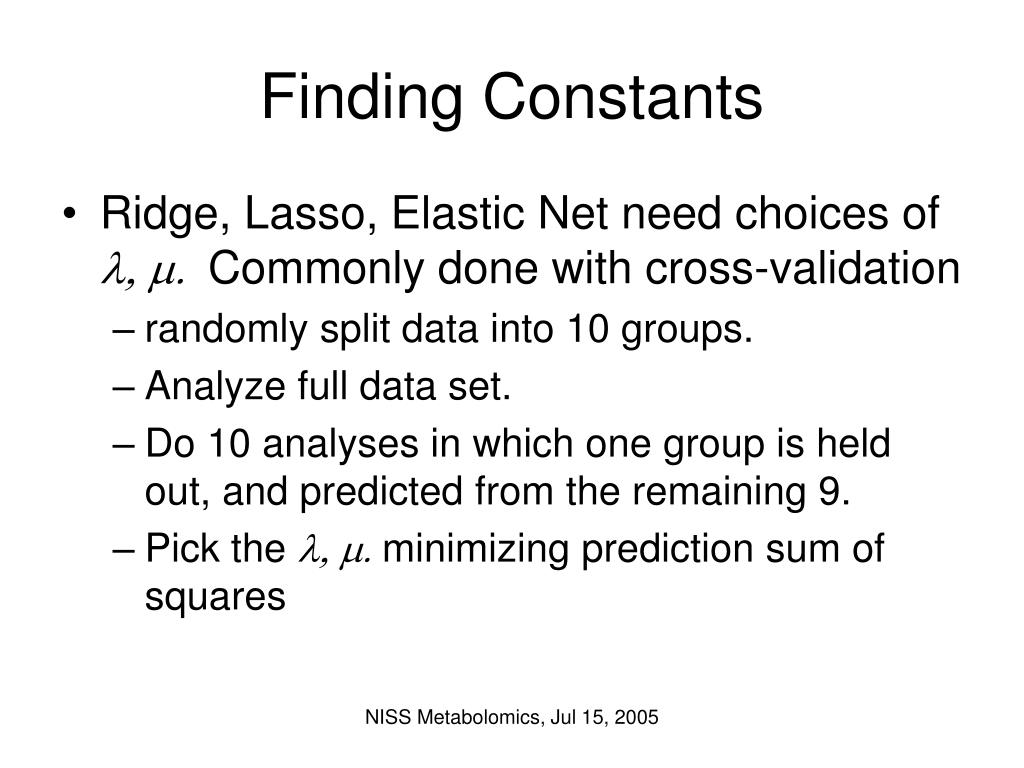

  26. Finding Constants • Ridge, Lasso, Elastic Net need choices of l, m. Commonly done with cross-validation • randomly split data into 10 groups. • Analyze full data set. • Do 10 analyses in which one group is held out, and predicted from the remaining 9. • Pick the l, m. minimizing prediction sum of squares NISS Metabolomics, Jul 15, 2005

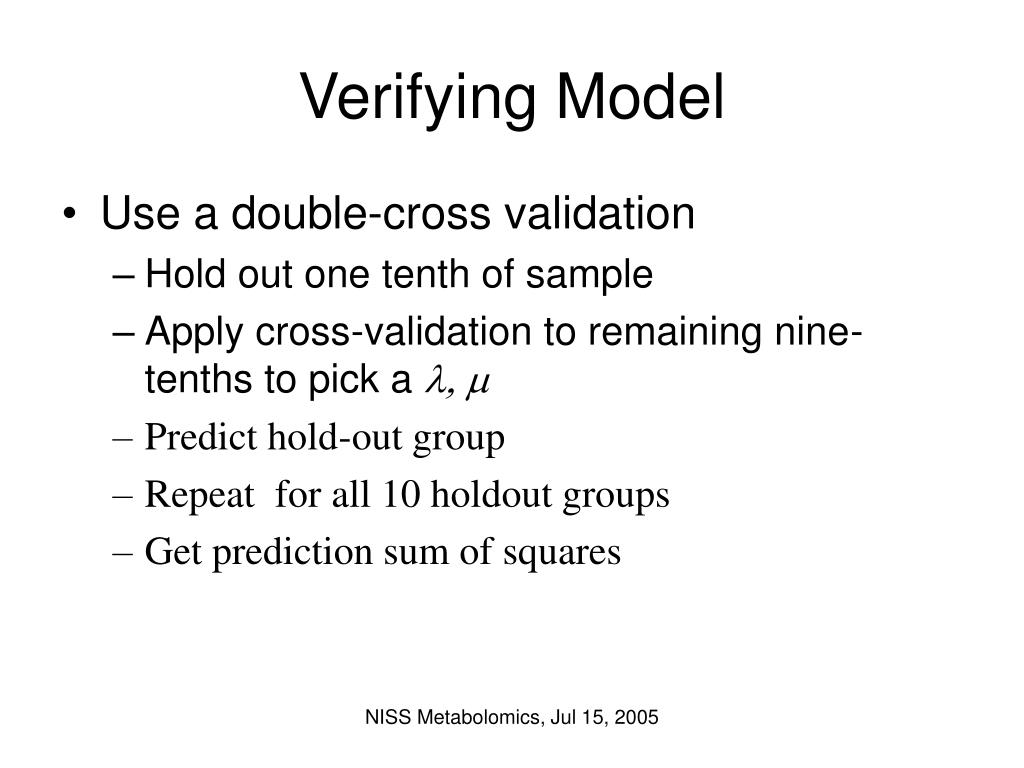

  27. Verifying Model • Use a double-cross validation • Hold out one tenth of sample • Apply cross-validation to remaining nine-tenths to pick a l, m • Predict hold-out group • Repeat for all 10 holdout groups • Get prediction sum of squares NISS Metabolomics, Jul 15, 2005

  28. (If-Pigs-Could-Fly Approach) • (If you have a huge value of n you can de novo split sample into a learning portion and a validation portion; fit the model to the learning portion, check it on the completely separate validation portion. • This may give high comfort level, but is an inefficient use of limited sample. • Inevitably raises suspicion you carefully picked halves that support hypothesis.) NISS Metabolomics, Jul 15, 2005

  29. Diagnostics • Regression case diagnostics involve: • Influence: How much to answers change if this case is left out • Outliers: Is this case compatible with model fitting the remaining cases. • Tempting to throw up hands when n<<p, but deletion diagnostics, studentized residuals still available, still useful NISS Metabolomics, Jul 15, 2005

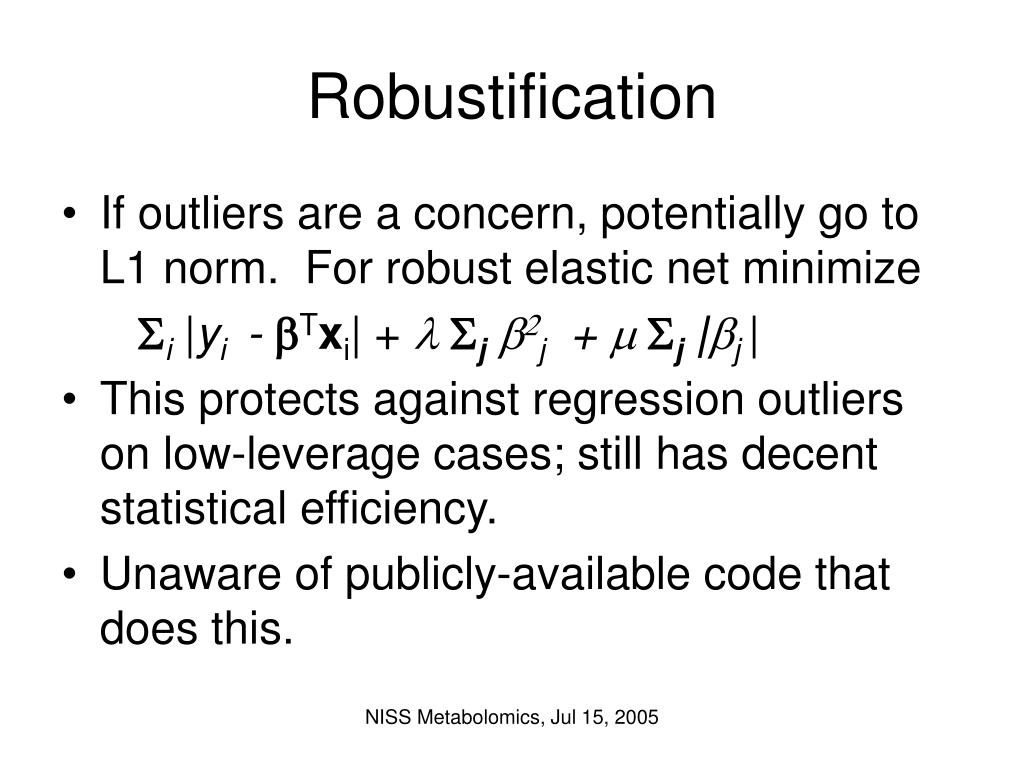

  30. Robustification • If outliers are a concern, potentially go to L1 norm. For robust elastic net minimize Si|yi - bTxi| +l Sjb2j + m Sj |bj | • This protects against regression outliers on low-leverage cases; still has decent statistical efficiency. • Unaware of publicly-available code that does this. NISS Metabolomics, Jul 15, 2005

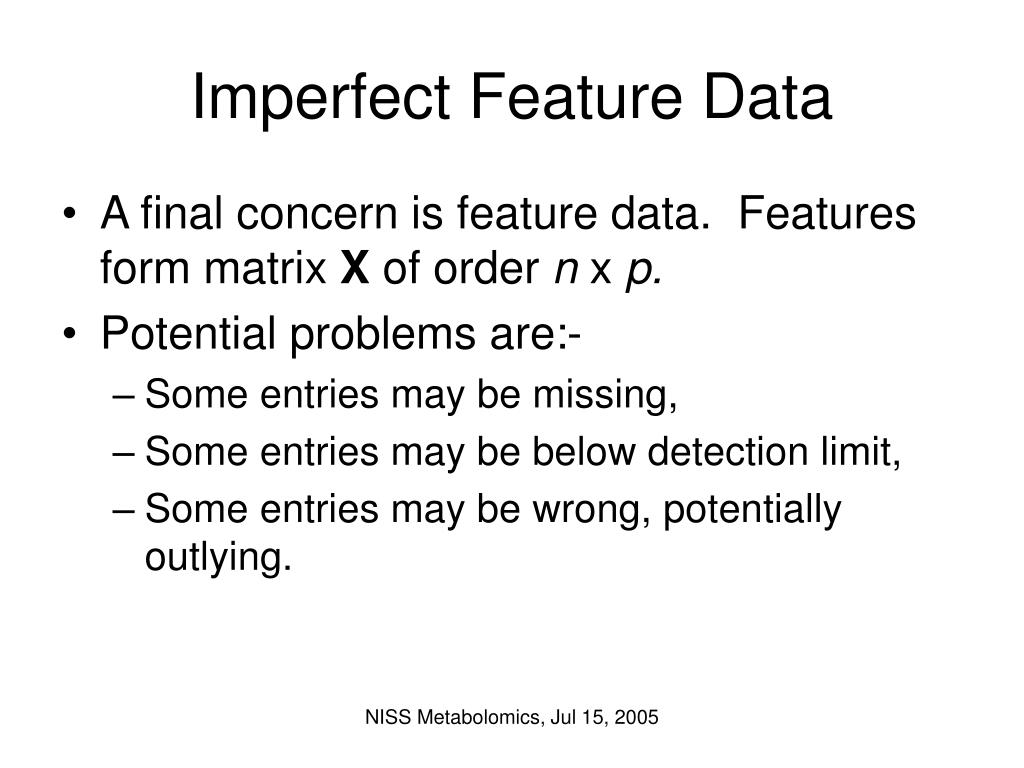

  31. Imperfect Feature Data • A final concern is feature data. Features form matrix X of order n x p. • Potential problems are:- • Some entries may be missing, • Some entries may be below detection limit, • Some entries may be wrong, potentially outlying. NISS Metabolomics, Jul 15, 2005

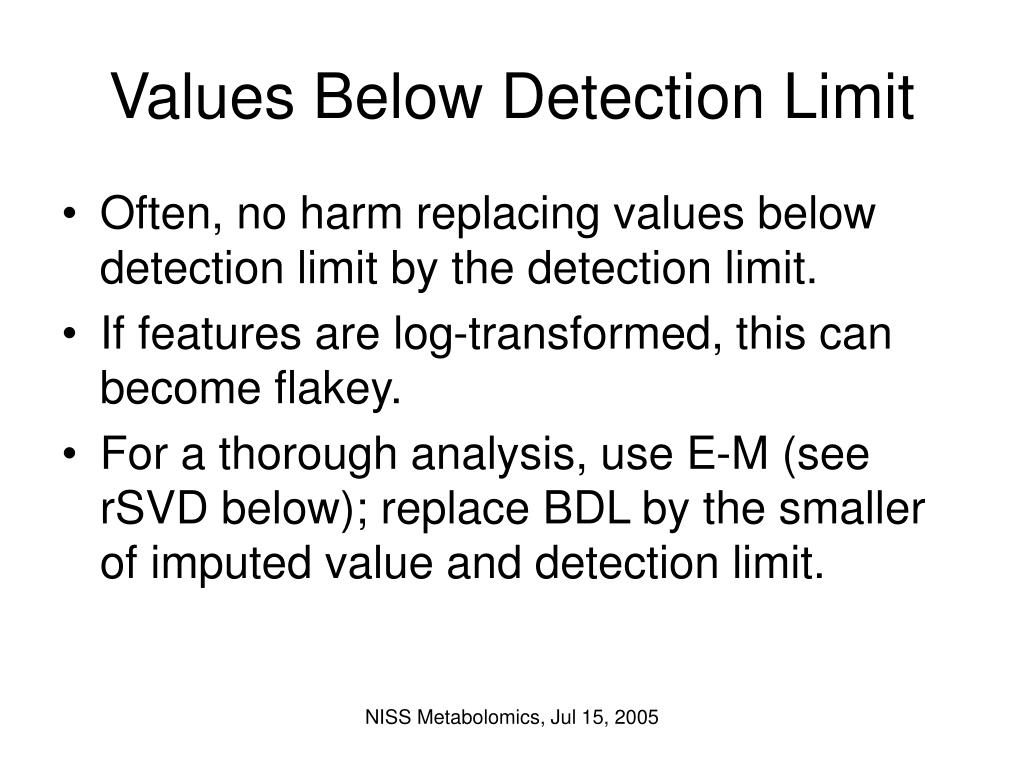

  32. Values Below Detection Limit • Often, no harm replacing values below detection limit by the detection limit. • If features are log-transformed, this can become flakey. • For a thorough analysis, use E-M (see rSVD below); replace BDL by the smaller of imputed value and detection limit. NISS Metabolomics, Jul 15, 2005

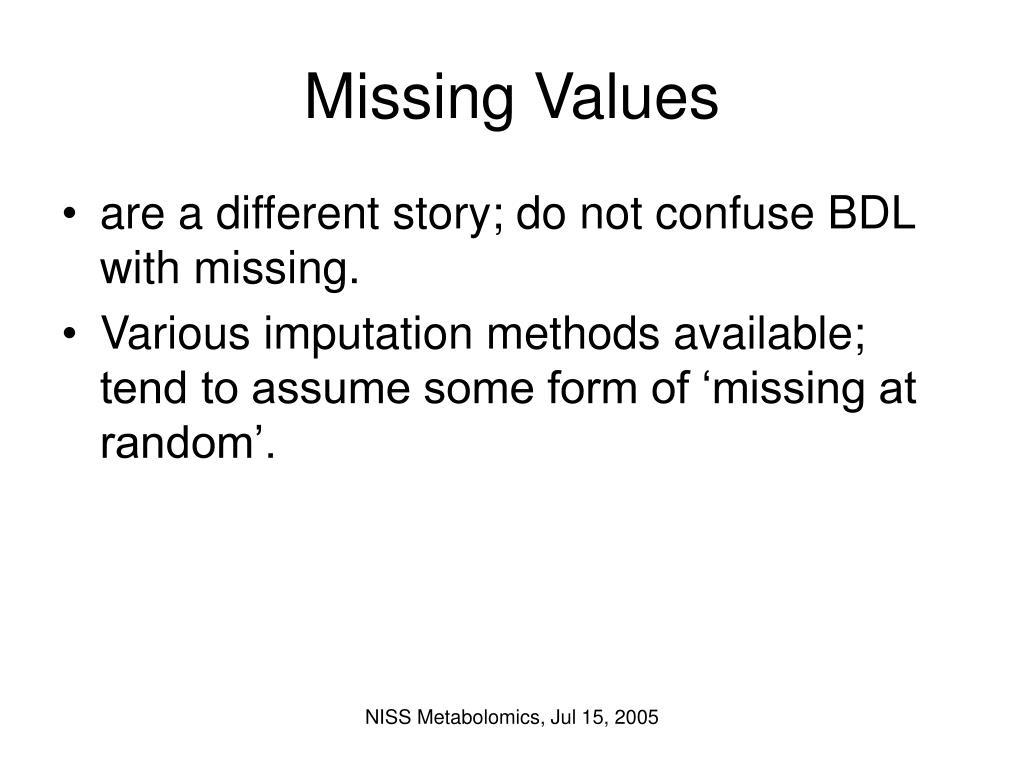

  33. Missing Values • are a different story; do not confuse BDL with missing. • Various imputation methods available; tend to assume some form of ‘missing at random’. NISS Metabolomics, Jul 15, 2005

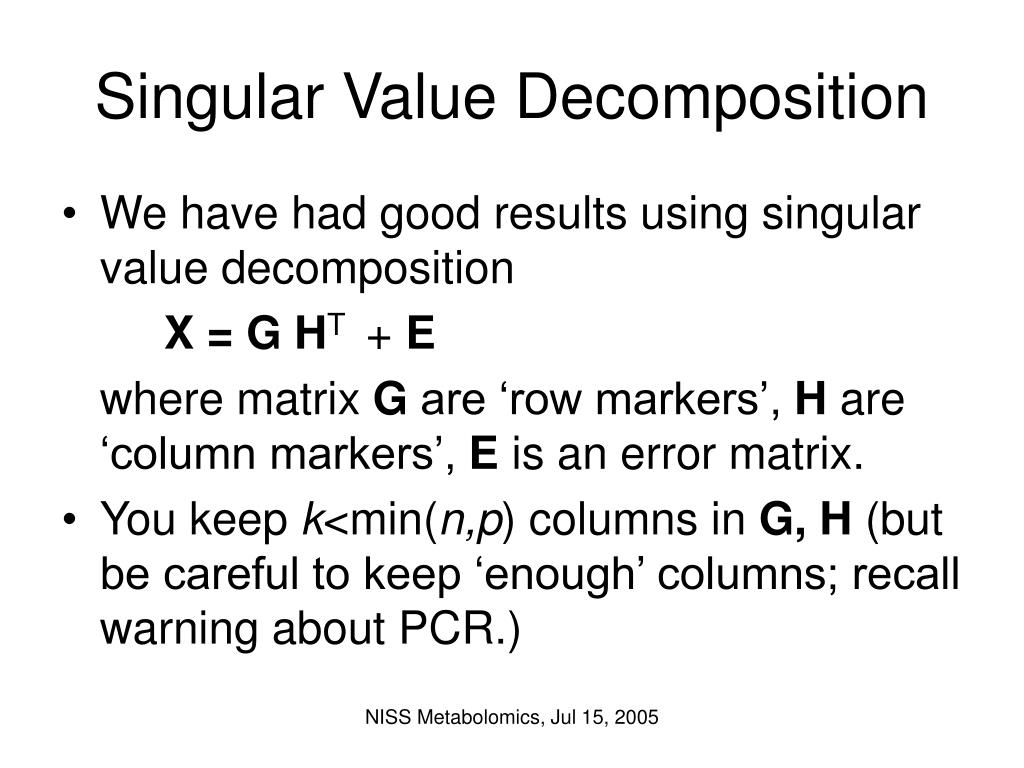

  34. Singular Value Decomposition • We have had good results using singular value decomposition X = G HT + E where matrix Gare ‘row markers’, H are ‘column markers’, Eis an error matrix. • You keep k<min(n,p) columns in G, H (but be careful to keep ‘enough’ columns; recall warning about PCR.) NISS Metabolomics, Jul 15, 2005

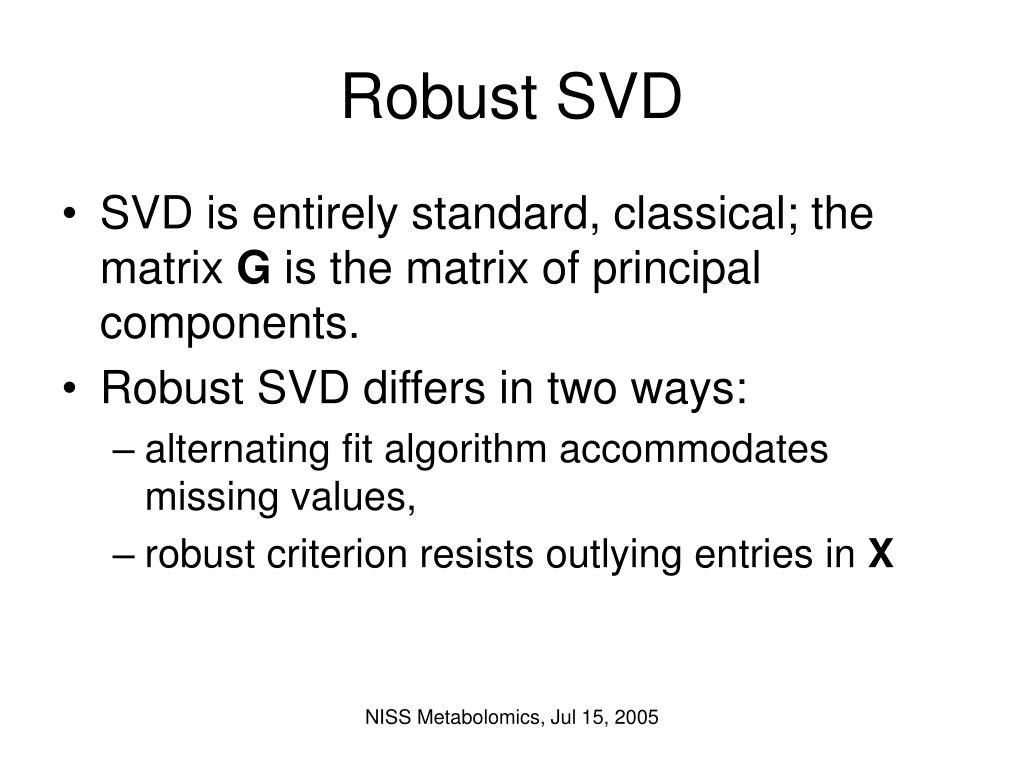

  35. Robust SVD • SVD is entirely standard, classical; the matrix G is the matrix of principal components. • Robust SVD differs in two ways: • alternating fit algorithm accommodates missing values, • robust criterion resists outlying entries in X NISS Metabolomics, Jul 15, 2005

  36. Use of rSVD • The rSVD has several uses: • Gives way to get PCs (columns of G) despite missing information and/or outliers. • GHTgives ‘fitted values’ you can use as fill-ins for missing values in X. • E is matrix of residuals. A histogram can flag apparently outlier cells for diagnosis. Maybe replace outliers by fitted values or winsorize NISS Metabolomics, Jul 15, 2005

  37. SVD and Spectra • A special case is where features are a function (eg spectral data). So think xit where i is sample and t is ‘time’. • Logic says finer resolution adds information, should give better answers. • Experience says finer resolution dilutes signal, adds noise, raises overfitting concern. NISS Metabolomics, Jul 15, 2005

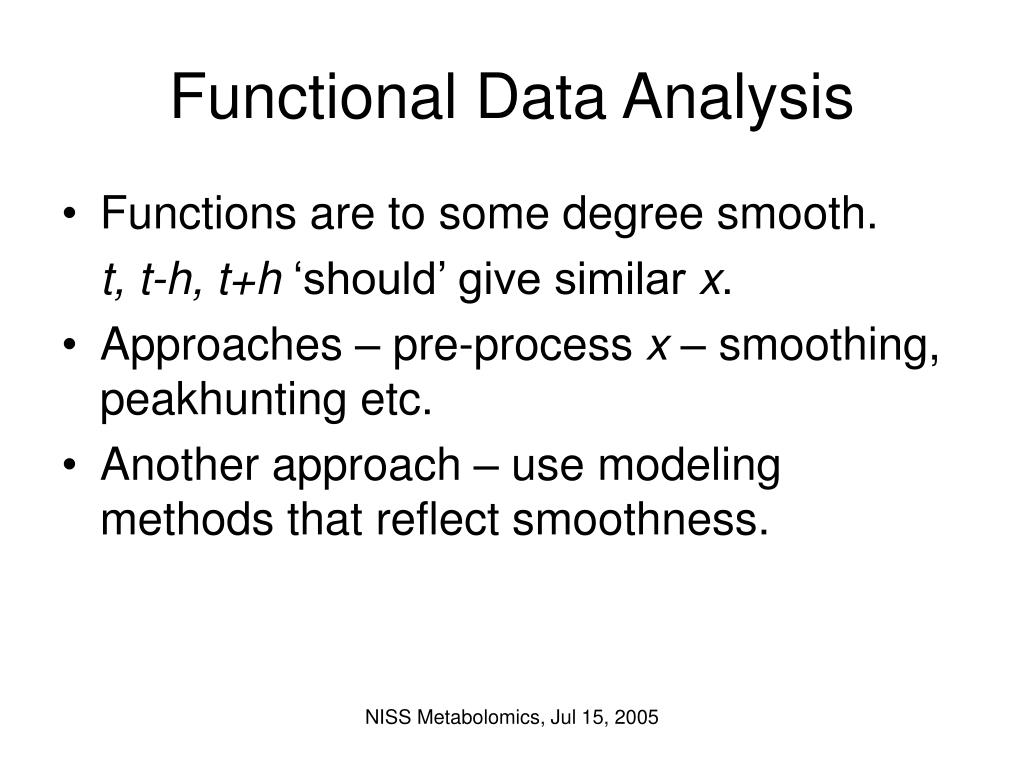

  38. Functional Data Analysis • Functions are to some degree smooth. t, t-h, t+h ‘should’ give similar x. • Approaches – pre-process x – smoothing, peakhunting etc. • Another approach – use modeling methods that reflect smoothness. NISS Metabolomics, Jul 15, 2005

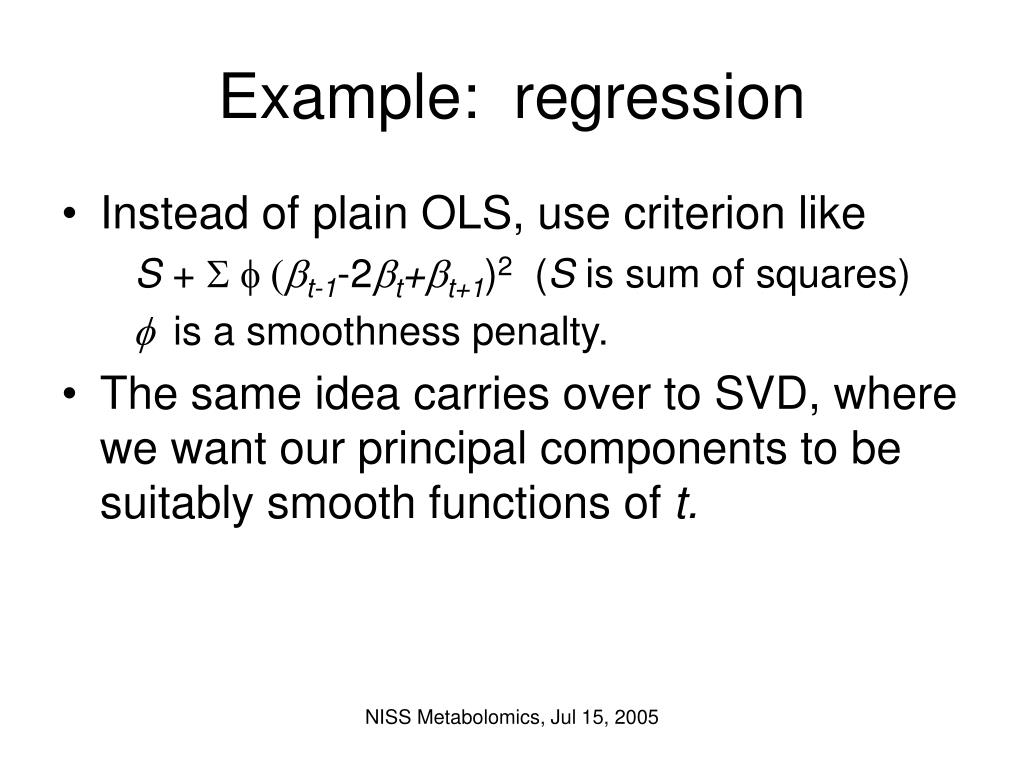

  39. Example: regression • Instead of plain OLS, use criterion like S + S f (bt-1-2bt+bt+1)2 (S is sum of squares) f is a smoothness penalty. • The same idea carries over to SVD, where we want our principal components to be suitably smooth functions of t. NISS Metabolomics, Jul 15, 2005

  40. Summary • Linear modeling methods remain valuable tools in the analysis armory • Several current methods are effective, and have theoretical support. • The least-squares-with-regularization methods are effective, even in the n<<p setting, and involve tolerable computation. NISS Metabolomics, Jul 15, 2005

  41. Some references Cook, R.D., and Weisberg, S. (1999). Applied Regression Including Computing and Graphics, John Wiley & Sons Inc.: New York. Dobson, A. J. (1990). An Introduction to Generalized Linear Models, Chapman and Hall: London. Li, K-C. and Duan, N., (1989), “Regression analysis under link violation”, Annals of Statistics, 17, 1009-1052. St. Laurent, R.T., and Cook, R.D. (1993). “Leverage, Local Influence, and Curvature in Nonlinear Regression”, Biometrika, 80, 99-106. Wold, S. (1993). “Discussion: PLS in Chemical Practice”, Technometrics, 35, 136-139. Wold, H. (1966). “Estimation of Principal Components and Related Models by Iterative Least Squares”, in Multivariate Analysis, ed. P.R. Krishnaiah, Academic Press: New York, 391-420. Rencher, A.C., and Pun, F. (1980). “Inflation of R2 in Best Subset Regression”, Technometrics, 22, 49-53. . Miller, A. J. (2002). Subset Selection in Regression, 2nd ed., Chapman and Hall: London. Tibshirani, R. (1996). “Regression Shrinkage and Selection via the LASSO”, J. R. Statistical Soc. B, 58, 267-288. Zou, H., and Hastie, T. (2005). “Regularization and Variable Selection via the Elastic Net”, J. R. Statistical Soc. B, 67, 301-320. Shao, J. (1993). “Linear Model Selection by Cross-Validation”, Journal of the American Statistical Association, 88, 486-494. Hawkins, D.M., Basak, S.C., and Mills, D. (2003). “Assessing Model Fit by Cross-Validation”, Journal of Chemical Information and Computer Sciences, 43, 579-586. Walker, E., and Birch, J.B. (1988). “Influence Measures in Ridge Regression”, Technometrics, 30, 221-227. Efron, B. (1994). “Missing Data, Imputation, and the Bootstrap”, Journal of the American Statistical Association, 89, 463-475. Rubin, D.B. (1976). “Inference and Missing Data”, Biometrika, 63, 581-592. Liu, L., Hawkins, D.M., Ghosh, S., and Young, S.S. (2003). “Robust Singular Value Decomposition Analysis of Microarray Data”, Proceeding of the National Academy of Sciences, 100, 13167-13172. Elston, D. A., and Proe, M.F. (1995). “Smoothing Regression Coefficients in an Overspecified Regression Model with Interrelated Explanatory Variables”, Applied Statistics, 44, 395-406. Tibshirani, R., Saunders, M., Rosset, S., Zhi, J, and Knight, K., (2005), “Sparsity and smoothness via the fused lasso”, , J. R. Statistical Soc. B, 67, 91-108. Ramsay, J. O. , and Silverman, B. W.  (2002), ``Applied functional data analysis: methods and case studies'', Springer-Verlag Inc (Berlin; New York) NISS Metabolomics, Jul 15, 2005
