Secondary Structure Prediction Using Decision Lists

1. Secondary Structure Prediction Using Decision Lists Deniz YURET Volkan KURT

2. Outline • What is the problem? • What are the different approaches? • How do we use decision lists and why? • Why does evolution help?

3. What is the problem? • The generic prediction algorithm • Some important pitfalls: definition, data set • Upper and lower bounds on performance • Evolution and homology enters the picture

4. Tertiary / Quaternary Structure

5. Tertiary / Quaternary Structure

6. Secondary Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----------HHHHHHHHHH------EEEEE-------

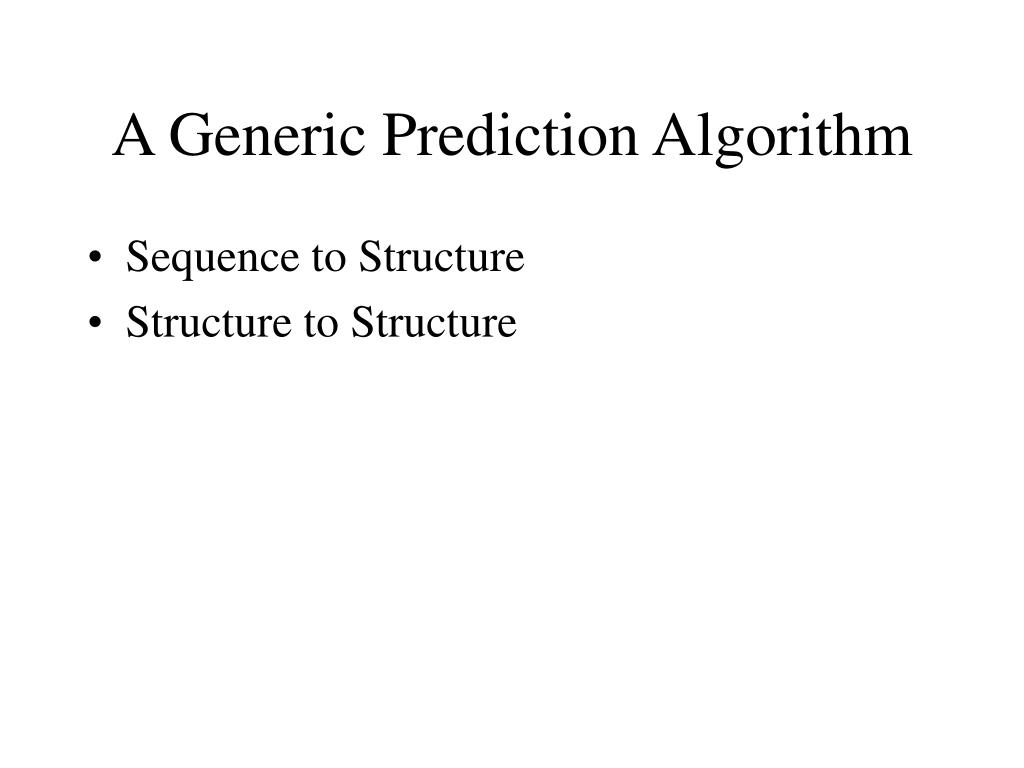

7. A Generic Prediction Algorithm • Sequence to Structure • Structure to Structure

8. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ??????????????????????????????????????

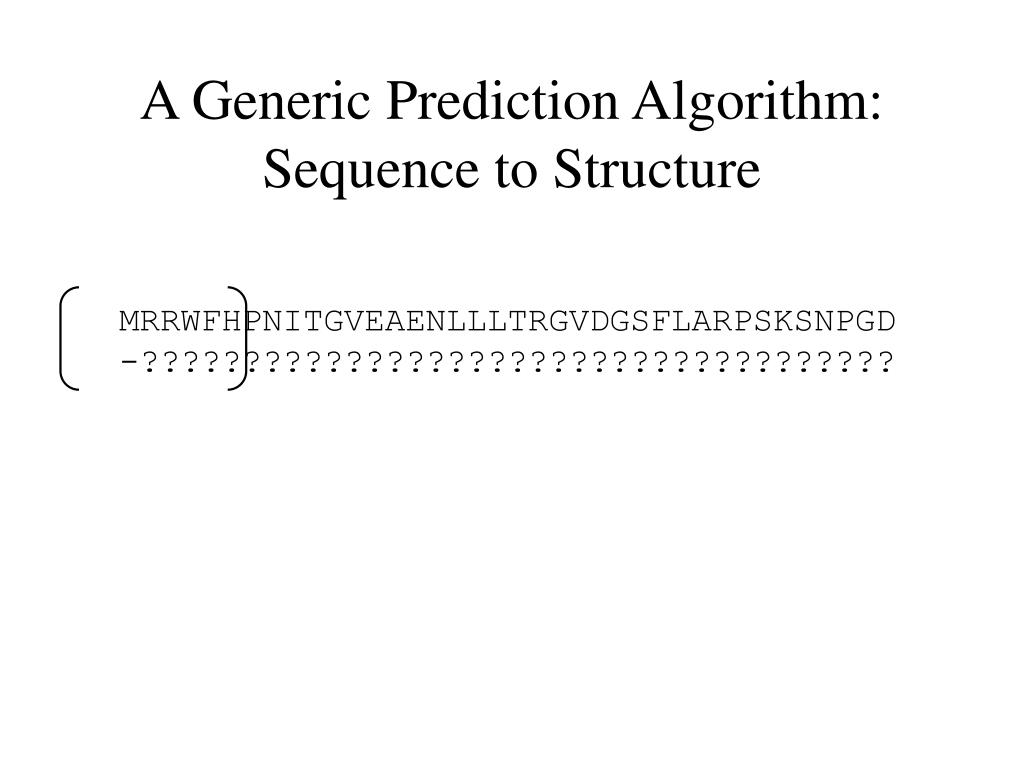

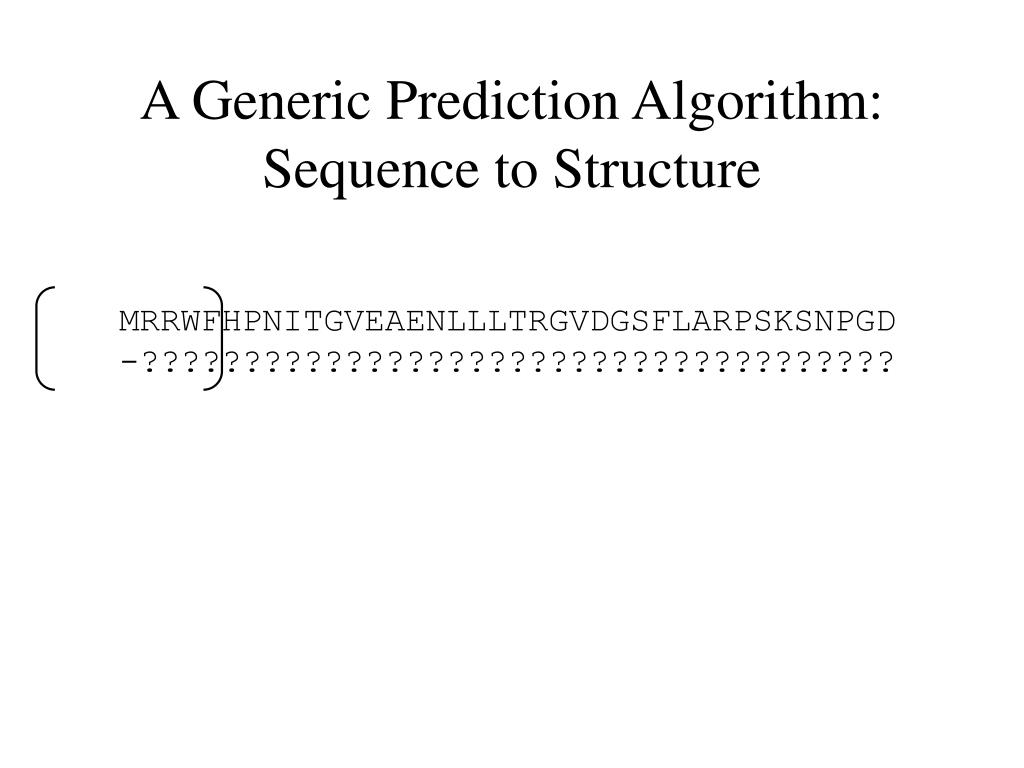

9. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD -?????????????????????????????????????

10. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD -?????????????????????????????????????

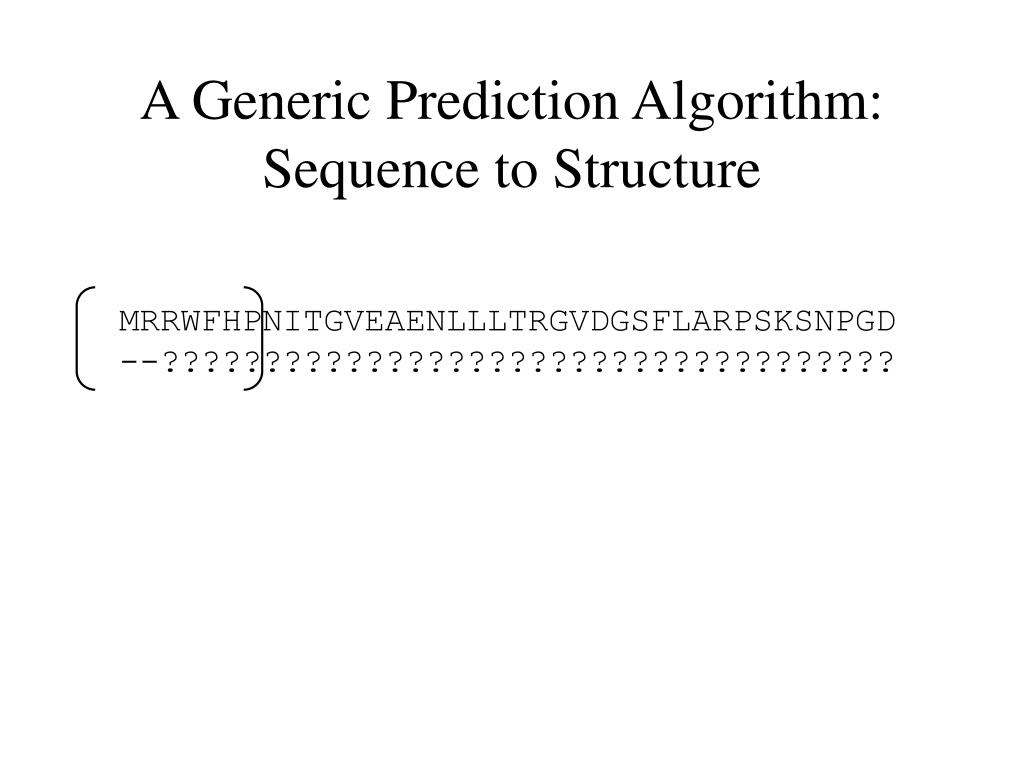

11. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD --????????????????????????????????????

12. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD --????????????????????????????????????

13. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ---???????????????????????????????????

14. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----H-----????????????????????????????

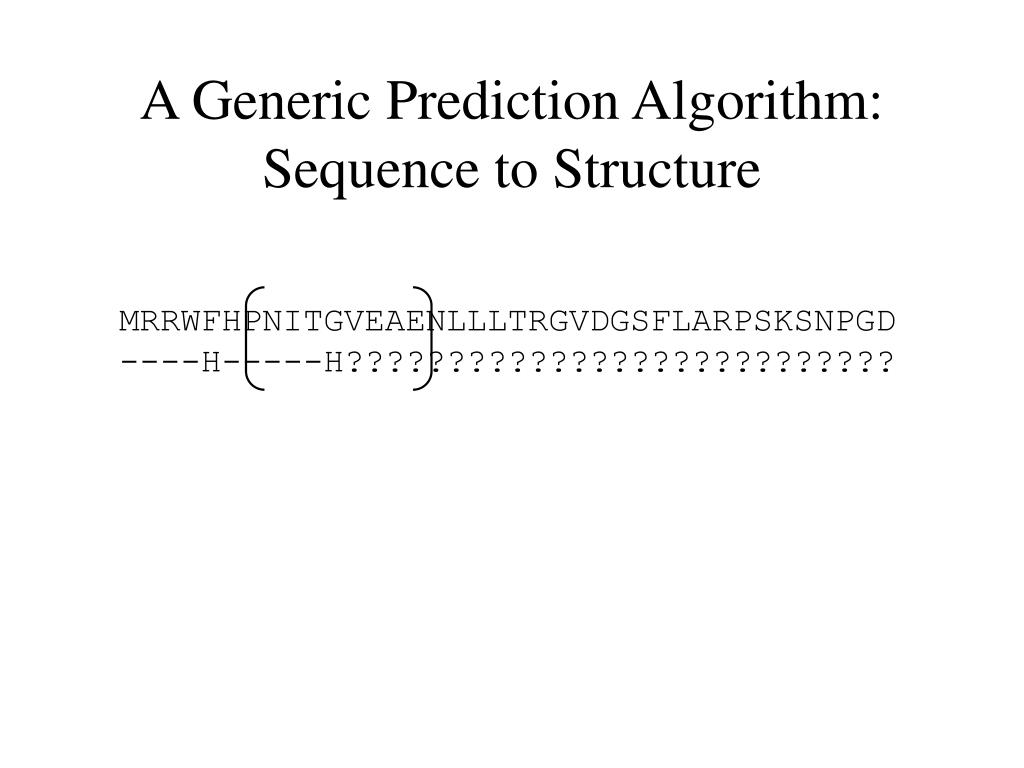

15. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----H-----H???????????????????????????

16. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----H-----H???????????????????????????

17. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----H-----HH??????????????????????????

18. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----H-----HHHHHHHHHH------EEEEE------?

19. A Generic Prediction Algorithm: Sequence to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----H-----HHHHHHHHHH------EEEEE-------

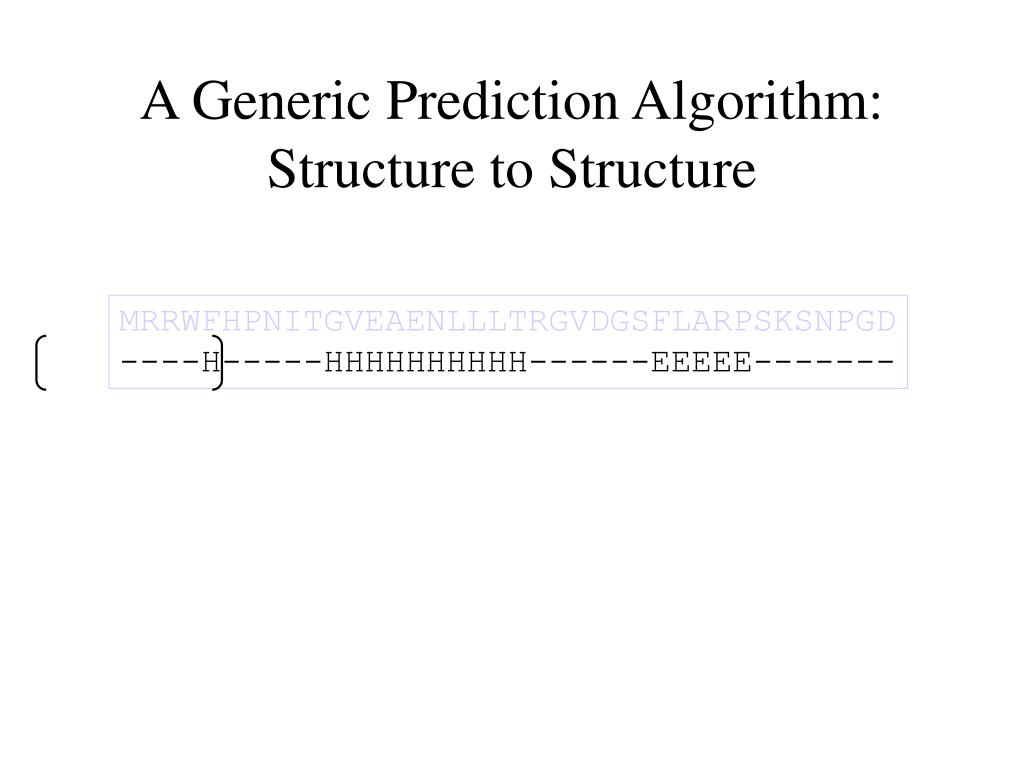

20. A Generic Prediction Algorithm: Structure to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ?---H-----HHHHHHHHHH------EEEEE-------

21. A Generic Prediction Algorithm: Structure to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----H-----HHHHHHHHHH------EEEEE-------

22. A Generic Prediction Algorithm: Structure to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD -?--H-----HHHHHHHHHH------EEEEE-------

23. A Generic Prediction Algorithm: Structure to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----H-----HHHHHHHHHH------EEEEE-------

24. A Generic Prediction Algorithm: Structure to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD --?-H-----HHHHHHHHHH------EEEEE-------

25. A Generic Prediction Algorithm: Structure to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----H-----HHHHHHHHHH------EEEEE-------

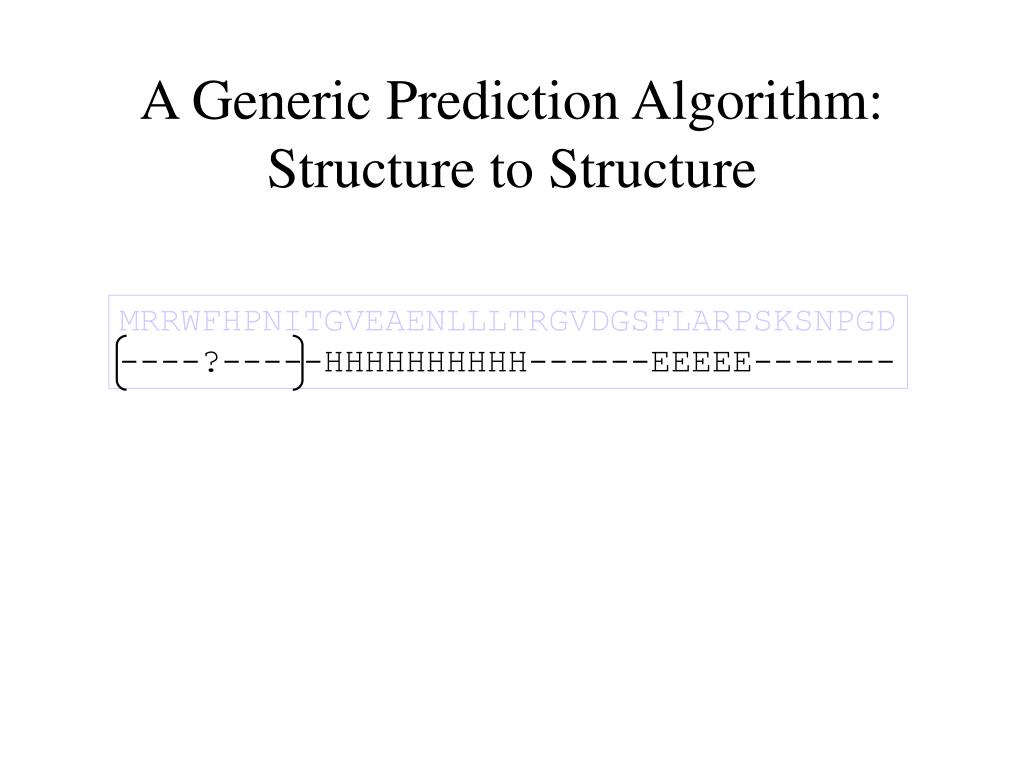

26. A Generic Prediction Algorithm: Structure to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----?-----HHHHHHHHHH------EEEEE-------

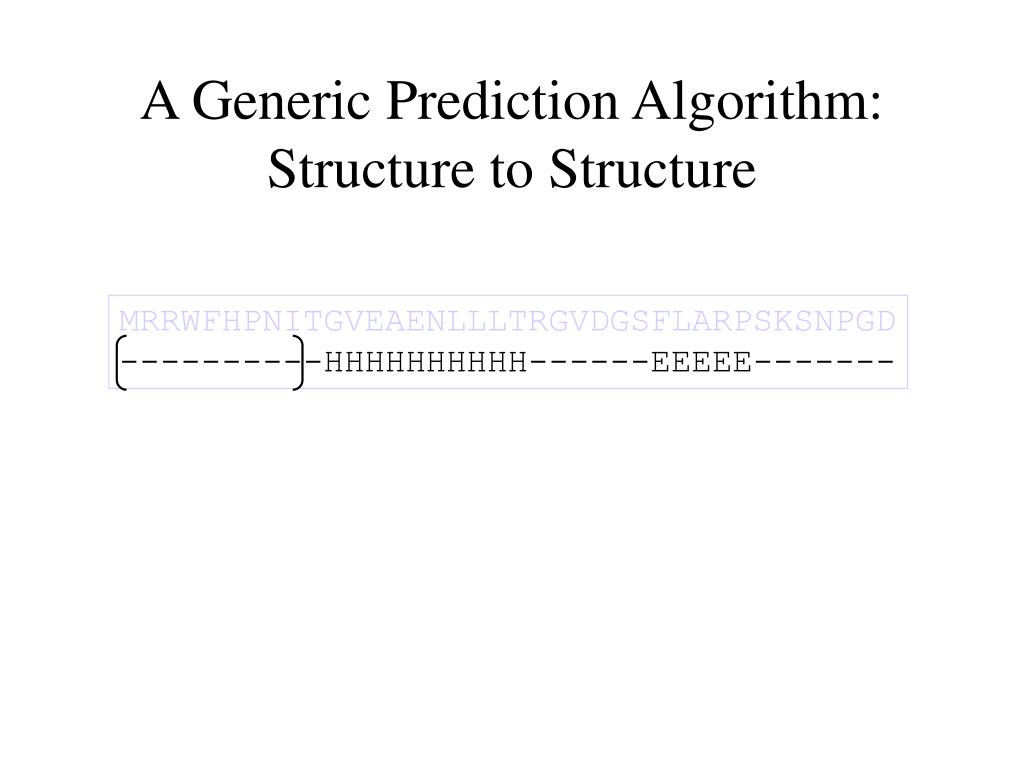

27. A Generic Prediction Algorithm: Structure to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----------HHHHHHHHHH------EEEEE-------

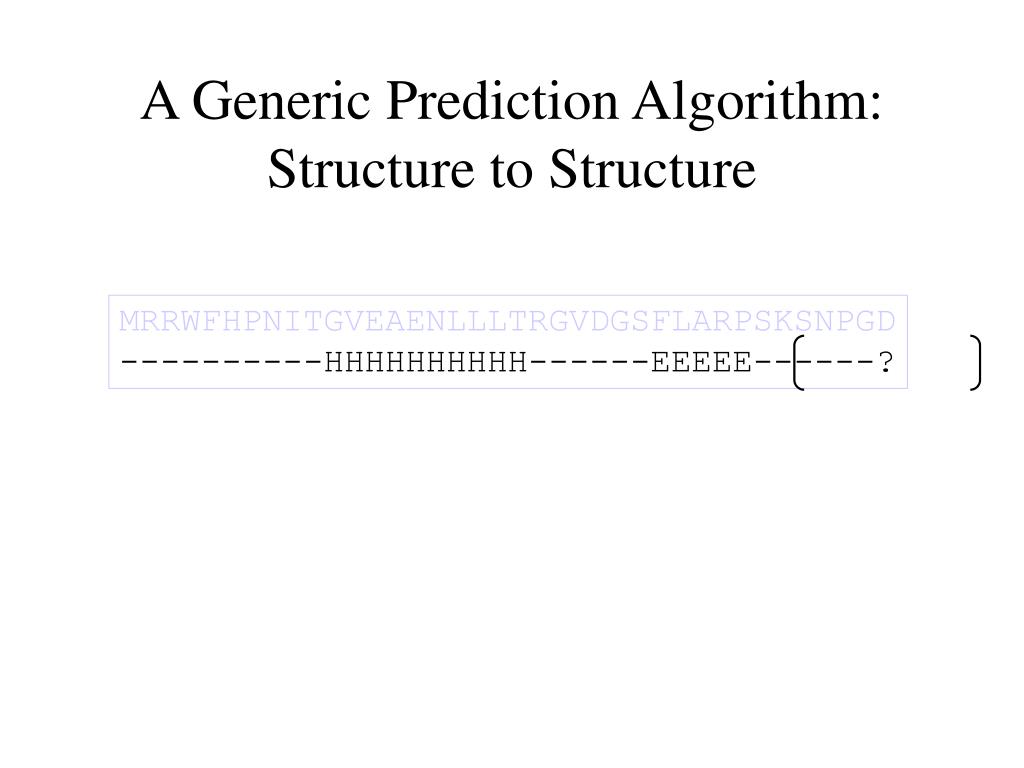

28. A Generic Prediction Algorithm: Structure to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----------HHHHHHHHHH------EEEEE------?

29. A Generic Prediction Algorithm: Structure to Structure MRRWFHPNITGVEAENLLLTRGVDGSFLARPSKSNPGD ----------HHHHHHHHHH------EEEEE-------

30. Pitfalls for newcomers • Definition of secondary structure • Choice of data set

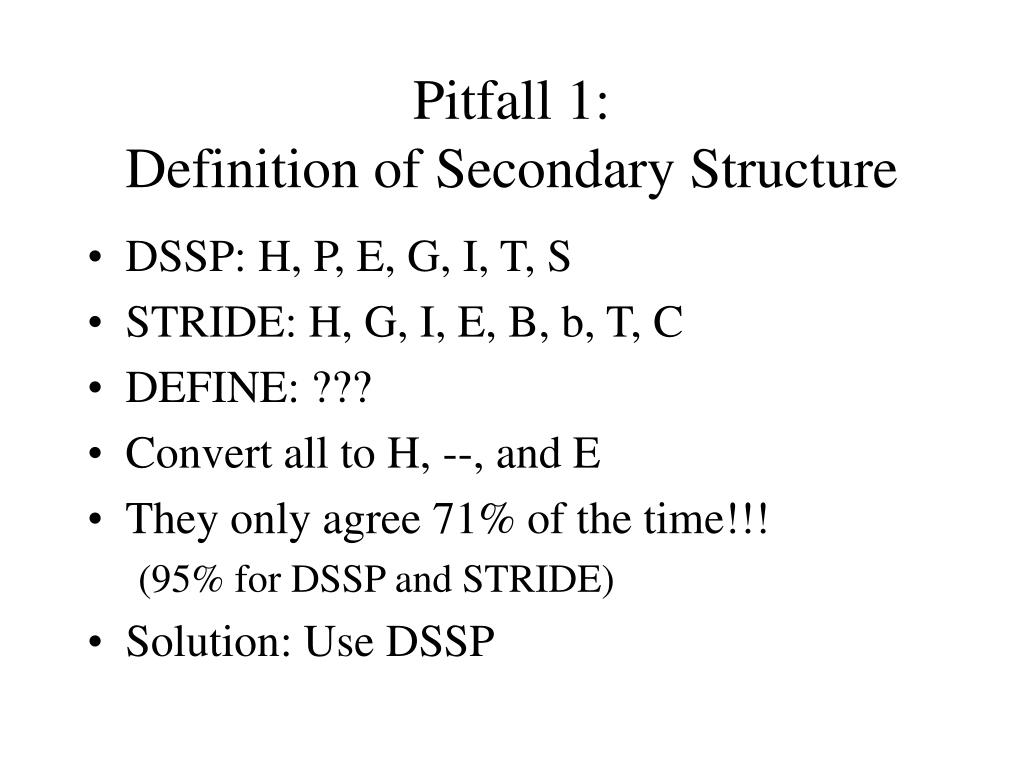

31. Pitfall 1: Definition of Secondary Structure • DSSP: H, P, E, G, I, T, S • STRIDE: H, G, I, E, B, b, T, C • DEFINE: ??? • Convert all to H, --, and E • They only agree 71% of the time!!! (95% for DSSP and STRIDE) • Solution: Use DSSP

32. Pitfall 2: Dataset • Trivial to get 80%+ when homologies are present between the training and the test set • Homology identification keeps evolving • RS126, CB513, etc. • Comparison of programs on different data sets meaningless…

33. Performance Bounds • Simple baselines for lower bound • A method for estimating an upper bound

34. Baseline 1: 43% of all residues are tagged “loop” Performance Bounds 43%: assign loop

35. Baseline 2: 49% of all residues are tagged with the most frequent structure for the given amino-acid. Performance Bounds 49%: assign most frequent 43%: assign loop

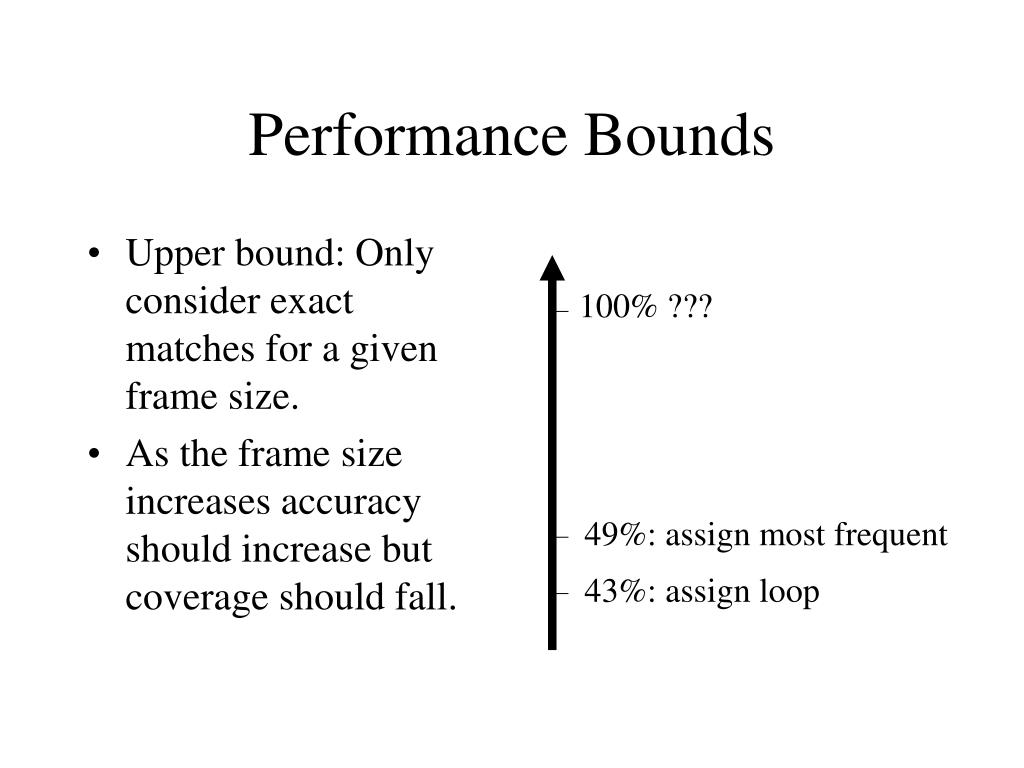

36. Upper bound: Only consider exact matches for a given frame size. As the frame size increases accuracy should increase but coverage should fall. Performance Bounds 100% ??? 49%: assign most frequent 43%: assign loop

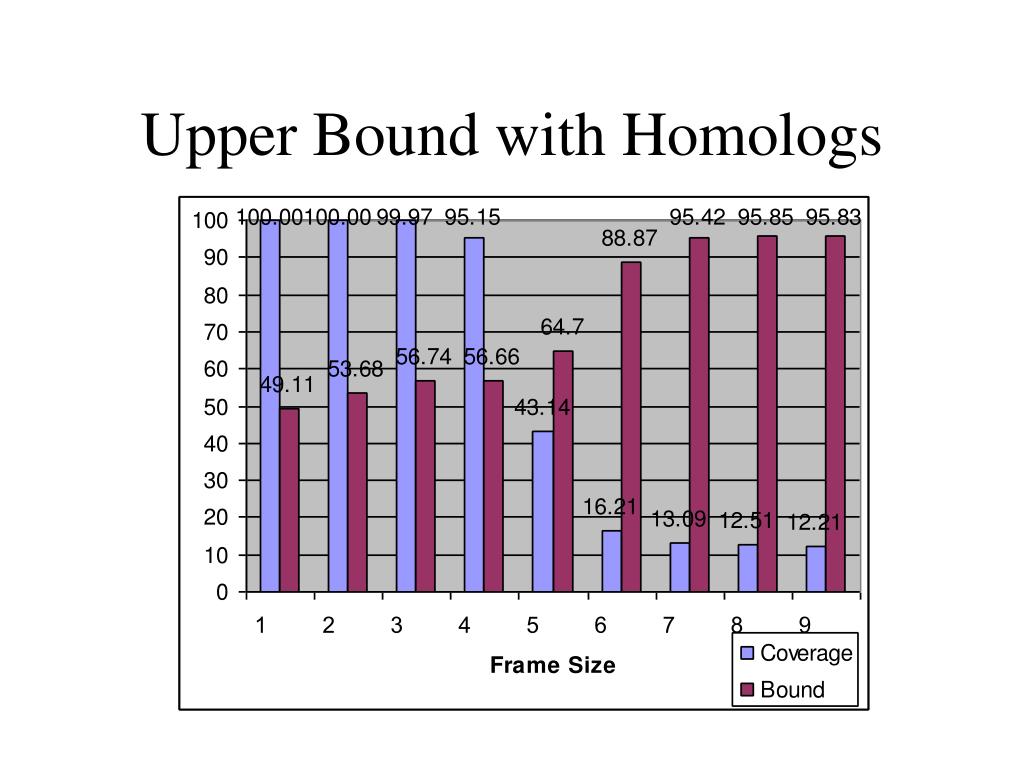

37. Upper Bound with Homologs

38. Upper Bound without Homologs

39. Upper bound: Only consider exact matches for a given frame size. As the frame size increases accuracy should increase but coverage should fall. Performance Bounds 100% ??? 75%: estimated upper bound 49%: assign most frequent 43%: assign loop

40. The Miracle of Homology • People used to be stuck at around 60%. • Rost and Sander crossed the 70% barrier in 1993 using homology information. • All algorithms benefit 5-10% from homology. • The homologues are of unknown structure, training and test sets still unrelated! • Why?

41. The Miracle of Homology 60%

42. The Miracle of Homology 70%

43. Outline • What is the problem? • What are the different approaches? • How do we use decision lists and why? • Why does evolution help?

44. GORV Sequence Secondary Structure PSI-BLAST +6.5% 66.9% Majority Vote Information Function / Bayesian Statistics Filter Secondary Structure Secondary Structure +73.4% * Garnier et al, 2002

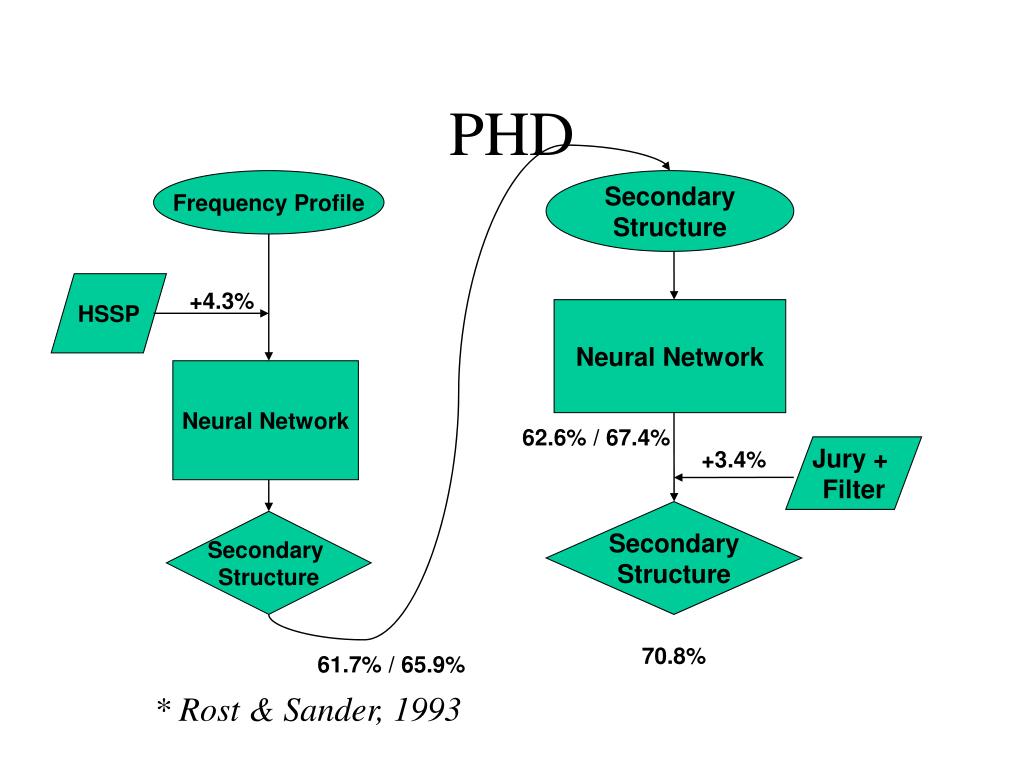

45. Frequency Profile HSSP Neural Network Secondary Structure PHD Secondary Structure +4.3% Neural Network 62.6% / 67.4% Jury + Filter +3.4% Secondary Structure 70.8% 61.7% / 65.9% * Rost & Sander, 1993

46. JNet Profile Secondary Structure PSIBLAST HMMER2 CLUSTALW Neural Network Neural Network Jury + Jury Network Secondary Structure Secondary Structure 76.9% * Cuff & Barton, 2000

47. PSIPRED Secondary Structure Profiles PSI-BLAST Neural Network Neural Network Secondary Structure Secondary Structure 76.3% * Jones, 1999

48. Outline • What is the problem? • What are the different approaches? • How do we use decision lists and why? • Why does evolution help?

49. Introduction to Decision Lists • Prototypical machine learning problem: • Decide democrat or republican for 435 representatives based on 16 votes. Class Name: 2 (democrat, republican) 1. handicapped-infants: 2 (y,n) 2. water-project-cost-sharing: 2 (y,n) 3. adoption-of-the-budget-resolution: 2 (y,n) 4. physician-fee-freeze: 2 (y,n) 5. el-salvador-aid: 2 (y,n) 6. religious-groups-in-schools: 2 (y,n) … 16. export-administration-act-south-africa: 2 (y,n)

50. Introduction to Decision Lists • Prototypical machine learning problem: • Decide democrat or republican for 435 representatives based on 16 votes. 1. If adoption-of-the-budget-resolution = y and anti-satellite-test-ban = n and water-project-cost-sharing = y then democrat 2. If physician-fee-freeze = y then republican 3. If TRUE then democrat
