Lesson 6.6- Graphing Inequalities in Two Variables, pg. 352

Lesson 6.6- Graphing Inequalities in Two Variables, pg. 352. Goal : To graph inequalities on the coordinate plane. Vocabulary. Half-plane : the region of the graph of an inequality on one side of a boundary. Boundary : a line or curve that separates the coordinate plane into regions.

roary-schultz
Télécharger la présentation

Lesson 6.6- Graphing Inequalities in Two Variables, pg. 352

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lesson 6.6- Graphing Inequalities in Two Variables, pg. 352 Goal: To graph inequalities on the coordinate plane.

  2. Vocabulary • Half-plane: the region of the graph of an inequality on one side of a boundary. • Boundary: a line or curve that separates the coordinate plane into regions.

  3. Ex. 1: Ordered Pairs that satisfy an inequality. • From the set {(3, 3), (0, 2), (2, 4), (1, 0)}, which ordered pairs are part of the solution set for 4x + 2y > 8

  4. Determine which ordered pairs are part of the solution set for the inequality. 2. Y ≤ x + 1, (-1, 0), (3, 2), (2, 5), (-2, 1)

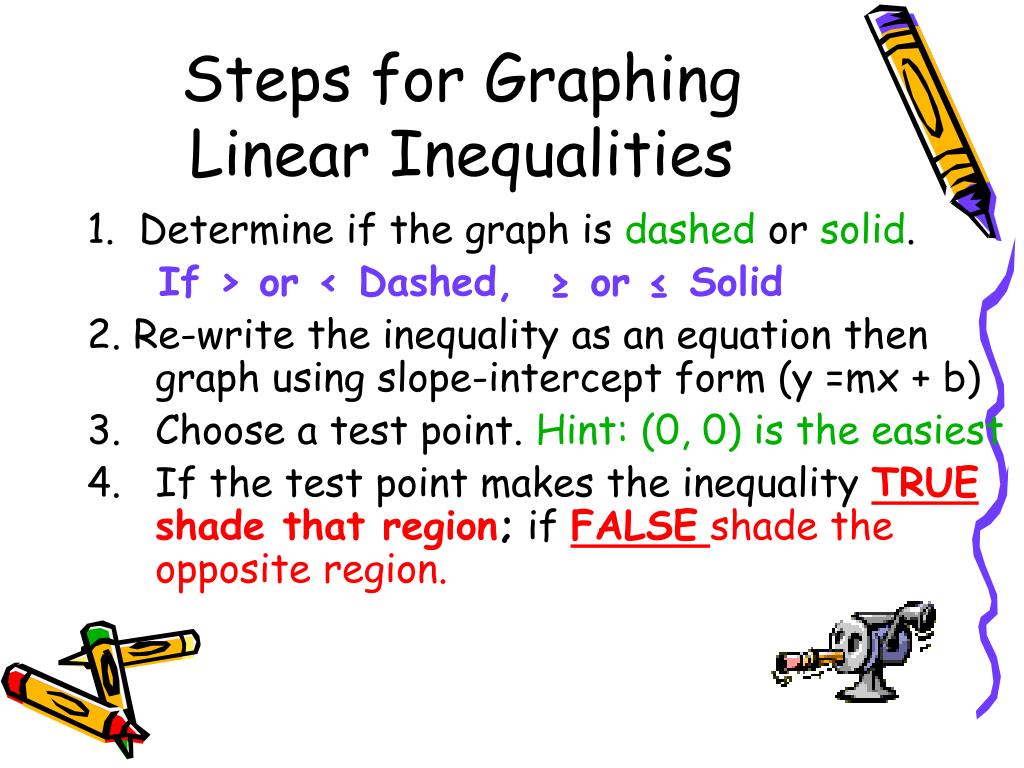

  5. Steps for Graphing Linear Inequalities 1. Determine if the graph is dashed or solid. If > or < Dashed, ≥ or ≤ Solid 2. Re-write the inequality as an equation then graph using slope-intercept form (y =mx + b) • Choose a test point. Hint: (0, 0) is the easiest • If the test point makes the inequality TRUE shade that region; if FALSEshade the opposite region.

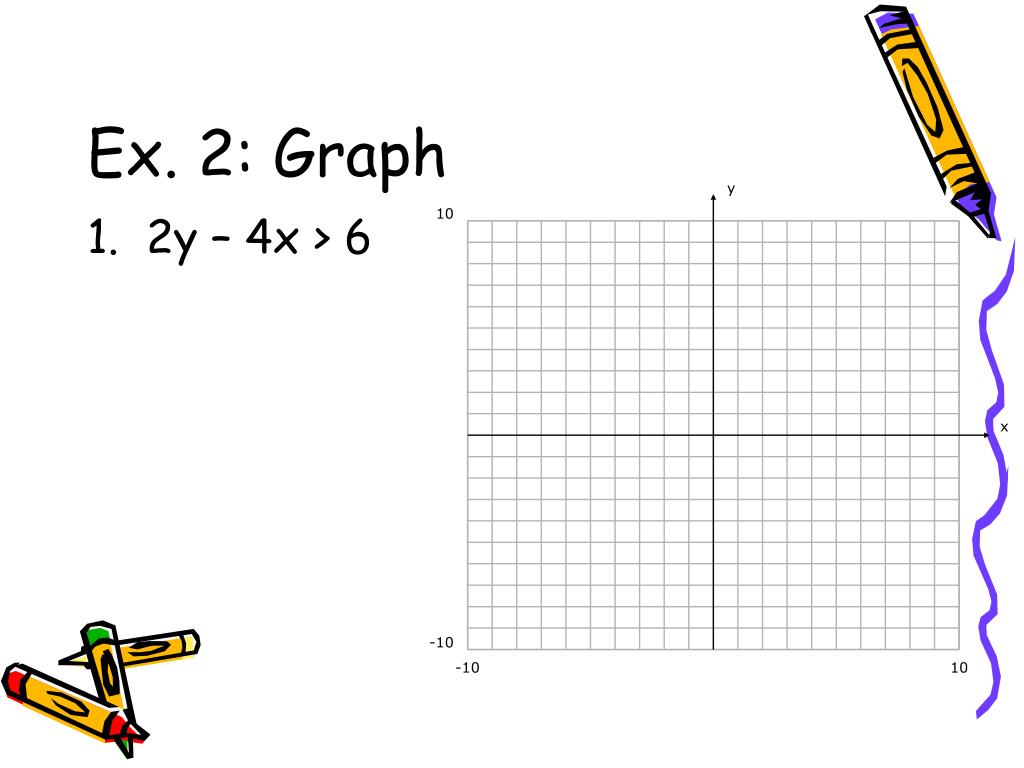

  6. y 10 x -10 -10 10 Ex. 2: Graph 1. 2y – 4x > 6

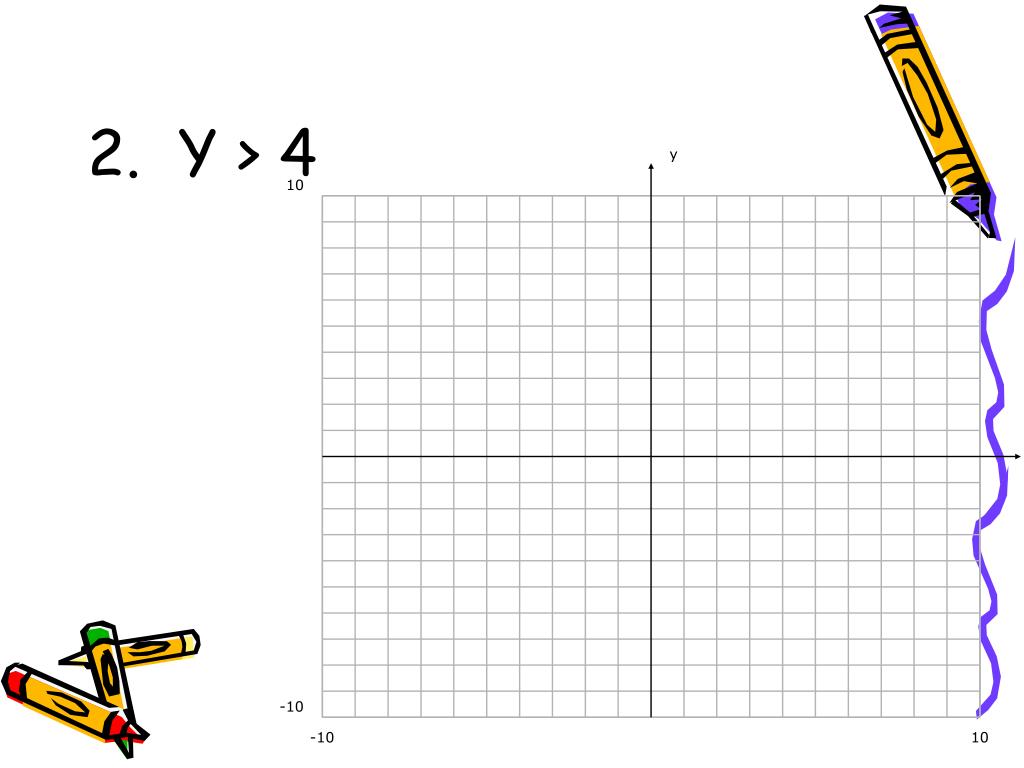

  7. y 10 x -10 -10 10 2. Y > 4

  8. y 10 x -10 -10 10 3. Y ≤ 2x - 3

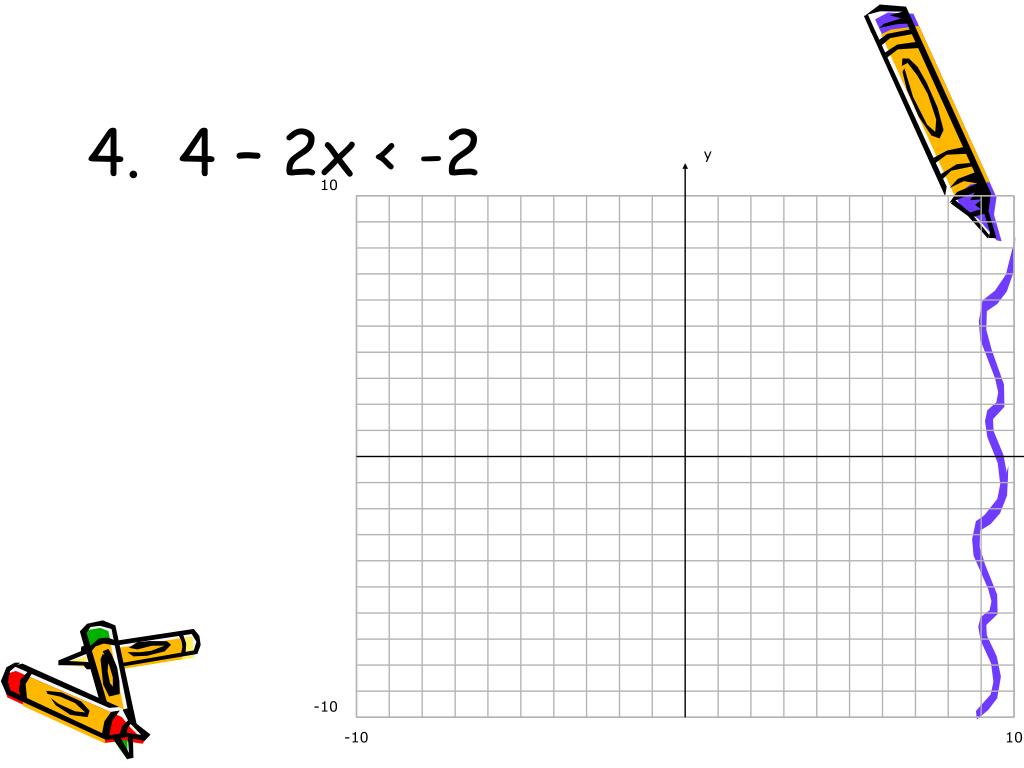

  9. y 10 x -10 -10 10 4. 4 – 2x < -2

  10. y 10 x -10 -10 10 5. 1 – y > x

  11. y 10 x -10 -10 10 6. Y < ½x - 3

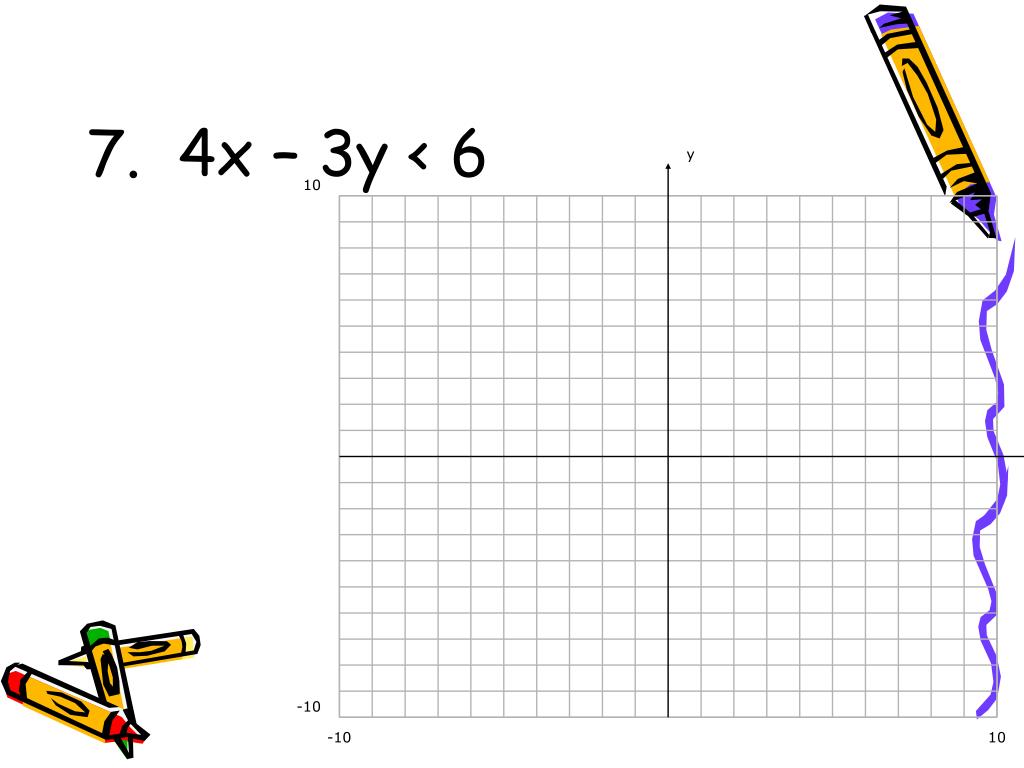

  12. y 10 x -10 -10 10 7. 4x – 3y < 6

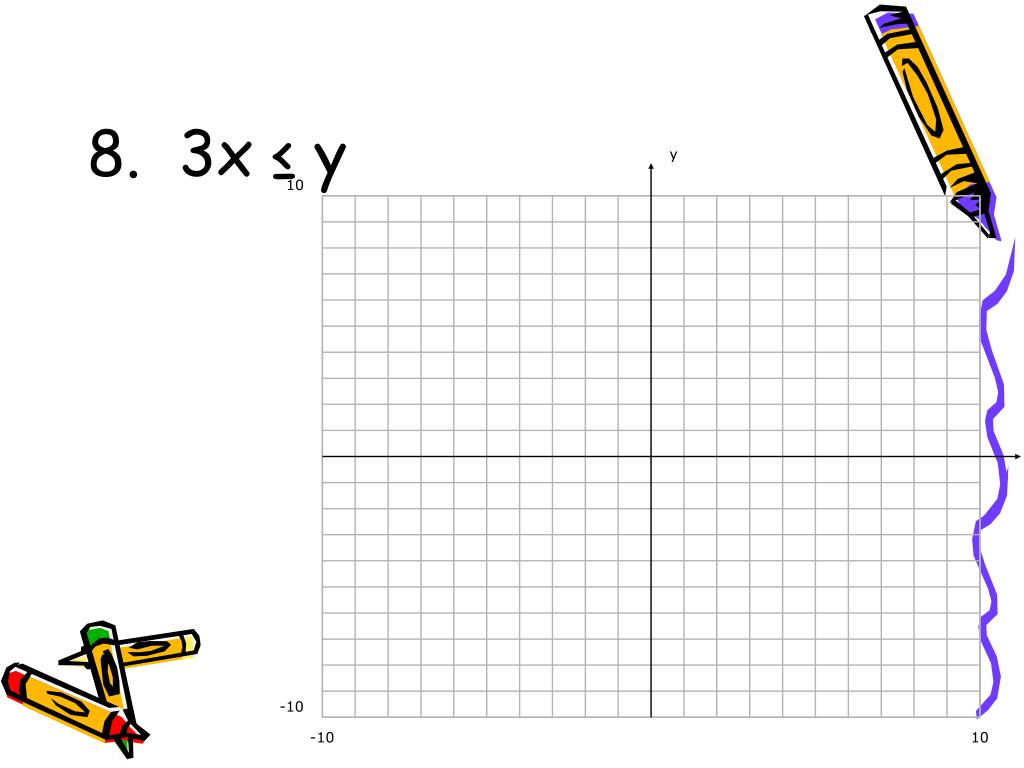

  13. y 10 x -10 -10 10 8. 3x ≤ y

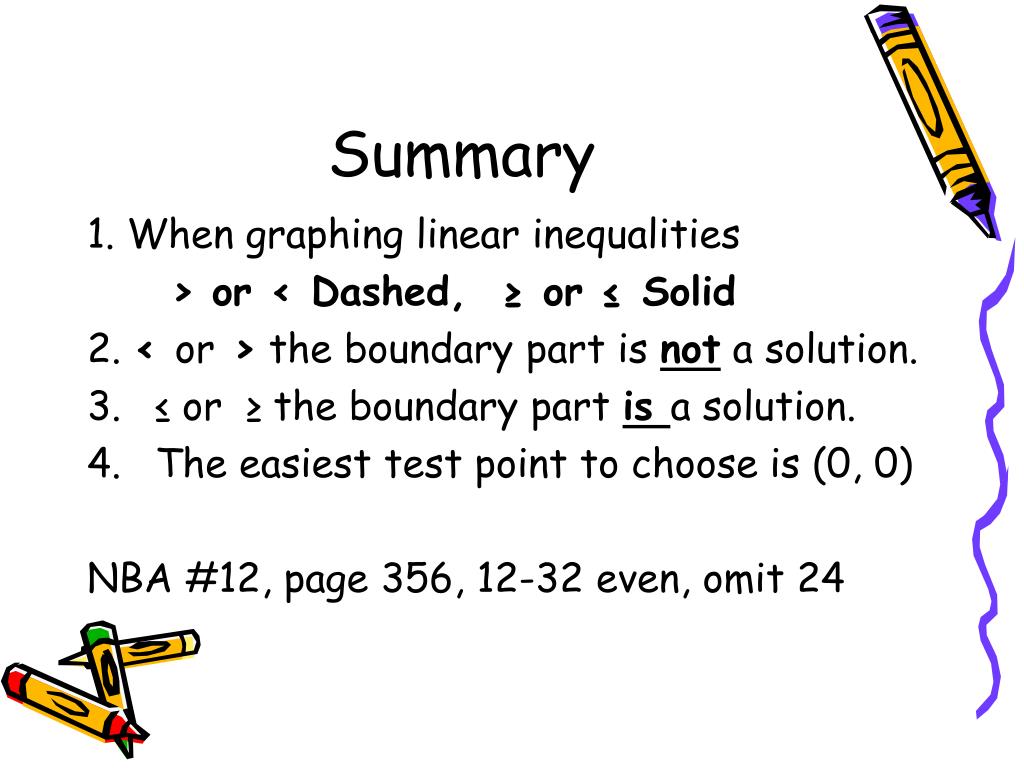

  14. Summary 1. When graphing linear inequalities > or < Dashed, ≥ or ≤ Solid 2. < or > the boundary part is not a solution. • ≤ or ≥ the boundary part is a solution. • The easiest test point to choose is (0, 0) NBA #12, page 356, 12-32 even, omit 24
