3.7 Graphing Inequalities In Two Variables

3.7 Graphing Inequalities In Two Variables. Get y by itself Graph If ≤ or ≥: use solid line If < or >: use dashed line If < or ≤: shade below the line If > or ≥: shade above the line. y ≤ -2x. S. Ex1) Graph 2x + y ≤ 0 y ≤ -2x. S. y > x + 1. Ex2) Graph

elan
Télécharger la présentation

3.7 Graphing Inequalities In Two Variables

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

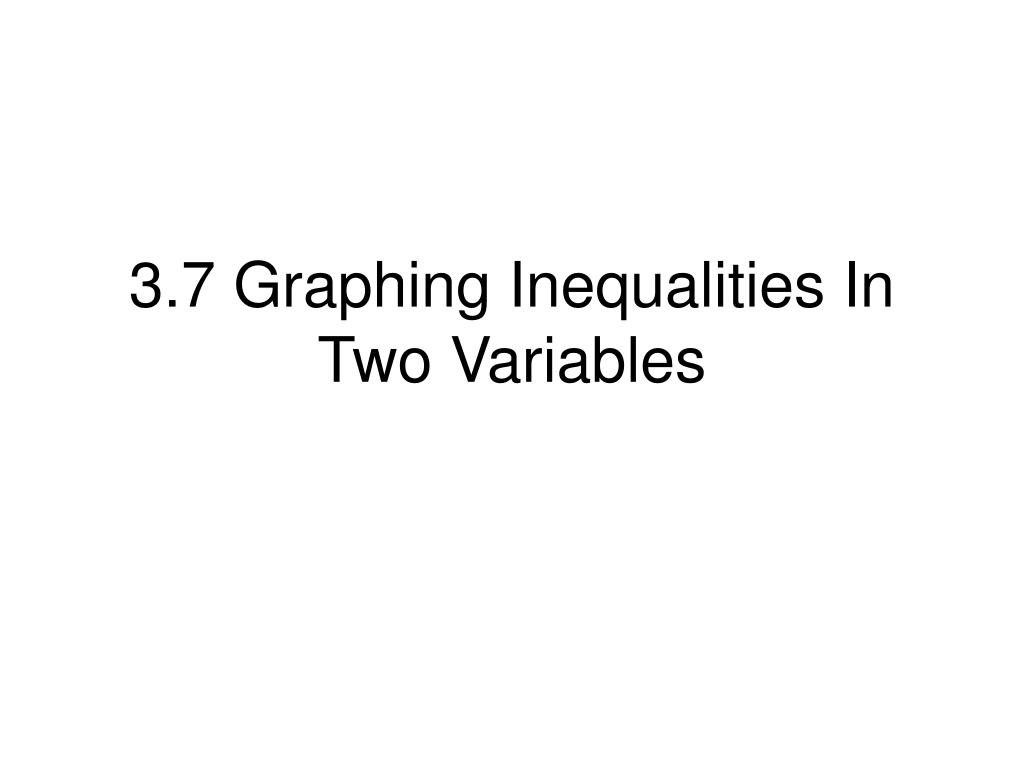

  1. 3.7 Graphing Inequalities In Two Variables

  2. Get y by itself • Graph • If ≤ or ≥: use solid line If < or >: use dashed line • If < or ≤: shade below the line If > or ≥: shade above the line

  3. y ≤ -2x S Ex1) Graph 2x + y ≤ 0 y ≤ -2x

  4. S y > x + 1 Ex2) Graph -2x + 2y > 2 2y > 2x +2 y > x + 1

  5. x ≤ 4 x > -3 S Ex 2) -3 < x ≤ 4

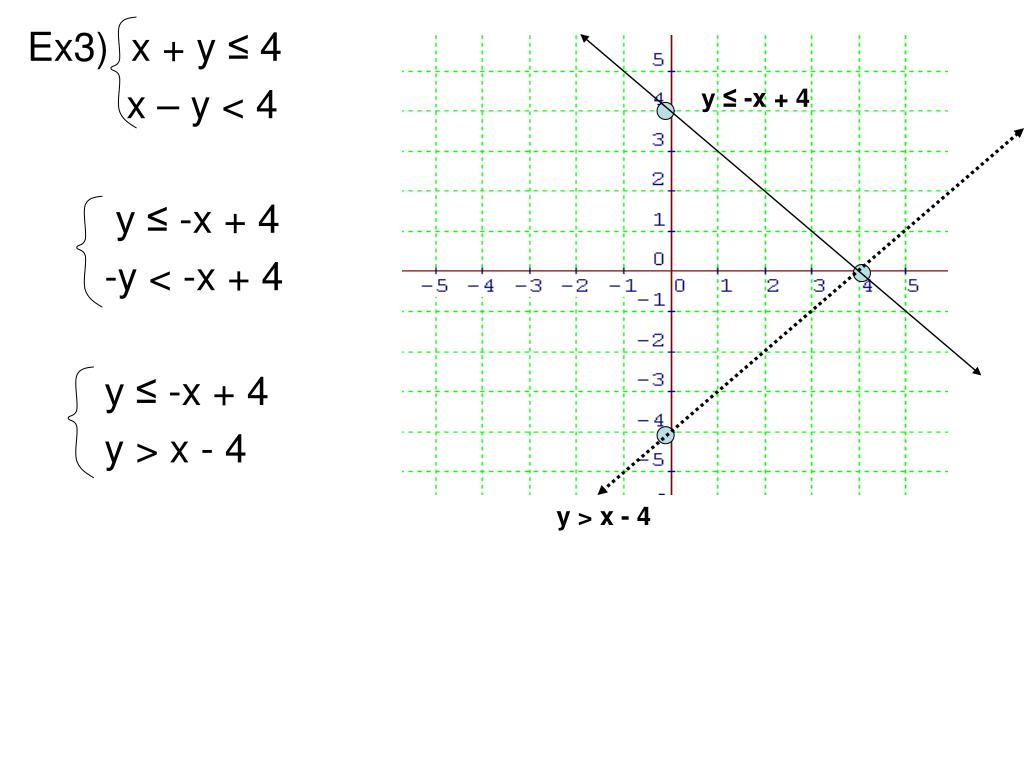

  6. y ≤ -x + 4 Ex3) x + y ≤ 4 x – y < 4 y ≤ -x + 4 -y < -x + 4 y ≤ -x + 4 y > x - 4 y > x - 4

  7. y ≤ -x + 4 S Ex4) x + y ≤ 4 x – y < 4 y ≤ -x + 4 -y < -x + 4 y ≤ -x + 4 y > x - 4 y > x - 4

  8. y < 2x + 1 y > x S Ex 5) y < 2x + 1 y > x y ≥ (1/2) x - 3 y ≥ (1/2) x - 3
