Dynamic Response

Unit step signal: Step response: y(s)=H(s)/s, y(t)= L -1 {H(s)/s} Unit impulse signal: δ (t) 1 Impulse response: h(t)= L -1 {H(s)} In Matlab: use “step”, “impulse”, “lsim”, etc. Dynamic Response. Defined based on unit step response Defined for closed-loop system

rona
Télécharger la présentation

Dynamic Response

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

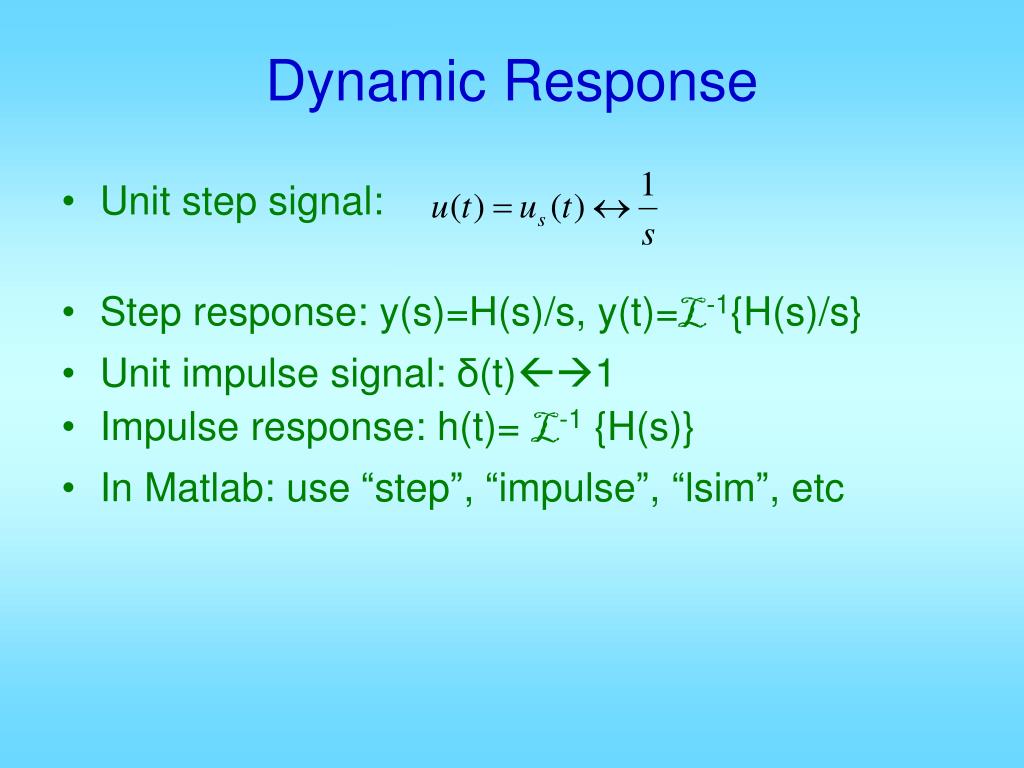

  1. Unit step signal: Step response: y(s)=H(s)/s, y(t)=L-1{H(s)/s} Unit impulse signal: δ(t)1 Impulse response: h(t)= L-1 {H(s)} In Matlab: use “step”, “impulse”, “lsim”, etc Dynamic Response

  2. Defined based on unit step response • Defined for closed-loop system • Steady-state value yss • Steady-state error ess • Settling time ts = time when y(t) last enters a tolerance band Time domain response specifications

  3. By final value theorem In MATLAB: num = [ .. .. .. .. ] b0 = num(length(num)), or num(end) a0 = den(length(den)), or den(end) yss=b0/a0

  4. If numerical values of y(t) available, abs(y – yss) < tol means inside band abs(y – yss) ≥ tol not inside e.g. t_out = t(abs(y – yss) ≥ tol) contains all those time points when y is not inside the band. Therefore, the last value in t_out will be the settling time. ts=t_out(end)

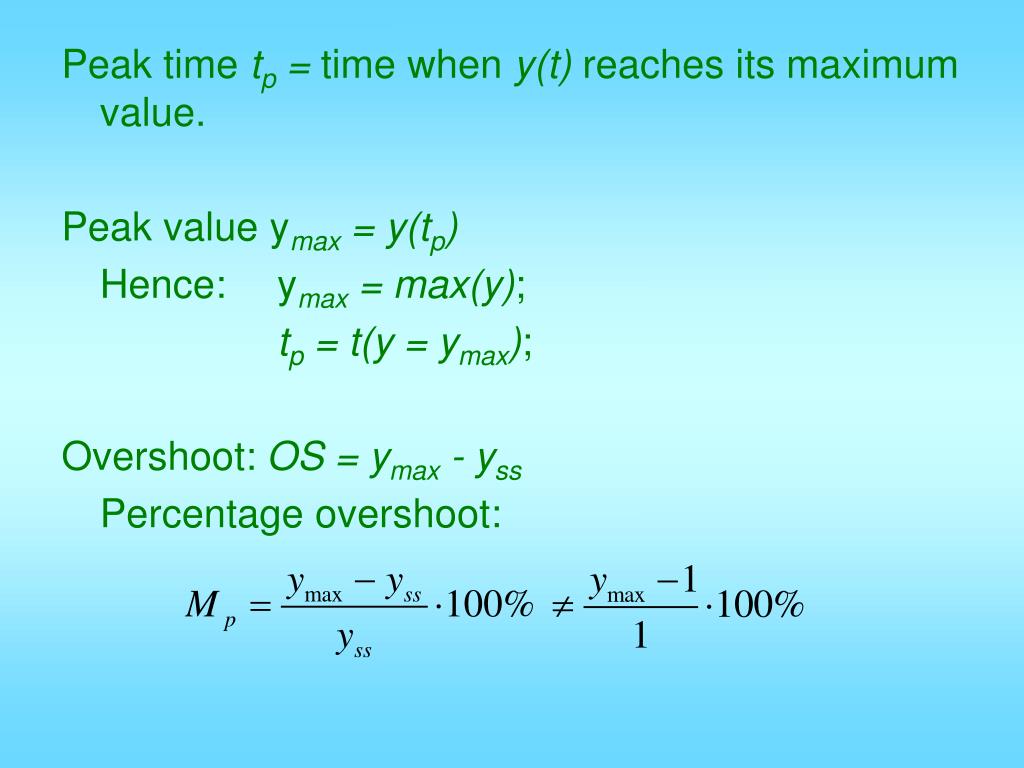

  5. Peak time tp = time when y(t) reaches its maximum value. Peak value ymax =y(tp) Hence: ymax = max(y); tp = t(y = ymax); Overshoot: OS = ymax - yss Percentage overshoot:

  6. If ymaxis reached as t→∞, there is no peak time and there is no overshoot. Delay time td = the time when y(t) first reaches 50% of yss • Not frequently used • Some people use a percentage different from 50% t50=t(y<=0.5*yss); td=t50(end)

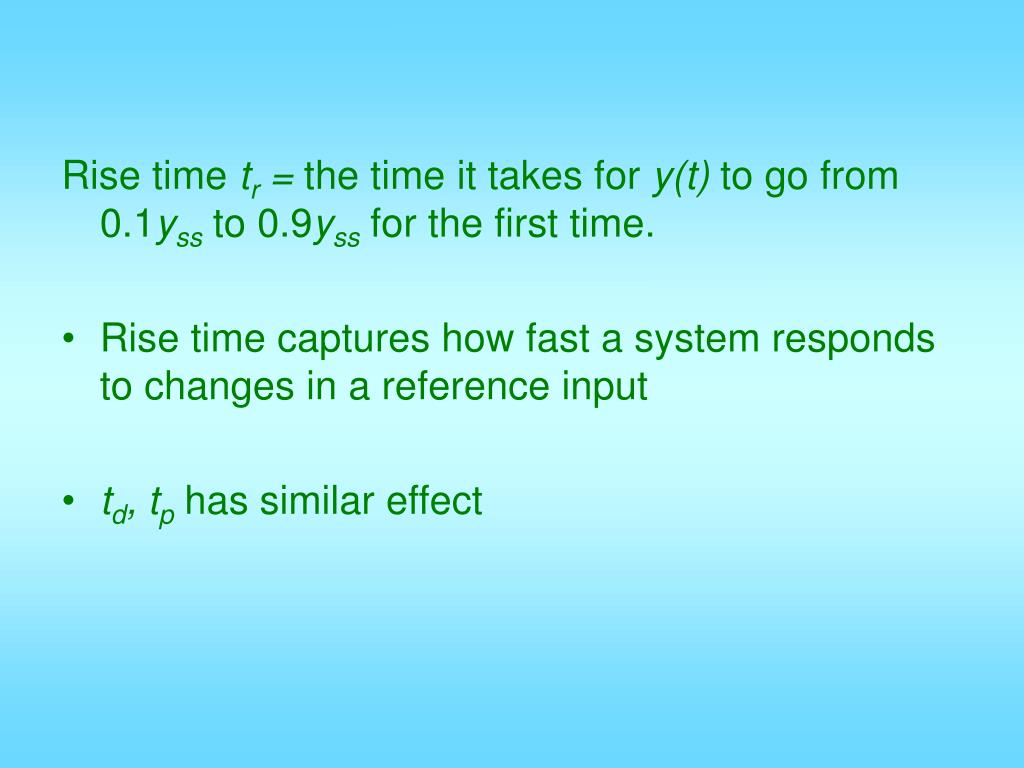

  7. Rise time tr = the time it takes for y(t) to go from 0.1yssto 0.9yss for the first time. • Rise time captures how fast a system responds to changes in a reference input • td,tphas similar effect

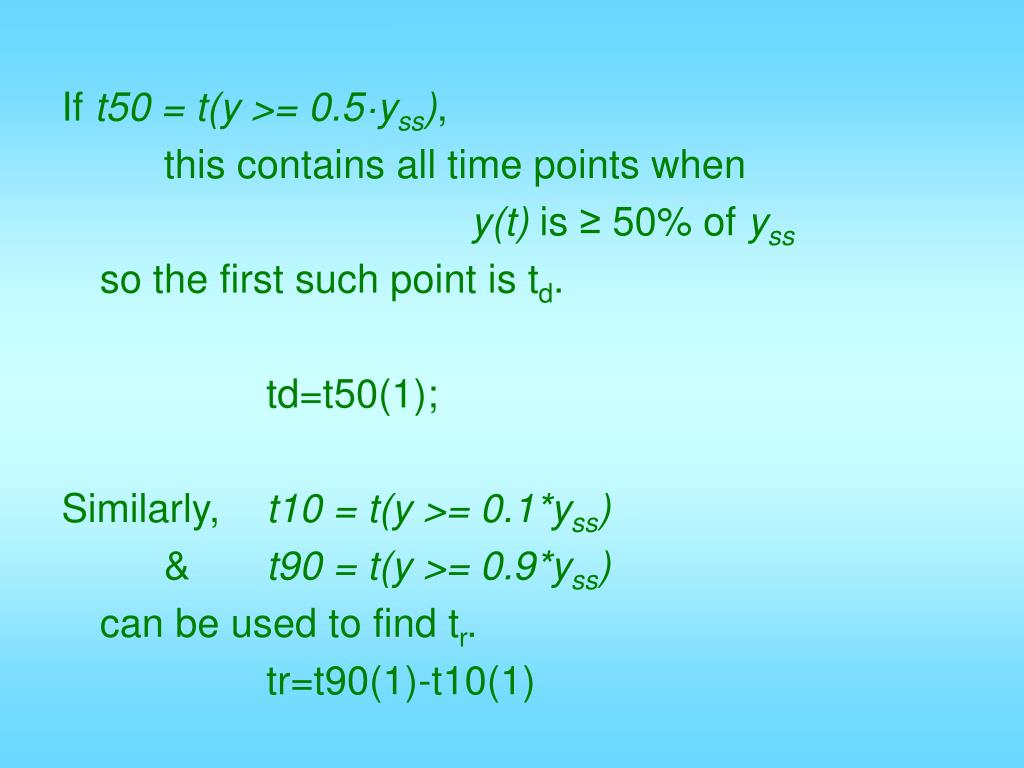

  8. If t50 = t(y >= 0.5·yss), this contains all time points when y(t) is ≥ 50% of yss so the first such point is td. td=t50(1); Similarly, t10 = t(y >= 0.1*yss) & t90 = t(y >= 0.9*yss) can be used to find tr. tr=t90(1)-t10(1)

  9. 90%yss tr≈0.45 10%yss ts ts tp≈0.9sec td≈0.35

  10. ±5% ts=0.45 yss=1 ess=0 O.S.=0 Mp=0 tp=∞ td≈0.2 tr≈0.35

  11. tp=0.35 O.S.=0.4 Mp=40% yss=1 es=0 ts≈0.92 td≈0.2 tr≈0.1

  12. Steady-state tracking & sys. types • Unity feedback control: plant + e r(s) y(s) C(s) G(s) - + e r(s) Go.l.(s) y(s) -

  13. r(t) t

  14. r(t) 0 t

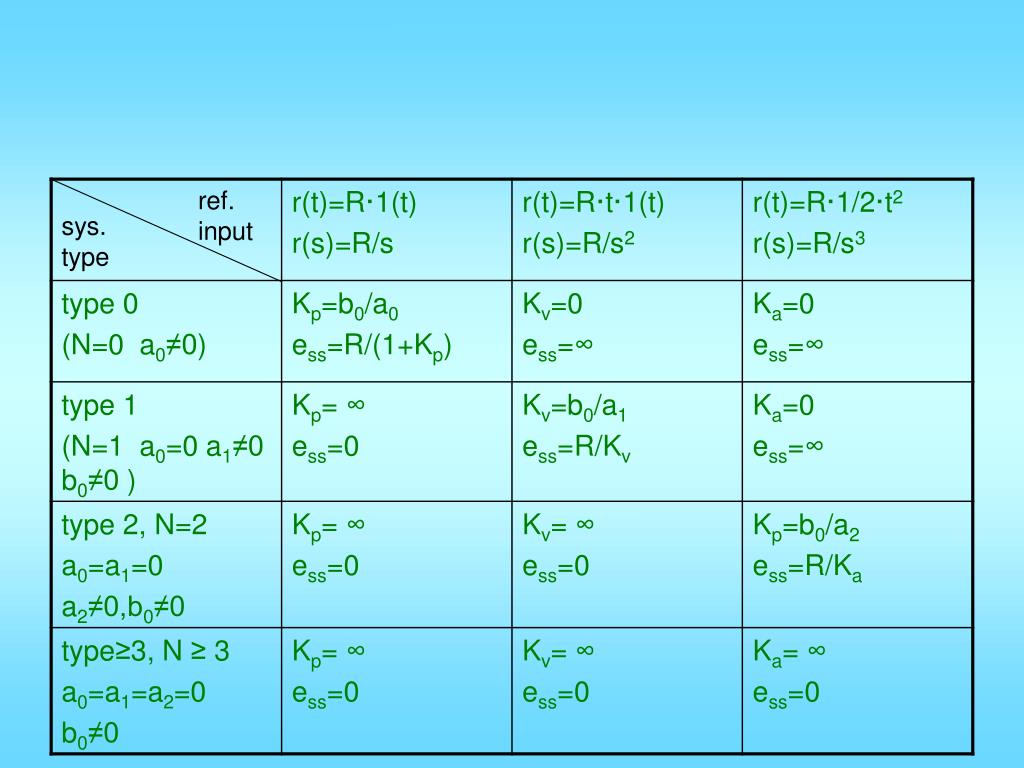

  15. ref. input sys. type

  16. Example of tank + C H -

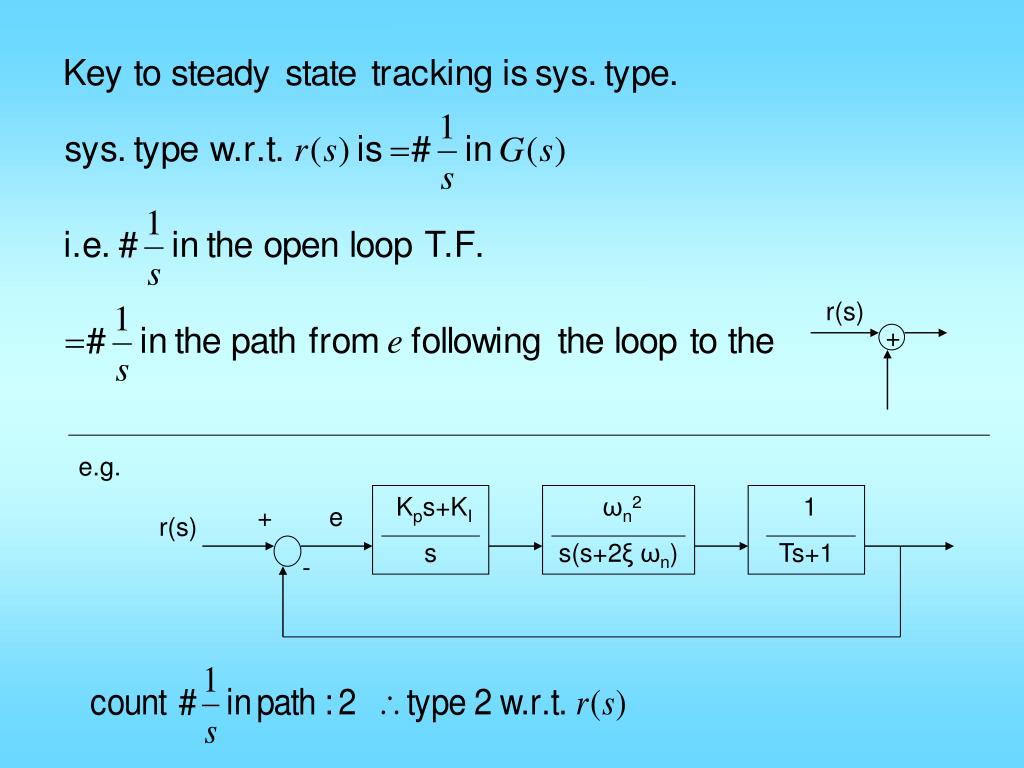

  17. e.g. Kps+KI s ωn2 s(s+2ξ ωn) 1 Ts+1 + e r(s) - r(s) +

  18. example e(s) y(s) r(s) G(s)
