  1. Experiments Analysis of Partial Melting ^ of CR and R Chondritic Meteorites Courtney King, Kathryn Gardner-Vandy, Dante Lauretta Lunar and Planetary Laboratory, University of Arizona

  2. Objectives • The study of meteoritics is important in order to learn about materials and environments of the early Solar System • Understand the origin of oxidized (Fe2+) igneous meteorites • Brachinites • Other primitive achondrites

  3. Background • Types of meteorites: • Chondrites (undifferentiated) • Primitive Achondrites • Achondrites (differentiated) • CR chondrite group • Aqueous alteration • R chondrite group • Highly oxidized: Olivines and sulfides • Brachinites • Sulfides and oxides present • Fe in Olivine

  4. Steps for Analyzing a Meteorite • Receive sample from Meteorite Working Group (MWG) • Cut sample into pieces and weigh • Mount a piece in epoxy and polish until smooth • View/analyze the mounted sample using Electron Microprobe • Perform a partial melting experiment • Repeat mounting process to analyze partially melted sample using probe

  5. Renazzo • CR2 • Type 2: Low grade aqueous alteration • Rim of metals/sulfides • Kamacite < 6% Ni • Taenite > 6% Ni • Chondrule • Kamacite next to Taenite • Kamacite next to sulfides  Pyrrhotite, Troilite • Stoichiometric Equilibrium • Presence of a Sulfur gas mixture: sulfurization of FeNi alloy (FeS)

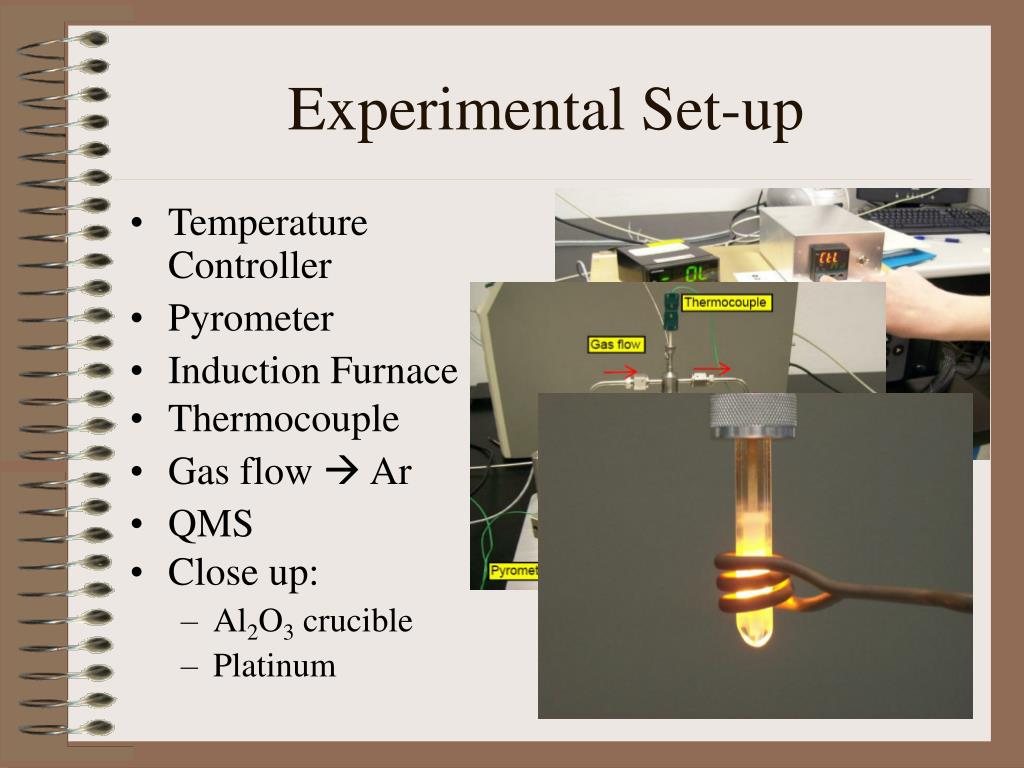

  6. Experimental Set-up • Temperature Controller • Pyrometer • Induction Furnace • Thermocouple • Gas flow  Ar • QMS • Close up: • Al2O3 crucible • Platinum

  7. Experiments • Partially melted R chondrite • 1200º C, Ar gas • Found: veins of troilite (FeS) surrounding unmelted olivine (FeMg)2SiO4 • Texture: coagulated • Temperature calibrations • Halite, Troilite • Ag, Cu Photo courtesy: Kathryn Gardner-Vandy

  8. Implications of the Data • Question: What happens when a meteorite containing reduced iron (Fe0) and aqueous alteration is heated? • Possibility of producing oxidized iron (Fe2+); Olivine • Metal/sulfide textures respond rapidly to melting • What to look at: • Kamacite < 6% Ni • Taenite > 6% Ni • Kamacite  Troilite (FeS) • Sulfur gas, H2S

  9. Thank you! Dante Lauretta Kathryn Gardner-Vandy Katrina Jackson
