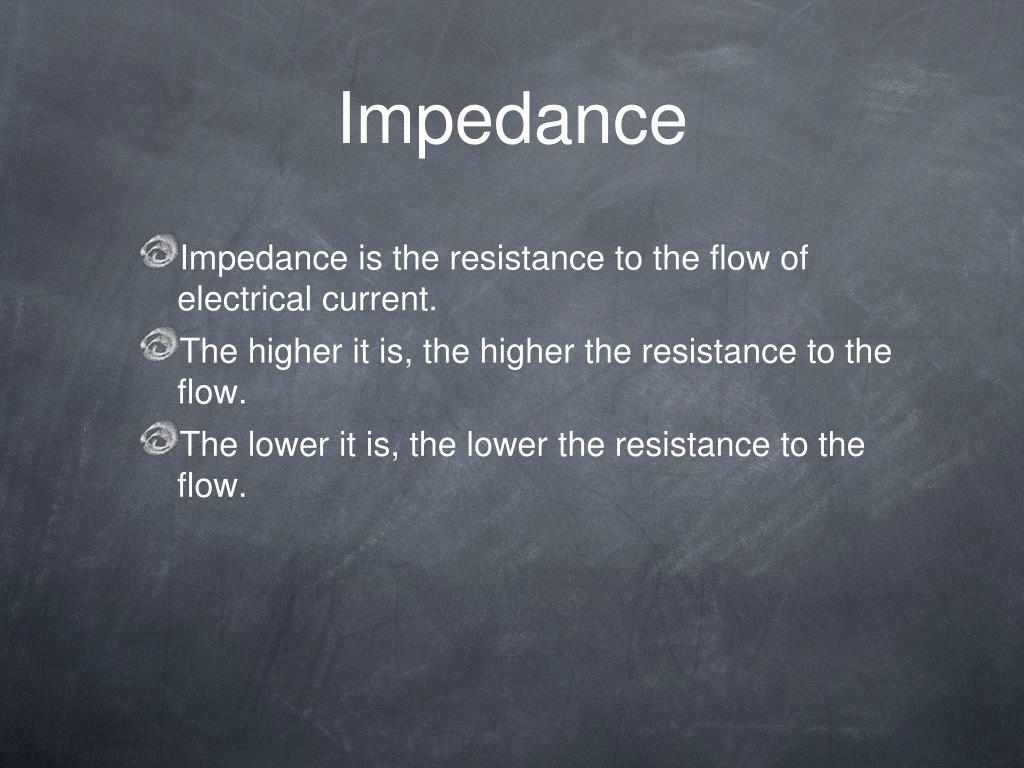

  1. Impedance • Impedance is the resistance to the flow of electrical current. • The higher it is, the higher the resistance to the flow. • The lower it is, the lower the resistance to the flow.

  2. Compatibility between Hi Z and Lo Z • Lo Z = low impedance • Hi Z= high impedance • A Lo Z output would cause problems if plugged in a Hi Z input. Only a limited amount of electricity could flow into the input even though there is a lot more electricity in the output.

  3. Examples of Compatibility • Imagine a small pipe, the small pipe represents Hi Z because no matter how much water ( electrical current) is at the entrance (input) of the small pipe, only a limited amount of water can get through. Its physical size limits the amount of water that can pass through the pipe in a period of time.

  4. Unbalanced • Unbalanced cables contain a hot lead the carries the signals surrounded by a braided wire shield. • The shield is keep out electrostatic noises and interference. • The limits to this is it cannot be used over 25 feet. • The two paths of an unbalanced cable are the Audio and Shield/Ground

  5. Balanced • Balanced cables use 3 conductors, • 2 of them are hot lead, • and the third is the shield connected to ground. • Also, balanced cables can be as long as you need without electrostatic interference.

  6. Speaker cables • Contain two identical wires, does not need a braided shield.

  7. Line-level cables • These cables keep signal strength below 5 volts, usually at 1.23 volts.

  8. Microphone cables • Utilize two-conductor shielded cable with XLR connectors at each end.

  9. Cable theory • Balance of amplitude across the full audio bandwidth and the time delays as different frequencies transmit throughout the cable length.

  10. Balance of Amplitude • Certain conductor sizes more accurately transmit specific frequencies.

  11. Timing considerations • Higher frequencies travel at a higher rate. • Low frequencies can’t be sped up, but higher frequencies can be slowed down.

  12. Cables sound different • A narrow-bandwidth signal compared on two vastly different cables than the audible differences would be minimal. • But at full-bandwidth there could be a dramatic improvement in quality.

  13. Digital-Interconnect Cables • Have an impact on the sound quality of digital masters and clones.
