  1. Live 1 External Connector Panel (ECP)

  2. Live 1 External Connector Panel (ECP) • Camplex: Not Used • Black outputs Black 1 Black 2 Black 3

  3. Live 1 External Connector Panel (ECP) • Camera inputs • Camera 1 • Camera 2 • Camera 3 • Mixer inputs • Mic 1 • Mic 2 • Line 3 • Line 4

  4. Live 1 External Connector Panel (ECP) • IFB dry out • (No voltage) • Primary • Secondary • IFB wet out • (Voltage) • Primary • Secondary

  5. Live 1 External Connector Panel (ECP) • PGM router output • PVW router output

  6. Live 1 External Connector Panel (ECP) • Rear I/O Tielines • These tie lines connect the rear panel to the ECP.

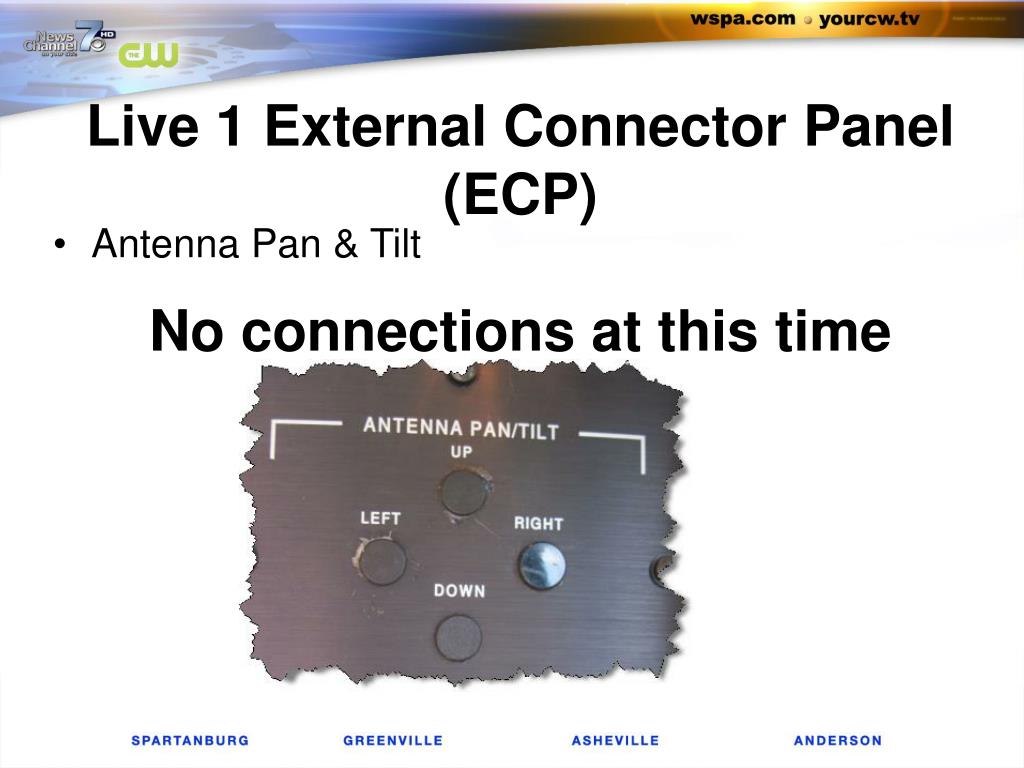

  7. Live 1 External Connector Panel (ECP)No connections at this time • Antenna Pan & Tilt

  8. Live 1 External Connector Panel (ECP) • Jacks No connections • Mast Up & Down Flood lights On & Off Strobe lights On & Off

  9. Telco If you have a external phone line it can be connect to either Telco 1 or 2. Live 1 External Connector Panel (ECP)
