  1. Coyote’s Guide to IDL Programming David Fanning

  2. Five Ways To Improve Your IDL Programming Now • Learn the Essential Web Resources • Learn How Colors Work in IDL • Learn 10 Essential Graphics Keywords • Learn the “IDL Way” to Avoid FOR Loops • Learn to Produce Perfect PostScript Output

  3. Six Essential IDL Resources • NASA Astronomy Library • Coyote’s Guide to IDL Programming http://idlastro.gsfc.nasa.gov/homepage.html • JHUAPL IDL Library http://fermi.jhuapl.edu/s1r/idl/s1rlib/local_idl.html • Curve Fitting and Mathematics http://cow.physics.wisc.edu/~craigm/idl/idl.html • IDL Emacs Mode (IDLWAVE) http://www.idlwave.org/ http://www.dfanning.com • IDL Newsgroup comp.lang.idl-pvwave

  4. NASA Astronomy Library (http://idlastro.gsfc.nasa.gov/homepage.html) • Only way to read FITS data • Hundreds of useful, and well-tested routines for math, statistics, and astronomical utilities • Should already be on your path • The Astronomy Links page is the source of IDL software used for astronomy

  5. JHUAPL IDL Library(http://fermi.jhuapl.edu/s1r/idl/s1rlib/local_idl.html) • Solid, well-written library maintained by Ray Sterner • Excellent for time-series data • Date and time routines are best anywhere • Array processing code, filters • Math routines • Often used in conjunction with Astronomy Lib

  6. Craig Markwardt’s IDL Library (http://cow.physics.wisc.edu/~craigm/idl/idl.html) • Statistical routines • Specialized peak and ellipse fitting applications • Non-linear optimization routines • Optimized set operations (intersect, union, XOR) • Mathematics (array operators, quaternions, etc.) • Integration and differentiation routines • Non-linear least-squares curve fitting

  7. MPFIT Curve Fitting • Non-linear least-squares curve fitting • Replacement for CURVEFIT • Robust MINPACK-1 FORTRAN subroutine • Unlimited number of parameters • Each parameter can be held fixed or limited to defined max and min values • Easy access to MPFIT through wrappers • An interactive interface to MPFIT is available (PAN from NIST)

  8. Using MPFit PlotErr, t, r, rerr, PSym=3 expr = ‘P[0] + Gauss1(X, P[1:3]) start = [950D, 2.5, 1.0, 1000.0) result = MPFitExpr(expr, t, r, rerr, start) OPlot, t, result[0] + Gauss1(t, result[1:3]) Print, result 997.61864 2.1550703 1.4488421 3040.2411

  9. Constraining Parameters Fix the constant parameter at 1000. PlotErr, t, r, rerr, PSym=3 expr = ‘P[0] + Gauss1(X, P[1:3]) pinfo = Replicate( { fixed:0, limited:[0,0], limits:[0.D, 0.D] }, 4 ) pinfo[0].fixed = 1 start = [1000.D, 2.5, 1.0, 1000.0] result = MPFitExpr(expr, t, r, rerr, start, PARINFO=pinfo) OPlot, t, result[0] + Gauss1(t, result[1:3]) Print, result 1000.0000 2.1549624 1.4427532 3021.8174

  10. Constraining Parameters Limit the mean to a minimum of 2.3. PlotErr, t, r, rerr, PSym=3 expr = ‘P[0] + Gauss1(X, P[1:3]) pinfo = Replicate( { fixed:0, limited:[0,0], limits:[0.D, 0.D] }, 4 ) pinfo[1].limited[0] = 1 pinfo[1].limits[0] = 2.3 start = [1000.D, 2.5, 1.0, 1000.0] result = MPFitExpr(expr, t, r, rerr, start, PARINFO=pinfo) OPlot, t, result[0] + Gauss1(t, result[1:3]) Print, result 997.56563 2.3000000 1.4557194 3035.0424

  11. IDLWAVE Emacs Mode(http://www.idlwave.org/) • Color-coded editor • Outstanding HTML help • Optional auto-corrected typing for enforcing syntax • Code completion and checking • Several types of interactive debugging tools • Catalog system can scan ALL IDL libraries! • Outstanding support via IDL newsgroup

  12. Six Essential IDL Resources • NASA Astronomy Library http://idlastro.gsfc.nasa.gov/homepage.html • Coyote’s Guide to IDL Programming • JHUAPL IDL Library http://fermi.jhuapl.edu/s1r/idl/s1rlib/local_idl.html • Curve Fitting and Mathematics http://cow.physics.wisc.edu/~craigm/idl/idl.html • IDL Emacs Mode (IDLWAVE) http://www.idlwave.org/ www.dfanning.com • IDL Newsgroup comp.lang.idl-pvwave

  13. Coyote’s Guide to IDL Programming(http://www.dfanning.com) • 300+ articles in the IDL Tips and Tricks section • Tutorials on essential subjects • 75+ IDL example programs • IDL bug reports • Ask an IDL Question • Order an IDL book • Links to other sites • Learn the latest about Coyote’s adventures

  14. Must-Read Articles for Astronomers • Dimensional Juggling Tutorial • Array Concatenation Tutorial • Histogram: The Breathless Horror and Disgust • Are FOR Loops the Embodiment of Pure Evil? • Are FOR Loops Really Evil? • Average Astrophysicist Increased Program Speed by a Factor of 8100! (http://tinyurl.com/5w3y9) • How to Get Perfect PostScript Output

  15. IDL Newsgroup(comp.lang.idl-pvwave) • Friendliest newsgroup on the Internet • 20+ IDL experts share their knowledge • RSI engineers lurk on the newsgroup • Searchable database on groups.google.com • Hitting SEND button is best way to learn IDL • Info on IDL Expert Programmers Association

  16. Five Ways To Improve Your IDL Programming Now • Learn the Essential Web Resources • Learn How Colors Work in IDL • Learn 10 Essential Graphics Keywords • Learn the “IDL Way” to Avoid FOR Loops • Learn to Produce Perfect PostScript Output

  17. True-Color Color Decomposition If your graphic output looks like this youdon’t understand color decomposition.With 24-bit graphics, color decompositionis always ON by default. IDL> Plot, data, Color=255 IDL> Help, /Device Simultaneously displayable colors: 16777216 Number of allowed color values: 16777216 IDL Color Table Entries: 256 NOTE: this is a TrueColor device Using Decomposed color

  18. 1 0 1 1 0 1 0 0 1 0 0 0 0 0 1 0 0 1 0 0 0 1 1 0 = 11829830L 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 = 255L blue green red blue green red Steel Blue (70,130,180) IDL> Device, Decomposed=1 IDL> Print, 70L + (130L * 2L^8) + (180L * 2L^16) 11829830 IDL> Plot, data, Color=11829830L, Background=‘ffffff’xL IDL> Plot, data, Color=255

  19. Index R G B 0 1 2 3 4 . . . 255 13 25 22 70 2 . . . 45 67 44 87 130 38 . . . 255 80 178 223 180 177 . . . 128 Index R G B 0 1 2 3 4 . . . 255 0 1 2 3 4 70 . . 255 0 1 2 3 4 . 130 . 255 0 1 2 3 4 . . 180 255 Color Decomposition ON Color Decomposition OFF 24-Bit Color 8-Bit Color Plot, data, Color= 11829830L Plot, data, Color=3

  20. Steel Blue (70,130,180) 24-bit Non-Decomposed Color IDL> TVLCT, 70, 130, 180, 240 IDL> Device, Decomposed=0 IDL> Plot, data, Color=240, Background=255

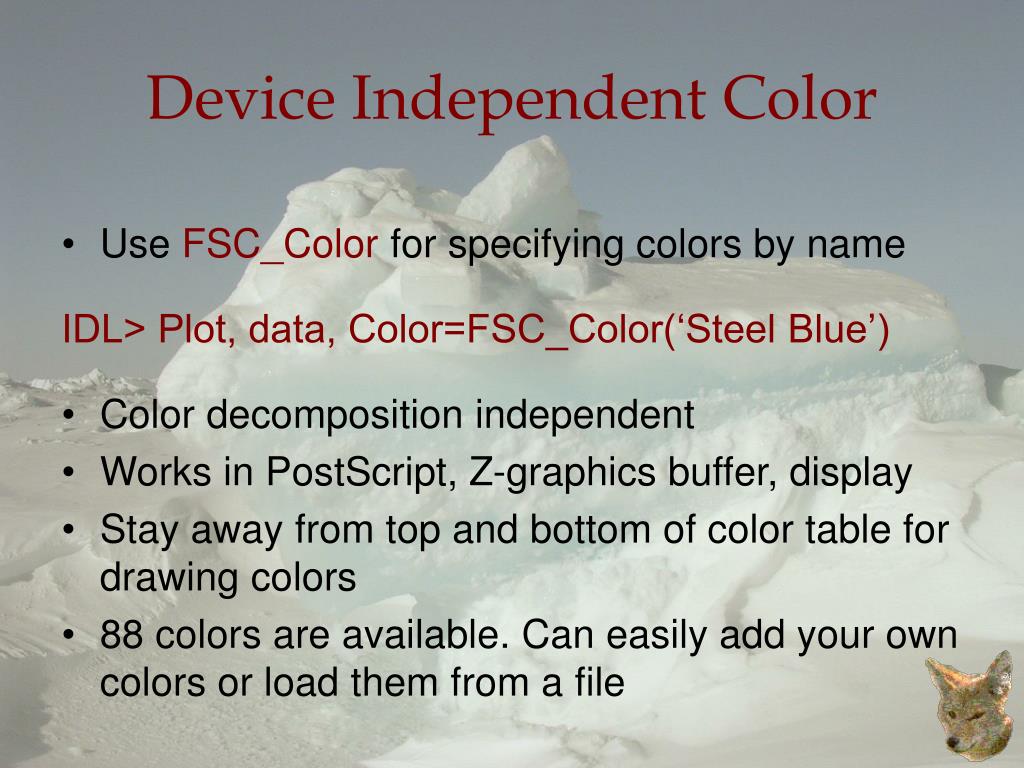

  21. Device Independent Color • Use FSC_Color for specifying colors by name IDL> Plot, data, Color=FSC_Color(‘Steel Blue’) • Color decomposition independent • Works in PostScript, Z-graphics buffer, display • Stay away from top and bottom of color table for drawing colors • 88 colors are available. Can easily add your own colors or load them from a file

  22. Example Code bg = FSC_Color(‘ivory’) fg = FSC_Color(‘navy’) Plot, data, Color=fg, Background=bg, /NoData Oplot, data1, Color=FSC_Color(‘saddle brown’) Oplot, data2, Color= FSC_Color(‘indian red’) Oplot, data3, Color= FSC_Color(‘forest green’)

  23. IDL> Device, Decomposed=1 IDL> Loadct, 13 IDL> TV, image IDL> Device, Decomposed=0 IDL> Loadct, 13 IDL> TV, image IDL> TVImage, image IDL> image = TVRead()

  24. Five Ways To Improve Your IDL Programming Now • Learn the Essential Web Resources • Learn How Colors Work in IDL • Learn 10 Essential Graphics Keywords • Learn the “IDL Way” to Avoid FOR Loops • Learn to Produce Perfect PostScript Output

  25. Position Plots with POSITION Always use Normal or Data coordinatesfor device-independent placement oftext and graphics. Plot, data, Position=[0.10, 0.10, 0.45, 0.90] Plot, data, Position=[0.55, 0.10, 0.95, 0.65], /NoErase XYOutS, 0.75, 0.8, ‘Position Plots Here’, Alignment=0.5, $ /Normal, Font=0

  26. Position Plots with POSITION IDL> Plot, data IDL> Plot, data, Position=Aspect(1.0)

  27. Find a Positionable TV Command • TVImage • ImgDisp • PlotImage IDL> Pos = [0.1, 0.1, 0.9, 0.9] IDL> TVImage, image, Position=pos, /Keep_Aspect, /NoInterpolation IDL> Plot, findgen(100), /NoData, Position=pos, /NoErase

  28. Avoid Auto-scaling Axes Plot, data, XRange=[23.4, 78] Plot, data, XRange=[23.4, 78], $XStyle=1

  29. Avoid Auto-scaling Axes Contour, image, NLevels=12 Contour, image, NLevels=12 $XStyle=1, YStyle=1

  30. Plotting Symbols 1 Plus sign (+) 2 Asterisk (*) 3 Period (.) 4 Diamond 5 Triangle 6 Square 7 X 8 User-defined. Plot, data, PSym=2 Plot, data, PSym=-2

  31. Create Plotting Symbols(USERSYM) Filled Circle phi = Findgen(32) * (!PI * 2 / 32.) phi = [ phi, phi[0] ] UserSym, Cos(phi), Sin(phi), /Fill Plot, data,PSym=8,Symsize=1.25 Filled Triangles UserSym, [ -1, 1, -1, -1 ], [1, 0, -1, 1 ], /Fill ; Filled right-facing triangle. UserSym, [ 1, -1, 1, 1 ], [1, 0, -1, 1 ], /Fill ; Filled left-facing triangle. UserSym, [ -1, 1, -1, -1 ], [1, 0, -1, 1 ] ; Open right-facing triangle.

  32. Color with Symbols phi = Findgen(32) * (!PI * 2 / 32.) phi = [ phi, phi[0] ] UserSym, Cos(phi), Sin(phi), /Fill Plot, data, /NoData OPlot, data, Color=FSC_Color('firebrick'), Oplot, data, color=FSC_Color('forest green'), $ PSym=8, Symsize=1.5

  33. Keyword Inheritance (_Extra) PRO MyPlot, data, Color=color, DataColor=dataColor IF N_Elements(color) NE 0 THEN $ Message, ‘Color is replaced by DataColor keyword’ IF N_Elements(dataColor) EQ 0 THEN dataColor=‘steel blue’ Plot, data, Color=FSC_Color(dataColor) END PRO MyPlot, data, Color=color, DataColor=dataColor, _Extra=extra IF N_Elements(color) NE 0 THEN $ Message, ‘Color is replaced by DataColor keyword’ IF N_Elements(dataColor) EQ 0 THEN dataColor=‘steel blue’ Plot, data, Color=FSC_Color(dataColor), _Extra=extra END

  34. Keyword Inheritance (_Extra) IDL> MyPlot, findgen(11), Charsize=2.0, Title=‘My Color Plot’, DataColor=‘green’ extra = { charsize: 2.0, title=‘My Color Plot’ } IDL> kw = PSConfig(/European) IDL> Set_Plot, ‘PS’ IDL> Device, _Extra=kw

  35. Five Ways To Improve Your IDL Programming Now • Learn the Essential Web Resources • Learn How Colors Work in IDL • Learn 10 Essential Graphics Keywords • Learn the “IDL Way” to Avoid FOR Loops • Learn to Produce Perfect PostScript Output

  36. Avoid FOR Loops if Possible IDL> array = Indgen(3,4) IDL> Print, array 0 1 2 3 4 5 6 7 8 9 10 11 Multiply array by 3 Fortran Way: For j=0,2 Do Begin For k=0,3 Do Begin array(j,k) = array(j,k) * 3 Endfor Endfor IDL Way: array = array * 3

  37. Array Operators Set all values greater than 5 to 5. Fortran Way: For j=0,2 Do Begin For k=0,3 Do Begin IF array(j,k) GT 5 THEN array(j,k) = 5 Endfor Endfor IDL Way: array = array < 5 IDL> array = Indgen(3,4) IDL> Print, array < 5 0 1 2 3 4 5 5 5 5 5 5 5

  38. WHERE much faster than IF Set all values between 5 to 8 equal = 15. Fortran Way: For j=0,2 Do Begin For k=0,3 Do Begin IF (array(j,k) GE 5) AND (array(j,k) LT 8) THEN array(j,k) = 15 EndFor EndFor IDL Way: index = Where((array GE 5) AND (array LE 8), count) IF count GT 0 THEN array[index] = 15

  39. Convert 1D Indices to 2D Indices array = Round(Randomu(-3L, 5, 5) * 10) Print, array 9 6 8 6 1 10 0 2 1 10 9 9 8 2 2 8 1 7 0 1 7 0 2 1 3 indices = Where((array GE 3) AND (array LE 7), count) IF count GT 0 THEN array[index] = 99 Print, array 9 99 8 99 1 10 0 2 1 10 9 9 8 2 2 8 1 99 0 1 99 0 2 1 3

  40. Convert 1D Indices to 2D Indices array = Round(Randomu(-3L, 5, 5) * 10) Print, array 9 6 8 6 1 10 0 2 1 10 9 9 8 2 2 8 1 7 0 1 7 0 2 1 3 indices = Where((array GE 3) AND (array LE 7), count) result = Array_Indices(array, indices) col = Reform(result [0,*]) row = Reform(result [1,*]) IF count GT 0 THEN array[col, row] = 99 Print, array 9 99 8 99 1 10 0 2 1 10 9 9 8 2 2 8 1 99 0 1 99 0 2 1 3

  41. Convert 1D Indices to 2D Indices indices = Where((image GE 0.55) AND (image LE 0.65), count) IF count GT 0 THEN BEGIN result = Array_Indices(image, indices) col = Reform(result [0,*]) row = Reform(result [1,*]) TV, image PlotS, col, row, /Device, Color=FSC_Color(‘yellow’) ENDIF

  42. Dimensional Juggling Multiply each column of array by a vector, b. IDL> array = Indgen(3,4) IDL> b = Fix(RandomU(-1L, 4) * 12 IDL> Print, array 0 1 4 4 5 6 7 8 9 10 11 12 IDL> Print, b 4 1 9 6 Fortran Way: var = IntArr(3,4) For j=0,2 Do Begin var[j,*] = array[j,*] * b EndFor

  43. Dimensional Juggling Multiply each column of array by a vector, b. IDL> Print, b 4 1 9 6 IDL> Print, Reform(b, 1, 4) 4 1 9 6 IDL> Print, Rebin( Reform(b, 1, 4), 3, 4) 4 4 4 1 1 1 9 9 9 6 6 6 col = Transpose(b) col = Rotate(b,1) col = 1 # b col = b ## 1 IDL Way: Print, var = array * Rebin( Reform(b, 1, 4), 3, 4 )

  44. Dimensional Juggling Can extend this to any number of dimensions. IDL> array = Indgen(3,4,3) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 IDL> Print, Rebin( Reform(b,1,4,1), 3, 4, 3) 4 4 4 1 1 1 9 9 9 6 6 6 4 4 4 1 1 1 9 9 9 6 6 6 4 4 4 1 1 1 9 9 9 6 6 6

  45. Array Concatenation IDL> a = Make_Array(4, 4, Value=1B) IDL> Print, a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 IDL> b = Make_Array(4, 4, Value=2B) IDL> Print, b 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 IDL> Print, [a, b] 1 1 1 12 2 2 2 1 1 1 12 2 2 2 1 1 1 12 2 2 2 1 1 1 12 2 2 2

  46. Array Concatenation IDL> Print, [ [a], [b] ] IDL> Print, a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 IDL> Help, [ [a], [b] ] INT = Array[4, 8] IDL> Print, [ [ [a] ], [ [b] ] ] IDL> Print, a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 IDL> Help, [ [ [a] ], [ [b] ] ] INT = Array[4, 4, 2]

  47. Array Concatenation Add rows to an array. Add columns to an array. IDL> b = (Indgen(4) + 1) * 4 IDL> Print, [ [a], [b], [b] ] 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 8 12 16 4 8 12 16 IDL> Help, [ [a], [b], [b] ] INT = Array[4, 6] IDL> b = Reform((Indgen(4) + 1) * 4, 1, 4) IDL> Print, [ b, a, b ] 4 1 1 1 1 4 8 1 1 1 1 8 12 1 1 1 1 12 16 1 1 1 1 16 IDL> Help, [ b, a, b ] INT = Array[6, 4]

  48. Array Concatenation Create a true-color image IDL> image24 = [ [ [image_1] ], [ [image_2] ], [ [image_3] ] ] IDL> Help, image24 INT = Array[400, 600, 3] Convert band interleaved image to pixel interleaved IDL> image24 = Transpose(image24,[2,0,1]) IDL> Help, image24 INT = Array[3, 400, 600]

  49. Index Manipulation Quick look at two images simultaneously. img1 = BytScl(Loaddata(4), Top=99) img2 = BytScl(Loaddata(5), Top=99)+100B LoadCT, 13, NColors=100 LoadCT, 3, NColors=100, Bottom=100 index = Where((Indgen(256L*256L) MOD 2) EQ 0) img1[index] = img2[index] Window, XSize=256, YSize=256 TV, img1

  50. Index Manipulation Reverse the even rows in a 2D array. IDL> data = Indgen(8,4) + 1 IDL> Print, data 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 227 28 29 30 31 32 IDL> evenRowIndex = (Indgen(4/2) * 2) + 1 IDL> data[*, evenRowIndex] = Reverse(data[*, evenRowIndex]) IDL> Print, data 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 17 18 19 20 21 22 23 24 32 31 30 29 28 27 26 25
