L1 Calorimeter Trigger Control Path for ADF Crates and VME Systems

This document details the control pathways and configurations for the Level 1 (L1) Calorimeter Trigger System utilizing ADF Crates within a VME architecture. It encompasses a comprehensive overview of crate arrangements, including Slave and Master configurations, various interfaces, and connectivity to the Level 2 (L2) calibration systems. Additional focus is given to Ethernet monitoring clients and optical fiber splitters that play crucial roles in the data acquisition and communication flow. Updated: 31-May-05 (ALS, PAL).

samson
Télécharger la présentation

L1 Calorimeter Trigger Control Path for ADF Crates and VME Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

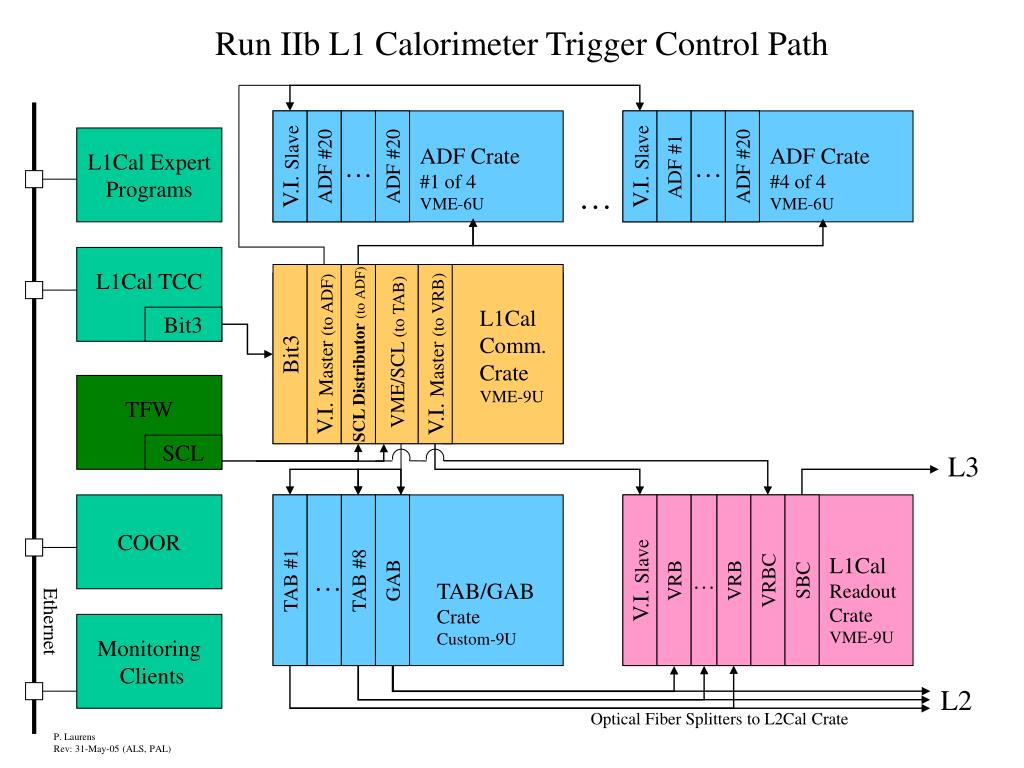

  1. Run IIb L1 Calorimeter Trigger Control Path … … L1Cal Expert Programs ADF Crate #1 of 4 VME-6U ADF Crate #4 of 4 VME-6U V.I. Slave ADF #20 ADF #20 V.I. Slave ADF #1 ADF #20 … L1Cal TCC L1Cal Comm. Crate VME-9U Bit3 VME/SCL (to TAB) Bit3 V.I. Master (to ADF) SCL Distributor(to ADF) V.I. Master (to VRB) TFW SCL L3 COOR … … L1Cal Readout Crate VME-9U TAB #1 TAB #8 GAB V.I. Slave VRB VRB VRBC SBC TAB/GAB Crate Custom-9U Ethernet Monitoring Clients L2 Optical Fiber Splitters to L2Cal Crate P. Laurens Rev: 31-May-05 (ALS, PAL)
