  1. Power Transmission Section 08

  2. Power Transmission Electrical Engineering Umm Al-Qura University

  3. Transformer • A transformer is an electrical device that transfers power from one electrical circuit to another by magnetic coupling • It is most often used to convert between high and low voltages • Must be AC current; a transformer does not convert DC • Uses Faraday’s law and ferromagnetic properties

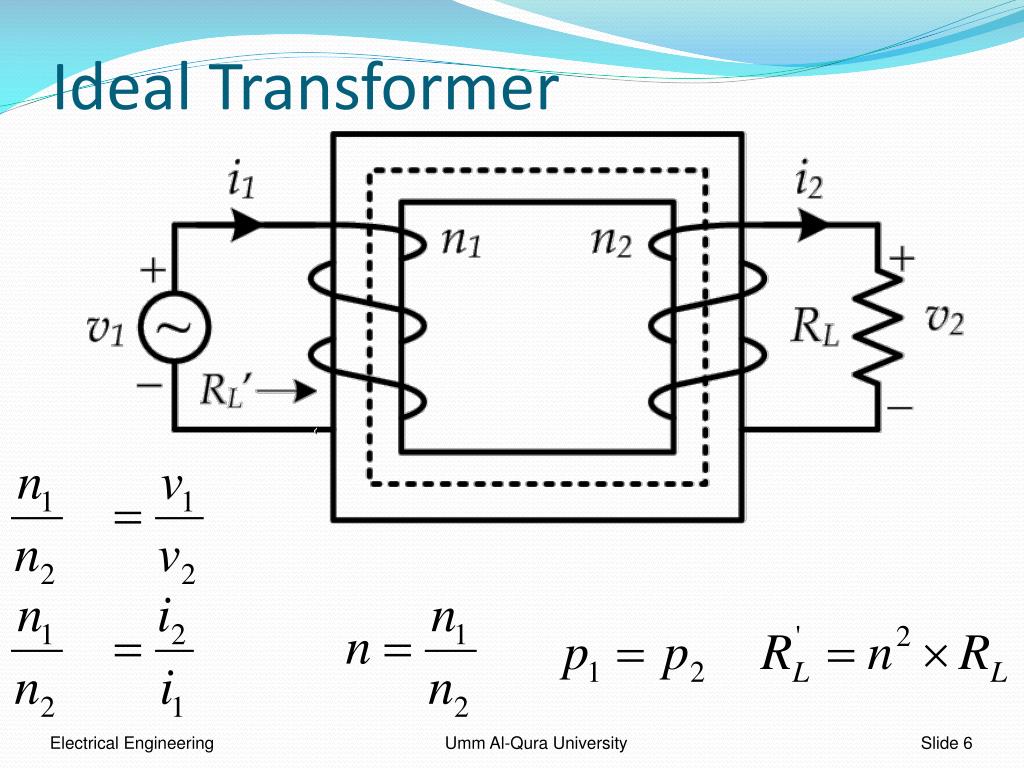

  4. Ideal Transformer Electrical Engineering Umm Al-Qura University

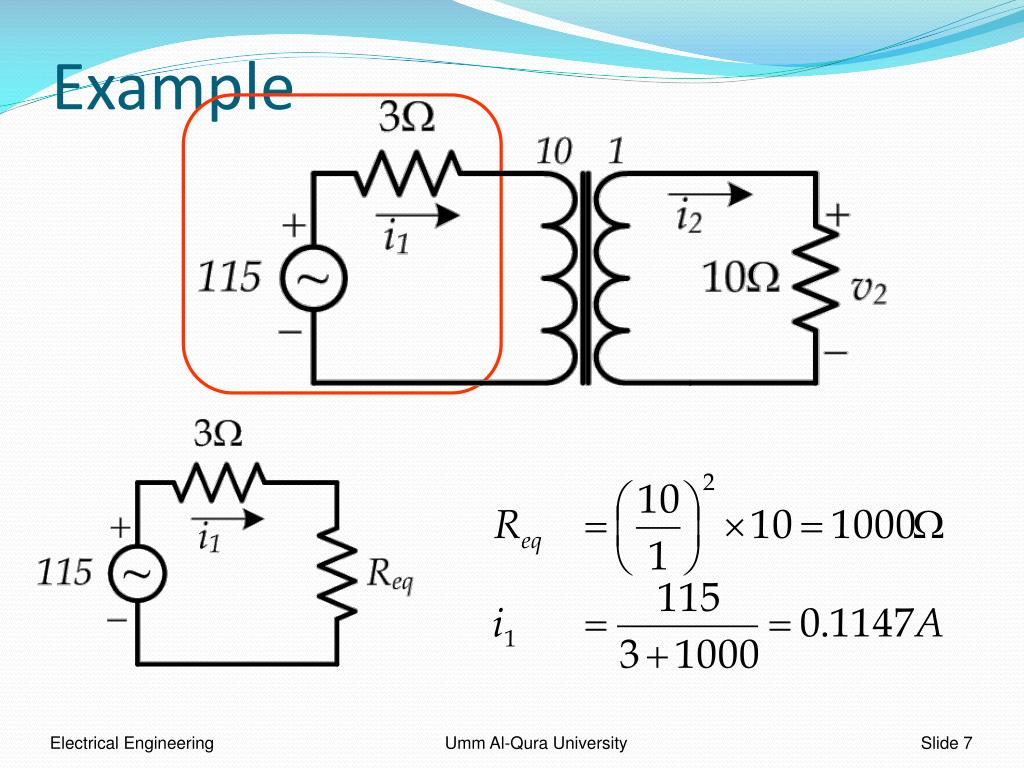

  5. Example Electrical Engineering Umm Al-Qura University

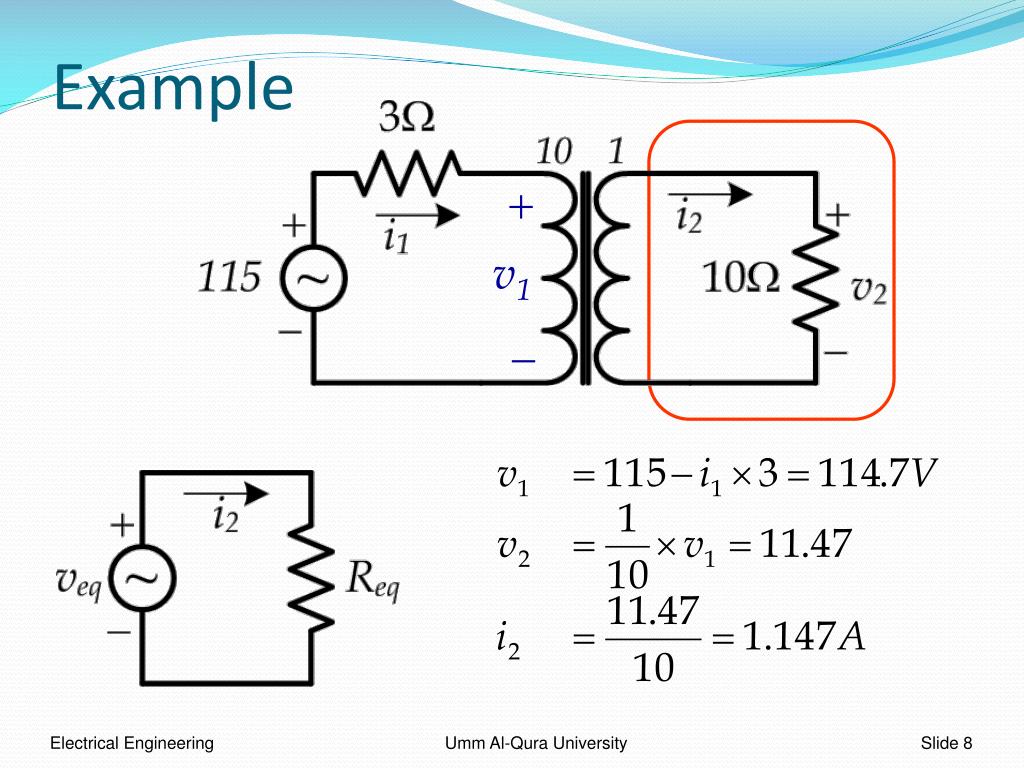

  6. Example + v1 - Electrical Engineering Umm Al-Qura University

  7. Activity
