Presentation Transcript

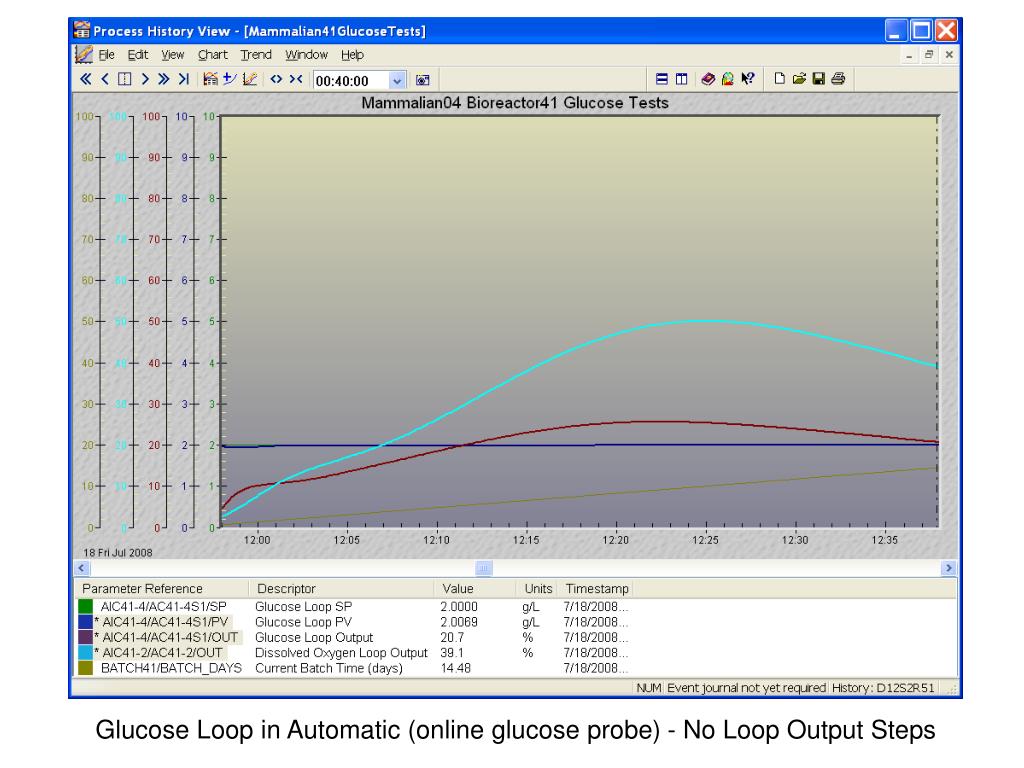

  1. Glucose Loop in Automatic (online glucose probe) - No Loop Output Steps

  2. Glucose Loop in Manual (online glucose probe) - 5% Loop Output Steps

  3. Glucose Loop in Manual (online glucose probe) - No Loop Output Steps

  4. Glucose Concentration Batch 3 Batch 6 Batch 1 Batch 2 Batch 5 Batch 4 11 hr Sample FF-Yes Wireless PID 11 hr Sample FF-Yes Standard PID Continuous FF-No Standard PID Continuous FF-Yes Standard PID 11 hr Sample FF-No Wireless PID 11 hr Sample FF-No Standard PID Glucose Loop in Automatic Batch 1: Glucose Probe (Continuous - No Delay) + Feed Forward - No + Standard PID Batch 2: Glucose Probe (Continuous - No Delay) + Feed Forward - Yes + Standard PID Batch 3: Glucose Analyzer (11 Hr Sample Delay) + Feed Forward - No + Standard PID Batch 4: Glucose Analyzer (11 Hr Sample Delay) + Feed Forward - Yes + Standard PID Batch 5: Glucose Analyzer (11 Hr Sample Delay) + Feed Forward - No + Wireless PID Batch 6: Glucose Analyzer (11 Hr Sample Delay) + Feed Forward - Yes + Wireless PID
