  1. CHAPTER 4 MOVING AVERAGES AND SMOOTHING METHODS (Page 107)

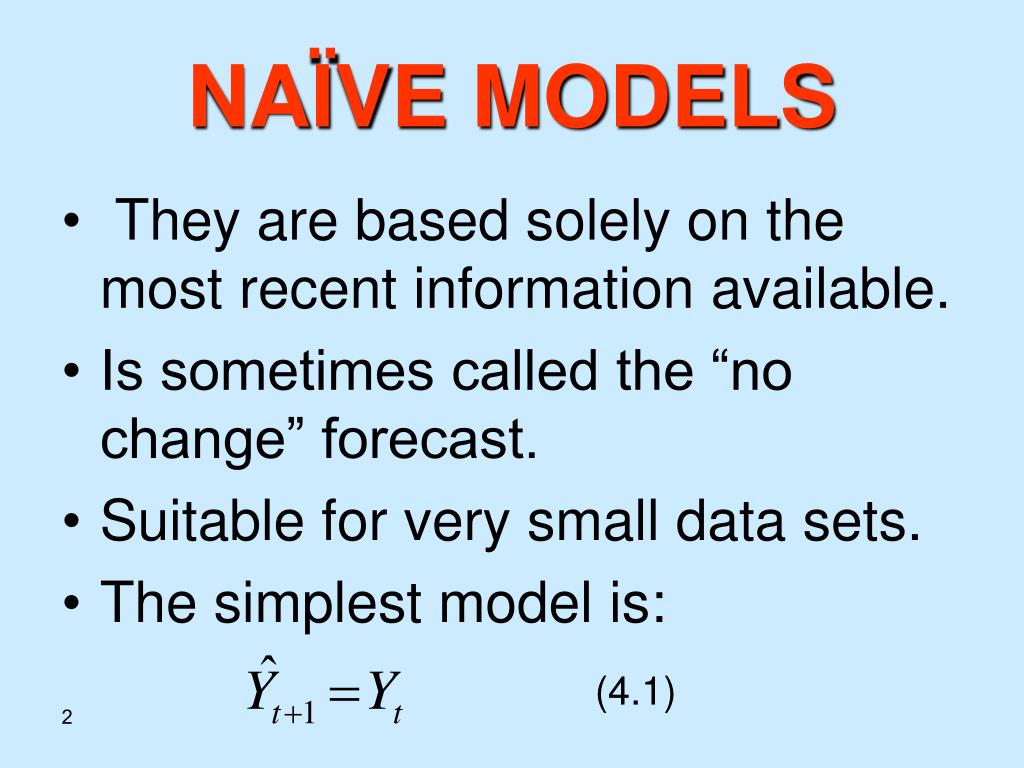

  2. (4.1) NAÏVE MODELS • They are based solely on the most recent information available. • Is sometimes called the “no change” forecast. • Suitable for very small data sets. • The simplest model is:

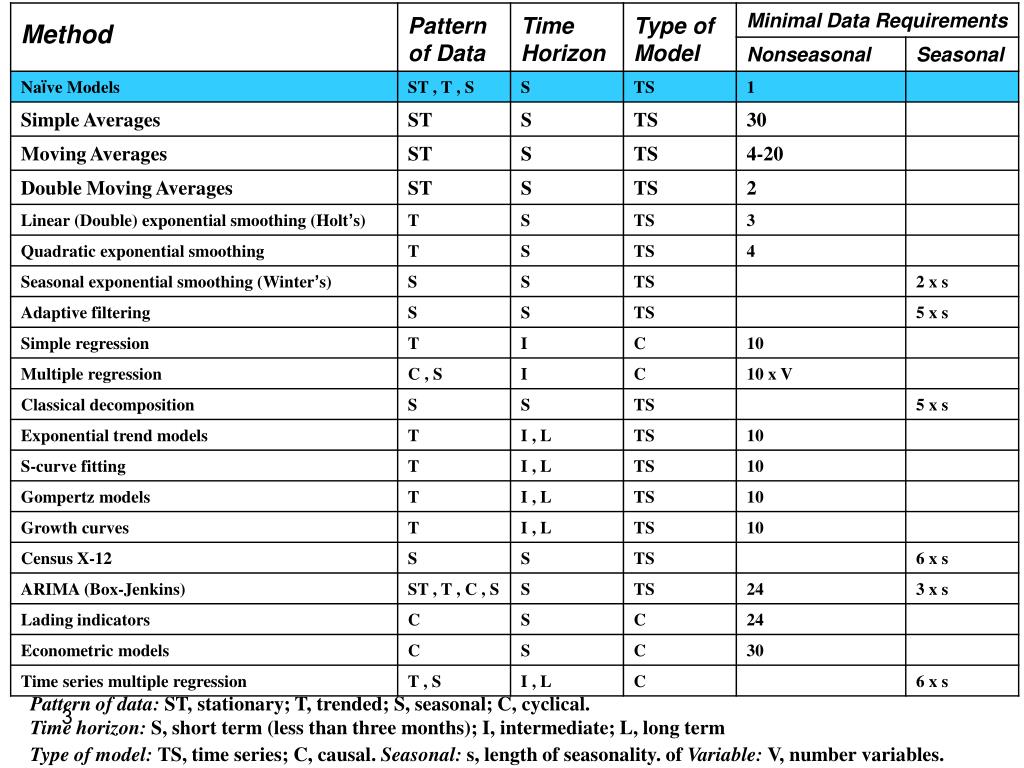

  3. Pattern of data: ST, stationary; T, trended; S, seasonal; C, cyclical. Time horizon: S, short term (less than three months); I, intermediate; L, long term Type of model: TS, time series; C, causal. Seasonal: s, length of seasonality. of Variable: V, number variables.

  4. Example 4.1 (Page 108) • Table 4-1 Sales of Saws for Acme Tool Company, 2000 – 2006. • Initialization (Fitting) Part: 2000 – 2005. • Test Part: 2006.

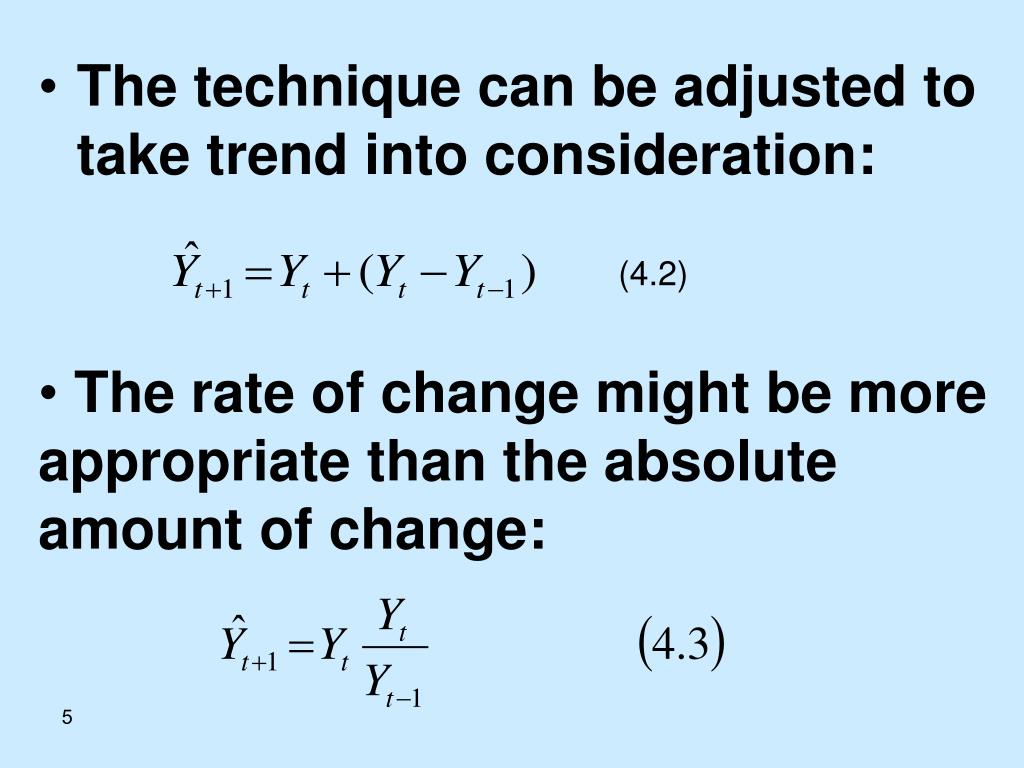

  5. (4.2) • The technique can be adjusted to take trend into consideration: • The rate of change might be more appropriate than the absolute amount of change:

  6. (4.4) (4.5) • An appropriate forecast equation for quarterly data: • The analyst can combine seasonal and trend estimates using: • For monthly data:

  7. Example 4.1 (cont.) • Using Equations (4.3, 4.4, and 4.5) (Pages 110 – 111)

  8. Forecasting Methods Based on Averaging (Page 111)

  9. Pattern of data: ST, stationary; T, trended; S, seasonal; C, cyclical. Time horizon: S, short term (less than three months); I, intermediate; L, long term Type of model: TS, time series; C, causal. Seasonal: s, length of seasonality. of Variable: V, number variables.

  10. Simple Averages Uses the mean of all the relevant historical observations as the forecast of the next period. (4.6) (4.7) • New observation is added: (Page 111)

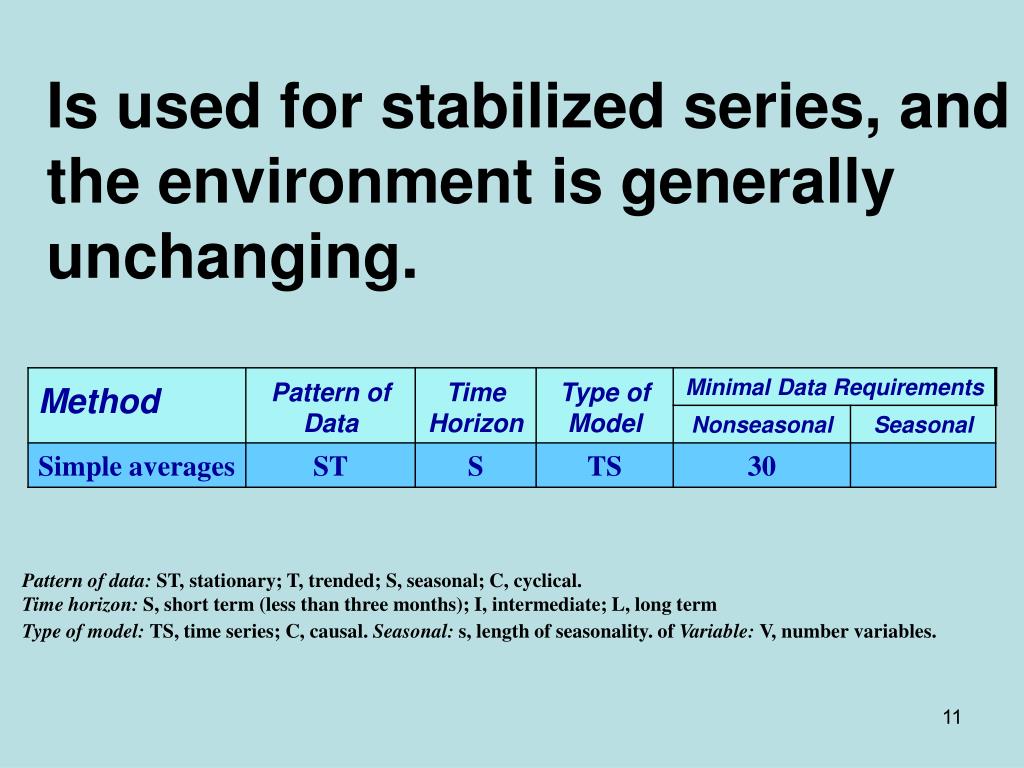

  11. Is used for stabilized series, and the environment is generally unchanging. Pattern of data: ST, stationary; T, trended; S, seasonal; C, cyclical. Time horizon: S, short term (less than three months); I, intermediate; L, long term Type of model: TS, time series; C, causal. Seasonal: s, length of seasonality. of Variable: V, number variables.

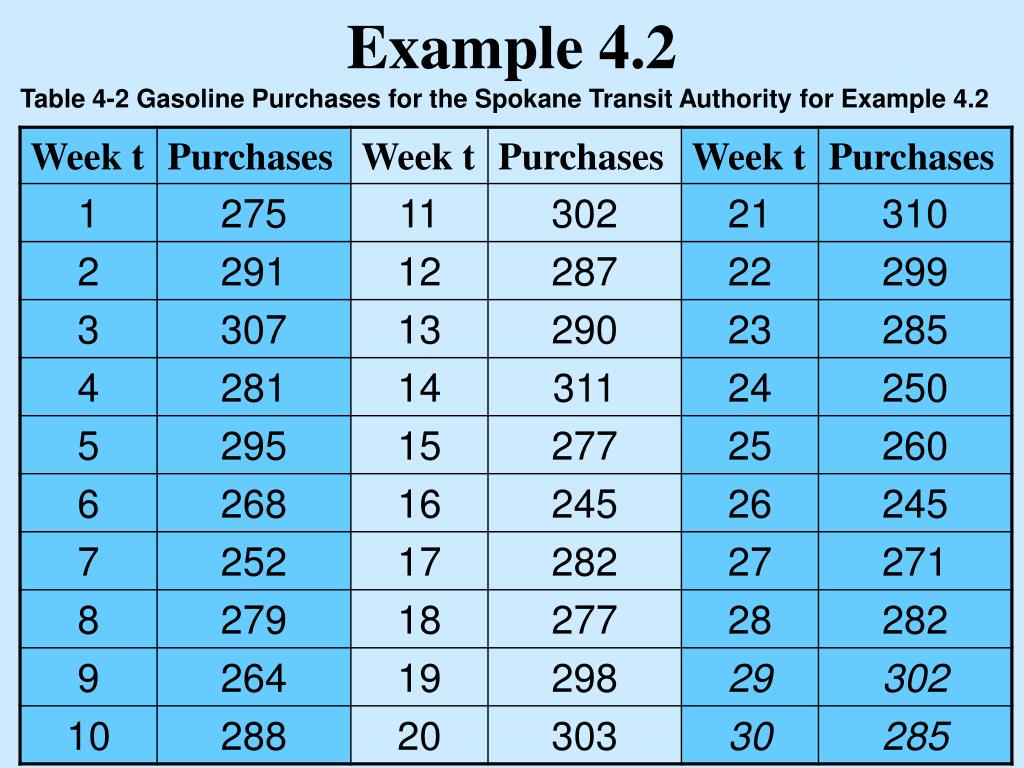

  12. Example 4.2 Table 4-2 Gasoline Purchases for the Spokane Transit Authority for Example 4.2

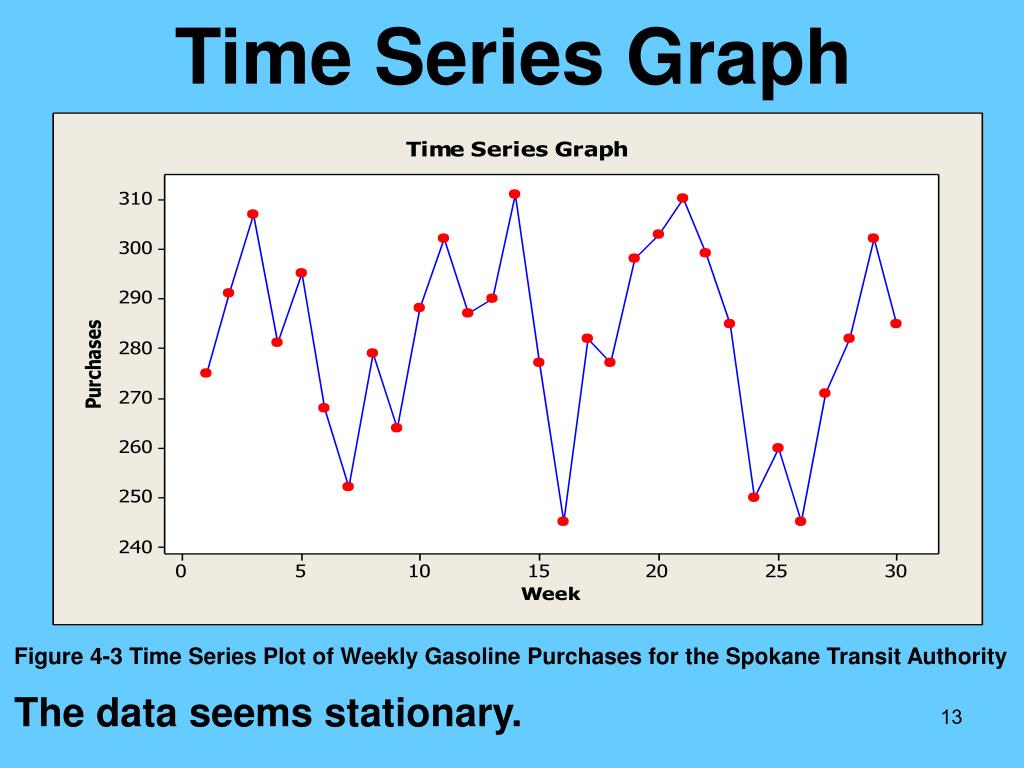

  13. Time Series Graph Figure 4-3 Time Series Plot of Weekly Gasoline Purchases for the Spokane Transit Authority The data seems stationary.

  14. Solution

  15. (4.8) Moving Averages • A moving average of order k is the mean value of the k most recent observations. K = number of terms in the moving average. The method does not handle trend or seasonality very well, although it does better than the simple average method. Pattern of data: ST, stationary; T, trended; S, seasonal; C, cyclical. Time horizon: S, short term (less than three months); I, intermediate; L, long term Type of model: TS, time series; C, causal. Seasonal: s, length of seasonality. of Variable: V, number variables.

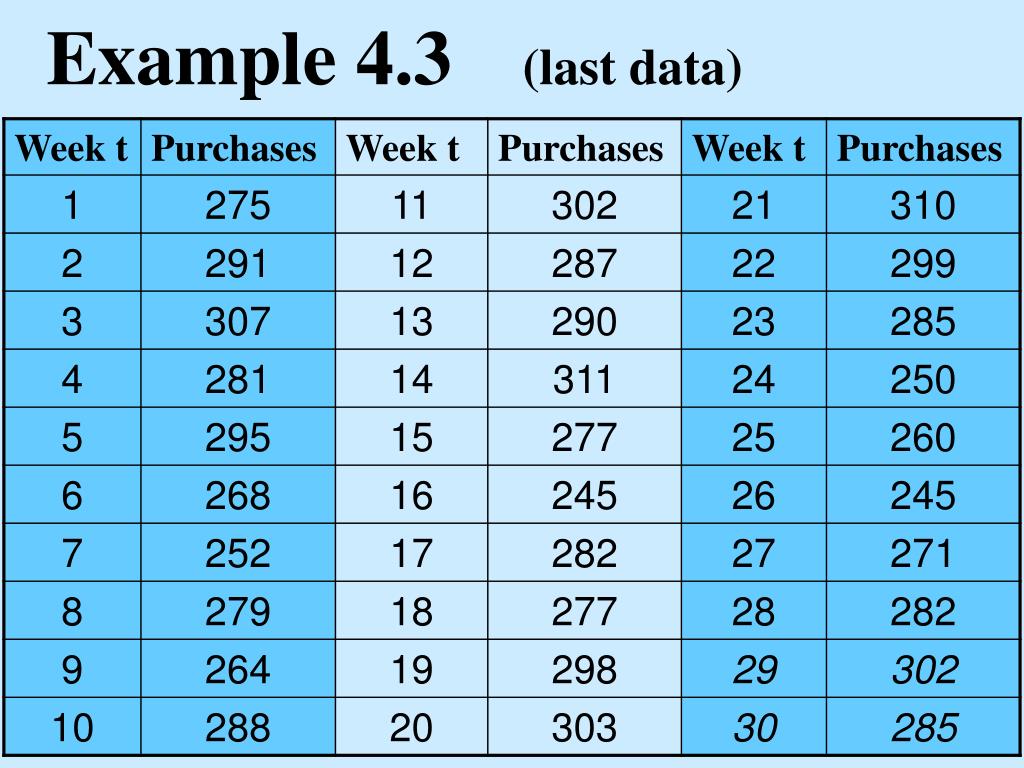

  16. Example 4.3 (last data)

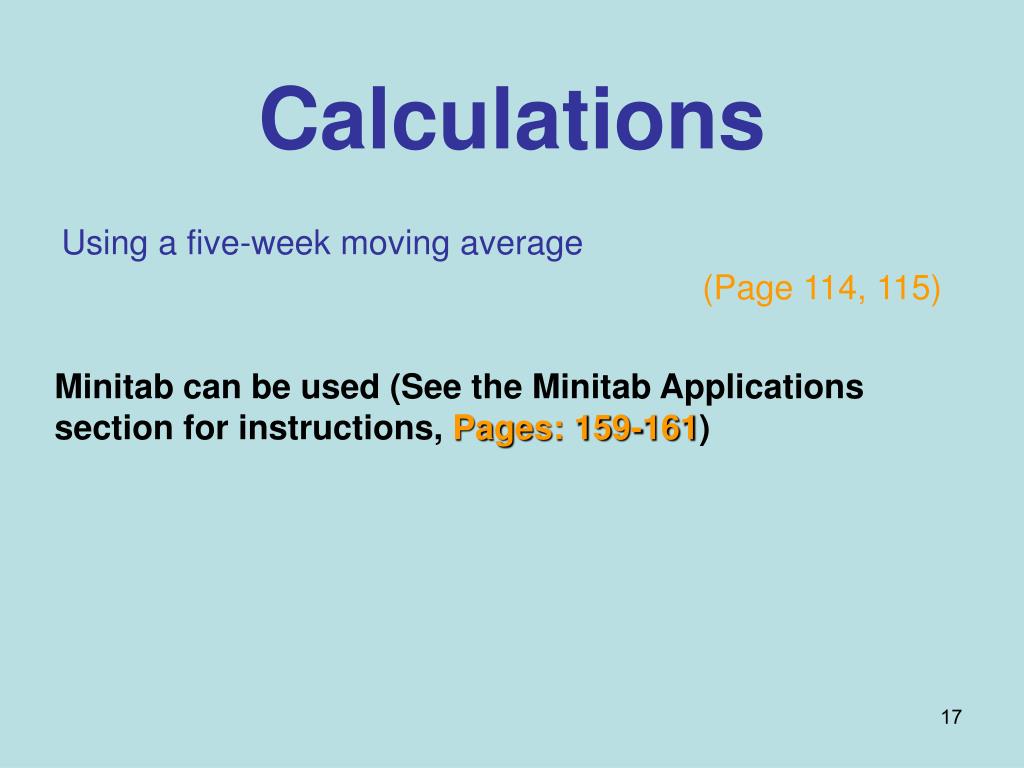

  17. Calculations Using a five-week moving average (Page 114, 115) Minitab can be used (See the Minitab Applications section for instructions, Pages: 159-161)

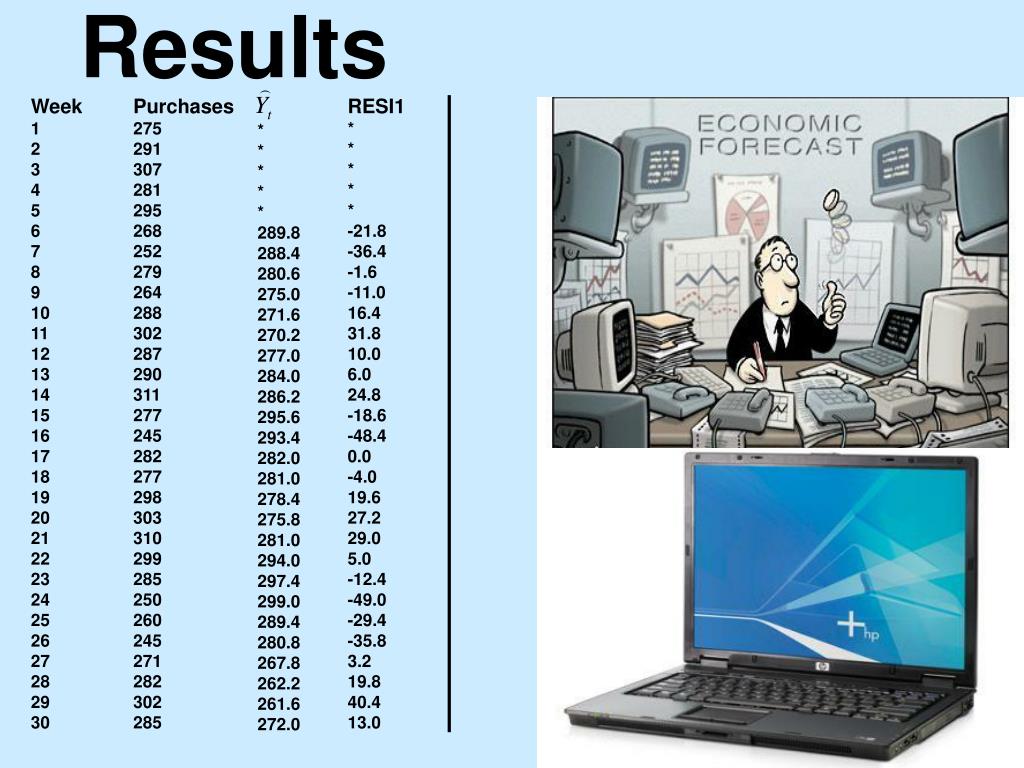

  18. * * * * * 289.8 288.4 280.6 275.0 271.6 270.2 277.0 284.0 286.2 295.6 293.4 282.0 281.0 278.4 275.8 281.0 294.0 297.4 299.0 289.4 280.8 267.8 262.2 261.6 272.0 Results WeekPurchasesAVER1RESI1 1 275 * * 2 291 * * 3 307 * * 4 281 * * 5 295 289.8 * 6 268 288.4 -21.8 7 252 280.6 -36.4 8 279 275.0 -1.6 9 264 271.6 -11.0 10 288 270.2 16.4 11 302 277.0 31.8 12 287 284.0 10.0 13 290 286.2 6.0 14 311 295.6 24.8 15 277 293.4 -18.6 16 245 282.0 -48.4 17 282 281.0 0.0 18 277 278.4 -4.0 19 298 275.8 19.6 20 303 281.0 27.2 21 310 294.0 29.0 22 299 297.4 5.0 23 285 299.0 -12.4 24 250 289.4 -49.0 25 260 280.8 -29.4 26 245 267.8 -35.8 27 271 262.2 3.2 28 282 261.6 19.8 29 302 272.0 40.4 30 285 277.0 13.0

  19. Minitab Results Minitab Instructions Stat > time Series > Moving averages Note: (MSE is called MSD on Minitab output) (Page 115) FIGURE 4 - 4

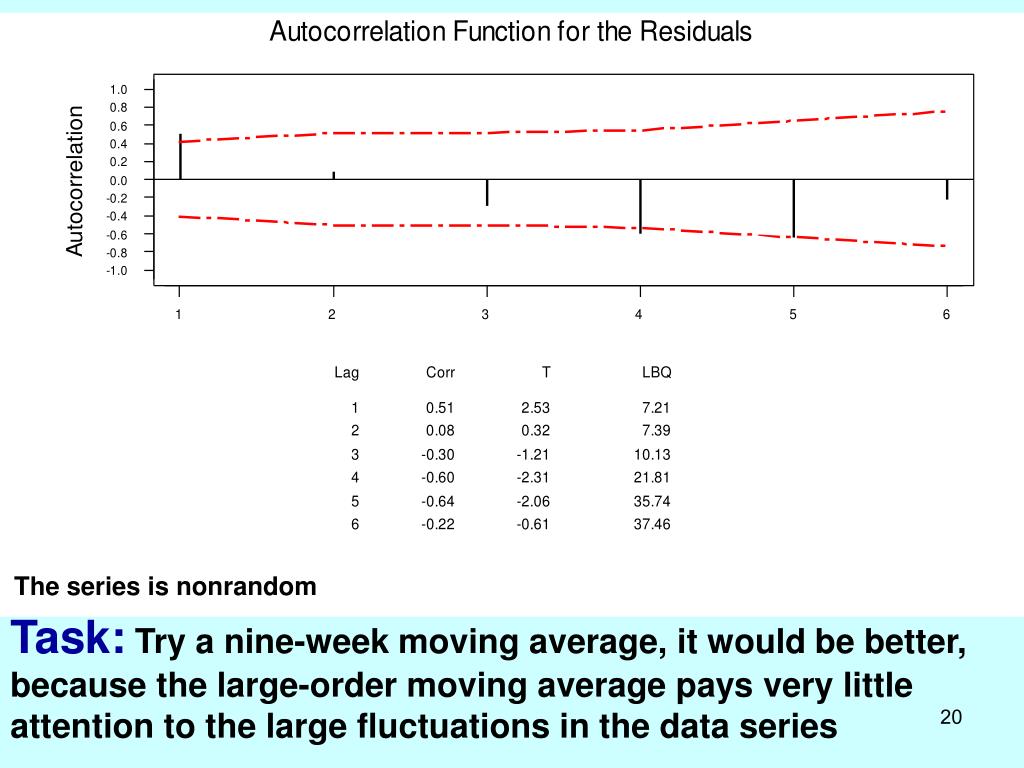

  20. The series is nonrandom Task: Try a nine-week moving average, it would be better, because the large-order moving average pays very little attention to the large fluctuations in the data series

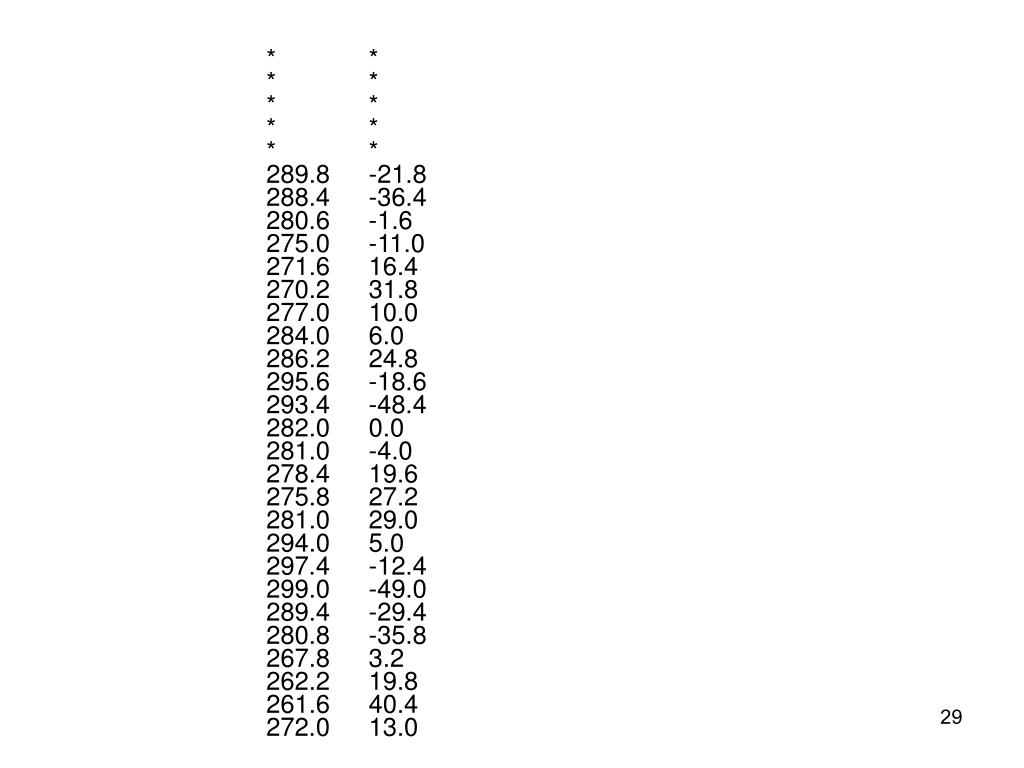

  21. * * * * * * * * * * 289.8 -21.8 288.4 -36.4 280.6 -1.6 275.0 -11.0 271.6 16.4 270.2 31.8 277.0 10.0 284.0 6.0 286.2 24.8 295.6 -18.6 293.4 -48.4 282.0 0.0 281.0 -4.0 278.4 19.6 275.8 27.2 281.0 29.0 294.0 5.0 297.4 -12.4 299.0 -49.0 289.4 -29.4 280.8 -35.8 267.8 3.2 262.2 19.8 261.6 40.4 272.0 13.0

  22. Double Moving Average • Equations (4.9) – (4.12) (Pages 116-117) • Example 4-4 • (Pages 118-119)

  23. Exponential Smoothing Methods

  24. = smoothing constant (0< <1) 2.1 Simple (Single) Exponential Smoothing Based on averaging (smoothing) past values of a series in a decreasing exponential manner, with more weight being given to the more recent observations. New forecast = [α x (new observation)] + [(1- α) x (old forecast)]

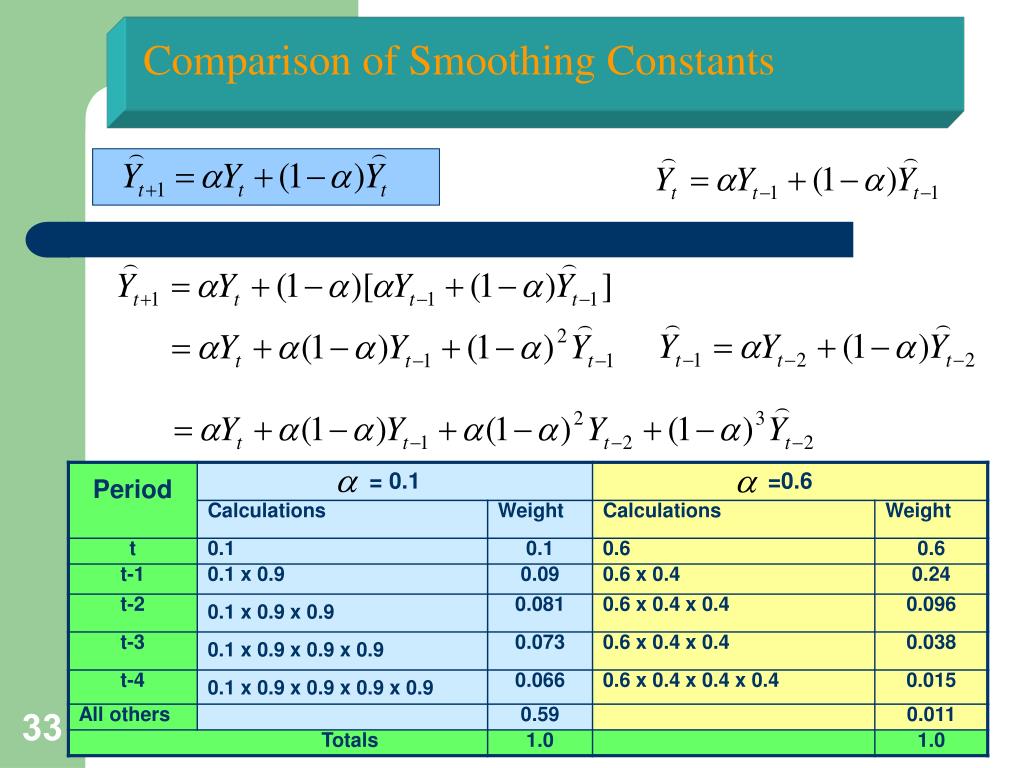

  25. Comparison of Smoothing Constants

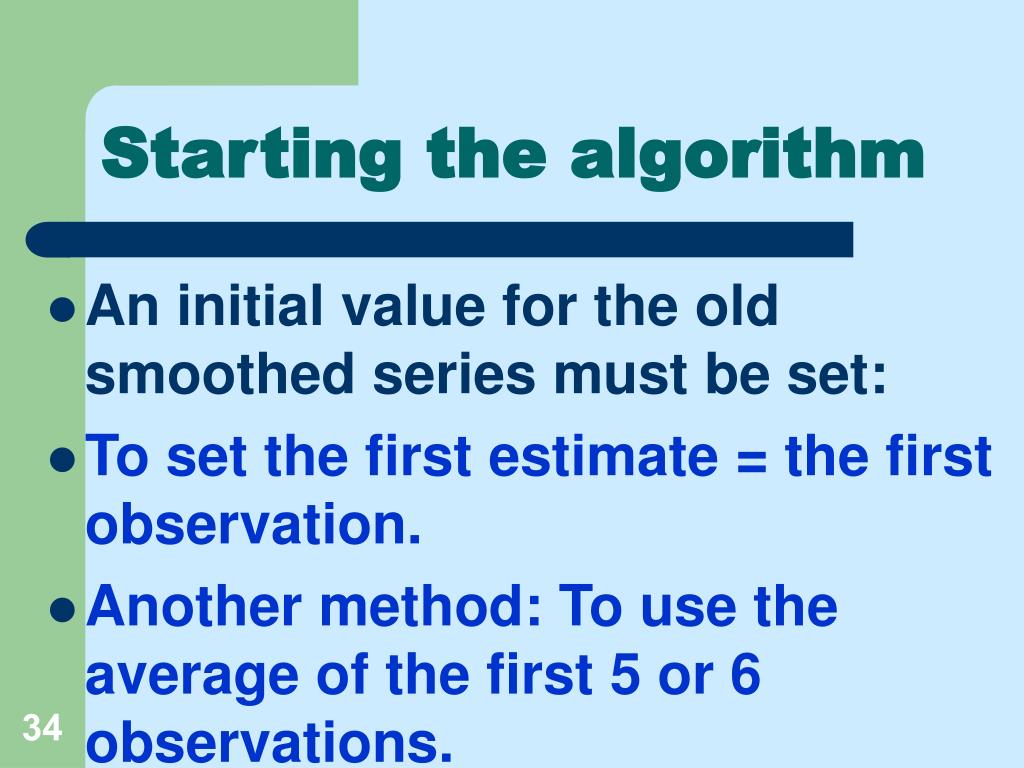

  26. Starting the algorithm • An initial value for the old smoothed series must be set: • To set the first estimate = the first observation. • Another method: To use the average of the first 5 or 6 observations.

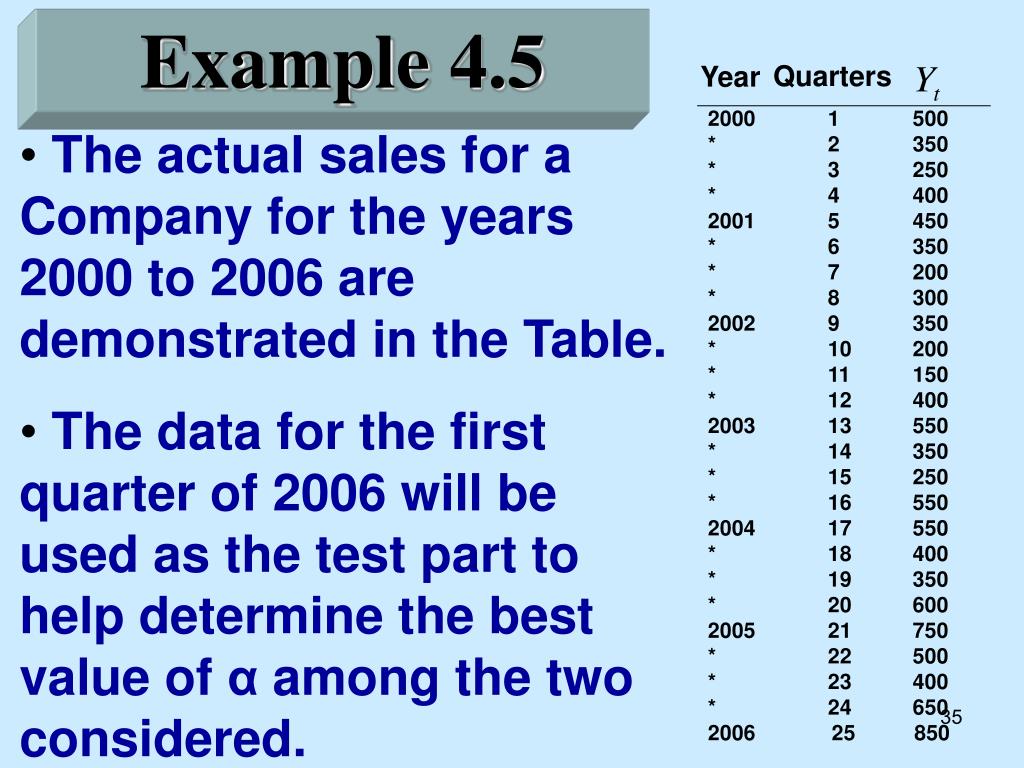

  27. Example 4.5 Quarters Year 2000 1 500 * 2 350 * 3 250 * 4 400 2001 5 450 * 6 350 * 7 200 * 8 300 2002 9 350 * 10 200 * 11 150 * 12 400 2003 13 550 * 14 350 * 15 250 * 16 550 2004 17 550 * 18 400 * 19 350 * 20 600 2005 21 750 * 22 500 * 23 400 * 24 650 2006 25 850 • The actual sales for a Company for the years 2000 to 2006 are demonstrated in the Table. • The data for the first quarter of 2006 will be used as the test part to help determine the best value of α among the two considered.

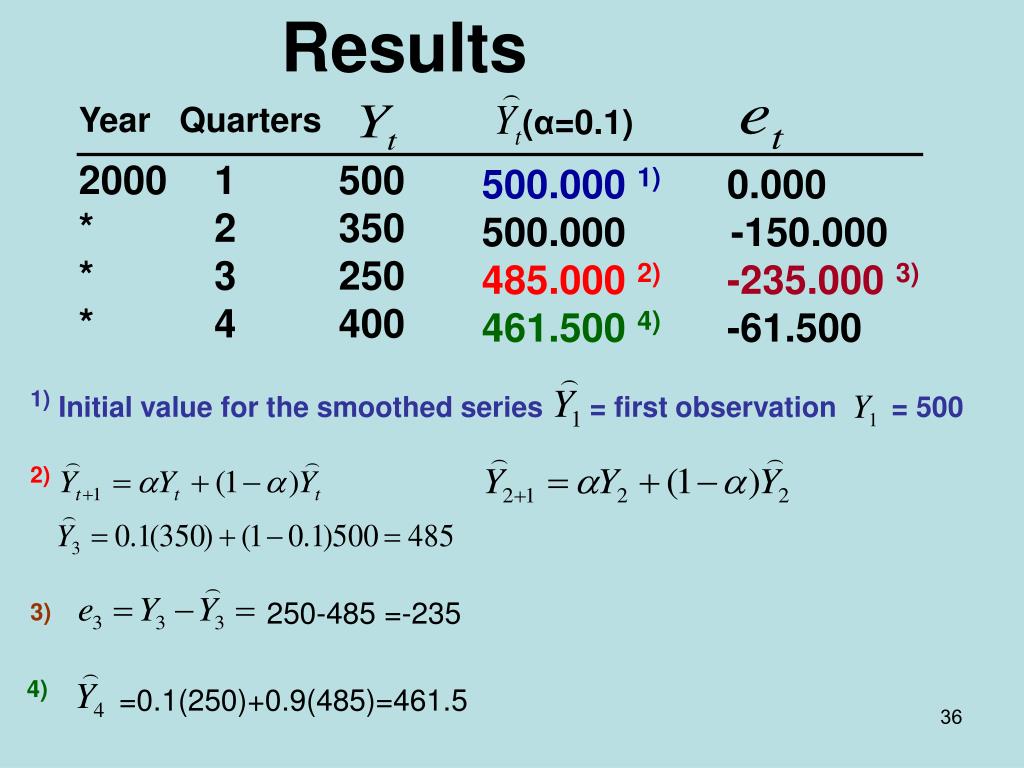

  28. (α=0.1) 1) Initial value for the smoothed series = first observation = 500 250-485 =-235 3) =0.1(250)+0.9(485)=461.5 4) Results Year Quarters 2000 1 500 * 2 350 * 3 250 * 4 400 500.000 1)0.000 500.000 -150.000 485.000 2)-235.000 3) 461.500 4)-61.500 2)

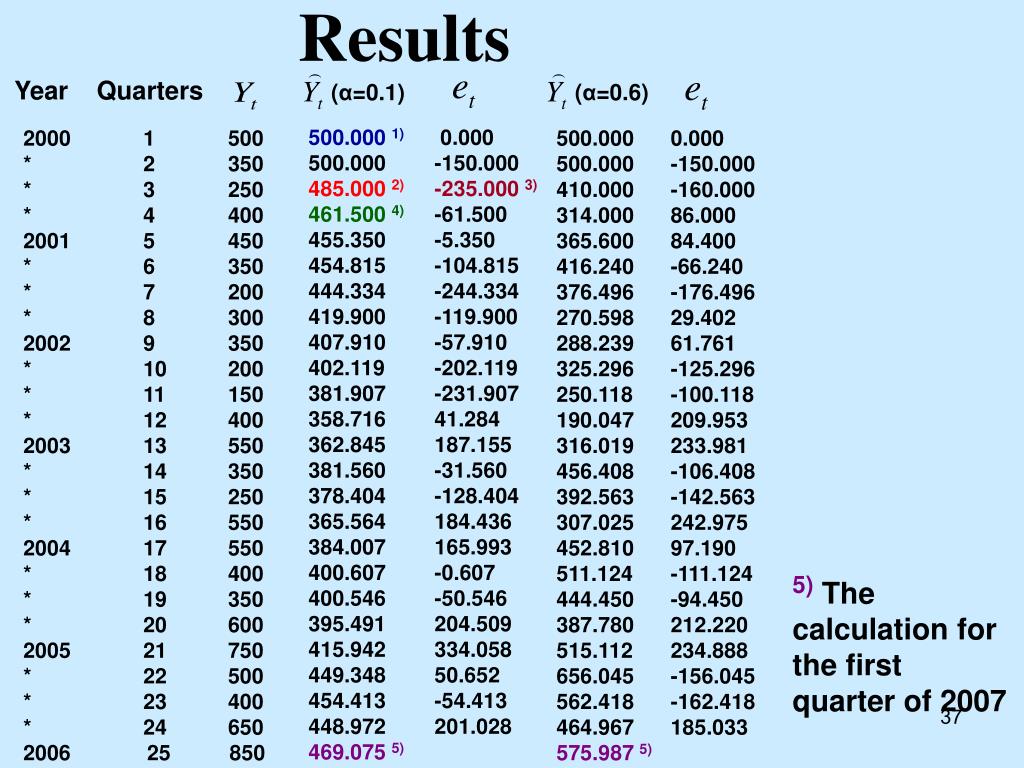

  29. (α=0.6) Results Year Quarters (α=0.1) 500.000 1) 0.000 500.000 -150.000 485.000 2)-235.000 3) 461.500 4) -61.500 455.350 -5.350 454.815 -104.815 444.334 -244.334 419.900 -119.900 407.910 -57.910 402.119 -202.119 381.907 -231.907 358.716 41.284 362.845 187.155 381.560 -31.560 378.404 -128.404 365.564 184.436 384.007 165.993 400.607 -0.607 400.546 -50.546 395.491 204.509 415.942 334.058 449.348 50.652 454.413 -54.413 448.972 201.028 469.075 5) 2000 1 500 * 2 350 * 3 250 * 4 400 2001 5 450 * 6 350 * 7 200 * 8 300 2002 9 350 * 10 200 * 11 150 * 12 400 2003 13 550 * 14 350 * 15 250 * 16 550 2004 17 550 * 18 400 * 19 350 * 20 600 2005 21 750 * 22 500 * 23 400 * 24 650 2006 25 850 500.000 0.000 500.000 -150.000 410.000 -160.000 314.000 86.000 365.600 84.400 416.240 -66.240 376.496 -176.496 270.598 29.402 288.239 61.761 325.296 -125.296 250.118 -100.118 190.047 209.953 316.019 233.981 456.408 -106.408 392.563 -142.563 307.025 242.975 452.810 97.190 511.124 -111.124 444.450 -94.450 387.780 212.220 515.112 234.888 656.045 -156.045 562.418 -162.418 464.967 185.033 575.987 5) 5) The calculation for the first quarter of 2007

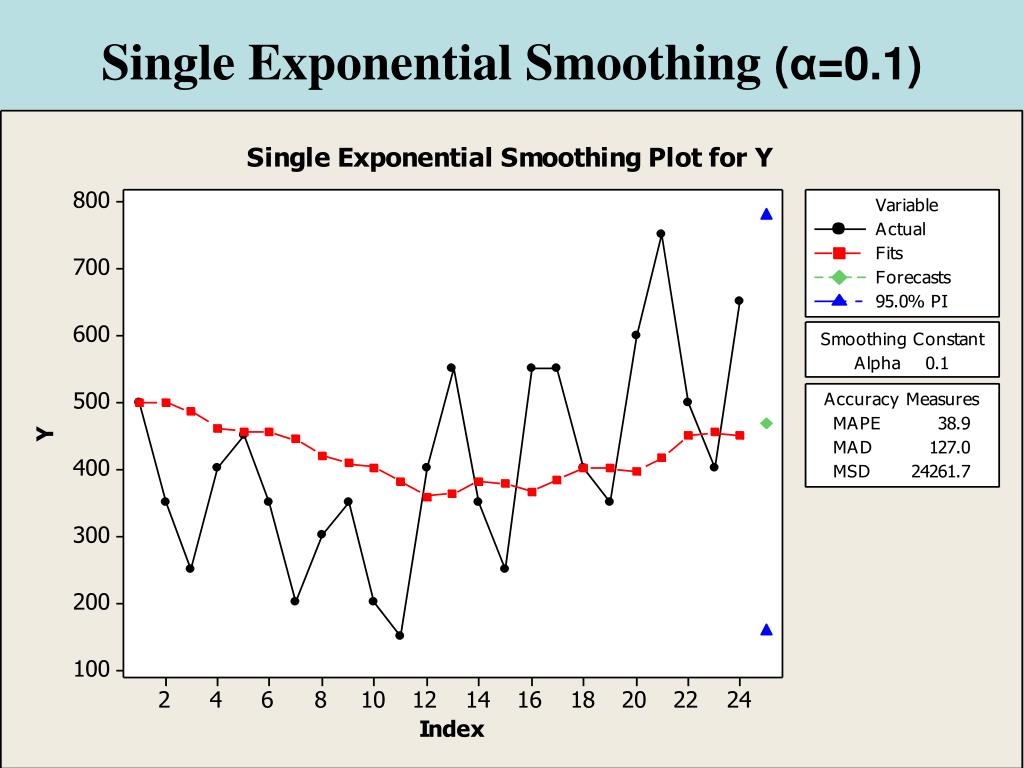

  30. Single Exponential Smoothing (α=0.1)

  31. Single Exponential Smoothing(α=0.6)

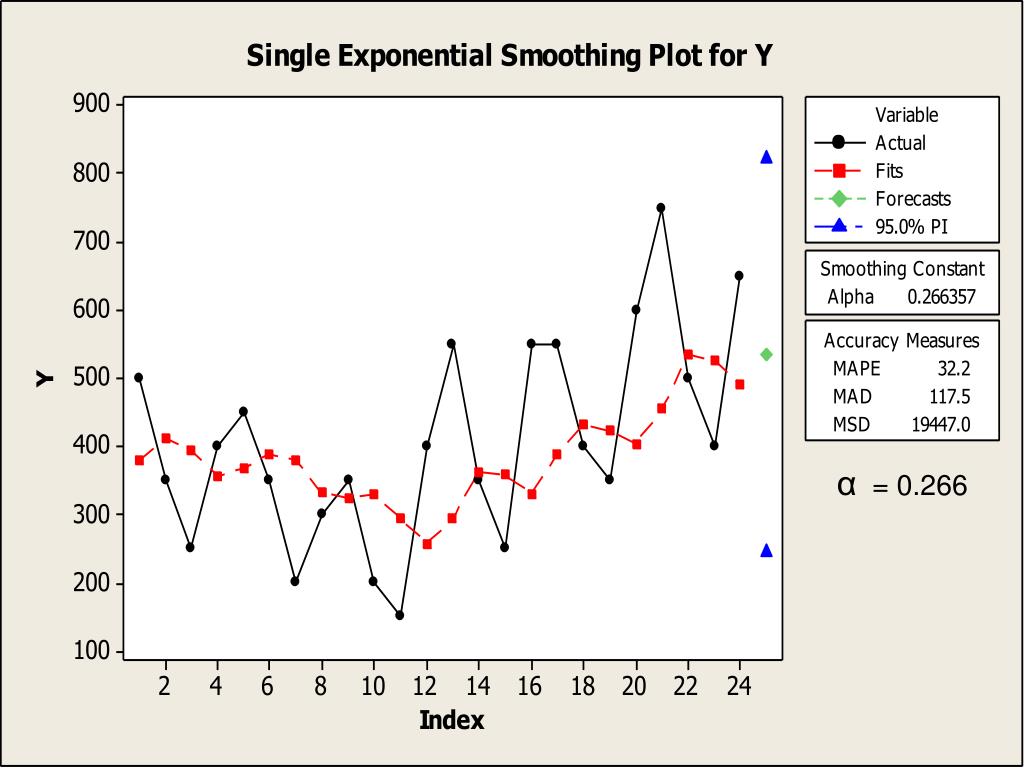

  32. α = 0.266

  33. Comparison Optimization MAPE 32.2 MAD 117.5 MSD 19447.0 The weight α is selected subjectively or by minimizing an error such as the MSE Initial smoothed Value = The first observation α = 0.1 MAPE 38.9 MAD 127.0 MSD 24261.7 α = 0.6 MAPE 36.5 MAD 134.5 MSD 22248.4 Initial Smoothed Value = The Average of the first six Observations α = 0.1 MAPE 32.1 MAD 115.5 MSD 21091.2 α = 0.6 MAPE 36.7 MAD 137.1 MSD 22152.8

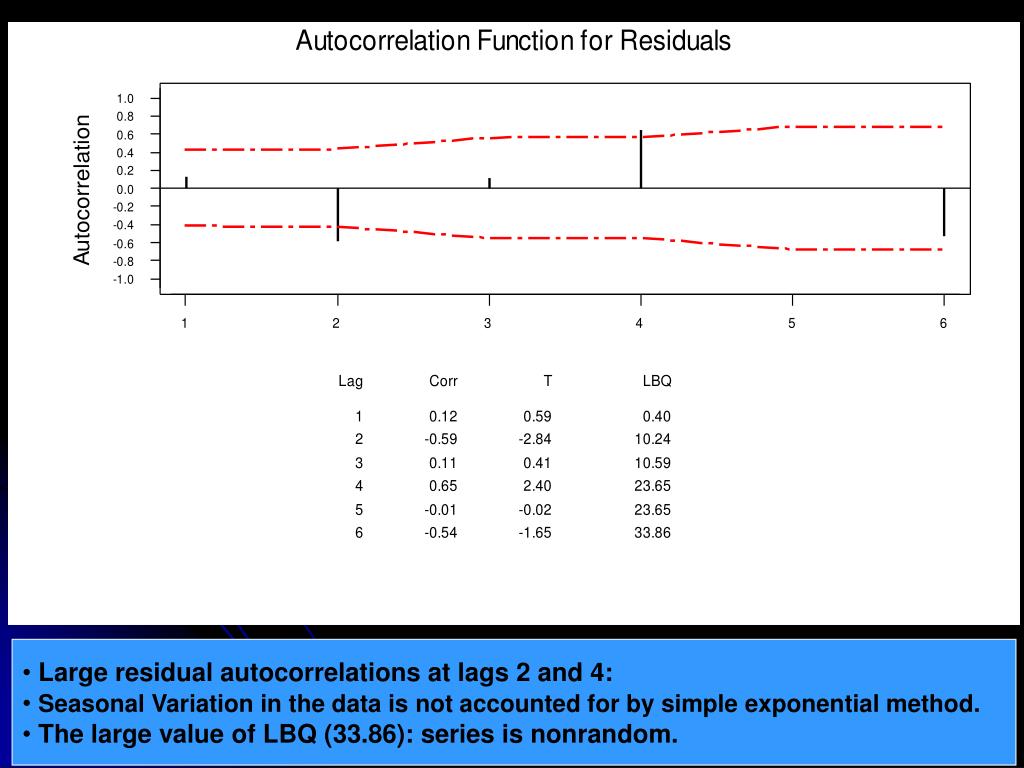

  34. Large residual autocorrelations at lags 2 and 4: • Seasonal Variation in the data is not accounted for by simple exponential method. • The large value of LBQ (33.86): series is nonrandom.

  35. Exponential Smoothing Adjusted for Trend:(Holt’s Method)“Holt’s two-parameter method” Double Exponential Smoothing • Smoothes the level and slope (trend) using different constants.

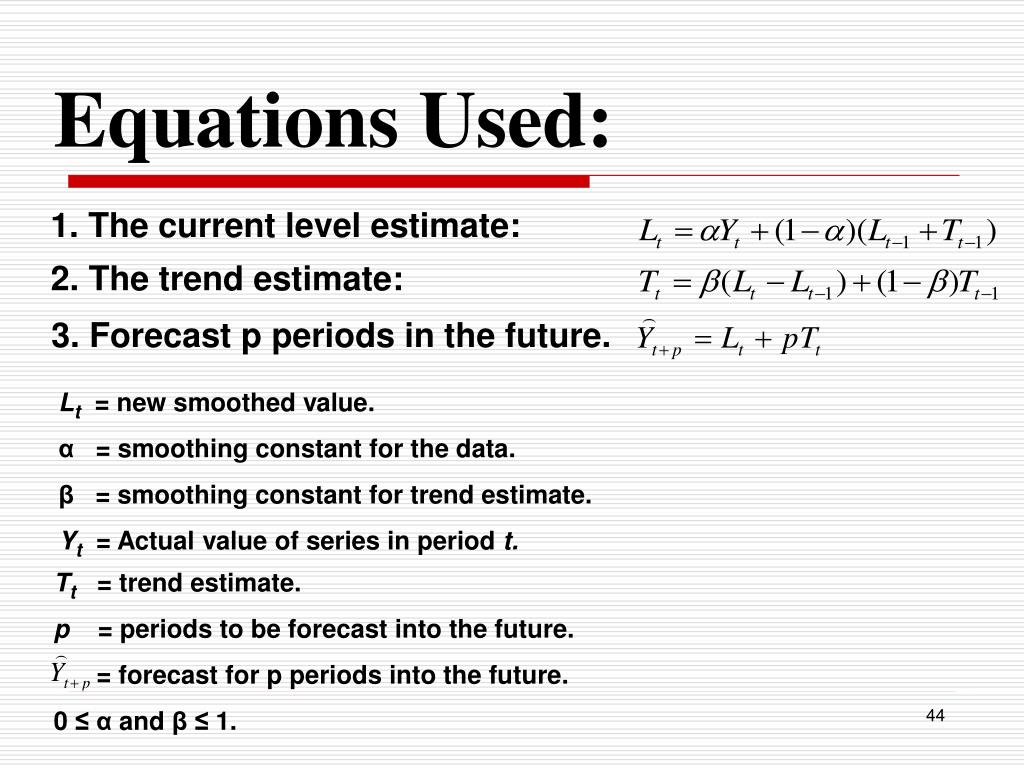

  36. Lt = new smoothed value. α = smoothing constant for the data. β = smoothing constant for trend estimate. Yt = Actual value of series in period t. 1. The current level estimate: 2. The trend estimate: 3. Forecast p periods in the future. Tt = trend estimate. p = periods to be forecast into the future. = forecast for p periods into the future. 0 ≤ α and β ≤ 1. Equations Used:

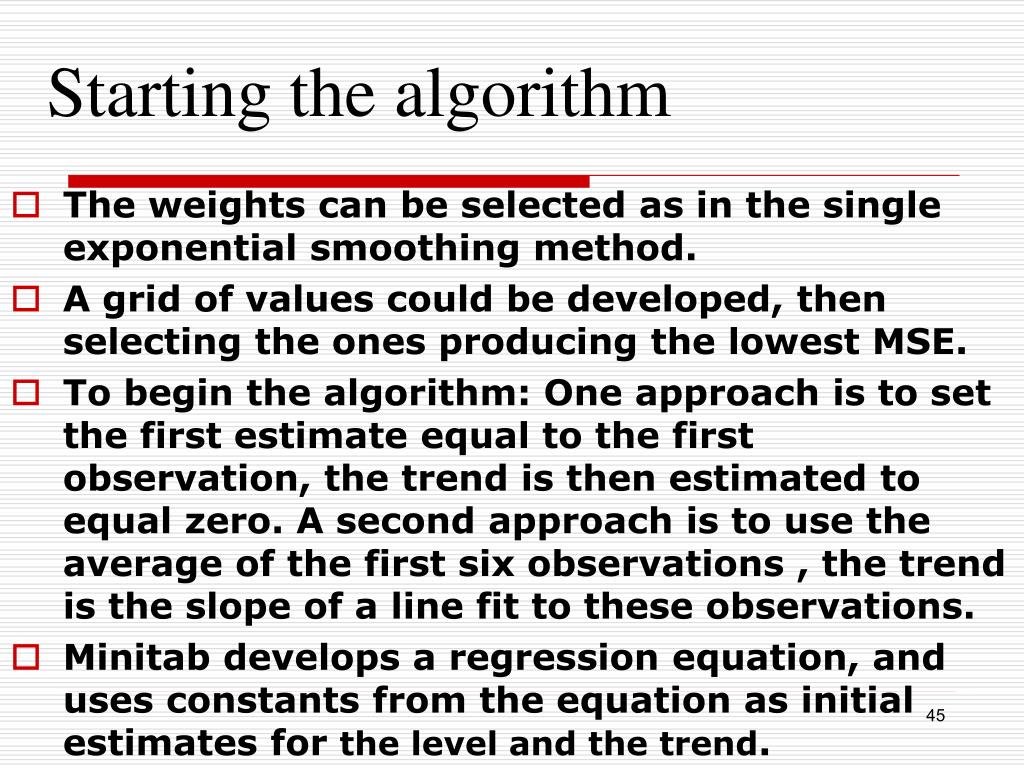

  37. Starting the algorithm • The weights can be selected as in the single exponential smoothing method. • A grid of values could be developed, then selecting the ones producing the lowest MSE. • To begin the algorithm: One approach is to set the first estimate equal to the first observation, the trend is then estimated to equal zero. A second approach is to use the average of the first six observations , the trend is the slope of a line fit to these observations. • Minitab develops a regression equation, and uses constants from the equation as initial estimates for the level and the trend.

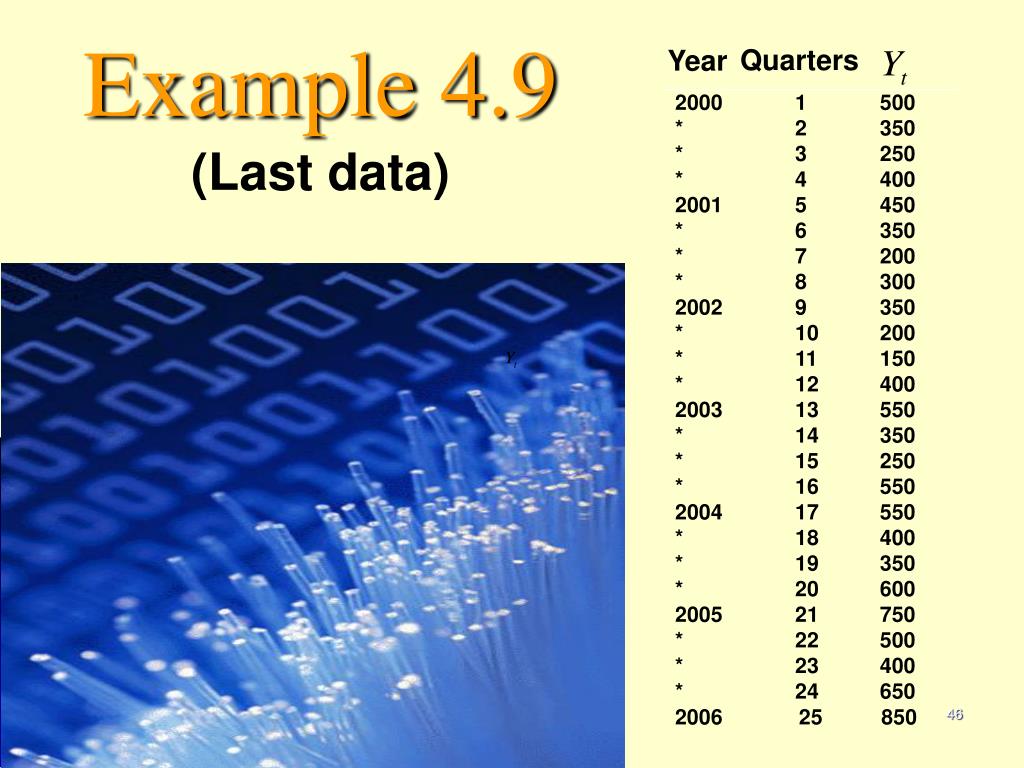

  38. Quarters Year 2000 1 500 * 2 350 * 3 250 * 4 400 2001 5 450 * 6 350 * 7 200 * 8 300 2002 9 350 * 10 200 * 11 150 * 12 400 2003 13 550 * 14 350 * 15 250 * 16 550 2004 17 550 * 18 400 * 19 350 * 20 600 2005 21 750 * 22 500 * 23 400 * 24 650 2006 25 850 Example 4.9(Last data)

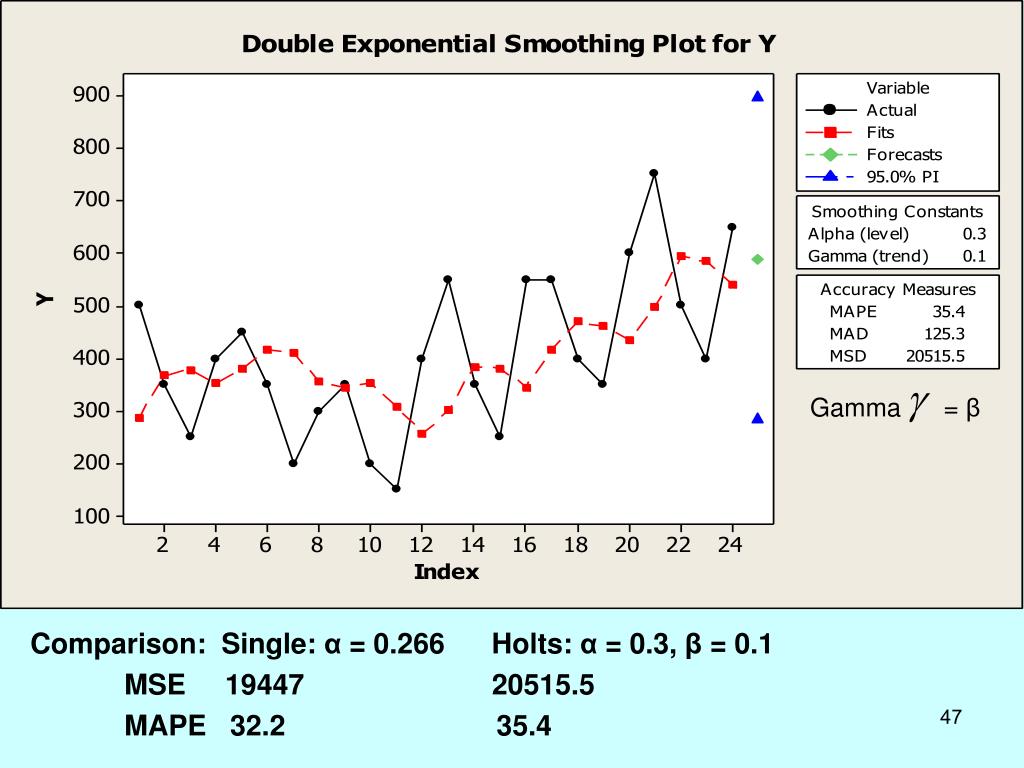

  39. Gamma = β Comparison: Single: α = 0.266 Holts: α = 0.3, β = 0.1 MSE 19447 20515.5 MAPE 32.2 35.4

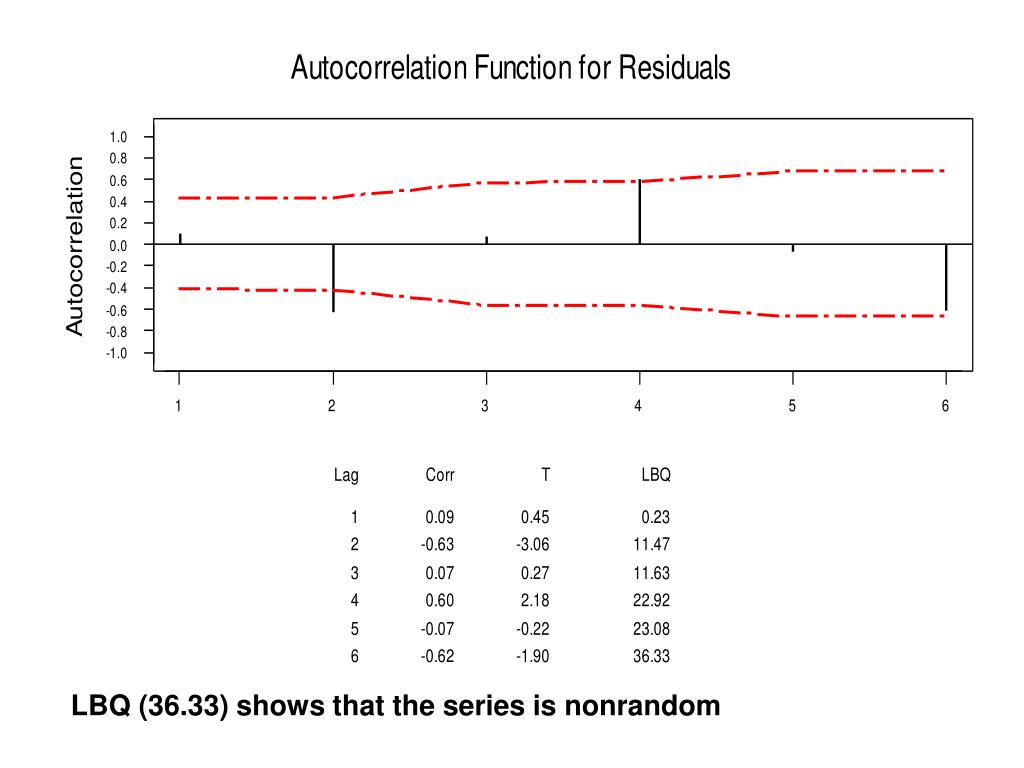

  40. LBQ (36.33) shows that the series is nonrandom

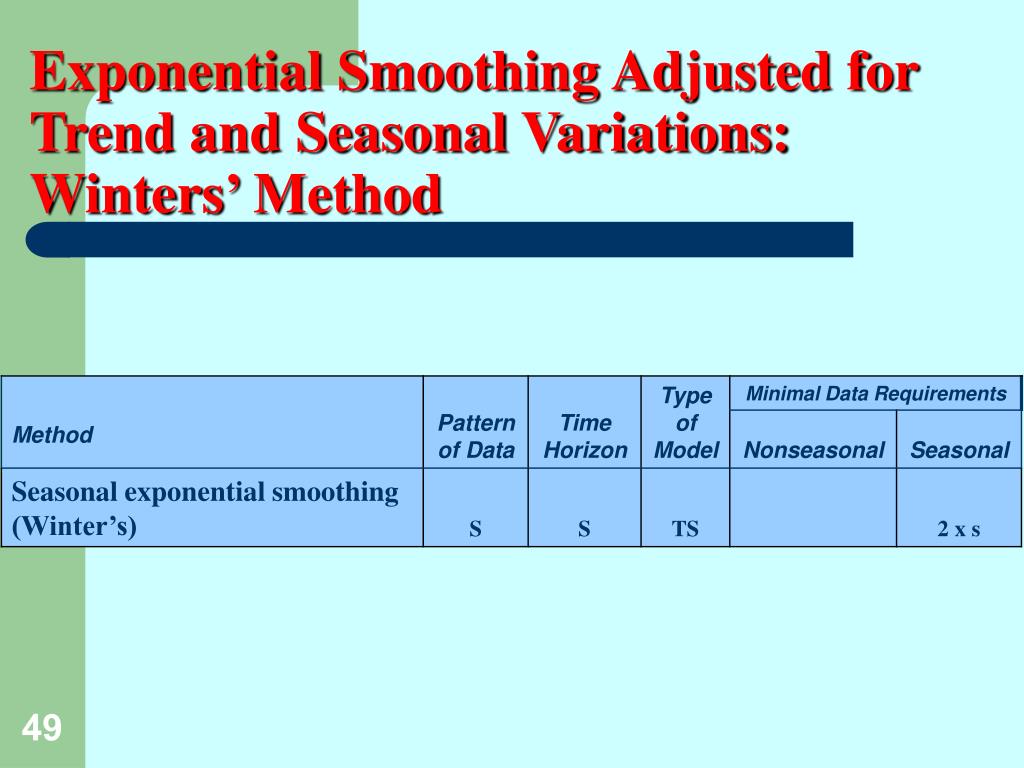

  41. Exponential Smoothing Adjusted for Trend and Seasonal Variations: Winters’ Method

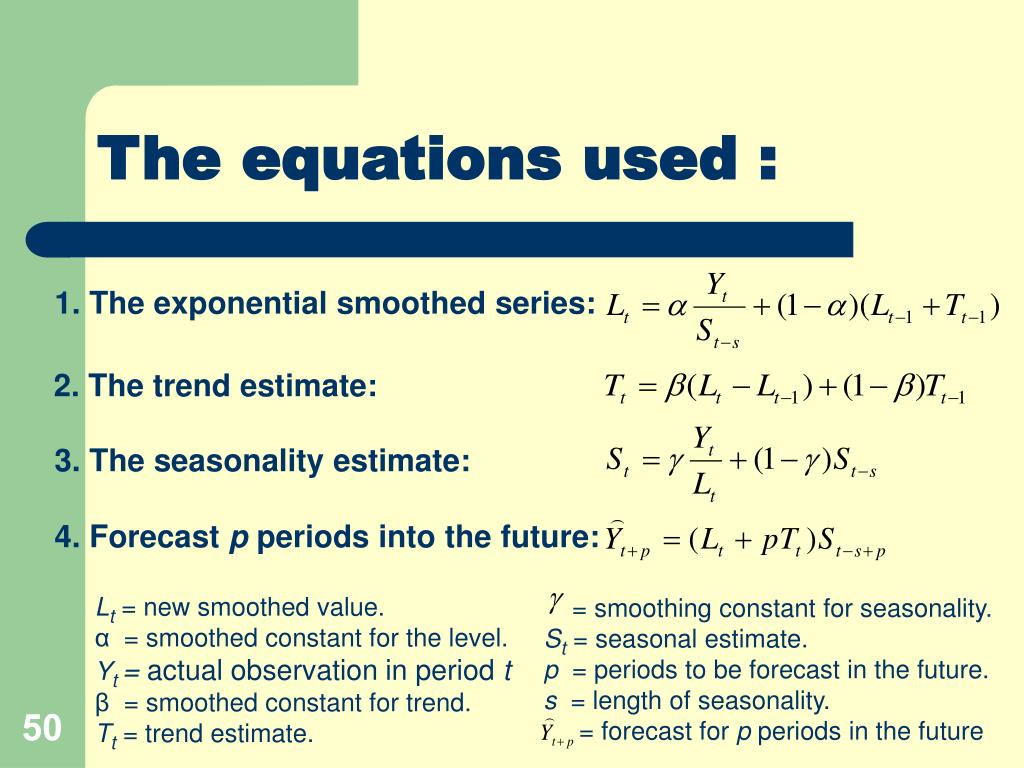

  42. 1. The exponential smoothed series: 2. The trend estimate: 3. The seasonality estimate: Lt = new smoothed value. α = smoothed constant for the level. Yt = actual observation in period t β = smoothed constant for trend. Tt = trend estimate. = smoothing constant for seasonality. St = seasonal estimate. p = periods to be forecast in the future. s = length of seasonality. = forecast for p periods in the future 4. Forecast p periods into the future: The equations used :
