  1. INFORMATIK Perception-motivated High Dynamic Range Video Encoding Rafal Mantiuk, Grzegorz Krawczyk,Karol Myszkowski, Hans-Peter Seidel

  2. High Dynamic Range

  3. LDR Video Intended for existing displays Relative pixel brightness HDR Video Intended for the human eye Photometric or radiometric units [cd/m2, Watt/m2sr] High vs Low Dynamic Range Video

  4. High Dynamic Range Video • Goal: Efficient encoding of full dynamic range of luminance perceived by the human observer 1st demo

  5. Overview • HDR Pipeline • HDR Video Encoding • Luminance Quantization • Edge Coding • Results • vs. MPEG-4 • vs. OpenEXR • Demo & Applications

  6. Related Work • HDR Pipeline Acquisition  Storage  Display

  7. Related Work • HDR Pipeline Acquisition  Storage Display • Global Illumination • HDR Cameras • HDRC (IMS Chips) • Lars III (Silicon Vision) • Autobrite (SMal Camera Technologies) • LM9628 (National) • Digital Pixel System (Pixim) • Technology overview [Nayar2003] HDRC – IMS Chips

  8. Related Work • HDR Pipeline Acquisition Storage  Display • Still images • Radiance – RGBE [Ward91] • OpenEXR [Bogart2003] • logLuv TIFF [Ward98] • HDR JPEG [Ward2004] • Video • No video format

  9. Related Work • HDR Pipeline Acquisition Storage Display • LDR Displays • But Tone Mapping necessary • HDR displays start to appear • University of British Columbia [Seetzen2004]

  10. HDR Encoding Framework • Detail level 1: Input & Output bitstream LDR Video encoder HDR White: MPEG Orange: HDR Encoder

  11. HDR Encoding Framework • Detail level 2: Color Transform LDR bitstream YCrCb Color Video Transform Encoder L u'v' HDR p White: MPEG Orange: HDR Encoder

  12. HDR Encoding Framework • Detail level 3: Edge Coding DCT Variable Coding length LDR bitstream Color Motion Tran. Comp. HDR Edge Run- Coding length White: MPEG Orange: HDR Encoder

  13. DCT Variable Coding length LDR RGB bitstream Color Motion Tran. Comp. HDR XYZ Edge Run- Coding length Encoding of Color

  14. Encoding of Color • How to represent color data? • Floating Points – ineffective compression • Integers – ok, but require quantization • How to quantize color data? • Quantization errors < threshold of perception • Use uniform color space (L*u*v*, L*a*b*) [Ward98] • Find minimum number of bits • Color(u*v*) – 8 bits are enough

  15. Encoding of Luminance • How to quantize luminance? • Gamma correction? • Logarithm? 8 6 log(Y)? 4 2 log Luminance Y 0 -2 -4 Integer representation

  16. Threshold Versus Intensity • Psychophysical measurements • The smallest perceivable difference Y for a certain adaptation level YA • tvi [Ferwerda96, CIE 12/2.1] Y log Threshold Y YA - Adaptation Luminance log Adaptation Luminance YA

  17. tvi ( Y ) f e max Luminance Quantization Just below threshold of perception Maximum quantization error log Luminance Y Integers Lp

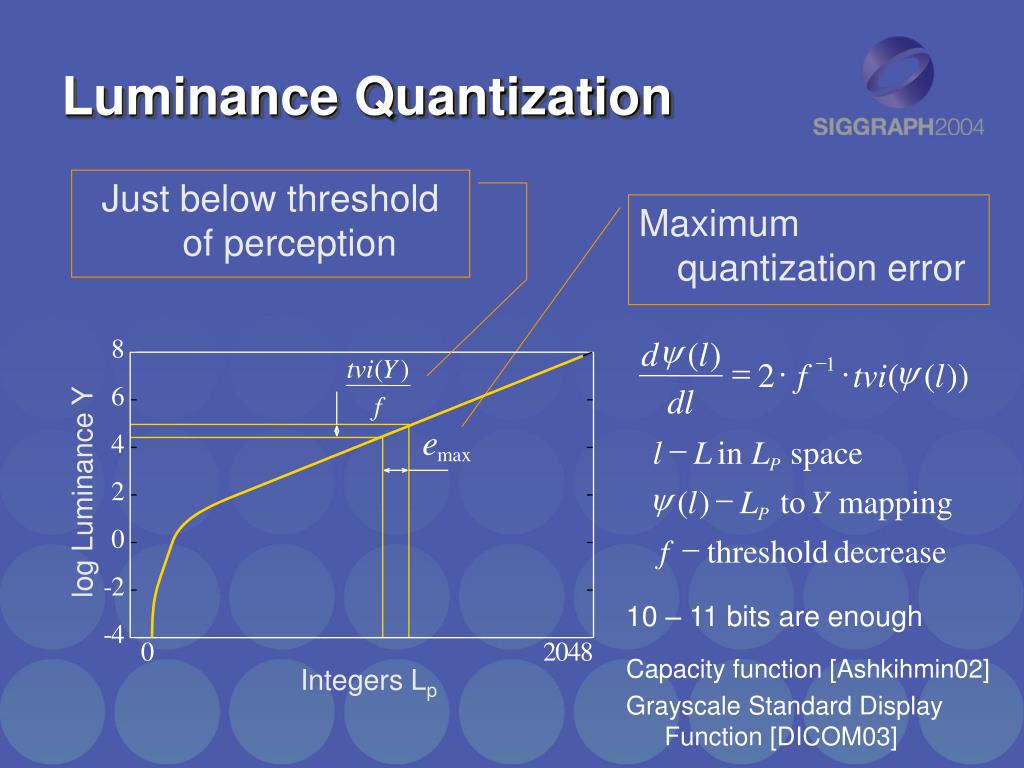

  18. tvi ( Y ) f e max y d ( l ) - - = × × y 1 l L in L space 2 f tvi ( ( l )) P dl y - ( l ) L to Y mapping P - f threshold decrease Luminance Quantization Just below threshold of perception • Capacity function [Ashkihmin02] • Grayscale Standard Display Function [DICOM03] Maximum quantization error log Luminance Y 10 – 11 bits are enough Integers Lp

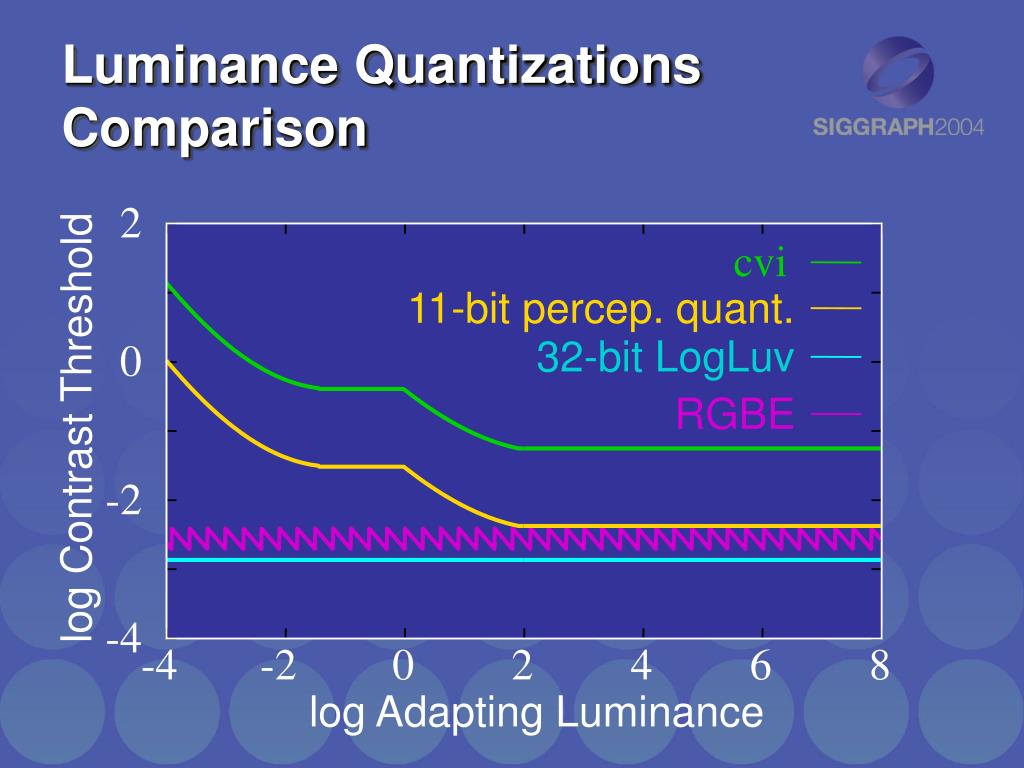

  19. Luminance QuantizationsComparison 2 cvi 11-bit percep. quant. 32-bit LogLuv 0 RGBE log Contrast Threshold -2 -4 -4 -2 0 2 4 6 8 log Adapting Luminance

  20. DCT Variable Coding length LDR RGB bitstream Color Motion Tran. Comp. HDR XYZ Edge Run- Coding length Edge Coding

  21. Edge Coding: Motivation • HDR video can contain sharp contrast edges • Light sources, shadows • DCT coding of sharp contrast may cause high frequency artifacts DCT coding Edge coding

  22. Edge Coding: Solution • Solution: Encode sharp edges in spatial domain, the rest in frequency domain Run-length encoding DCT encoding

  23. Edge Coding: Algorithm original I horizontal decomposition edge block horiz. edges II horizontal DCT III vertical decomposition edge block vert. edges IV vertical DCT

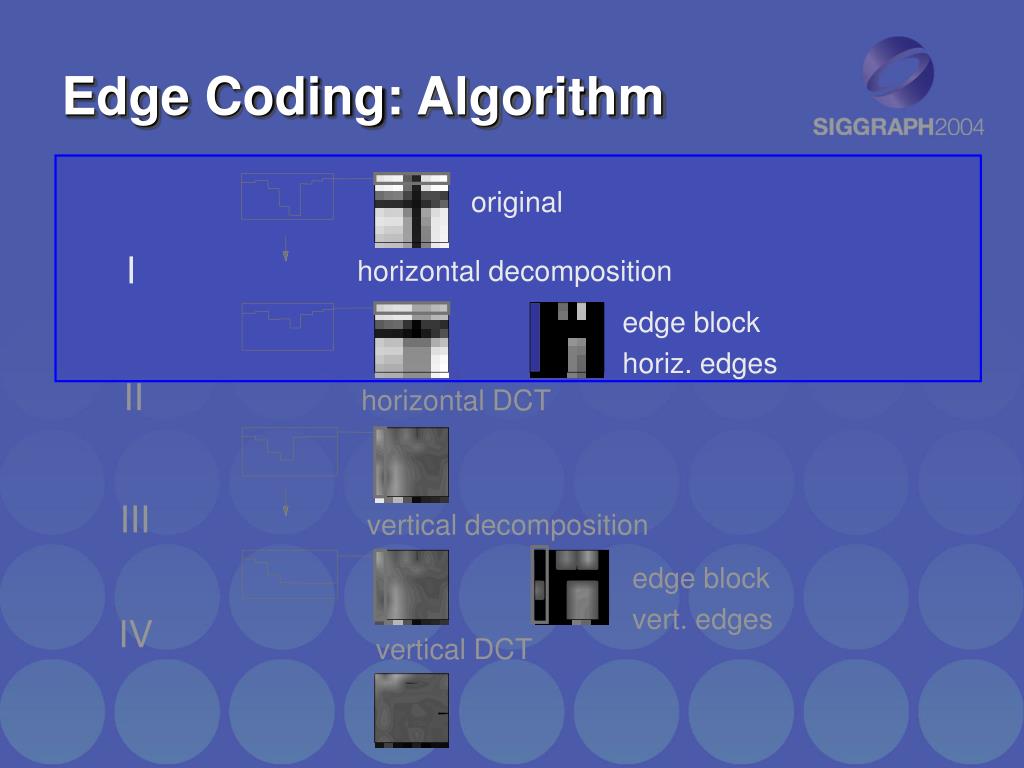

  24. Edge Coding: Algorithm original I horizontal decomposition edge block horiz. edges II horizontal DCT III vertical decomposition edge block vert. edges IV vertical DCT

  25. Edge Coding: Algorithm original I horizontal decomposition edge block horiz. edges II horizontal DCT III vertical decomposition edge block vert. edges IV vertical DCT

  26. Edge Coding: Algorithm original I horizontal decomposition edge block horiz. edges II horizontal DCT III vertical decomposition edge block vert. edges IV vertical DCT

  27. Edge Coding: Algorithm original I horizontal decomposition edge block horiz. edges II horizontal DCT III vertical decomposition edge block vert. edges IV vertical DCT

  28. Results • 2x size of tone-mapped MPEG-4 video • 20-30x saving compared to intra-frame compression (OpenEXR) Bit-stream Size

  29. Demo & Applications • Display dependent rendering • Choice of tone-mapping • Extended postprocessing

  30. Conclusions • HDR video compression • Modest changes to MPEG-4 • Lpu’v’ color space • Luminance quantization (10-11 bits) • Edge coding • Applications • On-the-fly tone mapping • Blooming, motion blur, night vision • Tuned for display • LDR / HDR Display

  31. Acknowledgments Comments and help • Volker Blanz • Scott Daly • Michael Goesele • Jeffrey Schoner • HDR Images and Sequences • Paul Debevec • SpheronVR • Jozef Zajac • Christian Fuchs • Patrick Reuter • HDR Camera • HDRC(R) VGAx courtesy of IMS CHIPSwww.hdrc.com

  32. Thank you http://www.mpi-sb.mpg.de/resources/hdrvideo/
