Comprehensive Control Room Setup for Multi-Track Recording and Effects Processing

This detailed guide covers the essential components of a control room designed for multi-track recording and effects processing. Learn about interfacing inputs, buses, and masters, including mic/line pads, tape inputs, flip switches, and Aux sends. Discover the functionalities of headphone cues, mixdown settings, and the essential Mix A/B configurations. Get insights into how phase adjustments, levels, and effects can enhance your recordings, and master the art of sound mixing by effectively utilizing your studio's capabilities.

shadi
Télécharger la présentation

Comprehensive Control Room Setup for Multi-Track Recording and Effects Processing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Signal Flow Icons

  2. Input

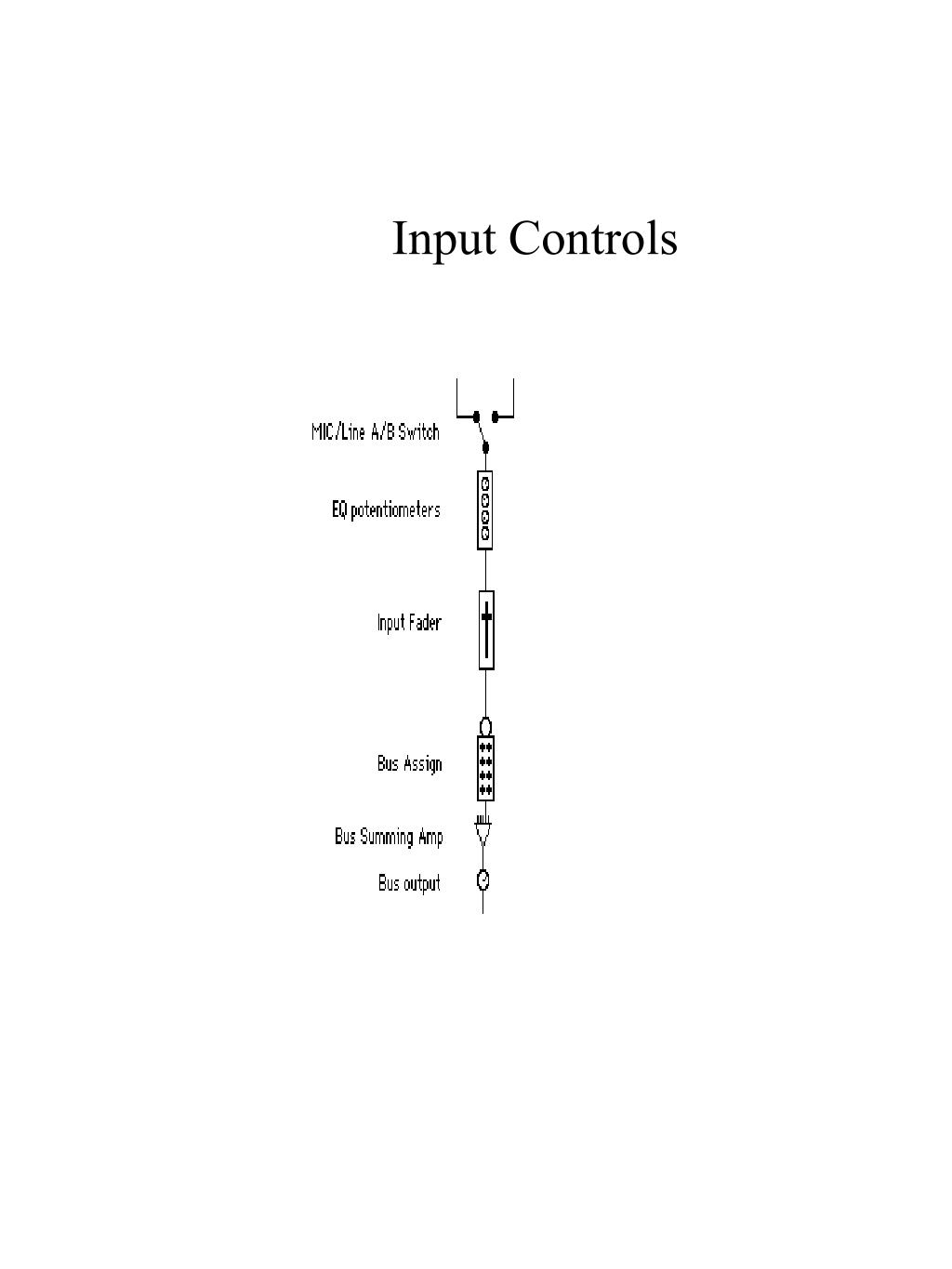

  3. Input Controls

  4. Multi-Track and Effects Sends

  5. Control Room and Master Outputs

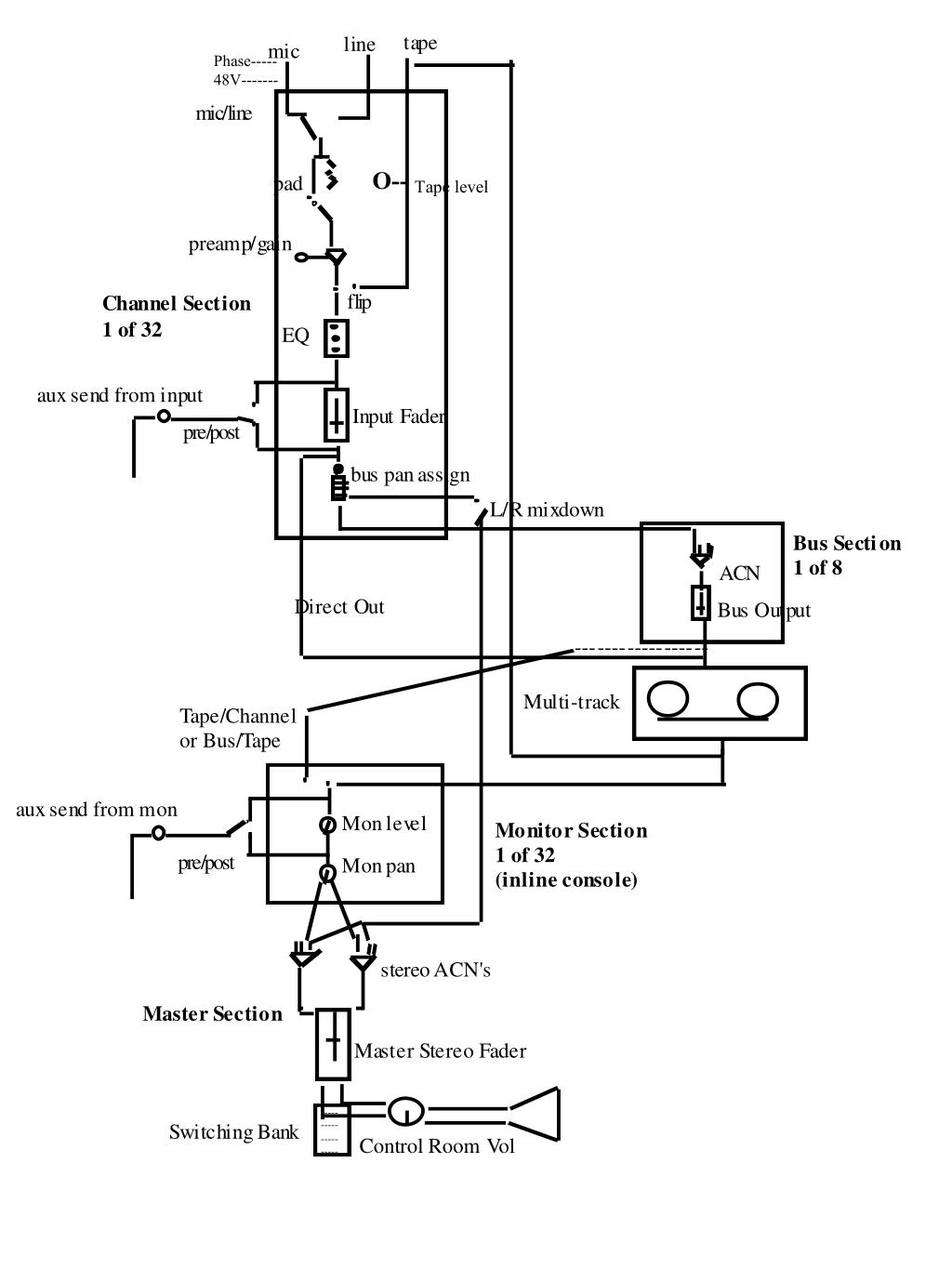

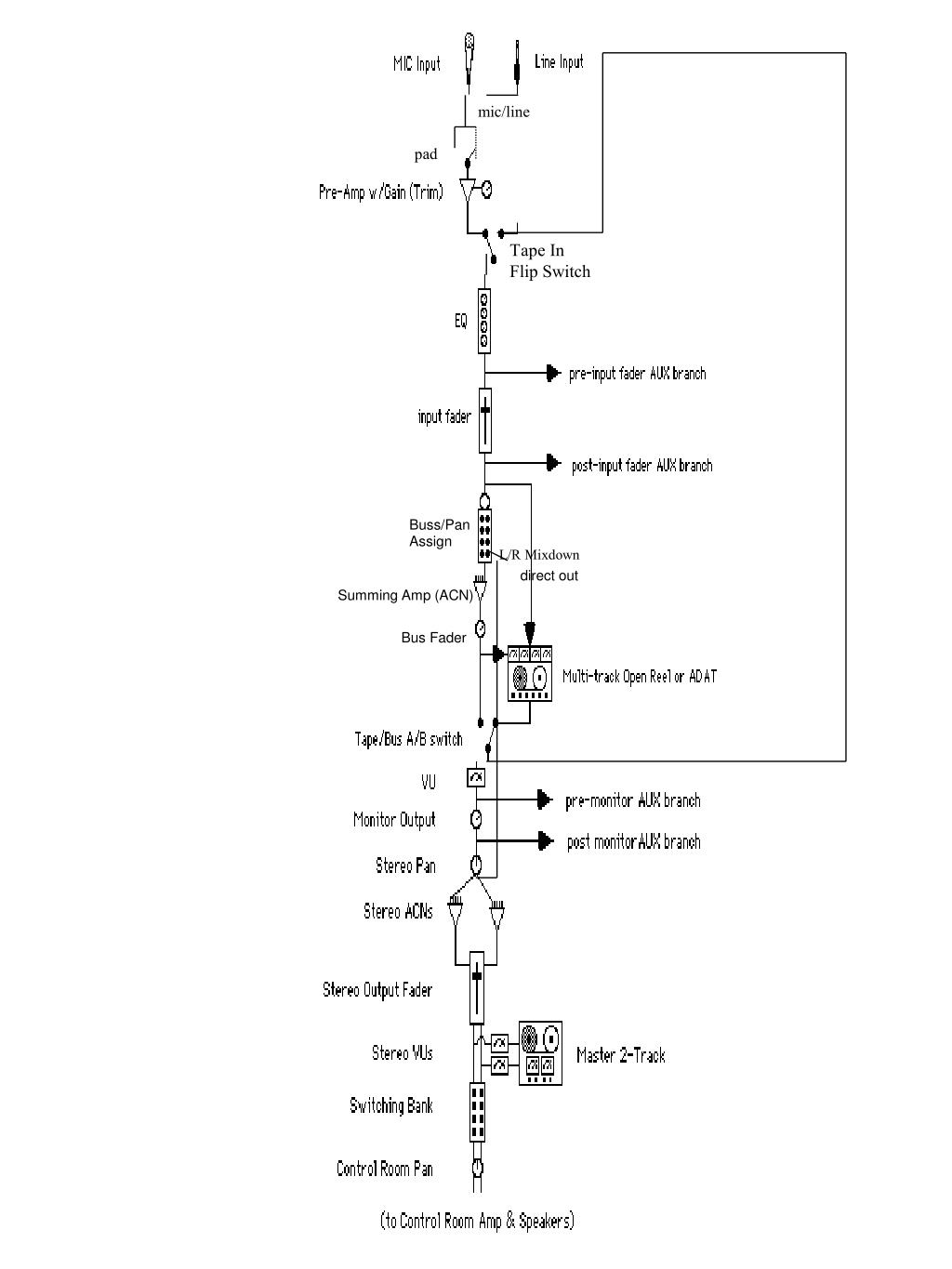

  6. mic/line pad Tape In Flip Switch Buss/Pan Assign L/R Mixdown direct out Summing Amp (ACN) Bus Fader

  7. Bus Out Direct Out

  8. Phase----- 48V------- O-- Tape level

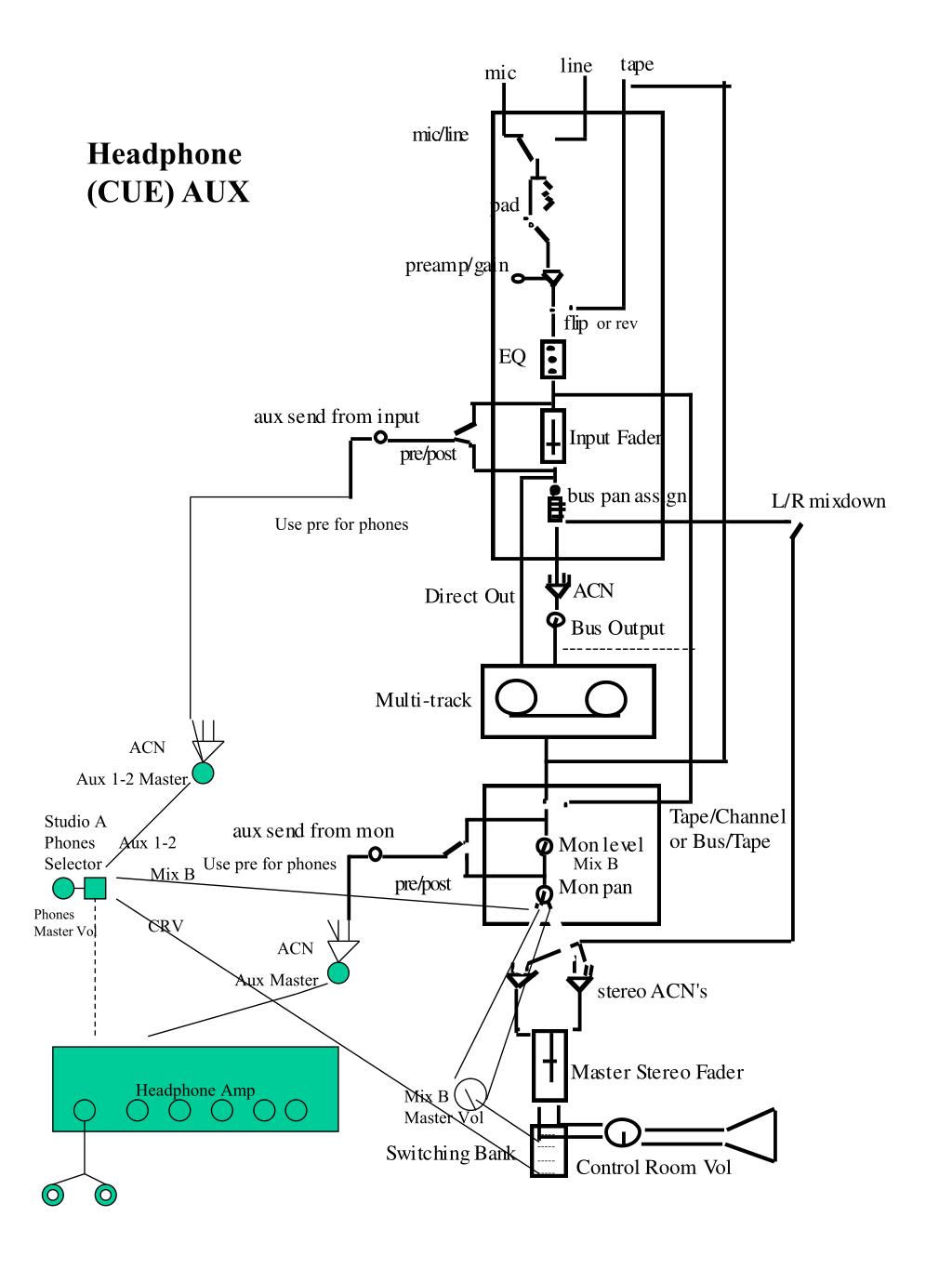

  9. Headphone (CUE) AUX or rev Use pre for phones ACN Aux 1-2 Master Studio A Phones Selector Aux 1-2 Use pre for phones Mix B Mix B Phones Master Vol CRV ACN Aux Master Headphone Amp Mix B Master Vol

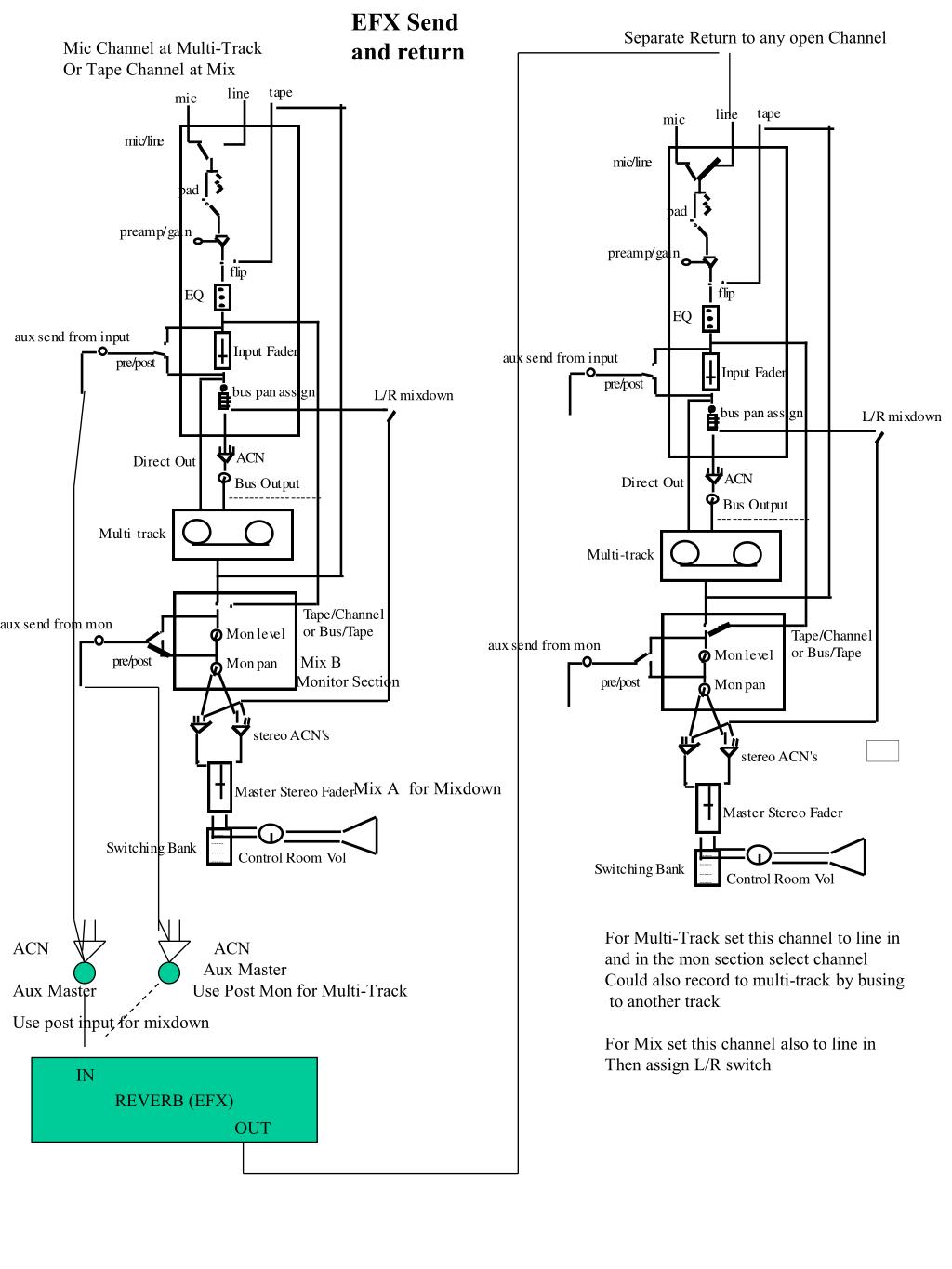

  10. EFX Send and return Separate Return to any open Channel Mic Channel at Multi-Track Or Tape Channel at Mix Mix B Monitor Section Mix A for Mixdown For Multi-Track set this channel to line in and in the mon section select channel Could also record to multi-track by busing to another track For Mix set this channel also to line in Then assign L/R switch ACN ACN Aux Master Aux Master Use Post Mon for Multi-Track Use post input for mixdown REVERB (EFX) IN OUT

  11. Aux Send Cue (Headphones)

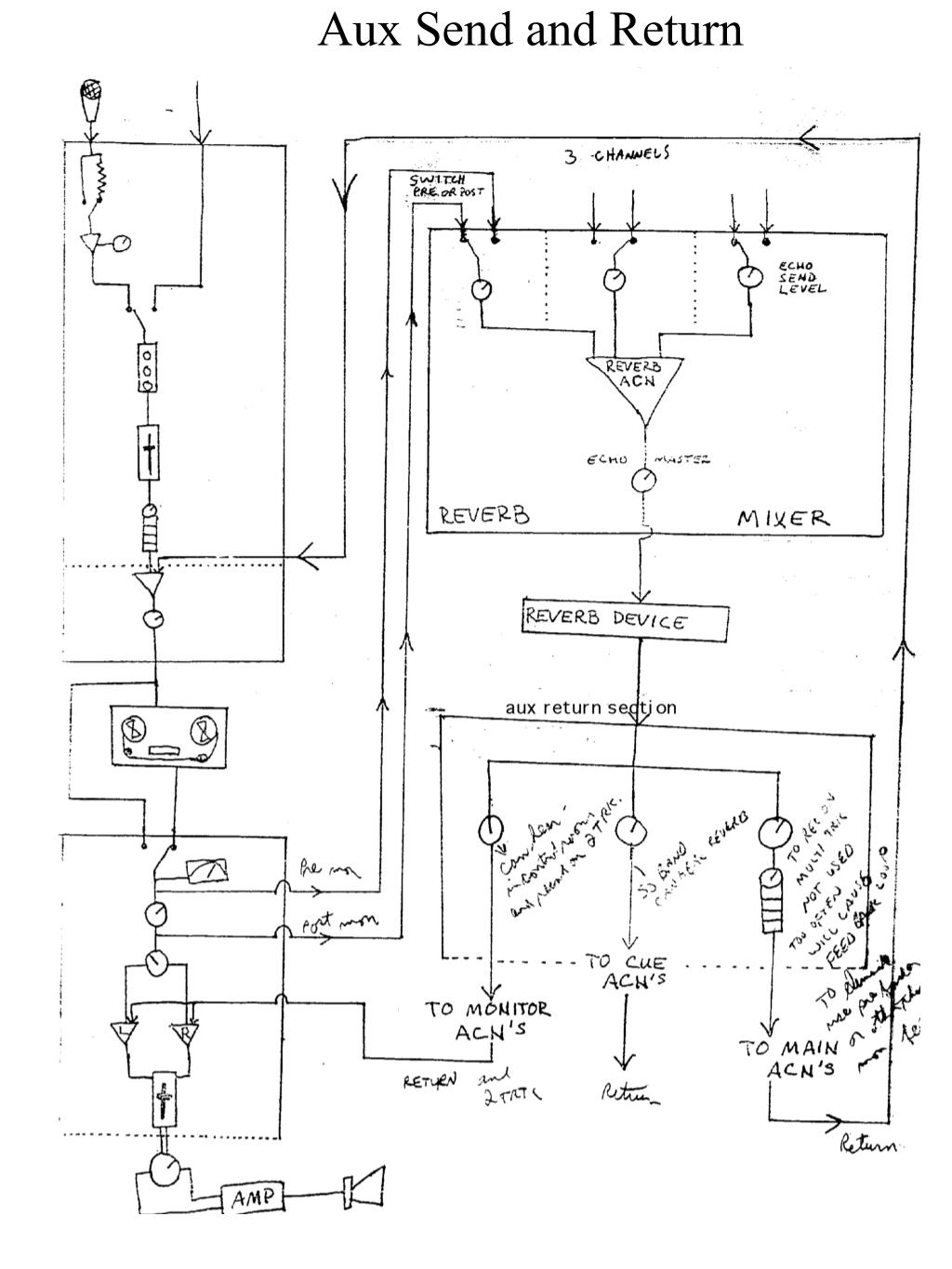

  12. Aux Send and Return
